KonaRemote 160
- Motor
- Bosch Performance Line CX85 Nm stock, up to 100 Nm via Bosch update (Bosch figure)
- Battery
- 800 WhBosch PowerTube 800
- Travel F / R
- 170 / 160 mm
- Wheels
- 29" (size S: Mullet 29" / 27.5")
- Frame
- Alloy
Overview
The Kona Remote 160 (€6,999) is the only build of the Remote 160: Bosch Performance Line CX with 800 Wh, Rockshox Zeb Select fork, Rockshox Super Deluxe Select+ shock, SRAM Eagle 90 Transmission and SRAM Maven Base brakes. Kona does not publish a claimed weight.
The Remote 160 is Kona's aluminium full-suspension e-MTB with 160 mm of rear travel and a 170 mm fork. For the 2027 line-up it moves to Bosch's full-power Performance Line CX drive with an 800 Wh PowerTube battery and the BRC3100 remote.
It rolls on 29-inch wheels front and rear, except size S, which runs a 27.5-inch rear tyre. The frame is Kona 6061 butted aluminium, offered in S to XL.
- 160 mm rear / 170 mm fork
- Bosch Performance Line CX
- 800 Wh PowerTube battery
- Butted 6061 aluminium frame
Gallery

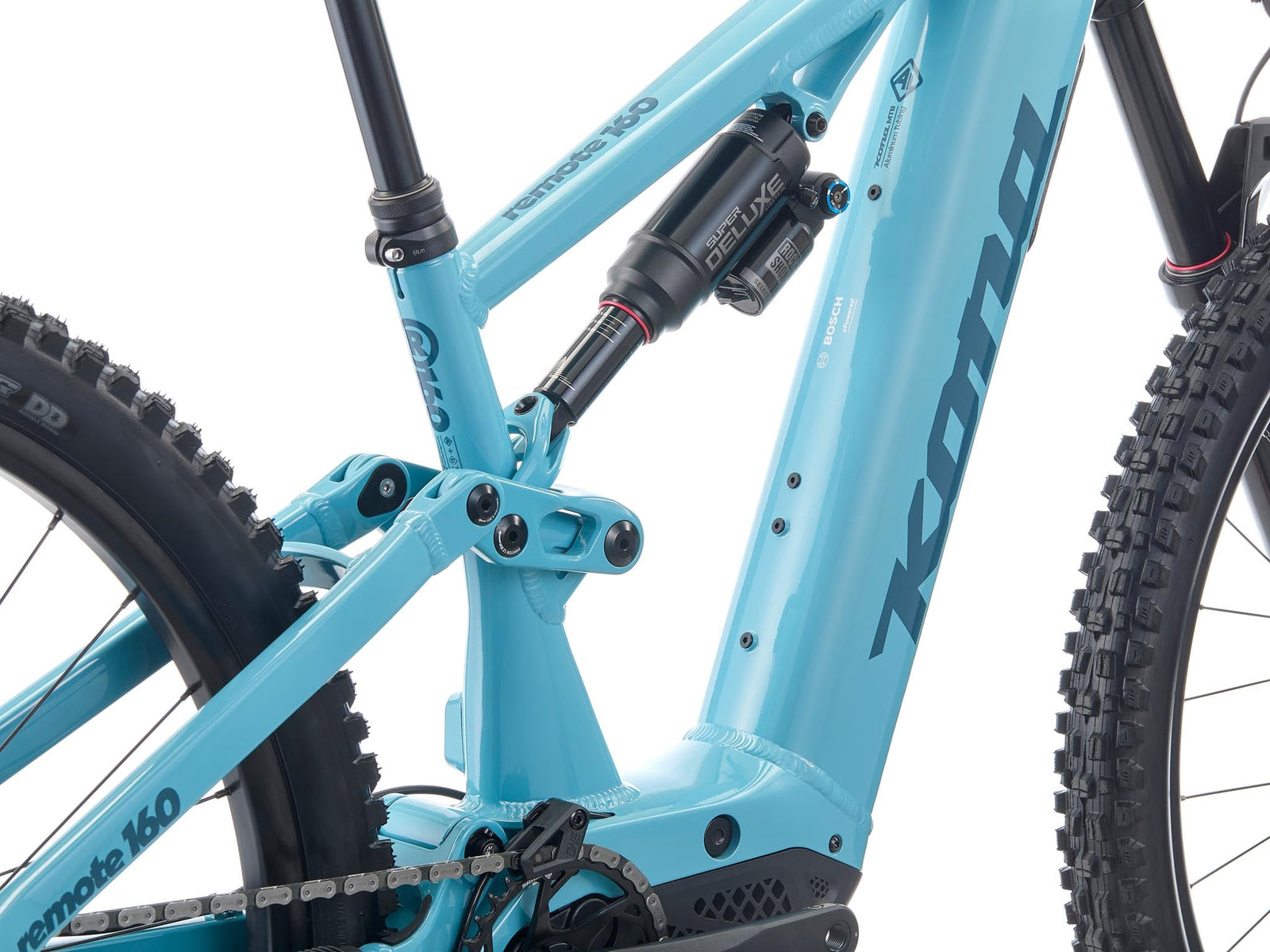

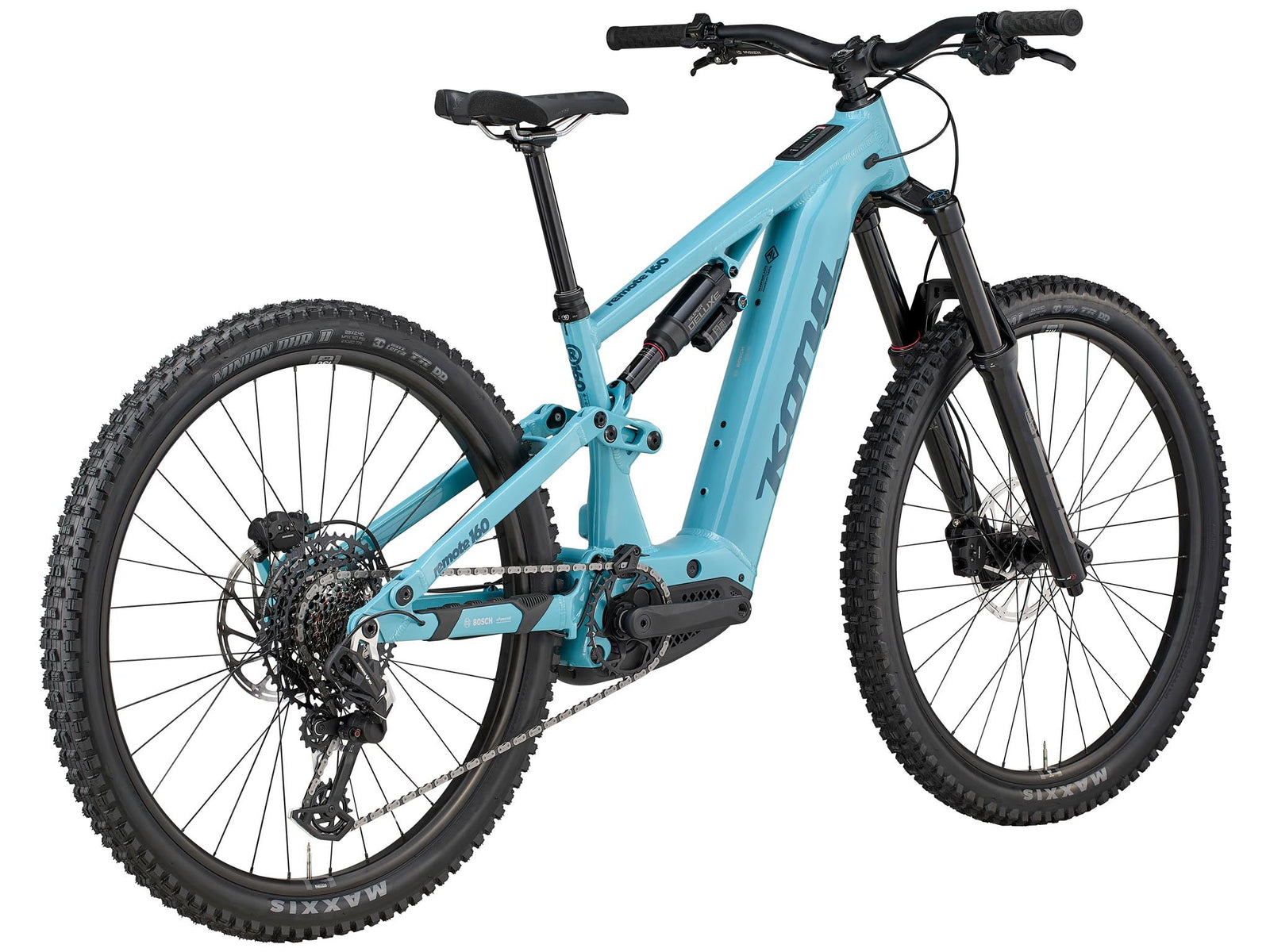

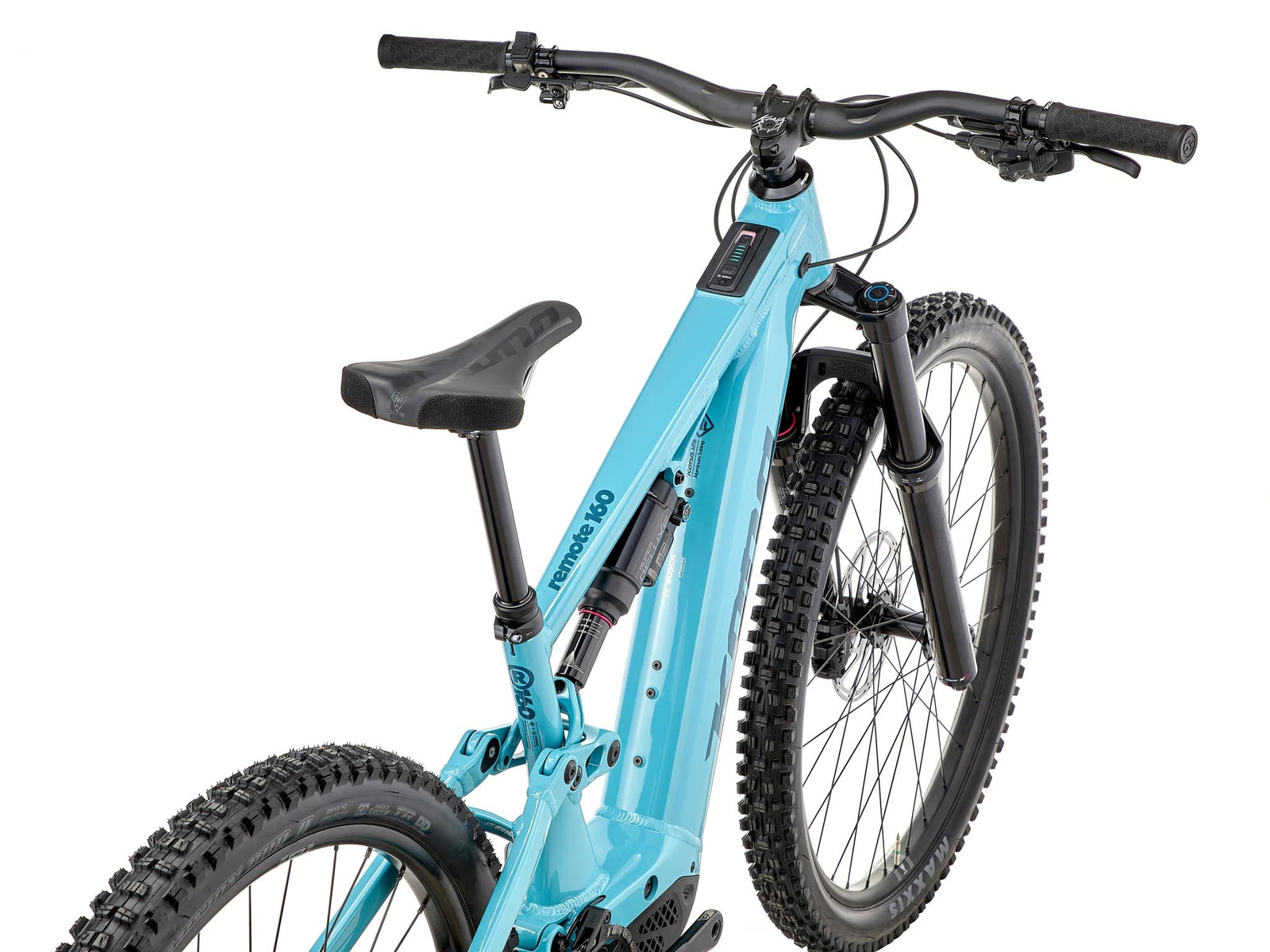

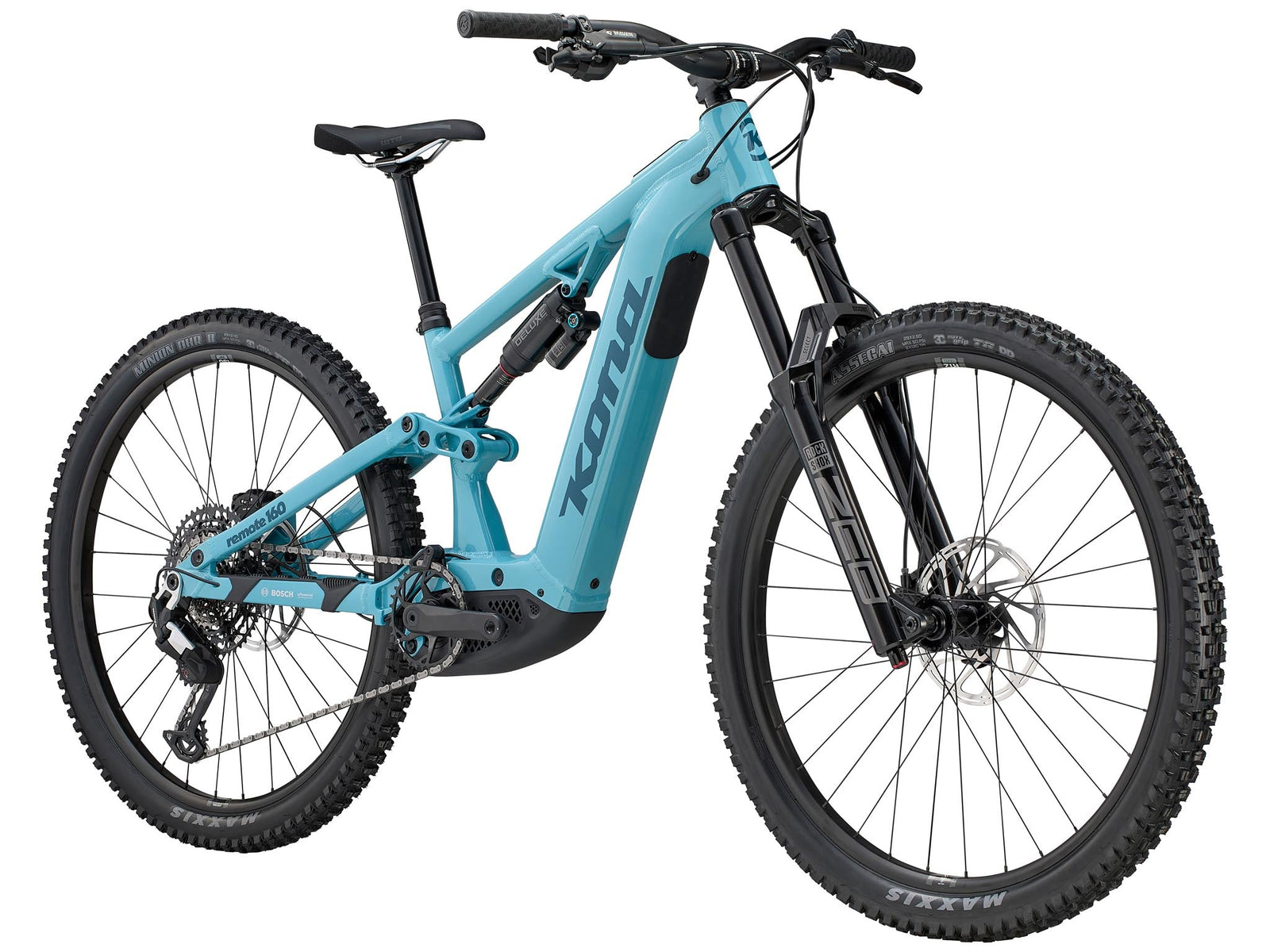

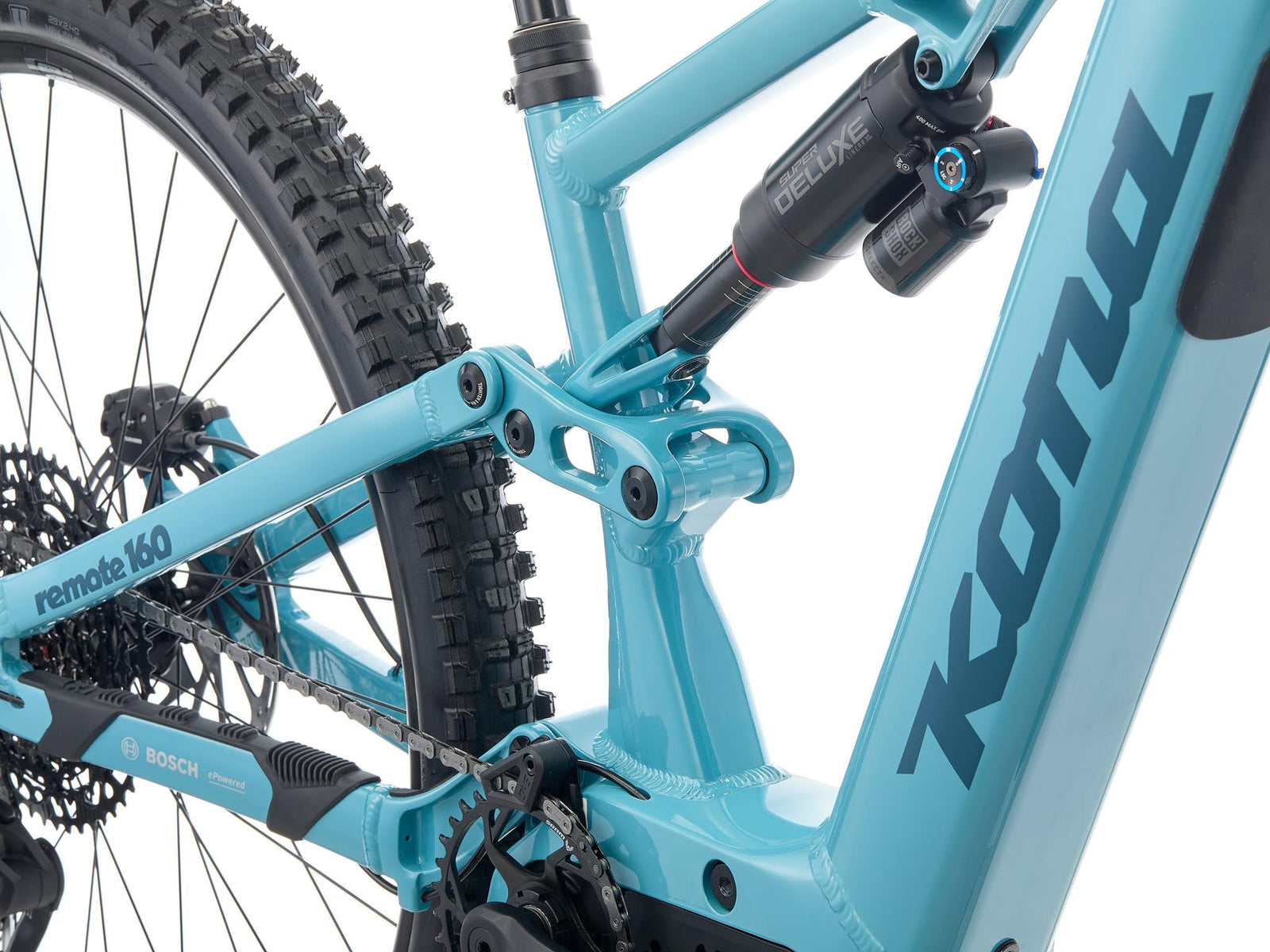

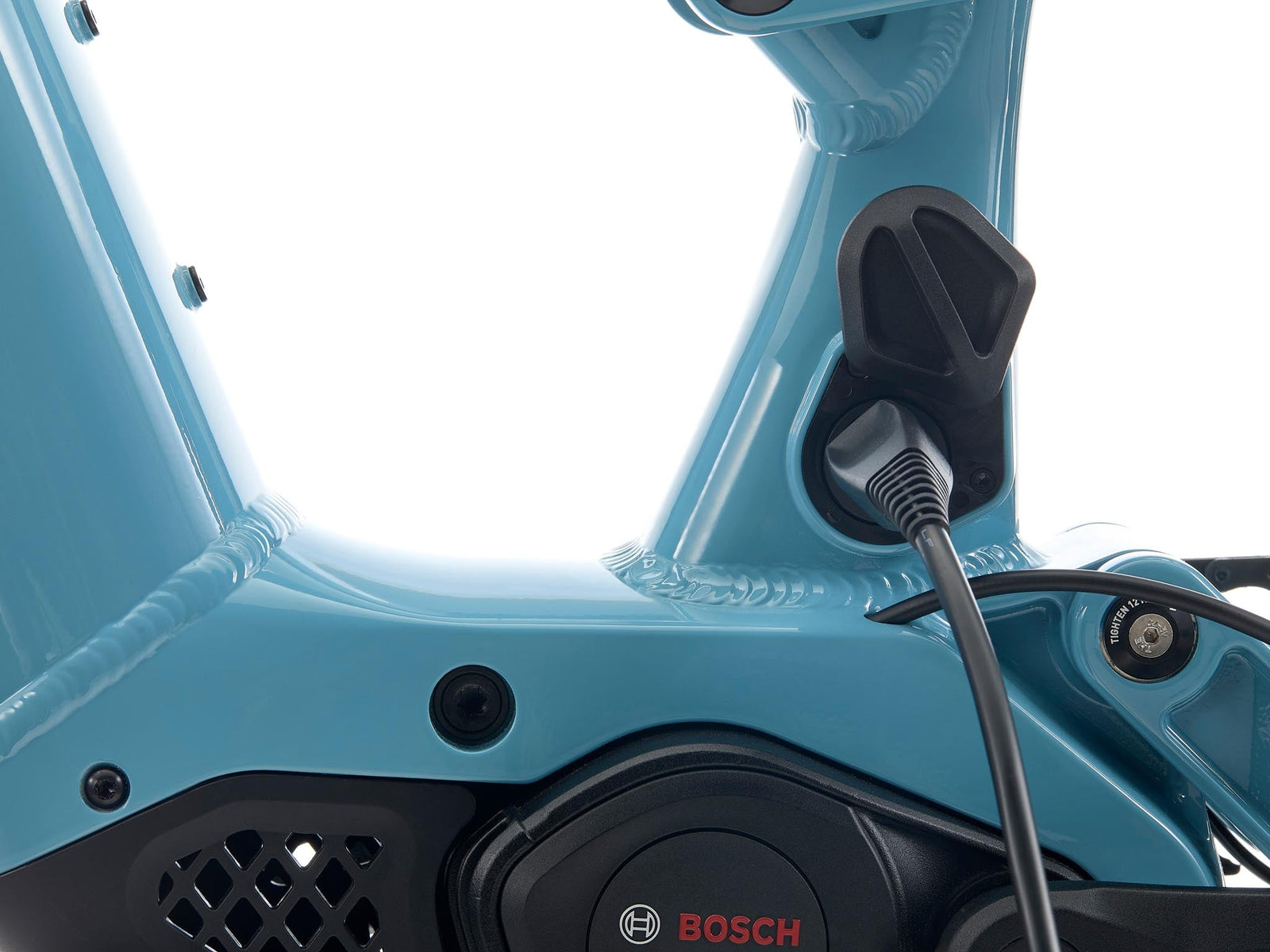

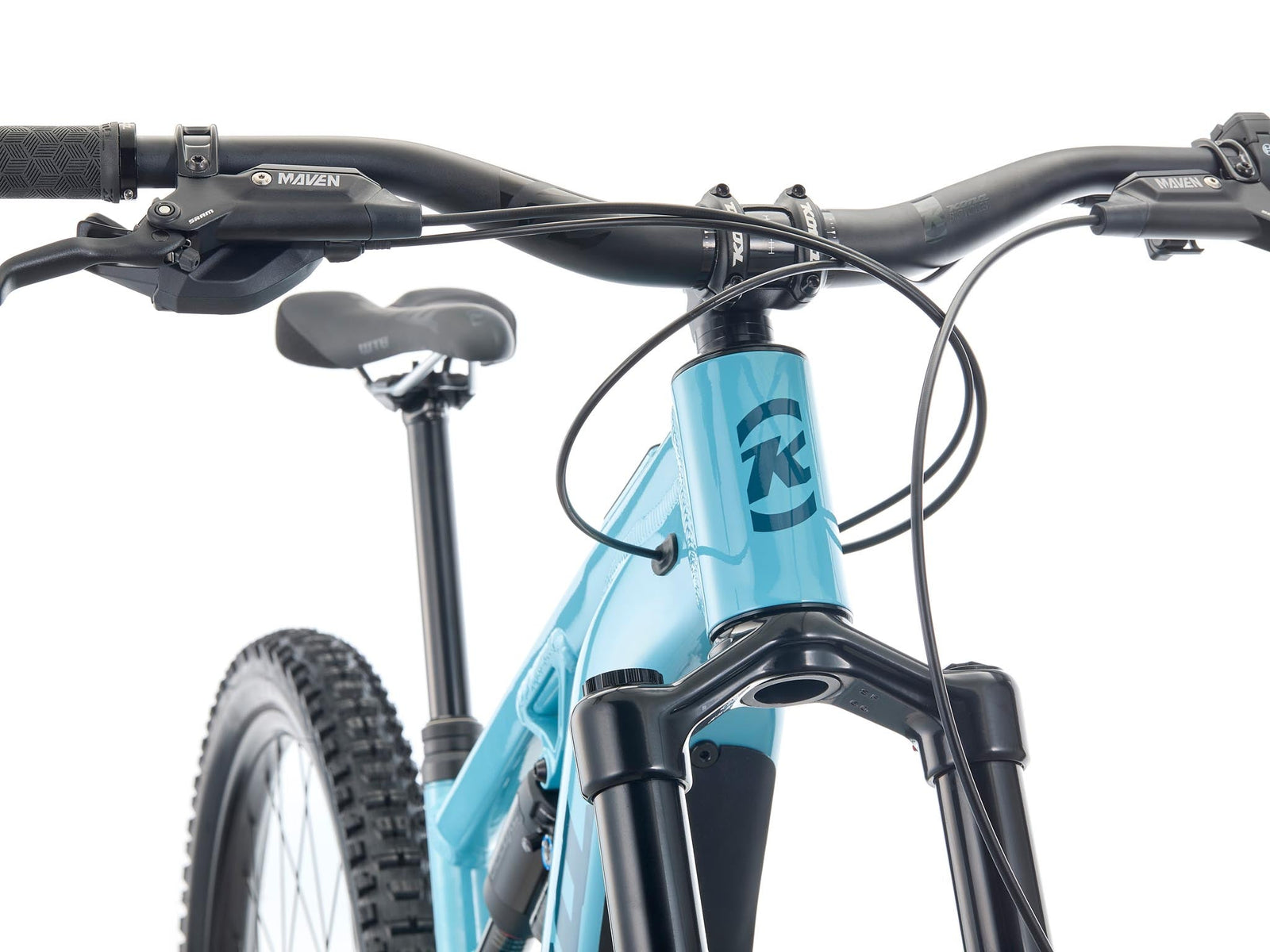

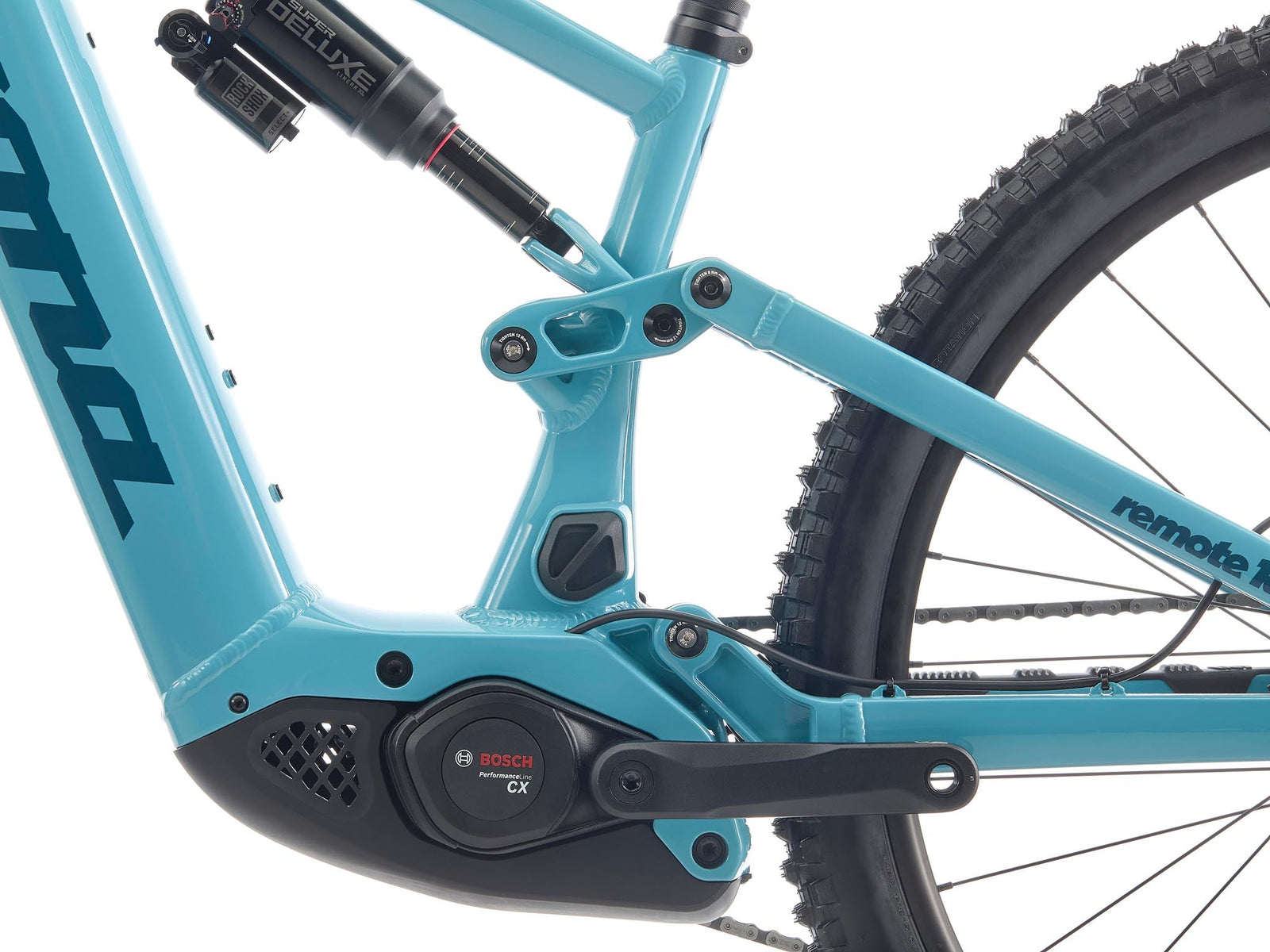

Photos: Kona
Full specifications
Frame & suspension
- Frame
- Kona 6061 Aluminum Butted 160mm Travel
- Sizes
- S, M, L, XL
- Rear shock
- Rockshox Super Deluxe Select+ 230x57.5mm
- Fork
- Rockshox Zeb Select 170mm 29"
- Headset
- FSA NO.55R/57 ZS56/ZS56
- Colour
- Gloss Reef Blue w/ Atlantic Blue Decals
E-system
- Motor
- Bosch Performance Line CX 25kmh
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch BRC3100
- Charger
- Bosch 4A (110V)
Drivetrain
- Crankset
- FSA CK-745 155mm 34t
- Chain
- SRAM Eagle 70 T-Type
- Cassette
- SRAM Eagle 70 10-52t 12spd
- Chainguide
- One Up
- Rear derailleur
- SRAM Eagle 90 Transmission
- Shifter
- SRAM Eagle 70 Transmission
Brakes
- Brakes
- SRAM Maven Base
- Front brake rotor
- SRAM Centerline 200mm 6B
- Rear brake rotor
- SRAM Centerline 200mm 6B
- Brake levers
- SRAM Maven Base
Wheels & tyres
- Front hub
- Formula 15x110mm
- Rear hub
- Formula 12x148mm HG
- Spokes
- Stainless 2.0mm Black
- Rims
- WTB HTZ Trail i30
- Front tyre
- Maxxis Assegai 29x2.5" DoubleDown MaxxGrip
- Rear tyre
- Maxxis DHR II 29x2.4" (Size S 27.5x2.4") DoubleDown MaxxTerra
Cockpit
- Handlebar
- Kona 35mm / Back 10º / Up 5º / Rise 38mm / Width S 760mm / M 780mm / L-XL 800mm
- Stem
- Kona 35mm / Rise 0º / Length 40mm
- Seatpost
- TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm
- Seat clamp
- Kona Clamp 34.9mm
- Grips
- Kona Key Grip Lock-on
- Saddle
- WTB Volt Cromoly SL
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Remote 160 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat tube length | 380 mm | 385 mm | 420 mm | 450 mm |
| 2Top tube length | 560 mm | 585 mm | 613 mm | 652 mm |
| 3Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| 4Stack | 636 mm | 636 mm | 646 mm | 656 mm |
| 5Standover | 763 mm | 763 mm | 770 mm | 775 mm |
| 6Head tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 7Head tube length | 115 mm | 115 mm | 126 mm | 137 mm |
| 8Seat tube angle | 78.4° | 78.4° | 78.3° | 78.2° |
| 9Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| 10BB drop | 15 mm | 25 mm | 25 mm | 25 mm |
| 11BB height | 350 mm | 350 mm | 350 mm | 350 mm |
| 12Wheelbase | 1228 mm | 1253 mm | 1283 mm | 1323 mm |
| 13Front Center | 784 mm | 809 mm | 839 mm | 879 mm |
| 14Fork Length | 586 mm | 586 mm | 586 mm | 586 mm |
| 15Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
Source: Kona.
Remote 160: FAQ
How much does the Kona Remote 160 cost?
€6,999 (Kona EU store RRP (en-eu.konaworld.com)). Prices vary by country and dealer.
What motor and battery does the Kona Remote 160 have?
Bosch Performance Line CX (85 Nm stock, up to 100 Nm via Bosch update (Bosch figure)). 800 Wh battery — bosch PowerTube 800.
How much suspension travel does the Kona Remote 160 have?
170 mm at the fork and 160 mm at the rear, on 29" (size S: Mullet 29" / 27.5") wheels.
What sizes does the Kona Remote 160 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
