KonaRemote X
- Motor
- Bosch Performance Line CX85 Nm stock, up to 100 Nm via Bosch update (Bosch figure)
- Battery
- 800 WhBosch PowerTube 800
- Travel F / R
- 180 / 180 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Kona Remote X (€7,499) is the only build of the Remote X: Bosch Performance Line CX with 800 Wh, Fox 38 Performance Elite fork, Fox Float X Performance Elite shock, SRAM Eagle 90 Transmission and TRP EVO PRO brakes. Kona does not publish a claimed weight.
The Remote X is Kona's long-travel e-enduro bike, with 180 mm of rear travel and a 180 mm Fox 38 fork on a butted 6061 aluminium frame.
It uses the Bosch Performance Line CX motor with an 800 Wh PowerTube battery and mixed wheels (29-inch front, 27.5-inch rear). Kona builds it for big hits, rough lines and long days.
- 180 mm travel front and rear
- Bosch Performance Line CX
- 800 Wh PowerTube battery
- Mixed wheels, aluminium frame

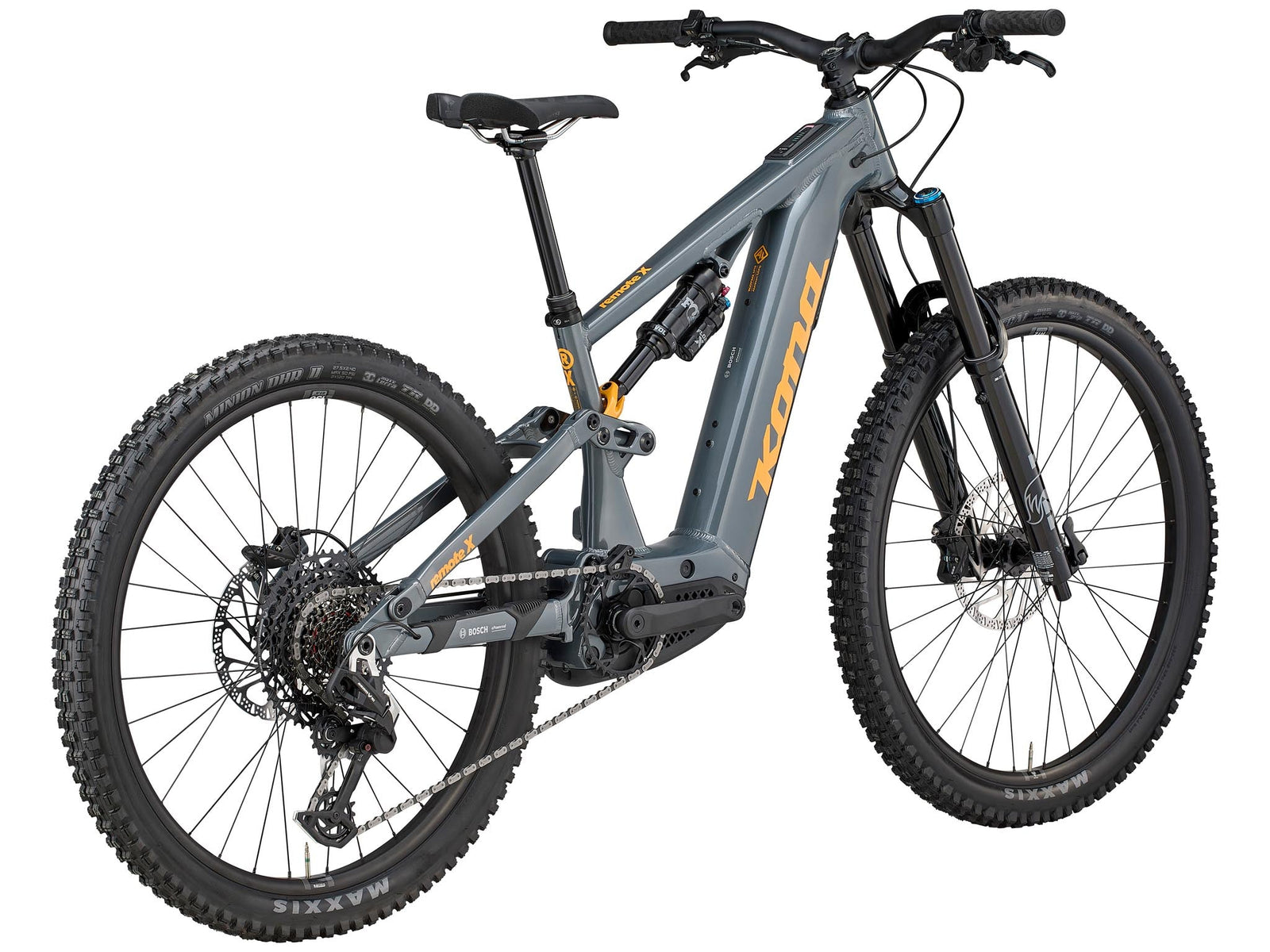

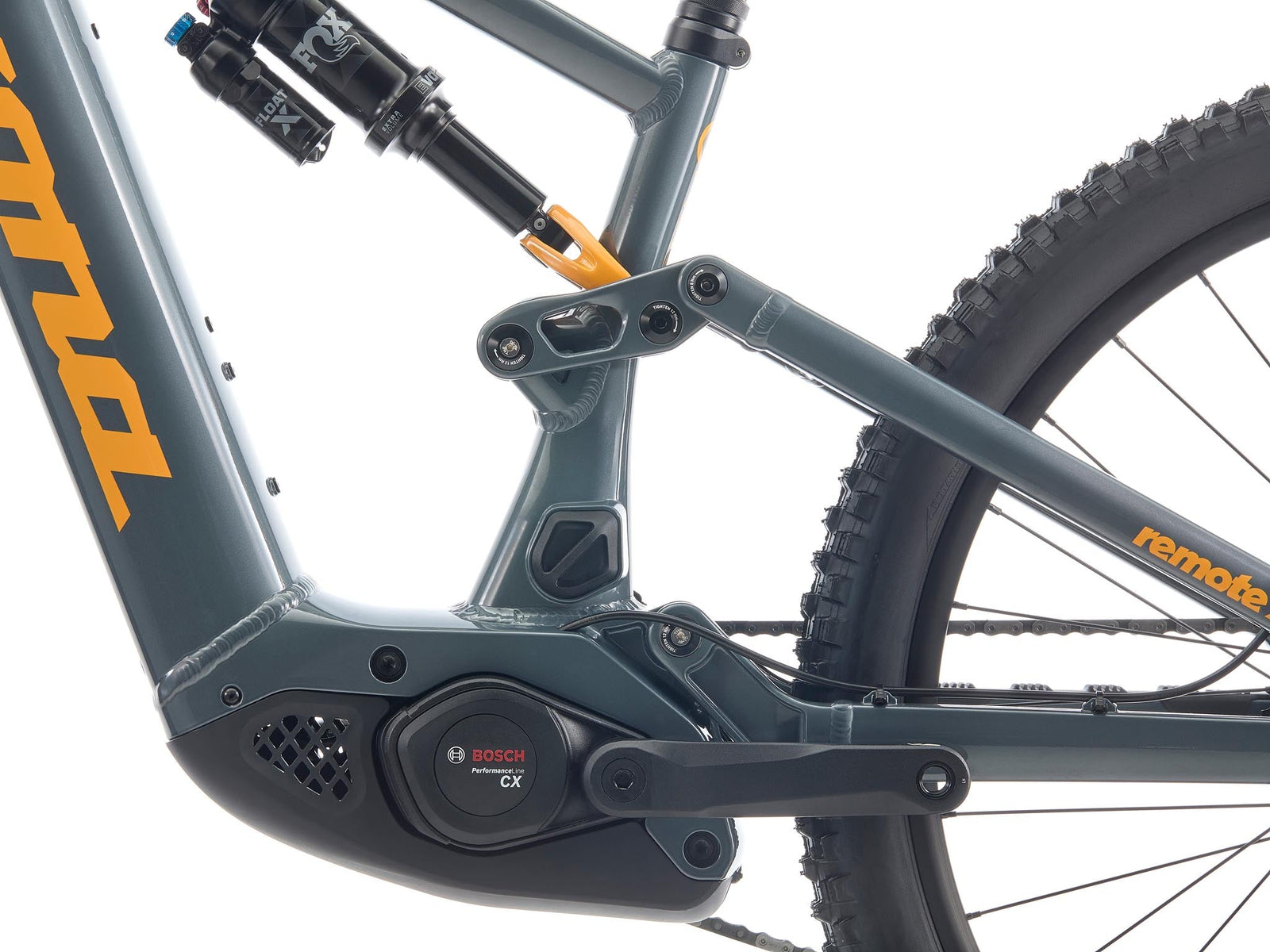

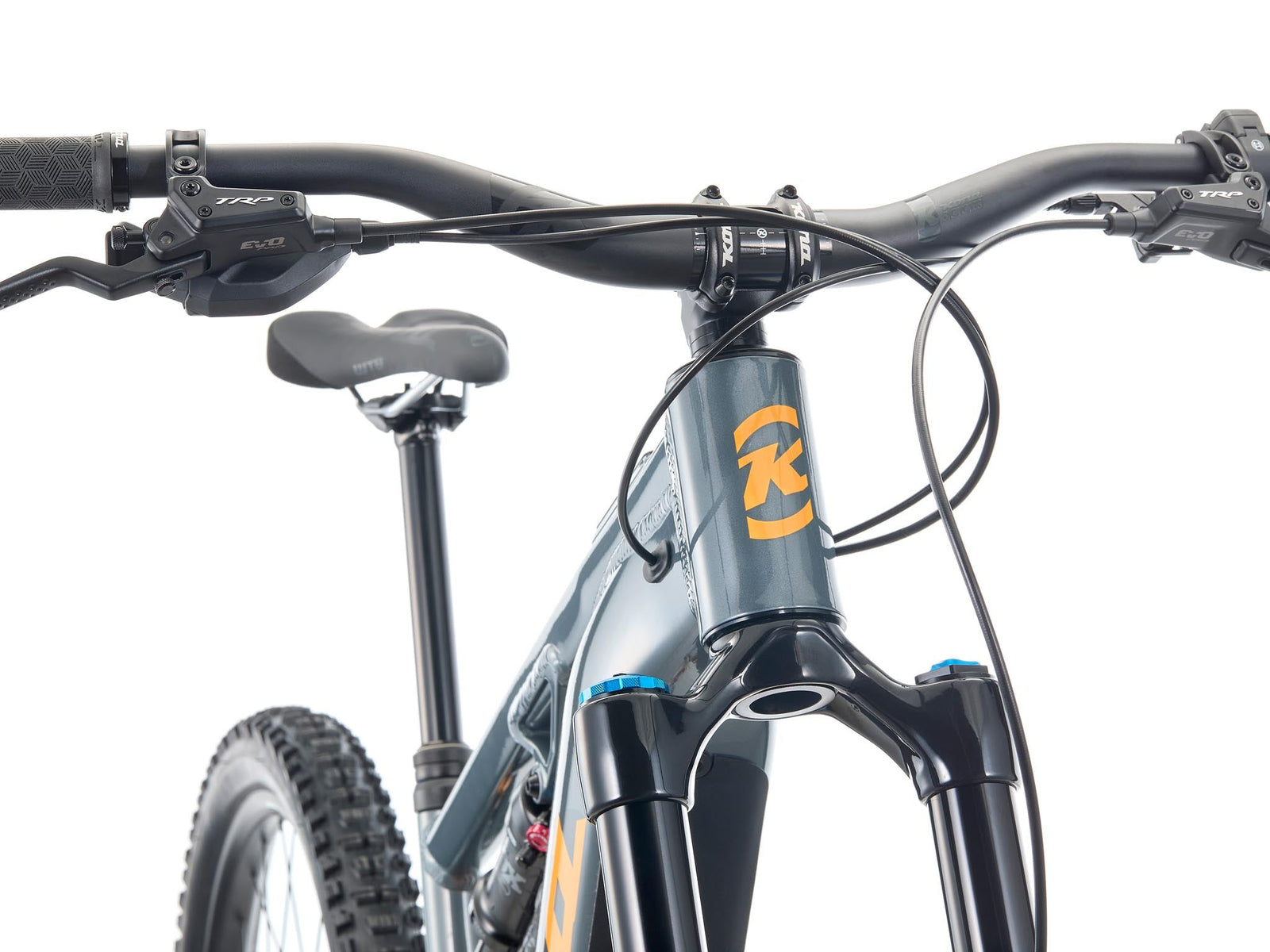

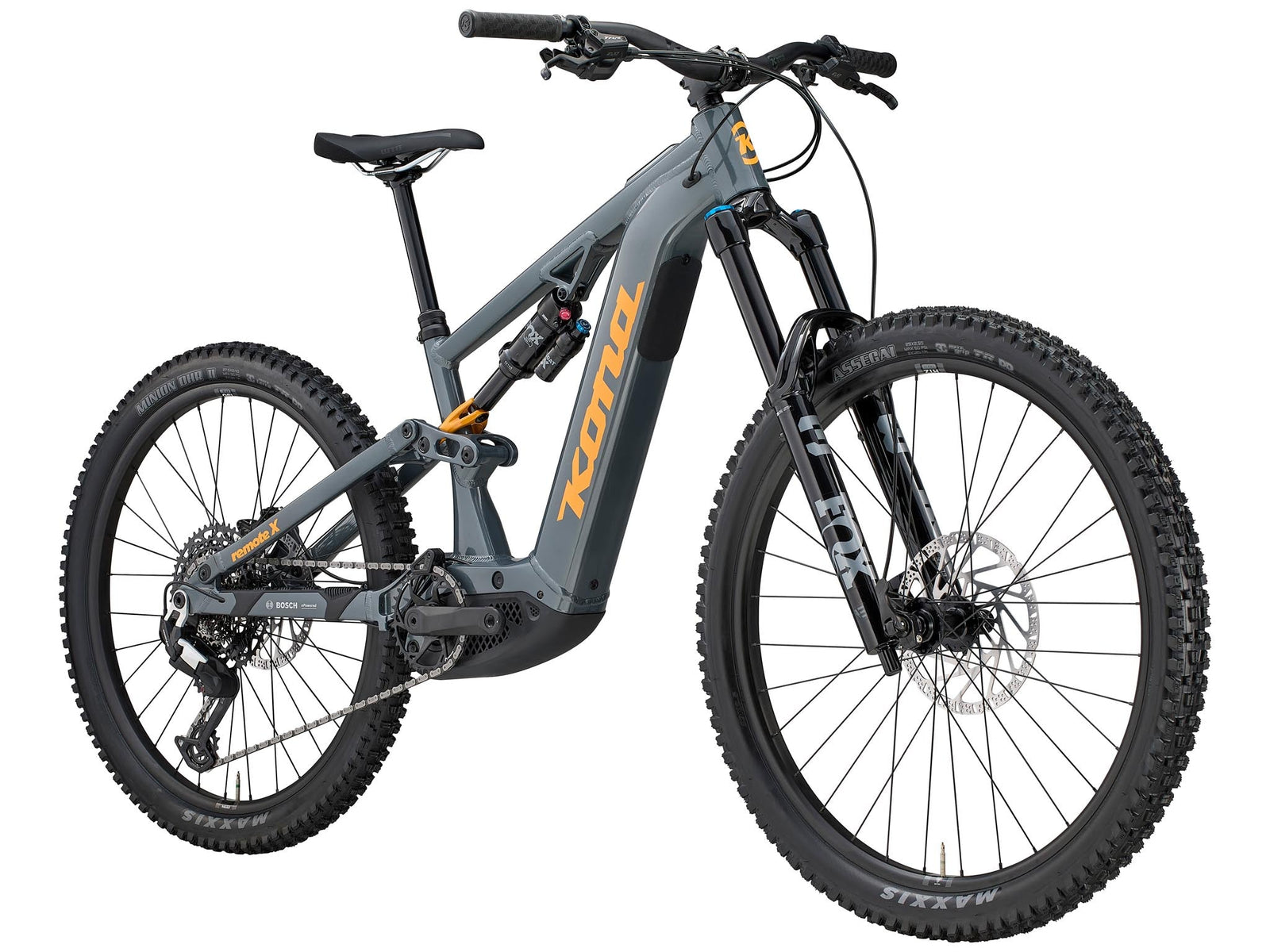

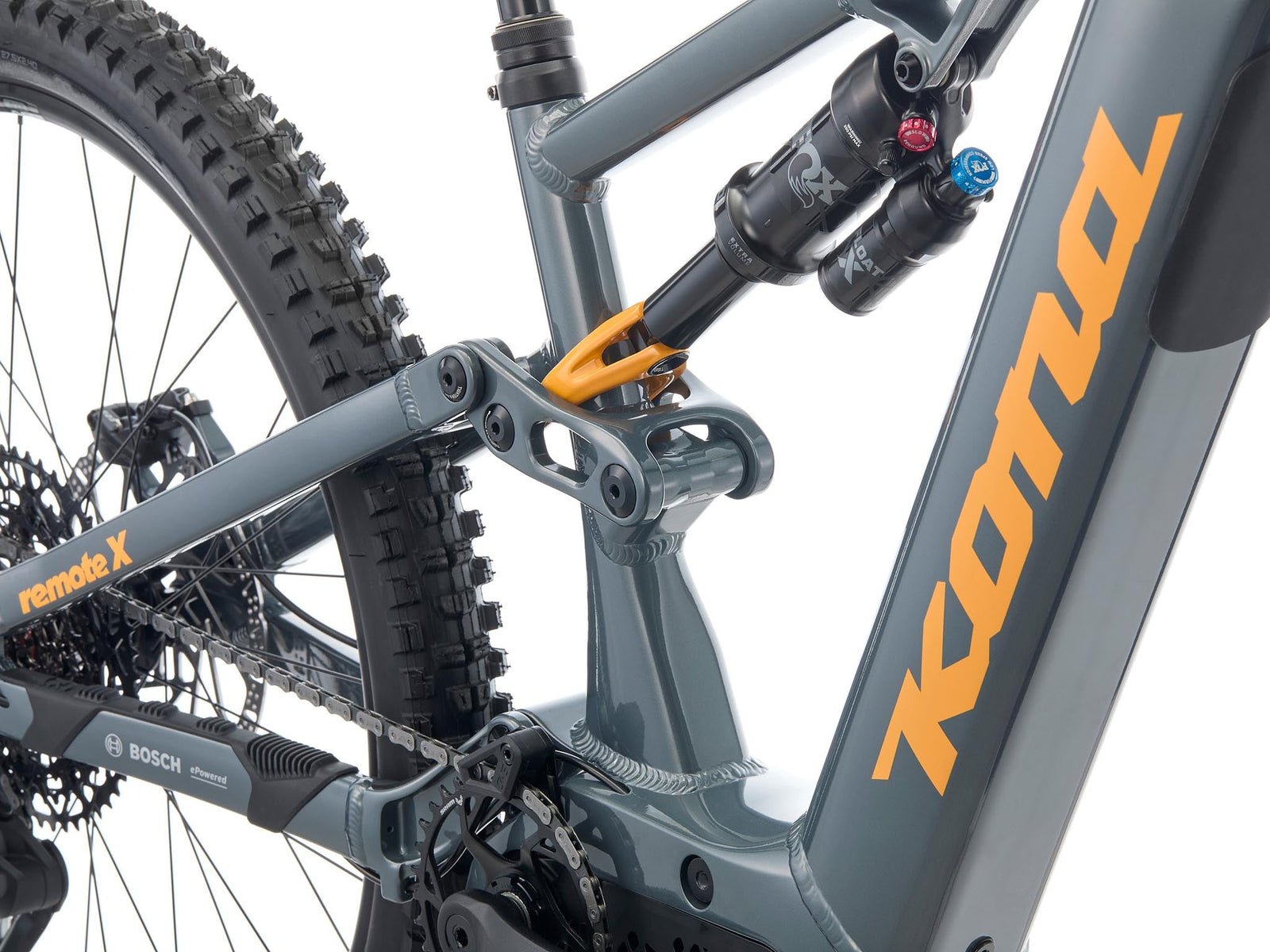

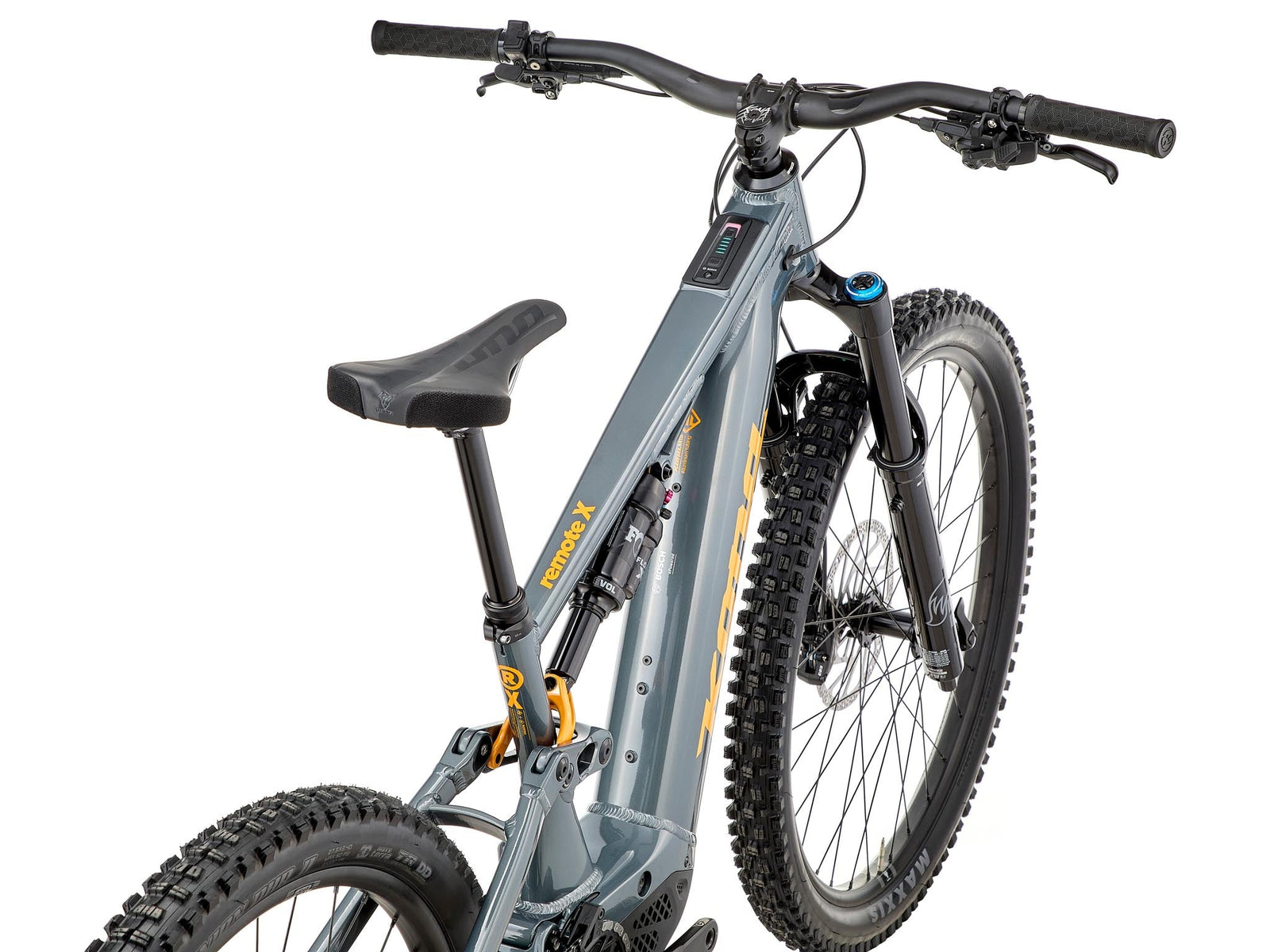

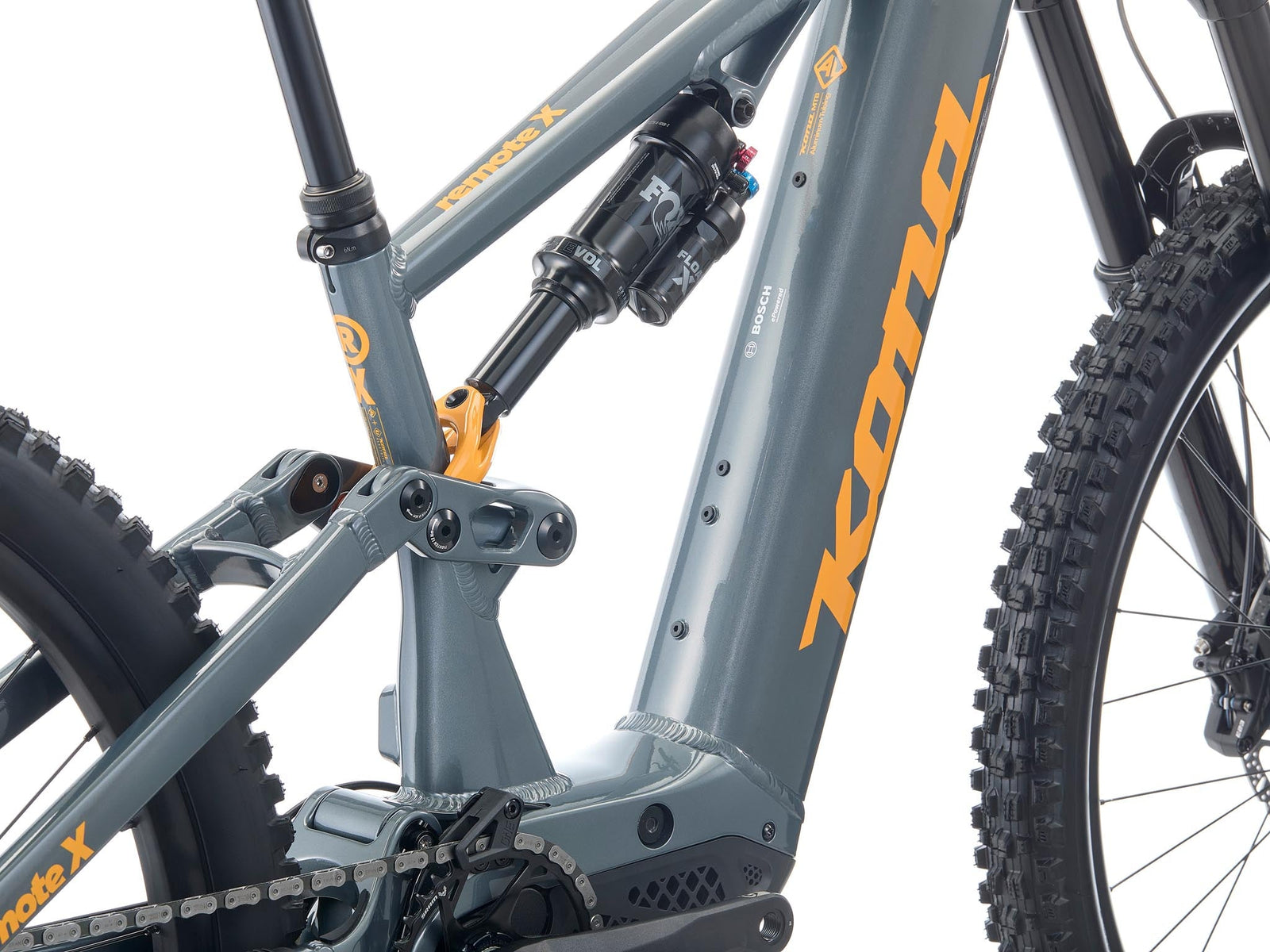

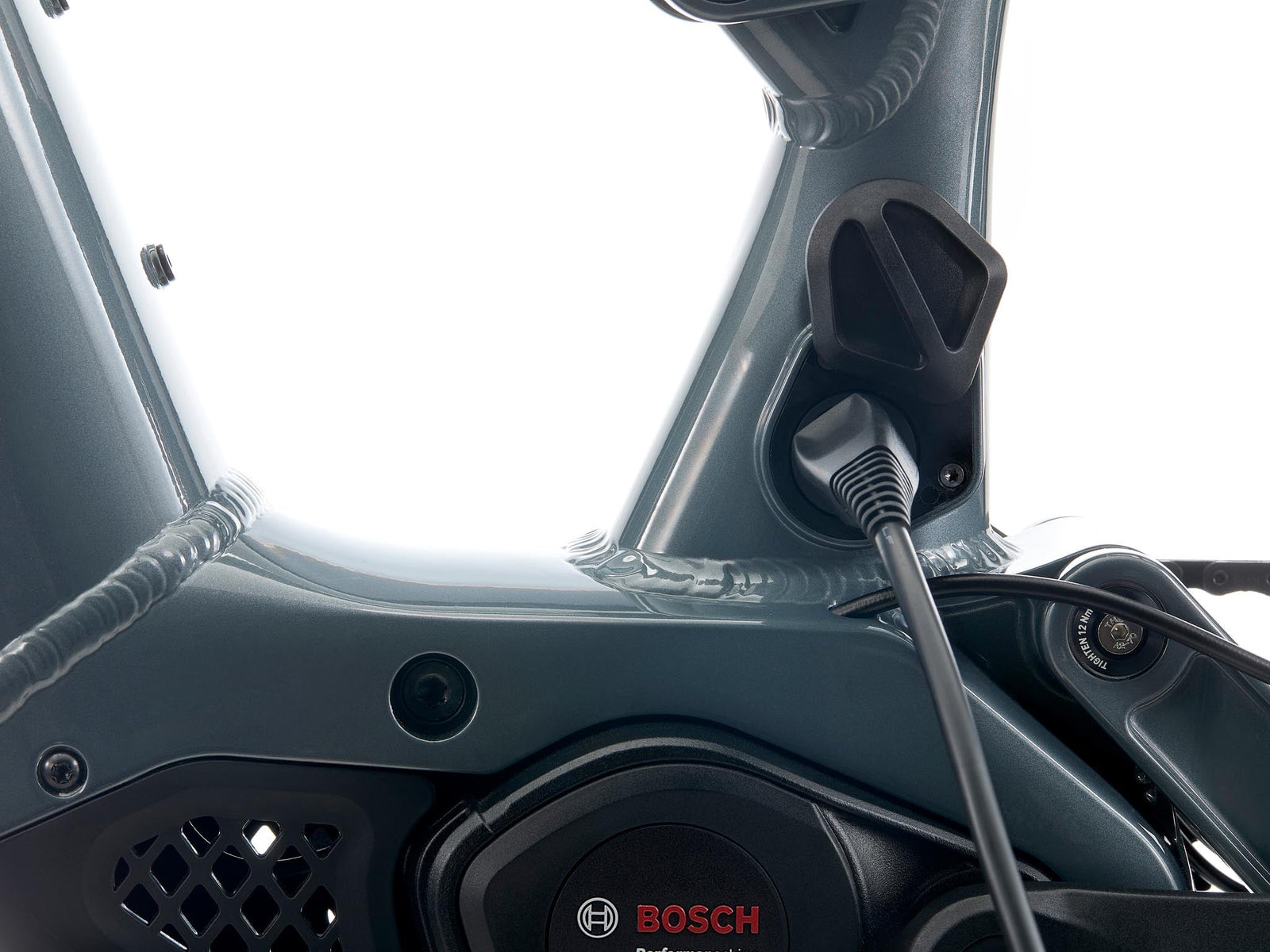

Gallery
Photos: Kona
Full specifications
Frame & suspension
- Frame
- Kona 6061 Aluminum Butted 180mm Travel
- Sizes
- S, M, L, XL
- Rear shock
- Fox Float X Performance Elite 230x62.5mm
- Fork
- Fox 38 Performance Elite 180mm travel
- Headset
- FSA NO.55R/57 ZS56/ZS56
- Colour
- Gloss Metallic Dark Faux Raw w/ Mimosa Decals
E-system
- Motor
- Bosch Performance Line CX 25kmh
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch BRC3100
- Charger
- Bosch 4A (110V)
Drivetrain
- Crankset
- FSA CK-745 155mm 34t
- Chain
- SRAM Eagle 70 T-Type
- Cassette
- SRAM Eagle 70 10-52t 12spd
- Chainguide
- One Up
- Rear derailleur
- SRAM Eagle 90 Transmission
- Shifter
- SRAM Eagle 70 Transmission
Brakes
- Brakes
- TRP EVO PRO
- Front brake rotor
- TRP 220mm 6B 2.3mm
- Rear brake rotor
- TRP 203mm 6B 2.3mm
- Brake levers
- TRP EVO PRO
Wheels & tyres
- Front hub
- Formula 15x110mm
- Rear hub
- Formula 12x148mm HG
- Spokes
- Stainless 2.0mm Black
- Rims
- WTB HTZ Trail i30
- Front tyre
- Maxxis Assegai 29x2.5" DoubleDown MaxxGrip
- Rear tyre
- Maxxis DHR II 27.5x2.4" DoubleDown MaxxTerra
Cockpit
- Handlebar
- Kona 35mm / Back 10º / Up 5º / Rise 38mm / Width S 760mm / M 780mm / L-XL 800mm
- Stem
- Kona 35mm / Rise 0º / Length 40mm
- Seatpost
- TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm
- Seat clamp
- Kona Clamp 34.9mm
- Grips
- Kona Key Grip Lock-on
- Saddle
- WTB Volt Cromoly SL
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Remote X geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat tube length | 380 mm | 385 mm | 420 mm | 450 mm |
| 2Top tube length | 560 mm | 585 mm | 613 mm | 652 mm |
| 3Reach | 426 mm | 451 mm | 476 mm | 511 mm |
| 4Stack | 639 mm | 639 mm | 648 mm | 659 mm |
| 5Standover | 768 mm | 768 mm | 776 mm | 781 mm |
| 6Head tube angle | 63.1° | 63.1° | 63.1° | 63.1° |
| 7Head tube length | 115 mm | 115 mm | 126 mm | 137 mm |
| 8Seat tube angle | 78° | 78° | 78° | 77.9° |
| 9Chainstay length | 442 mm | 442 mm | 442 mm | 442 mm |
| 10BB drop | 11 mm | 11 mm | 11 mm | 11 mm |
| 11BB height | 354 mm | 354 mm | 354 mm | 354 mm |
| 12Wheelbase | 1231 mm | 1255 mm | 1285 mm | 1325 mm |
| 13Front Center | 788 mm | 813 mm | 843 mm | 883 mm |
| 14Fork Length | 596 mm | 596 mm | 596 mm | 596 mm |
| 15Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
Source: Kona.
Remote X: FAQ
How much does the Kona Remote X cost?
€7,499 (Kona EU store RRP (en-eu.konaworld.com)). Prices vary by country and dealer.
What motor and battery does the Kona Remote X have?
Bosch Performance Line CX (85 Nm stock, up to 100 Nm via Bosch update (Bosch figure)). 800 Wh battery — bosch PowerTube 800.
How much suspension travel does the Kona Remote X have?
180 mm at the fork and 180 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Kona Remote X come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
