KonaRemote 160 CR
- Motor
- Bosch Performance Line SX55 Nm (Bosch figure)
- Battery
- 400 WhBosch PowerTube 400 + PowerMore 250 range extender (650 Wh total), per spec
- Travel F / R
- 160 / 160 mm
- Wheels
- 29" (size S: Mullet 29" / 27.5")
- Frame
- Carbon
Overview
The Kona Remote 160 CR (€8,999) is the only build of the Remote 160 CR: Bosch Performance Line SX with 400 Wh plus a 250 Wh PowerMore range extender, RockShox Lyrik Ultimate fork, Rockshox Super Deluxe Ultimate shock, Shimano Deore Di2 and SRAM Maven Base brakes. Kona does not publish a claimed weight.
The Remote 160 CR is Kona's carbon light e-MTB. Kona says it rides like its carbon Process 153. It has 160 mm of travel front and rear and a low centre of gravity, and it uses the Bosch Performance Line SX system.
A 400 Wh PowerTube is paired with a PowerMore 250 range extender mounted next to the motor. A flip chip lets the bike run mixed wheels or 29-inch wheels front and rear (size S ships with a 27.5-inch rear).
- Carbon frame, 160 mm travel
- Bosch Performance Line SX
- 400 Wh + 250 Wh PowerMore extender
- Flip chip: mixed or 29" wheels

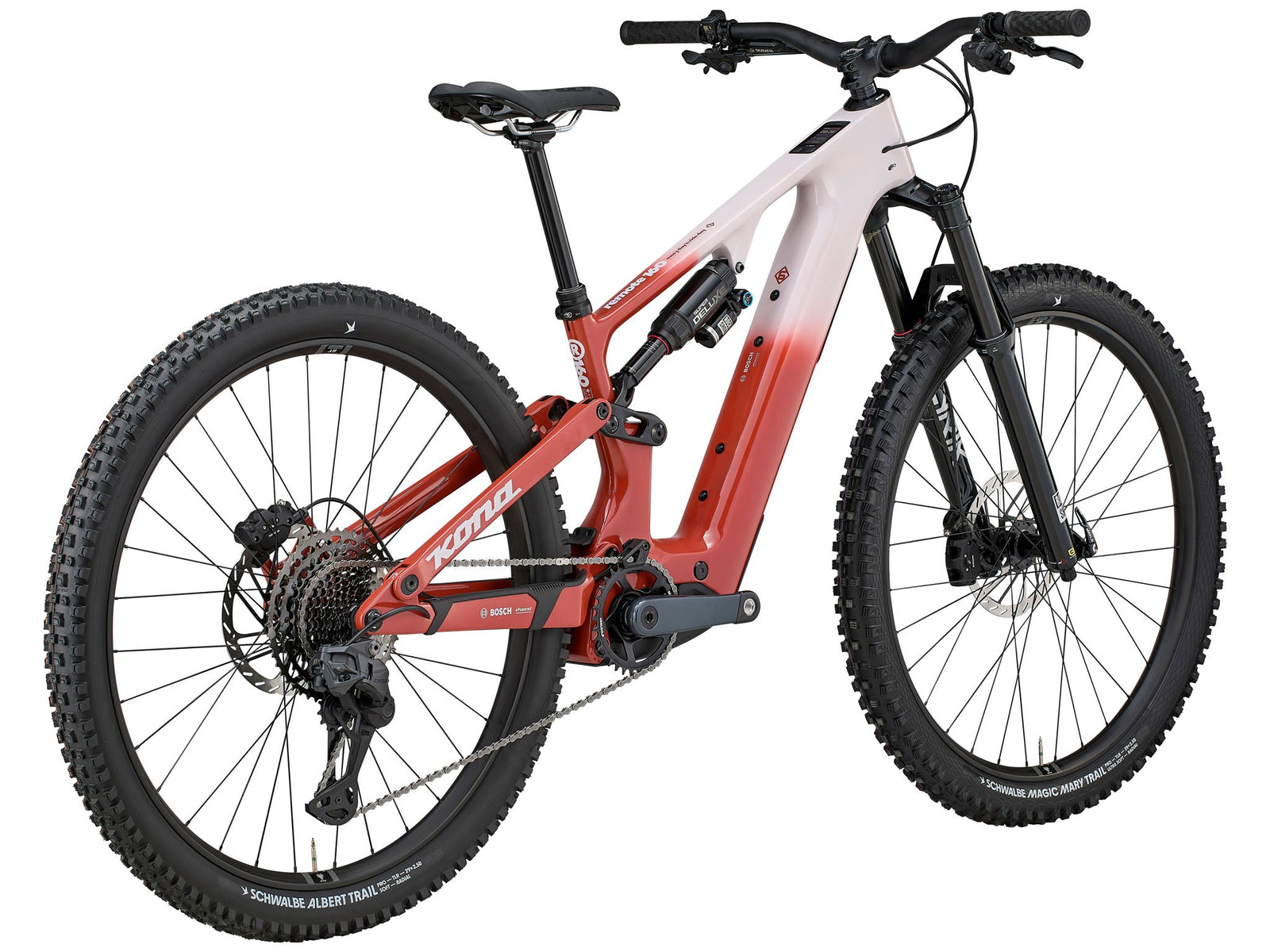

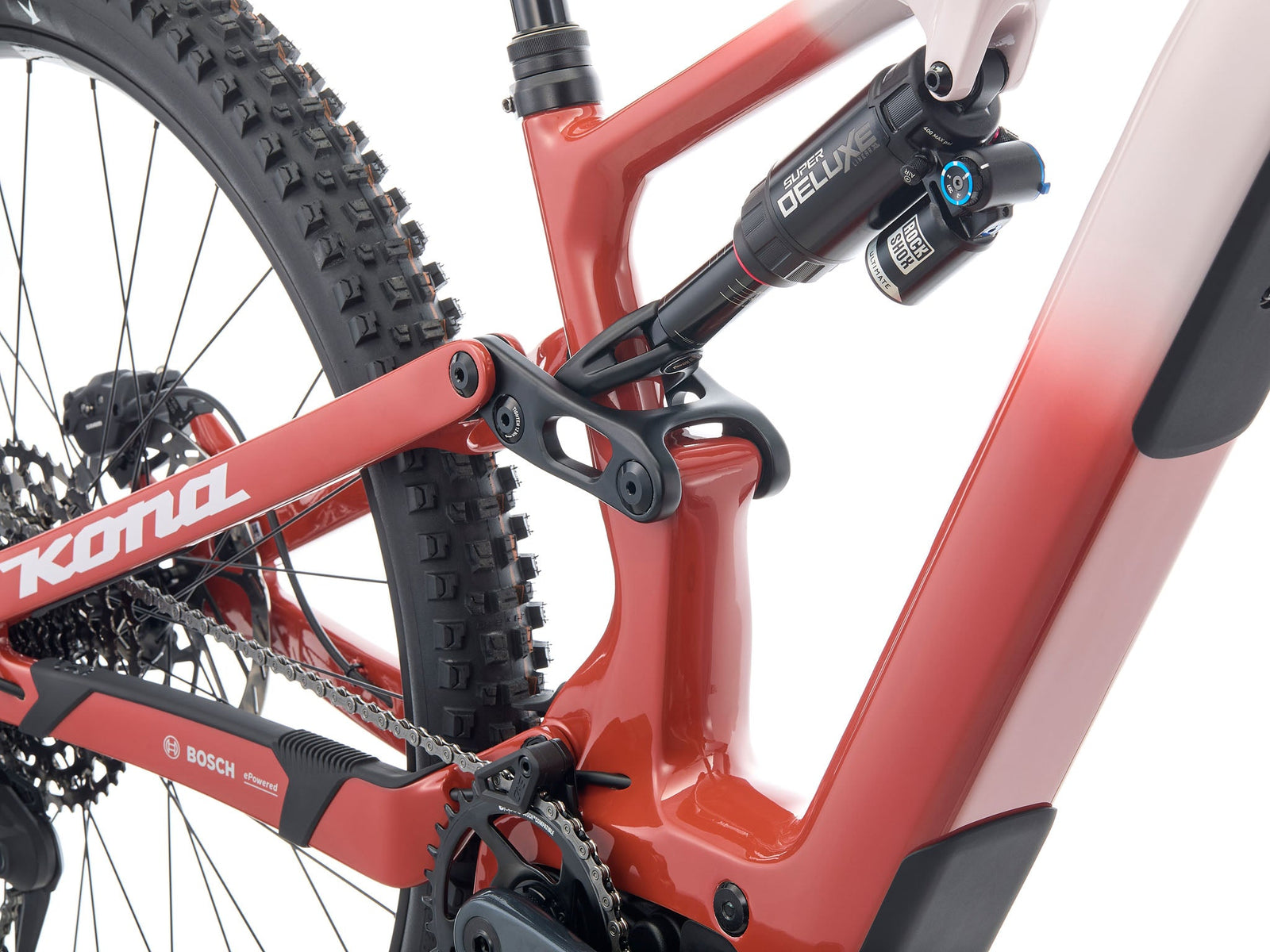

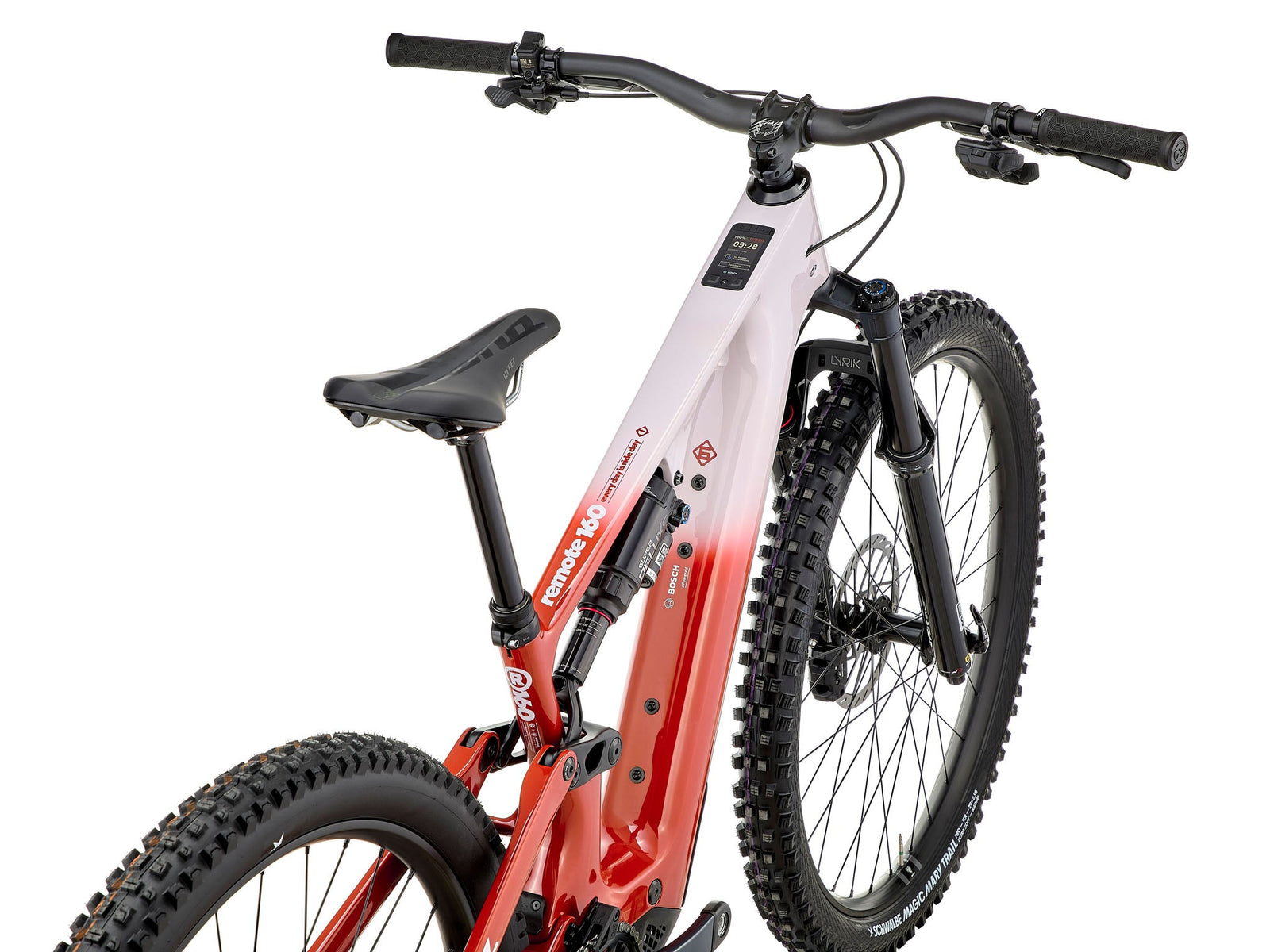

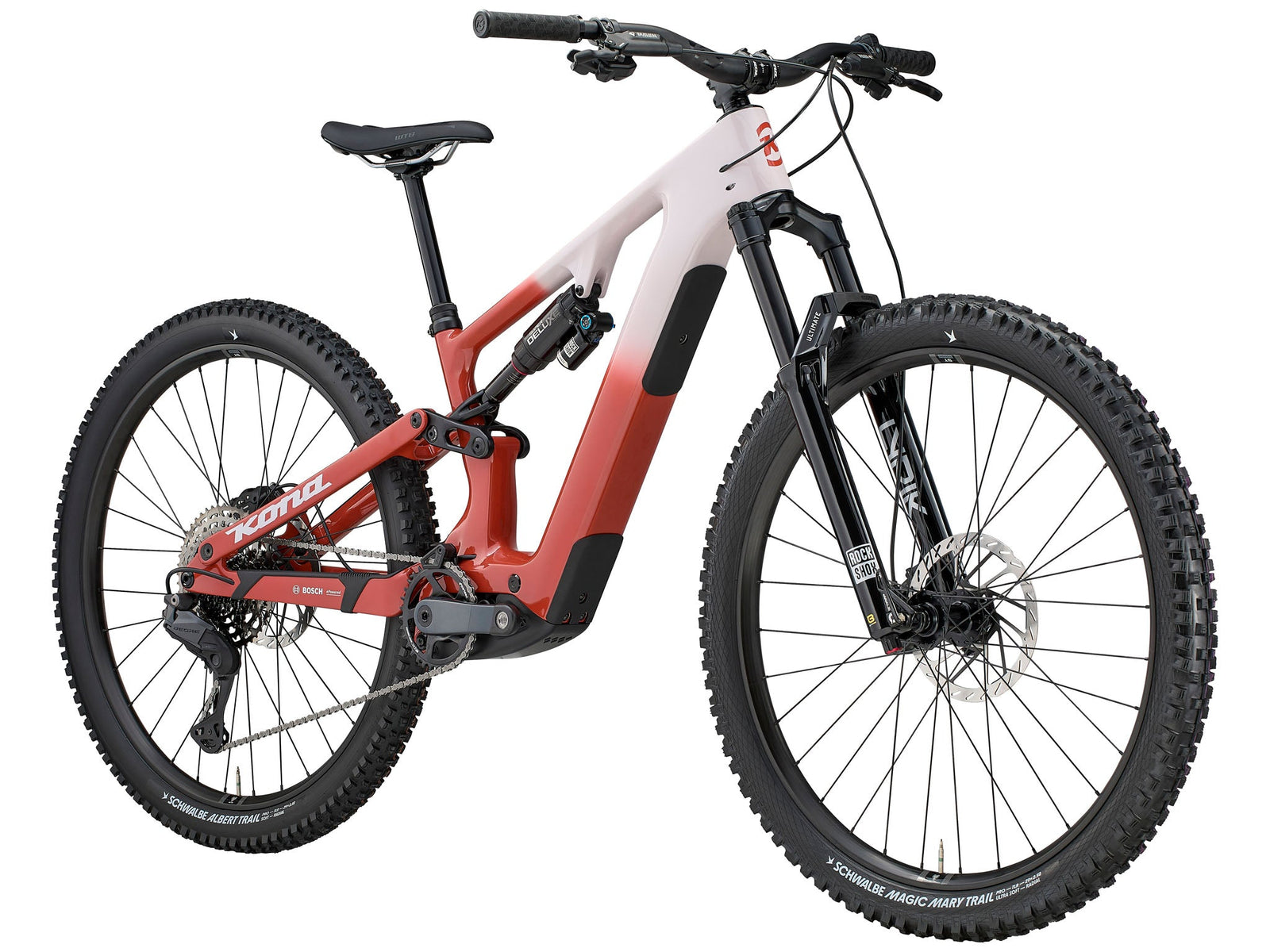

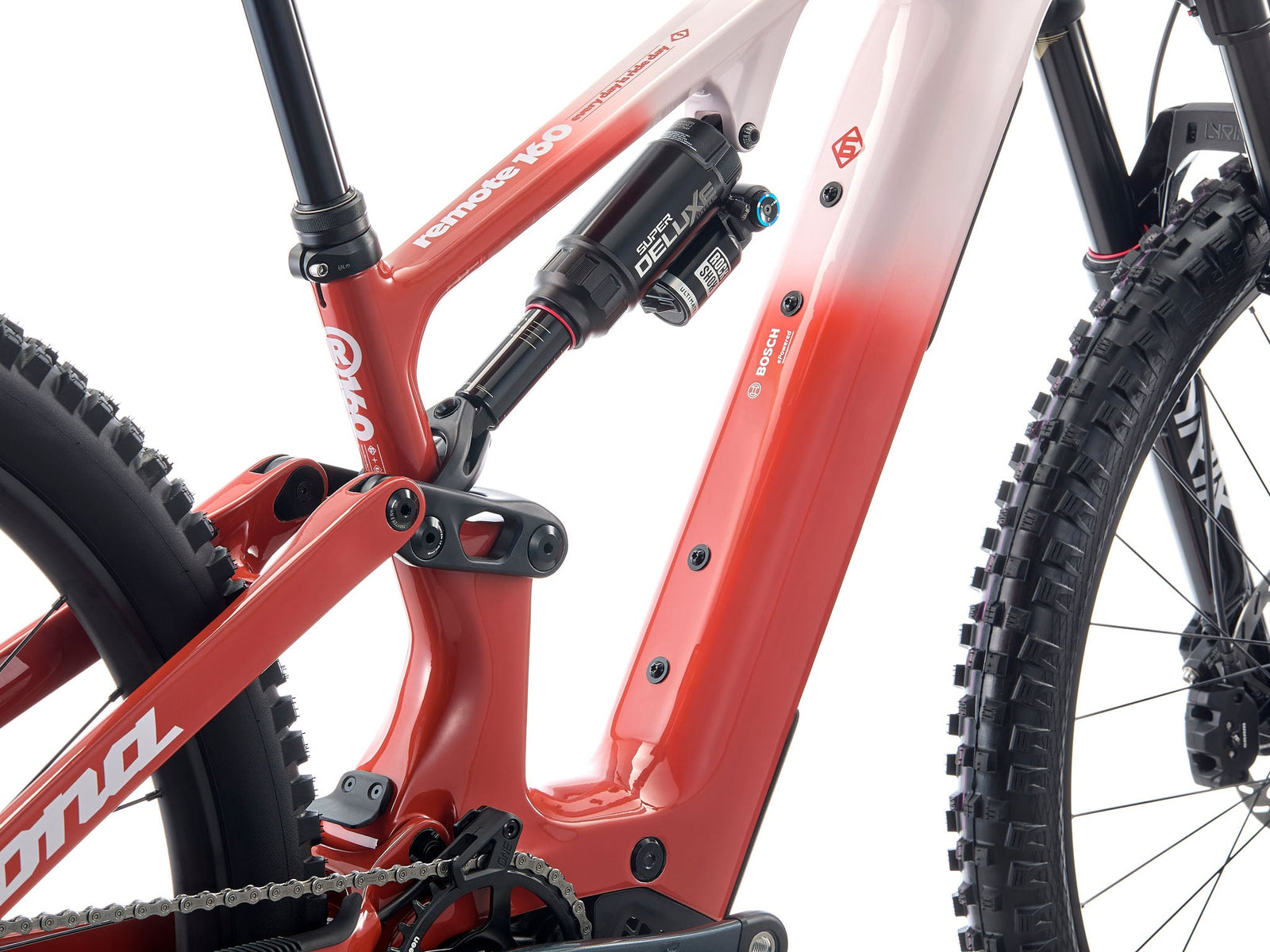

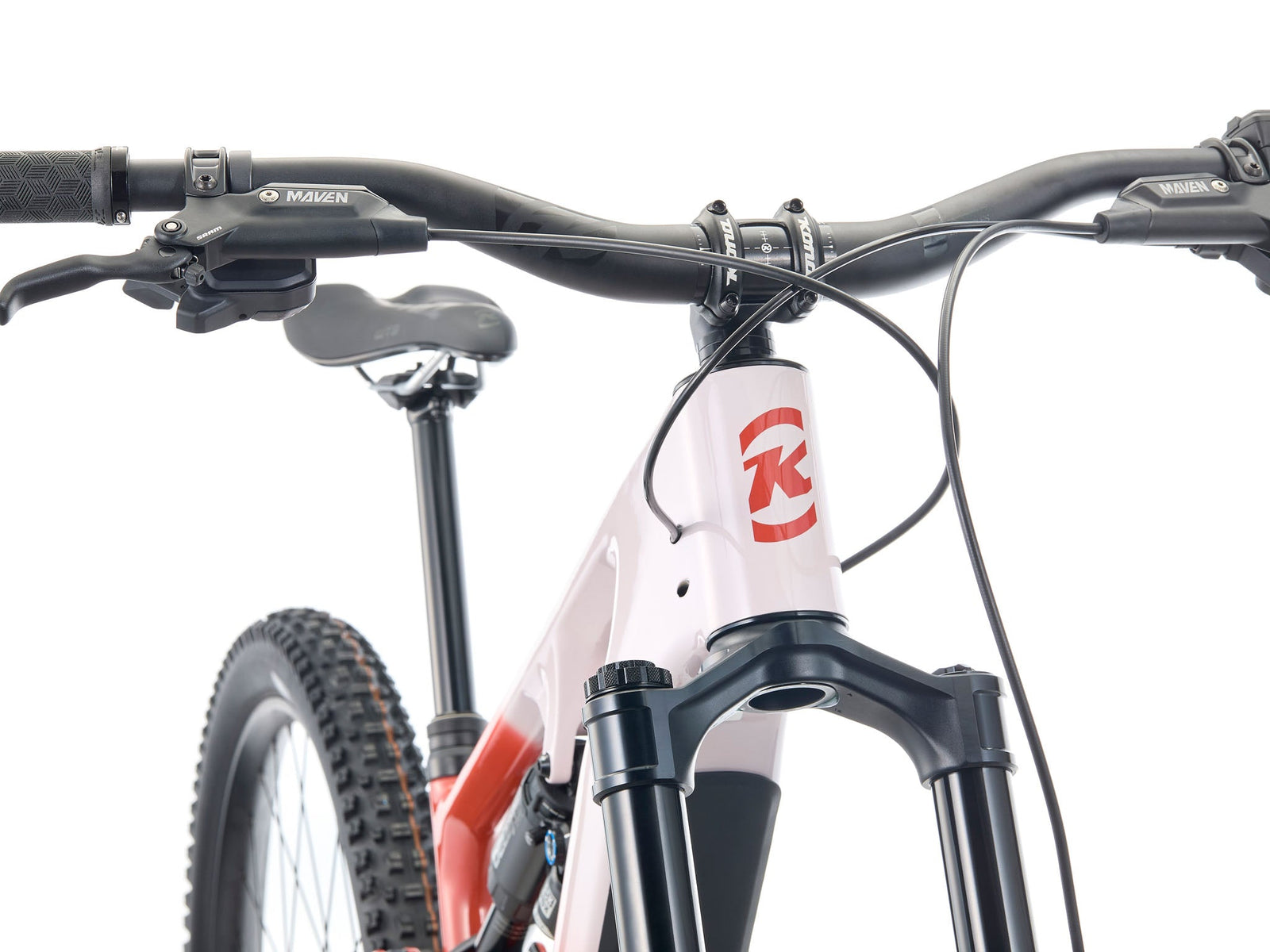

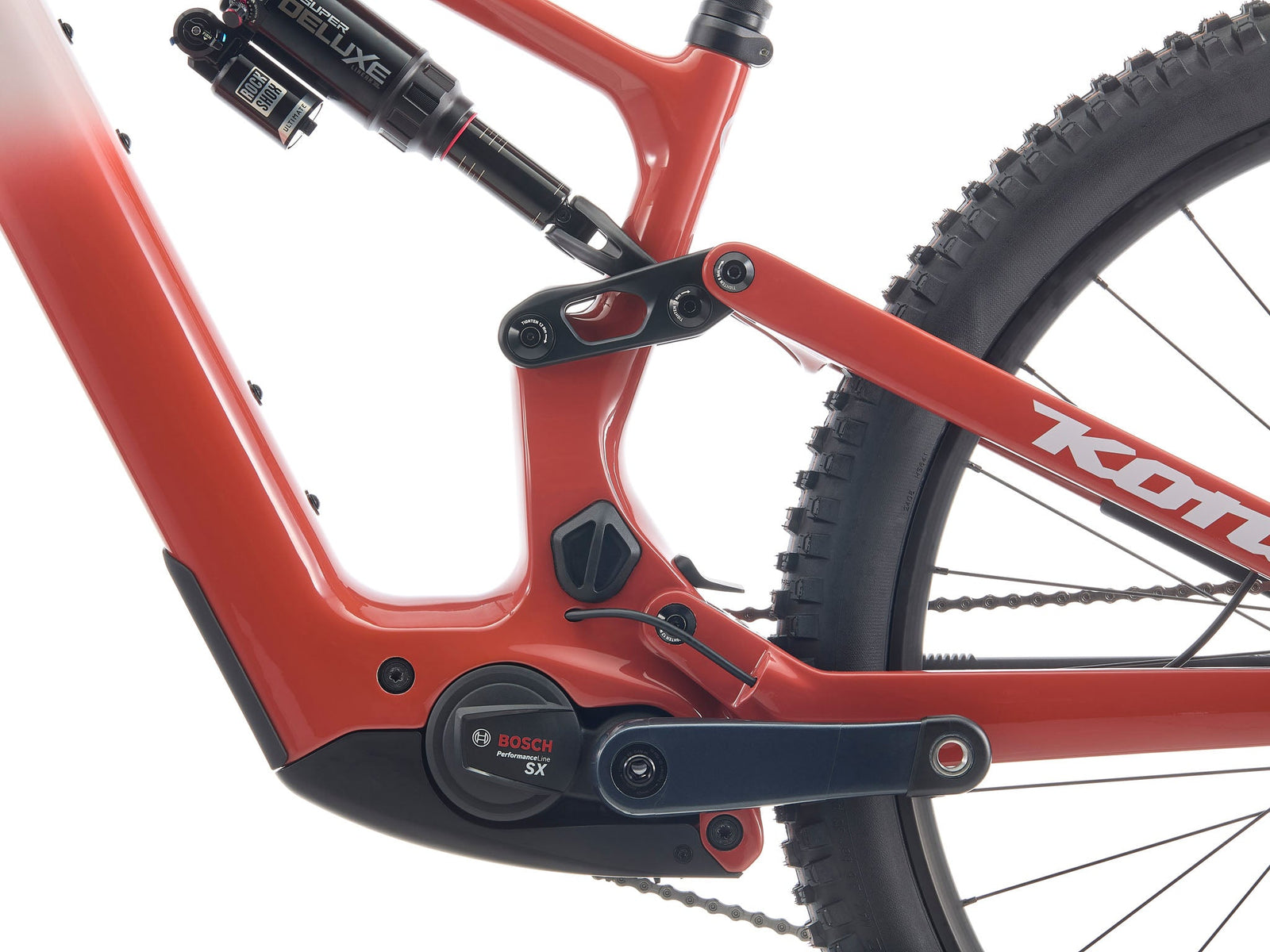

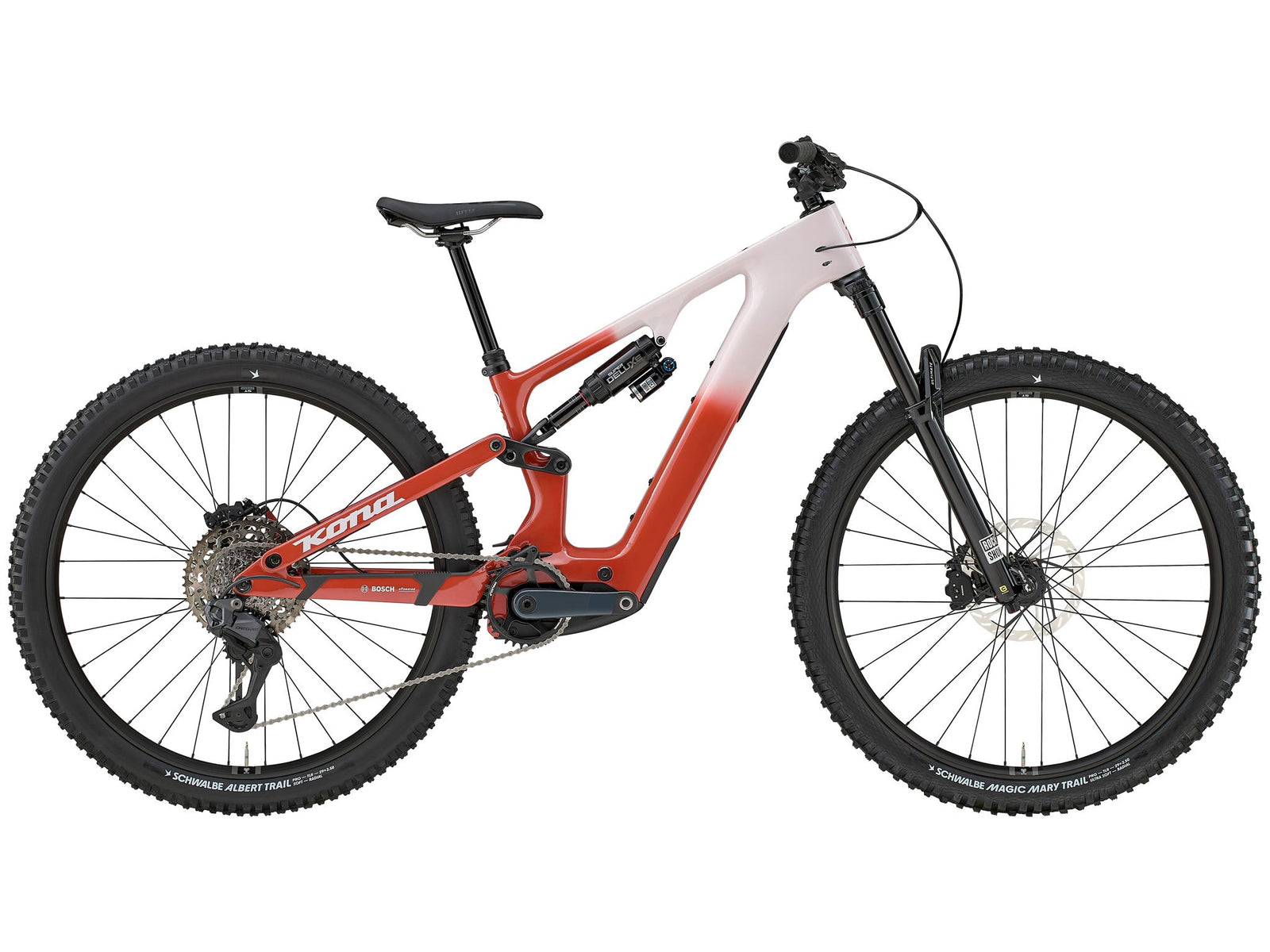

Gallery
Photos: Kona
Full specifications
Frame & suspension
- Frame
- Kona Carbon 160mm Travel
- Sizes
- S, M, L, XL
- Rear shock
- Rockshox Super Deluxe Ultimate 230X60
- Fork
- RockShox Lyrik Ultimate 160mm 29"
- Headset
- FSA NO.55R/57 ZS56/ZS56
- Colour
- Gloss Burnt Orange & Clay Fade w/ Clay & Burnt Orange Decals
E-system
- Motor
- Bosch Performance Line SX 25kmh
- Battery
- Bosch PowerTube 400 / PowerMore 250
- Display
- Kiox 400c
- Charger
- Bosch 4A (110V)
Drivetrain
- Crankset
- Prowheel Carbon 155mm 34t
- Chain
- Shimano CUES LG500
- Cassette
- Shimano XT 11-50t 11spd
- Chainguide
- One Up
- Rear derailleur
- Shimano Deore Di2
- Shifter
- Shimano Deore Di2
Brakes
- Brakes
- SRAM Maven Base
- Front brake rotor
- SRAM HS2 200mm 6 bolt
- Rear brake rotor
- SRAM HS2 200mm 6 bolt
- Brake levers
- SRAM Maven Base
Wheels & tyres
- Front hub
- Formula 15x110mm
- Rear hub
- Formula 12x148mm HG
- Spokes
- Stainless 2.0mm Black
- Rims
- WTB ST Tough i30
- Front tyre
- Schwalbe Magic Mary 29x2.5"
- Rear tyre
- Schwalbe Albert 29x2.5" (Size S- 27.5x2.5")
Cockpit
- Handlebar
- Kona Back 10º / Up 5º / Rise 38mm / Width S 760mm / M 780mm / L-XL 800mm
- Stem
- Kona 35mm / Rise 0º / Length 40mm
- Seatpost
- TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm
- Seat clamp
- Kona Clamp 34.9mm
- Grips
- Key Grip Lock-on Black
- Saddle
- WTB Volt SL Fusion
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Remote 160 CR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat tube length | 380 mm | 380 mm | 420 mm | 450 mm |
| 2Top tube length | 574 mm | 599 mm | 628 mm | 667 mm |
| 3Reach | 430 mm | 455 mm | 480 mm | 515 mm |
| 4Stack | 627 mm | 627 mm | 637 mm | 648 mm |
| 5Standover | 754 mm | 761 mm | 762 mm | 765 mm |
| 6Head tube angle | 64° | 64° | 64° | 64° |
| 7Head tube length | 112 mm | 112 mm | 123 mm | 135 mm |
| 8Seat tube angle | 77° | 77° | 76.9° | 76.8° |
| 9Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| 10BB drop | 15 mm | 25 mm | 25 mm | 25 mm |
| 11BB height | 350 mm | 350 mm | 350 mm | 350 mm |
| 12Wheelbase | 1217 mm | 1242 mm | 1272 mm | 1312 mm |
| 13Front Center | 773 mm | 798 mm | 828 mm | 868 mm |
| 14Fork Length | 576 mm | 576 mm | 576 mm | 576 mm |
| 15Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
Source: Kona.
Remote 160 CR: FAQ
How much does the Kona Remote 160 CR cost?
€8,999 (Kona EU store RRP (en-eu.konaworld.com)). Prices vary by country and dealer.
What motor and battery does the Kona Remote 160 CR have?
Bosch Performance Line SX (55 Nm (Bosch figure)). 400 Wh battery — bosch PowerTube 400 + PowerMore 250 range extender (650 Wh total), per spec.
How much suspension travel does the Kona Remote 160 CR have?
160 mm at the fork and 160 mm at the rear, on 29" (size S: Mullet 29" / 27.5") wheels.
What sizes does the Kona Remote 160 CR come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
