AriTimp Peak Elite
- Motor
- Bosch Performance Line CX Gen 585 Nm
- Battery
- 800 WhBosch PowerTube 800; 600 Wh option and PowerMore 250 Wh range extender available
- Travel F / R
- 170 / 170 mm
- Wheels
- 29" (mullet compatible; size S 29" / 27.5")
- Frame
- Carbon
Overview
The Ari Timp Peak Elite ($8,999) is a mid-range build of the Timp Peak: Bosch Performance Line CX Gen 5 with 800 Wh, RockShox ZEB Ultimate RC2 fork, RockShox Vivid Ultimate RC2T shock, SRAM GX Eagle Transmission and TRP EVO PRO brakes. Ari does not publish a claimed weight.
The Timp Peak 2.0 is Ari's full-power enduro e-MTB: a CleanCast carbon frame with the TetraLink suspension platform, 170 mm of rear travel paired with a 170 mm fork, and a vertical shock layout that lowers standover and allows long dropper posts. It runs the Bosch Performance Line CX Gen 5 motor (85 Nm, 600 W peak) with a 600 Wh or 800 Wh PowerTube battery and is compatible with the PowerMore 250 Wh range extender.

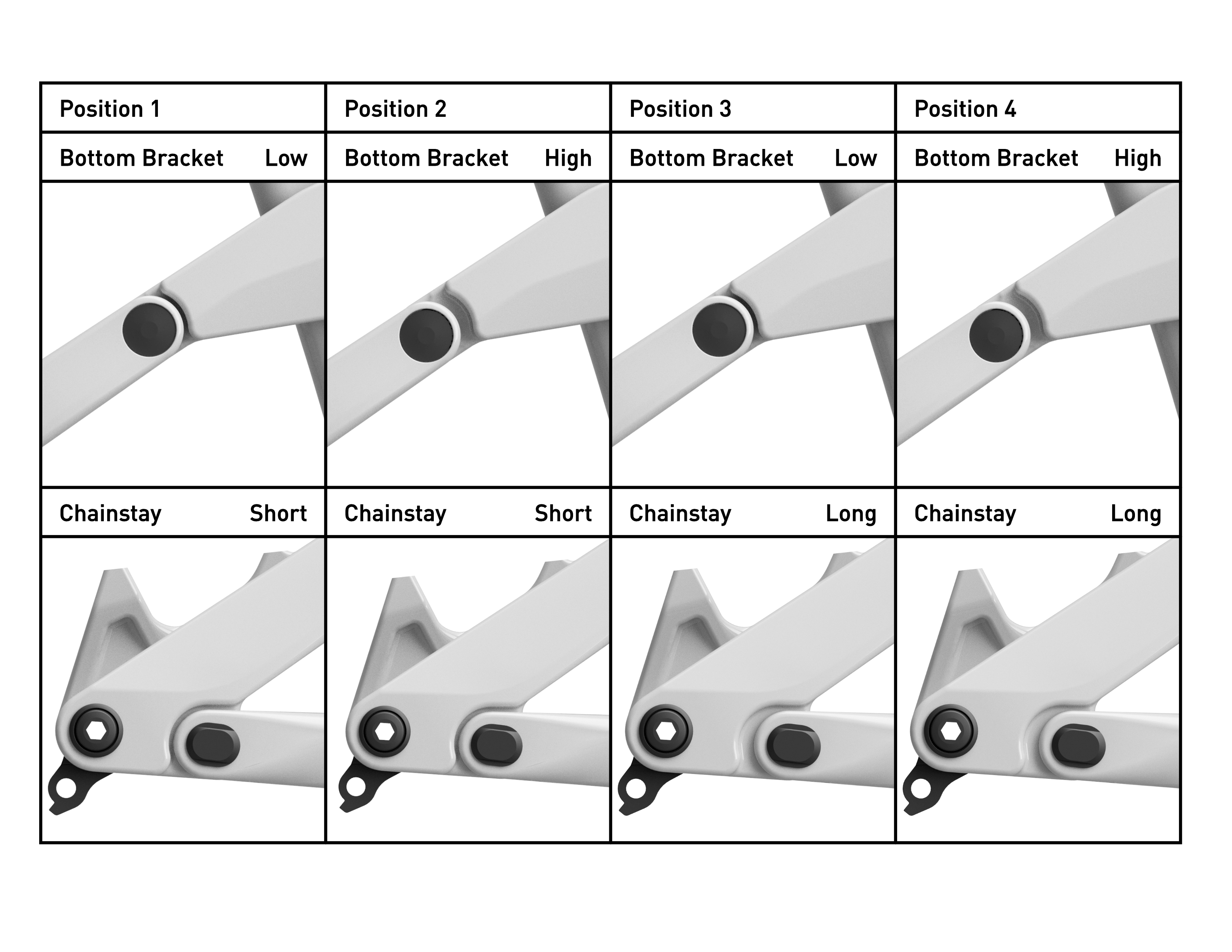

A four-way adjustable link lets riders run full 29" or mullet (29"/27.5") wheels, change head angle between 63.3° and 64.4° and alter chainstay length; the effective seat angle is 78°. Every size, including S, fits a 21 oz bottle in the main triangle, and cables run tube-in-tube. Ari sells direct and sets each bike up to the rider's measurements.
- Bosch Performance Line CX Gen 5: 85 Nm, 600 W peak
- 800 Wh PowerTube (600 Wh optional) + range extender compatible
- 170 mm rear / 170 mm fork, 29" or mullet
- 4-way adjustable geometry (HTA 63.3–64.4°)
Gallery
Photos: Ari
Full specifications
Frame & suspension
- Frame
- Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible
- Fork
- Rockshox ZEB Ultimate RC2, Charger 3.2, Linear XL W/ Buttercups, 170mm travel, 15x110 Axle, 44mm offset, tapered steerer
- Rear shock
- RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned
- Headset
- Cane Creek 40 Series ZS ZS56/ZS56
E-system
- Motor
- Bosch Performance Line CX Gen 5 (BDU38)
- Battery
- Bosch PowerTube 800, range extender available at check-out
- Display
- Bosch Kiox 400C
Drivetrain
- Drivetrain
- SRAM GX Eagle Transmission, 12-Speed
- Shifter
- SRAM AXS Pod
- Rear derailleur
- SRAM GX Eagle Transmission, Wireless, 12-Speed
- Cassette
- SRAM CS-XS-1275 T-Type Eagle, 10-52t, 12-speed
- Crankset
- SRAM GX (BDU38), S-L: 155mm, XL: 160mm
- Chainring
- Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel
- Chain
- SRAM GX Eagle Transmission, T-Type, 12-speed
Brakes
- Brakes
- TRP EVO PRO, 2.3mm 220/220mm
Wheels & tyres
- Wheelset
- Crankbrothers Synthesis Alloy V2 29, (Size Small: 29/27.5), Carbon wheel upgrade available at checkout
- Rims
- Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29, F: 28 Hole, R: 32 Hole, Tubeless ready, (Size Small: 29/27.5)
- Hubs
- F: Crankbrothers EMTB Ratchet 28H, Disc, 15x110 thru axle, R: Crankbrothers EMTB Ratchet 36T 32H, Disc, 12x148 thru axle, XD
- Spokes
- Pillar PSB34 J-Bend
- Tyres
- F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection)
- Tubes
- Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart
Cockpit
- Handlebar
- Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
- Stem
- Ari Charger CNC 35 stem
- Grips
- ODI Elite Pro
- Saddle
- Ergon SM10
- Seatpost
- TranzX JD-YSI05J w/ Travel Adj. Dropper, 31.6mm- customized sizing through Ari Custom Setup
Other
- Pedals
- Available Separately
- Extras
- Bosch Kiox 400c Display, Chainguide: MRP 1x CS2 32-36T
- Sizes
- S, M, L, XL
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Timp Peak geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Top Tube | 573.8 mm | 586.4 mm | 612.5 mm | 642.1 mm |
| Seat Tube | 380 mm | 400 mm | 420 mm | 450 mm |
| Chainstay | 437 mm | 437 mm | 437 mm | 437 mm |
| Head Angle | 64.0° | 64.0° | 64.0° | 64.0° |
| Effective Seat Angle | 78.0° | 78.0° | 78.0° | 78.0° |
| Seat height for effective seat angle | 600 mm | 660 mm | 720 mm | 780 mm |
| Actual seat angle | 69.4° | 70.6° | 71.6° | 72.3° |
| Head tube | 100 mm | 105 mm | 115 mm | 130 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Wheelbase | 1212.2 mm | 1234.5 mm | 1268.8 mm | 1300.4 mm |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 728 mm | 740 mm | 754 mm | 754 mm |
| Stack | 624.4 mm | 628.9 mm | 637.9 mm | 651.4 mm |
| Reach | 435 mm | 455 mm | 485 mm | 510 mm |
| Axle to crown | 583 mm | 583 mm | 583 mm | 583 mm |
Source: Ari. Default configuration shown: full 29" wheels, short chainstay ("Poppy"), low BB/slack HT ("Steep") position; other flip-chip positions change HTA (63.3–64.4°), BB height and chainstay length.
Timp Peak: builds compared
Timp Peak range →| Timp Peak Comp | Timp Peak Elite | Timp Peak Pro | Timp Peak Team | |
|---|---|---|---|---|
| Price | $7,499 | $8,999 | $9,999 | $11,999 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Marzocchi Bomber Z, 29 | Rockshox ZEB Ultimate RC2, Charger 3.2 | Rockshox ZEB Ultimate RC2, Charger 3.2 | Rockshox ZEB Ultimate RC2, Charger 3.2 |
| Shock | Marzocchi Bomber Air | RockShox Vivid Ultimate RC2T | RockShox Vivid Ultimate RC2T | RockShox Vivid Ultimate RC2T |
| Derailleur | Shimano Deore | SRAM GX Eagle Transmission | SRAM X0 Eagle Transmission | SRAM XX Eagle Transmission |
| Brakes | TRP EVO Expert | TRP EVO PRO | SRAM Maven Silver | SRAM Maven Ultimate |
| Wheels | Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29 | Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29 | DT Swiss HX 1700, 29 | Crankbrothers Synthesis E-MTB Carbon, 29 |
| Display | Not listed in spec (Kiox 400C available at checkout) | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
Timp Peak Elite: FAQ
How much does the Ari Timp Peak Elite cost?
$8,999 (US list price, excl. sales tax (Ari direct sale price at time of scrape: $8,099). 600 Wh version $8,899.). The Timp Peak range runs from $7,499 (Timp Peak Comp) to $11,999 (Timp Peak Team). Prices vary by country and dealer.
What motor and battery does the Ari Timp Peak Elite have?
Bosch Performance Line CX Gen 5 (85 Nm). 800 Wh battery — bosch PowerTube 800; 600 Wh option and PowerMore 250 Wh range extender available.
How much suspension travel does the Ari Timp Peak Elite have?
170 mm at the fork and 170 mm at the rear, on 29" (mullet compatible; size S 29" / 27.5") wheels.
What sizes does the Ari Timp Peak Elite come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Timp Peak Elite and the Timp Peak Pro?
They share the Timp Peak frame platform and motor; the differences are in the parts — derailleur: SRAM GX Eagle Transmission vs SRAM X0 Eagle Transmission; price: $8,999 vs $9,999.
