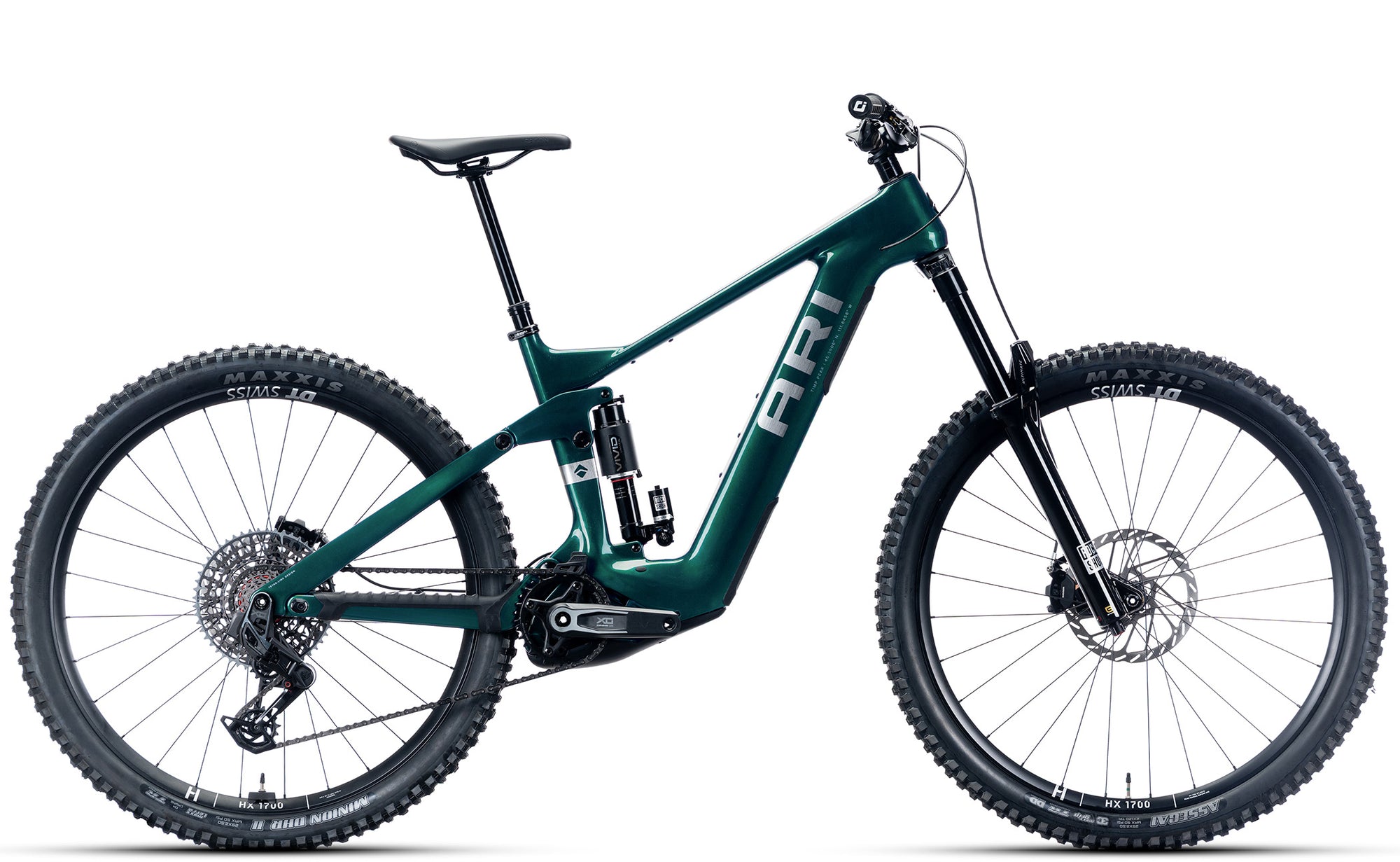

Ari Timp Peak Pro e-MTB, side view
Photo: Ari
Full-power eMTBEnduro2026
Timp Peak range · 4 builds

AriTimp Peak Pro

$9,999US list price, excl. sales tax (Ari direct sale price at time of scrape: $9,099). 600 Wh version $9,899.
Motor
Bosch Performance Line CX Gen 585 Nm
Battery
800 WhBosch PowerTube 800; 600 Wh option and PowerMore 250 Wh range extender available
Travel F / R
170 / 170 mm
Wheels
29" (mullet compatible; size S 29" / 27.5")
Frame
Carbon

All Bosch Performance Line CX eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

Same Ultimate suspension as the Elite, but the $9,999 Timp Peak Pro moves to SRAM X0 Transmission and Maven Silver brakes.

The Timp Peak Pro is one of 4 builds of the Ari Timp Peak. About the Timp Peak range and all its builds →

Gallery

Photos: Ari

Full specifications

Frame & suspension

Frame
Ari Timp Peak 2.0 CleanCast™ carbon frame, 4-way adjustable TetraLink™ suspension platform, 170mm travel, 29er or mullet compatible, tube-in-tube cable routing, Bosch PowerMore 250 range extender compatible
Fork
Rockshox ZEB Ultimate RC2, Charger 3.2, Linear XL W/ Buttercups, 170mm travel, 15x110 Axle, 44mm offset, tapered steerer
Rear shock
RockShox Vivid Ultimate RC2T, Linear XL, Hydraulic Bottom Out, 230x65, Custom Tuned
Headset
Cane Creek 40 Series ZS ZS56/ZS56

E-system

Motor
Bosch Performance Line CX Gen 5 (BDU38)
Battery
Bosch PowerTube 800, range extender available at check-out
Display
Bosch Kiox 400C

Drivetrain

Drivetrain
SRAM X0 Eagle Transmission, Wireless, 12-Speed
Shifter
SRAM AXS Pod
Rear derailleur
SRAM X0 Eagle Transmission, 12-Speed
Cassette
SRAM XS-1295 XO Eagle, T-Type, 10-52t, 12-speed
Crankset
SRAM X0 (BDU38), S-L: 155mm, XL: 160mm
Chainring
Praxis E-Spider Bosch BDU38, 104BCD, 34T, Steel
Chain
SRAM X0 Eagle Transmission, T-Type, 12-speed

Brakes

Brakes
SRAM Maven Silver, HS2 200/200mm

Wheels & tyres

Wheelset
DT Swiss HX 1700 Spline 29, (Size Small: 29/27.5), Carbon wheels upgrade available at checkout
Rims
DT Swiss HX 1700, 29, Tubeless ready, (Size Small: 29/27.5)
Hubs
F: DT Swiss 350 E-Specific, Disc, 15x110 thru axle, R: DT Swiss 350 Ratchet System 24 E-Specific, Disc, 12x148 thru axle, XD
Spokes
DT Swiss Hybrid 1 Straightpull
Tyres
F: Maxxis Assegai 29x2.5WT, MaxxGrip, DD, TR Protection, Tubeless Ready. R: Minion DHR II, 29x2.5WT, 3C, MaxxTerra, DH, TR Protection, Tubeless Ready, (Size Small R: Minion DHR II, 27.5x2.5WT, 3C, MaxxTerra, DH, TR Protection)
Tubes
Maxxis 29x1.9/2.5, (Small: 29/27.5x2.5) Presta, Tubeless setup available after adding bike to cart

Cockpit

Handlebar
Ari Team 35, width 780/800mm, 25mm rise, 9° back sweep, 5° Up sweep, bar-customized sizing through Ari Custom Setup
Stem
Ari Charger CNC 35 stem
Grips
ODI Elite Pro
Saddle
Ergon SM10
Seatpost
Oneup V3 Dropper, 31.6mm- customized sizing through Ari Custom Setup

Other

Pedals
Available Separately
Extras
Bosch Kiox 400c Display, Chainguide: MRP 1x CS2 32-36T
Sizes
S, M, L, XL

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Timp Peak geometry

SizeSMLXL
Top Tube573.8 mm586.4 mm612.5 mm642.1 mm
Seat Tube380 mm400 mm420 mm450 mm
Chainstay437 mm437 mm437 mm437 mm
Head Angle64.0°64.0°64.0°64.0°
Effective Seat Angle78.0°78.0°78.0°78.0°
Seat height for effective seat angle600 mm660 mm720 mm780 mm
Actual seat angle69.4°70.6°71.6°72.3°
Head tube100 mm105 mm115 mm130 mm
Bottom Bracket Height346 mm346 mm346 mm346 mm
Bottom Bracket Drop27 mm27 mm27 mm27 mm
Wheelbase1212.2 mm1234.5 mm1268.8 mm1300.4 mm
Fork Offset44 mm44 mm44 mm44 mm
Standover Height728 mm740 mm754 mm754 mm
Stack624.4 mm628.9 mm637.9 mm651.4 mm
Reach435 mm455 mm485 mm510 mm
Axle to crown583 mm583 mm583 mm583 mm

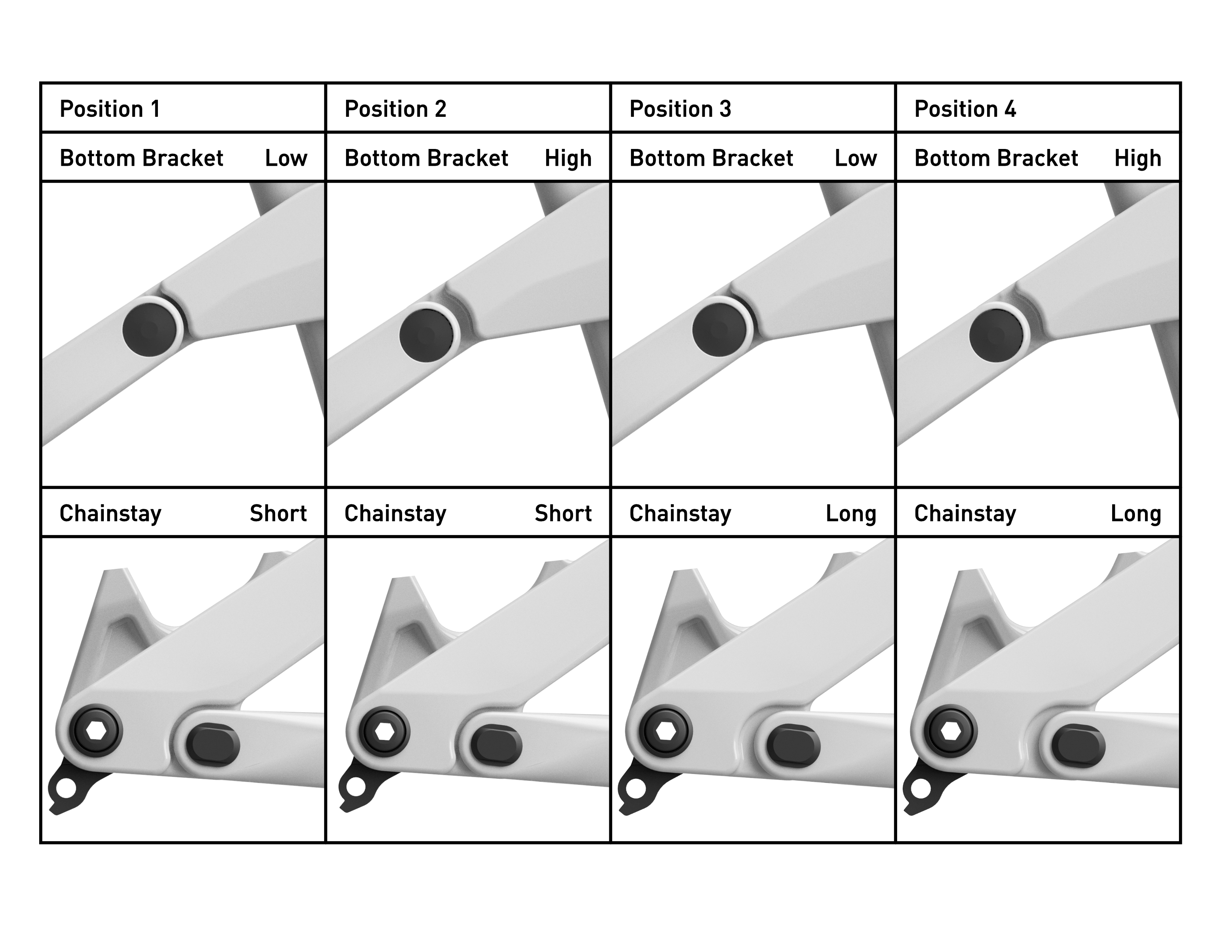

Source: Ari. Default configuration shown: full 29" wheels, short chainstay ("Poppy"), low BB/slack HT ("Steep") position; other flip-chip positions change HTA (63.3-64.4°), BB height and chainstay length.

Timp Peak: builds compared

Timp Peak range →
Timp Peak CompTimp Peak EliteTimp Peak ProTimp Peak Team
Price$7,499$8,999$9,999$11,999
FrameCarbonCarbonCarbonCarbon
ForkMarzocchi Bomber Z, 29Rockshox ZEB Ultimate RC2, Charger 3.2Rockshox ZEB Ultimate RC2, Charger 3.2Rockshox ZEB Ultimate RC2, Charger 3.2
ShockMarzocchi Bomber AirRockShox Vivid Ultimate RC2TRockShox Vivid Ultimate RC2TRockShox Vivid Ultimate RC2T
DerailleurShimano DeoreSRAM GX Eagle TransmissionSRAM X0 Eagle TransmissionSRAM XX Eagle Transmission
BrakesTRP EVO ExpertTRP EVO PROSRAM Maven SilverSRAM Maven Ultimate
WheelsCrankbrothers Synthesis Alloy V2 Tuned Wheel System, 29Crankbrothers Synthesis Alloy V2 Tuned Wheel System, 29DT Swiss HX 1700, 29Crankbrothers Synthesis E-MTB Carbon, 29
DisplayNot listed in spec (Kiox 400C available at checkout)Bosch Kiox 400CBosch Kiox 400CBosch Kiox 400C

Timp Peak Pro: FAQ

What is the difference between the Timp Peak Pro and the Timp Peak Team?

They share the Timp Peak frame platform and motor; the differences are in the parts: derailleur: SRAM X0 Eagle Transmission vs SRAM XX Eagle Transmission; price: $9,999 vs $11,999.
