MarinAlpine Trail E XR
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak (as stated by Marin)
- Battery
- 800 WhBosch PowerTube 800 (removable); 600 Wh optional, PowerMore 250 Wh range extender compatible
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Marin Alpine Trail E XR ($9,299) is the top build of the Alpine Trail E: Bosch Performance Line CX (Gen 5) with 800 Wh, RockShox Zeb Ultimate fork, RockShox Vivid Air Ultimate shock, SRAM GX AXS T-Type and SRAM Maven Silver brakes. Marin does not publish a claimed weight.
The Alpine Trail E is Marin's enduro e-MTB, built on a Series 4 aluminium frame with 160 mm of MultiTrac 2 LT rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear). Marin says the redesigned frame is 1,345 g lighter than before and has 37 mm more ground clearance, with UDH, Boost spacing and internal routing.
Every build uses Bosch's Gen 5 Performance Line CX motor (Marin quotes 120 Nm and 750 W) with a removable 800 Wh battery and a Kiox 400C top-tube display. Geometry is adjustable via a swappable upper headset cup (±0.75°) and chainstay flip chips that change bottom bracket height and chainstay length.
- Bosch Performance Line CX Gen 5, 800 Wh removable battery
- 160 mm rear / 170 mm fork, mixed wheels
- Adjustable head angle (±0.75°) and chainstay flip chips
- Series 4 aluminium frame, UDH, Kiox 400C top-tube display

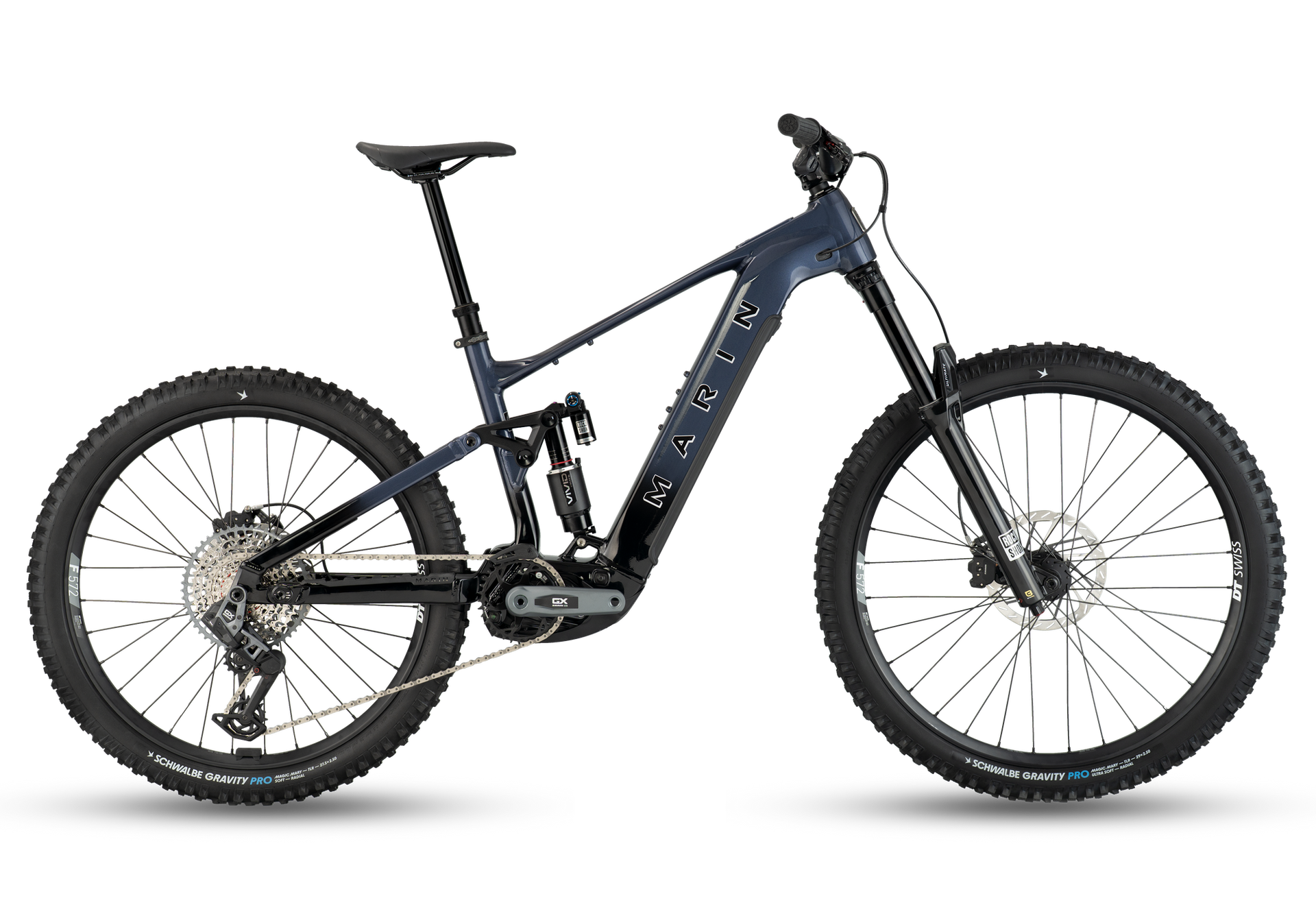

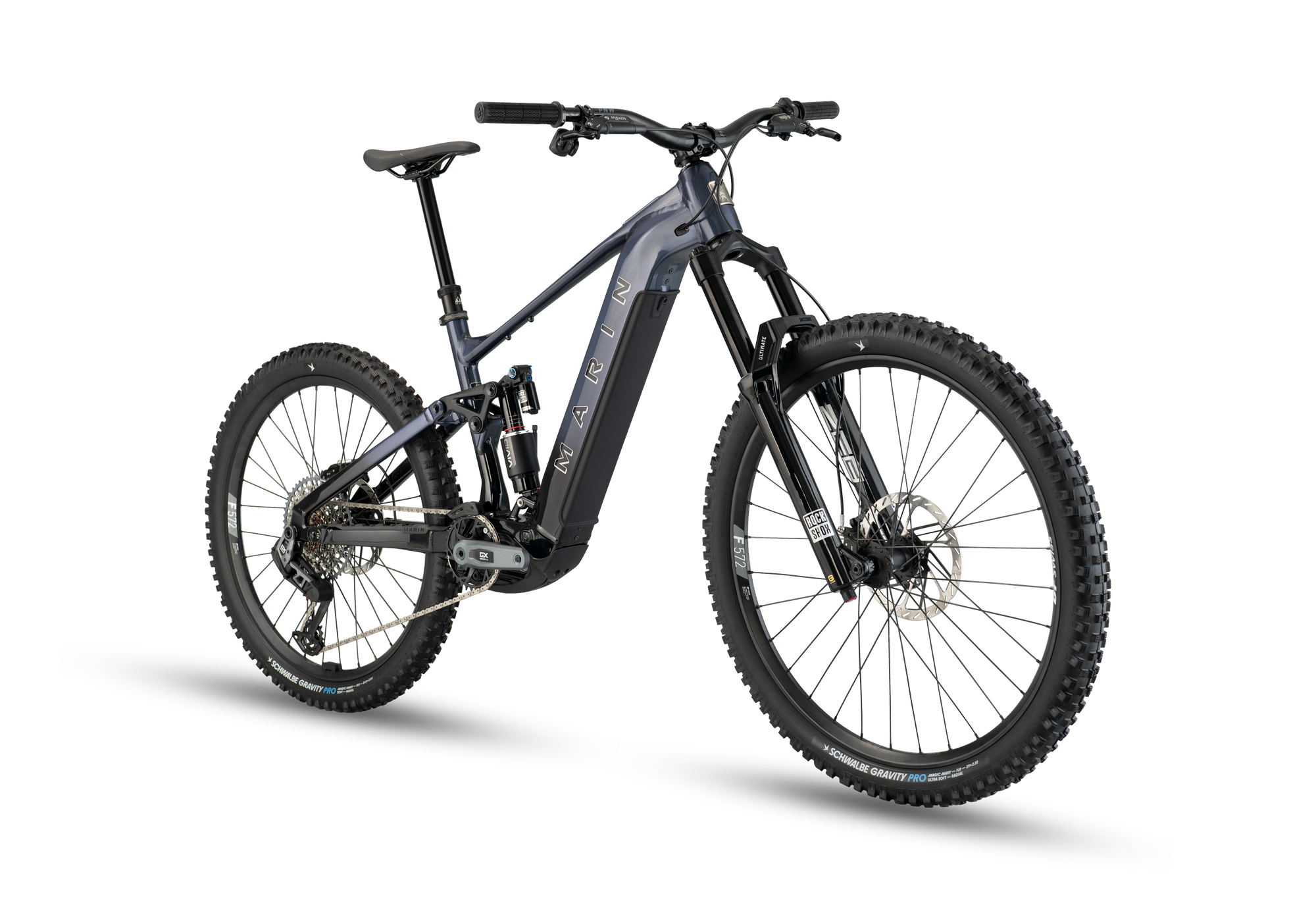

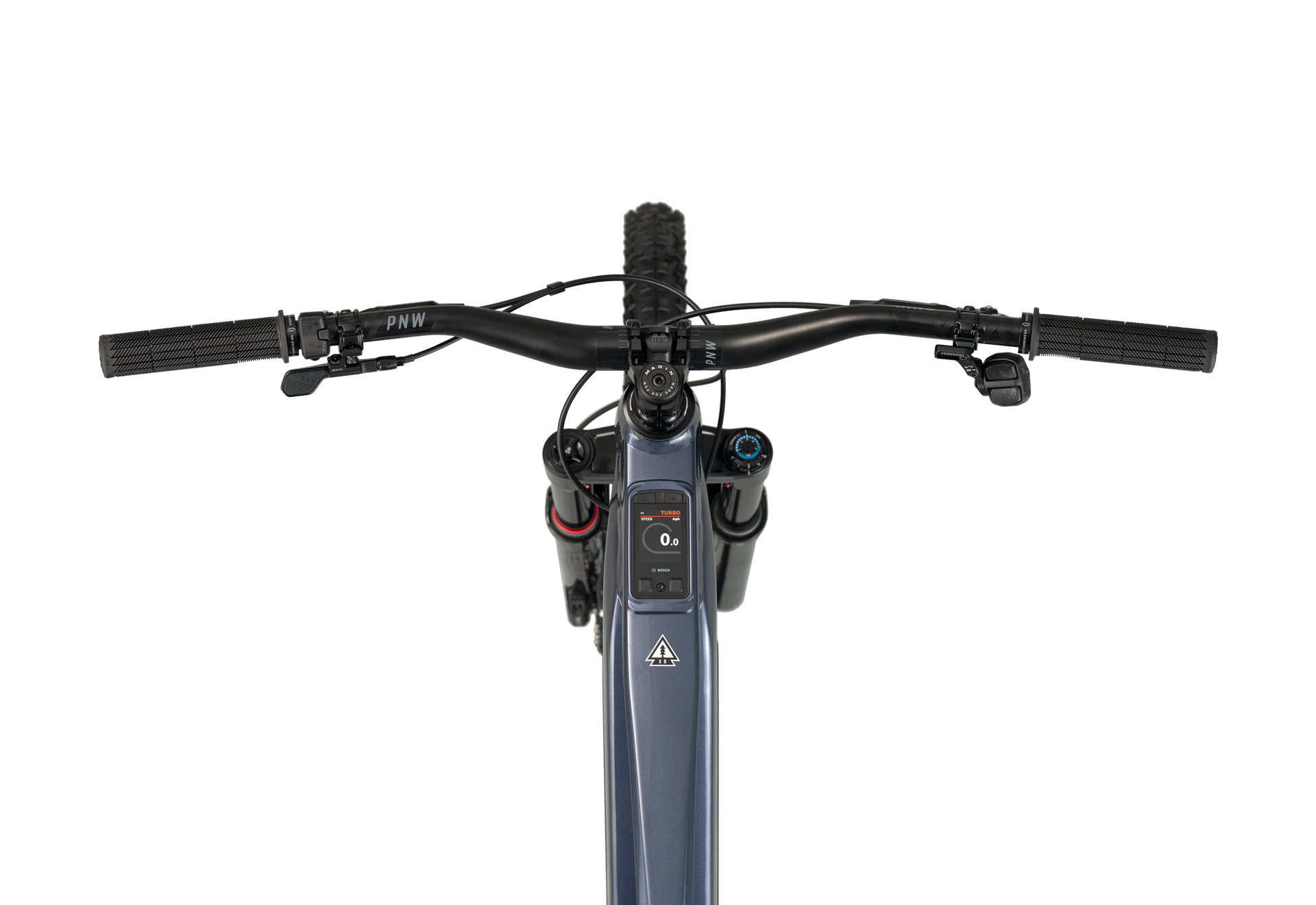

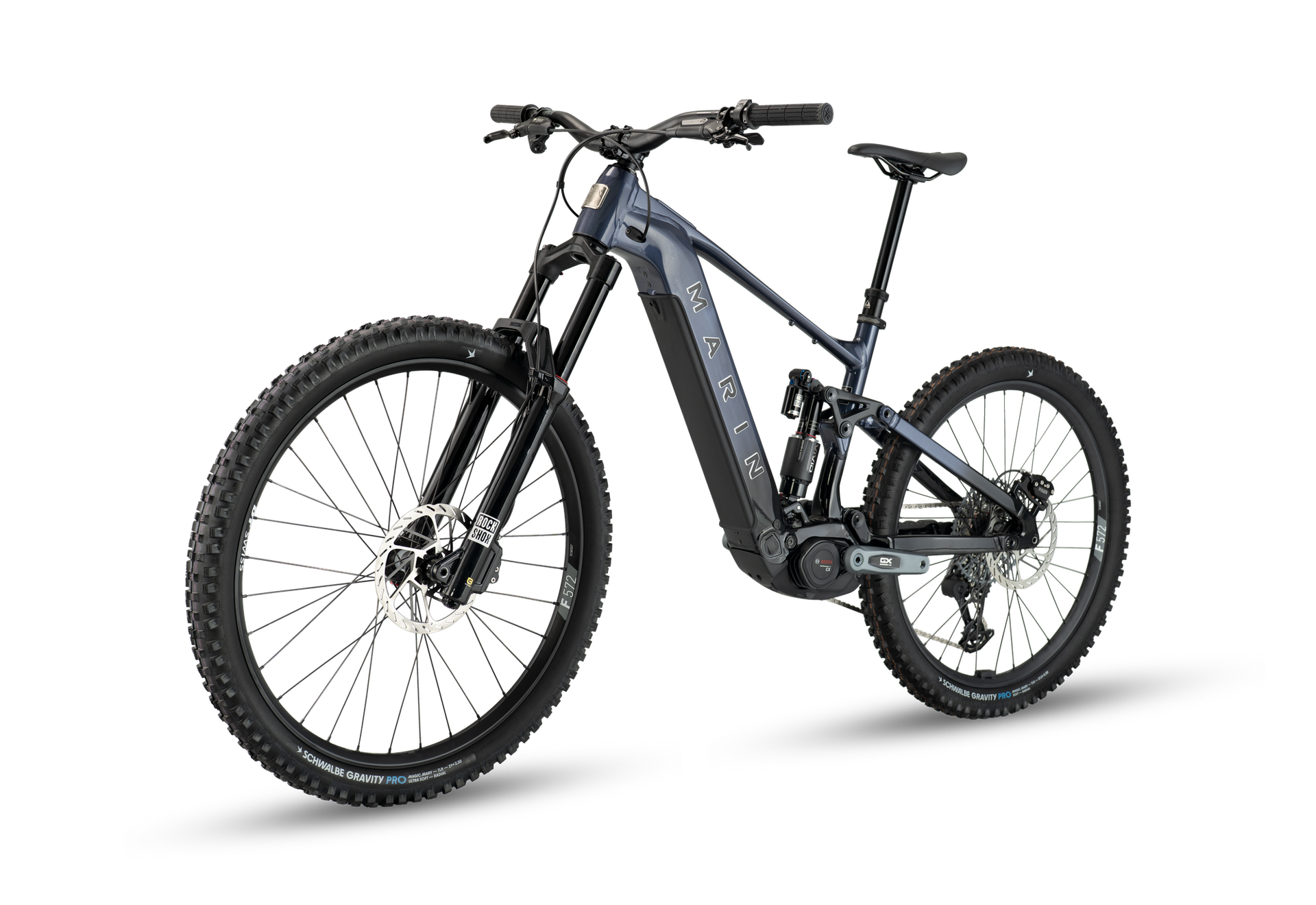

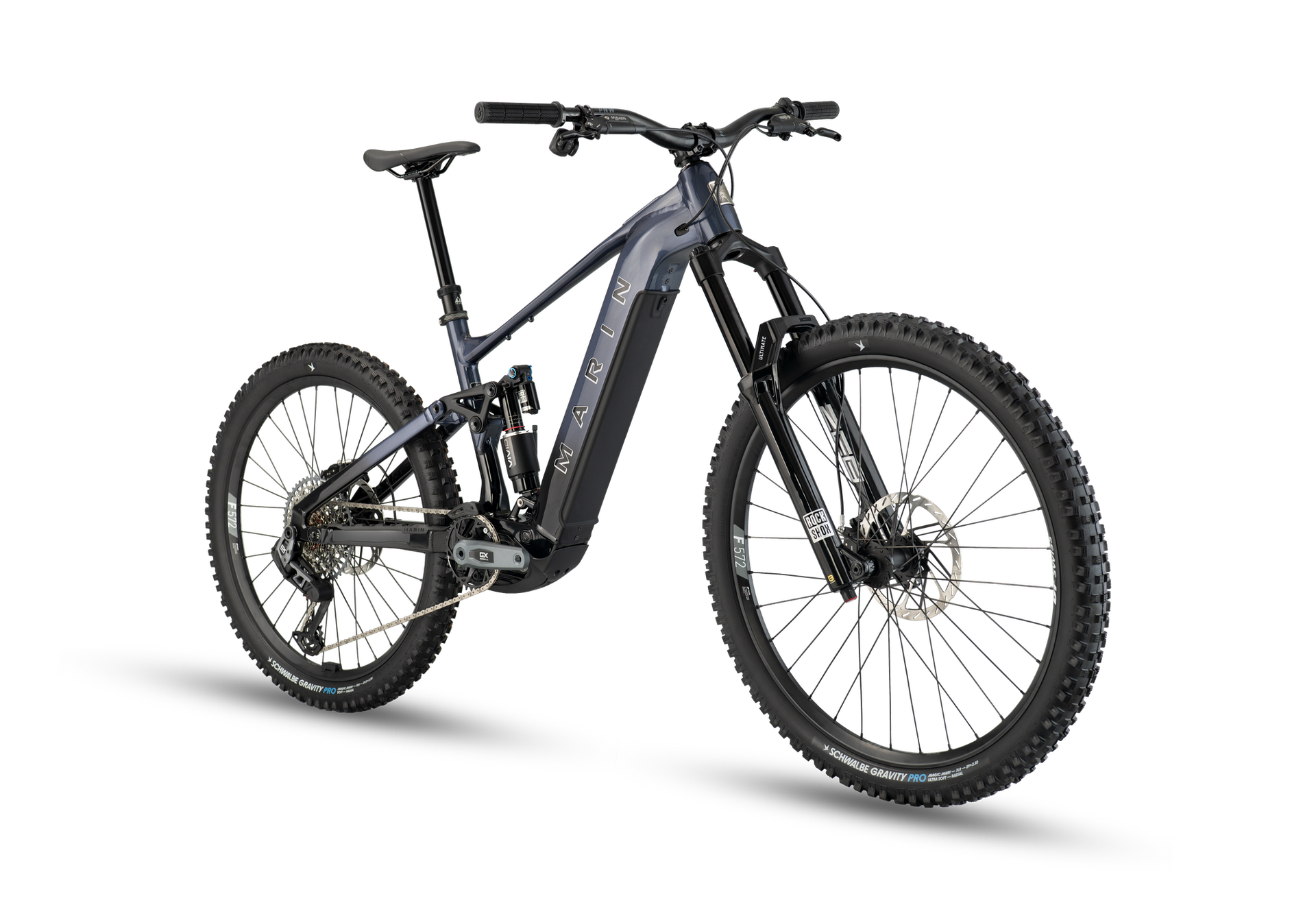

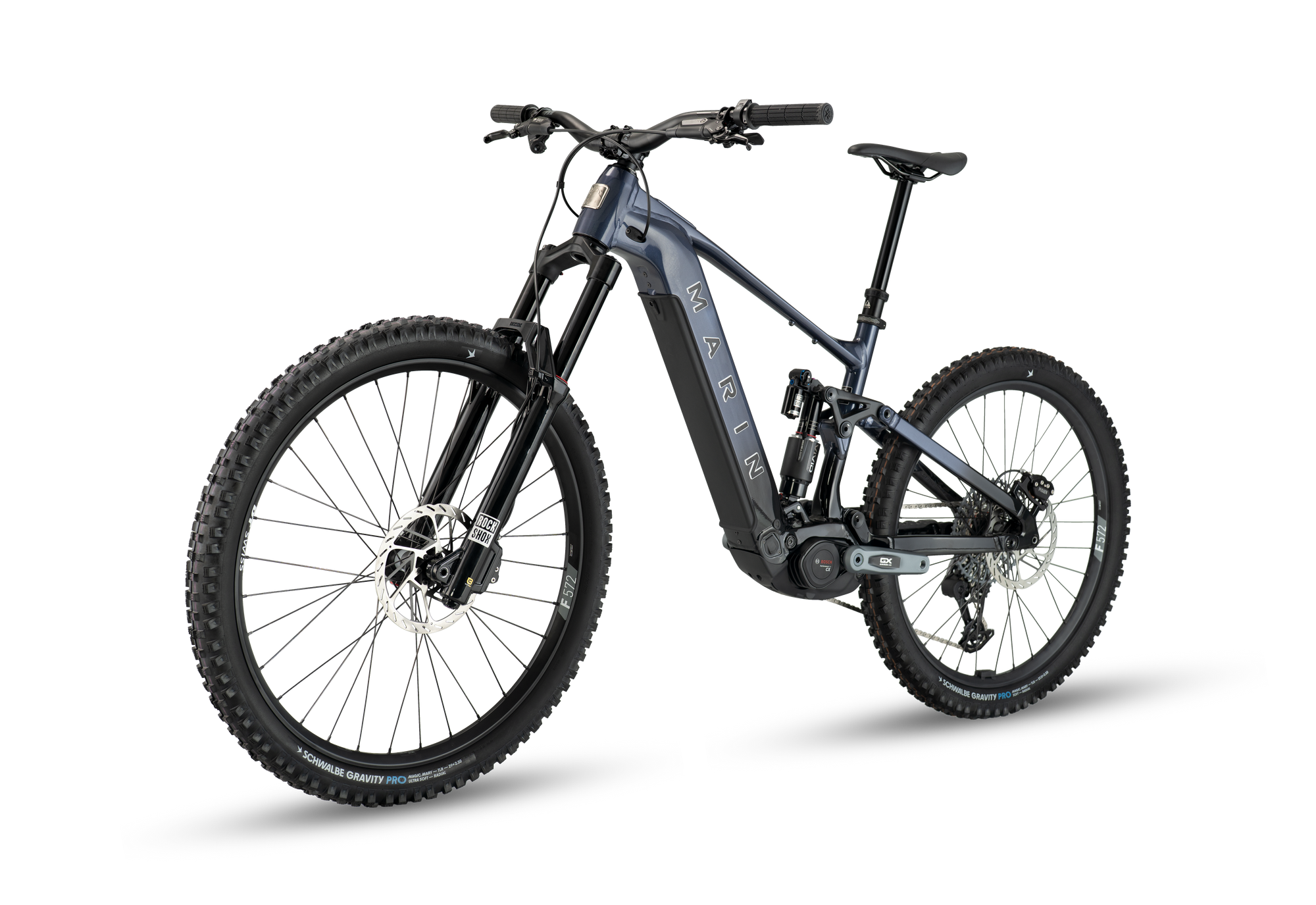

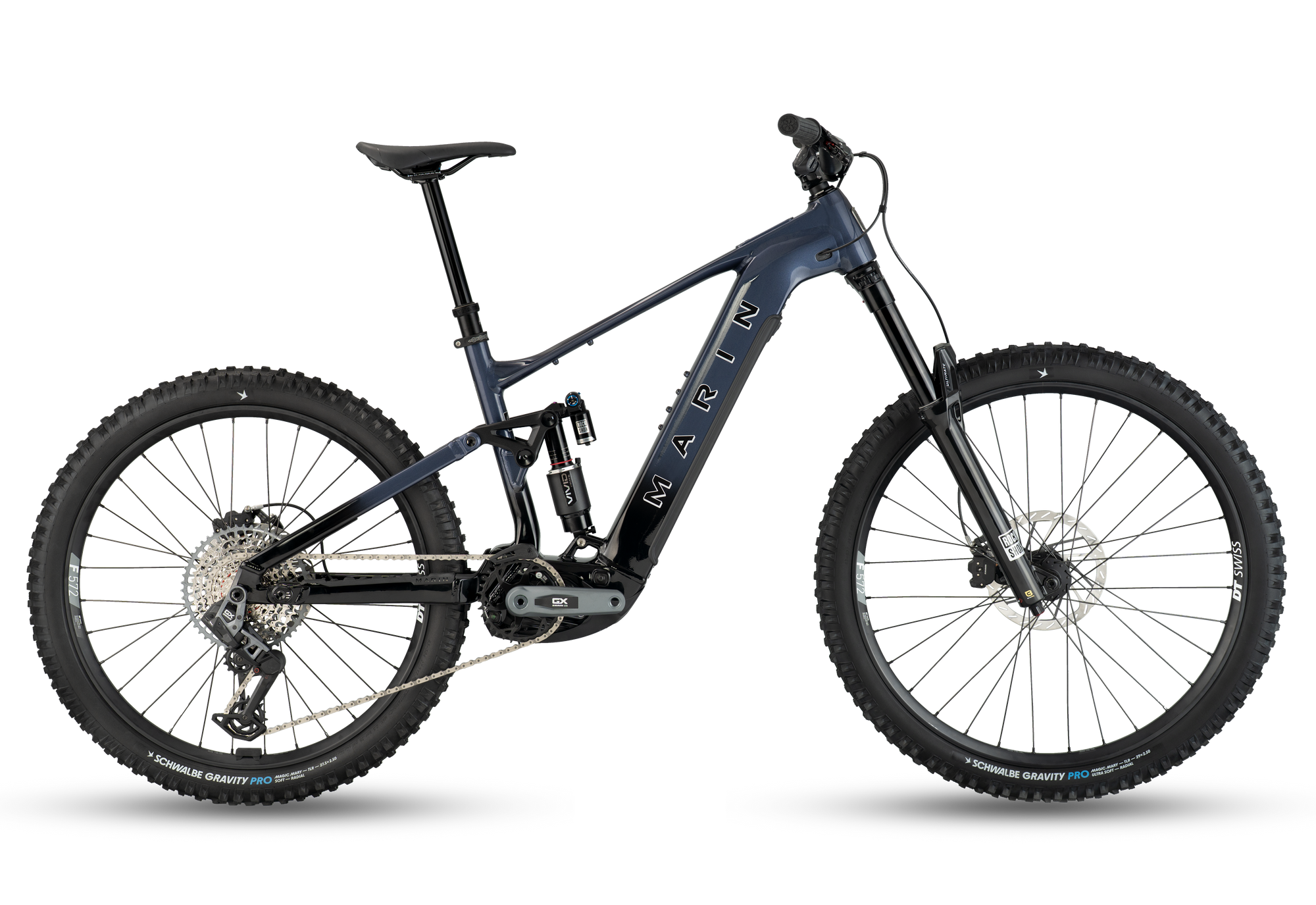

Gallery
Photos: Marin
Full specifications
Frame & suspension
- Frame
- All New Series 4 Alloy for Gen 5 CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
- Fork
- RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
- Rear shock
- RockShox Vivid Air Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune
E-system
- App
- Bosch eBike Flow App
- Range
- 15-55 miles/25-90km
- Display
- Bosch Kiox 400 Top Tube Display
- Switch
- Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
- Battery
- PT800 Horizontal
- Motor
- Bosch Performance Line CX Gen 5, 750 W, 120 Nm (per Marin description)
Drivetrain
- Chainguide
- e*thirteen e*Spec Chainguide
- Rear derailleur
- SRAM GX AXS T-Type
- Shifter
- SRAM AXS Pod Infinity Mount
- Crankset
- Sram GX, 34T, 150mm
- Chain
- SRAM GX T-Type
- Cassette
- SRAM CS-XS-1275 T-Type, 10-52T
Brakes
- Front brake
- SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
- Rear brake
- SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor
- Brake Levers
- SRAM Maven Silver
Wheels & tyres
- Rims
- DT Swiss F572, 30mm Inner, 32H
- Rear hub
- DT Swiss 370 Hybrid, 148x12mm, 6-Bolt Disc, Mircro Spline Driver, 32H
- Front hub
- DT Swiss 370 Hybrid, 110x15mm, 6-Bolt Disc, 32H
- Spokes
- DT Swiss Champion Spokes, Pro Lock Nipples
- Tyres
- Front: Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5" Rear: Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
Cockpit
- Handlebar
- PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width
- Stem
- All New Marin CNC, 35mm Length, 35mm Bar Bore
- Grips
- Marin Grizzly Lock-On
- Headset
- FSA Custom Headset, Adjustable HTA Design
- Seatpost
- PNW Loam Post with Range Lever, Size S=150, M=170mm Travel, Size L-XL 200mm Travel, 34.9mm
- Saddle
- WTB Devo Pick-Up
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Alpine Trail E geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AStack | 620 mm | 634 mm | 643 mm | 647 mm |
| BReach | 430 mm | 460 mm | 490 mm | 520 mm |
| CHead tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| DHead tube length | 100 mm | 115 mm | 125 mm | 130 mm |
| ESeat tube length | 400 mm | 420 mm | 430 mm | 450 mm |
| FSeat tube angle | 79° | 79° | 79° | 79° |
| GTop tube (effective) | 556 mm | 592 mm | 626 mm | 659 mm |
| HBB height | 352 mm | 352 mm | 352 mm | 352 mm |
| IBB drop | 24 mm / 7 mm | 24 mm / 7 mm | 24 mm / 7 mm | 24 mm / 7 mm |
| JChainstay | 442 mm | 442 mm | 442 mm | 442 mm |
| KWheelbase | 1211 mm | 1248 mm | 1283 mm | 1318 mm |
| LStandover height | 683 mm | 690 mm | 695 mm | 698 mm |
| MFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| NSeatpost diameter | 34.9 mm | 34.9 mm | 34.9 mm | 34.9 mm |
| OHandlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| PStem length | 35 mm | 35 mm | 35 mm | 35 mm |
| QCrank length | 160 mm | 160 mm | 160 mm | 160 mm |
Source: Marin. Values shown for the default "Low BB / Long CS" flip-chip position; a "High BB / Short CS" setting and ±0.75° headset cups are also available.
Alpine Trail E: builds compared
Alpine Trail E range →| Alpine Trail E1 | Alpine Trail E2 | Alpine Trail E XR | |
|---|---|---|---|
| Price | $5,999 | $7,599 | $9,299 |
| Frame | Alloy | Alloy | Alloy |
| Fork | X-Fusion Vengence, 170mm Travel | RockShox Zeb Select +, 170mm Travel | RockShox Zeb Ultimate, 170mm Travel |
| Shock | X-Fusion H3A Air | RockShox Vivid Air Select + | RockShox Vivid Air Ultimate |
| Derailleur | Shimano CUES RD-U6000 GS | SRAM Eagle 70 | SRAM GX AXS T-Type |
| Brakes | TRP DHR EVO Comp | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | New Marin, Double Wall Alloy | WTB Sportterra Tough i30 Wheelset | DT Swiss F572, 30mm Inner |
| Display | Bosch Kiox 400 Top Tube Display | Bosch Kiox 400 Top Tube Display | Bosch Kiox 400 Top Tube Display |
Alpine Trail E XR: FAQ
How much does the Marin Alpine Trail E XR cost?
$9,299 (US MSRP, excl. sales tax). The Alpine Trail E range runs from $5,999 (Alpine Trail E1) to $9,299 (Alpine Trail E XR). Prices vary by country and dealer.
What motor and battery does the Marin Alpine Trail E XR have?
Bosch Performance Line CX (120 Nm; 750 W peak (as stated by Marin)). 800 Wh battery — bosch PowerTube 800 (removable); 600 Wh optional, PowerMore 250 Wh range extender compatible.
How much suspension travel does the Marin Alpine Trail E XR have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Marin Alpine Trail E XR come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Alpine Trail E XR and the Alpine Trail E2?
They share the Alpine Trail E frame platform and motor; the differences are in the parts — fork: RockShox Zeb Ultimate vs RockShox Zeb Select +; shock: RockShox Vivid Air Ultimate vs RockShox Vivid Air Select +; derailleur: SRAM GX AXS T-Type vs SRAM Eagle 70; brakes: SRAM Maven Silver vs SRAM Maven Bronze; price: $9,299 vs $7,599.
