MarinAlpine Trail E
- Price
- $5,999 – $9,299
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak (as stated by Marin)
- Battery
- 800 WhBosch PowerTube 800 (removable); 600 Wh optional, PowerMore 250 Wh range extender compatible
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
Overview

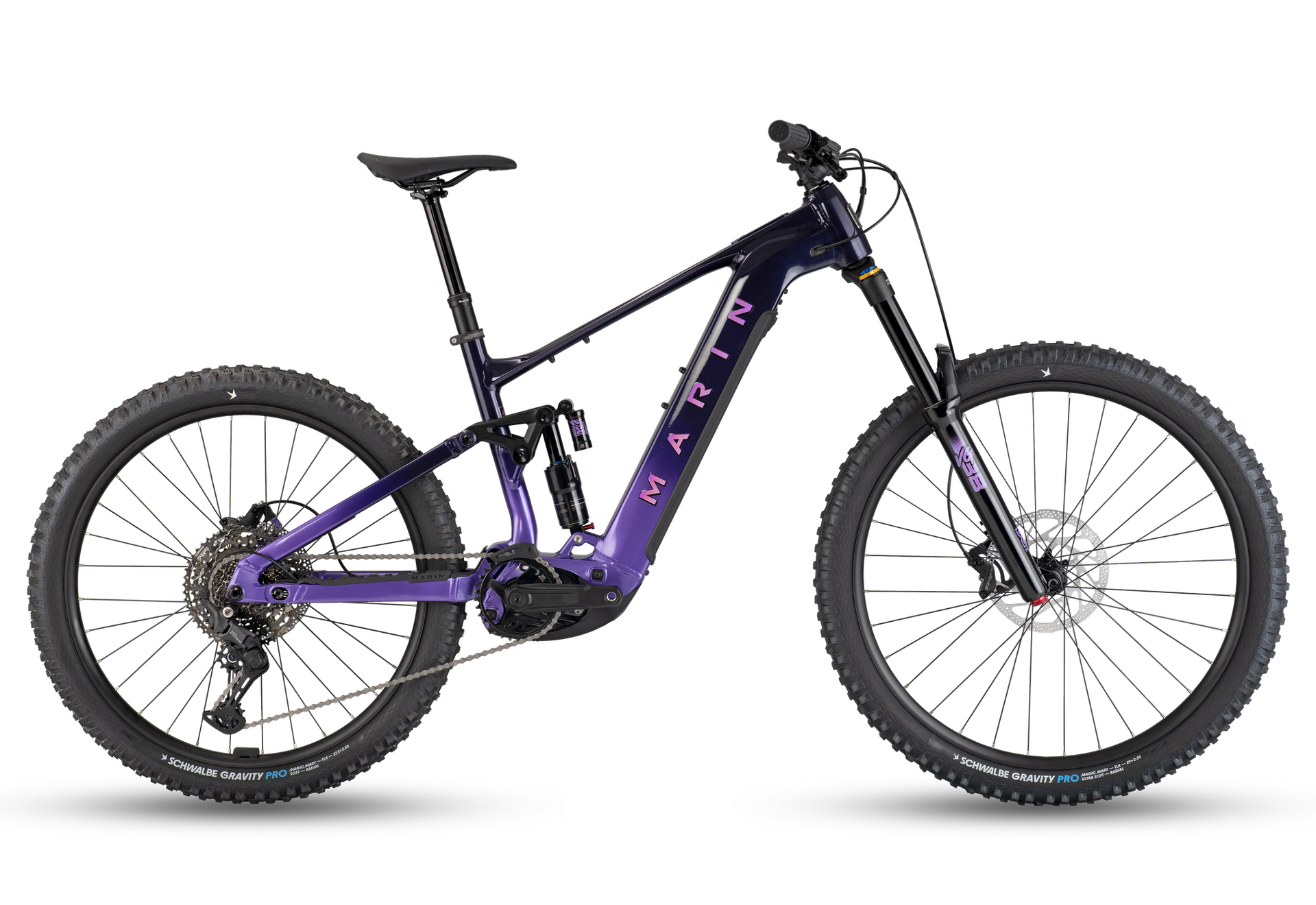

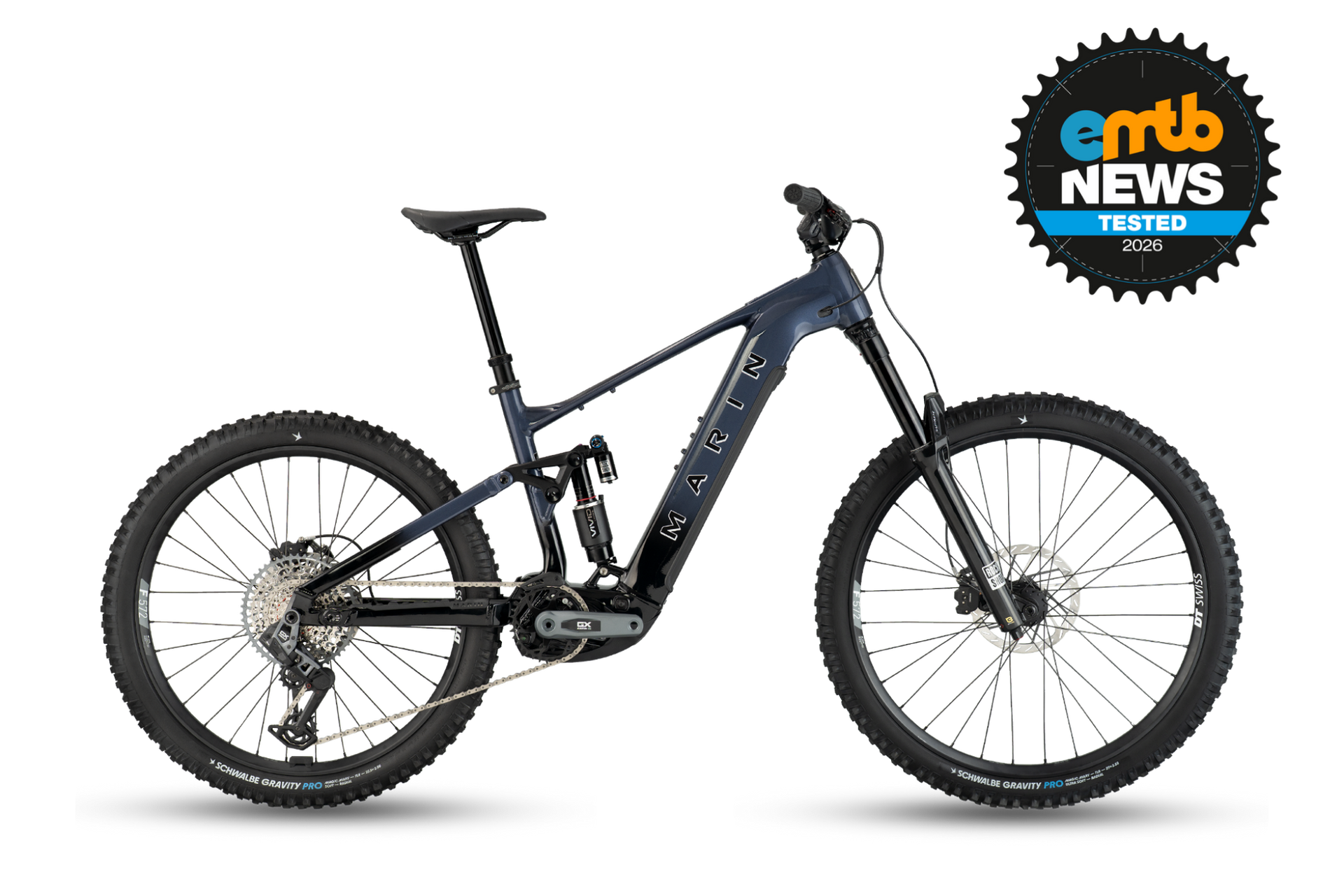

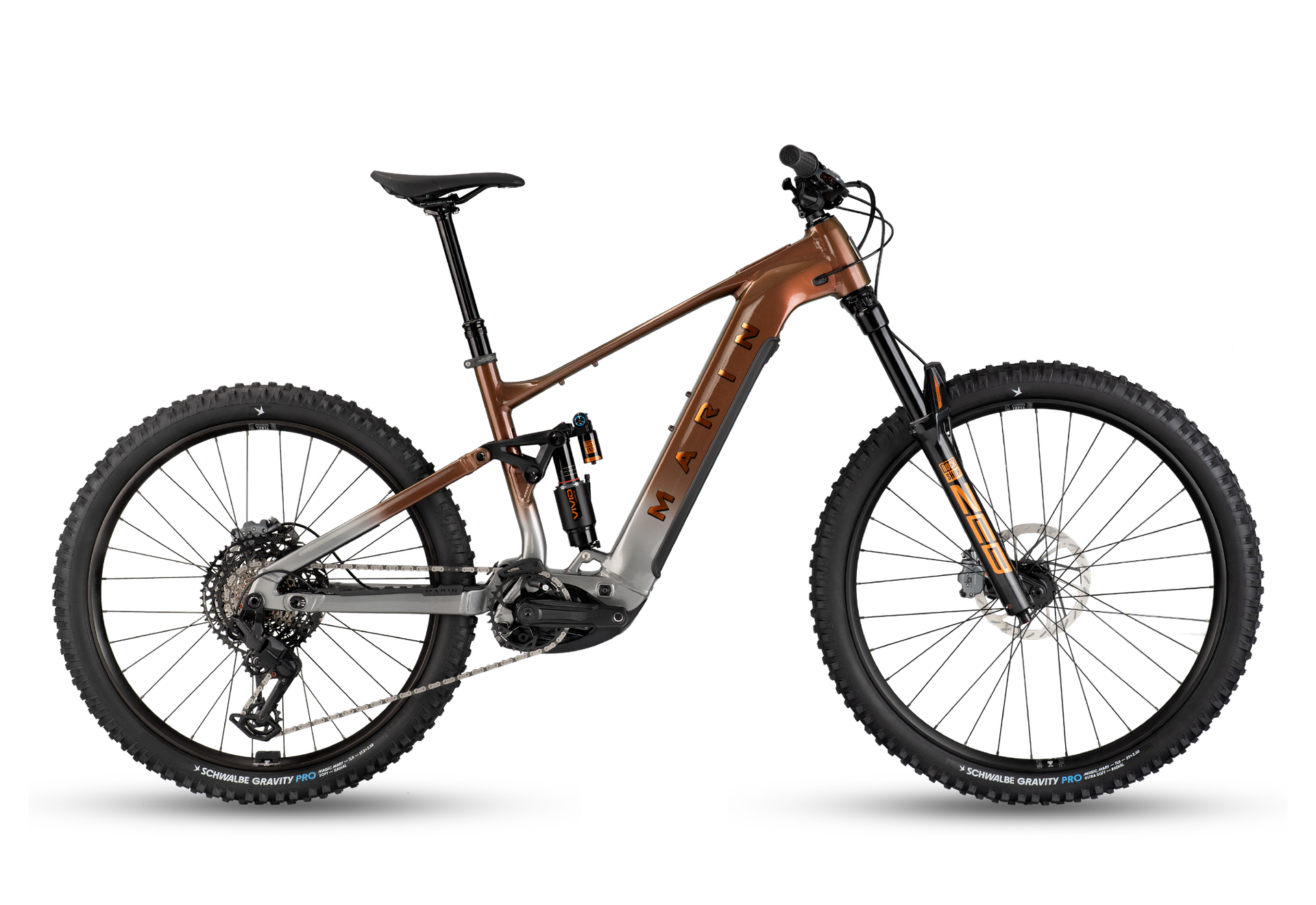

The Alpine Trail E is Marin's enduro e-MTB, built on a Series 4 aluminium frame with 160 mm of MultiTrac 2 LT rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear). Marin says the redesigned frame is 1,345 g lighter than before and has 37 mm more ground clearance, with UDH, Boost spacing and internal routing.
Every build uses Bosch's Gen 5 Performance Line CX motor (Marin quotes 120 Nm and 750 W) with a removable 800 Wh battery and a Kiox 400C top-tube display. Geometry is adjustable via a swappable upper headset cup (±0.75°) and chainstay flip chips that change bottom bracket height and chainstay length.
- Bosch Performance Line CX Gen 5, 800 Wh removable battery
- 160 mm rear / 170 mm fork, mixed wheels
- Adjustable head angle (±0.75°) and chainstay flip chips
- Series 4 aluminium frame, UDH, Kiox 400C top-tube display
Marin Alpine Trail E builds
Alpine Trail E builds compared
| Alpine Trail E1 | Alpine Trail E2 | Alpine Trail E XR | |
|---|---|---|---|
| Price | $5,999 | $7,599 | $9,299 |
| Frame | Alloy | Alloy | Alloy |
| Fork | X-Fusion Vengence, 170mm Travel | RockShox Zeb Select +, 170mm Travel | RockShox Zeb Ultimate, 170mm Travel |
| Shock | X-Fusion H3A Air | RockShox Vivid Air Select + | RockShox Vivid Air Ultimate |
| Derailleur | Shimano CUES RD-U6000 GS | SRAM Eagle 70 | SRAM GX AXS T-Type |
| Brakes | TRP DHR EVO Comp | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | New Marin, Double Wall Alloy | WTB Sportterra Tough i30 Wheelset | DT Swiss F572, 30mm Inner |
| Display | Bosch Kiox 400 Top Tube Display | Bosch Kiox 400 Top Tube Display | Bosch Kiox 400 Top Tube Display |
Alpine Trail E geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AStack | 620 mm | 634 mm | 643 mm | 647 mm |
| BReach | 430 mm | 460 mm | 490 mm | 520 mm |
| CHead tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| DHead tube length | 100 mm | 115 mm | 125 mm | 130 mm |
| ESeat tube length | 400 mm | 420 mm | 430 mm | 450 mm |
| FSeat tube angle | 79° | 79° | 79° | 79° |
| GTop tube (effective) | 556 mm | 592 mm | 626 mm | 659 mm |
| HBB height | 352 mm | 352 mm | 352 mm | 352 mm |
| IBB drop | 24 mm / 7 mm | 24 mm / 7 mm | 24 mm / 7 mm | 24 mm / 7 mm |
| JChainstay | 442 mm | 442 mm | 442 mm | 442 mm |
| KWheelbase | 1211 mm | 1248 mm | 1283 mm | 1318 mm |
| LStandover height | 683 mm | 683 mm | 695 mm | 698 mm |
| MFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| NSeatpost diameter | 34.9 mm | 34.9 mm | 34.9 mm | 34.9 mm |
| OHandlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| PStem length | 35 mm | 35 mm | 35 mm | 35 mm |
| QCrank length | 160 mm | 160 mm | 160 mm | 160 mm |
Source: Marin. Values shown for the default "Low BB / Long CS" flip-chip position; a "High BB / Short CS" setting and ±0.75° headset cups are also available.
Marin Alpine Trail E: FAQ
How much does the Marin Alpine Trail E cost?
$5,999 – $9,299 depending on the build (Alpine Trail E1 $5,999, Alpine Trail E2 $7,599, Alpine Trail E XR $9,299); US MSRP, excl. sales tax.
How many Marin Alpine Trail E builds are there?
3: Alpine Trail E1, Alpine Trail E2, Alpine Trail E XR. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Marin Alpine Trail E use?
Bosch Performance Line CX (120 Nm; 750 W peak (as stated by Marin)) with a 800 Wh battery (bosch powertube 800 (removable); 600 wh optional, powermore 250 wh range extender compatible).
How much travel does the Marin Alpine Trail E have?
170 mm fork and 160 mm rear travel on mullet 29" / 27.5" wheels.
