SpecializedTurbo Levo 4 Pro
- Motor
- Specialized 3.1105 Nm, 810 W
- Battery
- 840 WhSide-entry, integrated
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 23.9 kgSize S4, manufacturer figure
Overview
The Turbo Levo 4 Pro ($8,499.99) gets Fox Factory suspension — a 160 mm Float 38 GRIP X2 fork and Float X Factory GENIE shock — plus SRAM X0 Transmission, Maven Silver brakes and Roval Traverse HD carbon wheels. At a claimed 23.94 kg (S4) it is the lightest Levo 4 build.
The Turbo Levo 4 is Specialized's full-power trail eMTB: 150 mm of rear travel, mixed 29/27.5-inch wheels and the Specialized 3.1 motor with 105 Nm and 810 W, fed by an 840 Wh side-entry battery and controlled through the MasterMind display.
Head angle, bottom-bracket height and chainstay length are adjustable, the frame has SWAT down-tube storage and is rated for forks up to 180 mm. Builds come with carbon (Comp, Pro, Expert, S-Works) or alloy frames (Alloy, Comp Alloy); the S-Works gets the 111 Nm / 850 W S-Works motor and a 900 Wh battery.
- Specialized 3.1 motor: 105 Nm, 810 W (S-Works: 111 Nm, 850 W)
- 840 Wh side-entry battery (S-Works: 900 Wh)
- 150 mm rear travel, adjustable geometry
- Carbon or alloy frame, SWAT storage
Gallery
Photos: Specialized
Full specifications
Frame & suspension
- Frame
- All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
- Seat Binder
- Alloy, 38.6mm
- Rear Shock
- FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
- Fork
- FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
E-system
- Motor

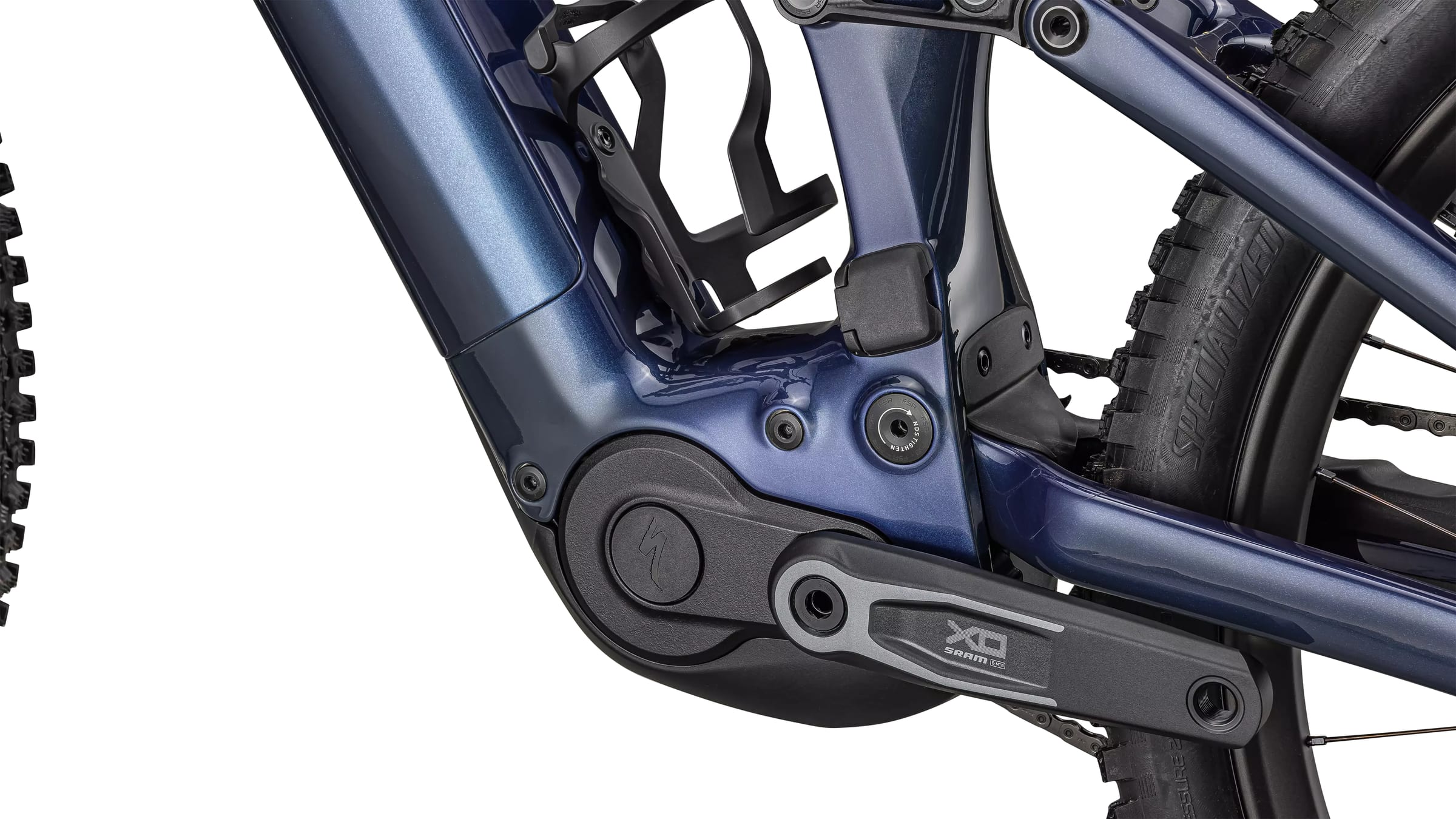

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Battery
- 840Wh battery
- UI/Remote
- All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
- Charger
- Specialized 4amp charger
Drivetrain
- Shift Levers
- SRAM AXS Pod Controller w/discrete clamp
- Rear Derailleur
- SRAM X0 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
- Cassette
- SRAM XO 1295, 12 speed, 10-52
- Chain
- SRAM X0
- Crankset
- SRAM XO Alloy crank, ISIS interface, 55mm Chainline, 155mm
- Chainrings
- SRAM 34T T-Type chainring, 104 BCD, steel
Brakes
- Front Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
- Rear Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Wheels & tyres
- Front Tyre
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
- Front Wheel
- Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h
- Rear Tyre
- Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
- Rear Wheel
- Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h
- Inner Tubes
- Standard, Presta valve
Cockpit
- Stem
- Industry 9 Mountain stem, 35mm clamp, 40mm length
- Handlebars
- RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
- Grips
- Deity Lockjaw grips
- Saddle
- Bridge Mimic Expert, Hollow Ti rails
- Seatpost
- Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Other
- SWAT
- SWAT internal downtube storage
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Turbo Levo 4 geometry
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Crank Length | 155 mm | 155 mm | 155 mm | 155 mm | 155 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 125 mm | 160 mm | 185 mm | 213 mm | 213 mm |
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Head tube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Head tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| BB Drop | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length (full) | 577 mm | 577 mm | 577 mm | 577 mm | 577 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 765 mm | 789 mm | 820 mm | 851 mm | 888 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Top-tube Length (horizontal) | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Bike Standover Height | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
Source: Specialized.
Turbo Levo 4: builds compared
Turbo Levo 4 range →| Turbo Levo 4 Alloy | Turbo Levo 4 Comp Alloy | Turbo Levo 4 Comp | Turbo Levo 4 Pro | Turbo Levo 4 Expert | S-Works Turbo Levo 4 | |
|---|---|---|---|---|---|---|
| Price | $4,999.99 | $6,799.99 | $7,999.99 | $8,499.99 | $9,499.99 | $12,499.99 |
| Frame | Alloy | Alloy | Carbon | Carbon | Carbon | Carbon |
| Fork | Marzocchi Bomber Z1, 29" | FOX FLOAT 36 Rhythm, GRIP damper | FOX FLOAT 36 Rhythm, GRIP damper | FOX FLOAT 38 Factory, GRIP X2 damper | Rockshox Zeb Select+, high/low speed compression adjust | All New SRAM FS ZEB Ultimate, 29" 160mm |
| Shock | Marzocchi Bomber Inline | Fox FLOAT X Genie | Fox FLOAT X Genie | FOX FLOAT X Factory with Specialized GENIE Shock Tech | All New Rockshox Super Deluxe Select + GENIE | All New Rockshox Super Deluxe Ultimate GENIE |
| Derailleur | SRAM Eagle 70 Transmission | SRAM Eagle 90 T-Type | SRAM S1000 Eagle AXS | SRAM X0 Eagle Transmission | SRAM GX Eagle AXS Transmission | SRAM XX Eagle Transmission Derailleur |
| Brakes | SRAM DB8 Stealth | SRAM Maven Bronze | SRAM Maven Bronze | SRAM Maven Silver | SRAM Maven Silver | SRAM Maven Ultimate |
| Wheels | Specialized, hookless alloy | Specialized, hookless alloy | Specialized, hookless alloy | Roval Traverse HD 29" | Roval Traverse Alloy 29" | Roval Traverse HD 29" |
| Weight | 26 kg | 26.4 kg | 24.5 kg | 23.9 kg | 24.7 kg | 24 kg |
Turbo Levo 4 Pro: FAQ
How much does the Specialized Turbo Levo 4 Pro cost?
$8,499.99 (US MSRP). The Turbo Levo 4 range runs from $4,999.99 (Turbo Levo 4 Alloy) to $12,499.99 (S-Works Turbo Levo 4). Prices vary by country and dealer.
How much does the Specialized Turbo Levo 4 Pro weigh?
Specialized quotes 23.9 kg. It is the lightest build of the Turbo Levo 4.
What motor and battery does the Specialized Turbo Levo 4 Pro have?
Specialized 3.1 (105 Nm, 810 W). 840 Wh battery — side-entry, integrated.
How much suspension travel does the Specialized Turbo Levo 4 Pro have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Specialized Turbo Levo 4 Pro come in?
S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Turbo Levo 4 Pro and the Turbo Levo 4 Expert?
They share the Turbo Levo 4 frame platform and motor; the differences are in the parts — fork: FOX FLOAT 38 Factory vs Rockshox Zeb Select+; shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech vs All New Rockshox Super Deluxe Select + GENIE; derailleur: SRAM X0 Eagle Transmission vs SRAM GX Eagle AXS Transmission; claimed weight: 23.9 kg vs 24.7 kg; price: $8,499.99 vs $9,499.99.
