Full-power eMTBTrail / All mountain2027

SpecializedTurbo Levo 4 Alloy

$4,999.99US MSRP

Motor: Specialized 3.1105 Nm, 810 W
Battery: 840 WhSide-entry, integrated
Travel F / R: 160 / 150 mm
Wheels: Mullet 29" / 27.5"
Frame: Alloy
Weight: 26 kgSize S4, manufacturer figure

Overview

The Turbo Levo 4 Alloy is the most affordable Levo 4 at $4,999.99: the alloy frame with the full 105 Nm Specialized 3.1 motor and 840 Wh battery, Marzocchi Bomber Z1 and Bomber Inline suspension, SRAM Eagle 70 Transmission and DB8 brakes. Claimed weight is 26.0 kg (size S4).

The Turbo Levo 4 is Specialized's full-power trail eMTB: 150 mm of rear travel, mixed 29/27.5-inch wheels and the Specialized 3.1 motor with 105 Nm and 810 W, fed by an 840 Wh side-entry battery and controlled through the MasterMind display.

Head angle, bottom-bracket height and chainstay length are adjustable, the frame has SWAT down-tube storage and is rated for forks up to 180 mm. Builds come with carbon (Comp, Pro, Expert, S-Works) or alloy frames (Alloy, Comp Alloy); the S-Works gets the 111 Nm / 850 W S-Works motor and a 900 Wh battery.

Specialized 3.1 motor: 105 Nm, 810 W (S-Works: 111 Nm, 850 W)
840 Wh side-entry battery (S-Works: 900 Wh)
150 mm rear travel, adjustable geometry
Carbon or alloy frame, SWAT storage

Gallery

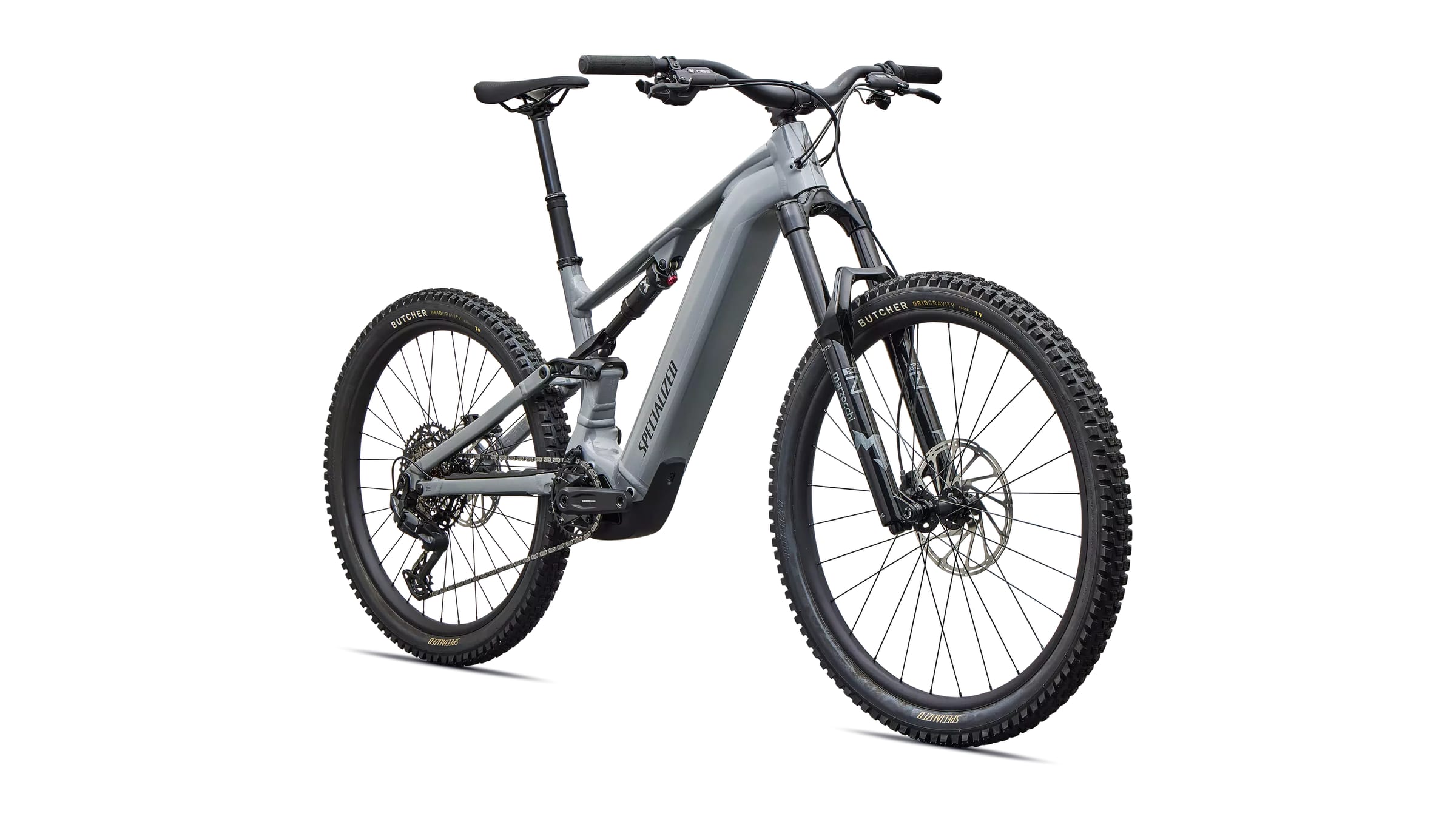

Specialized Turbo Levo 4 Alloy e-MTB, front three-quarter view

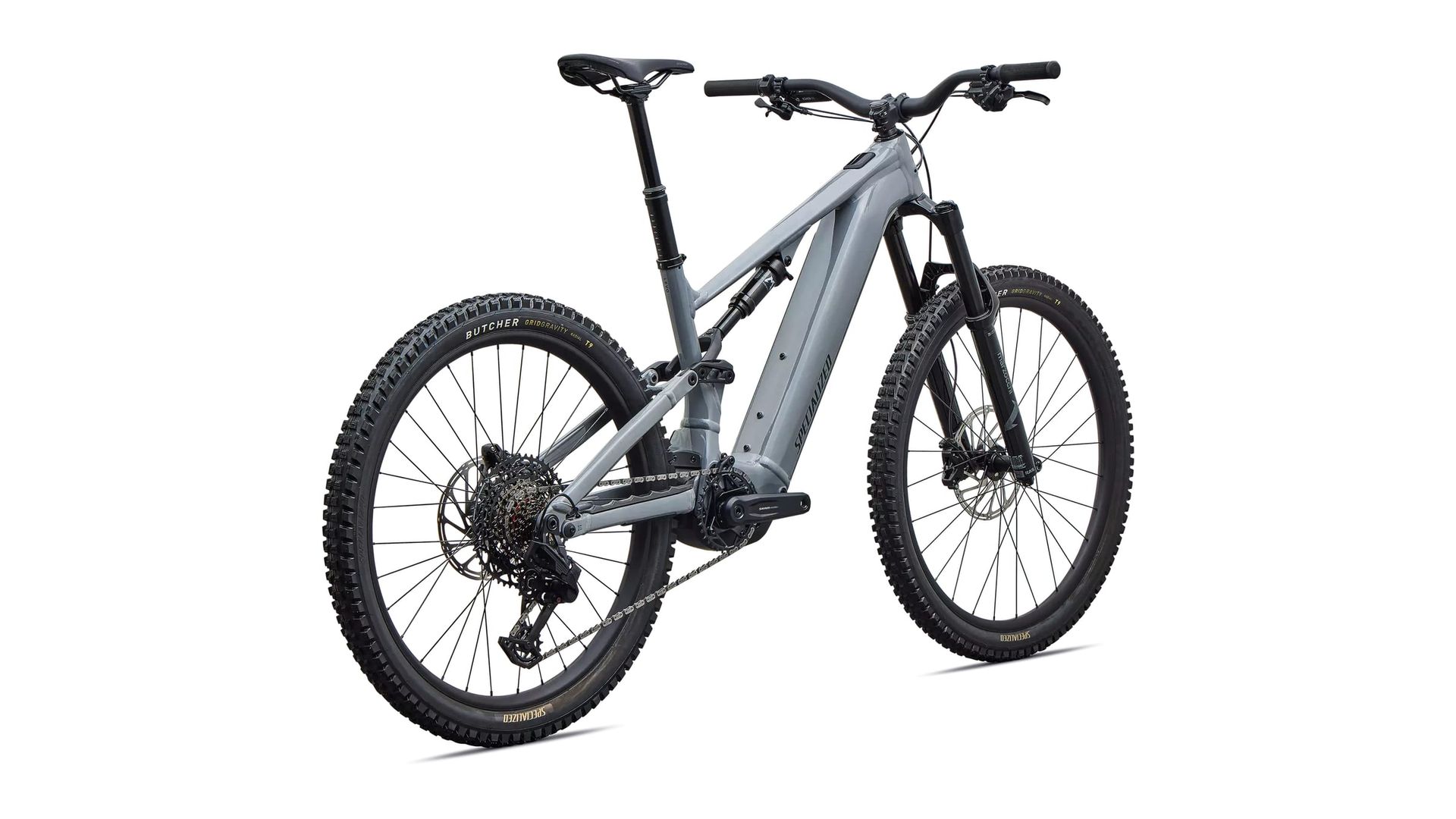

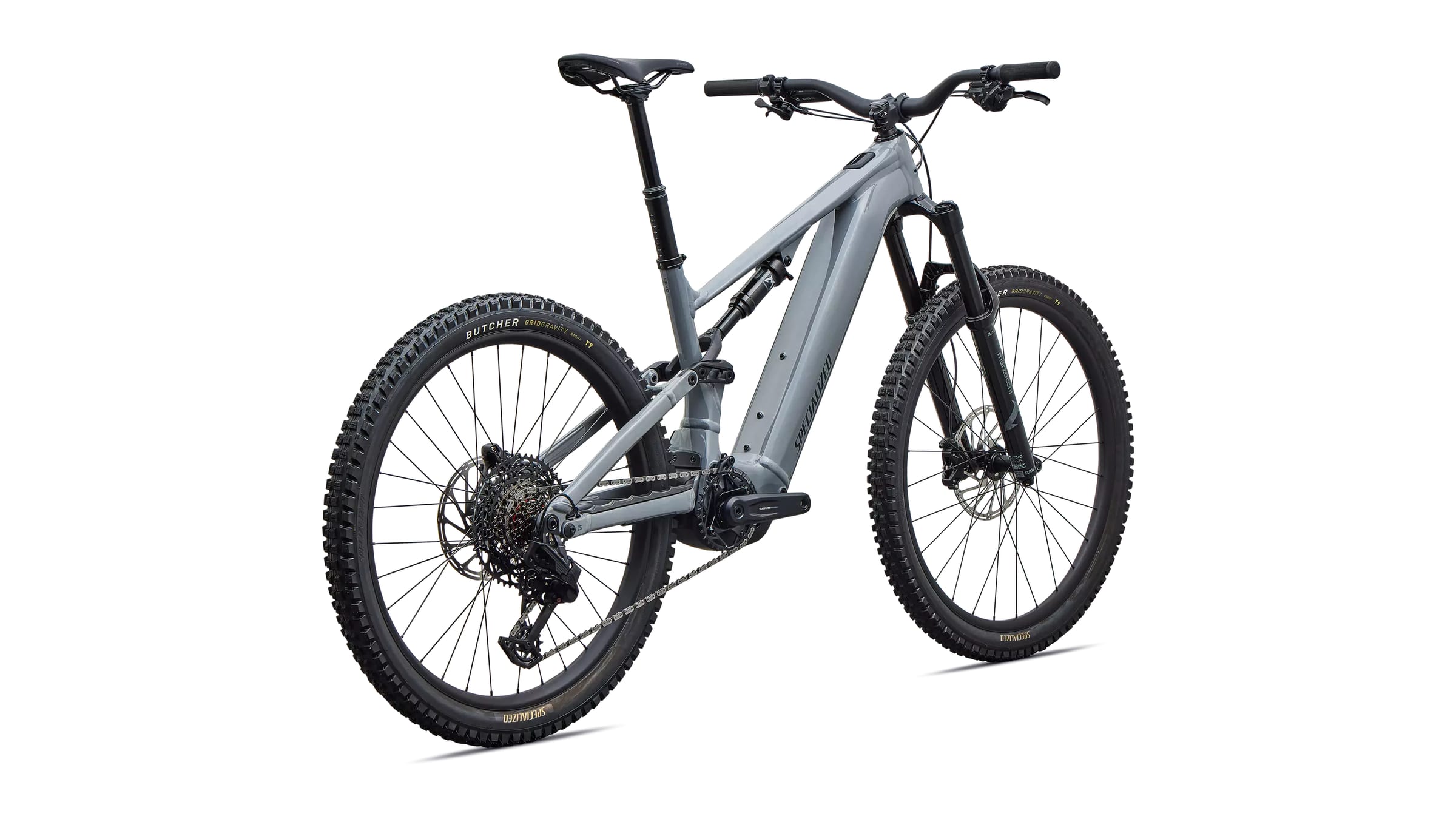

Specialized Turbo Levo 4 Alloy e-MTB, rear three-quarter view

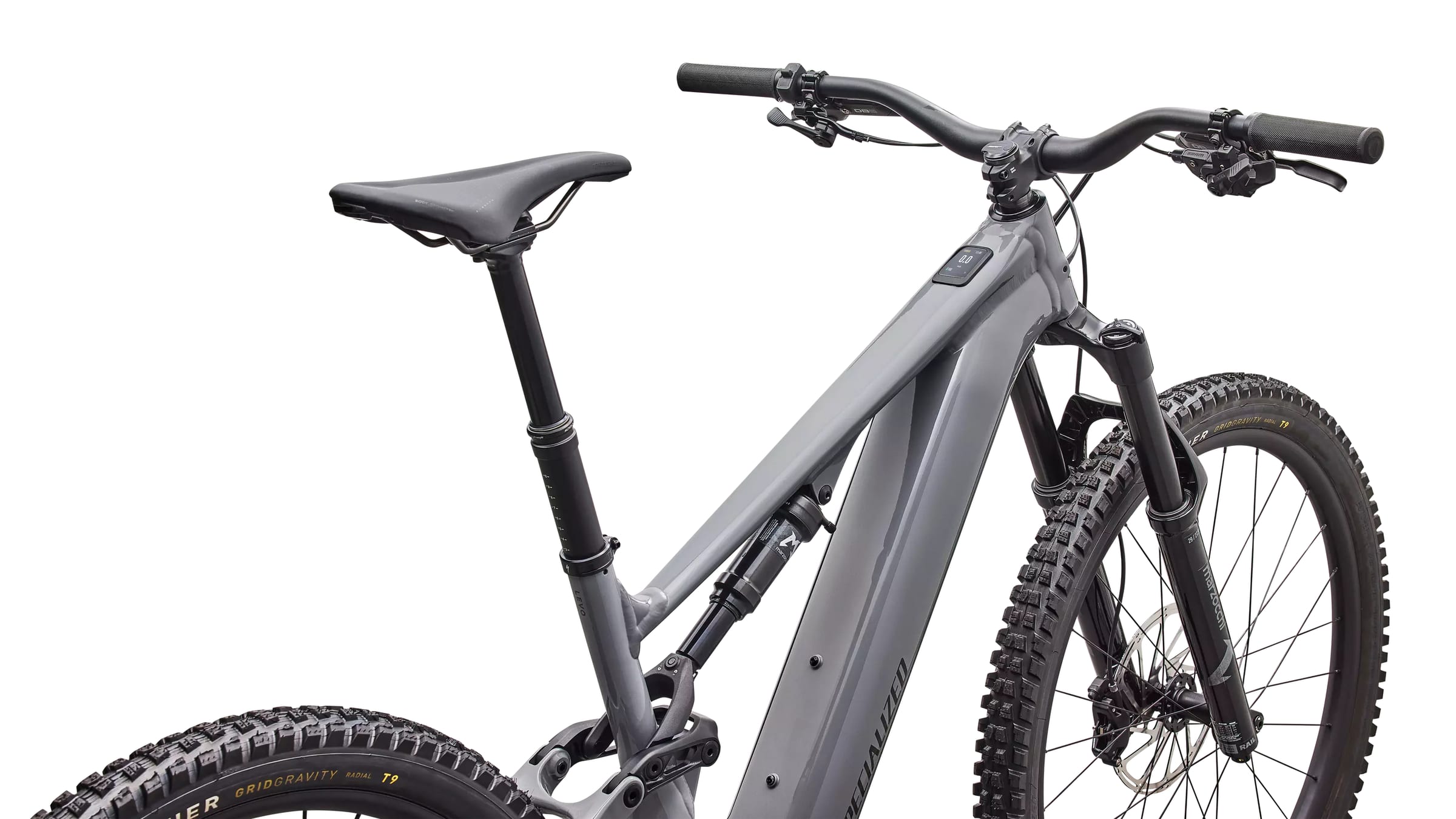

Specialized Turbo Levo 4 Alloy e-MTB, rider view of cockpit

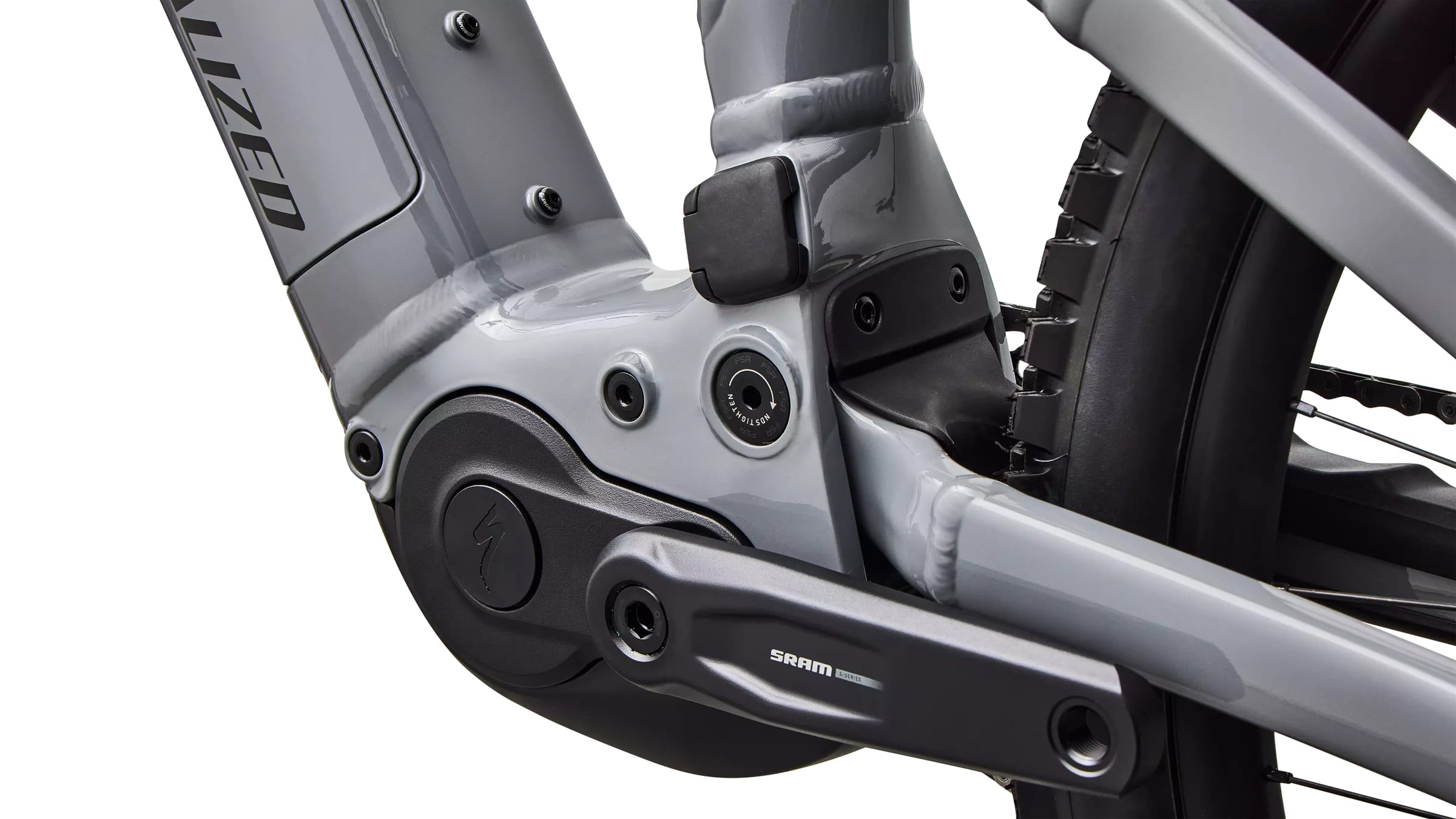

Specialized Turbo Levo 4 Alloy e-MTB, motor and crank detail

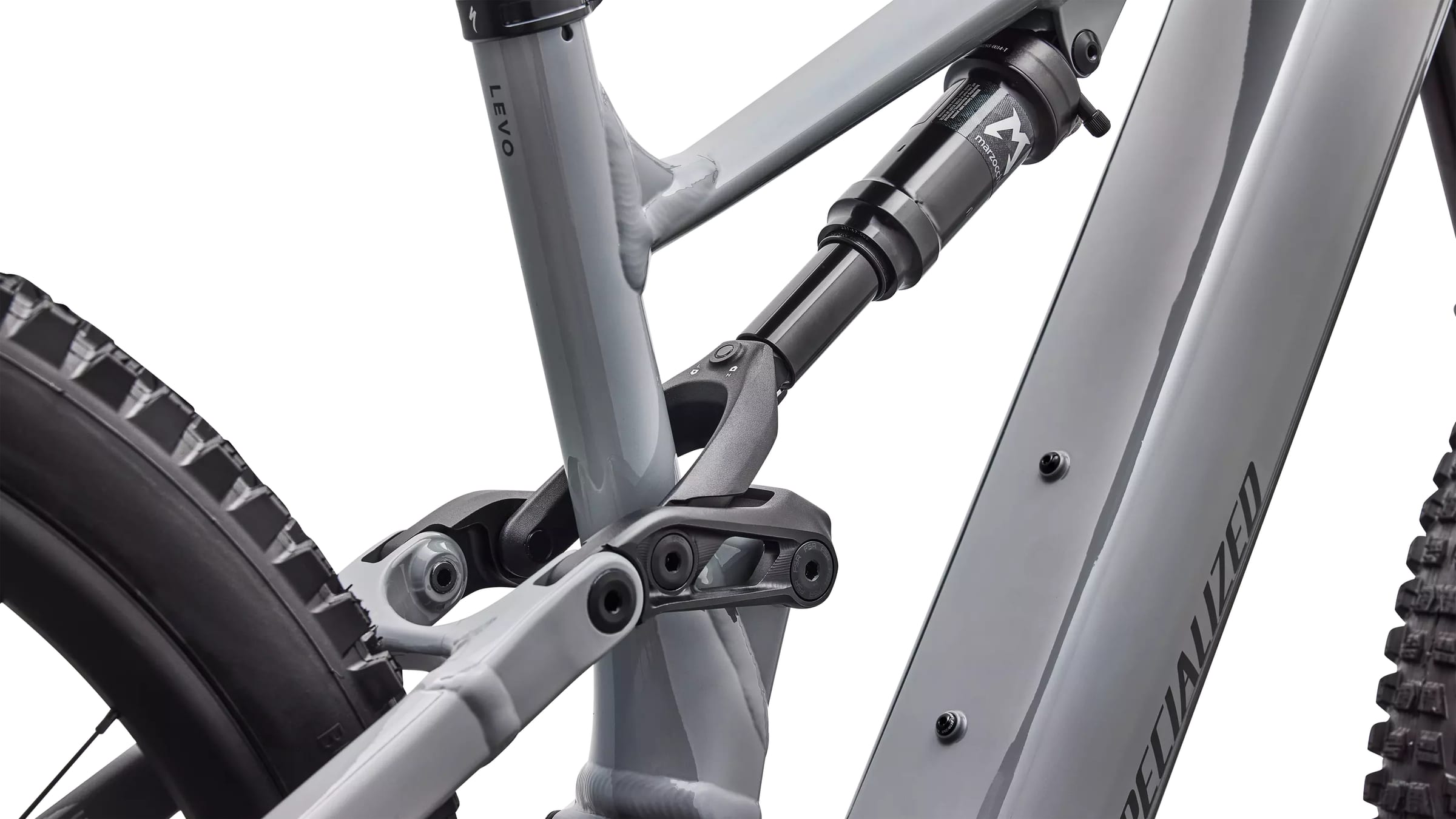

Specialized Turbo Levo 4 Alloy e-MTB, suspension linkage detail

Photos: Specialized

Full specifications

Frame & suspension

Frame: Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Seat Binder: Alloy, 38.6mm
Rear Shock: Marzocchi Bomber Inline, Evol LV air sleeve, rebound adjust
Fork: Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

E-system

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
Battery: 840Wh battery
UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger: Specialized 4amp charger

Drivetrain

Shift Levers: SRAM Eagle 70 T-Type, single click with MMX
Rear Derailleur: SRAM Eagle 70 Transmission, 12-speed, easy shift under load
Cassette: SRAM 12-speed,10-52t
Chain: SRAM 70 Transmission 12-Speed Flattop Chain
Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Brakes

Front Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor

Wheels & tyres

Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Hub: Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 32h, HG Steel Fhb
Spokes: DT Swiss Elemental
Front Tyre: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
Rear Tyre: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
Inner Tubes: Standard, Presta Valve

Cockpit

Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Grips: Specialized Trail Grips
Saddle: Body Geometry Bridge Saddle, steel rails
Seatpost: TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4: 170mm, S5-S6: 200mm

Other

SWAT: SWAT Internal downtube storage

Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

Turbo Levo 4 geometry

Size	S1	S2	S3	S4	S5	S6
Crank Length	155 mm	155 mm	155 mm	155 mm	155 mm	155 mm
Handlebar Width	780 mm	780 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	100 mm	125 mm	150 mm	170 mm	200 mm	200 mm
Stack	609 mm	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	407 mm	435 mm	455 mm	480 mm	505 mm	535 mm
Head tube Length	94 mm	95 mm	103 mm	117 mm	132 mm	149 mm
Head tube Angle	64°	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	355 mm	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	24.13 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	137 mm	132 mm	132 mm	132 mm
Fork Length (full)	567 mm	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	744 mm	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1179 mm	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	556 mm	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	379 mm	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	76°	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	645 mm	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	264 mm	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm

Source: Specialized.

Turbo Levo 4: builds compared

Turbo Levo 4 range →

	Turbo Levo 4 Alloy	Turbo Levo 4 Comp Alloy	Turbo Levo 4 Comp	Turbo Levo 4 Pro	Turbo Levo 4 Expert	S-Works Turbo Levo 4
Price	$4,999.99	$6,799.99	$7,999.99	$8,499.99	$9,499.99	$12,499.99
Frame	Alloy	Alloy	Carbon	Carbon	Carbon	Carbon
Fork	Marzocchi Bomber Z1, 29"	FOX FLOAT 36 Rhythm, GRIP damper	FOX FLOAT 36 Rhythm, GRIP damper	FOX FLOAT 38 Factory, GRIP X2 damper	Rockshox Zeb Select+, high/low speed compression adjust	All New SRAM FS ZEB Ultimate, 29" 160mm
Shock	Marzocchi Bomber Inline	Fox FLOAT X Genie	Fox FLOAT X Genie	FOX FLOAT X Factory with Specialized GENIE Shock Tech	All New Rockshox Super Deluxe Select + GENIE	All New Rockshox Super Deluxe Ultimate GENIE
Derailleur	SRAM Eagle 70 Transmission	SRAM Eagle 90 T-Type	SRAM S1000 Eagle AXS	SRAM X0 Eagle Transmission	SRAM GX Eagle AXS Transmission	SRAM XX Eagle Transmission Derailleur
Brakes	SRAM DB8 Stealth	SRAM Maven Bronze	SRAM Maven Bronze	SRAM Maven Silver	SRAM Maven Silver	SRAM Maven Ultimate
Wheels	Specialized, hookless alloy	Specialized, hookless alloy	Specialized, hookless alloy	Roval Traverse HD 29"	Roval Traverse Alloy 29"	Roval Traverse HD 29"
Weight	26 kg	26.4 kg	24.5 kg	23.9 kg	24.7 kg	24 kg

Turbo Levo 4 Alloy: FAQ

How much does the Specialized Turbo Levo 4 Alloy cost?

$4,999.99 (US MSRP). The Turbo Levo 4 range runs from $4,999.99 (Turbo Levo 4 Alloy) to $12,499.99 (S-Works Turbo Levo 4). Prices vary by country and dealer.

How much does the Specialized Turbo Levo 4 Alloy weigh?

Specialized quotes 26 kg. The lightest Turbo Levo 4 build is the Turbo Levo 4 Pro at 23.9 kg.

What motor and battery does the Specialized Turbo Levo 4 Alloy have?

Specialized 3.1 (105 Nm, 810 W). 840 Wh battery — side-entry, integrated.

How much suspension travel does the Specialized Turbo Levo 4 Alloy have?

160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.

What sizes does the Specialized Turbo Levo 4 Alloy come in?

S1, S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.

What is the difference between the Turbo Levo 4 Alloy and the Turbo Levo 4 Comp Alloy?

They share the Turbo Levo 4 frame platform and motor; the differences are in the parts — fork: Marzocchi Bomber Z1 vs FOX FLOAT 36 Rhythm; shock: Marzocchi Bomber Inline vs Fox FLOAT X Genie; derailleur: SRAM Eagle 70 Transmission vs SRAM Eagle 90 T-Type; brakes: SRAM DB8 Stealth vs SRAM Maven Bronze; claimed weight: 26 kg vs 26.4 kg; price: $4,999.99 vs $6,799.99.
