Full-power eMTBTrail / All mountain2027

SpecializedS-Works Turbo Levo 4

$12,499.99US MSRP

Motor: Specialized 3.1 S-Works111 Nm, 850 W
Battery: 900 WhSide-entry, integrated
Travel F / R: 160 / 150 mm
Wheels: Mullet 29" / 27.5"
Frame: Carbon
Weight: 24 kgSize S4, manufacturer figure

Overview

The S-Works Turbo Levo 4 ($12,499.99) tops the range with the S-Works 3.1 motor (111 Nm, 850 W), a 900 Wh battery, RockShox ZEB Ultimate and Super Deluxe Ultimate GENIE suspension, SRAM XX Transmission, Maven Ultimate brakes and Roval Traverse HD carbon wheels, at a claimed 24.0 kg (S4).

The Turbo Levo 4 is Specialized's full-power trail eMTB: 150 mm of rear travel, mixed 29/27.5-inch wheels and the Specialized 3.1 motor with 105 Nm and 810 W, fed by an 840 Wh side-entry battery and controlled through the MasterMind display.

Head angle, bottom-bracket height and chainstay length are adjustable, the frame has SWAT down-tube storage and is rated for forks up to 180 mm. Builds come with carbon (Comp, Pro, Expert, S-Works) or alloy frames (Alloy, Comp Alloy); the S-Works gets the 111 Nm / 850 W S-Works motor and a 900 Wh battery.

Specialized 3.1 motor: 105 Nm, 810 W (S-Works: 111 Nm, 850 W)
840 Wh side-entry battery (S-Works: 900 Wh)
150 mm rear travel, adjustable geometry
Carbon or alloy frame, SWAT storage

Gallery

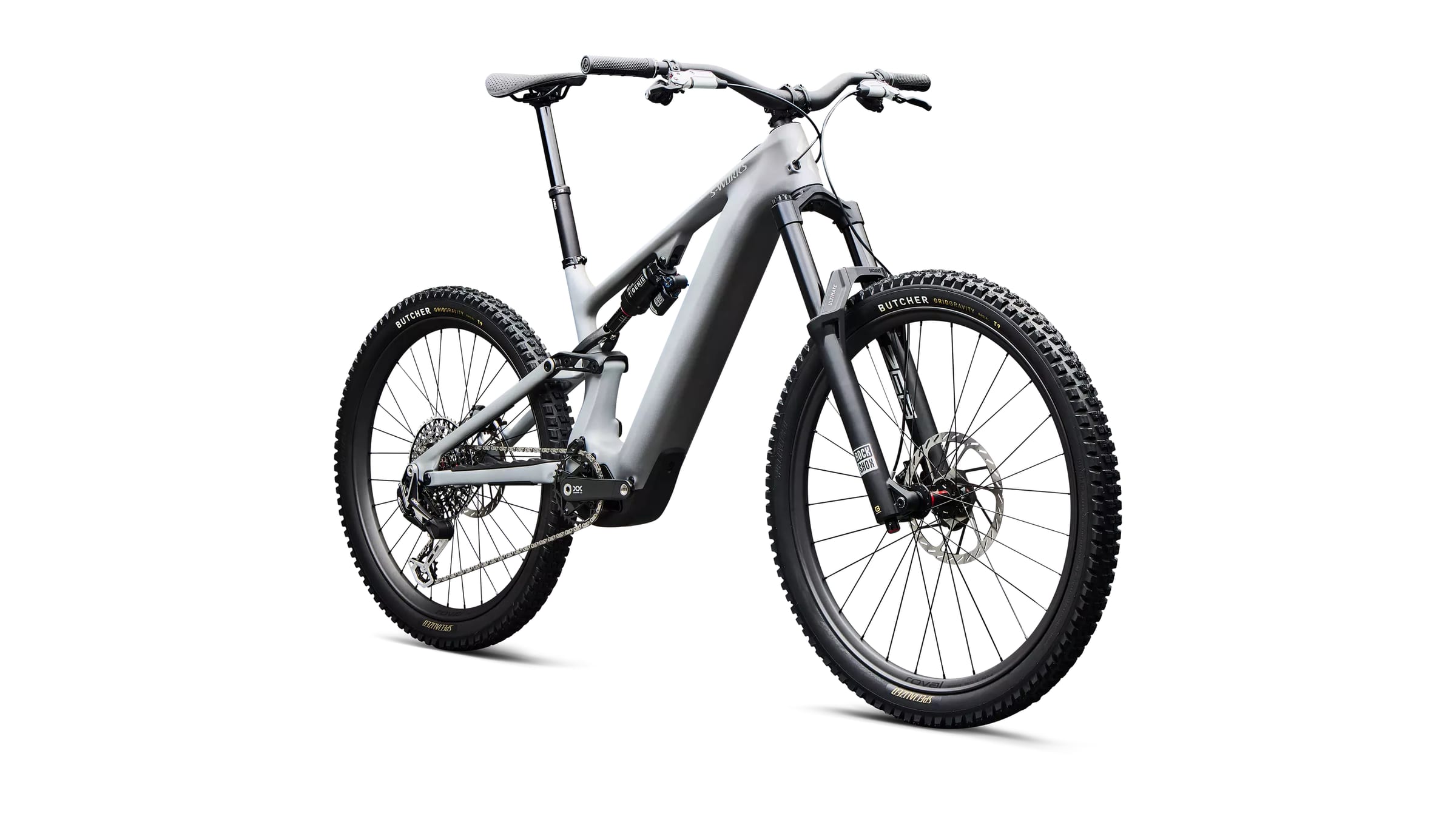

Specialized S-Works Turbo Levo 4 e-MTB, front three-quarter view

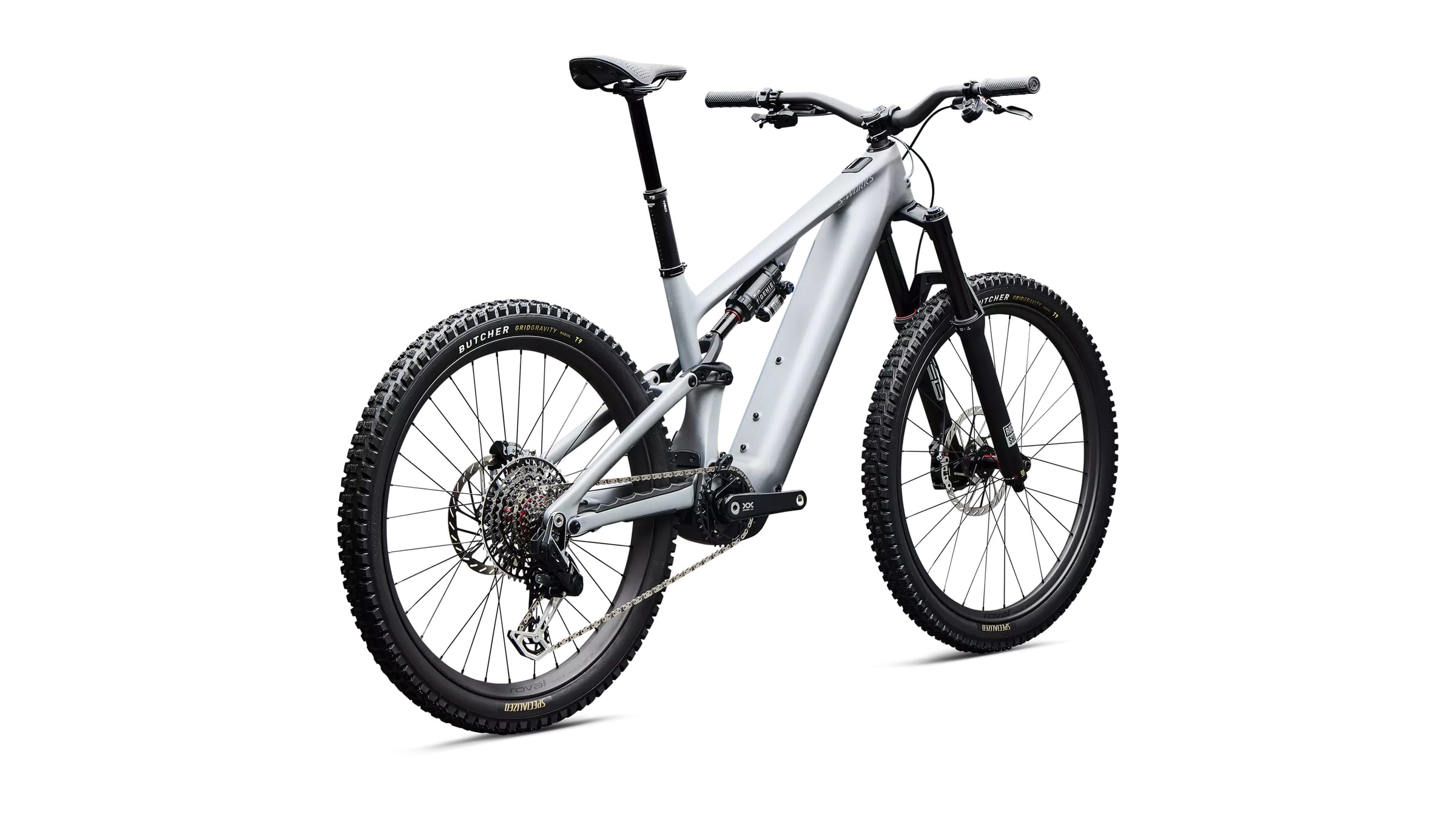

Specialized S-Works Turbo Levo 4 e-MTB, rear three-quarter view

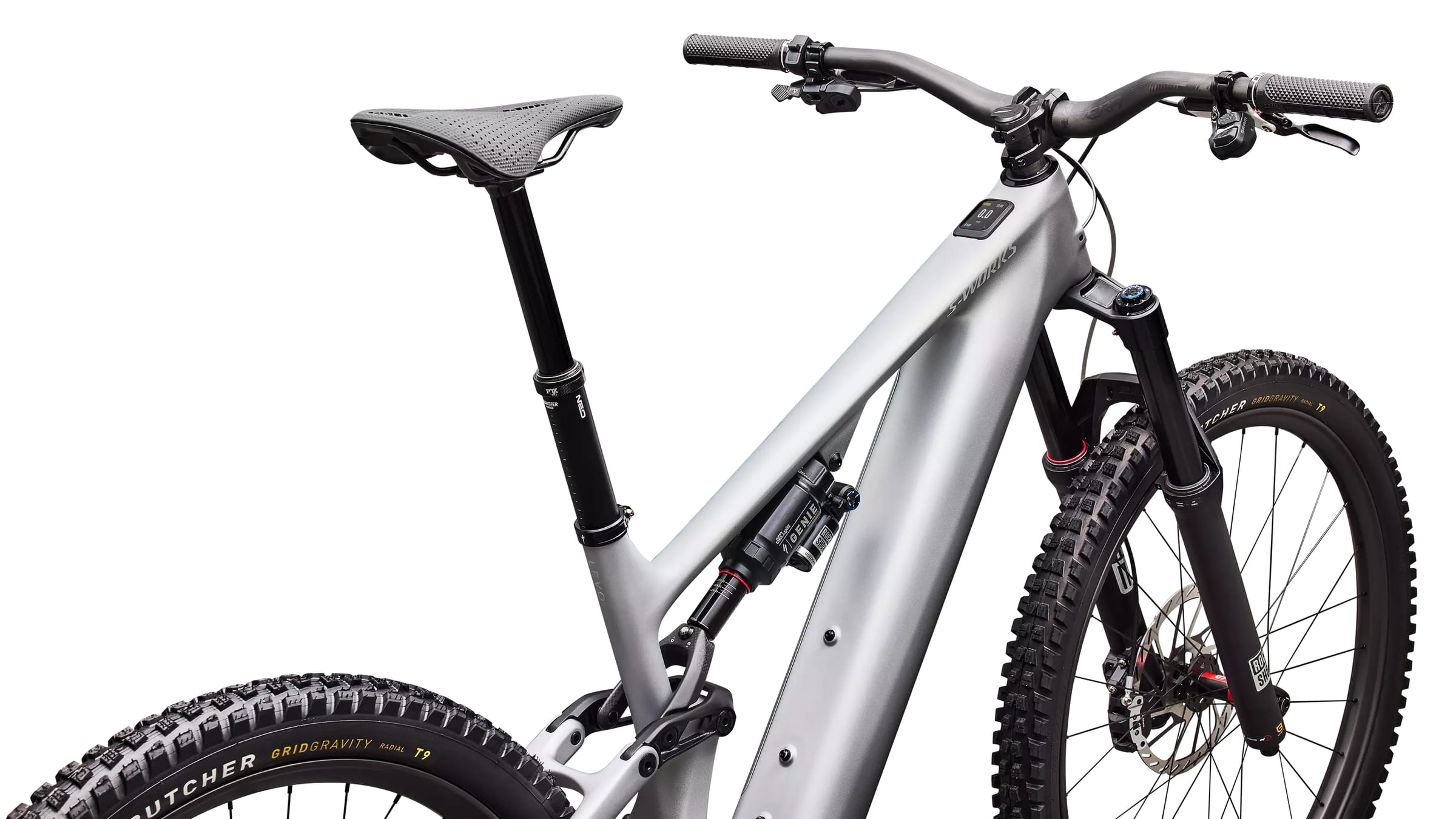

Specialized S-Works Turbo Levo 4 e-MTB, rider view of cockpit

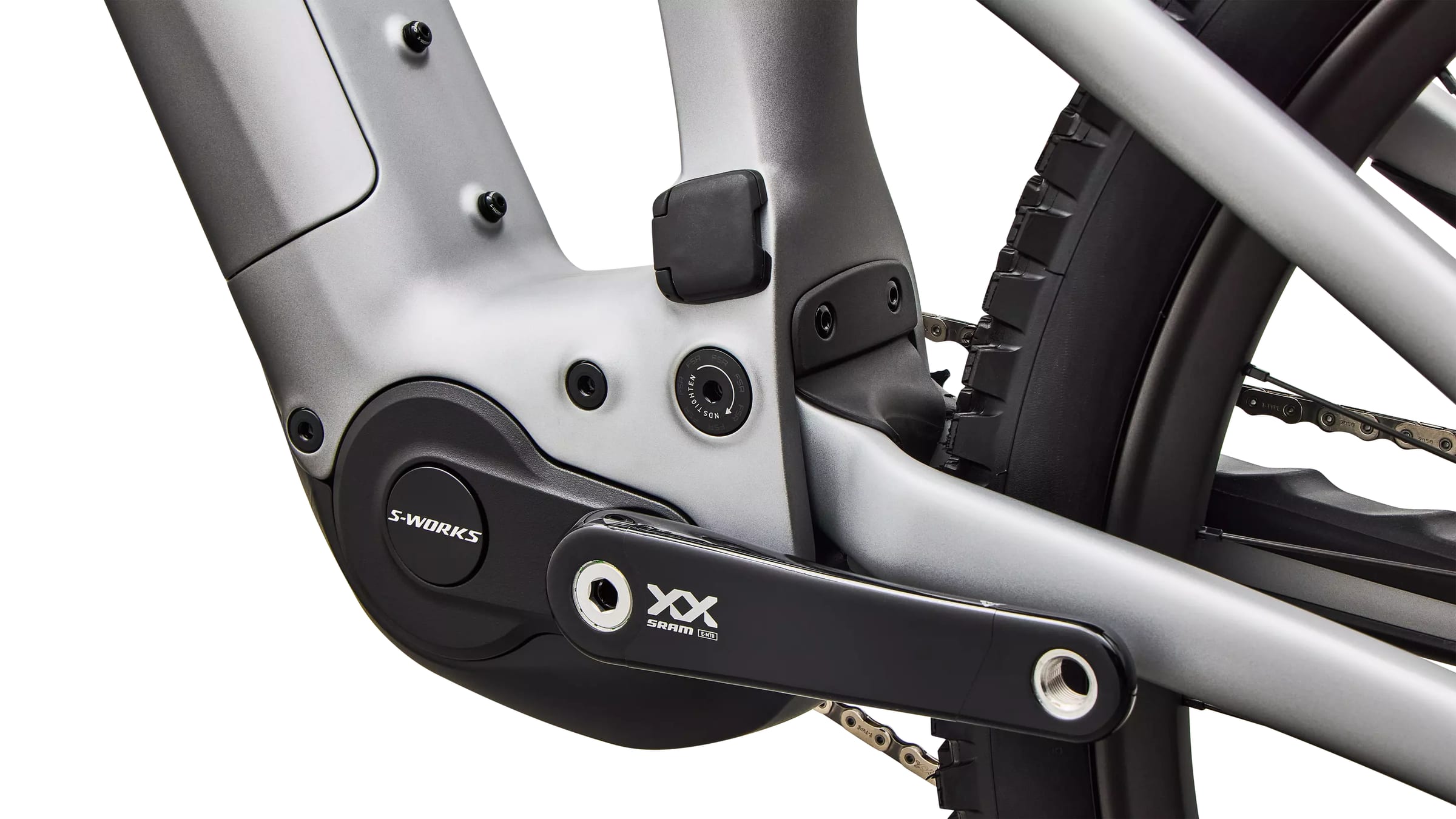

Specialized S-Works Turbo Levo 4 e-MTB, motor and crank detail

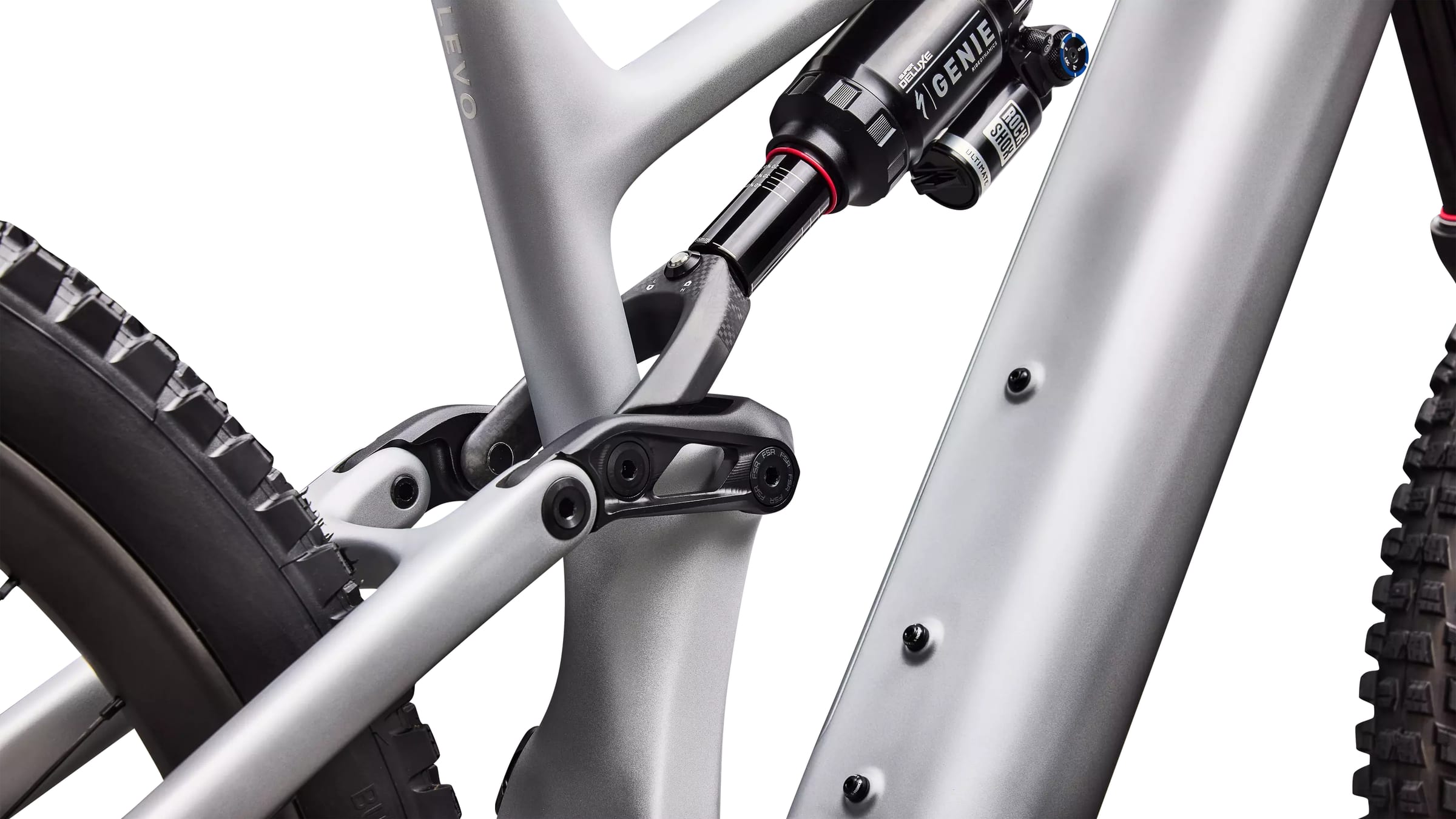

Specialized S-Works Turbo Levo 4 e-MTB, suspension linkage detail

Photos: Specialized

Full specifications

Frame & suspension

Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Seat Binder: Alloy, 38.6mm
Rear Shock: All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
Fork: All New SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

E-system

Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power
Battery: 900Wh Battery
UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Drivetrain

Shift Levers: SRAM AXS Pod Ultimate with Discrete Clamp
Rear Derailleur: SRAM XX Eagle Transmission Derailleur
Cassette: SRAM XX Transmission, XS 1297, 10-52t
Chain: SRAM XX, T-Type
Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Brakes

Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Wheels & tyres

Front Tyre: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h
Rear Tyre: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
Rear Wheel: Roval Traverse HD carbon 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
Inner Tubes: Standard, Presta Valve

Cockpit

Stem: RaceFace, 35mm clamp, 40mm length
Handlebars: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Saddle: Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm
Seatpost: FOX Transfer Neo E-Optimized, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm w/ 1320mm cable powered by e-system battery

Other

SWAT: SWAT Internal downtube storage

Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

Turbo Levo 4 geometry

Size	S2	S3	S4	S5	S6
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	150 mm	175 mm	200 mm	225 mm	240 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Head tube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Head tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm

Source: Specialized.

Turbo Levo 4: builds compared

Turbo Levo 4 range →

	Turbo Levo 4 Alloy	Turbo Levo 4 Comp Alloy	Turbo Levo 4 Comp	Turbo Levo 4 Pro	Turbo Levo 4 Expert	S-Works Turbo Levo 4
Price	$4,999.99	$6,799.99	$7,999.99	$8,499.99	$9,499.99	$12,499.99
Frame	Alloy	Alloy	Carbon	Carbon	Carbon	Carbon
Fork	Marzocchi Bomber Z1, 29"	FOX FLOAT 36 Rhythm, GRIP damper	FOX FLOAT 36 Rhythm, GRIP damper	FOX FLOAT 38 Factory, GRIP X2 damper	Rockshox Zeb Select+, high/low speed compression adjust	All New SRAM FS ZEB Ultimate, 29" 160mm
Shock	Marzocchi Bomber Inline	Fox FLOAT X Genie	Fox FLOAT X Genie	FOX FLOAT X Factory with Specialized GENIE Shock Tech	All New Rockshox Super Deluxe Select + GENIE	All New Rockshox Super Deluxe Ultimate GENIE
Derailleur	SRAM Eagle 70 Transmission	SRAM Eagle 90 T-Type	SRAM S1000 Eagle AXS	SRAM X0 Eagle Transmission	SRAM GX Eagle AXS Transmission	SRAM XX Eagle Transmission Derailleur
Brakes	SRAM DB8 Stealth	SRAM Maven Bronze	SRAM Maven Bronze	SRAM Maven Silver	SRAM Maven Silver	SRAM Maven Ultimate
Wheels	Specialized, hookless alloy	Specialized, hookless alloy	Specialized, hookless alloy	Roval Traverse HD 29"	Roval Traverse Alloy 29"	Roval Traverse HD 29"
Weight	26 kg	26.4 kg	24.5 kg	23.9 kg	24.7 kg	24 kg

S-Works Turbo Levo 4: FAQ

How much does the Specialized S-Works Turbo Levo 4 cost?

$12,499.99 (US MSRP). The Turbo Levo 4 range runs from $4,999.99 (Turbo Levo 4 Alloy) to $12,499.99 (S-Works Turbo Levo 4). Prices vary by country and dealer.

How much does the Specialized S-Works Turbo Levo 4 weigh?

Specialized quotes 24 kg. The lightest Turbo Levo 4 build is the Turbo Levo 4 Pro at 23.9 kg.

What motor and battery does the Specialized S-Works Turbo Levo 4 have?

Specialized 3.1 S-Works (111 Nm, 850 W). 900 Wh battery — side-entry, integrated.

How much suspension travel does the Specialized S-Works Turbo Levo 4 have?

160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.

What sizes does the Specialized S-Works Turbo Levo 4 come in?

S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.

What is the difference between the S-Works Turbo Levo 4 and the Turbo Levo 4 Expert?

They share the Turbo Levo 4 frame platform; the differences are in the parts — fork: All New SRAM FS ZEB Ultimate vs Rockshox Zeb Select+; shock: All New Rockshox Super Deluxe Ultimate GENIE vs All New Rockshox Super Deluxe Select + GENIE; derailleur: SRAM XX Eagle Transmission Derailleur vs SRAM GX Eagle AXS Transmission; brakes: SRAM Maven Ultimate vs SRAM Maven Silver; claimed weight: 24 kg vs 24.7 kg; price: $12,499.99 vs $9,499.99.
