GhostE-ASX
- Price
- €4,499 – €6,499
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 600 WhBosch InTube
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
Overview
The E-ASX is Ghost's aluminium full-suspension e-MTB for trail riding and touring, with 160 mm of fork travel and 150 mm at the rear. It runs the Bosch Performance Line CX motor with an InTube battery and Kiox 300 display throughout.
The Essential has a 600 Wh battery and a 10-speed Shimano CUES drivetrain; the Universal, Advanced and ABS carry 800 Wh. The ABS build adds Magura MT C ABS brakes, and the Advanced and ABS are also offered with a low step-through frame. Ghost sells separate EQ versions with lights, mudguards and rack as trekking bikes.
- Aluminium frame, 160/150 mm travel
- Bosch Performance Line CX
- 600 or 800 Wh InTube battery
- ABS build with Magura MT C ABS brakes

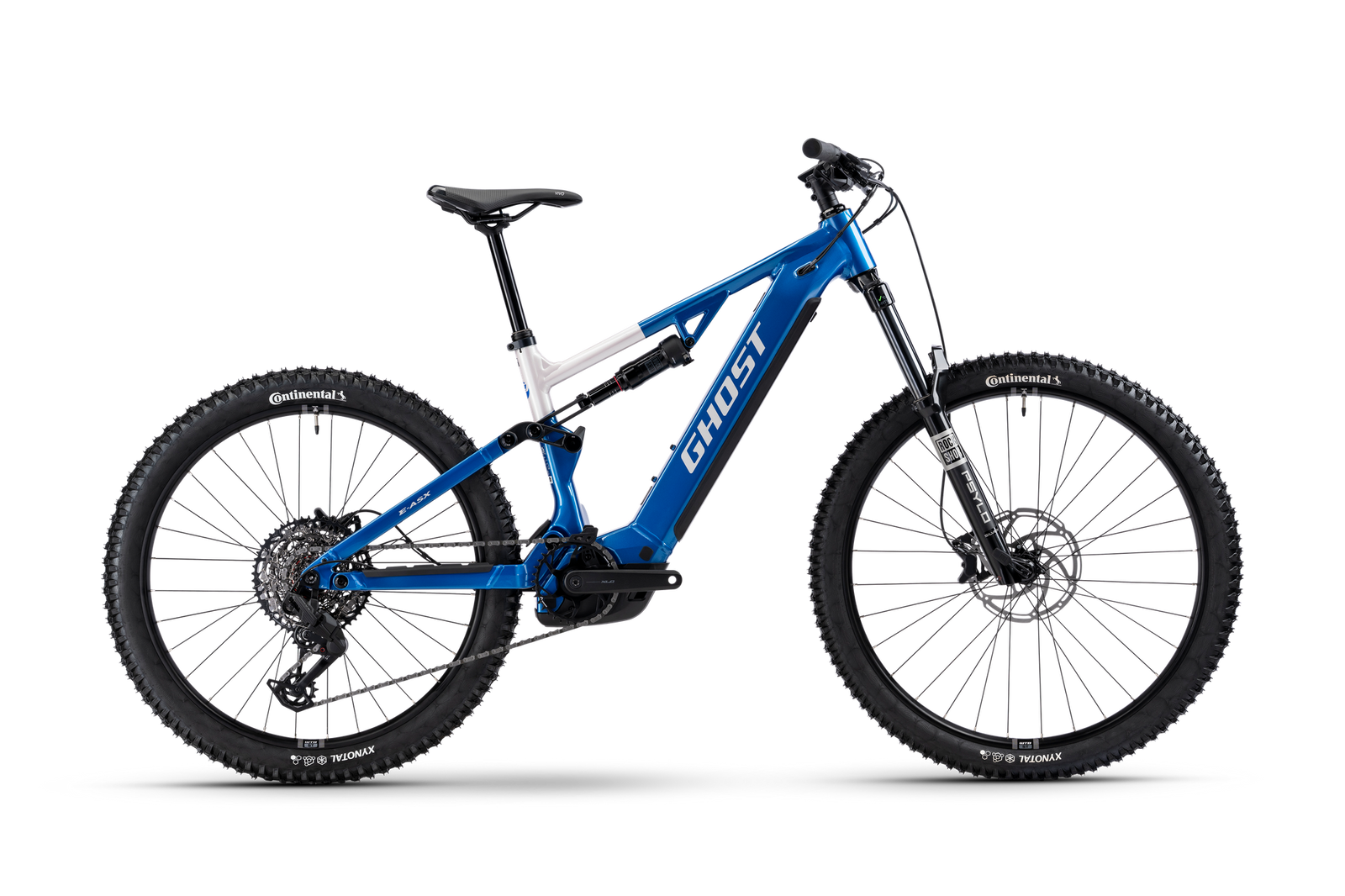

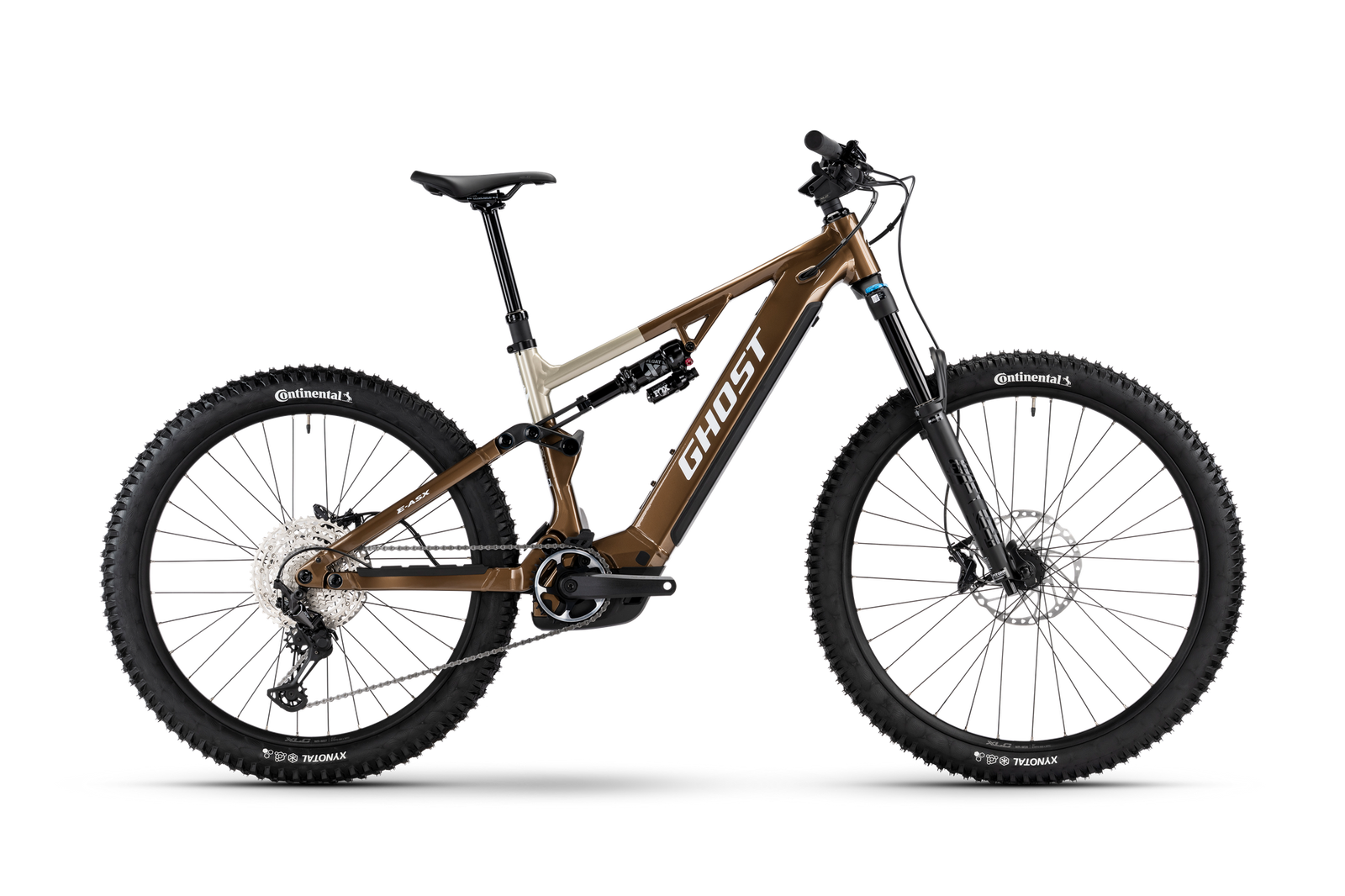

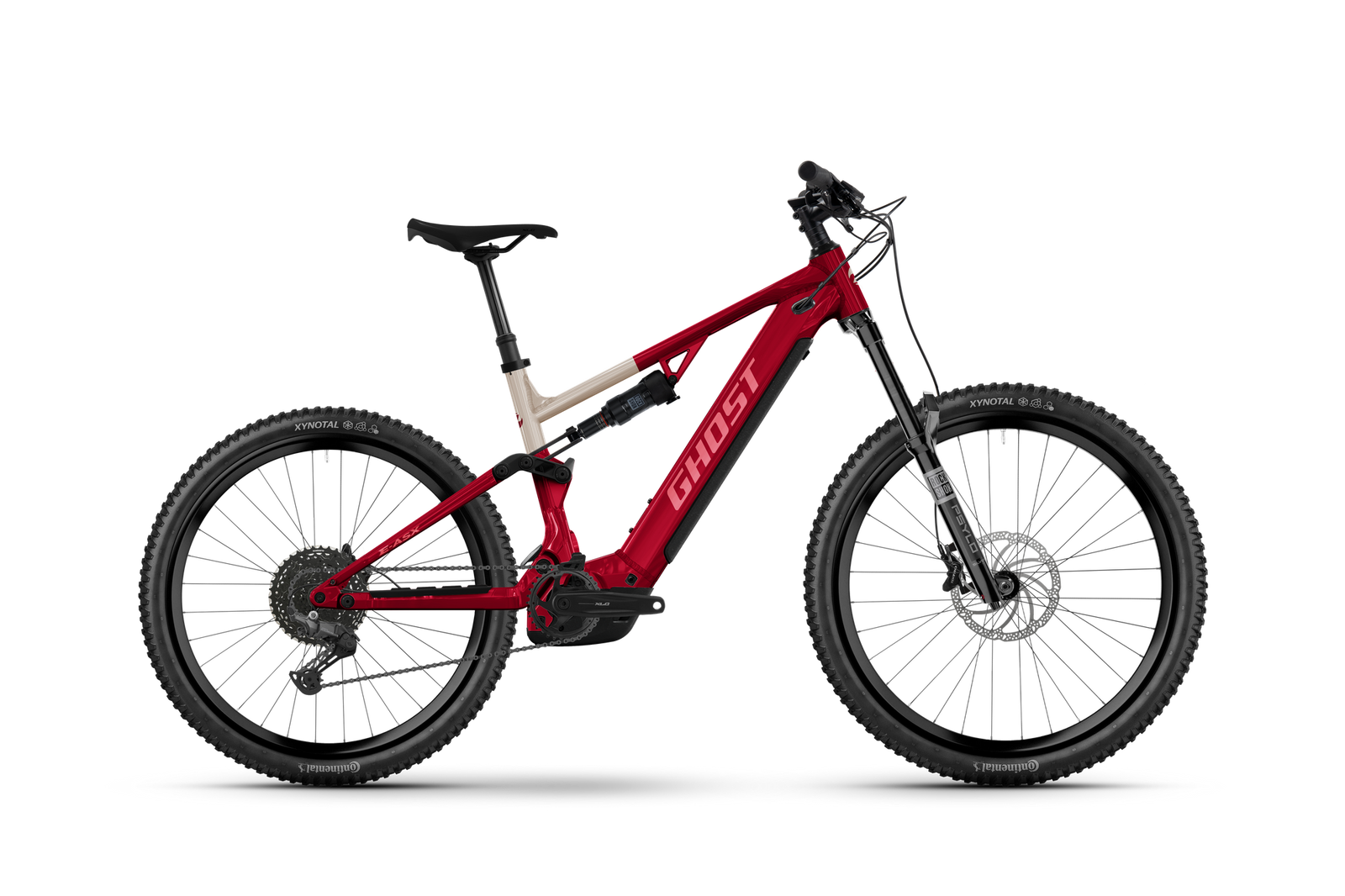

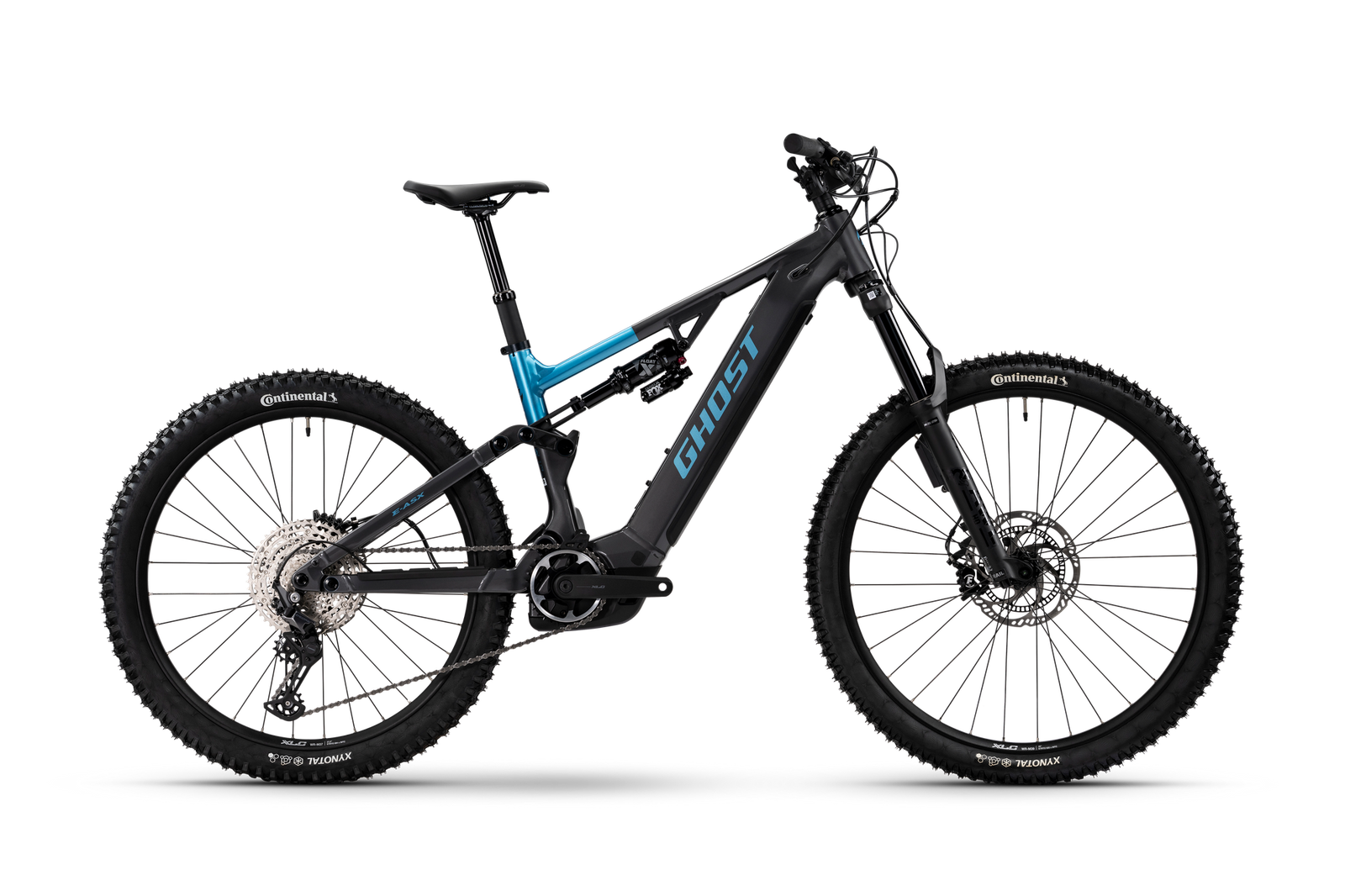

Ghost E-ASX builds
E-ASX builds compared
| E-ASX Essential | E-ASX Universal | E-ASX Advanced | E-ASX ABS | |
|---|---|---|---|---|
| Price | €4,499 | €4,999 | €5,999 | €6,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver RC, Crown Adjust | Rockshox Psylo Silver RC, Crown Adjust | FOX Factory 36 Float Rhythm, GRIP | FOX Factory 36 Float, AWL HD |
| Shock | Rockshox Deluxe Select R 210x55mm | Rockshox Deluxe Select R 210x55mm | FOX Factory FLOAT X Performance | FOX Factory FLOAT X |
| Derailleur | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s | Shimano Deore XT RD-M8100-SGS 12s | Shimano Deore RD-M6250-SGS 12s |
| Brakes | Tektro Hydraulic Disc brake HD-M535 | Tektro Hydraulic Disc brake HD-M535 | Shimano Hydraulic Disc brake Deore BR-M6120 | Magura Hydraulic Disc brake MT C Allroad ABS |
| Wheels | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | WTB ST i30 TCS 2.0 29 32H | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote |
E-ASX geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 405 mm | 430 mm | 455 mm | 495 mm |
| BTop tube length | 570 mm | 597 mm | 625 mm | 658 mm |
| CHead tube length | 105 mm | 110 mm | 125 mm | 140 mm |
| DHead angle | 65° | 65° | 65° | 65° |
| ESeat angle | 77° | 77° | 77° | 77° |
| FChainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1208 mm | 1235 mm | 1266 mm | 1303 mm |
| HStack | 628 mm | 632 mm | 646 mm | 659 mm |
| IReach | 430 mm | 455 mm | 480 mm | 510 mm |
| JStandover height | 793 mm | 796 mm | 796 mm | 796 mm |
| KBottom bracket drop | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm |
Source: Ghost.
Ghost E-ASX: FAQ
How much does the Ghost E-ASX cost?
€4,499 – €6,499 depending on the build (E-ASX Essential €4,499, E-ASX Universal €4,999, E-ASX Advanced €5,999, E-ASX ABS €6,499); RRP Germany, VAT incl..
How many Ghost E-ASX builds are there?
4: E-ASX Essential, E-ASX Universal, E-ASX Advanced, E-ASX ABS. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Ghost E-ASX use?
Bosch Performance Line CX (85 Nm) with a 600 Wh battery (bosch intube).
How much travel does the Ghost E-ASX have?
160 mm fork and 150 mm rear travel on 29" wheels.
