GhostE-ASX ABS
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch InTube
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
The €6,499 E-ASX ABS is the one to pick for Magura's ABS brakes, with Fox 36 Float and Float X suspension and Shimano Deore. Bosch CX, 800 Wh.
The E-ASX ABS is one of 4 builds of the Ghost E-ASX. About the E-ASX range and all its builds →
Gallery
Photos: Ghost
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Uni
- Max system weight
- 150 kg

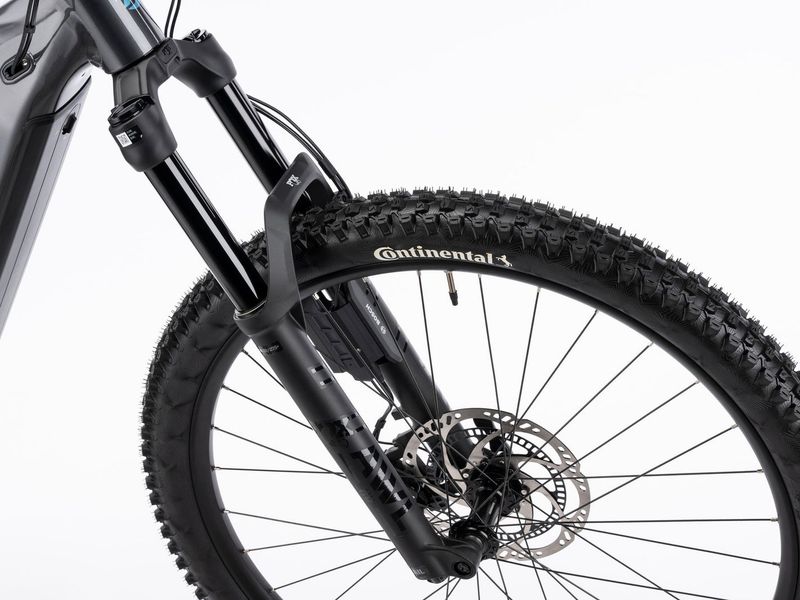

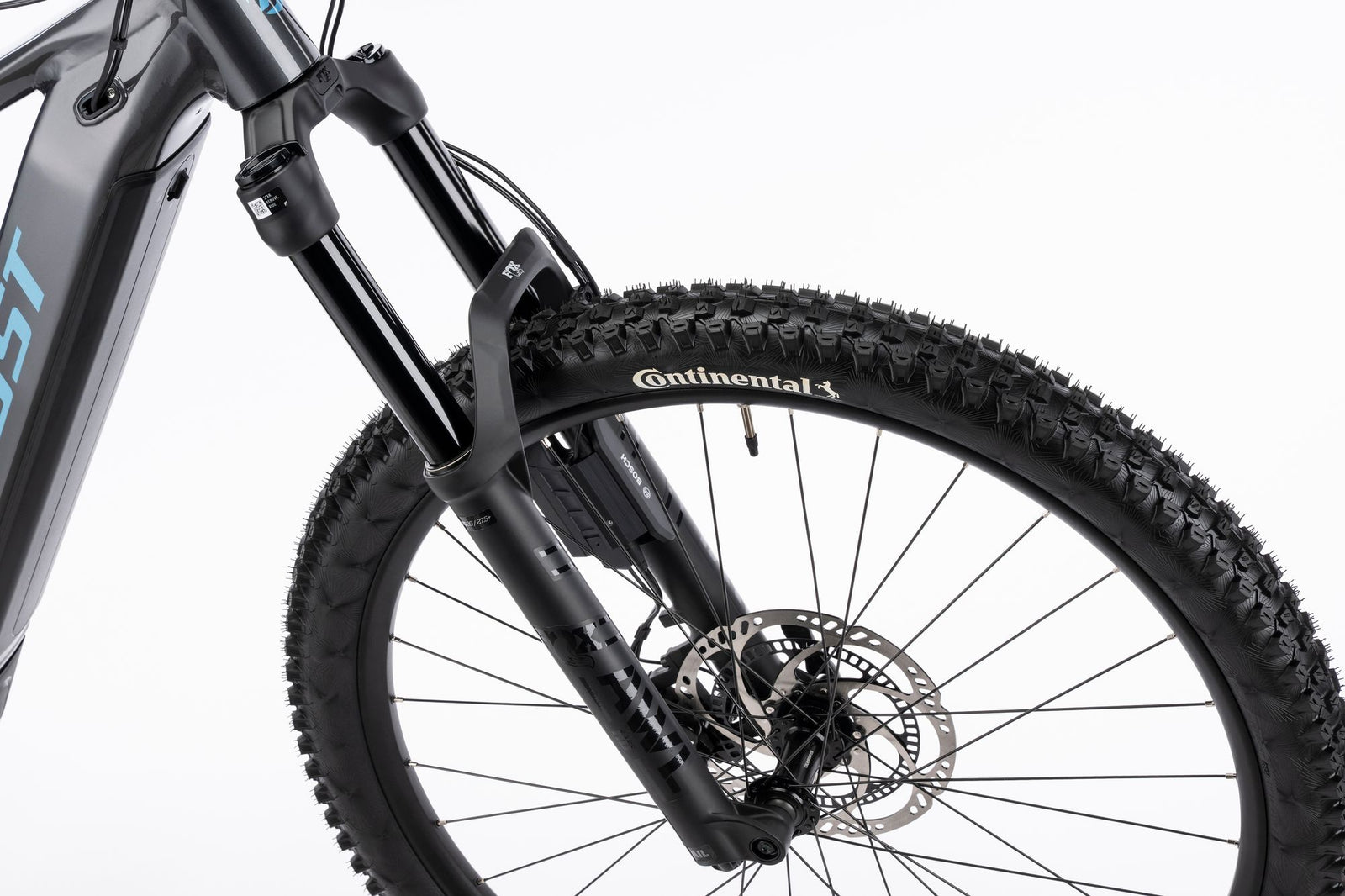

- Fork
- FOX Factory 36 Float, AWL HD, RAIL 2.0, Sweep-Adj., 160 mm, QR

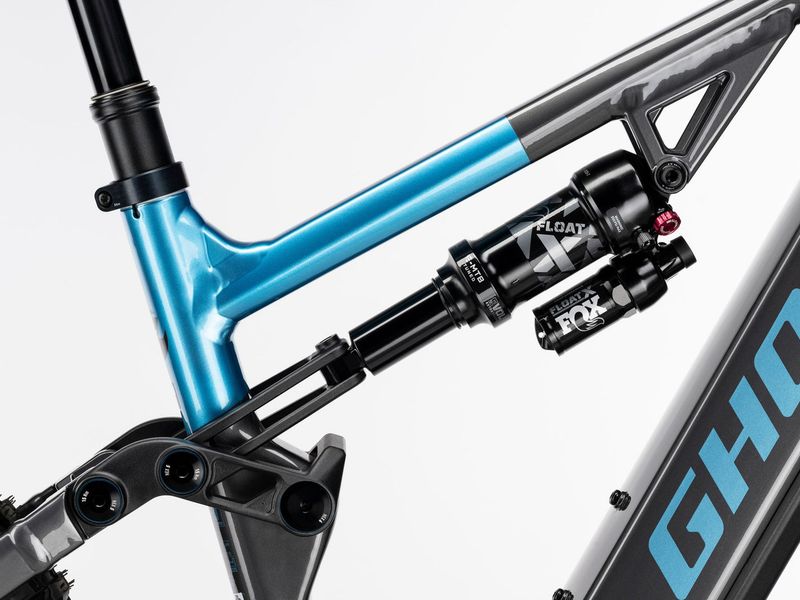

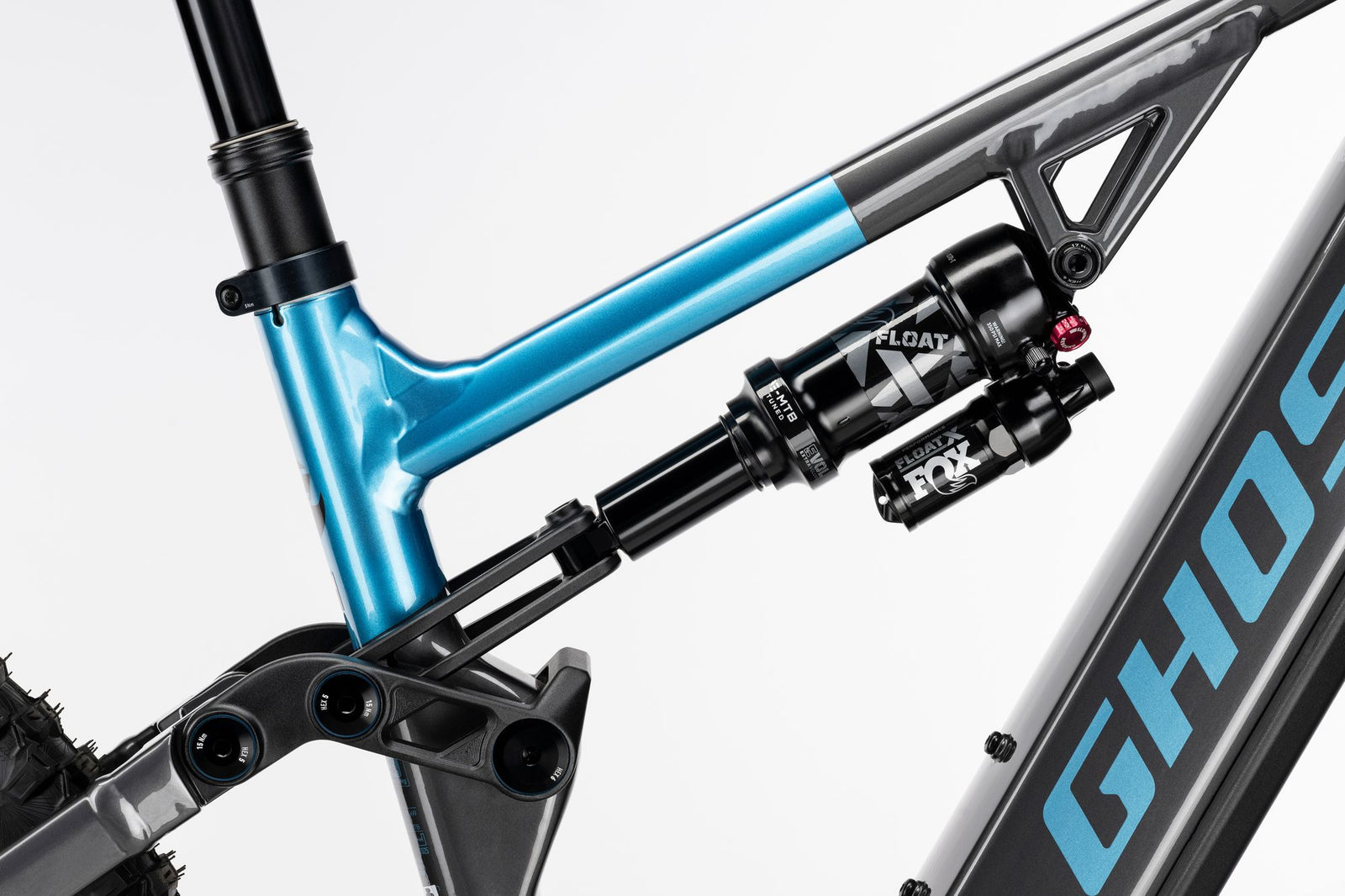

- Rear shock
- FOX Factory FLOAT X, Performance, A, 2pos, Evol LV, 210x55mm
- Rear Travel
- 150 mm
E-system
- Battery
- Bosch InTube 800 Wh
- Charger
- Bosch Charger 4A 220-240V

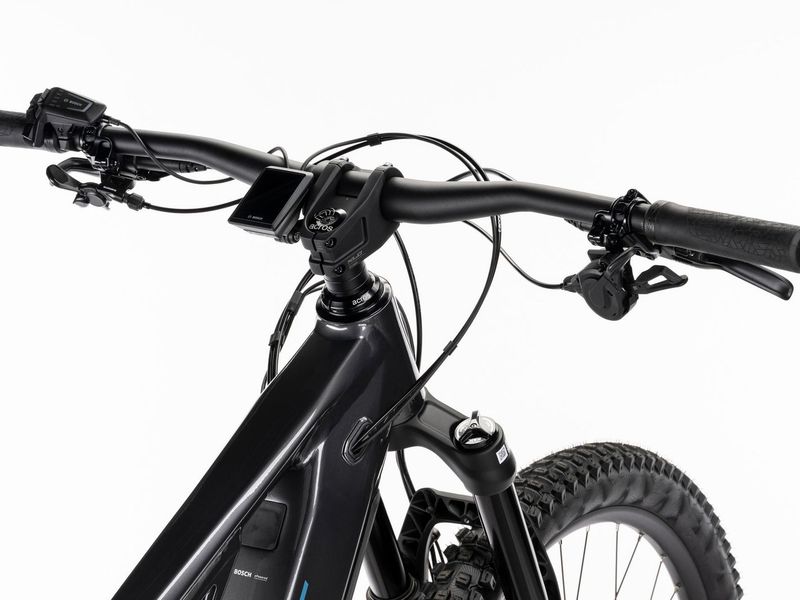

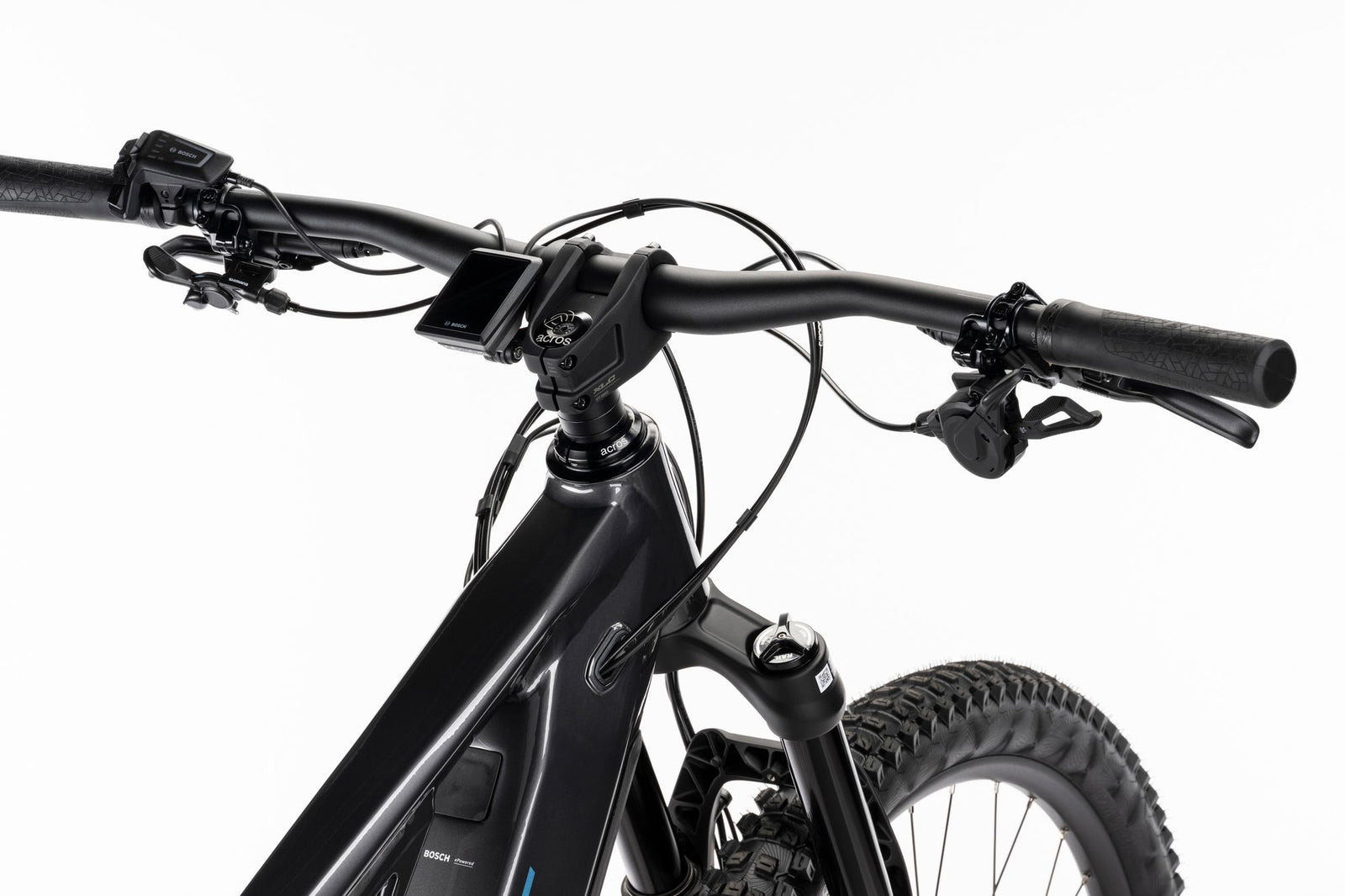

- Display
- Bosch Kiox 300 + LED Remote

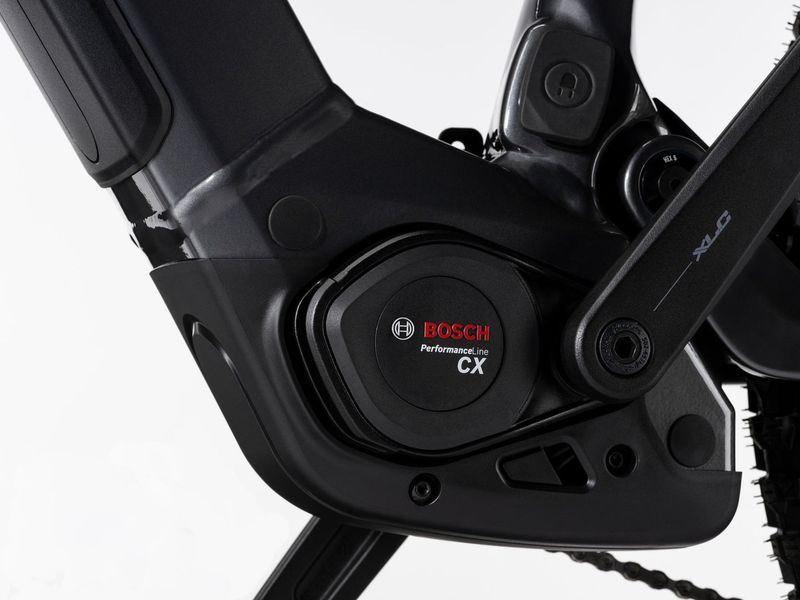

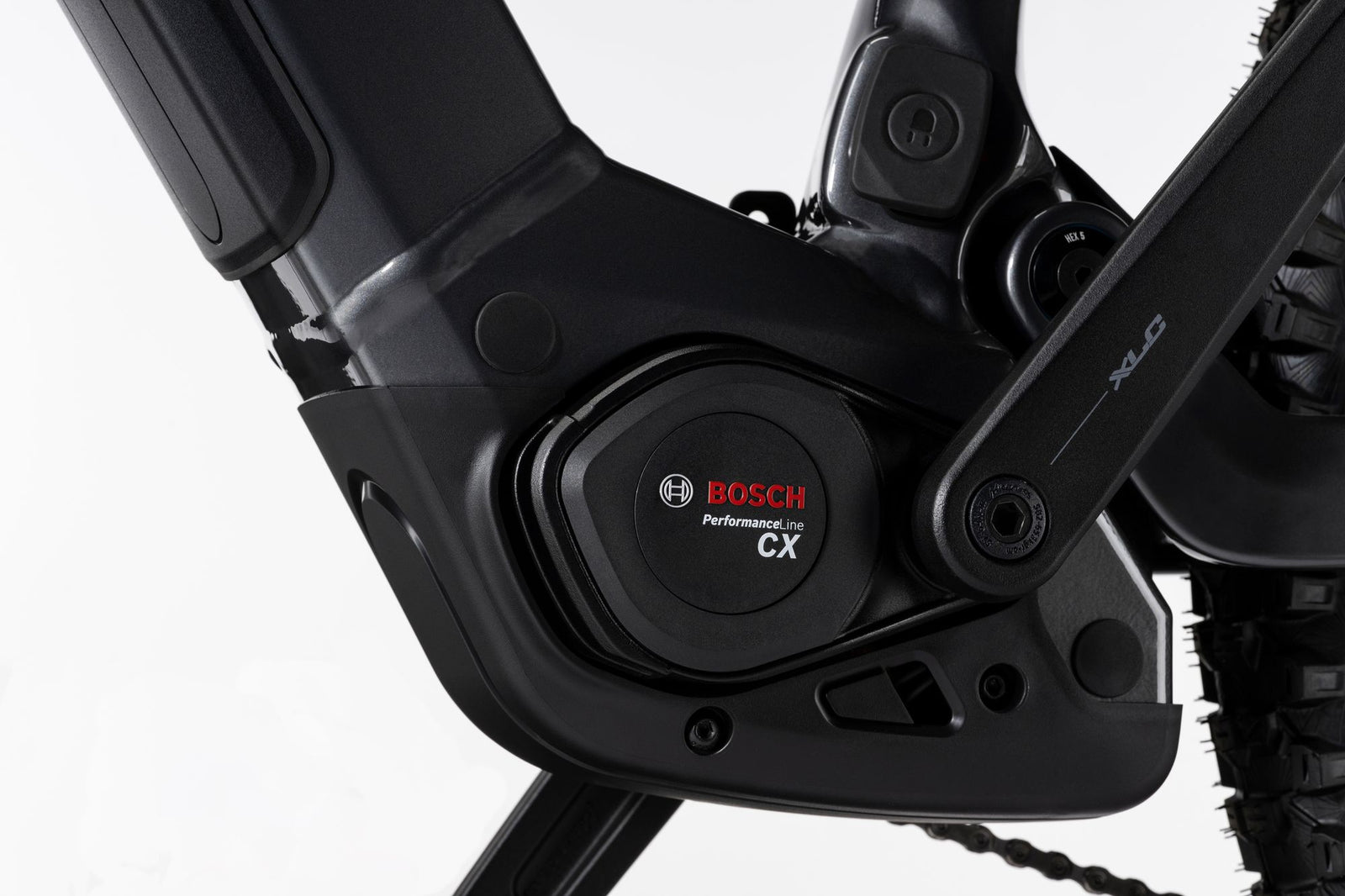

- Motor
- Bosch Performance Line CX
Drivetrain
- Chain
- Shimano Deore CN-M6100 12s
- Crankset
- CR for Bosch BDU38, DM + XLC CR-E18 Crankarms
- Rear derailleur
- Shimano Deore RD-M6250-SGS 12s, Shadow, wireless
- Gears
- 12
- Shifter
- Shimano Triggershift Deore SW-M6250-IR, I-SPEC EV
Brakes

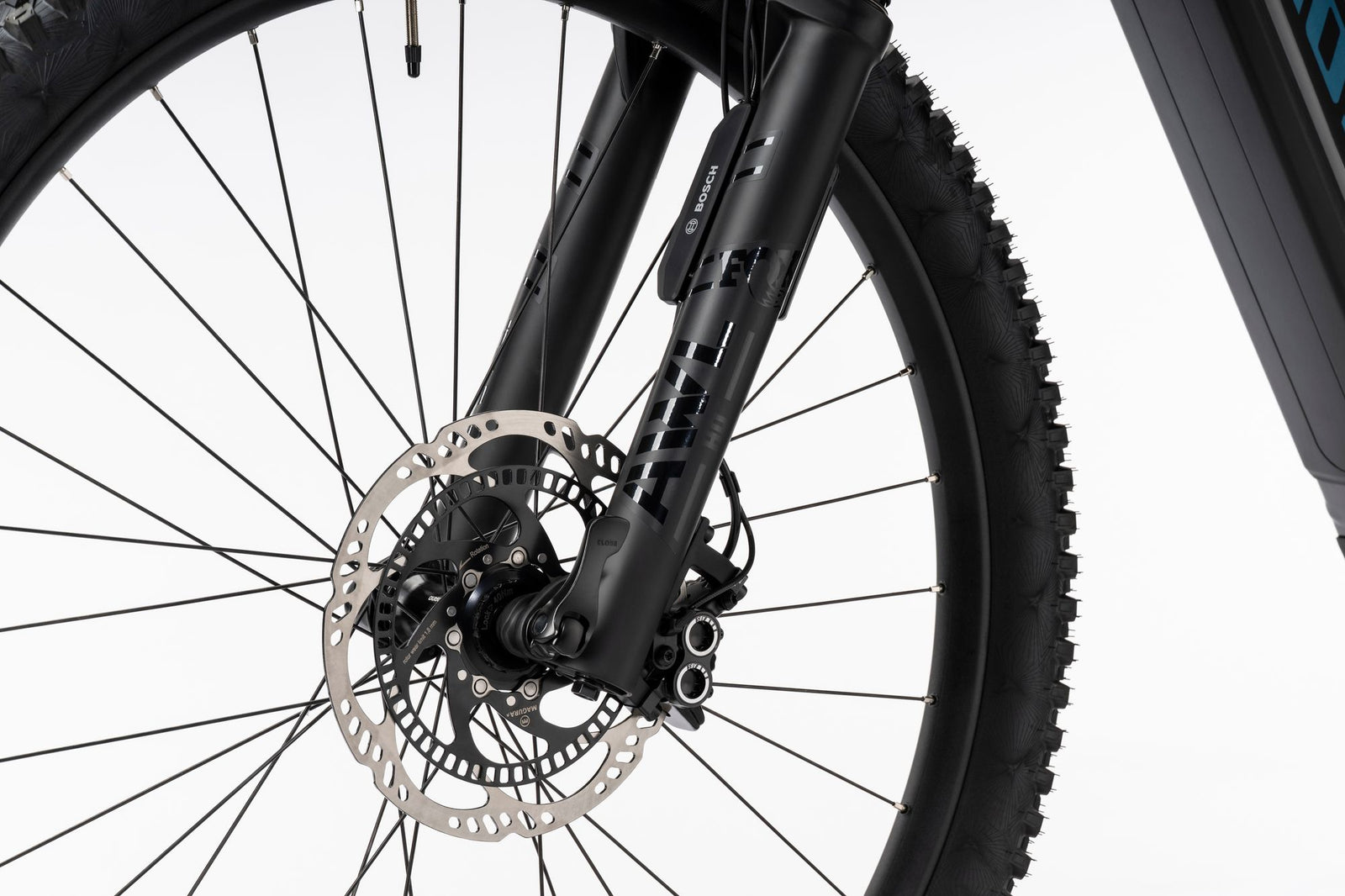

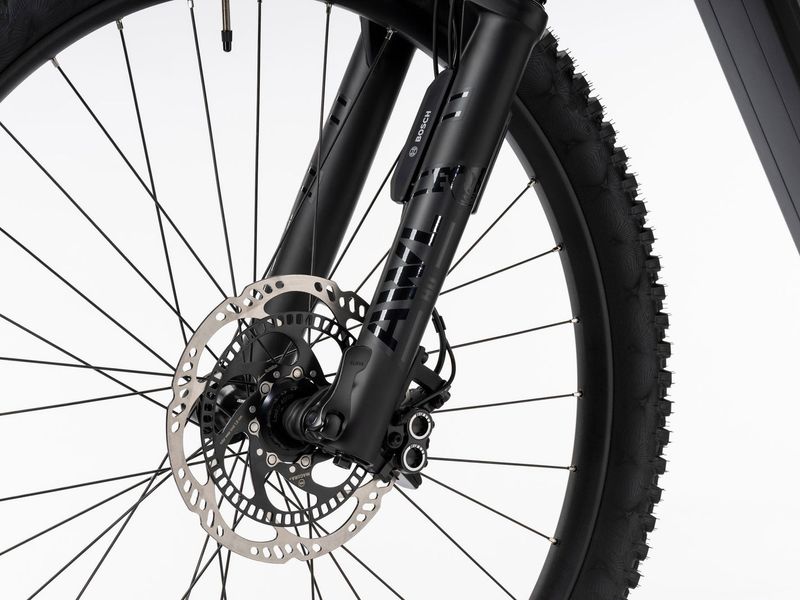

- Front Brake
- Magura Hydraulic Disc brake MT C Allroad ABS, 4 pistons, 203 mm
- Rear Brake
- Magura Hydraulic Disc brake MT C Allroad ABS, 4 pistons, 203 mm
Wheels & tyres
- Rims
- XLC WR-M39 Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Xynotal Trail Endurance, foldable skin SL 60-622
Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar
- XLC Riser Bar HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- XLC MTB Sport Comfort SA-S11 Steel Rail 155 mm
- Seatpost
- XLC Dropperpost Dropper SP-T21, Dia. 34.9 mm, Travel: 150 mm 450 mm
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
E-ASX geometry
| Size | S | M | L | XL | |||||
|---|---|---|---|---|---|---|---|---|---|
| ASeat tube length | 405 mm | 430 mm | 455 mm | 495 mm | |||||
| BTop tube length | 570 mm | 597 mm | 625 mm | 658 mm | |||||
| CHead tube length | 105 mm | 110 mm | 125 mm | 140 mm | |||||
| DHead angle | 65° | 65° | 65° | 65° | |||||
| ESeat angle | 77° | 77° | 77° | 77° | |||||
| FChainstay length | 450 mm | 450 mm | 450 mm | 450 mm | |||||
| GWheelbase | 1208 mm | 1235 mm | 1266 mm | 1303 mm | |||||
| HStack | 628 mm | 632 mm | 646 mm | 659 mm | |||||
| IReach | 430 mm | 455 mm | 480 mm | 510 mm | |||||
| JStandover height | 793 mm | 796 mm | 796 mm | 796 mm | |||||
| KBottom bracket drop | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm | Component | S | M | L | XL |
Source: Ghost. Values for the HIGH (diamond) frame; a LOW step-through frame is also offered.
E-ASX: builds compared
E-ASX range →| E-ASX Essential | E-ASX Universal | E-ASX Advanced | E-ASX ABS | |
|---|---|---|---|---|
| Price | €4,499 | €4,999 | €5,999 | €6,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver RC, Crown Adjust | Rockshox Psylo Silver RC, Crown Adjust | FOX Factory 36 Float Rhythm, GRIP | FOX Factory 36 Float, AWL HD |
| Shock | Rockshox Deluxe Select R 210x55mm | Rockshox Deluxe Select R 210x55mm | FOX Factory FLOAT X Performance | FOX Factory FLOAT X |
| Derailleur | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s | Shimano Deore XT RD-M8100-SGS 12s | Shimano Deore RD-M6250-SGS 12s |
| Brakes | Tektro Hydraulic Disc brake HD-M535 | Tektro Hydraulic Disc brake HD-M535 | Shimano Hydraulic Disc brake Deore BR-M6120 | Magura Hydraulic Disc brake MT C Allroad ABS |
| Wheels | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | WTB ST i30 TCS 2.0 29 32H | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote |
E-ASX ABS: FAQ
What is the difference between the E-ASX ABS and the E-ASX Advanced?
They share the E-ASX frame platform and motor; the differences are in the parts: fork: FOX Factory 36 Float vs FOX Factory 36 Float Rhythm; shock: FOX Factory FLOAT X vs FOX Factory FLOAT X Performance; derailleur: Shimano Deore RD-M6250-SGS 12s vs Shimano Deore XT RD-M8100-SGS 12s; brakes: Magura Hydraulic Disc brake MT C Allroad ABS vs Shimano Hydraulic Disc brake Deore BR-M6120; price: €6,499 vs €5,999.
