GhostE-ASX Universal
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch InTube
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
Overview

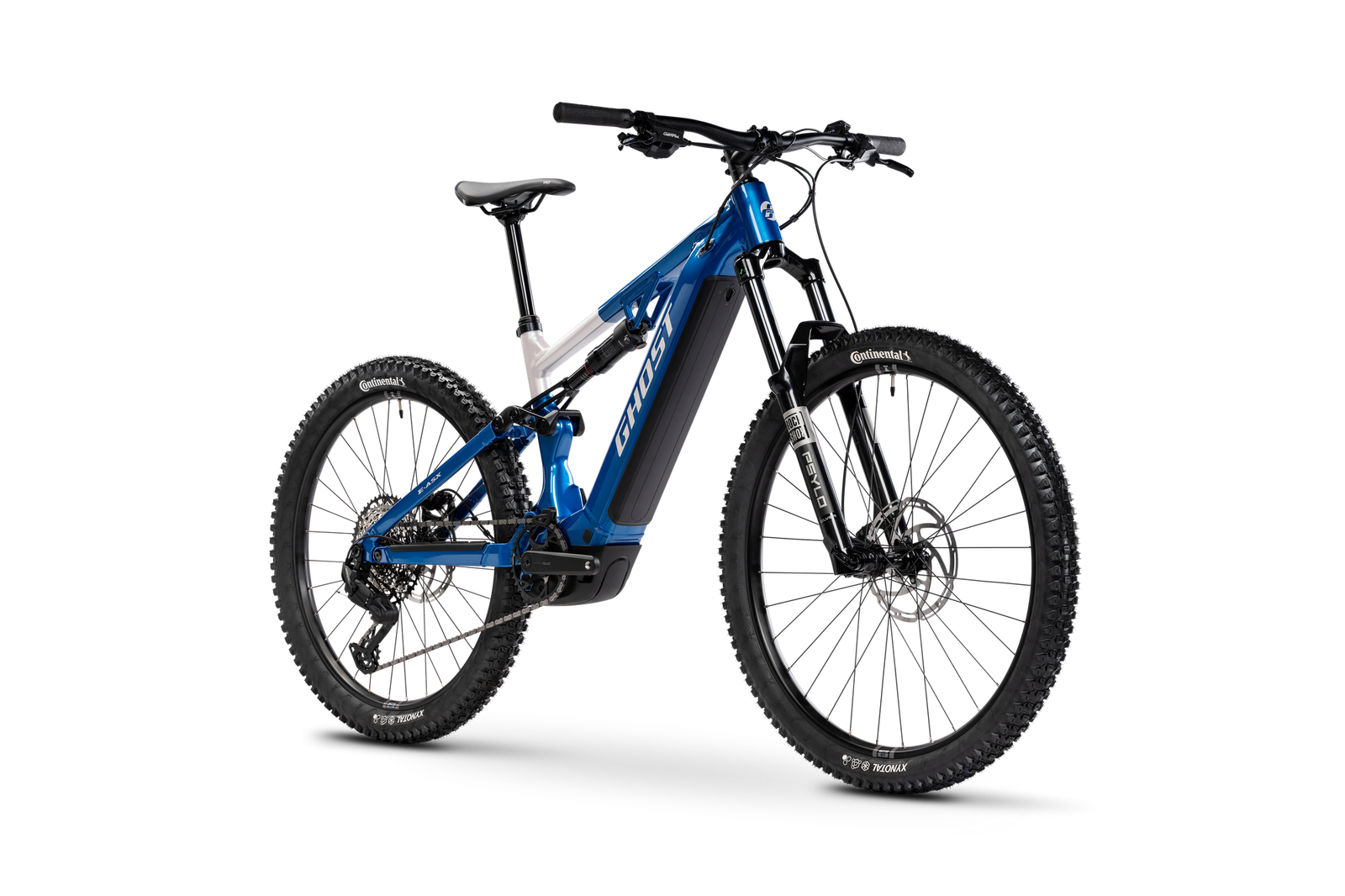

The Ghost E-ASX Universal (€4,999) is a mid-range build of the E-ASX: Bosch Performance Line CX with 800 Wh, Rockshox Psylo Silver RC fork, Rockshox Deluxe Select R shock, Sram Eagle 70 T-Type 12s and Tektro HD-M535 brakes.
The E-ASX is Ghost's aluminium full-suspension e-MTB for trail riding and touring, with 160 mm of fork travel and 150 mm at the rear. It runs the Bosch Performance Line CX motor with an InTube battery and Kiox 300 display throughout.
The Essential has a 600 Wh battery and a 10-speed Shimano CUES drivetrain; the Universal, Advanced and ABS carry 800 Wh. The ABS build adds Magura MT C ABS brakes, and the Advanced and ABS are also offered with a low step-through frame. Ghost sells separate EQ versions with lights, mudguards and rack as trekking bikes.
- Aluminium frame, 160/150 mm travel
- Bosch Performance Line CX
- 600 or 800 Wh InTube battery
- ABS build with Magura MT C ABS brakes
Gallery
Photos: Ghost
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Uni
- Max system weight
- 150 kg
- Fork

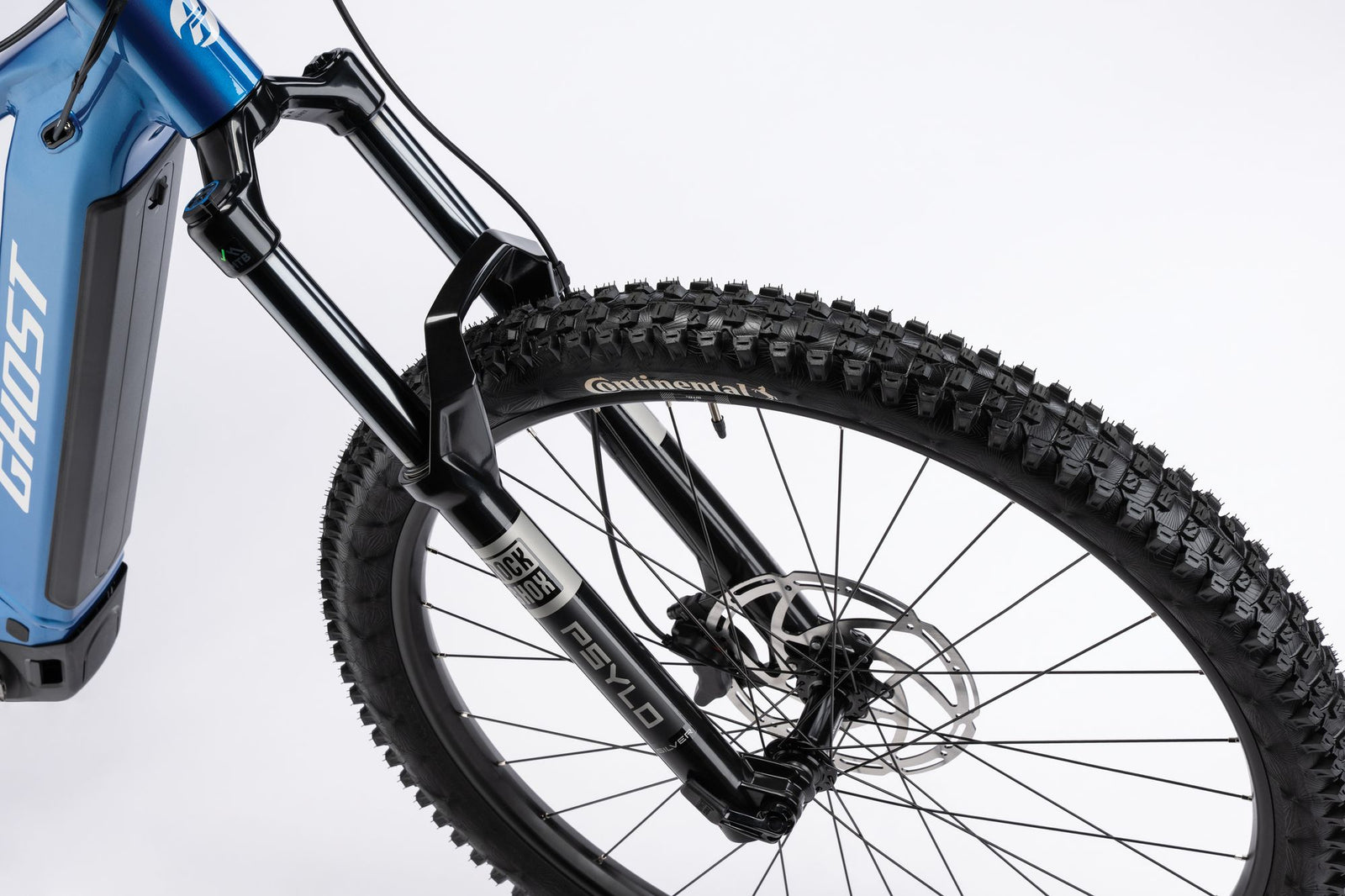

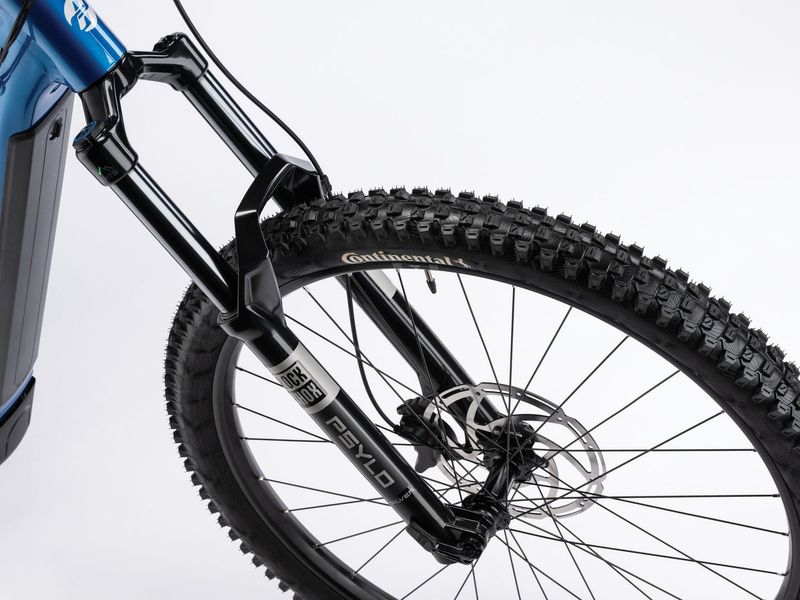

- Rockshox Psylo Silver RC, Crown Adjust, Solo Air, 160 mm
- Rear shock

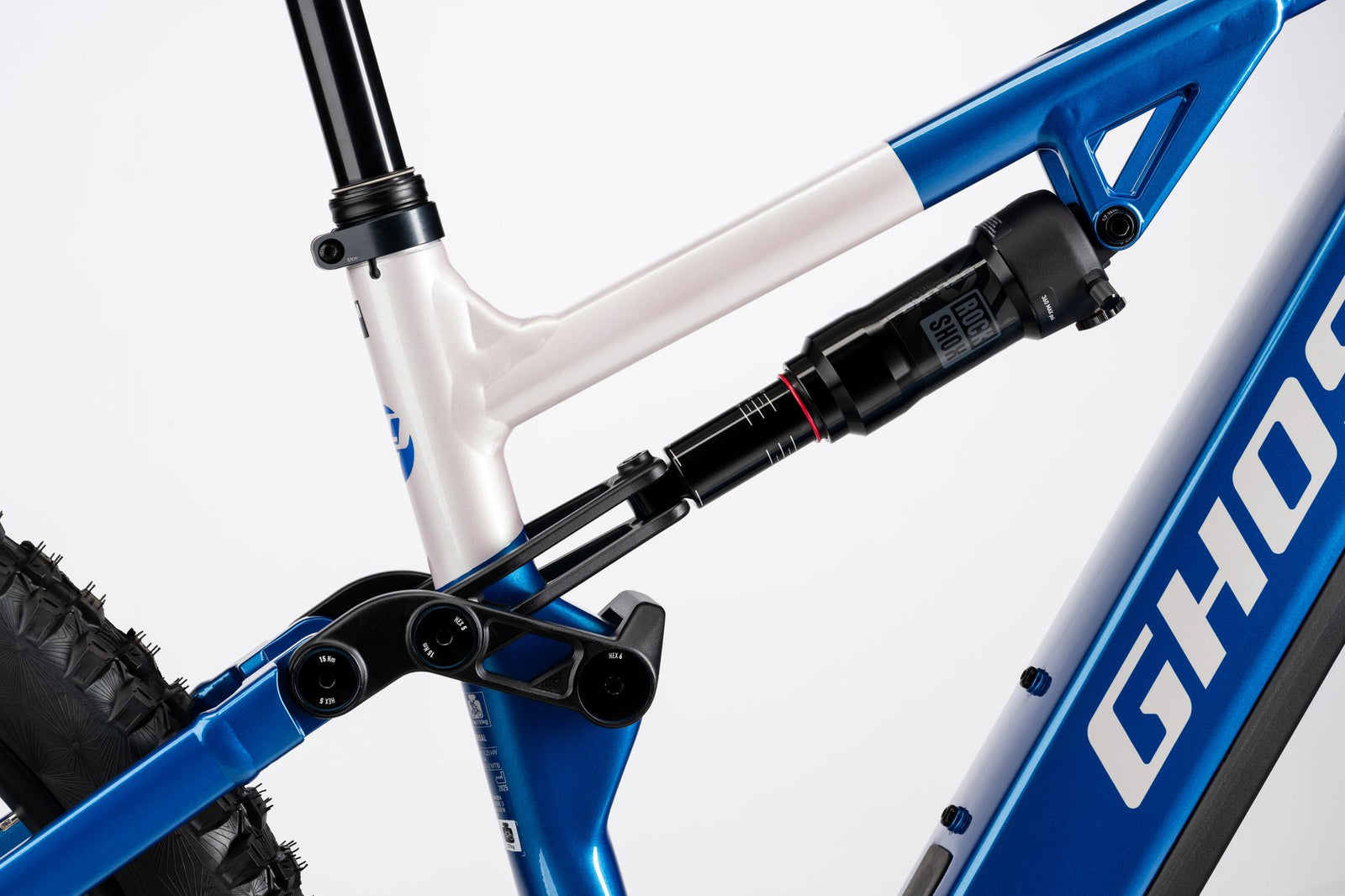

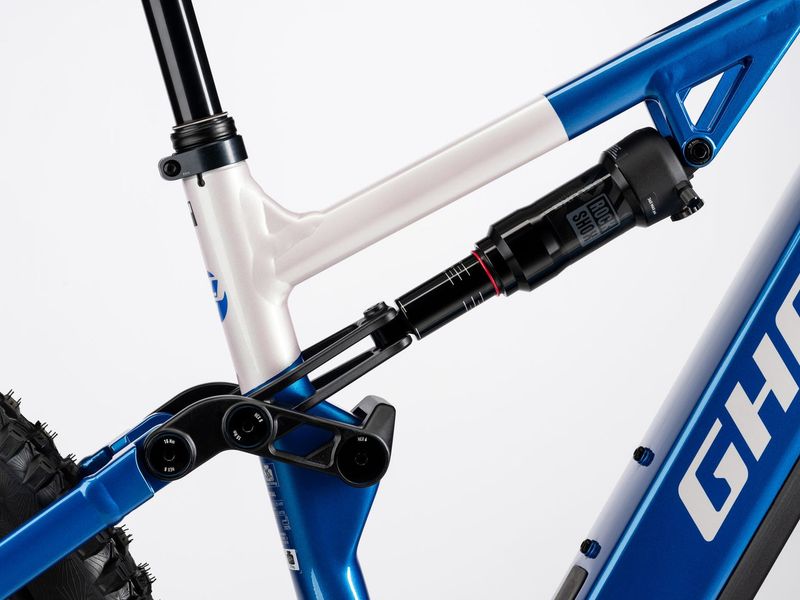

- Rockshox Deluxe Select R 210x55mm, DebonAir+
- Rear Travel
- 150 mm
E-system
- Battery
- Bosch InTube 800 Wh
- Charger
- Bosch Charger 2A 220-240V
- Display

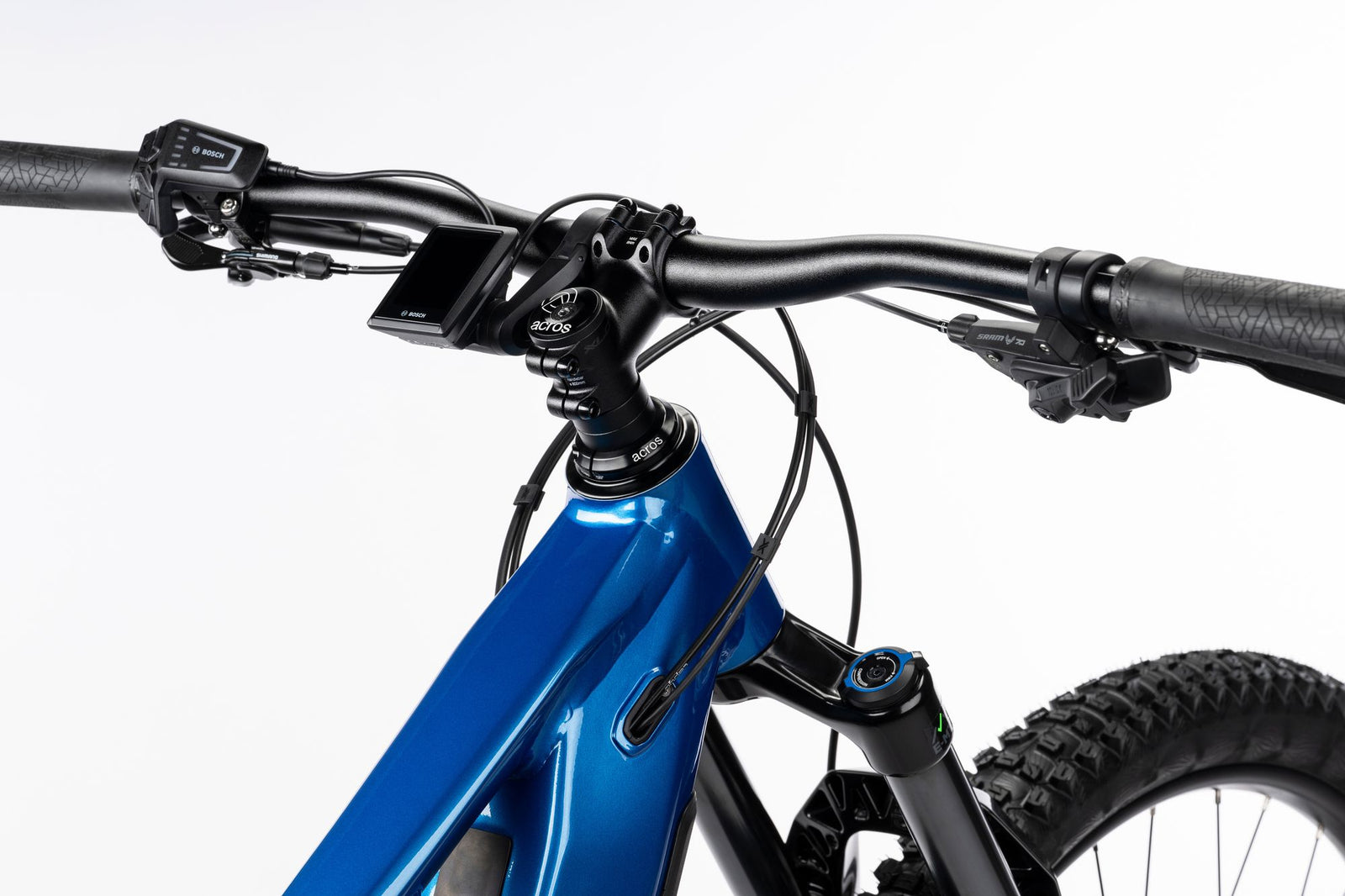

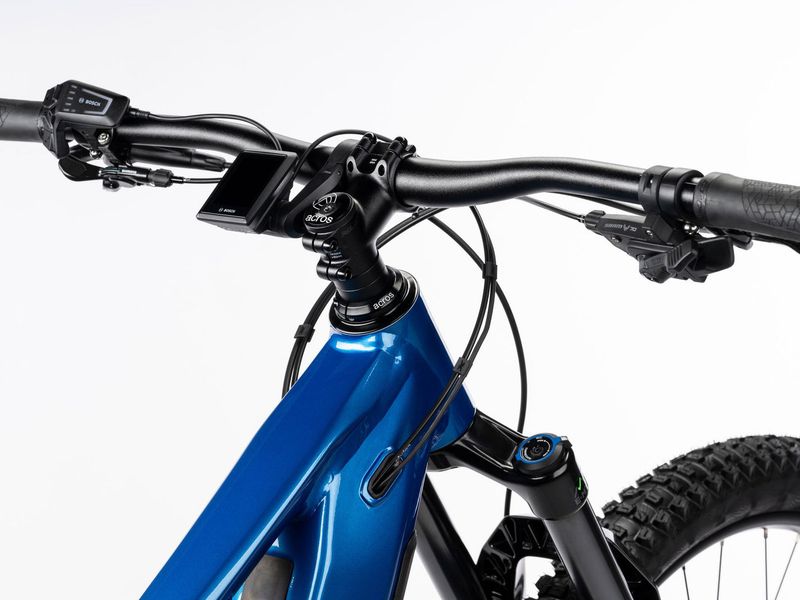

- Bosch Kiox 300 + LED Remote
- Motor

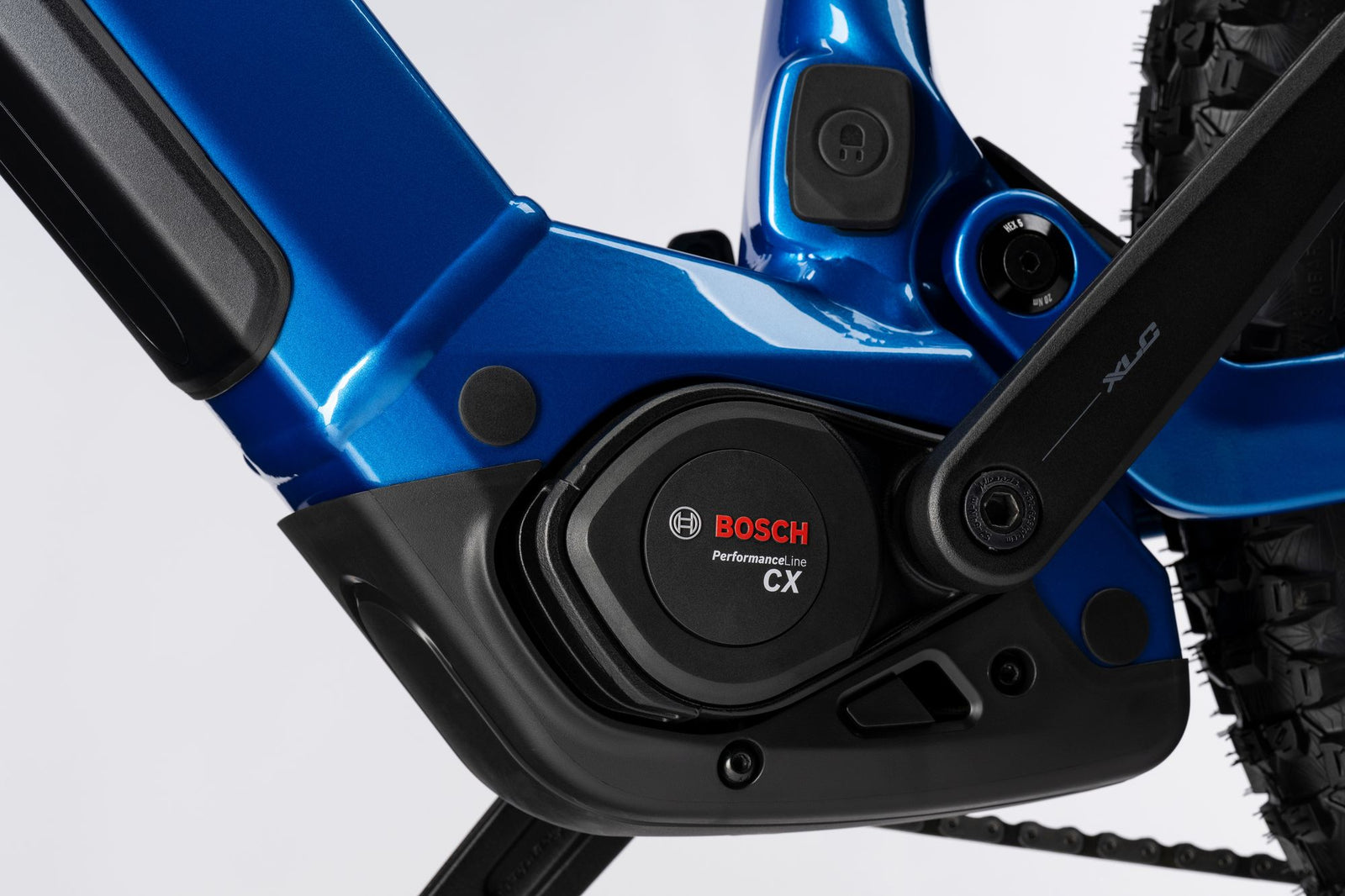

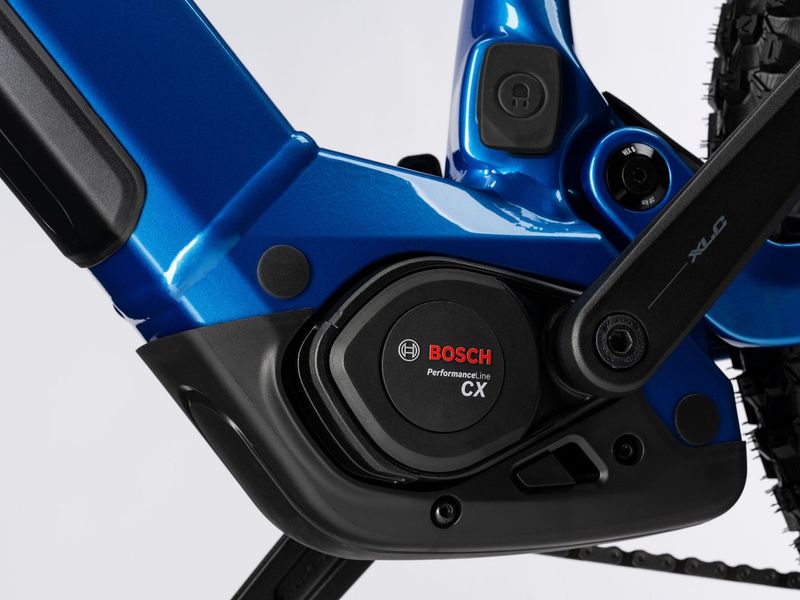

- Bosch Performance Line CX
Drivetrain
- Chain
- Sram Eagle 70 T-Type 12s
- Crankset
- Crius ISIS Cranks + SRAM CR T-Type Bosch DU38 DM
- Rear derailleur

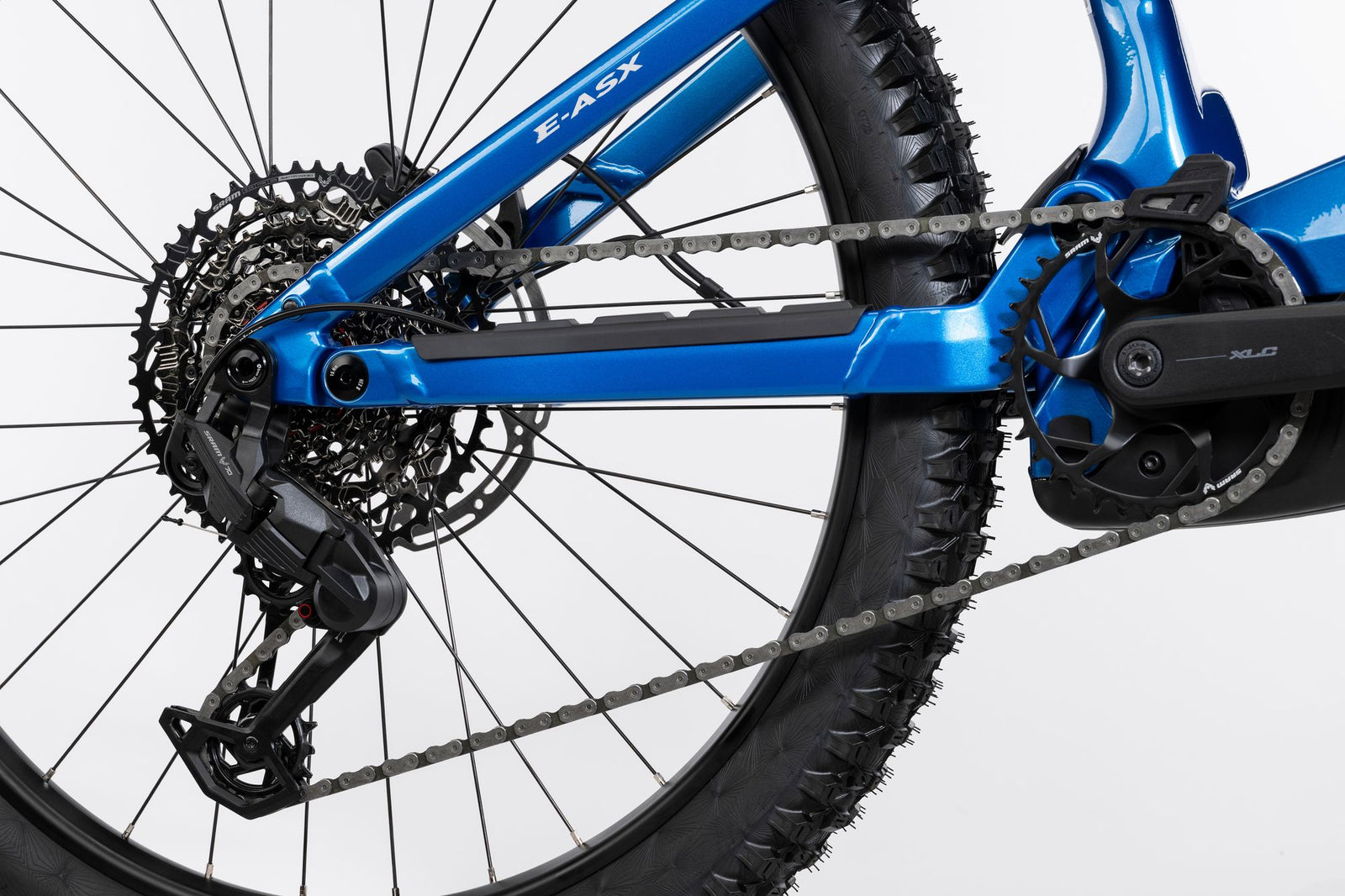

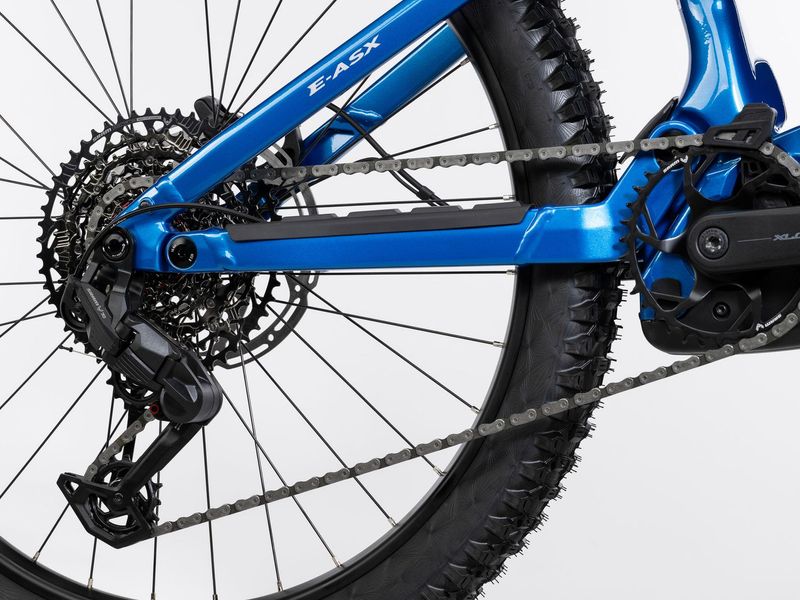

- Sram Eagle 70 T-Type 12s
- Gears
- 12
- Shifter
- Sram Triggershift Eagle 70 T-Type Single Click Trigger
Brakes
- Front Brake
- Tektro Hydraulic Disc brake HD-M535, 4 pistons, resin pad, 203 mm
- Rear Brake
- Tektro Hydraulic Disc brake HD-M535, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Rims
- WTB ST i30 TCS 2.0 29 32H
- Tyres
- Continental Xynotal Trail Endurance, foldable skin SL 60-622
Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar
- XLC Riser Bar MTB CAT4, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- Selle Royal MTB Vivo 1216HRN
- Seatpost
- Limotec Dropperpost Alpha 1 Dropper, Dia. 34.9 mm, Travel: 150 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
E-ASX geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 405 mm | 430 mm | 455 mm | 495 mm |
| BTop tube length | 570 mm | 597 mm | 625 mm | 658 mm |
| CHead tube length | 105 mm | 110 mm | 125 mm | 140 mm |
| DHead angle | 65° | 65° | 65° | 65° |
| ESeat angle | 77° | 77° | 77° | 77° |
| FChainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1208 mm | 1235 mm | 1266 mm | 1303 mm |
| HStack | 628 mm | 632 mm | 646 mm | 659 mm |
| IReach | 430 mm | 455 mm | 480 mm | 510 mm |
| JStandover height | 793 mm | 796 mm | 796 mm | 796 mm |
| KBottom bracket drop | 9.9 mm | 9.9 mm | 9.9 mm | 9.9 mm |
Source: Ghost.
E-ASX: builds compared
E-ASX range →| E-ASX Essential | E-ASX Universal | E-ASX Advanced | E-ASX ABS | |
|---|---|---|---|---|
| Price | €4,499 | €4,999 | €5,999 | €6,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | Rockshox Psylo Silver RC, Crown Adjust | Rockshox Psylo Silver RC, Crown Adjust | FOX Factory 36 Float Rhythm, GRIP | FOX Factory 36 Float, AWL HD |
| Shock | Rockshox Deluxe Select R 210x55mm | Rockshox Deluxe Select R 210x55mm | FOX Factory FLOAT X Performance | FOX Factory FLOAT X |
| Derailleur | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s | Shimano Deore XT RD-M8100-SGS 12s | Shimano Deore RD-M6250-SGS 12s |
| Brakes | Tektro Hydraulic Disc brake HD-M535 | Tektro Hydraulic Disc brake HD-M535 | Shimano Hydraulic Disc brake Deore BR-M6120 | Magura Hydraulic Disc brake MT C Allroad ABS |
| Wheels | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | WTB ST i30 TCS 2.0 29 32H | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote | Bosch Kiox 300 + LED Remote |
E-ASX Universal: FAQ
How much does the Ghost E-ASX Universal cost?
€4,999 (RRP Germany, VAT incl.). The E-ASX range runs from €4,499 (E-ASX Essential) to €6,499 (E-ASX ABS). Prices vary by country and dealer.
What motor and battery does the Ghost E-ASX Universal have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — bosch InTube.
How much suspension travel does the Ghost E-ASX Universal have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Ghost E-ASX Universal come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the E-ASX Universal and the E-ASX Advanced?
They share the E-ASX frame platform and motor; the differences are in the parts — fork: Rockshox Psylo Silver RC vs FOX Factory 36 Float Rhythm; shock: Rockshox Deluxe Select R 210x55mm vs FOX Factory FLOAT X Performance; derailleur: Sram Eagle 70 T-Type 12s vs Shimano Deore XT RD-M8100-SGS 12s; brakes: Tektro Hydraulic Disc brake HD-M535 vs Shimano Hydraulic Disc brake Deore BR-M6120; price: €4,999 vs €5,999.
