FoxFLOAT X Live Valve Neo
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,099 (ridefox.com, excl. sales tax).
- Spring
- Air
- Sizes
- 185x55 / 190x45 / 205x60 / 205x62.5 / 205x65 / 210x52.5 / 210x55
- Mount standard
- Metric / Metric Trunnion
- Adjustment
- Live Valve
- Finish
- Kashima
Overview

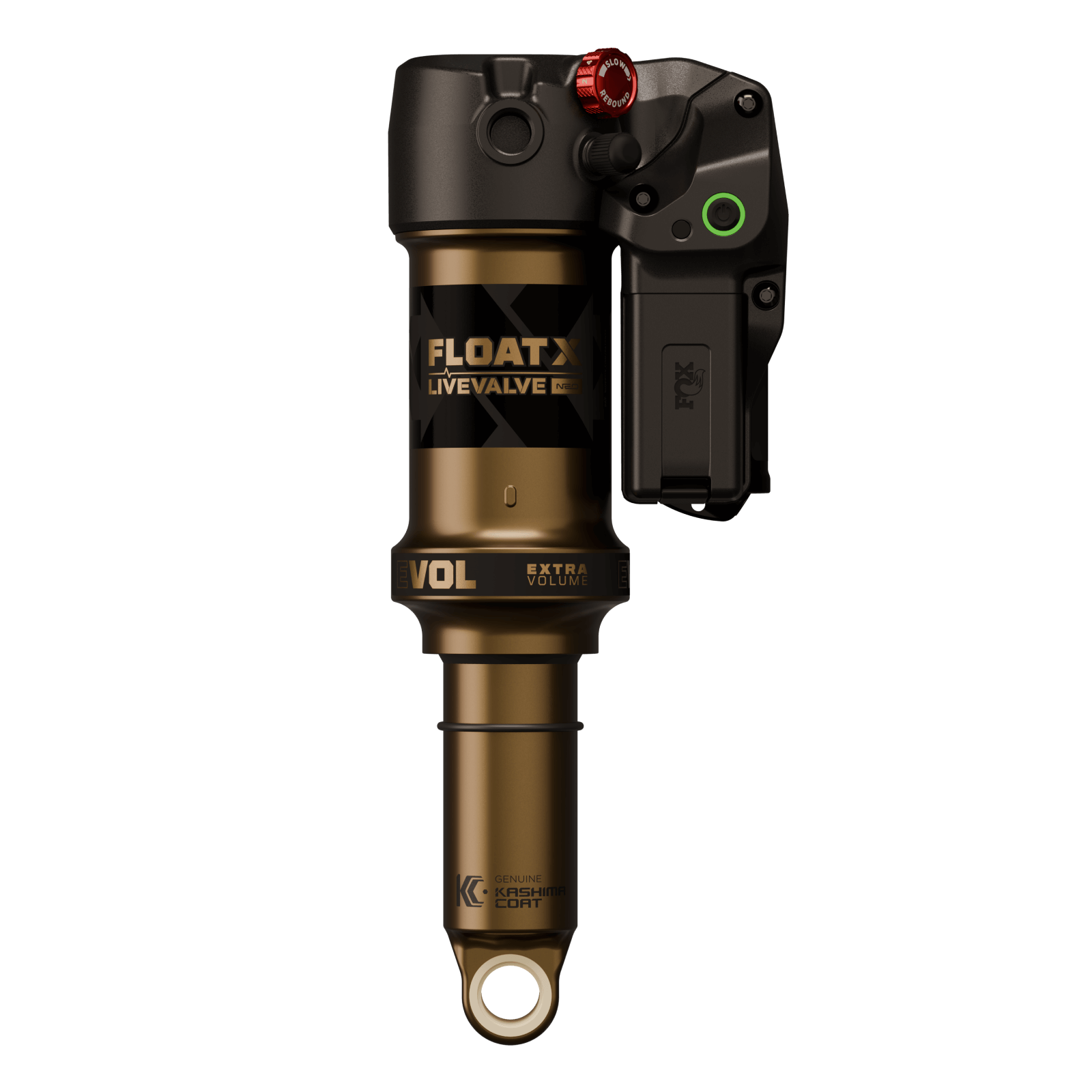

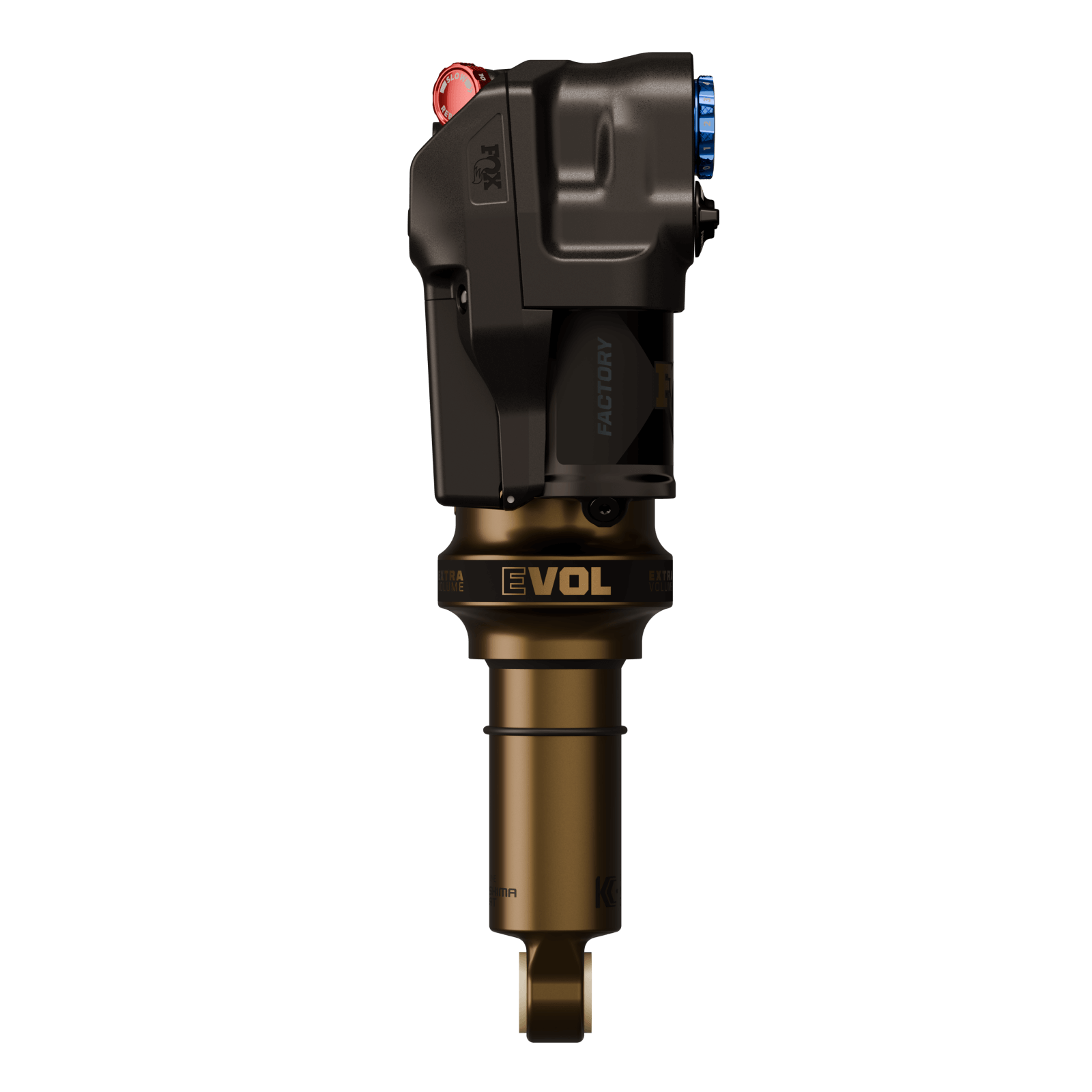

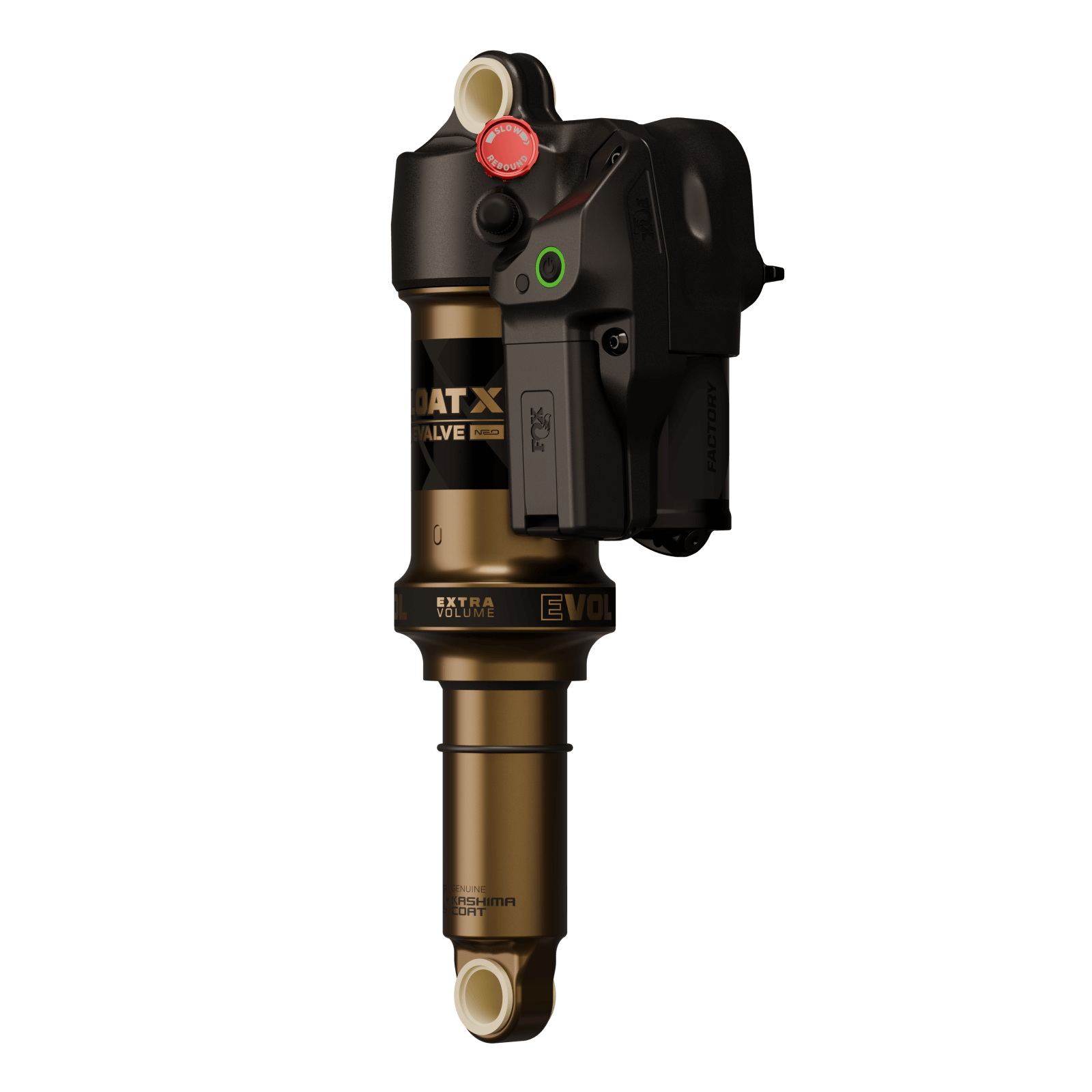

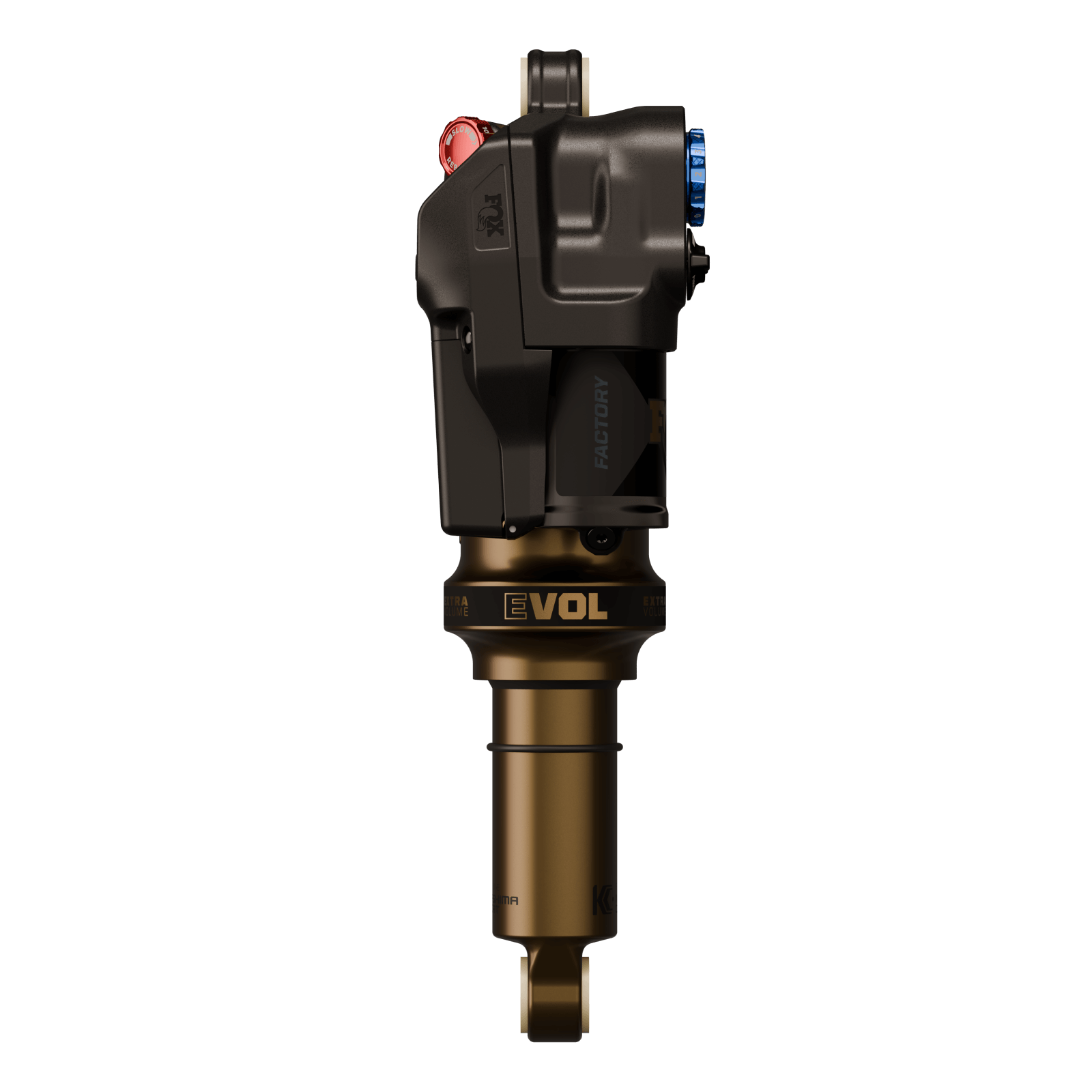

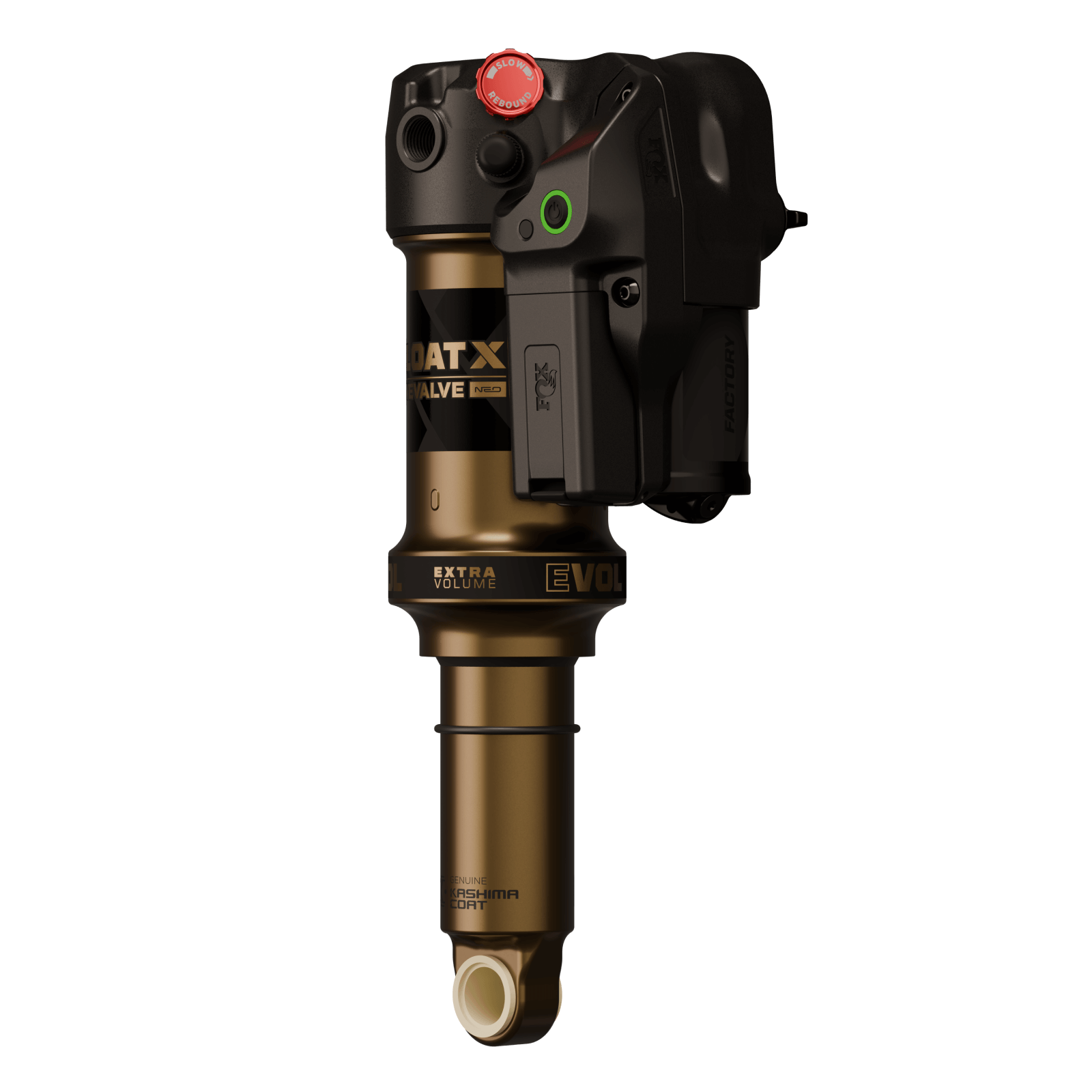

The FOX FLOAT X Live Valve Neo is an air rear shock with wireless Live Valve Neo compression control (Neo Kit sold separately), offered in 7 Metric/Trunnion sizes. US RRP $1,099.
FLOAT X is FOX's All-Mountain air shock, engineered for aggressive Trail riders. The latest version uses a monotube layout with a new high-flow main piston assembly that FOX says brings sensitivity, support and rear tyre grip closer to the FLOAT X2.
Other updates include a more durable MCU bottom-out bumper, a quieter top-out bumper, a clickable 2-position Firm switch, tool-free 11-click LSC and 16-click LSR adjusters, and bearing-mount compatibility on both ends. The Live Valve Neo Kit (sensors, Controller battery and mounting hardware) is sold separately and is required for the shock to work as intended.
- Wireless Live Valve Neo control
- Compression opens or firms in 1/70th of a second
- High-flow FLOAT X piston assembly
- Live Valve Neo Kit sold separately
Gallery
Full specifications
General
- Part numbers
- 979-01-221, 979-01-222, 979-01-223, 979-01-224, 979-01-225, 979-01-226, 979-01-248
- Series
- Factory
Chassis
- Upper tube finish
- Kashima
Spring
- Spring
- Evol LV
Damper
- Control
- Live Valve Neo (wireless)
- Damper adjustment options
- Live Valve
Compatibility
- Shock standard
- Metric / Metric Trunnion
- Shock sizes (eye-to-eye x stroke)
- 185x55 / 190x45 / 205x60 / 205x62.5 / 205x65 / 210x52.5 / 210x55
Features
- Feature
- Monotube architecture with a new high-flow main piston assembly for sensitivity, support, and rear tire grip closer to that of the MY26 FLOAT X2.
- Feature
- Updated, more durable MCU bottom-out bumper assembly for improved performance and durability.
- Feature
- Improved top-out bumper for quieter suspension action.
- Feature
- Coil and air spring options.
- Feature
- Clickable 2-pos Firm mode switch for efficient power transfer, when desired (FLOAT X and DHX).
- Feature
- Tool-free 11-click LSC and 16-click LSR adjusters.
- Feature
- Bearing mount compatible both sides.
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox FLOAT X versions compared
| FLOAT X Factory | FLOAT X Performance Elite | FLOAT X Live Valve Neo | |
|---|---|---|---|
| Price | — | — | — |
| Spring | Air | Air | Air |
| Sizes | 185x55 / 190x45 / 205x60 / 205x62.5 / 205x65 / 210x50 / 210x52.5 / 210x55 / 230x60 / 230x65 | 190x45 / 205x65 / 210x50 / 210x55 | 185x55 / 190x45 / 205x60 / 205x62.5 / 205x65 / 210x52.5 / 210x55 |
| Mount standard | Metric / Metric Trunnion | Metric / Metric Trunnion | Metric / Metric Trunnion |
| Adjustment | 2pos-Adj | 2pos-Adj | Live Valve |
| Finish | Kashima | Black Anodized | Kashima |
| Weight | 459 g | — | — |
| E-bike rated | — | — | — |
eMTBs that come with the Fox FLOAT X
Fox FLOAT X Live Valve Neo: FAQ
Is the Fox FLOAT X Live Valve Neo suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox FLOAT X Live Valve Neo?
Spring: Air; Sizes: 185x55 / 190x45 / 205x60 / 205x62.5 / 205x65 / 210x52.5 / 210x55; Mount standard: Metric / Metric Trunnion; Adjustment: Live Valve; Finish: Kashima.
What other versions of the Fox FLOAT X are there?
FLOAT X Factory, FLOAT X Performance Elite.
