FoxDHX Live Valve Neo
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $1,039 (ridefox.com, excl. sales tax).
- Spring
- Coil
- Sizes
- 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x57.5 / 230x60 / 230x65
- Mount standard
- Metric / Metric Trunnion
- Adjustment
- Live Valve
- Finish
- Chrome / Kashima
Overview
The FOX DHX Live Valve Neo is a coil rear shock with wireless Live Valve Neo compression control (Neo Kit sold separately), offered in 8 Metric/Trunnion sizes. US RRP $1,039.
DHX is FOX's coil-sprung All-Mountain shock, aimed at riders who want plush, ground-hugging, trail-smoothing performance in a wide range of configurations.
An updated high-flow main piston assembly brings its damping closer to the DHX2, with more sensitivity, support and rear tyre grip. It also has a 2-position Firm switch and tool-free LSC/LSR adjusters. The coil spring is sold separately. The Live Valve Neo Kit (sensors, Controller battery and mounting hardware) is sold separately and is required for the shock to work as intended.
- Coil DHX with wireless Live Valve Neo
- Compression adjusts in 1/70th of a second
- High-flow main piston assembly
- Coil spring and Live Valve Neo Kit sold separately

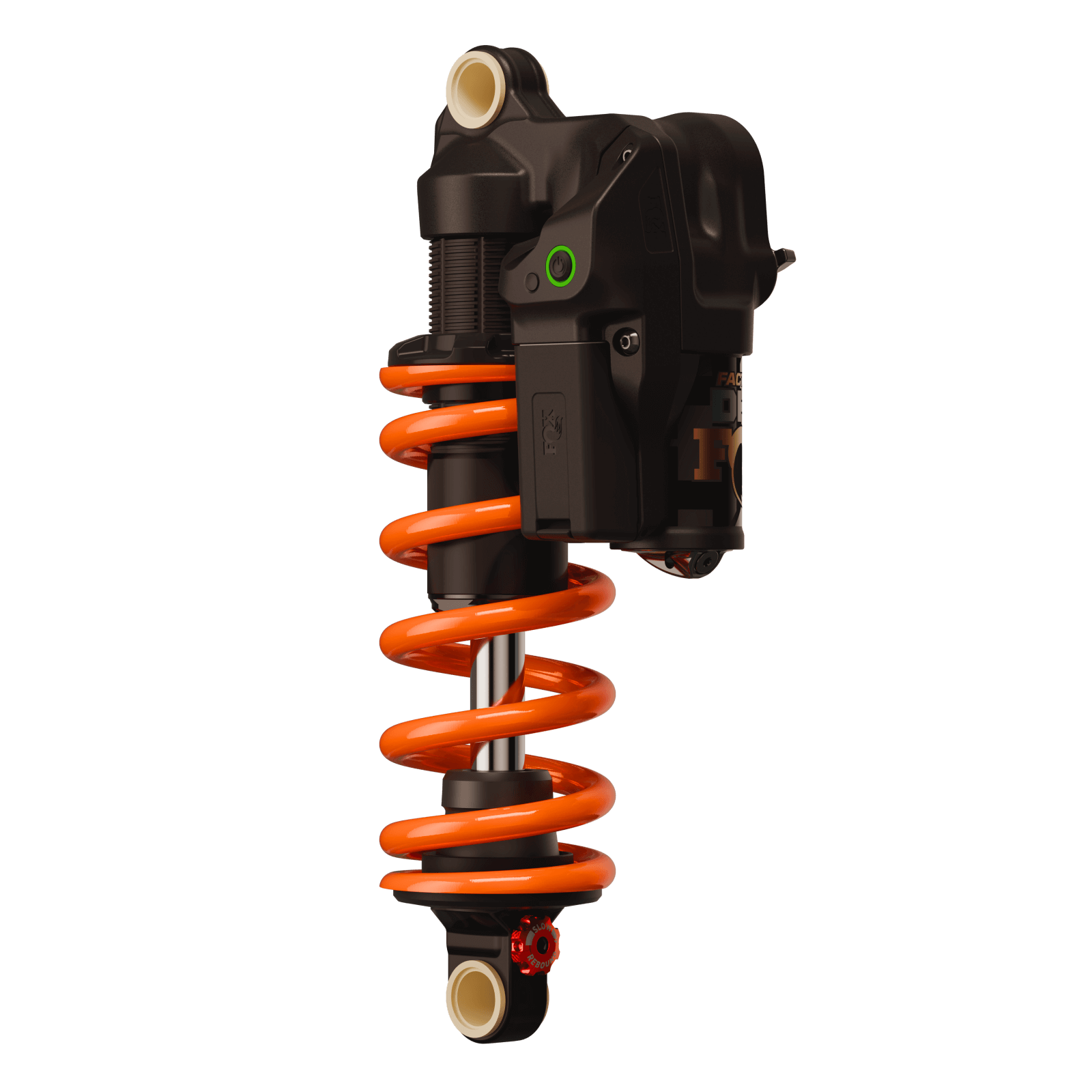

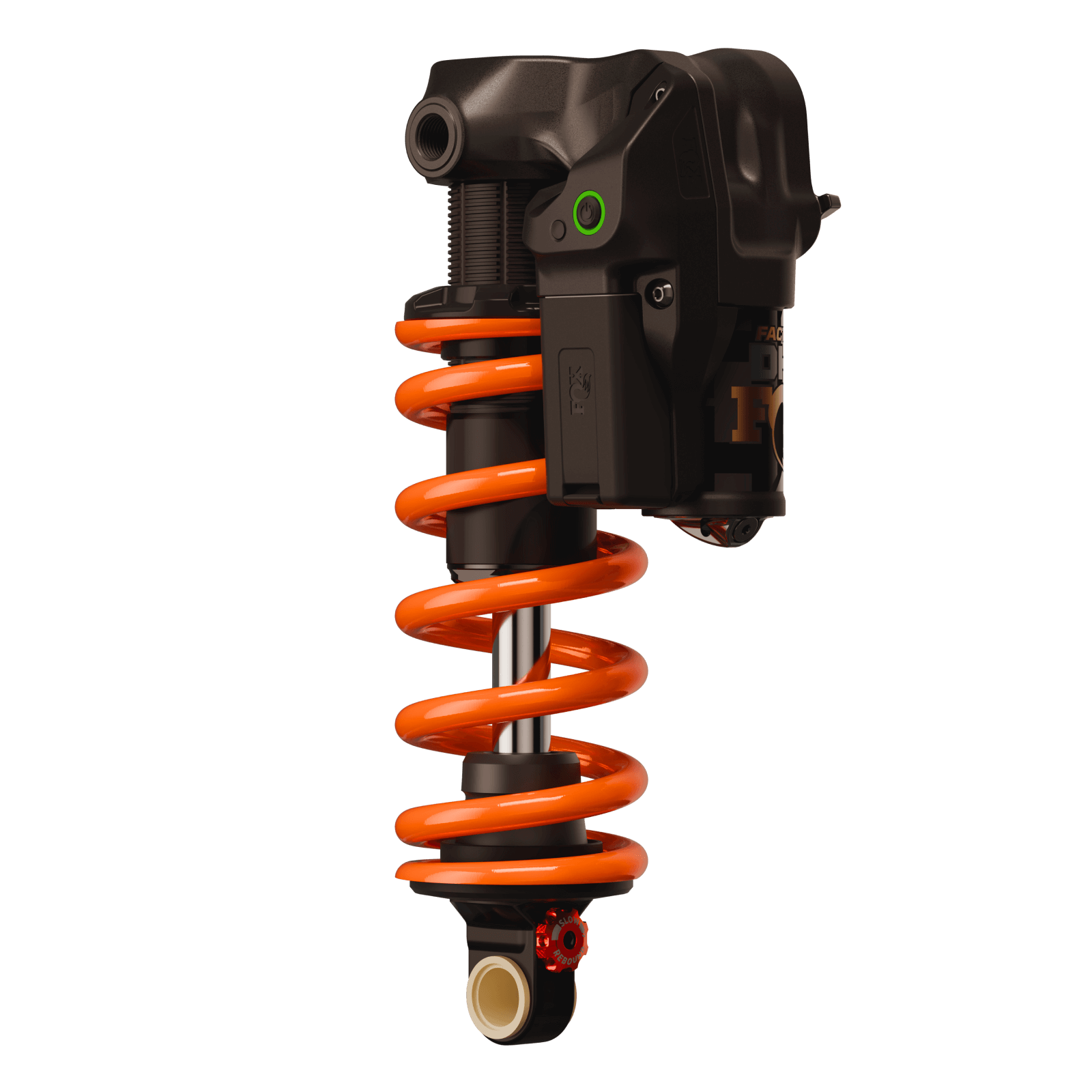

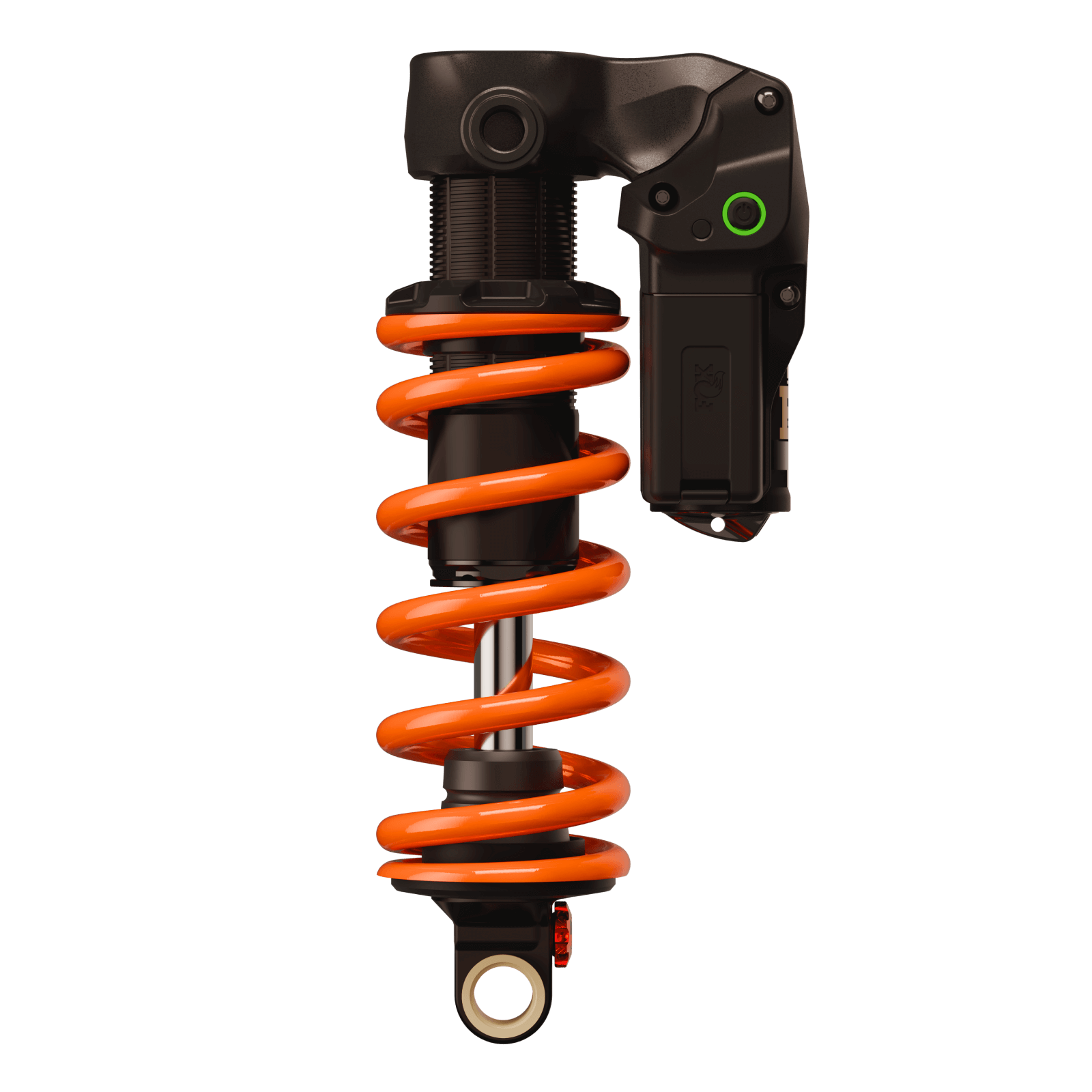

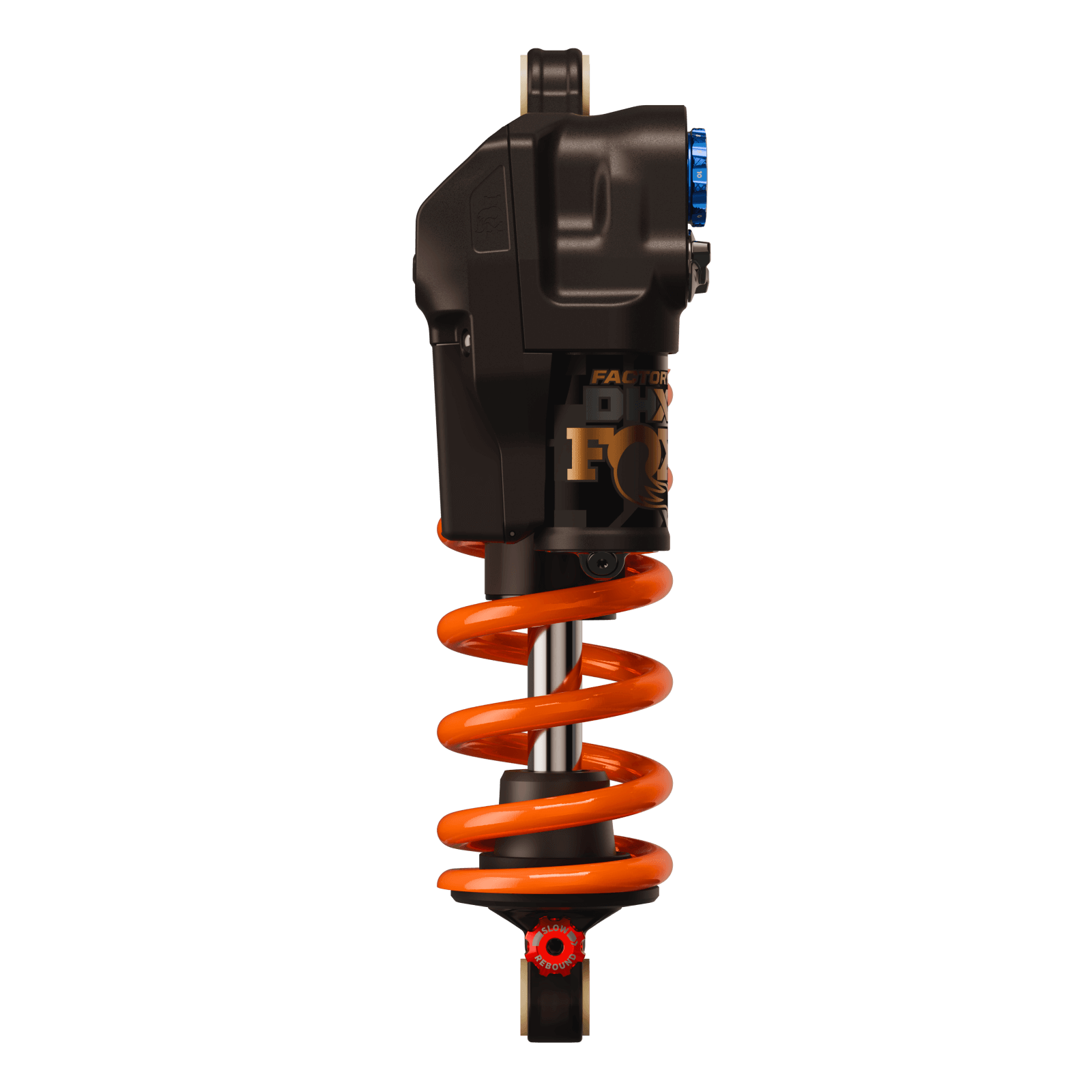

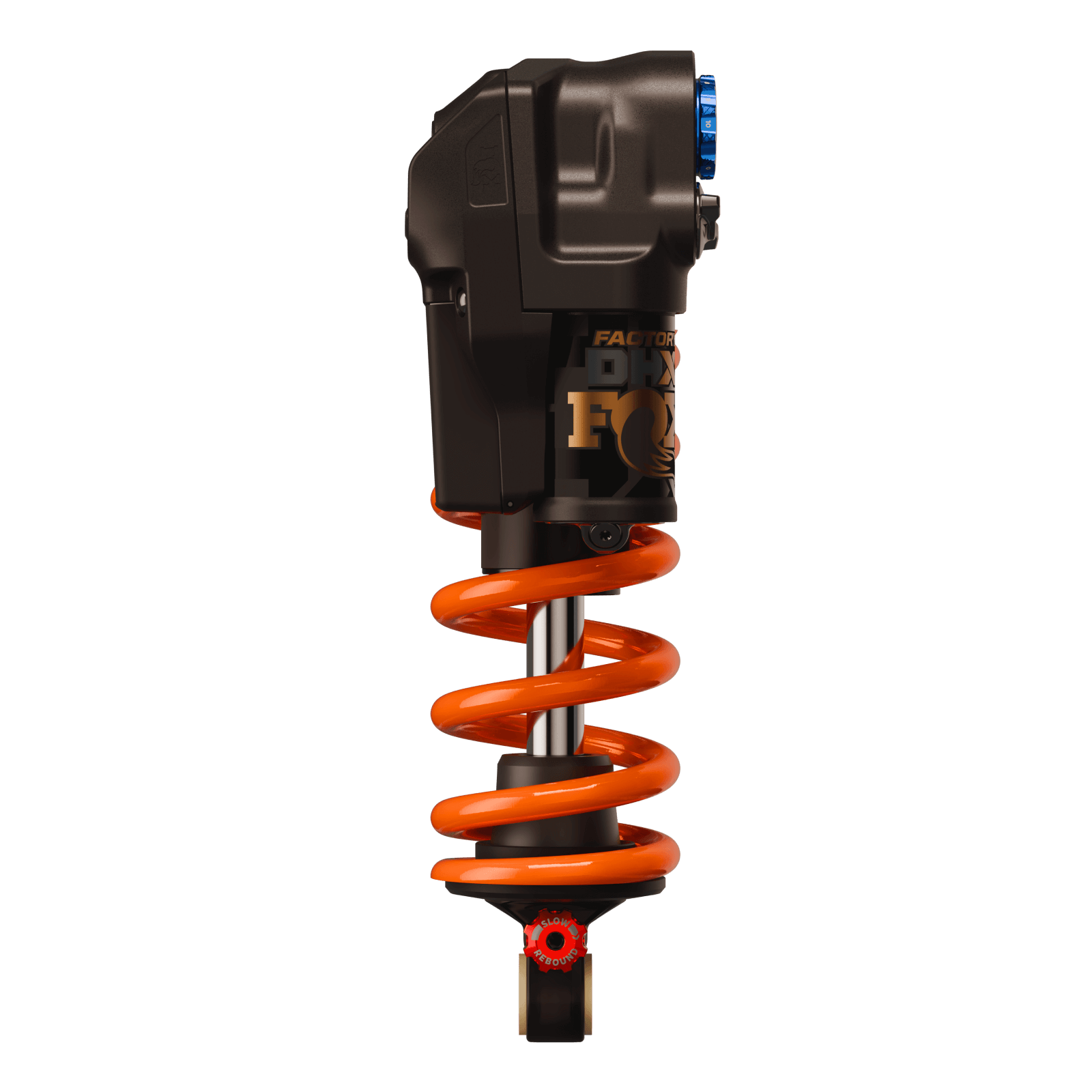

Gallery
Full specifications
General
- Part numbers
- 960-01-048, 960-01-049, 960-01-050, 960-01-051, 960-01-052, 960-01-053, 960-01-054, 960-01-061
- Series
- Factory
Chassis
- Upper tube finish
- Chrome / Kashima
Damper
- Control
- Live Valve Neo (wireless)
- Damper adjustment options
- Live Valve
Spring
- Spring
- Coil (not included)
Compatibility
- Shock standard
- Metric / Metric Trunnion
- Shock sizes (eye-to-eye x stroke)
- 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x57.5 / 230x60 / 230x65
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox DHX versions compared
| DHX Factory | DHX Live Valve Neo | |
|---|---|---|
| Price | — | — |
| Spring | Coil | Coil |
| Sizes | 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x60 / 230x65 | 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x57.5 / 230x60 / 230x65 |
| Mount standard | Metric / Metric Trunnion | Metric / Metric Trunnion |
| Adjustment | 2pos-Adj | Live Valve |
| Finish | Chrome | Chrome / Kashima |
| Weight | 465 g | — |
| E-bike rated | — | — |
eMTBs that come with the Fox DHX
Fox DHX Live Valve Neo: FAQ
Is the Fox DHX Live Valve Neo suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox DHX Live Valve Neo?
Spring: Coil; Sizes: 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x57.5 / 230x60 / 230x65; Mount standard: Metric / Metric Trunnion; Adjustment: Live Valve; Finish: Chrome / Kashima.
What other versions of the Fox DHX are there?
DHX Factory.
