CannondaleMoterra LT 1
- Motor
- Bosch Performance Line CX
- Battery
- 800 WhBosch PowerTube, removable
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Cannondale Moterra LT 1 (€7,399) is the only build of the Moterra Neo LT: Bosch Performance Line CX with 800 Wh, Fox Float Performance 38 fork, Fox DHX Performance shock, SRAM Eagle 90 and TRP EVO Pro 4-piston brakes. Cannondale does not publish a claimed weight.

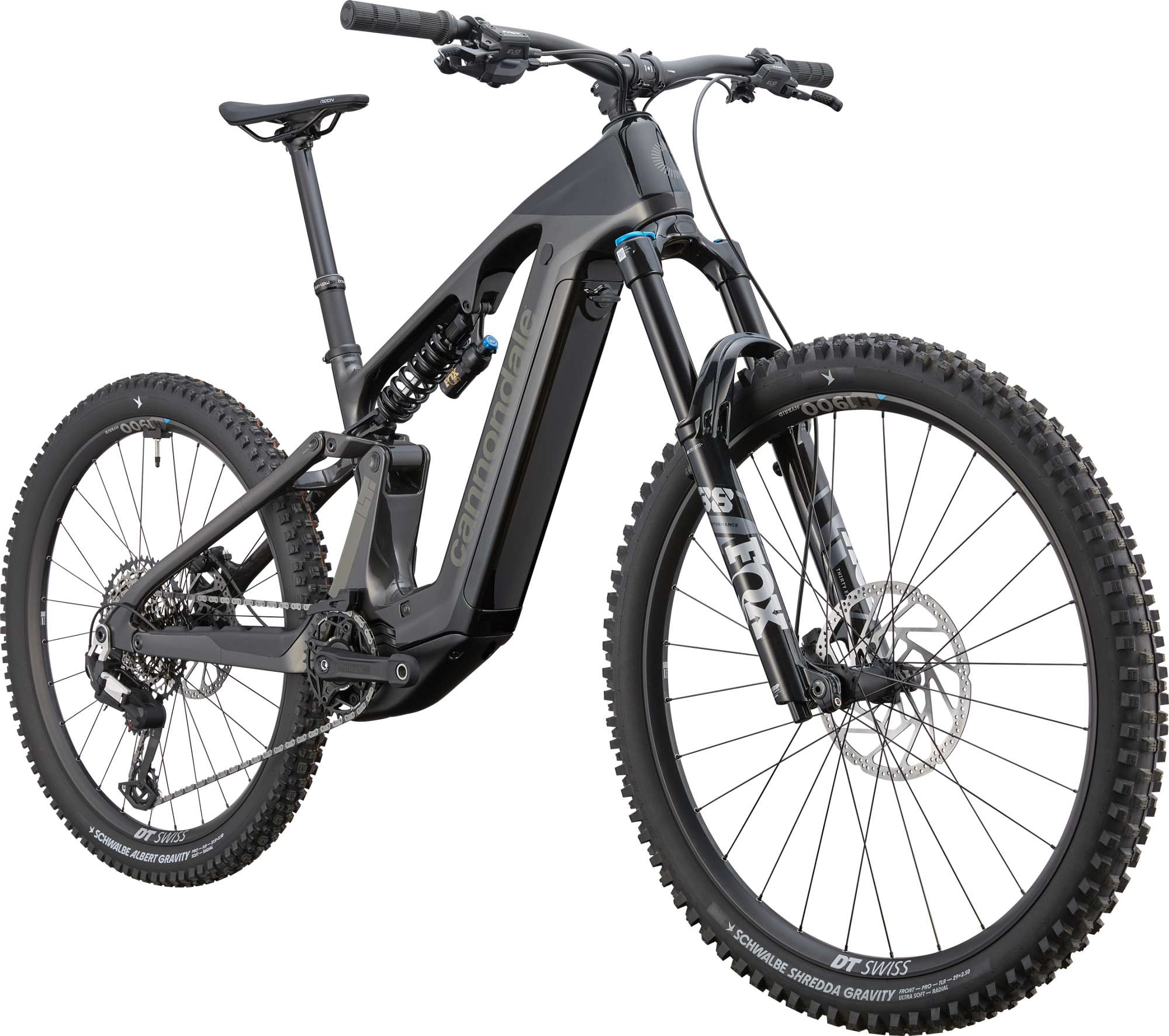

The Moterra LT is the long-travel version of Cannondale's Moterra platform: a carbon e-enduro bike with 165 mm of rear travel, a 170 mm fork and a mixed wheel setup (29-inch front, 27.5-inch rear).
Power comes from the Bosch Performance Line CX motor with a removable 800 Wh Bosch PowerTube battery, compatible with the PowerMore range extender. The single build uses a Fox 38 fork and a Fox DHX coil shock.
- Bosch Performance Line CX
- 800 Wh removable battery
- 165 mm rear / 170 mm fork
- Mixed wheels, coil shock

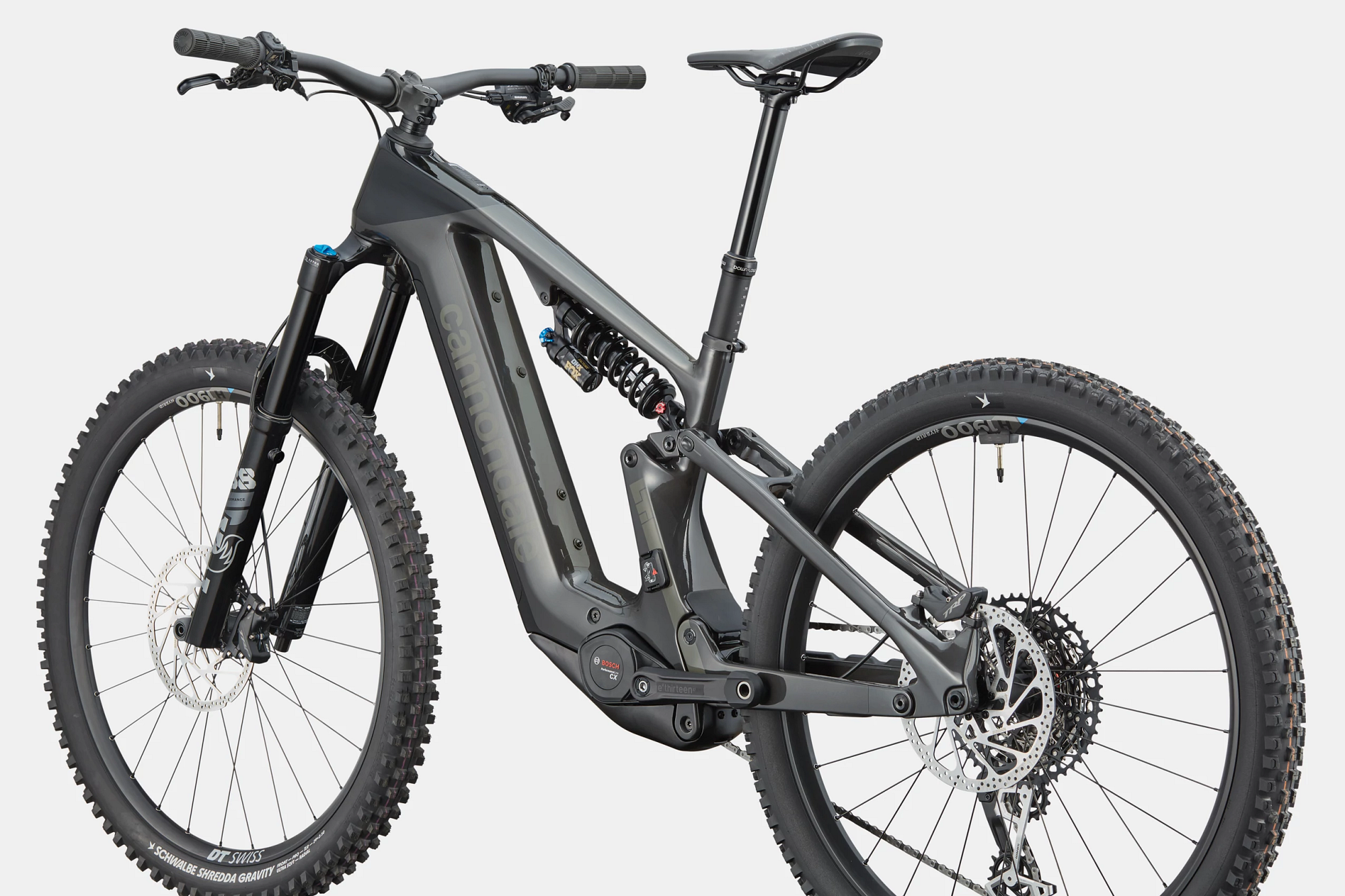

Gallery
Photos: Cannondale
Full specifications
Frame & suspension
- Frame
- Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube
- Fork
- Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
- Headset
- Acros ICR, 1.5" to 1.8", sealed bearings
- Rear shock
- Fox DHX Performance, Coil, 2 pos adj, 230x65mm
E-system
- Motor

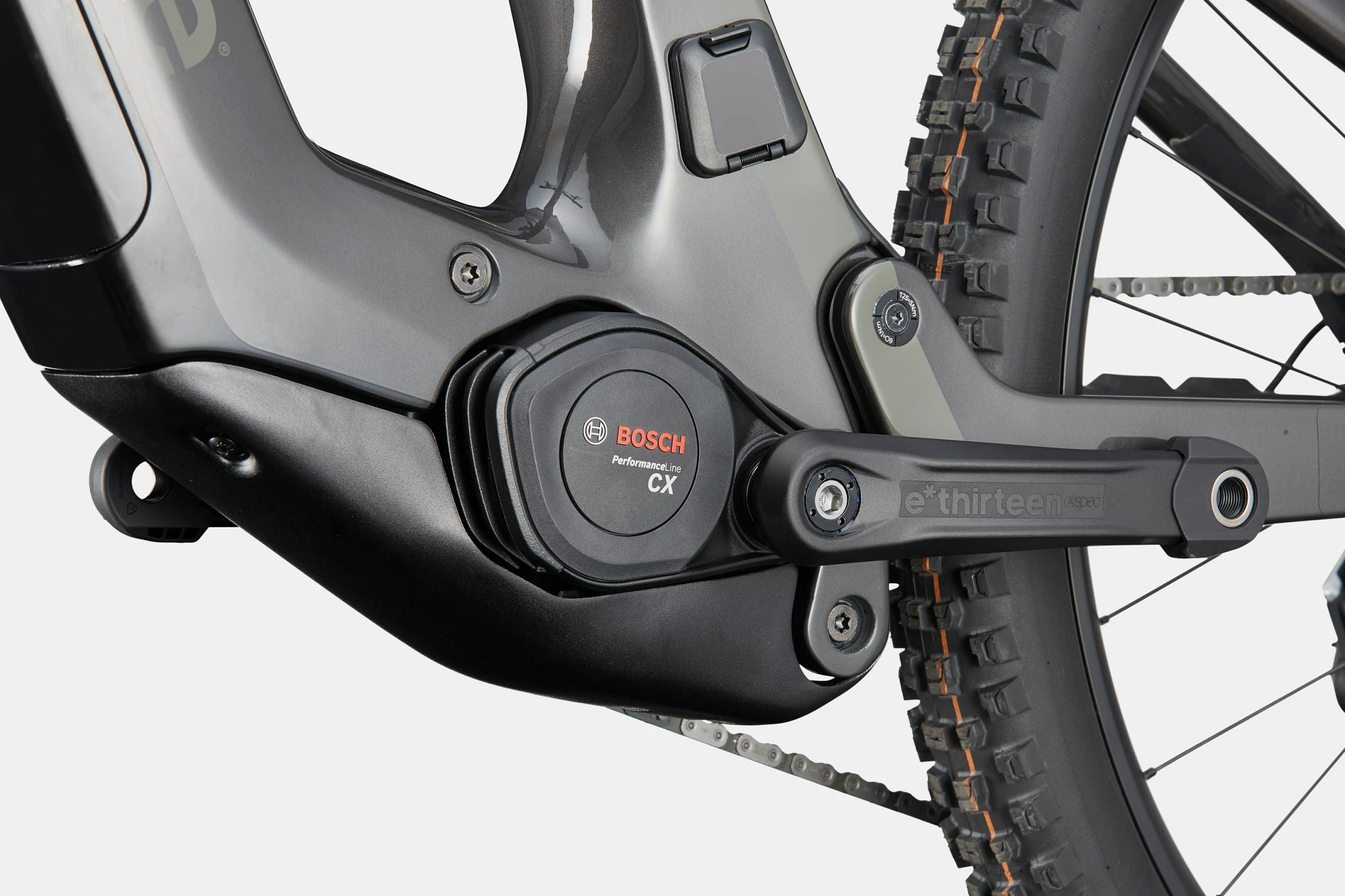

- Bosch Performance Line CX
- Battery
- Bosch PowerTube, 800Wh
- Charger
- Bosch 4A
- Display

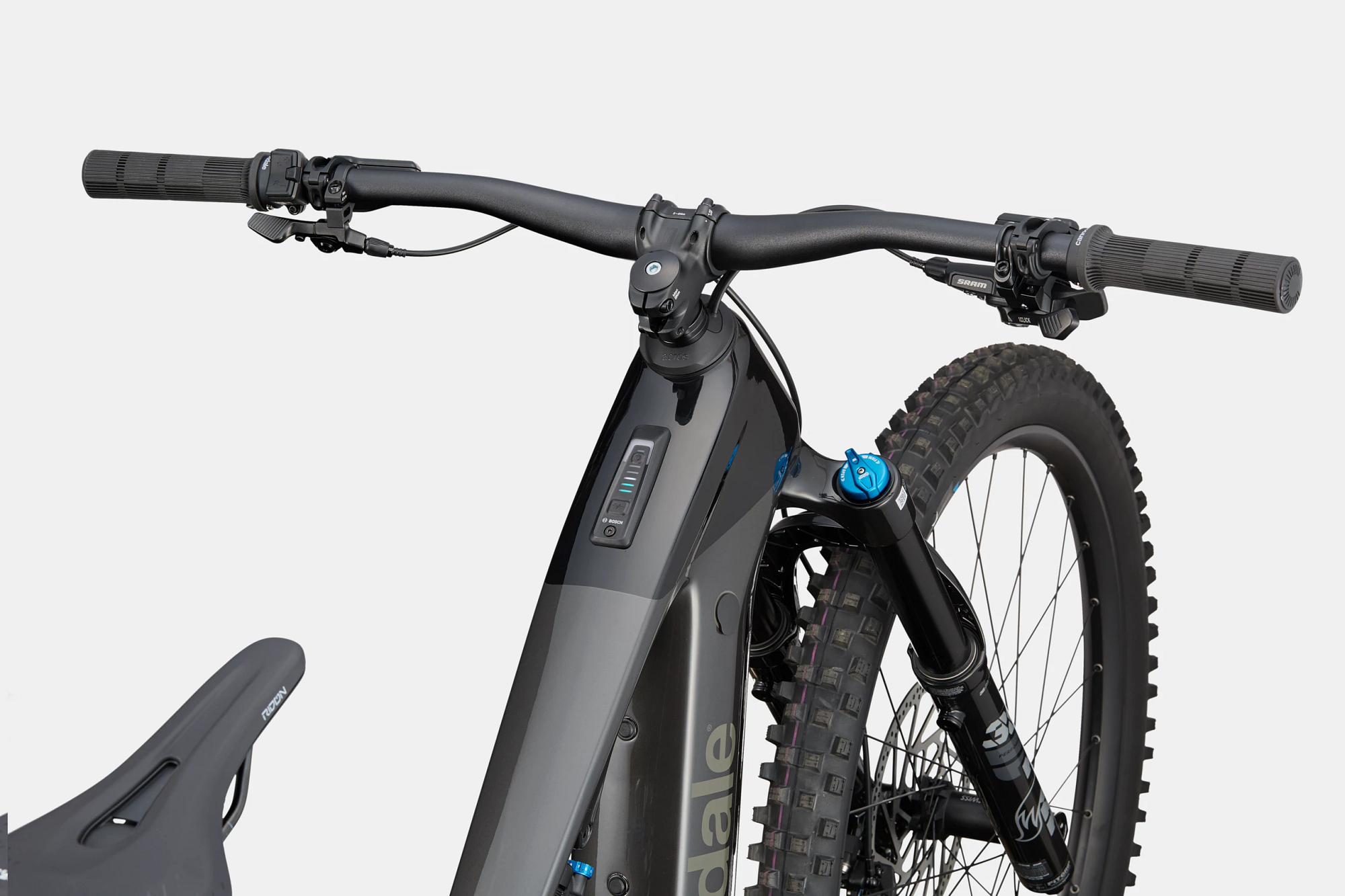

- Top Tube System Controller w/ Mini Remote
Drivetrain
- Rear derailleur

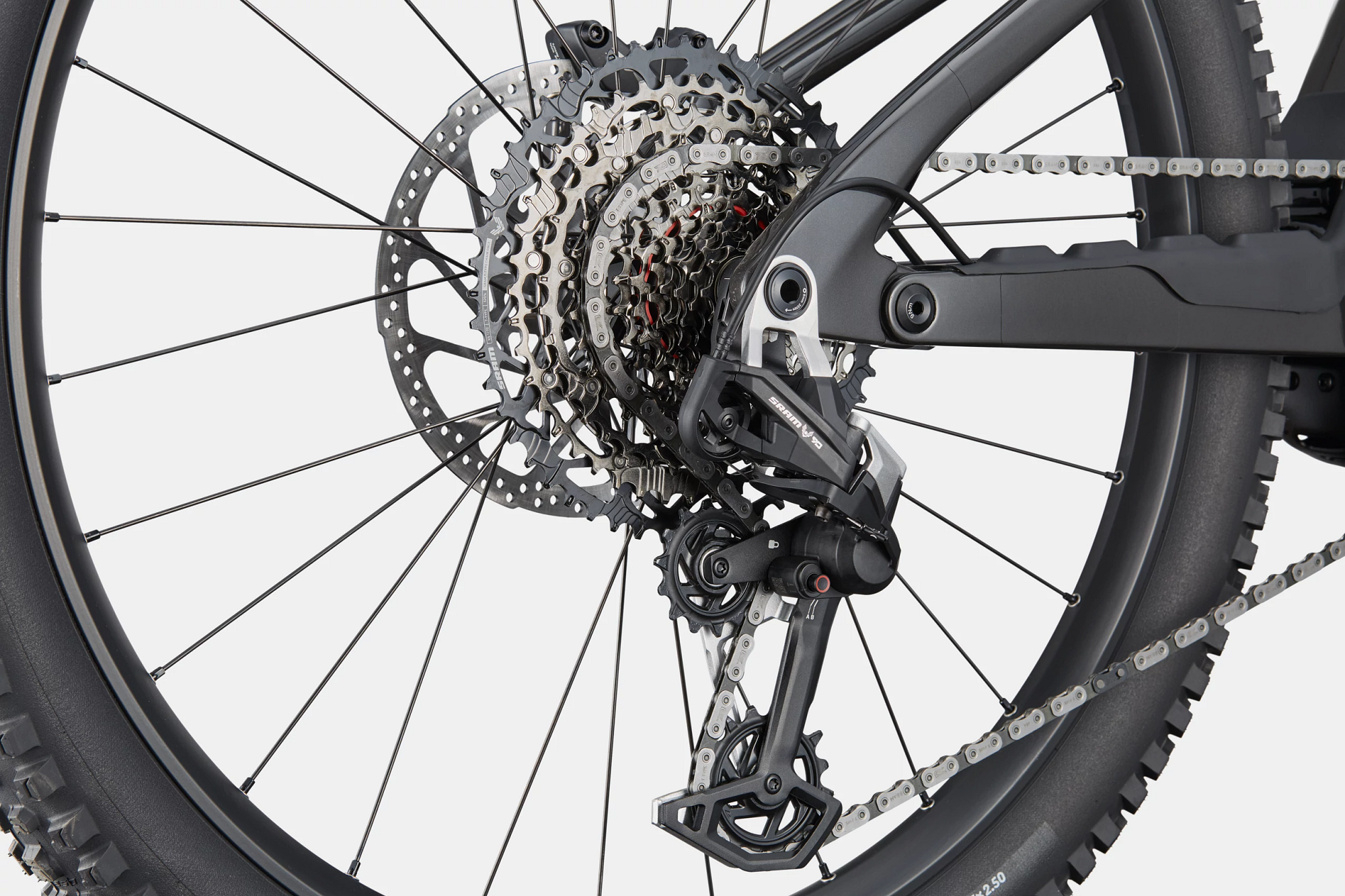

- SRAM Eagle 90, T-Type
- Shifters
- SRAM Eagle 90, T-Type, 12-speed
- Chain
- SRAM Eagle 70 T-Type, 12-speed
- Crank
- e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
- Rear Cogs
- SRAM Eagle 70 T-Type, 10-52, 12-speed
Brakes
- Brakes
- TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness
- Brake Levers
- TRP EVO Pro hydraulic disc
Wheels & tyres
- Rims
- DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
- Spokes
- DT Swiss Competition, straight pull
- Wheel Size
- 29" front / 27.5" rear
- Hubs
- (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
- Tires
- (F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
- Front Tire
- Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable , tubeless ready
- Rear Tire
- Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready
Cockpit
- Handlebar
- Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
- Stem
- Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
- Grips
- Cannondale TaperRidge
- Saddle
- Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
- Seatpost
- Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Other
- Extras
- Tubeless Valves, Bosch PowerMore range extender compatible
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Moterra LT 1: FAQ
How much does the Cannondale Moterra LT 1 cost?
€7,399 (RRP France/Germany (Cannondale EU), VAT incl.). Prices vary by country and dealer.
What motor and battery does the Cannondale Moterra LT 1 have?
Bosch Performance Line CX. 800 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Cannondale Moterra LT 1 have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Cannondale Moterra LT 1 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
