CannondaleTrail Neo 4
- Motor
- Bosch Performance Line
- Battery
- 500 WhBosch PowerTube, removable
- Travel F / R
- 100 / – mm
- Wheels
- 29" (27.5" on size S)
- Frame
- Alloy
Overview
The Cannondale Trail Neo 4 (€2,999) is the entry build of the Trail Neo: Bosch Performance Line with 500 Wh, SR Suntour XCM 32 fork, Shimano CUES U3020 and Shimano MT200 brakes. Cannondale does not publish a claimed weight.
The Trail Neo is Cannondale's alloy hardtail e-MTB with a removable Bosch PowerTube battery in the down tube (625 Wh or 500 Wh), an integrated front running light and 100 mm suspension forks.
The Trail Neo 2 uses the Bosch Performance Line CX motor and a SmartForm C1 frame; the Trail Neo 3 and 4 use the Bosch Performance Line motor and a SmartForm C2 frame. Sizes M-XL roll on 29-inch wheels, size S on 27.5-inch. Frames have rack, fender and kickstand mounts.
- Bosch Performance Line / Performance Line CX
- 500-625 Wh removable battery
- 100 mm fork, 29" wheels (27.5" size S)
- Integrated front light, rack mounts

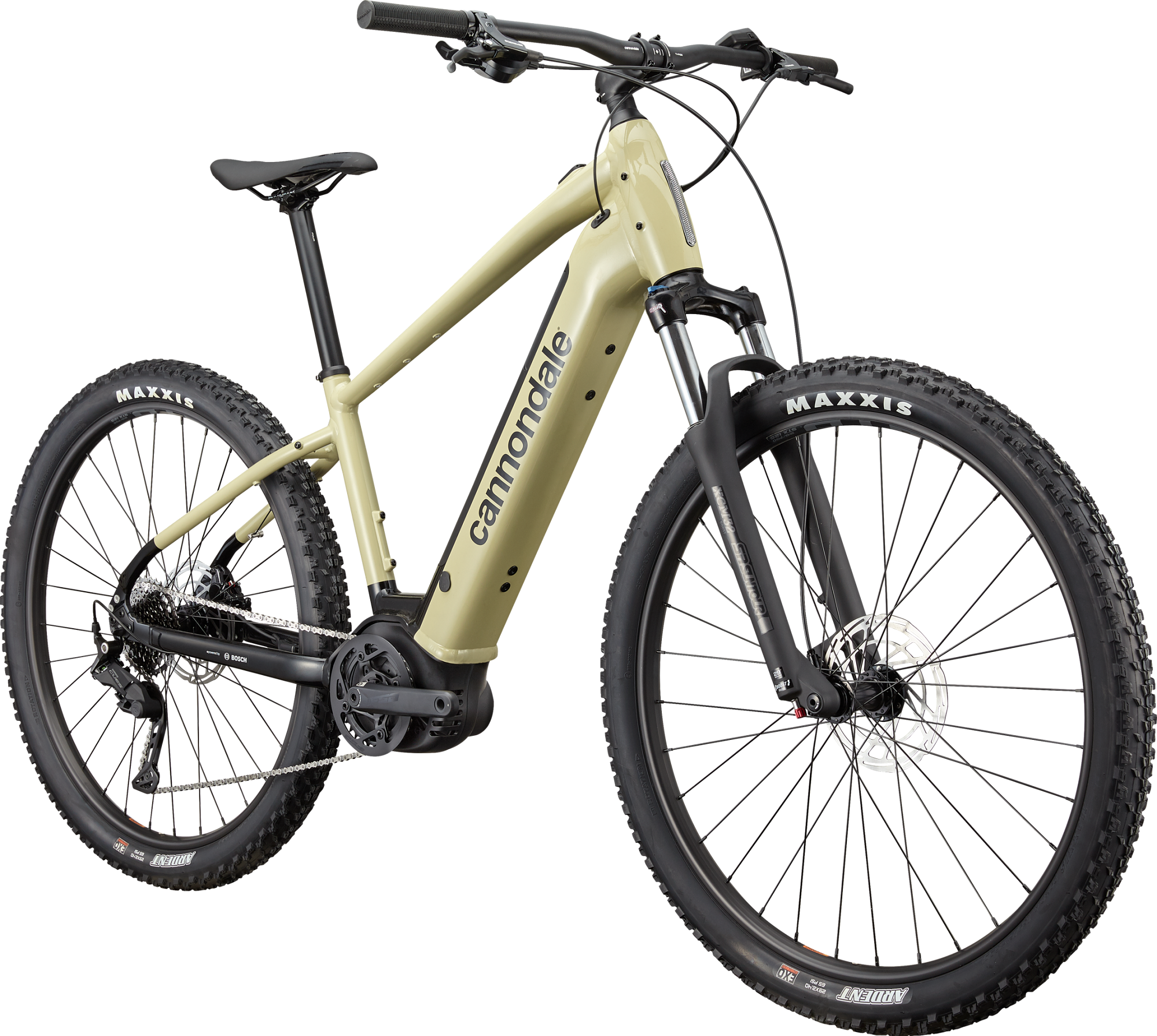

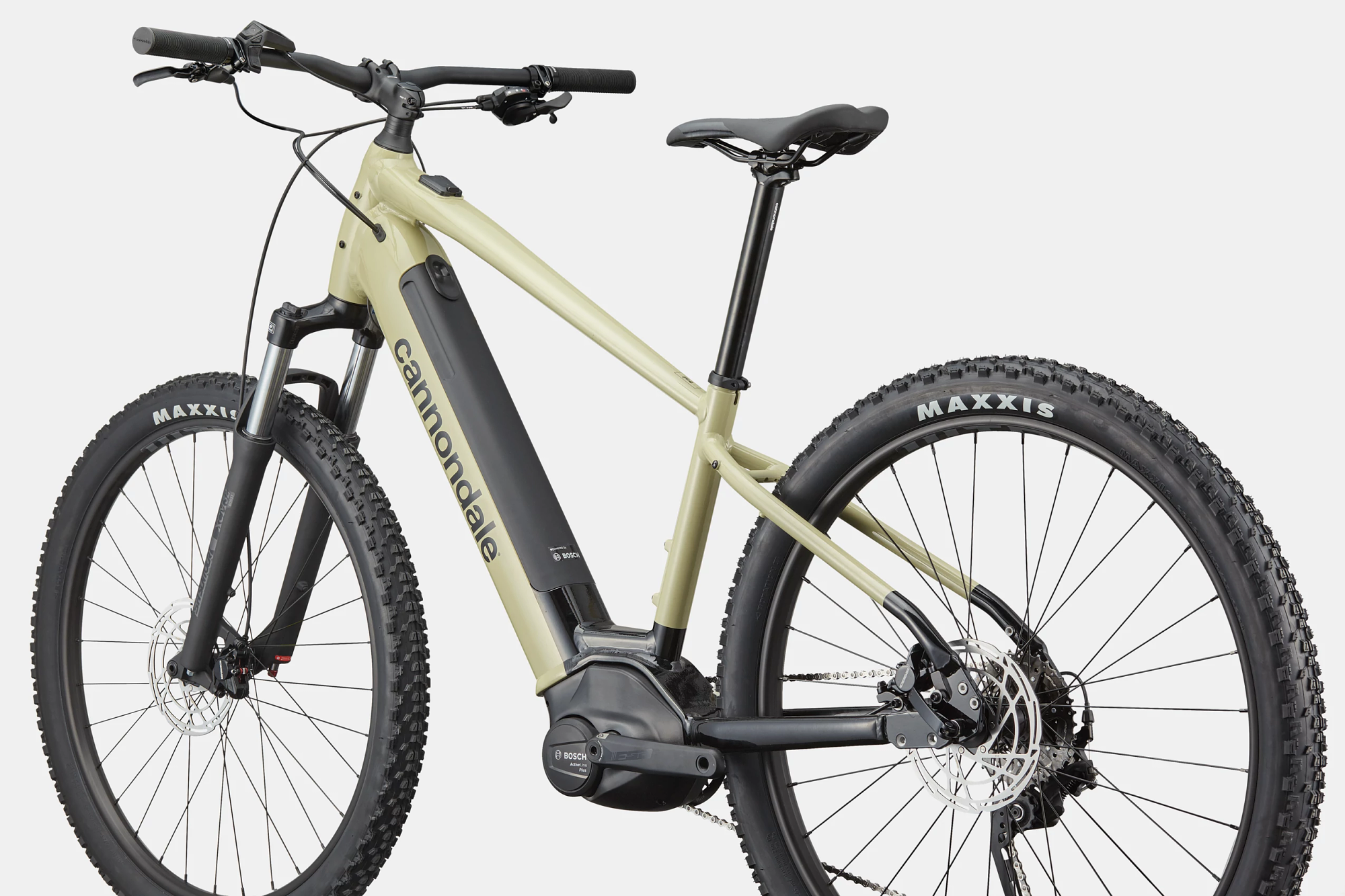

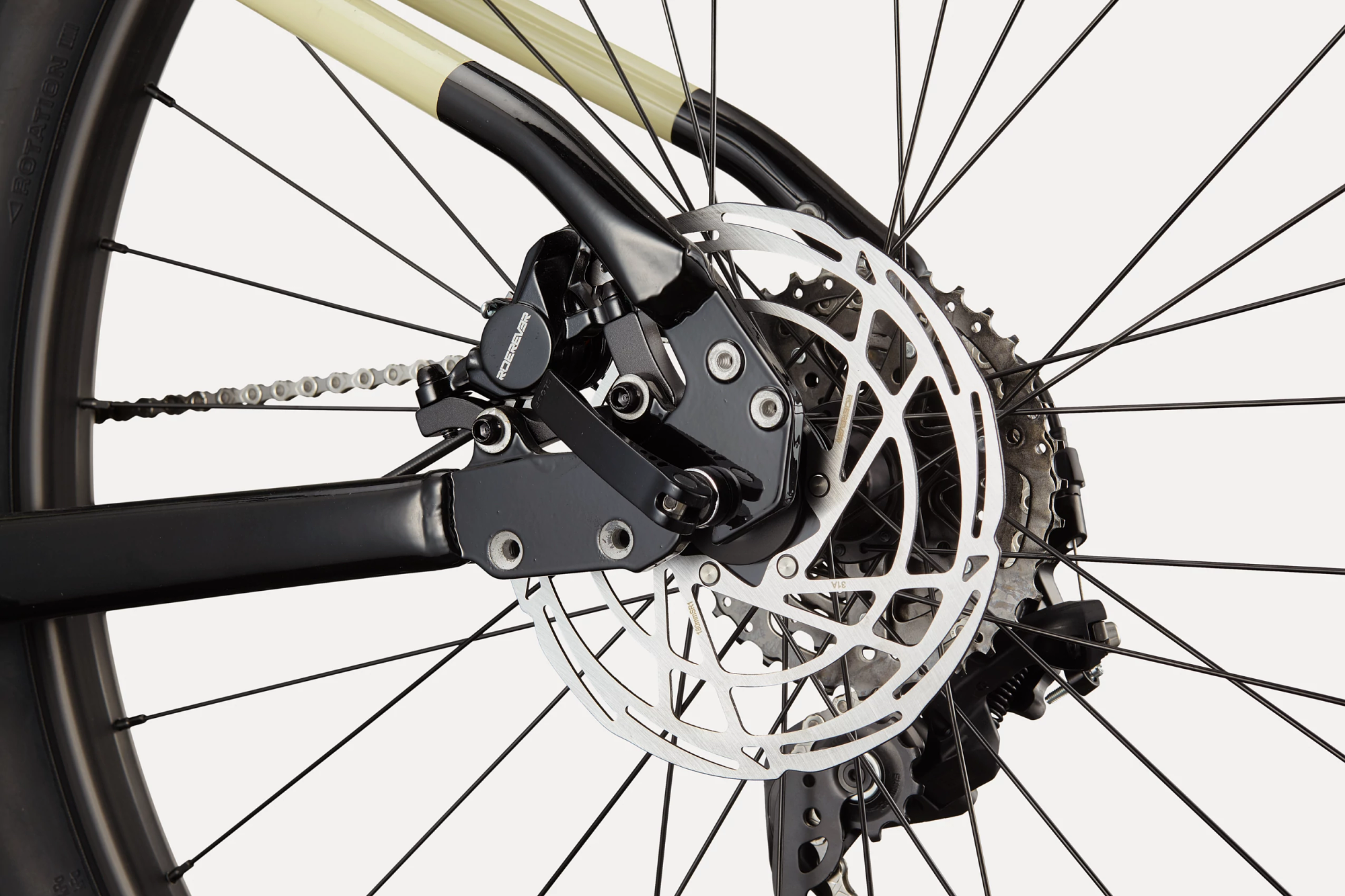

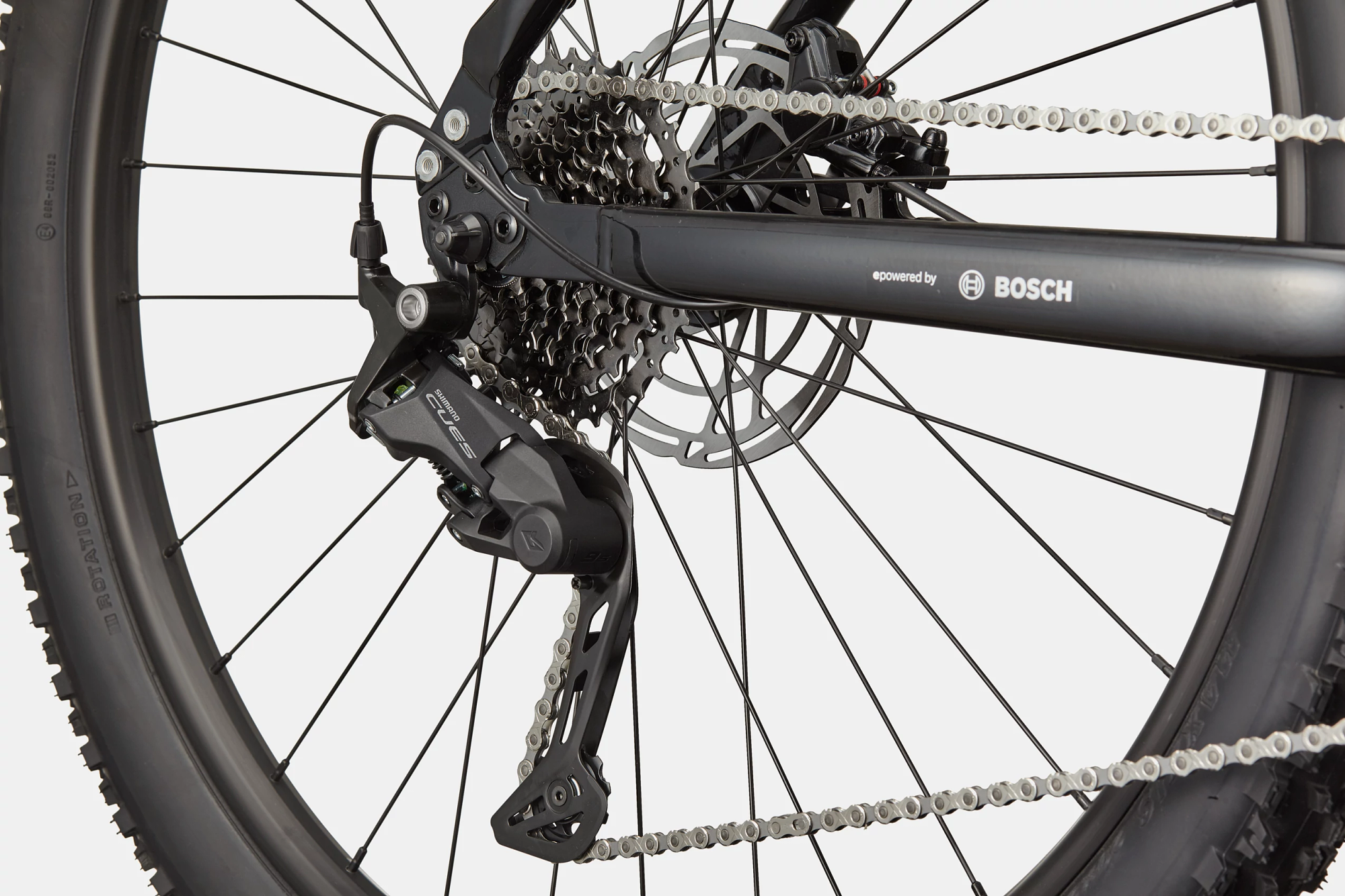

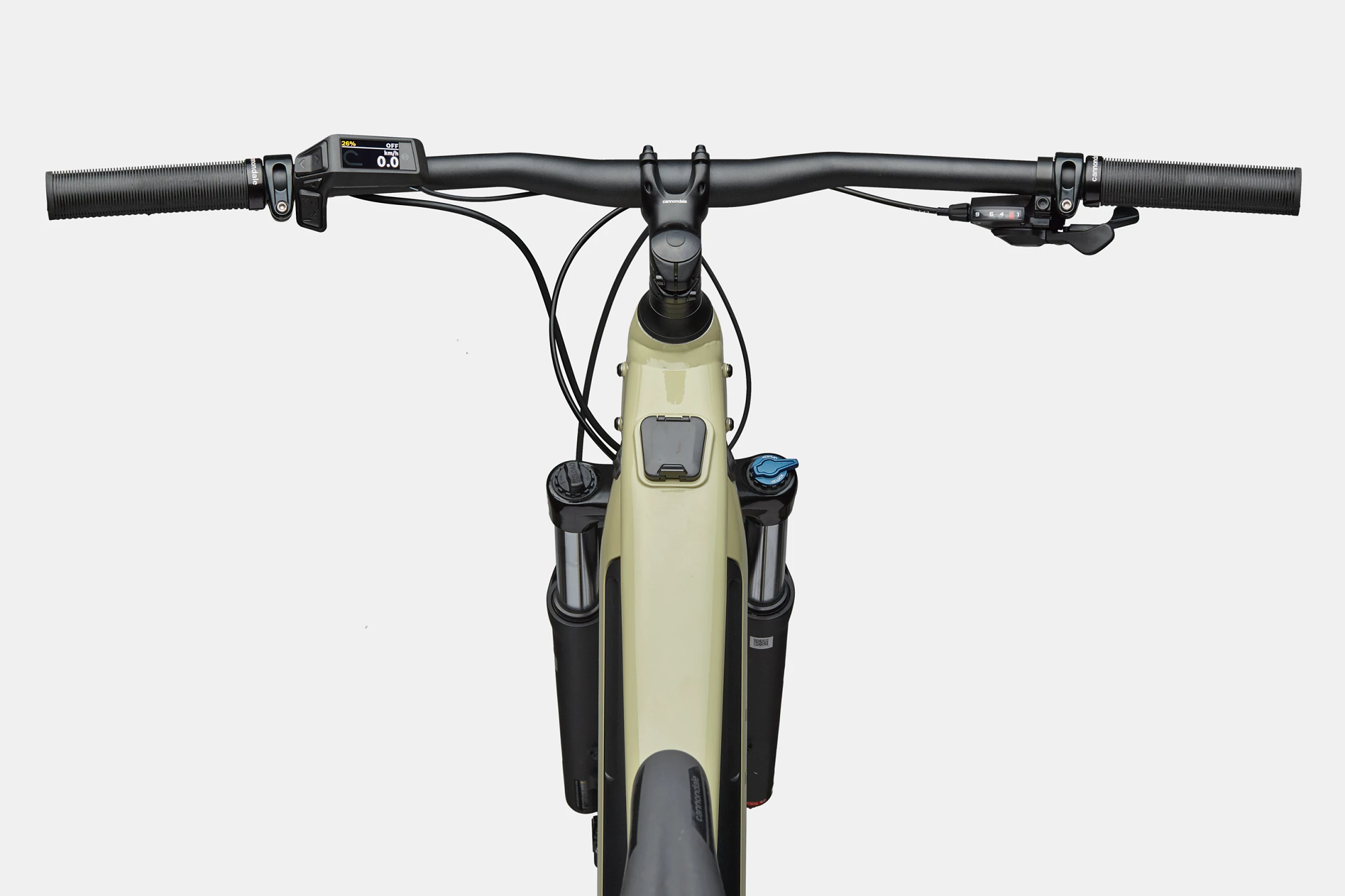

Gallery
Photos: Cannondale
Full specifications
Frame & suspension
- Frame
- SmartForm C2 Alloy, removable 500Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts
- Fork
- SR Suntour XCM 32, 100mm, Coil, 46mm offset
- Headset
- Integrated, 1-1/8 to 1.5", sealed bearings
E-system
- Motor
- Bosch Performance Line
- Battery
- Bosch PowerTube, 500Wh
- Charger
- Bosch 4A
- Display
- Bosch Intuvia w/LED remote
Drivetrain
- Rear derailleur
- Shimano CUES U3020
- Shifters
- Shimano CUES U4000, 9-speed
- Chain
- KMC E500
- Crank
- Bosch Gen3, 170mm, 34T
- Rear Cogs
- Shimano CUES LG300, 11-41, 9-speed
Brakes
- Brakes
- Shimano MT200 hydraulic disc, 180mm RT10 rotors
- Brake Levers
- Shimano MT200 hydraulic disc
Wheels & tyres
- Rims
- WTB STX i25 TCS, 32h, tubeless ready
- Spokes
- DT Swiss Champion 2.0
- Wheel Size
- 29"
- Hubs
- (F) Shimano M4050 15x110mm / (R) Shimano QC300, 9x135mm QR
- Tires
- Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection
Cockpit
- Handlebar
- Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm
- Stem
- Cannondale 3, 3D Forged 6061 alloy, 1-1/8", 31.8, 0°
- Grips
- Fabric Funguy
- Saddle
- Cannondale Ergo XC
- Seatpost
- Cannondale 3, 6061 Alloy, 31.6x350mm
Other
- Extras
- Pre-installed light cables
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Trail Neo: builds compared
Trail Neo range →| Trail Neo 4 | Trail Neo 3 | Trail Neo 2 | |
|---|---|---|---|
| Price | €2,999 | €3,699 | €4,299 |
| Frame | Alloy | Alloy | Alloy |
| Fork | SR Suntour XCM 32, 100mm | SR Suntour XCM 34 Boost, 100mm | SR Suntour XCR 34 Boost, 100mm |
| Derailleur | Shimano CUES U3020 | Shimano CUES U6000 | Shimano Deore M5100 |
| Brakes | Shimano MT200 hydraulic disc | Shimano MT200 hydraulic disc | Shimano MT400 |
| Wheels | WTB STX i25 TCS, 32h | WTB STX i25 TCS, 32h | WTB STX i30 TCS, 32h |
| Display | Bosch Intuvia w/LED remote | Bosch Intuvia w/LED remote | Bosch Kiox 300 w/ LED Remote |
Trail Neo 4: FAQ
How much does the Cannondale Trail Neo 4 cost?
€2,999 (RRP France/Germany (Cannondale EU), VAT incl.). The Trail Neo range runs from €2,999 (Trail Neo 4) to €4,299 (Trail Neo 2). Prices vary by country and dealer.
What motor and battery does the Cannondale Trail Neo 4 have?
Bosch Performance Line. 500 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Cannondale Trail Neo 4 have?
100 mm at the fork, on 29" (27.5" on size S) wheels.
What sizes does the Cannondale Trail Neo 4 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Trail Neo 4 and the Trail Neo 3?
They share the Trail Neo frame platform and motor; the differences are in the parts — fork: SR Suntour XCM 32 vs SR Suntour XCM 34 Boost; derailleur: Shimano CUES U3020 vs Shimano CUES U6000; price: €2,999 vs €3,699.
