CannondaleTrail Neo 2
- Motor
- Bosch Performance Line CX
- Battery
- 625 WhBosch PowerTube, removable
- Travel F / R
- 100 / – mm
- Wheels
- 29" (27.5" on size S)
- Frame
- Alloy
Overview
The Cannondale Trail Neo 2 (€4,299) is the top build of the Trail Neo: Bosch Performance Line CX with 625 Wh, SR Suntour XCR 34 Boost fork, Shimano Deore M5100 and Shimano MT400 brakes. Cannondale does not publish a claimed weight.
The Trail Neo is Cannondale's alloy hardtail e-MTB with a removable Bosch PowerTube battery in the down tube (625 Wh or 500 Wh), an integrated front running light and 100 mm suspension forks.
The Trail Neo 2 uses the Bosch Performance Line CX motor and a SmartForm C1 frame; the Trail Neo 3 and 4 use the Bosch Performance Line motor and a SmartForm C2 frame. Sizes M-XL roll on 29-inch wheels, size S on 27.5-inch. Frames have rack, fender and kickstand mounts.
- Bosch Performance Line / Performance Line CX
- 500-625 Wh removable battery
- 100 mm fork, 29" wheels (27.5" size S)
- Integrated front light, rack mounts

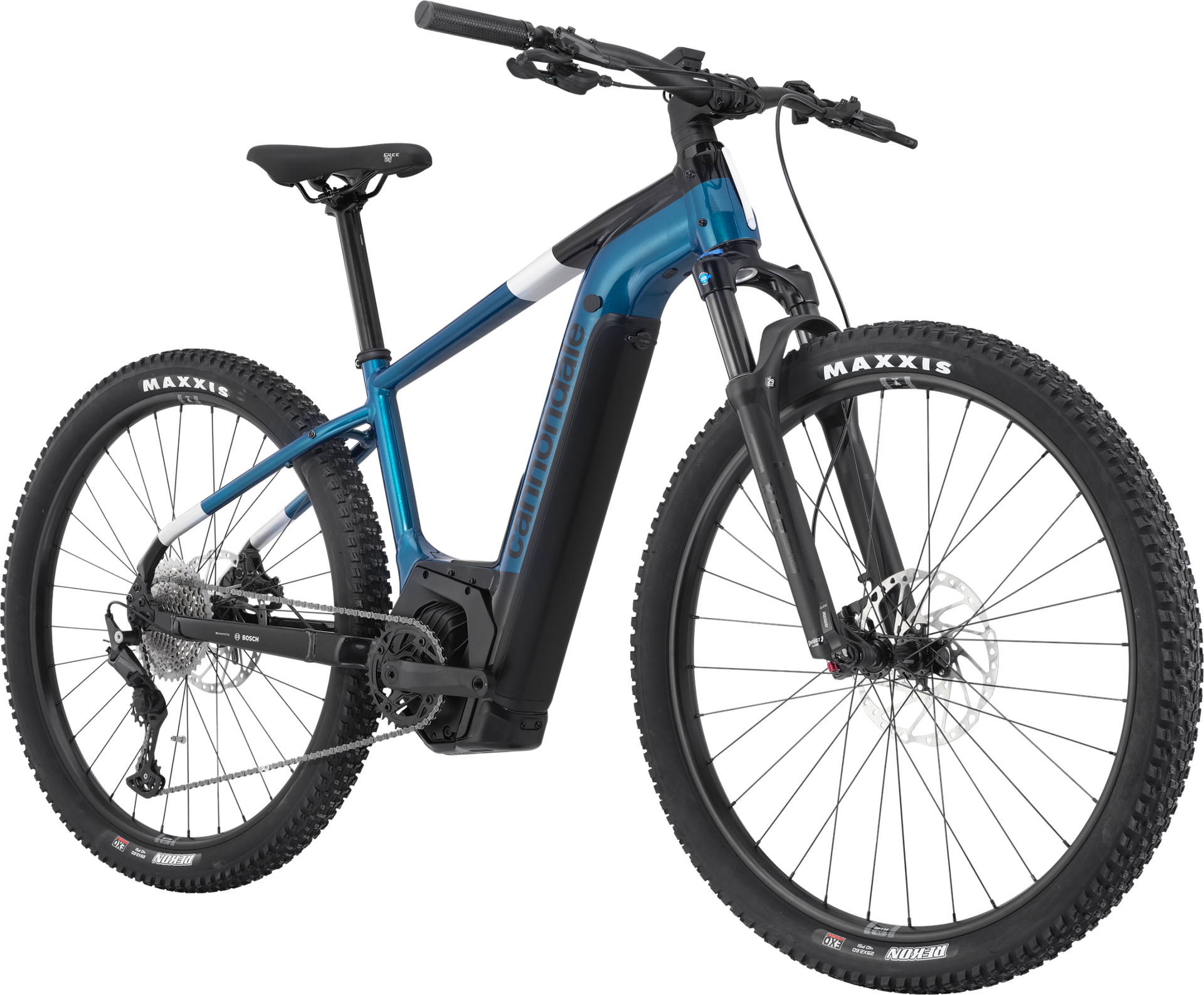

Gallery
Photos: Cannondale
Full specifications
Frame & suspension
- Frame
- SmartForm C1 Alloy, removable 625Wh downtube battery (dual battery ready), integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection, headtube rack mounts, 40mm Pletscher kickstand mount, rack & fender mounts
- Fork
- SR Suntour XCR 34 Boost, 100mm, Coil, 46mm offset
- Headset
- Acros, integrated, 1-1/8 to 1.8", sealed bearings
E-system
- Motor
- Bosch Performance Line CX
- Battery
- Bosch PowerTube, 625Wh
- Charger
- Bosch 4A
- Display
- Bosch Kiox 300 w/ LED Remote
Drivetrain
- Rear derailleur
- Shimano Deore M5100
- Shifters
- Shimano Deore M5100, 11-speed
- Chain
- Shimano HG601, 11-speed
- Crank
- FSA Bosch Gen4, 160mm, 34T
- Rear Cogs
- Sunrace, 11-42, 11-speed
Brakes
- Brakes
- Shimano MT400, hydraulic disc, 203/203mm Deore RT64 rotors
- Brake Levers
- Shimano MT400 hydraulic disc
Wheels & tyres
- Rims
- WTB STX i30 TCS, 32h, tubeless ready
- Spokes
- DT Swiss Champion 2.0
- Wheel Size
- 29"
- Hubs
- (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano UR600, 12x148mm thru-axle
- Tires
- Maxxis Rekon, 29x2.6" (M, L, XL) 27.5x2.6" (S), EXO Protection
Cockpit
- Handlebar
- Cannondale 3 Riser, 6061 Alloy, 20mm rise, 8° sweep, 4° rise, 800mm, 35mm
- Stem
- Cannondale, 3D Forged 6061 Alloy, 1-1/8", 35.0, internal cables
- Grips
- Fabric Funguy
- Saddle
- Fizik Freeway Fit
- Seatpost
- Cannondale 3, 6061 Alloy, 31.6x350mm
Other
- Extras
- Pre-installed light cables
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Trail Neo: builds compared
Trail Neo range →| Trail Neo 4 | Trail Neo 3 | Trail Neo 2 | |
|---|---|---|---|
| Price | €2,999 | €3,699 | €4,299 |
| Frame | Alloy | Alloy | Alloy |
| Fork | SR Suntour XCM 32, 100mm | SR Suntour XCM 34 Boost, 100mm | SR Suntour XCR 34 Boost, 100mm |
| Derailleur | Shimano CUES U3020 | Shimano CUES U6000 | Shimano Deore M5100 |
| Brakes | Shimano MT200 hydraulic disc | Shimano MT200 hydraulic disc | Shimano MT400 |
| Wheels | WTB STX i25 TCS, 32h | WTB STX i25 TCS, 32h | WTB STX i30 TCS, 32h |
| Display | Bosch Intuvia w/LED remote | Bosch Intuvia w/LED remote | Bosch Kiox 300 w/ LED Remote |
Trail Neo 2: FAQ
How much does the Cannondale Trail Neo 2 cost?
€4,299 (RRP France/Germany (Cannondale EU), VAT incl.). The Trail Neo range runs from €2,999 (Trail Neo 4) to €4,299 (Trail Neo 2). Prices vary by country and dealer.
What motor and battery does the Cannondale Trail Neo 2 have?
Bosch Performance Line CX. 625 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Cannondale Trail Neo 2 have?
100 mm at the fork, on 29" (27.5" on size S) wheels.
What sizes does the Cannondale Trail Neo 2 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Trail Neo 2 and the Trail Neo 3?
They share the Trail Neo frame platform; the differences are in the parts — fork: SR Suntour XCR 34 Boost vs SR Suntour XCM 34 Boost; derailleur: Shimano Deore M5100 vs Shimano CUES U6000; price: €4,299 vs €3,699.
