KTMMacina Prowler Prestige CX-R
- Motor
- Bosch Performance Line CX-R120 Nm
- Battery
- 800 WhBosch PowerTube, removable upwards (PTTL)
- Travel F / R
- 180 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 25.3 kgManufacturer figure (size L / 48 cm, as listed on the product page)
Overview
The KTM Macina Prowler Prestige CX-R (€6,799) is the top build of the Macina Prowler: Bosch Performance Line CX-R with 800 Wh, FOX 38E FLOAT 29" Performance 180mm 15x110 fork, FOX DHX2 PerformElite 2P-Lockout 250x75 shock and SRAM GX EAGLE Transmission 12-Speed rear derailleur. Claimed weight is 25.3 kg.
The Macina Prowler is KTM's enduro e-MTB, with 180 mm of fork travel and 170 mm at the rear. It uses KTM's Straight-Line-Link (SLL) suspension and the DiMMiX wheel concept: a 29-inch front wheel and a 27.5-inch rear wheel.
All builds use a carbon frame with the Bosch Performance Line CX-R motor (up to 120 Nm, 750 W peak, 600% support) and an 800 Wh PowerTube battery that is removed upwards from the down tube via KTM's Power Tube Top Loader (PTTL).
- 180 mm fork / 170 mm rear travel
- Bosch Performance Line CX-R, 120 Nm
- 800 Wh PowerTube with top-loader removal
- Mixed wheels (DiMMiX), carbon frame

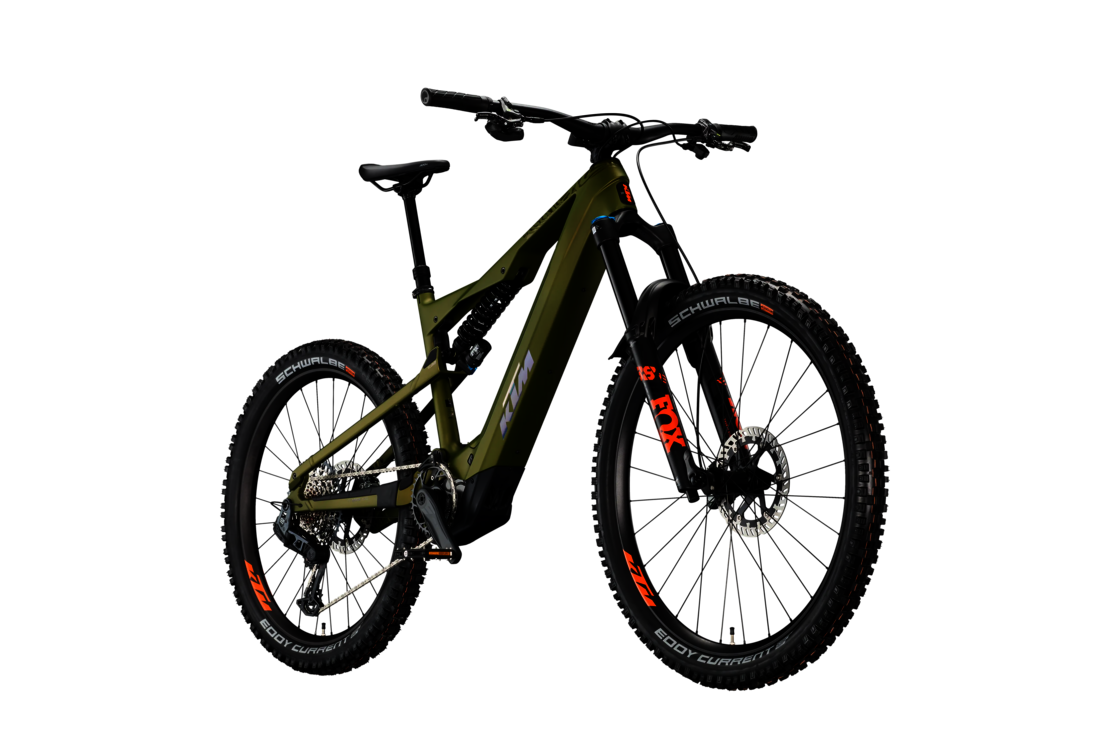

Gallery
Photos: KTM
Full specifications
Frame & suspension
- Frame
- Mac Prowler PERFORMANCE CARBON 170|PT800 Bosch BDU38/M7230
- Fork
- FOX 38E FLOAT 29" Performance 180mm 15x110
- Rear shock
- FOX DHX2 PerformElite 2P-Lockout 250x75
E-system
- Motor
- Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
- Display
- Bosch PURION 400 Display
- Battery
- Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus key)
- Charger
- Bosch STANDARD Charger 4A
Drivetrain
- Rear derailleur
- SRAM GX EAGLE Transmission 12-Speed
- Shifter
- Front: SRAM Dropper SP Lever - Rear: SRAM GX Eagle AXS Controller
- Crankset
- KTM E-TRAIL2 ISIS 160mm Q12
- Chain
- SRAM GX Eagle T-Type 12speed
Wheels & tyres
- Wheelset
- Front: KTM E-TEAM Trail 29 CL 110/15TA|622x30TC TLR by DT - Rear: KTM E-TEAM Trail 27 CL 148/12TA| 584x35TC TLR by DT
- Front tyre
- Schwalbe Eddy Current Front Evo SuperTrail TLE 65-622
- Rear tyre
- Schwalbe Eddy Current Rear Evo SuperGravity TLE 70-584
Cockpit
- Grips
- Ergon GE10
- Handlebar
- KTM TEAM II Trail35 rizer25 800mm
- Stem
- KTM TEAM Trail35
- Headset
- Acros AICR intern 1.1/8"-1.5" angle lim
- Saddle
- Fizik Terra Aidon X5 SAlloy
- Seatpost
- KTM COMP dropper internal 30.9 T:150
Other
- Pedals
- MTB-Pedal nylon VP-522 flat
- Max. system weight
- 144 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Macina Prowler geometry
| Size | M (43 cm) | L (48 cm) | XL (53 cm) |
|---|---|---|---|
| Seat tube length | 430 mm | 450 mm | 480 mm |
| Top tube length | 602 mm | 622 mm | 647 mm |
| Seat angle | 75.6° (74.3°) | 75.6° (74.4°) | 75.6° (74.4°) |
| Head angle | 64.1° | 64.1° | 64.1° |
| Head tube length | 100 mm | 110 mm | 125 mm |
| Chainstay length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1241 mm | 1263 mm | 1292 mm |
| Stack | 618 mm | 627 mm | 641 mm |
| Reach | 443 mm | 461 mm | 483 mm |
| Standover height | 839 mm | 842 mm | 847 mm |
| BB drop | 0 mm | 0 mm | 0 mm |
Source: KTM. Seat angle: second value in brackets as published by KTM.
Macina Prowler: builds compared
Macina Prowler range →| Macina Prowler Elite CX-R | Macina Prowler Master CX-R | Macina Prowler Prestige CX-R | |
|---|---|---|---|
| Price | €5,499 | €5,799 | €6,799 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox DOMAIN RC 29" 180mm 15x110 | FOX 38E FLOAT 29" Rhythm 180mm 15x110 | FOX 38E FLOAT 29" Performance 180mm 15x110 |
| Shock | FOX FLOAT X Performance 2P-Lockout 250x75 | FOX FLOAT X Performance 2P-Lockout 250x75 | FOX DHX2 PerformElite 2P-Lockout 250x75 |
| Derailleur | SRAM EAGLE 70 Transmission 12-Speed | SRAM EAGLE 90 Transmission 12-Speed | SRAM GX EAGLE Transmission 12-Speed |
| Display | Bosch PURION 200 Display & Remote | Bosch PURION 400 Display | Bosch PURION 400 Display |
| Weight | — | — | 25.3 kg |
Macina Prowler Prestige CX-R: FAQ
How much does the KTM Macina Prowler Prestige CX-R cost?
€6,799 (KTM SRP (ktm-bikes.at, EUR), VAT incl.). The Macina Prowler range runs from €5,499 (Macina Prowler Elite CX-R) to €6,799 (Macina Prowler Prestige CX-R). Prices vary by country and dealer.
How much does the KTM Macina Prowler Prestige CX-R weigh?
KTM quotes 25.3 kg. It is the lightest build of the Macina Prowler.
What motor and battery does the KTM Macina Prowler Prestige CX-R have?
Bosch Performance Line CX-R (120 Nm). 800 Wh battery — bosch PowerTube, removable upwards (PTTL).
How much suspension travel does the KTM Macina Prowler Prestige CX-R have?
180 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the KTM Macina Prowler Prestige CX-R come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Macina Prowler Prestige CX-R and the Macina Prowler Master CX-R?
They share the Macina Prowler frame platform and motor; the differences are in the parts — fork: FOX 38E FLOAT 29" Performance 180mm 15x110 vs FOX 38E FLOAT 29" Rhythm 180mm 15x110; shock: FOX DHX2 PerformElite 2P-Lockout 250x75 vs FOX FLOAT X Performance 2P-Lockout 250x75; derailleur: SRAM GX EAGLE Transmission 12-Speed vs SRAM EAGLE 90 Transmission 12-Speed; price: €6,799 vs €5,799.
