FoxDHX Factory
No EUR/GBP RRP published (FOX's EU store now redirects to the US site). US RRP $659 (ridefox.com, excl. sales tax).
- Spring
- Coil
- Sizes
- 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x60 / 230x65
- Mount standard
- Metric / Metric Trunnion
- Adjustment
- 2pos-Adj
- Finish
- Chrome
- Weight
- 465 gwithout coil spring; starting weight, claimed
Overview
The FOX DHX Factory is a coil rear shock, offered in 7 Metric/Trunnion sizes. US RRP $659.
DHX is FOX's coil-sprung All-Mountain shock, aimed at riders who want plush, ground-hugging, trail-smoothing performance in a wide range of configurations.
An updated high-flow main piston assembly brings its damping closer to the DHX2, with more sensitivity, support and rear tyre grip. It also has a 2-position Firm switch and tool-free LSC/LSR adjusters. The coil spring is sold separately.
- Coil-sprung All-Mountain shock
- High-flow main piston, closer to DHX2
- 2-position Firm switch
- Starting weight 465 g without coil
- Coil spring sold separately

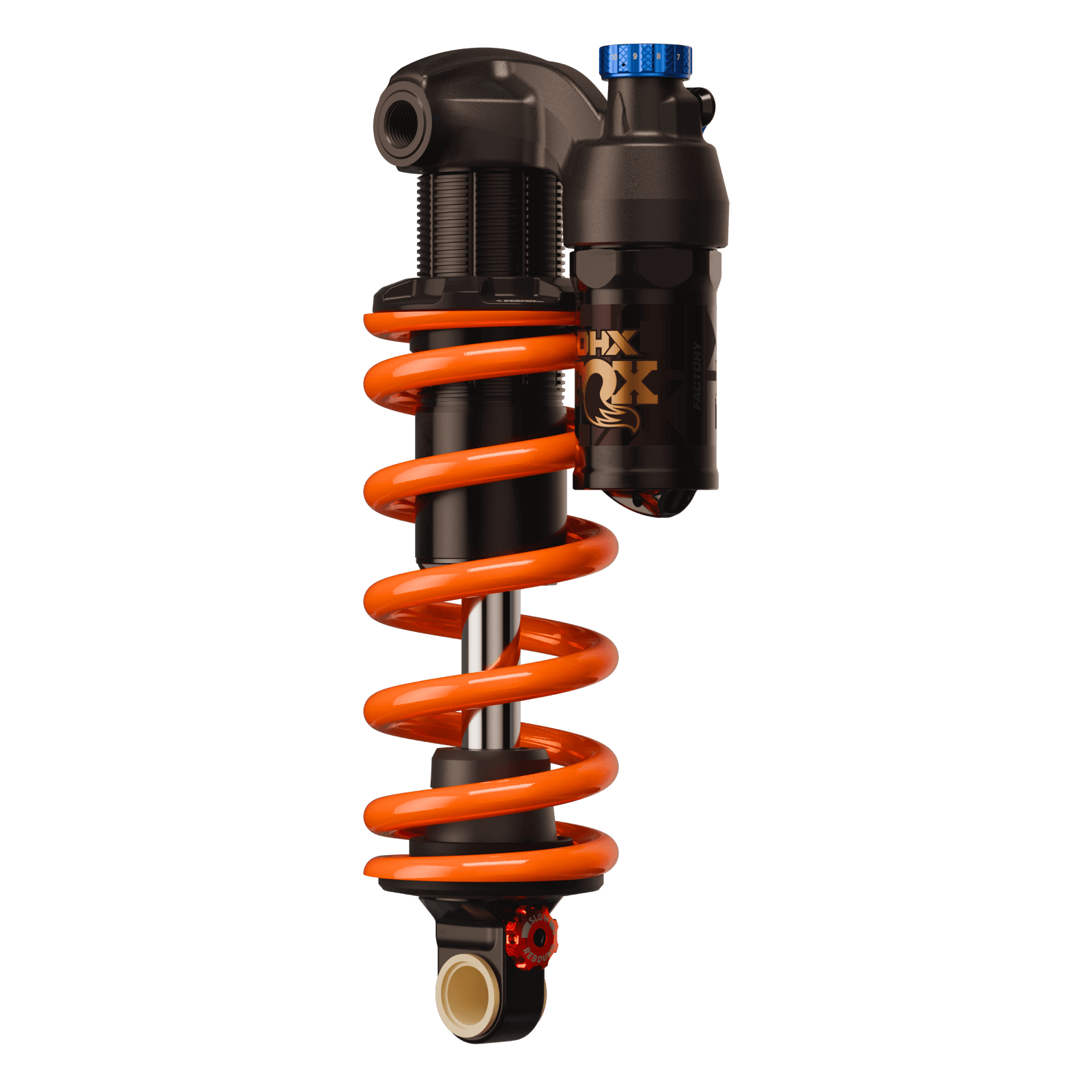

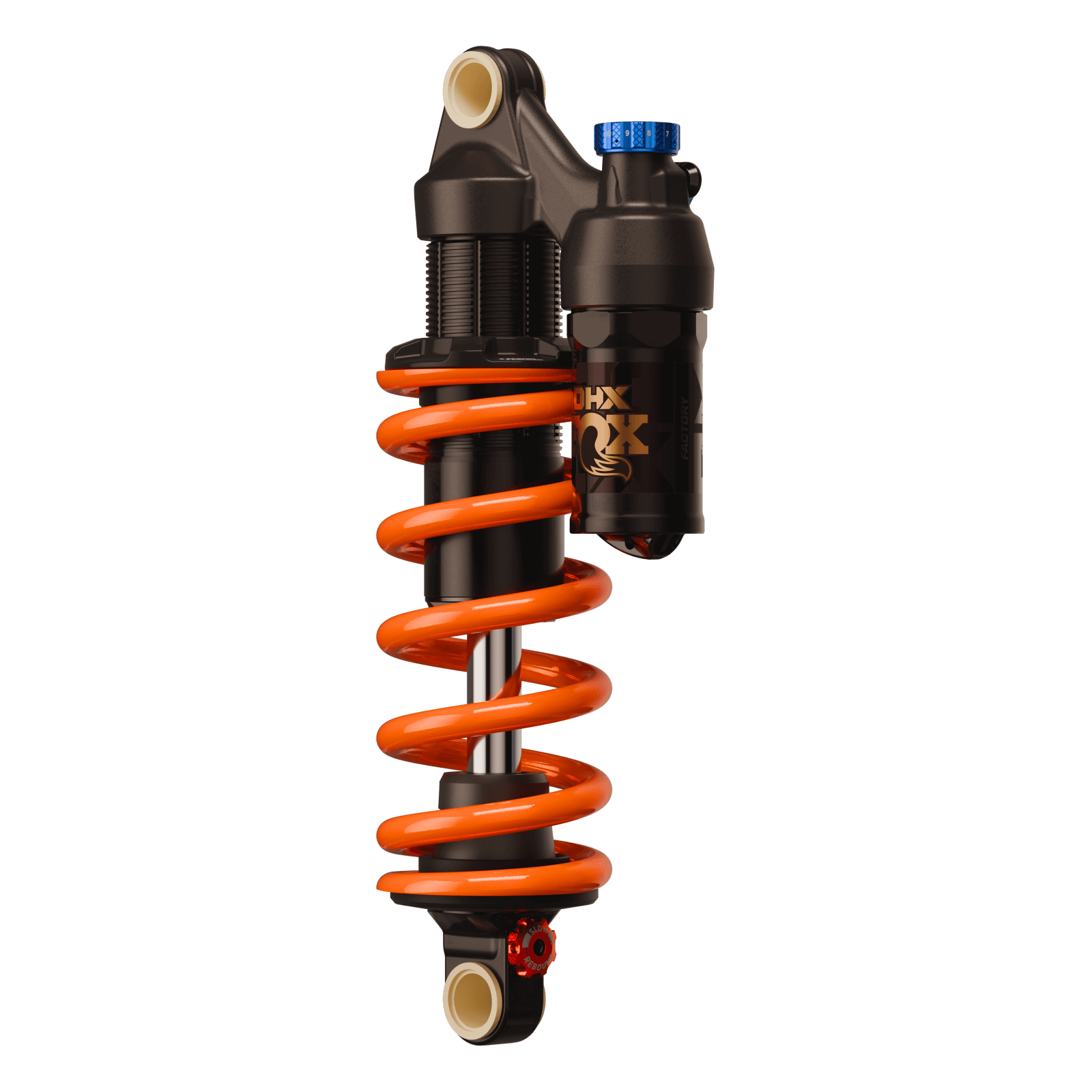

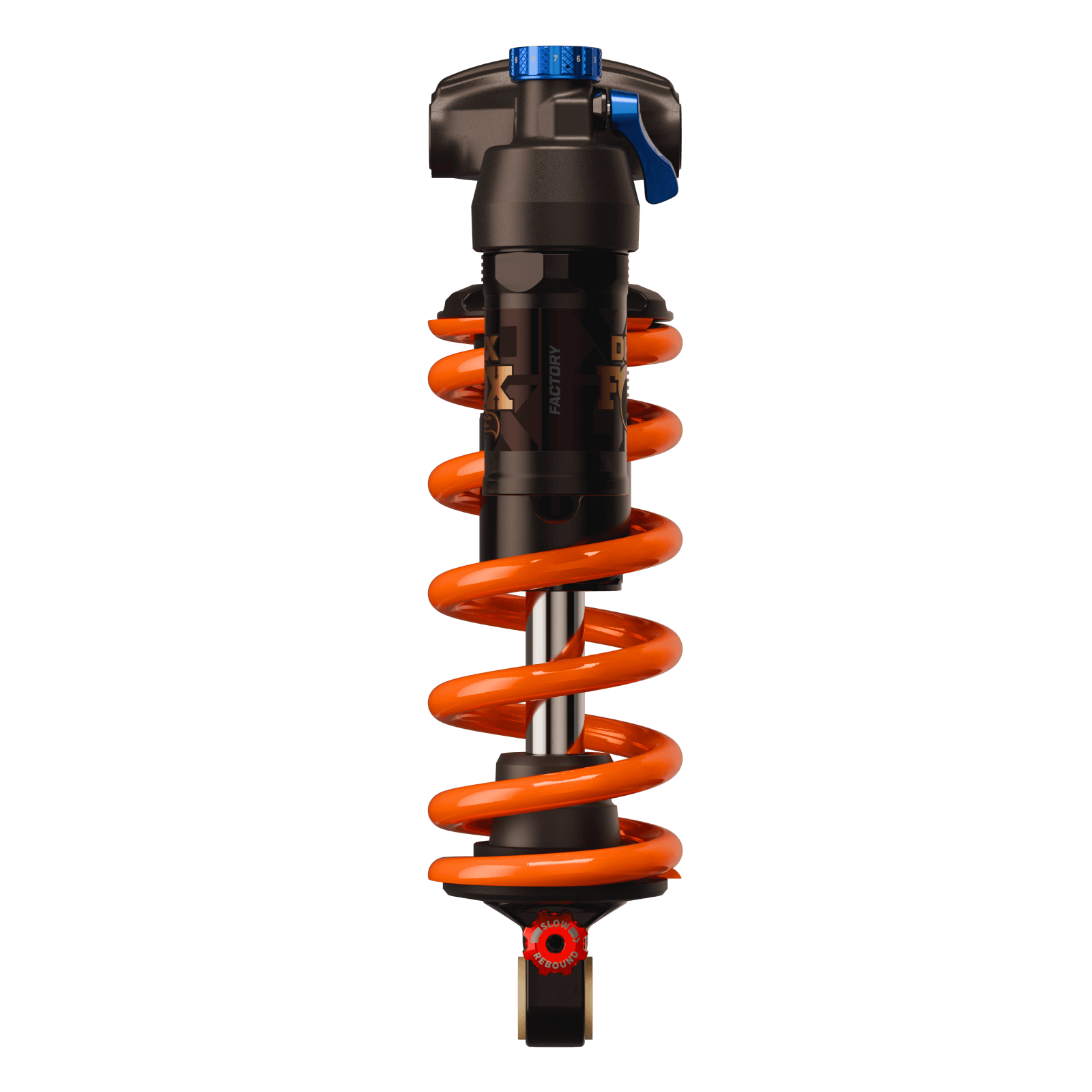

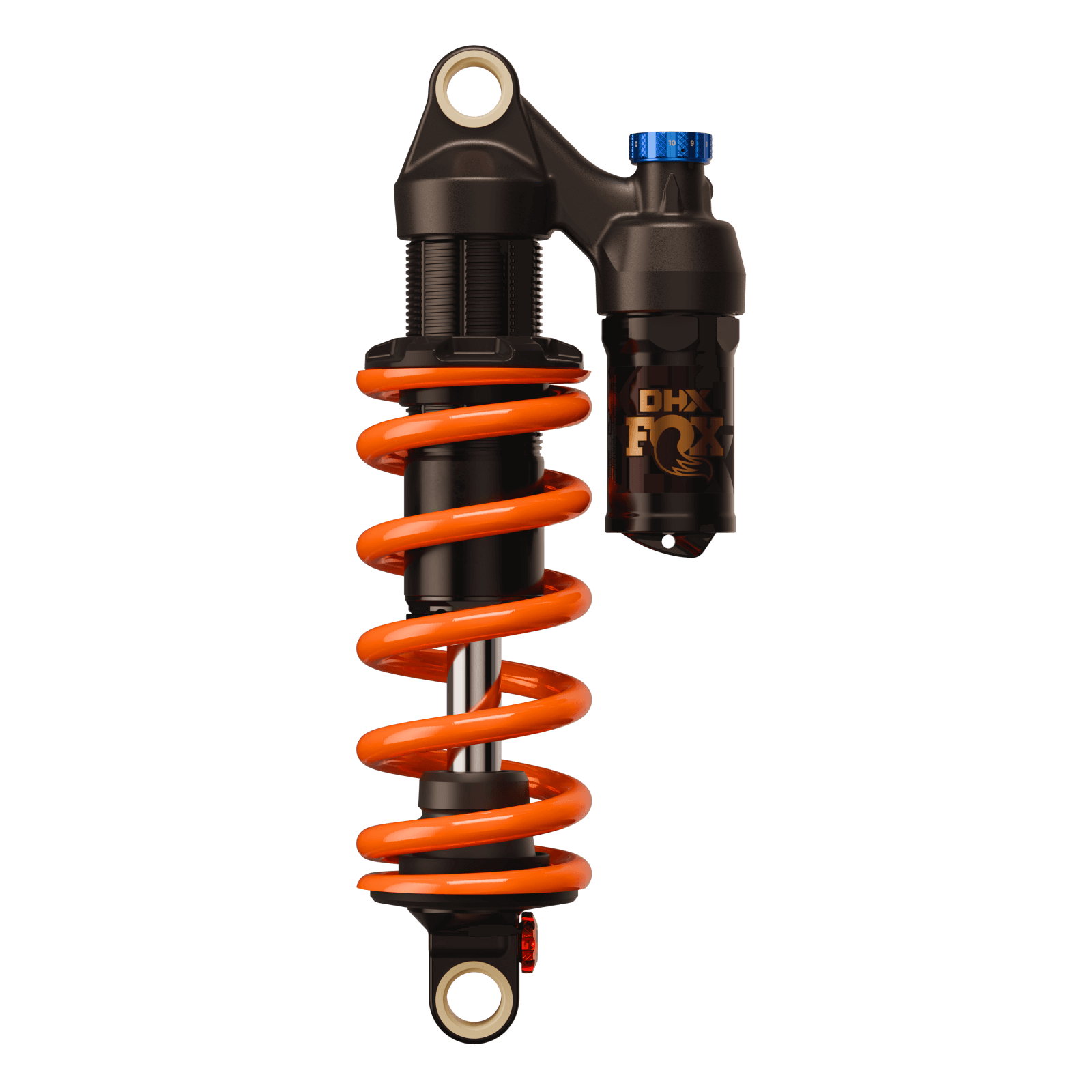

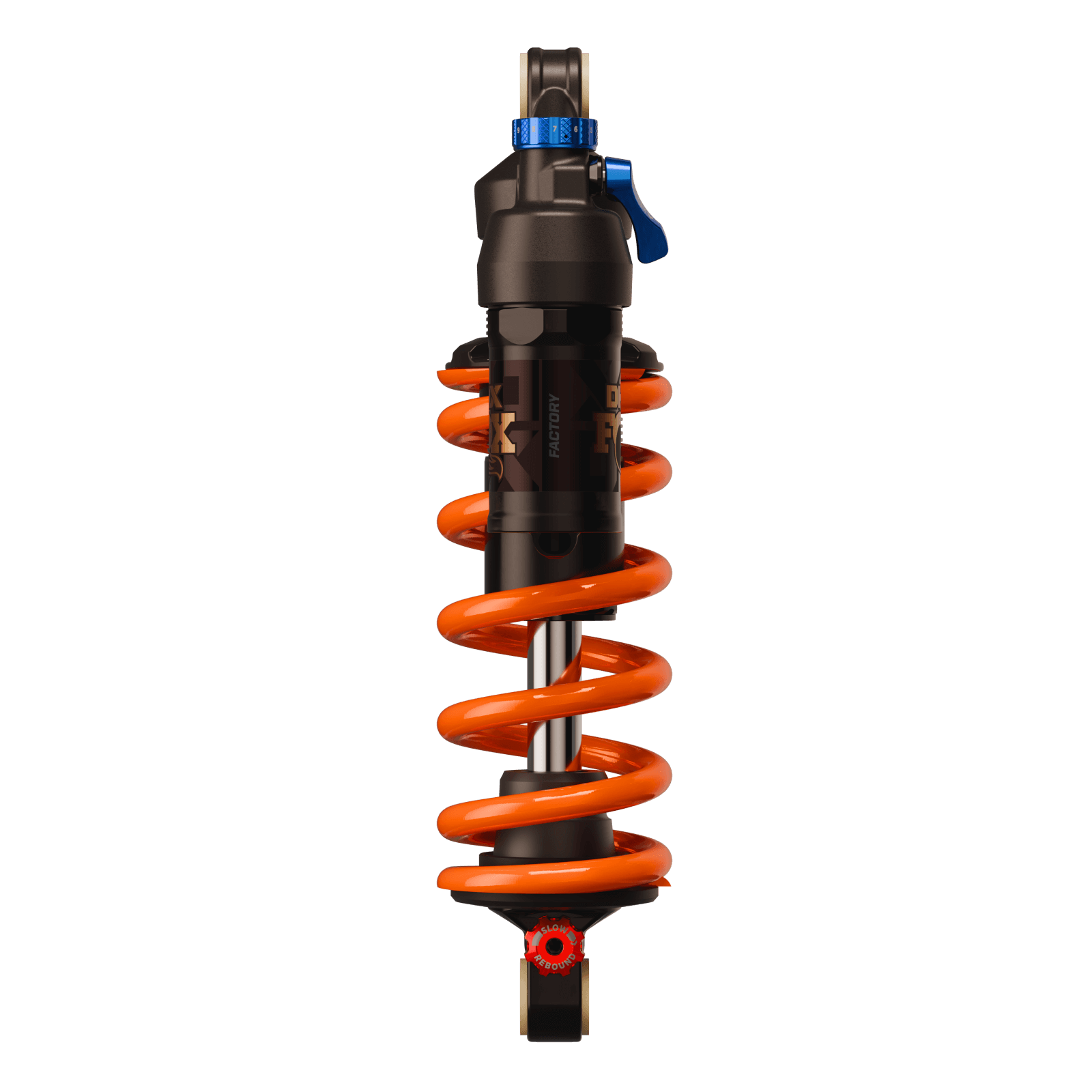

Gallery
Full specifications
General
- Part numbers
- 960-01-055, 960-01-056, 960-01-057, 960-01-058, 960-01-059, 960-01-060, 960-01-062
- Series
- Factory
- Starting weight
- 465g (w/o coil)
Chassis
- Upper tube finish
- Chrome
Spring
- Spring
- Coil (not included)
Compatibility
- Shock standard
- Metric / Metric Trunnion
- Shock sizes (eye-to-eye x stroke)
- 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x60 / 230x65
Damper
- Damper adjustment options
- 2pos-Adj
Features
- Feature
- Monotube architecture with a new high-flow main piston assembly for sensitivity, support, and rear tire grip closer to that of the MY26 FLOAT X2.
- Feature
- Updated, more durable MCU bottom-out bumper assembly for improved performance and durability.
- Feature
- Improved top-out bumper for quieter suspension action.
- Feature
- Coil and air spring options.
- Feature
- Clickable 2-pos Firm mode switch for efficient power transfer, when desired (FLOAT X and DHX).
- Feature
- Tool-free 11-click LSC and 16-click LSR adjusters.
- Feature
- Bearing mount compatible both sides.
Manufacturer specification — Fox. Specs and prices can change; check with the brand or your dealer.
Fox DHX versions compared
| DHX Factory | DHX Live Valve Neo | |
|---|---|---|
| Price | — | — |
| Spring | Coil | Coil |
| Sizes | 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x60 / 230x65 | 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x57.5 / 230x60 / 230x65 |
| Mount standard | Metric / Metric Trunnion | Metric / Metric Trunnion |
| Adjustment | 2pos-Adj | Live Valve |
| Finish | Chrome | Chrome / Kashima |
| Weight | 465 g | — |
| E-bike rated | — | — |

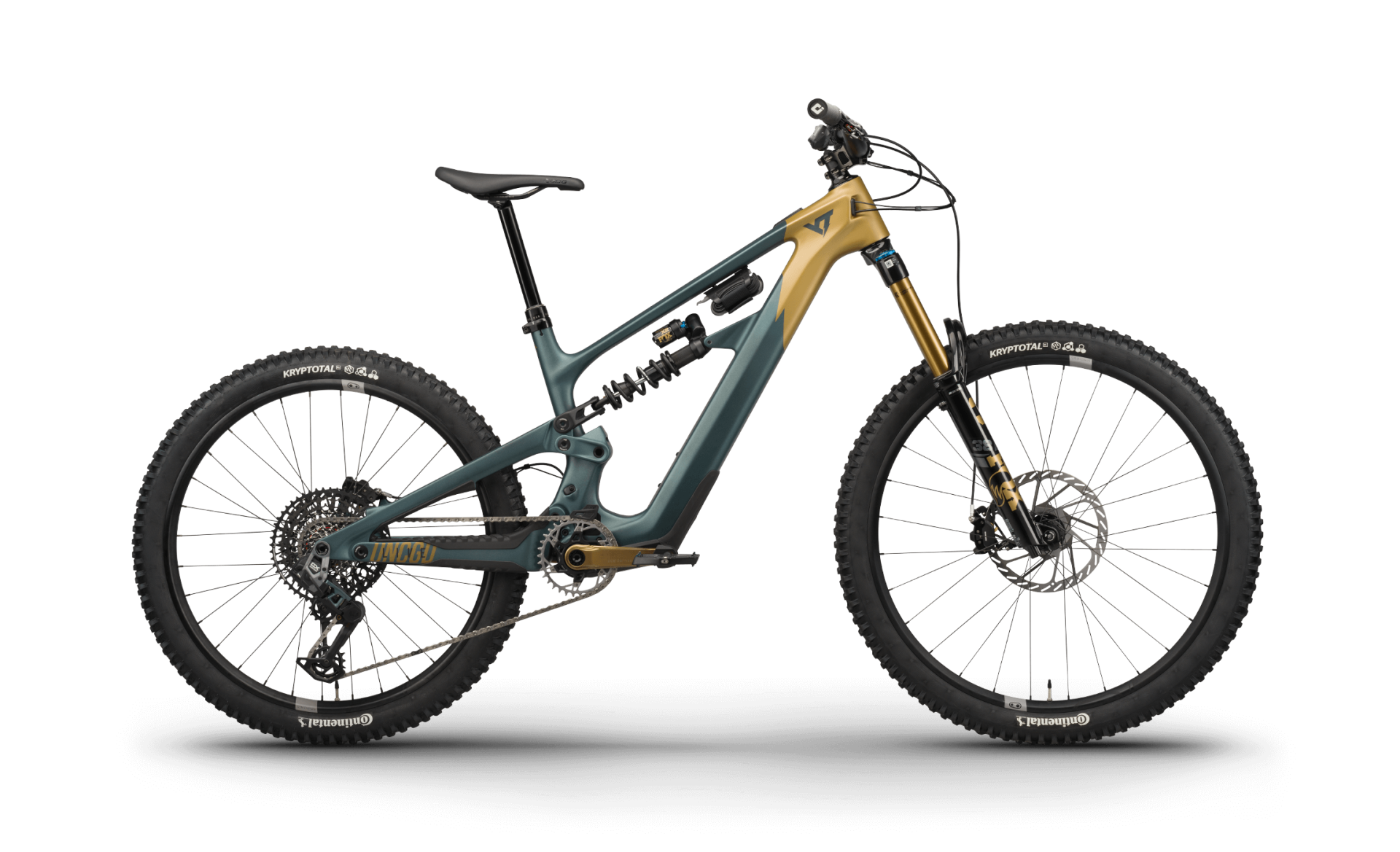

eMTBs that come with the Fox DHX
Fox DHX Factory: FAQ
How much does the Fox DHX Factory weigh?
Fox quotes 465 g (without coil spring; starting weight, claimed).
Is the Fox DHX Factory suitable for e-bikes?
Fox does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Fox DHX Factory?
Spring: Coil; Sizes: 185x55 / 205x60 / 205x62.5 / 205x65 / 210x55 / 230x60 / 230x65; Mount standard: Metric / Metric Trunnion; Adjustment: 2pos-Adj; Finish: Chrome.
What other versions of the Fox DHX are there?
DHX Live Valve Neo.
