YT IndustriesDecoy SN Core 4
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua Ride 60 battery, integrated
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 20.6 kgManufacturer figure (smallest size, tubeless, without pedals)
Overview

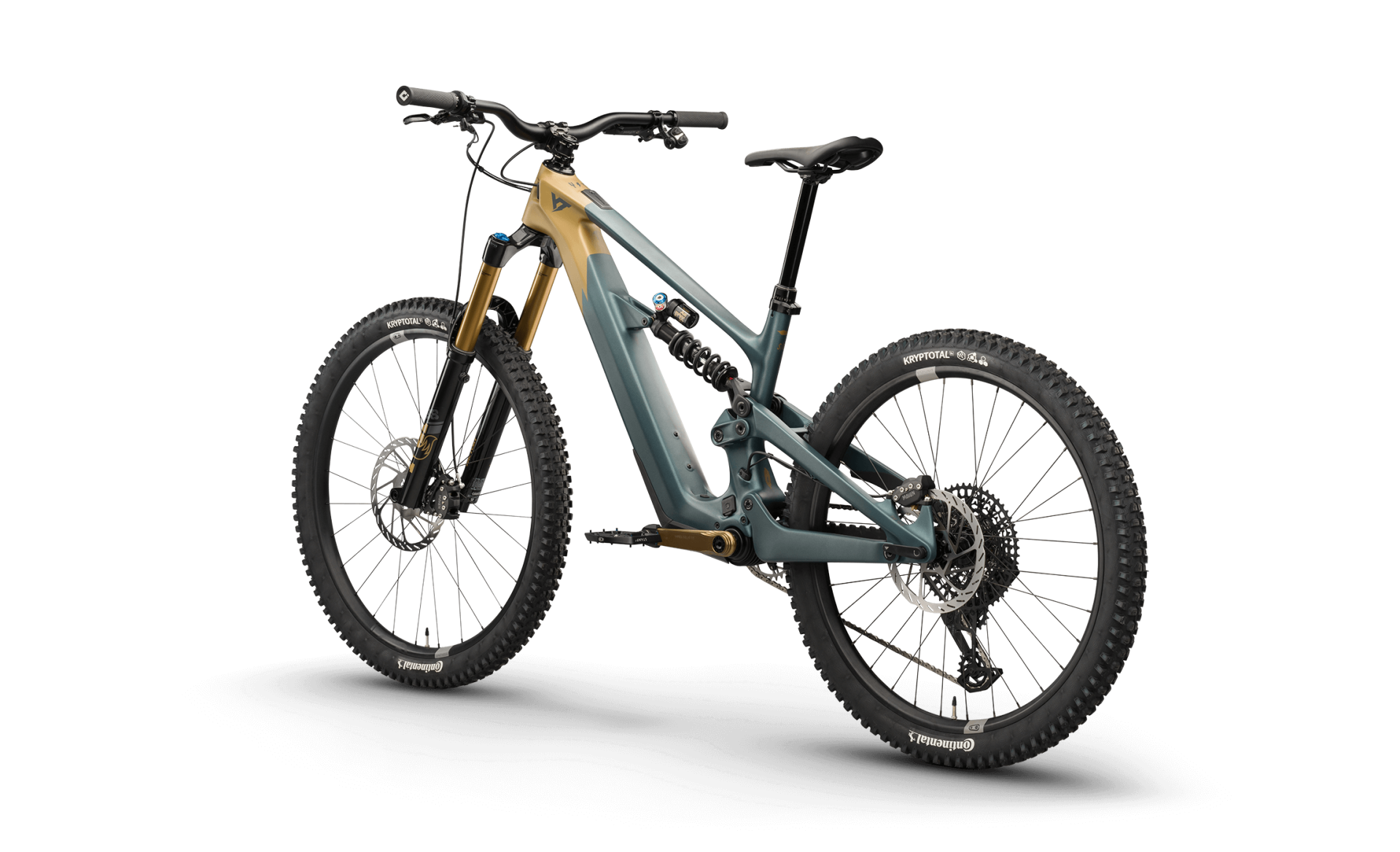

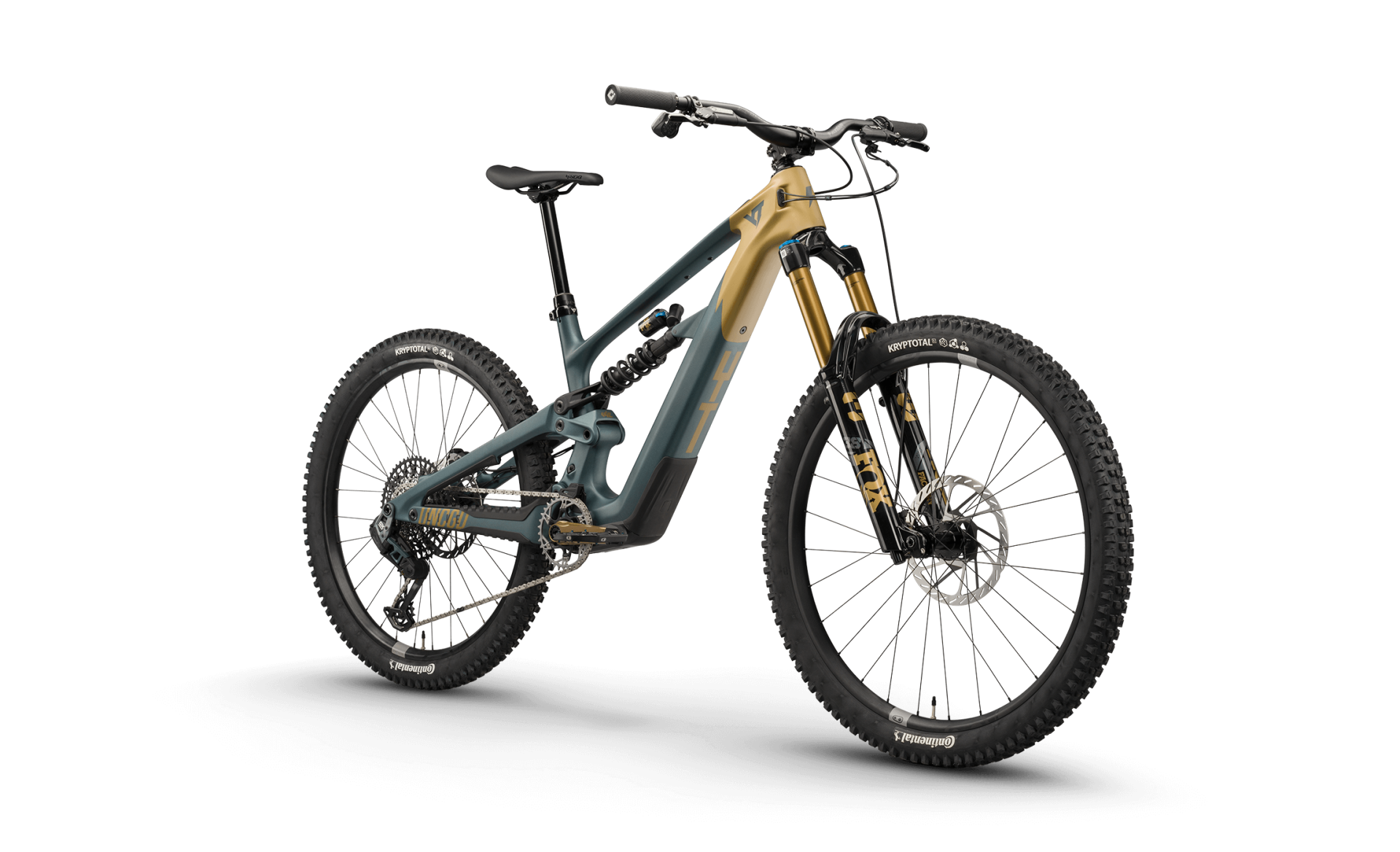

The YT Industries Decoy SN Core 4 (€8,499) is the top build of the Decoy SN: Fazua Ride 60 (60 Nm) with 430 Wh, FOX 38 Float Factory fork, FOX DHX2 Factory shock, SRAM GX Eagle Transmission and SRAM Maven Silver brakes. Claimed weight is 20.6 kg (size S).
The Decoy SN is YT's carbon light e-MTB for enduro riding, using the mid-support Fazua Ride 60 system (60 Nm, 450 W peak with boost) and an integrated 430 Wh battery. It has 160 mm of V4L rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear).
A shock-mount flip chip offers REGULAR and LOW geometry. Claimed weights are 20.4 to 20.6 kg in size S. YT notes that Fazua/Porsche eBike Performance is closing and says it will keep supporting Decoy SN owners for parts, service and warranty.
- Fazua Ride 60: 60 Nm, 450 W peak
- 430 Wh integrated battery
- 170 mm fork / 160 mm rear, mixed wheels
- Carbon frame, about 20.5 kg
Gallery
Photos: YT Industries
Full specifications
Frame & suspension
- Frame
- Ultra Modulus Carbon frame
- Sizes
- S, M, L, XL, XXL
- Colours
- Field Grey, Black Magic Bolt
- Fork

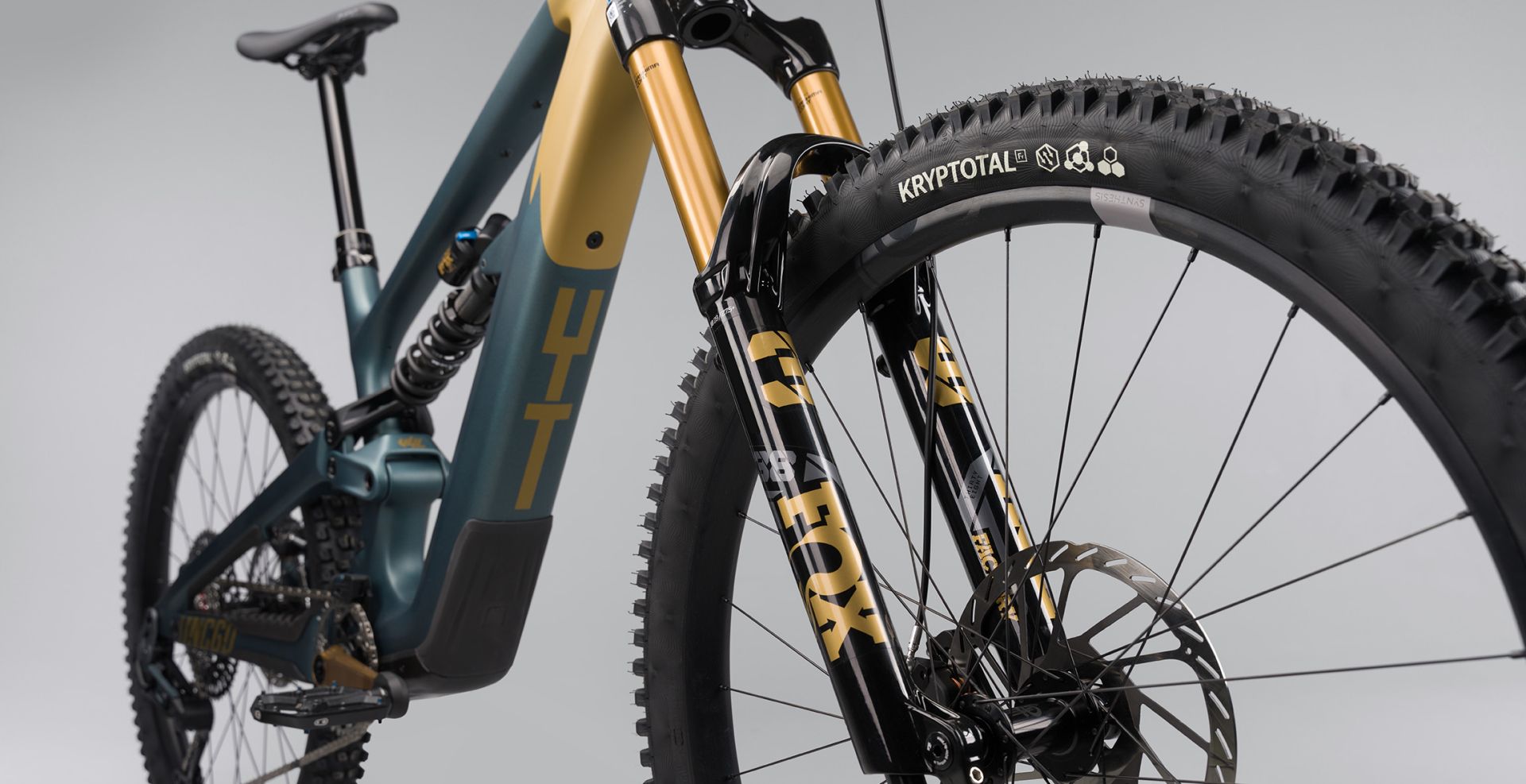

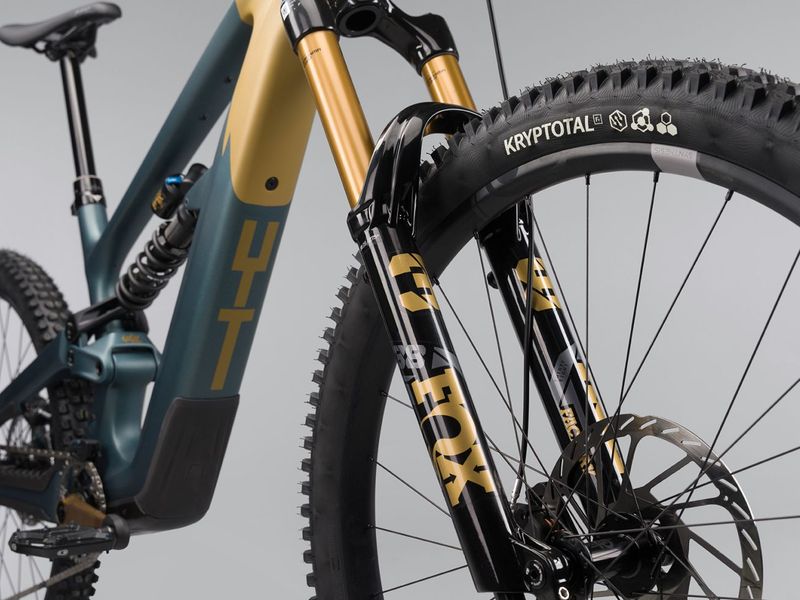

- FOX 38 FLOAT FACTORY – 29" | 170 mm | Grip X2 | 110 x 15 mm | 44 mm Offset
- Rear shock

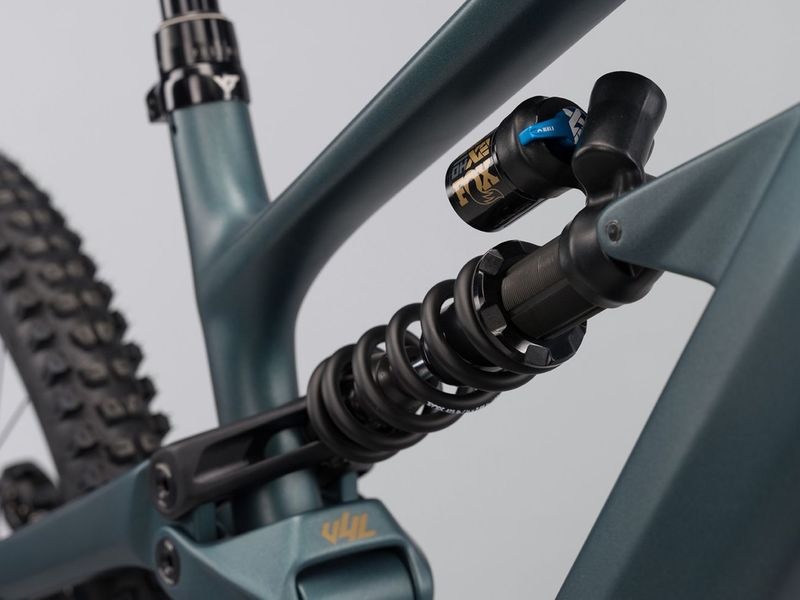

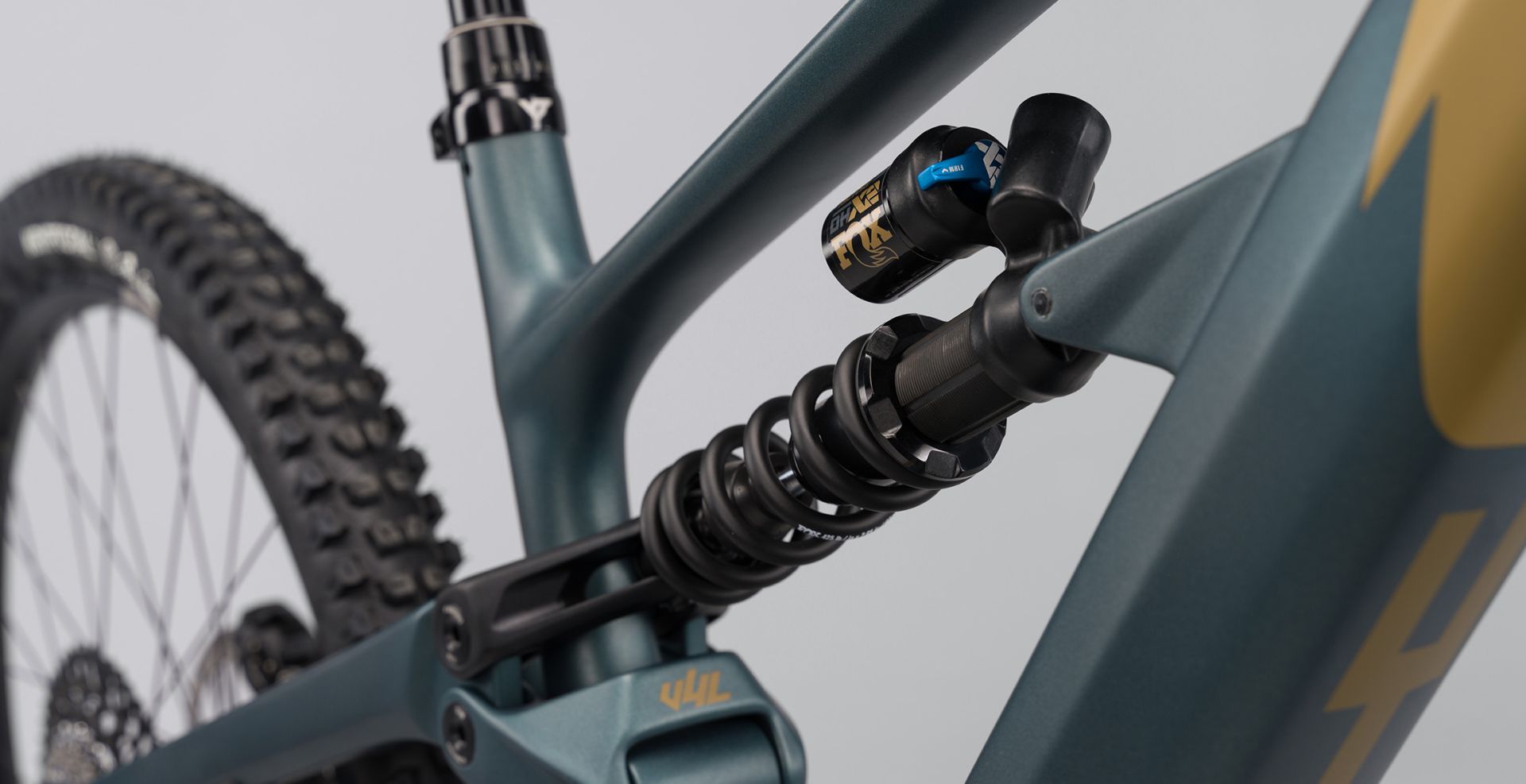

- FOX DHX2 FACTORY – 230 x 65 mm | H/LSC H/LSR | Custom Tune 325 lbs (S) | 375 (M) | 425 (L) | 475 (XL) | 500 (XXL)
E-system
- Display
- FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP
- Motor
- FAZUA RIDE 60 – Torque 60Nm | 450 W Peak Power w/ Boost function
- Battery
- FAZUA RIDE 60 – Integrated | 430 Wh | 43 V | 3A Charger
Drivetrain
- Crankset
- E13 HELIX RACE E*SPEC – Crank Arm Length 160 mm | Bronze / Black 160 mm | w/ Dust Cover | Bronze / Black
- Cassette
- SRAM GX EAGLE TRANSMISSION – 10-52T | T-Type | 12-speed
- Rear derailleur

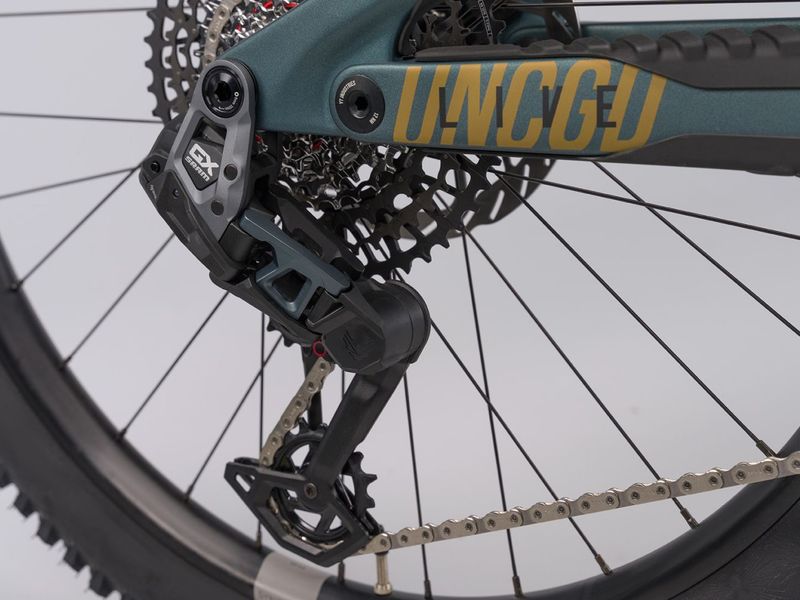

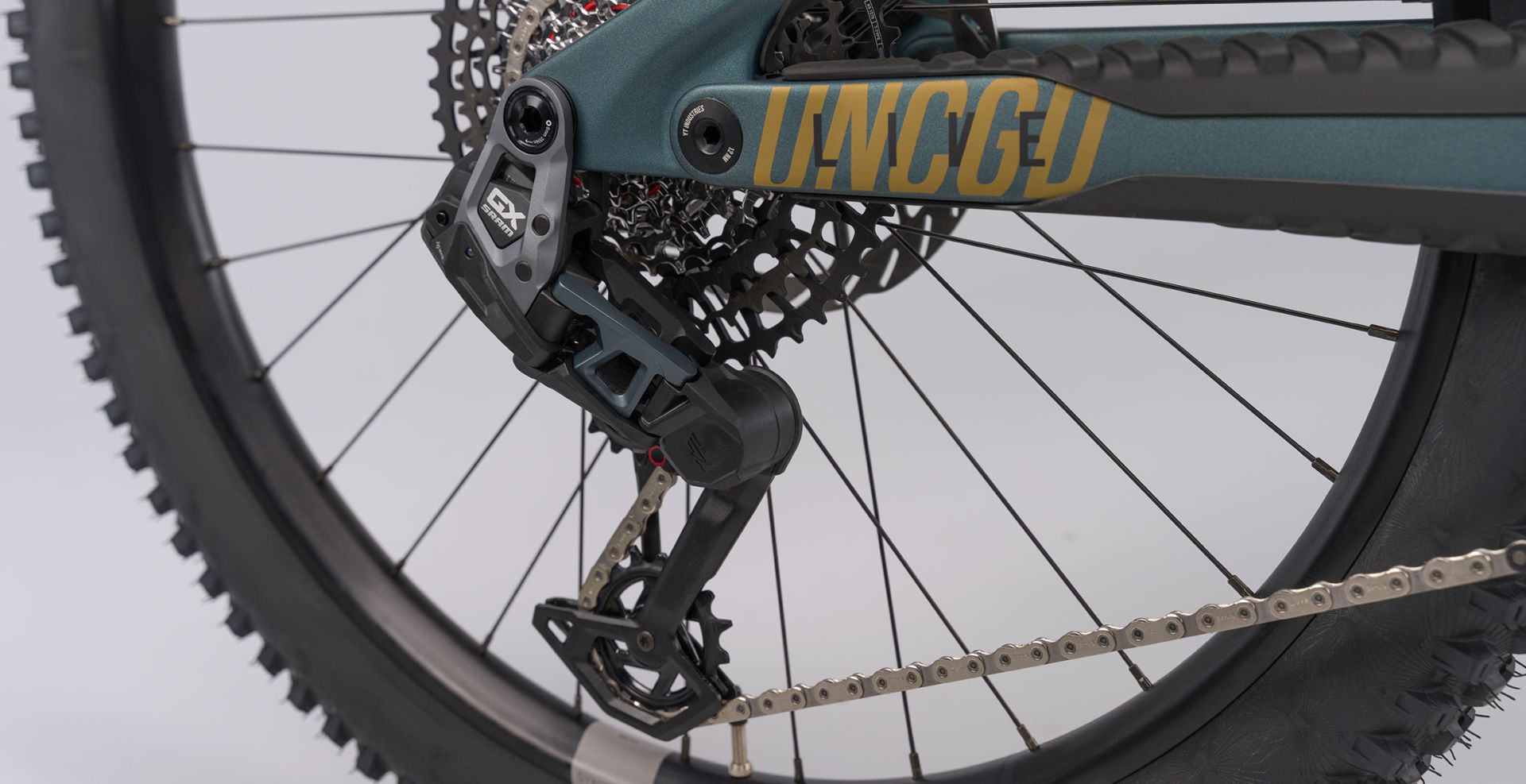

- SRAM GX EAGLE TRANSMISSION – 12-speed | T-Type
- Chainring
- SRAM EAGLE TRANSMISSION XX – 34 T | Direct Mount | T-Type
- Shifter
- SRAM POD ULTIMATE CONTROLLER – 12-Speed | 2 Button Concave | Discrete Clamp
- Chain guide
- MRP SL Custom – SL Slider | 32 - 36T
Brakes
- Brakes
- SRAM MAVEN SILVER – Rotor HS2 Ø front 220 mm / rear 200 mm | Sintered pads
Wheels & tyres
- Wheelset
- CRANKBROTHERS SYNTHESIS ALLOY CUSTOM I9 1/1 – Front: Aluminum Rim 29" | Inner Width 31,5 mm | Front Hub 110 x 15 mm Rear: Aluminum Rim 27.5" | Inner Width 31,5 mm | Rear Hub 148 x 12 mm | Freehub Industry Nine 1/1 XD
- Tyres
- FRONT: Continental Kryptotal-Fr | REAR: Continental Kryptotal-Re – Front: 29" x 2.4 | Super Soft | Enduro | Rear: 27.5" x 2.4 | Soft | Enduro
Cockpit
- Headset
- CANE CREEK SERIES 40 – ZS56 ZS56 | Custom High Cap | 2 Spacer 5mm
- Stem
- RENTHAL APEX 35 – Length 50mm | 35mm Clamp | Rise +/-6° | Black/Black
- Handlebar
- RENTHAL FATBAR 35 – Width 800mm | Rise 40mm | 7° Back Sweep | 5° Up Sweep | Custom Black
- Grips
- ODI ELITE MOTION V2.1 – Lock On
- Seatpost
- YT POSTMAN V2 – Ø 34.9mm | MMX-Remote | Adjustable drop 20/10/5mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
- Saddle
- SDG BEL AIR V3 – YT Custom | Width 140 mm | Lux-Alloy Rail
Other
- Bottle
- Thirstmaster 6000 – 620ml bottle and cage included | BPA free | easy to clean
- Weight
- 20,60 KG / 45,41 LBS (Average weight for the smallest size available, set up tubeless, with no pedals or bottle.)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Decoy SN geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Top tube | 565 mm | 587 mm | 609 mm | 631 mm | 653 mm |
| Reach | 435 mm / 432 mm | 455 mm / 452 mm | 475 mm / 472 mm | 492 mm | 515 mm / 512 mm |
| Stack | 633 mm / 635 mm | 640 mm / 643 mm | 648 mm / 650 mm | 655 mm / 657 mm | 662 mm / 664 mm |
| Seat tube | 390 mm | 400 mm | 420 mm | 440 mm | 460 mm |
| Chainstay | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm |
| Head angle | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° |
| Seat angle (effective) | 78.4° / 78.2° | 78.4° / 78.1° | 78.3° / 78.1° | 78.3° / 78.0° | 78.2° / 78.0° |
| BB drop | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm |
| Wheelbase | 1216 mm / 1217 mm | 1240 mm / 1241 mm | 1263 mm / 1264 mm | 1287 mm / 1288 mm | 1310 mm / 1311 mm |
| Head tube | 100 mm | 108 mm | 116 mm | 124 mm | 132 mm |
| BB height | 340 mm | 344 mm / 340 mm | 344 mm / 340 mm | 344 mm / 340 mm | 344 mm / 340 mm |
| Standover height | 774 mm | 798 mm | 821 mm | 845 mm | 868 mm |
Where two values are given: REGULAR / LOW flip-chip position. Source: YT Industries.
Decoy SN: builds compared
Decoy SN range →| Decoy SN Core 2 | Decoy SN Core 3 | Decoy SN Core 4 | |
|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | ROCKSHOX ZEB SELECT – 29" | 170 mm | Charger RC | 15x110 mm | 44 mm Offset | ROCKSHOX ZEB ULTIMATE – 29" | 170mm | Charger 3.1 | 15 x 110 mm | 44mm Offset | FOX 38 FLOAT FACTORY – 29" | 170 mm | Grip X2 | 110 x 15 mm | 44 mm Offset |
| Shock | ROCKSHOX VIVID SELECT – 230 x 65 mm | TouchDown RT adj | ROCKSHOX VIVID ULTIMATE – 230 x 65 mm | TouchDown RC2T adj | FOX DHX2 FACTORY – 230 x 65 mm | H/LSC H/LSR | Custom Tune 325 lbs (S) | 375 (M) | 425 (L) | 475 (XL) | 500 (XXL) |
| Derailleur | SHIMANO SLX RD-M7100 – 12-Speed | Shadow+ | SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type | SRAM GX EAGLE TRANSMISSION – 12-speed | T-Type |
| Brakes | TRP DH-R EVO – Rotor 220 / 203 mm | 2.3 mm | TRP DH-R EVO – Rotor 220 / 203 mm | 2.3 mm | SRAM MAVEN SILVER – Rotor HS2 Ø front 220 mm / rear 200 mm | Sintered pads |
| Display | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP |
| Weight | 20.4 kg | 20.5 kg | 20.6 kg |
Decoy SN Core 4: FAQ
How much does the YT Industries Decoy SN Core 4 cost?
€8,499 (RRP Germany (YT EU web store), VAT incl. Reduced to €4,999 at time of capture.). The Decoy SN range runs from €6,499 (Decoy SN Core 2) to €8,499 (Decoy SN Core 4). Prices vary by country and dealer.
How much does the YT Industries Decoy SN Core 4 weigh?
YT Industries quotes 20.6 kg. The lightest Decoy SN build is the Decoy SN Core 2 at 20.4 kg.
What motor and battery does the YT Industries Decoy SN Core 4 have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua Ride 60 battery, integrated.
How much suspension travel does the YT Industries Decoy SN Core 4 have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the YT Industries Decoy SN Core 4 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Decoy SN Core 4 and the Decoy SN Core 3?
They share the Decoy SN frame platform and motor; the differences are in the parts — fork: FOX 38 FLOAT FACTORY – 29" | 170 mm | Grip X2 | 110 x 15 mm | 44 mm Offset vs ROCKSHOX ZEB ULTIMATE – 29" | 170mm | Charger 3.1 | 15 x 110 mm | 44mm Offset; shock: FOX DHX2 FACTORY – 230 x 65 mm | H/LSC H/LSR | Custom Tune 325 lbs (S) | 375 (M) | 425 (L) | 475 (XL) | 500 (XXL) vs ROCKSHOX VIVID ULTIMATE – 230 x 65 mm | TouchDown RC2T adj; derailleur: SRAM GX EAGLE TRANSMISSION – 12-speed | T-Type vs SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type; claimed weight: 20.6 kg vs 20.5 kg; price: €8,499 vs €7,499.
