YT IndustriesDecoy SN Core 3
- Motor
- Fazua Ride 6060 Nm; 450 W peak
- Battery
- 430 WhFazua Ride 60 battery, integrated
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 20.5 kgManufacturer figure (smallest size, tubeless, without pedals)
Overview

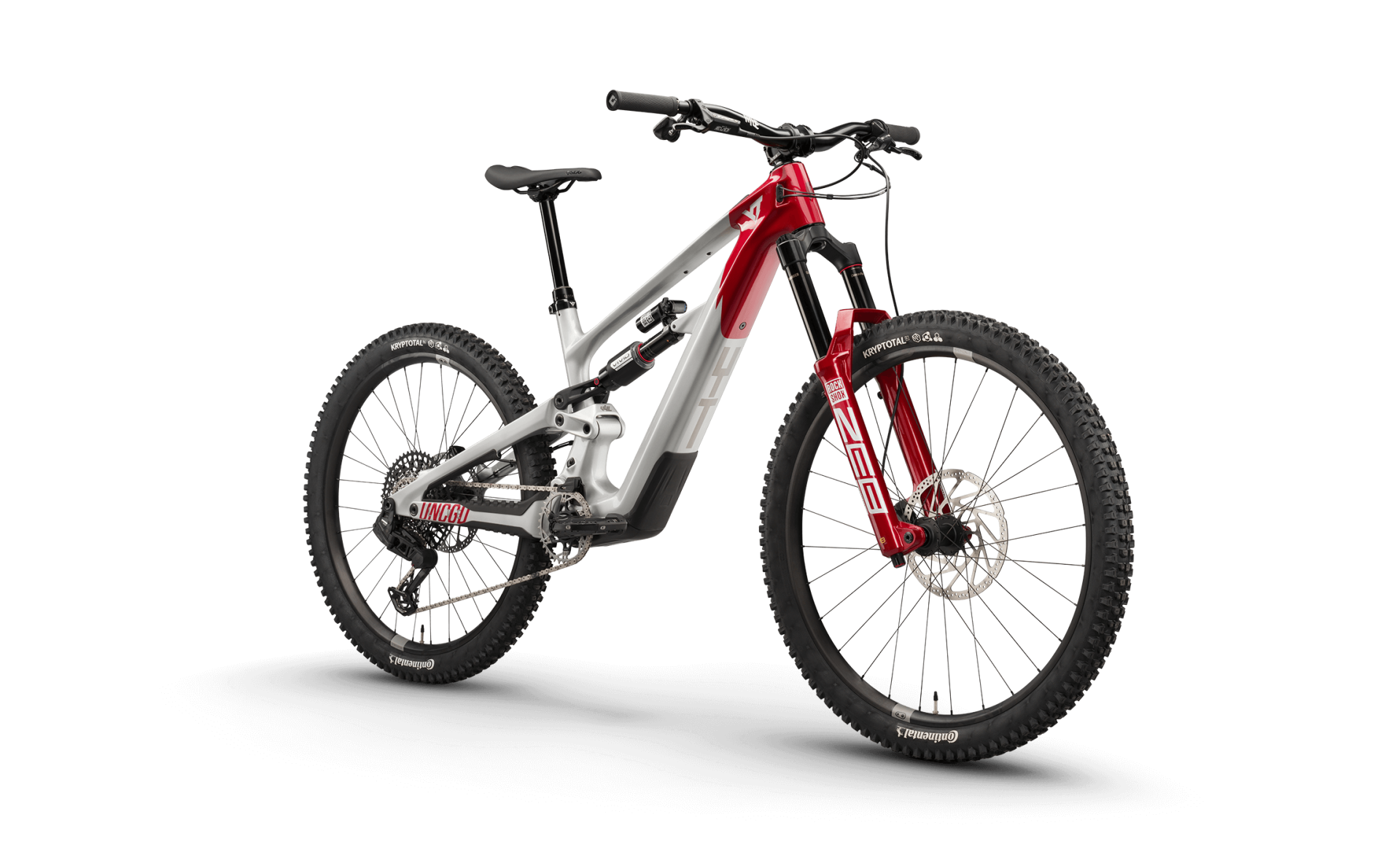

The YT Industries Decoy SN Core 3 (€7,499) is a mid-range build of the Decoy SN: Fazua Ride 60 (60 Nm) with 430 Wh, RockShox Zeb Ultimate fork, RockShox Vivid Ultimate shock, SRAM S1000 Eagle Transmission and TRP DH-R EVO brakes. Claimed weight is 20.5 kg (size S).
The Decoy SN is YT's carbon light e-MTB for enduro riding, using the mid-support Fazua Ride 60 system (60 Nm, 450 W peak with boost) and an integrated 430 Wh battery. It has 160 mm of V4L rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear).
A shock-mount flip chip offers REGULAR and LOW geometry. Claimed weights are 20.4 to 20.6 kg in size S. YT notes that Fazua/Porsche eBike Performance is closing and says it will keep supporting Decoy SN owners for parts, service and warranty.
- Fazua Ride 60: 60 Nm, 450 W peak
- 430 Wh integrated battery
- 170 mm fork / 160 mm rear, mixed wheels
- Carbon frame, about 20.5 kg
Gallery
Photos: YT Industries
Full specifications
Frame & suspension
- Frame
- Ultra Modulus Carbon frame
- Sizes
- S, M, L, XL, XXL
- Colours
- Reflex Red, Black Magic Bolt
- Fork

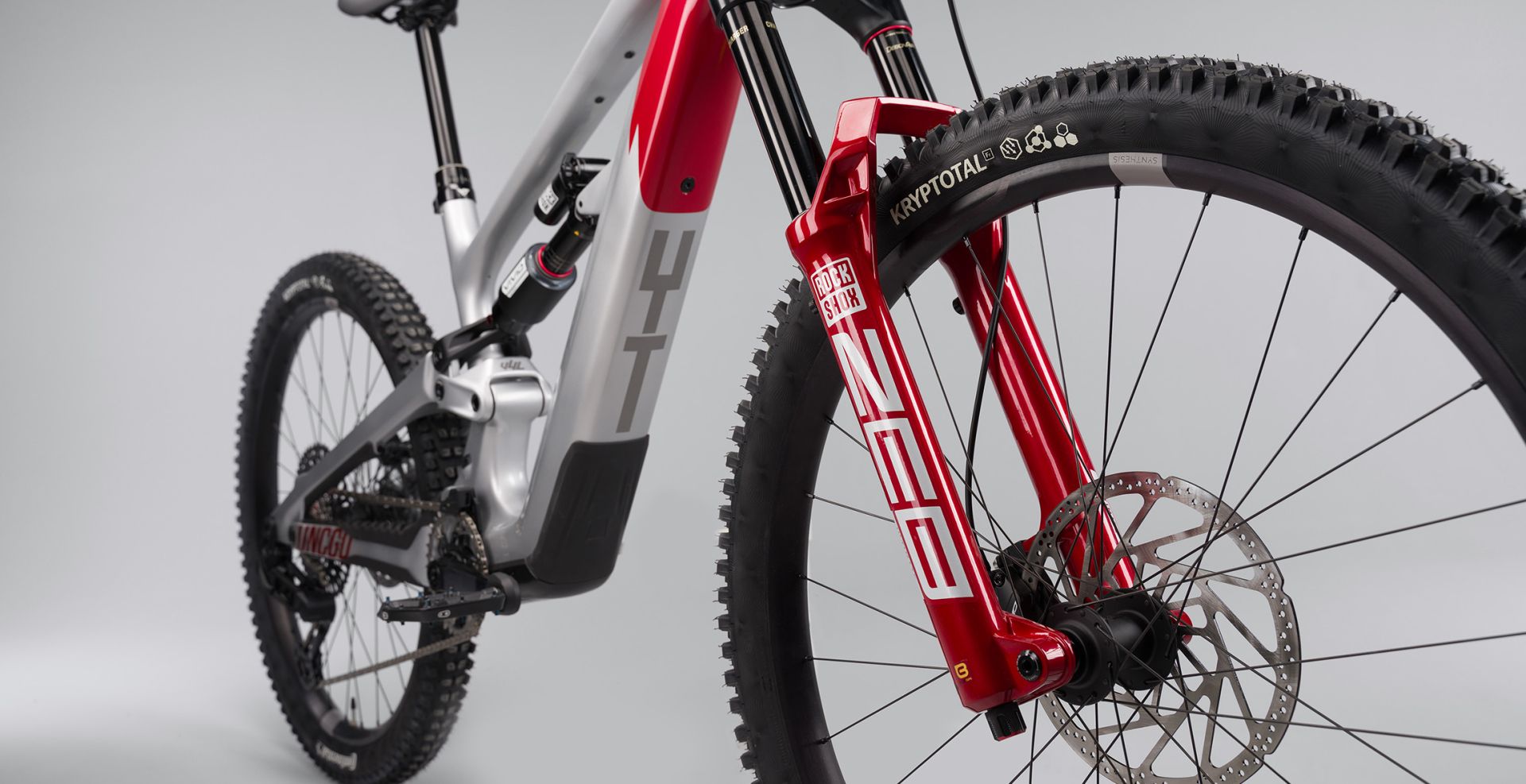

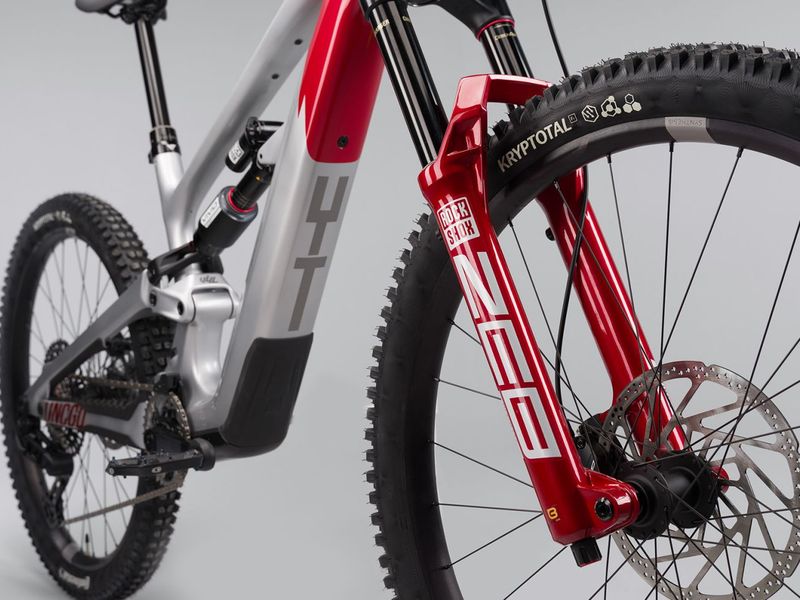

- ROCKSHOX ZEB ULTIMATE – 29" | 170mm | Charger 3.1 | 15 x 110 mm | 44mm Offset
- Rear shock

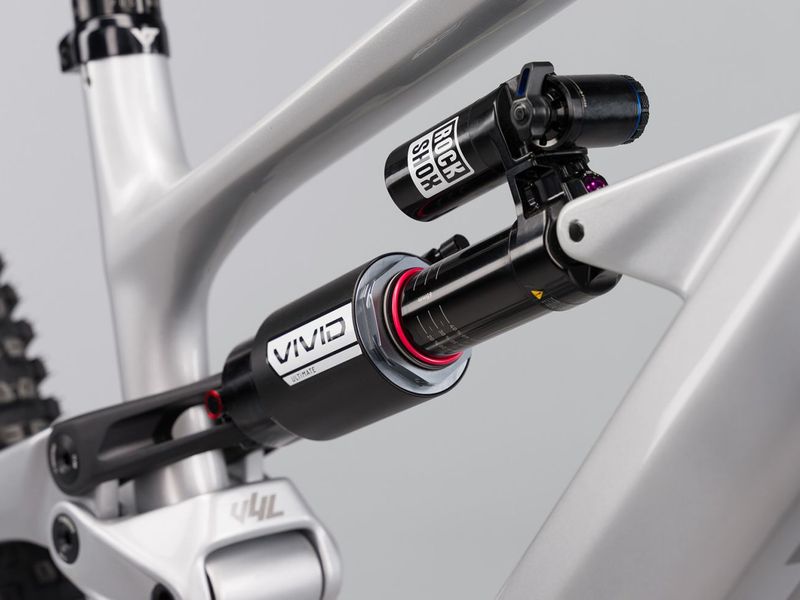

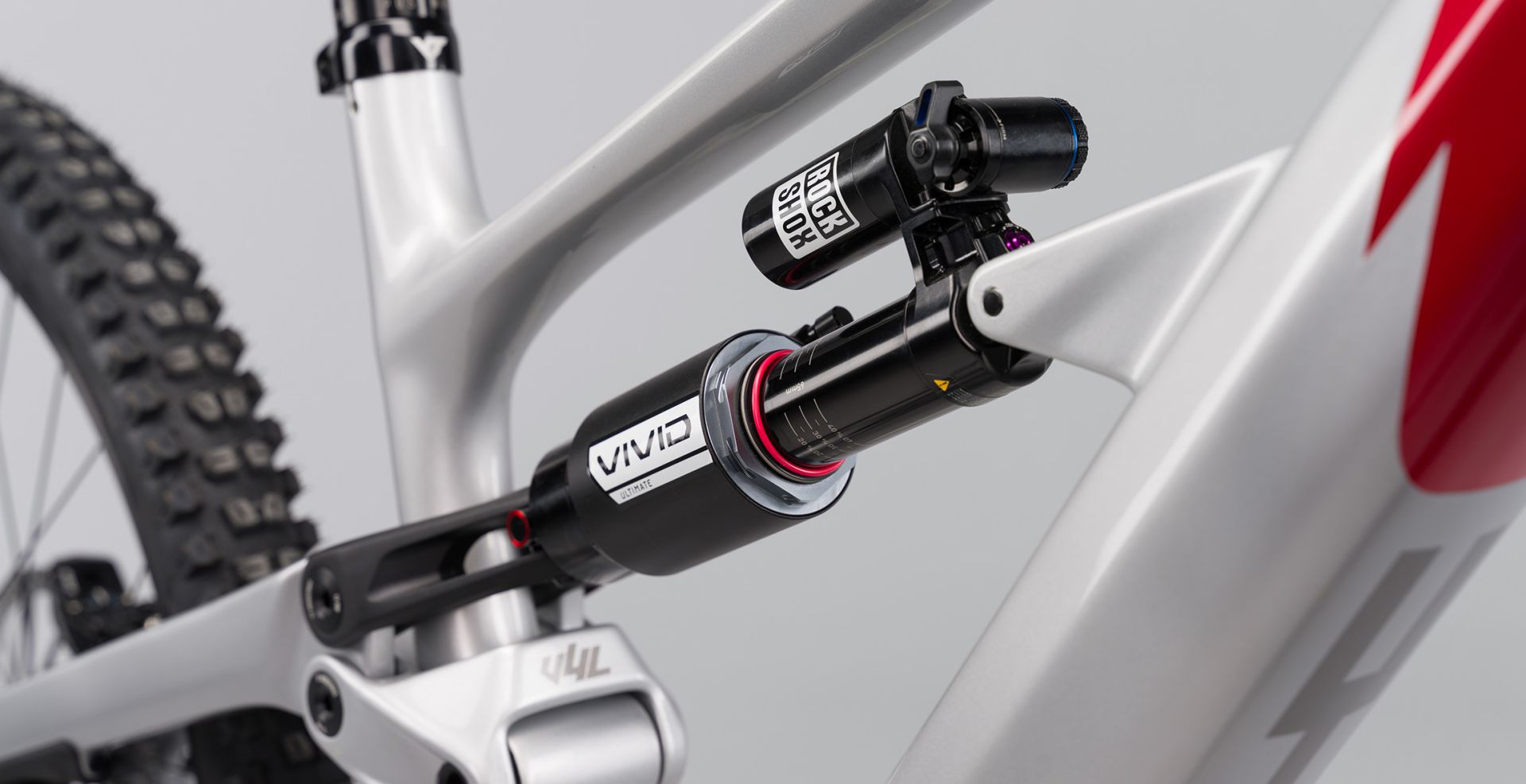

- ROCKSHOX VIVID ULTIMATE – 230 x 65 mm | TouchDown RC2T adj. HBO | R55C26 V1
E-system
- Display
- FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP
- Motor
- FAZUA RIDE 60 – Torque 60Nm | 450 W Peak Power w/ Boost function
- Battery
- FAZUA RIDE 60 – Integrated | 430 Wh | 43 V | 3A Charger
Drivetrain
- Crankset
- E13 HELIX RACE E*SPEC – Crank Arm Length 160 mm
- Cassette
- SRAM GX EAGLE TRANSMISSION – 10-52T | T-Type | 12-speed
- Rear derailleur

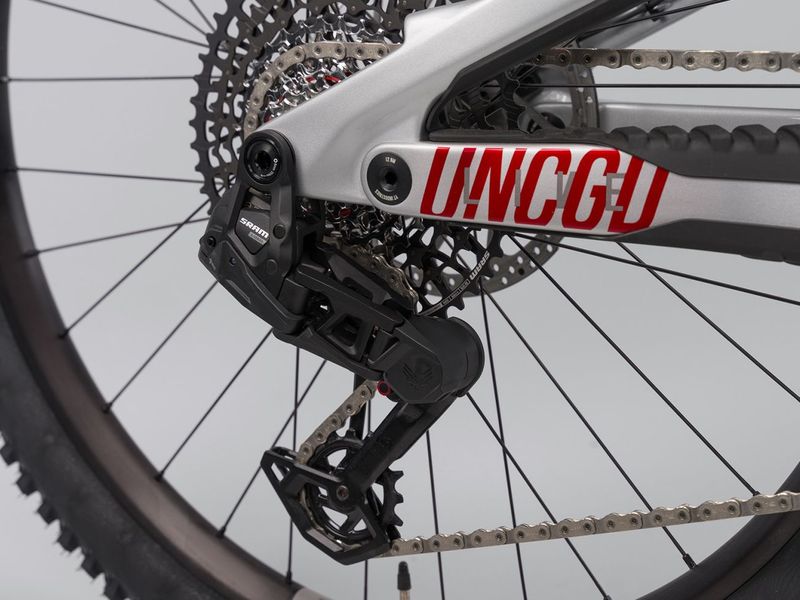

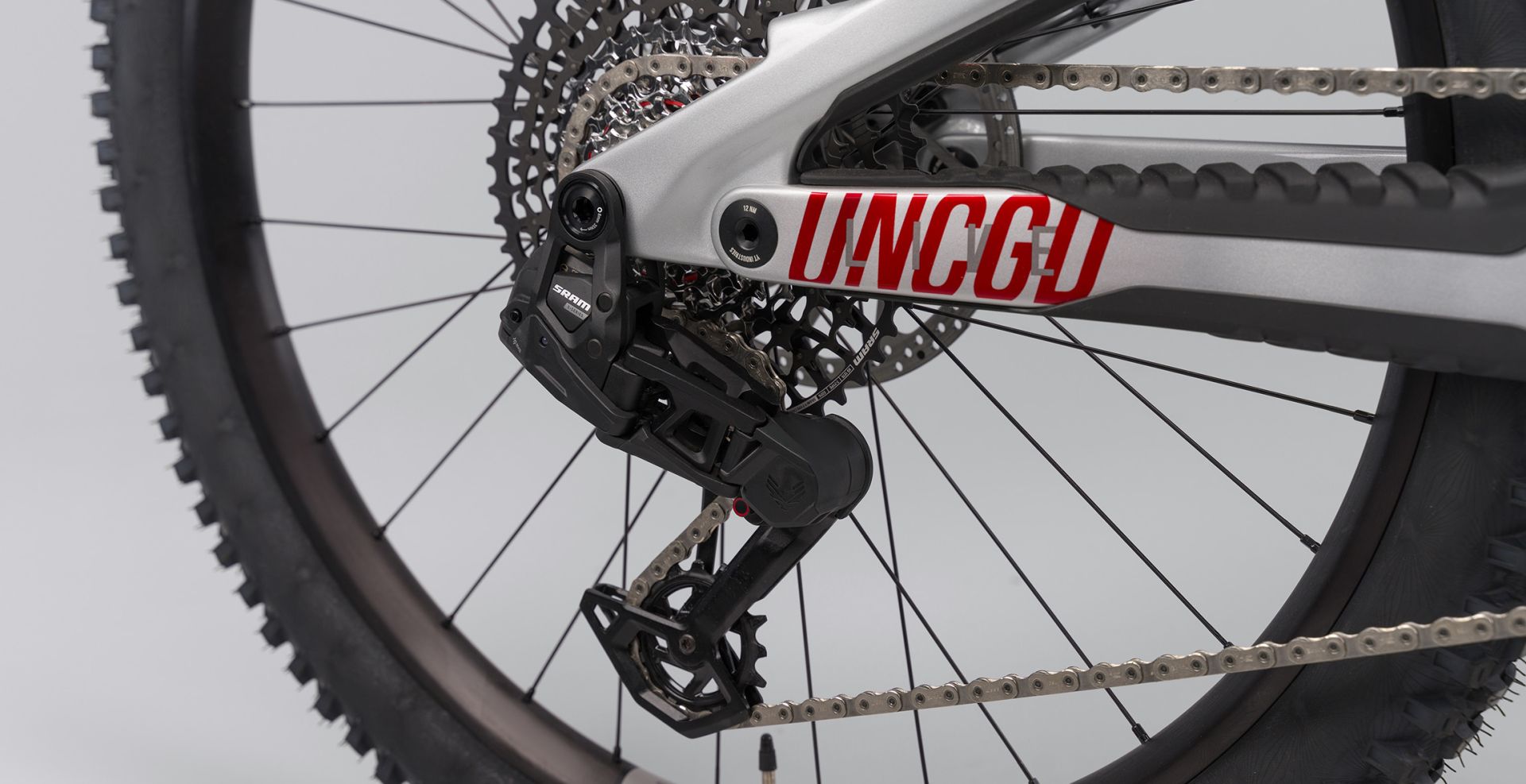

- SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type
- Chainring
- SRAM EAGLE TRANSMISSION XX – 34 T | Direct Mount | T-Type
- Shifter
- SRAM POD CONTROLLER – 12-Speed | 2 Button | Discrete Clamp
- Chain guide
- MRP SL Custom – SL Slider | 32 - 36 T
Brakes
- Brakes
- TRP DH-R EVO – Rotor 220 / 203 mm | 2.3 mm
Wheels & tyres
- Wheelset
- CRANKBROTHERS SYNTHESIS E-BIKE ALLOY CUSTOM – Front: 29" 31,5 mm | 110 x 15 mm | 6-Bolt | Rear: 27.5" 31,5mm | 148 x 12 mm | 6-Bolt
- Tyres
- FRONT: Continental Kryptotal-Fr | REAR: Continental Kryptotal-Re – Front: 29" x 2.4 | Super Soft | Enduro | Rear: 27.5" x 2.4 | Soft | Enduro
Cockpit
- Headset
- CANE CREEK SERIES 40 – ZS56 ZS56 |Custom High Cap | 2 Spacer 5mm
- Stem
- TITLE ST1 35 – 40 mm | +/-0° | Black
- Handlebar
- TITLE AH1 35 – Width 800mm | Rise 38mm | 8° Back Sweep | 5° Up Sweep | Black
- Grips
- ODI ELITE MOTION V2.1 – Lock On
- Seatpost
- YT POSTMAN V2 – Ø 34.9mm | MMX-Remote | Adjustable drop 20/10/5mm | 150 mm (S) | 170 mm (M) | 200 mm (L - XL) | 230 mm (XXL)
- Saddle
- SDG BEL AIR V3 – YT Custom | Width 140 mm | Lux-Alloy Rail
Other
- Bottle
- Thirstmaster 6000 – 620ml bottle and cage included | BPA free | easy to clean
- Weight
- 20,50 KG / 45,19 LBS (Average weight for the smallest size available, set up tubeless, with no pedals or bottle.)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Decoy SN geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Top tube | 565 mm | 587 mm | 609 mm | 631 mm | 653 mm |
| Reach | 435 mm / 432 mm | 455 mm / 452 mm | 475 mm / 472 mm | 495 mm / 492 mm | 515 mm / 512 mm |
| Stack | 633 mm / 635 mm | 640 mm / 643 mm | 648 mm / 650 mm | 655 mm / 657 mm | 662 mm / 664 mm |
| Seat tube | 390 mm | 400 mm | 420 mm | 440 mm | 460 mm |
| Chainstay | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm | 442 mm / 443 mm |
| Head angle | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° | 64.2° / 63.9° |
| Seat angle (effective) | 78.4° / 78.2° | 78.4° / 78.1° | 78.3° / 78.1° | 78.3° / 78.0° | 78.2° / 78.0° |
| BB drop | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm | 32 mm / 36 mm |
| Wheelbase | 1216 mm / 1217 mm | 1240 mm / 1241 mm | 1263 mm / 1264 mm | 1287 mm / 1288 mm | 1310 mm / 1311 mm |
| Head tube | 100 mm | 108 mm | 116 mm | 124 mm | 132 mm |
| BB height | 344 mm / 340 mm | 344 mm / 340 mm | 344 mm / 340 mm | 344 mm / 340 mm | 344 mm / 340 mm |
| Standover height | 774 mm | 798 mm | 821 mm | 845 mm | 868 mm |
Where two values are given: REGULAR / LOW flip-chip position. Source: YT Industries.
Decoy SN: builds compared
Decoy SN range →| Decoy SN Core 2 | Decoy SN Core 3 | Decoy SN Core 4 | |
|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | ROCKSHOX ZEB SELECT – 29" | 170 mm | Charger RC | 15x110 mm | 44 mm Offset | ROCKSHOX ZEB ULTIMATE – 29" | 170mm | Charger 3.1 | 15 x 110 mm | 44mm Offset | FOX 38 FLOAT FACTORY – 29" | 170 mm | Grip X2 | 110 x 15 mm | 44 mm Offset |
| Shock | ROCKSHOX VIVID SELECT – 230 x 65 mm | TouchDown RT adj | ROCKSHOX VIVID ULTIMATE – 230 x 65 mm | TouchDown RC2T adj | FOX DHX2 FACTORY – 230 x 65 mm | H/LSC H/LSR | Custom Tune 325 lbs (S) | 375 (M) | 425 (L) | 475 (XL) | 500 (XXL) |
| Derailleur | SHIMANO SLX RD-M7100 – 12-Speed | Shadow+ | SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type | SRAM GX EAGLE TRANSMISSION – 12-speed | T-Type |
| Brakes | TRP DH-R EVO – Rotor 220 / 203 mm | 2.3 mm | TRP DH-R EVO – Rotor 220 / 203 mm | 2.3 mm | SRAM MAVEN SILVER – Rotor HS2 Ø front 220 mm / rear 200 mm | Sintered pads |
| Display | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP | FAZUA LED HUB – USB-C | ANT+ Bluetooth | CONNECTED APP |
| Weight | 20.4 kg | 20.5 kg | 20.6 kg |
Decoy SN Core 3: FAQ
How much does the YT Industries Decoy SN Core 3 cost?
€7,499 (RRP Germany (YT EU web store), VAT incl. Reduced to €4,699 at time of capture.). The Decoy SN range runs from €6,499 (Decoy SN Core 2) to €8,499 (Decoy SN Core 4). Prices vary by country and dealer.
How much does the YT Industries Decoy SN Core 3 weigh?
YT Industries quotes 20.5 kg. The lightest Decoy SN build is the Decoy SN Core 2 at 20.4 kg.
What motor and battery does the YT Industries Decoy SN Core 3 have?
Fazua Ride 60 (60 Nm; 450 W peak). 430 Wh battery — fazua Ride 60 battery, integrated.
How much suspension travel does the YT Industries Decoy SN Core 3 have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the YT Industries Decoy SN Core 3 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Decoy SN Core 3 and the Decoy SN Core 4?
They share the Decoy SN frame platform and motor; the differences are in the parts — fork: ROCKSHOX ZEB ULTIMATE – 29" | 170mm | Charger 3.1 | 15 x 110 mm | 44mm Offset vs FOX 38 FLOAT FACTORY – 29" | 170 mm | Grip X2 | 110 x 15 mm | 44 mm Offset; shock: ROCKSHOX VIVID ULTIMATE – 230 x 65 mm | TouchDown RC2T adj vs FOX DHX2 FACTORY – 230 x 65 mm | H/LSC H/LSR | Custom Tune 325 lbs (S) | 375 (M) | 425 (L) | 475 (XL) | 500 (XXL); derailleur: SRAM S1000 EAGLE TRANSMISSION – 12-speed | T-Type vs SRAM GX EAGLE TRANSMISSION – 12-speed | T-Type; claimed weight: 20.5 kg vs 20.6 kg; price: €7,499 vs €8,499.
