RadonRecap 9.0
- Motor
- Bosch Performance Line CX Gen5100 Nm
- Battery
- 600 WhBosch Powertube; PowerMore 250 range extender compatible
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 21.7 kgManufacturer figure (smallest frame size, without pedals)
Overview

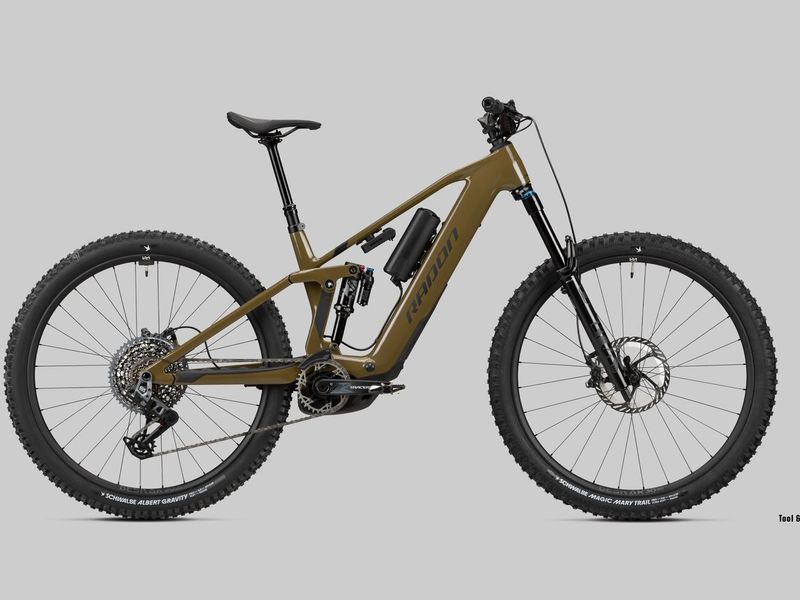

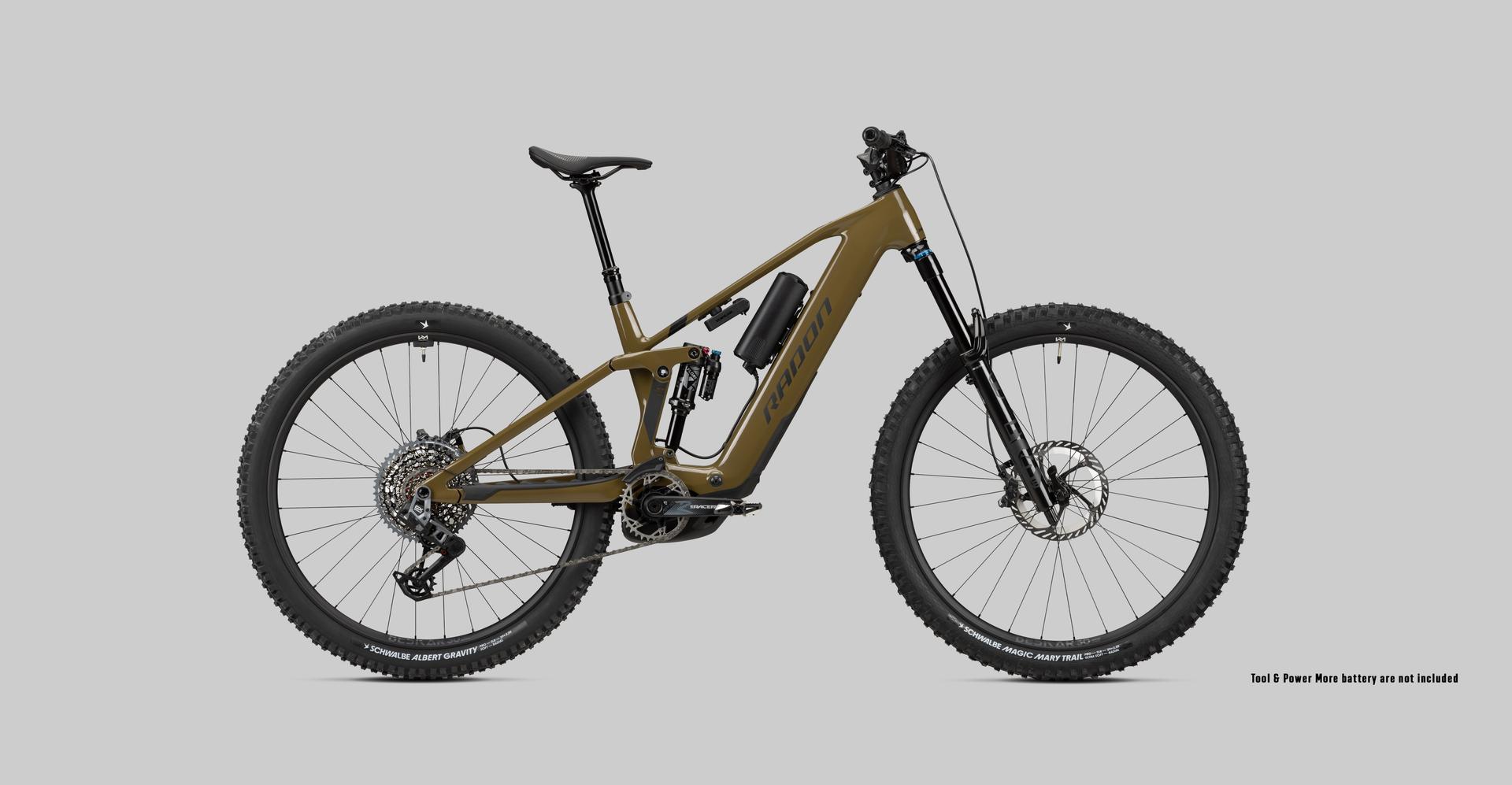

The Radon Recap 9.0 (€5,999) is a mid-range build of the Recap: Bosch Performance Line CX Gen5 (100 Nm) with 600 Wh, Fox 36 Performance Elite fork, Fox Float X Performance Elite shock, SRAM GX Eagle Transmission and Shimano XT BR-M8220 brakes. Claimed weight is 21.65 kg.
The Recap is Radon's full-carbon trail e-MTB (carbon main frame and rear triangle) with 150 mm of travel front and rear, 29-inch wheels and an adjustable head angle. It uses the Bosch Performance Line CX Gen5 Smart System motor (100 Nm, up to 750 W) with a 600 Wh Powertube battery in the down tube.
The optional Bosch PowerMore 250 range extender raises capacity to 850 Wh. Radon lists claimed weights of 21.3 to 21.65 kg (smallest size, without pedals) across the three builds, which come in sizes S to XL.
- Full-carbon frame, adjustable head angle
- 150 mm travel front and rear, 29"
- Bosch CX Gen5, 100 Nm
- 600 Wh + optional 250 Wh range extender
Gallery

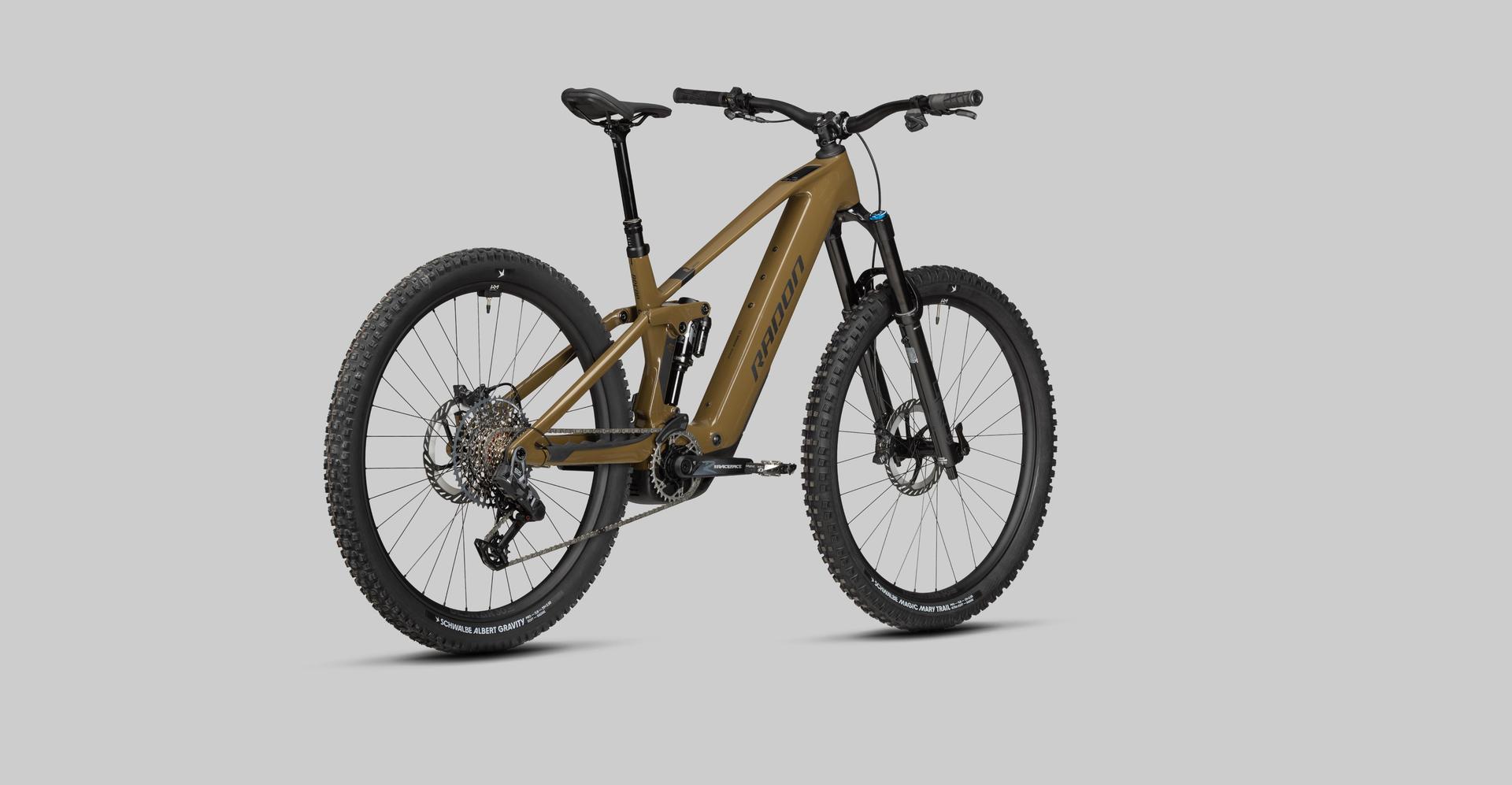

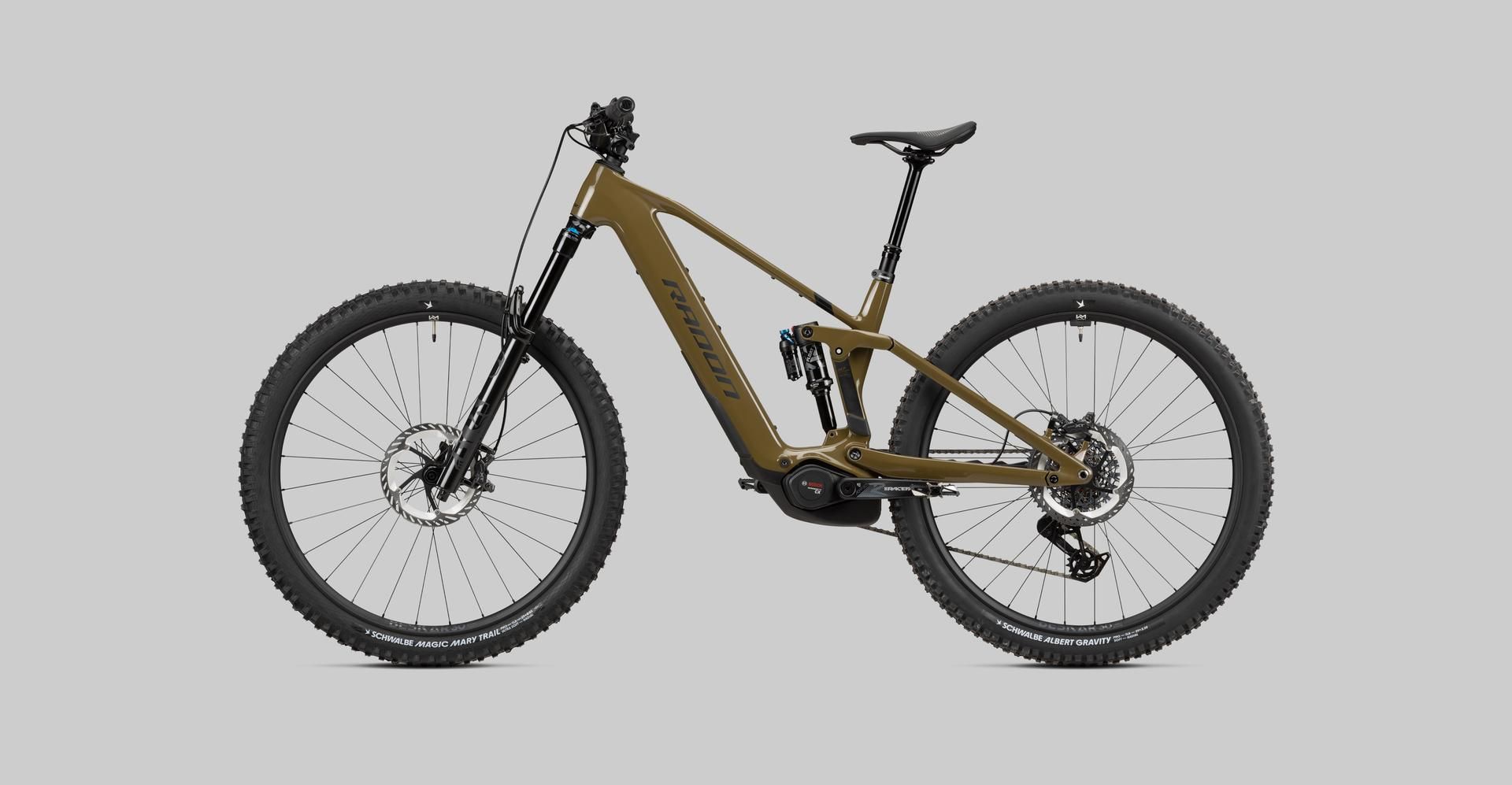

Photos: Radon
Full specifications
Frame & suspension
- Frame
- RECAP (Carbon main frame / carbon rear triangle)
- Fork
- Fox 36 Performance Elite, FIT GRIP X2, E-Tuned, Boost

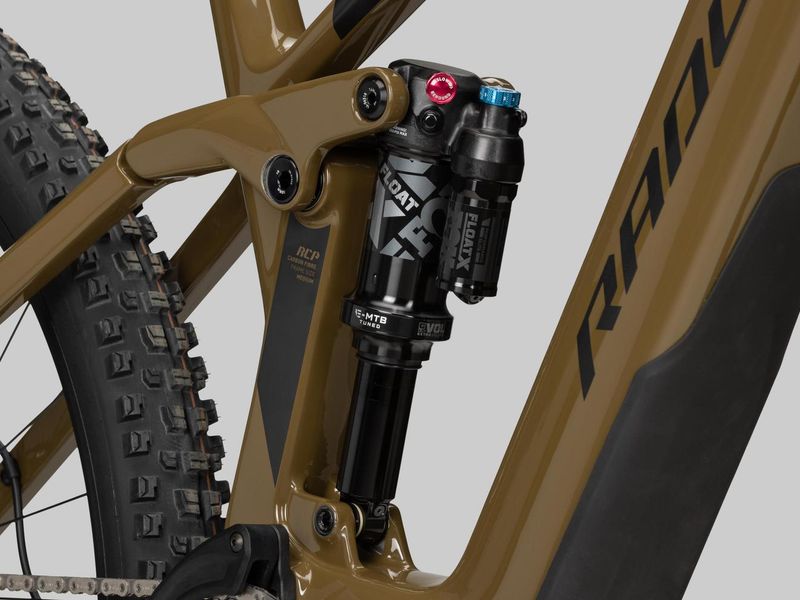

- Rear shock

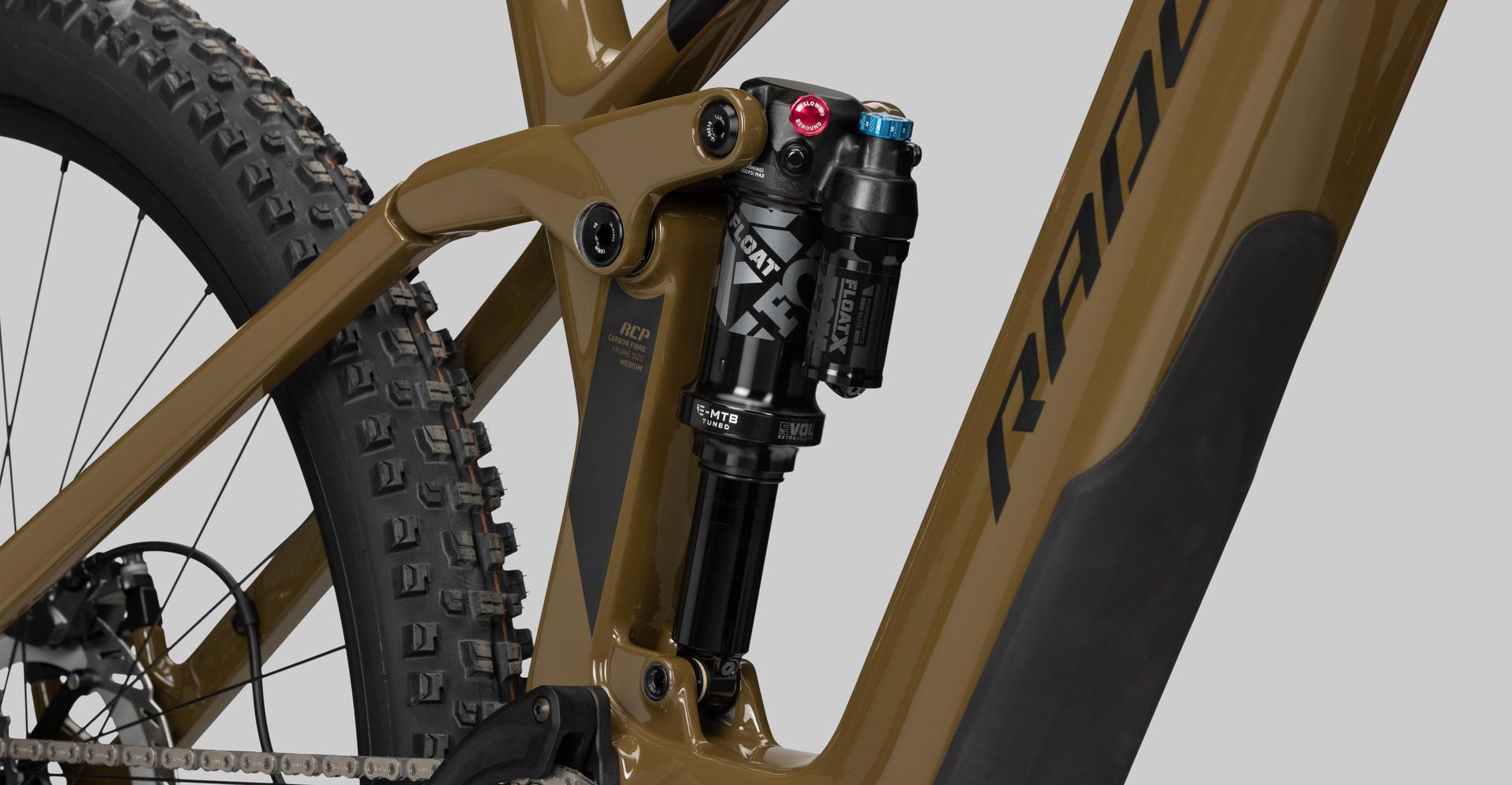

- Fox Float X Performance Elite, 2-Pos., EVOL LV, 205 x 65mm
- Fork travel
- 150mm
- Rear travel
- 150mm
- Headset
- Acros Angleset with ICR, ZS56/ZS56
- Colour
- crustydemon / black
- Sizes
- S, M, L, XL
E-system

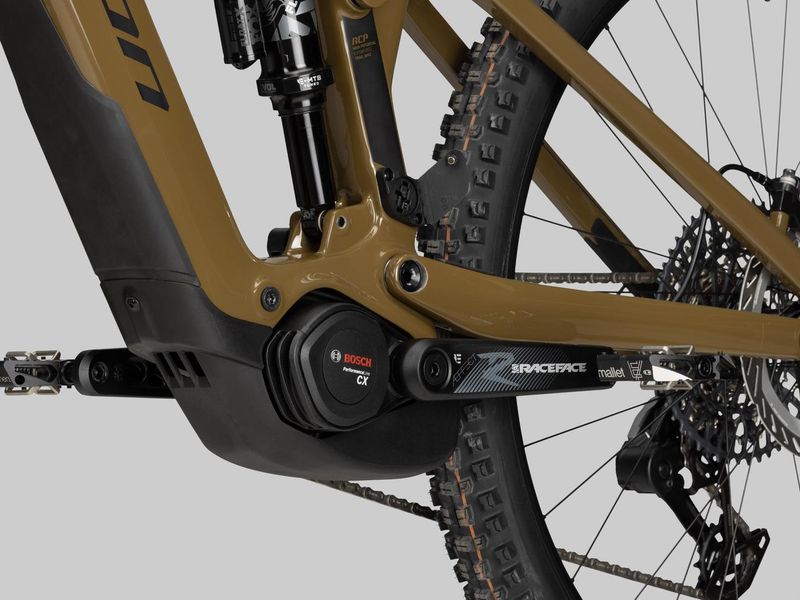

- Motor

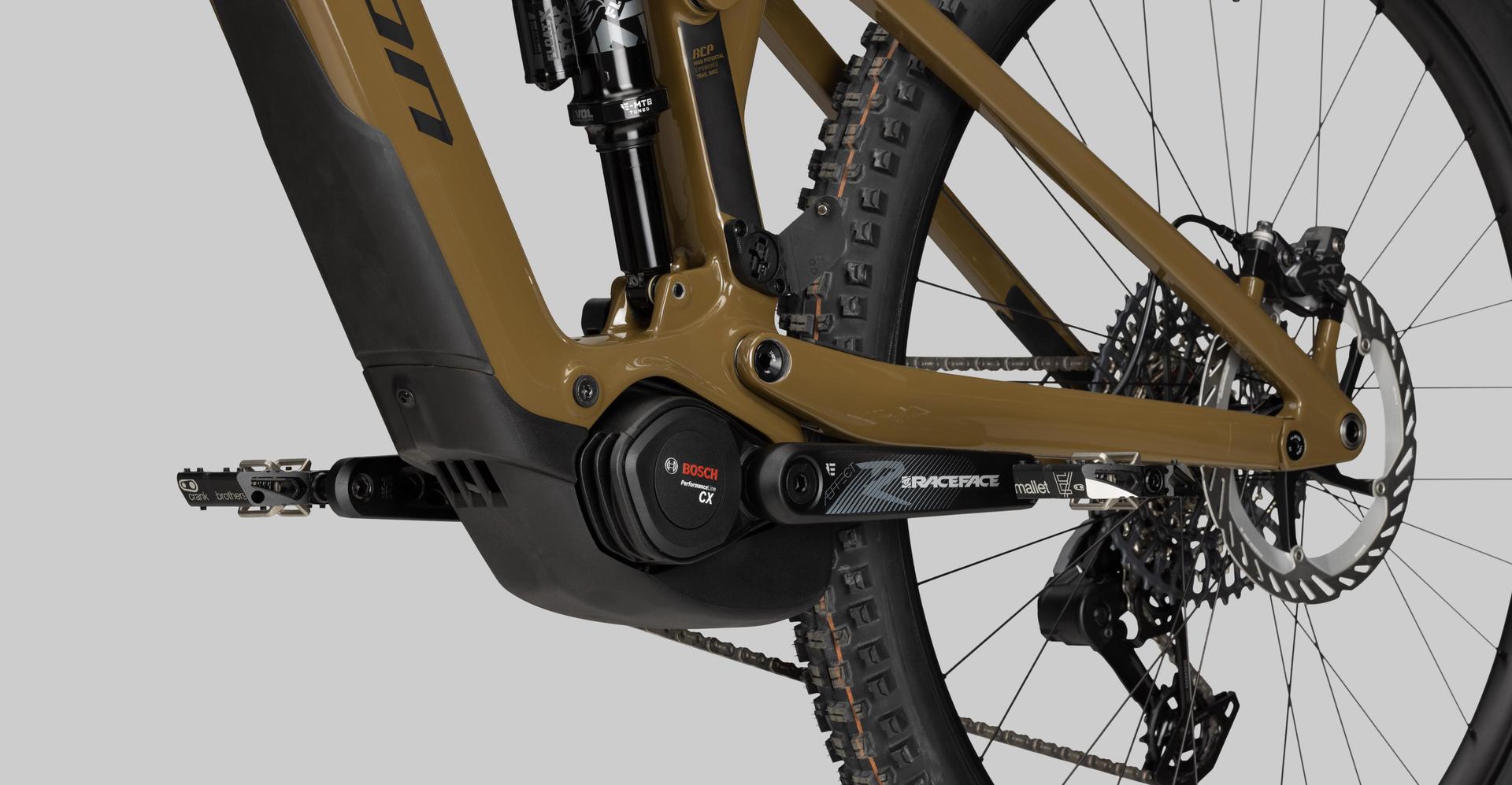

- Bosch Performance Line CX Gen5 Smart System
- Battery
- Bosch Powertube 600Wh
- Display
- Kiox 400C / Mini Remote
- Charger
- Bosch Charger 4A
Drivetrain
- Crankset
- Race Face Aeffect R, 165mm, SRAM T-Type Eagle Transmission 34T
- Shifter
- SRAM AXS POD Controller, Rocker Paddle
- Rear derailleur

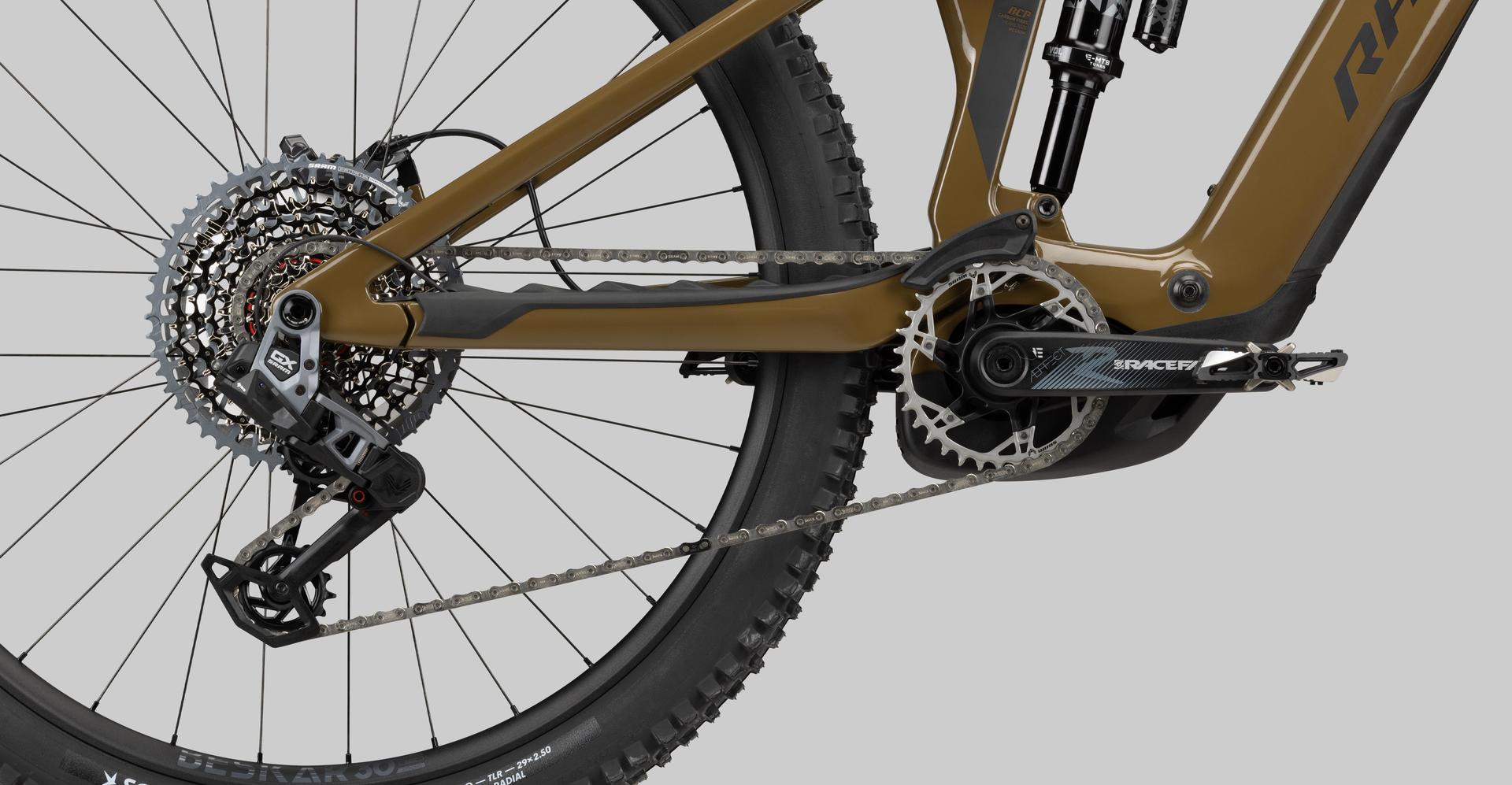

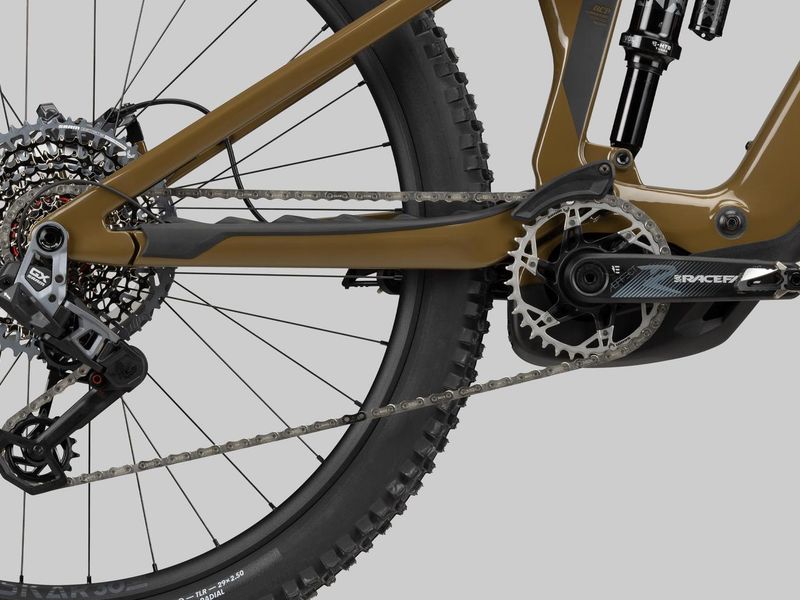

- SRAM GX Eagle Transmission, 12-speed
- Cassette
- SRAM GX Eagle Transmission XS-1275, 10-52
- Chain
- SRAM GX Eagle Transmission
- Chain Guide
- Reverse Components Flip-Guide, direct mount
Brakes

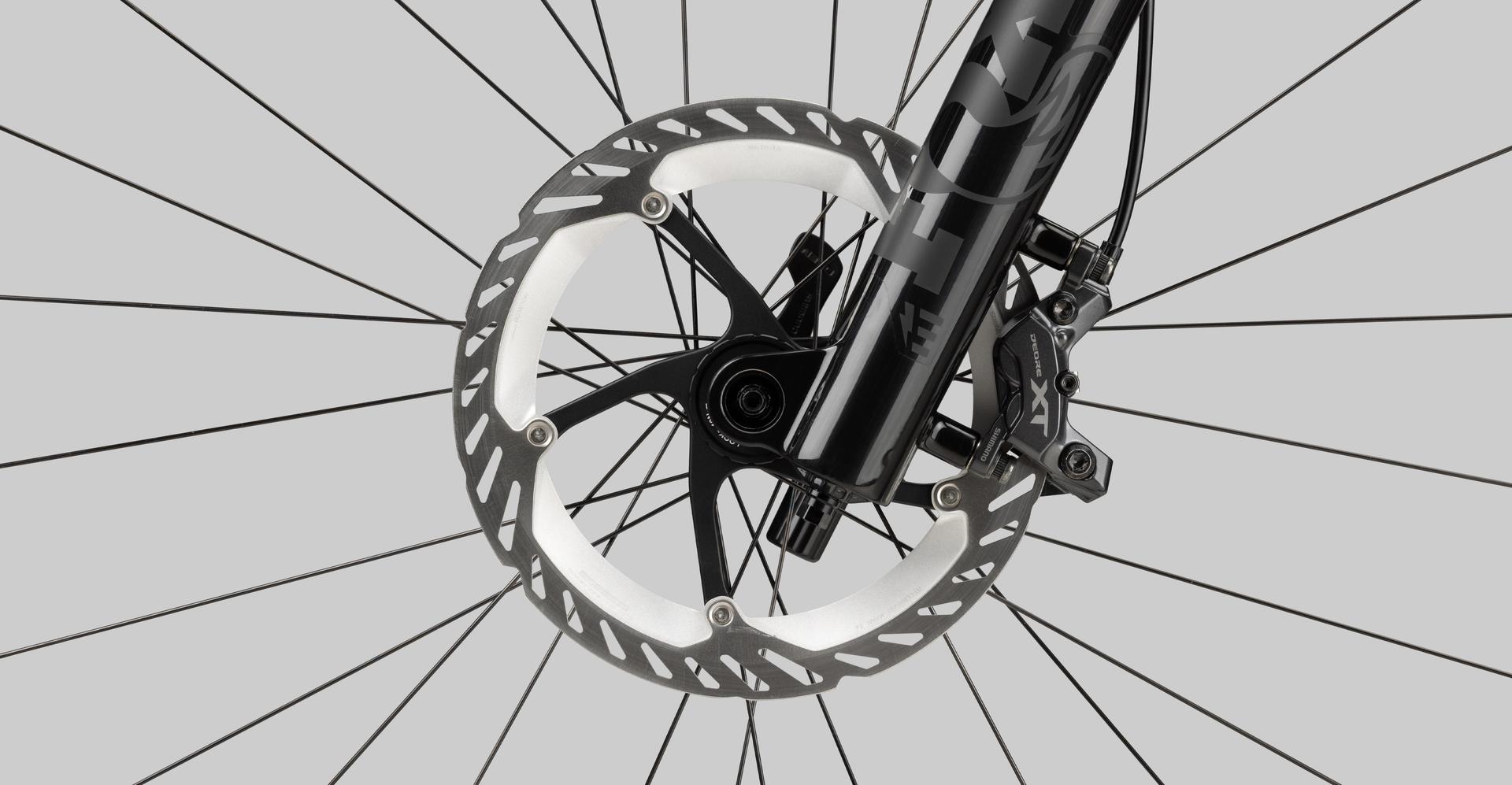

- Brakes

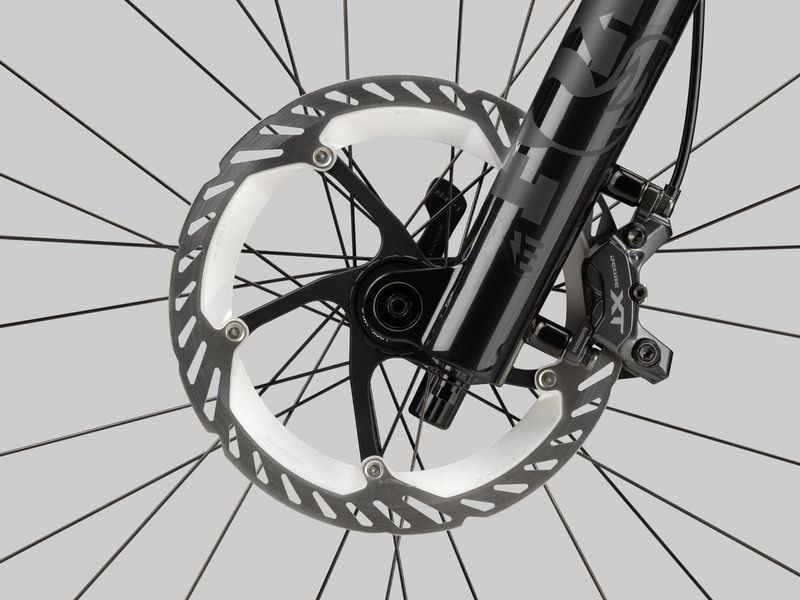

- Shimano XT BR-M8220
- Brake discs
- Shimano RT-CL800, 203/203mm, center-lock
Wheels & tyres
- Wheelset
- NEWMEN Beskar 30 base/strong, 110/148mm
- Front tyre
- Schwalbe Magic Mary, Trail, Pro, Radial, Addix-Ultrasoft, TLR, 29" x 2.5"
- Rear tyre
- Schwalbe Albert, Gravity, Pro, Addix-Soft, TLR, 29" x 2.5"
- Wheelsize
- 29"
Cockpit

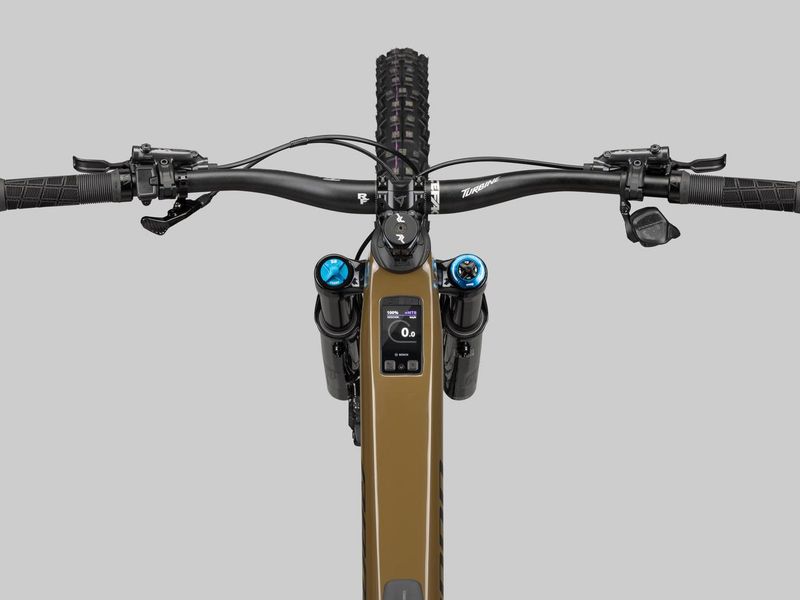

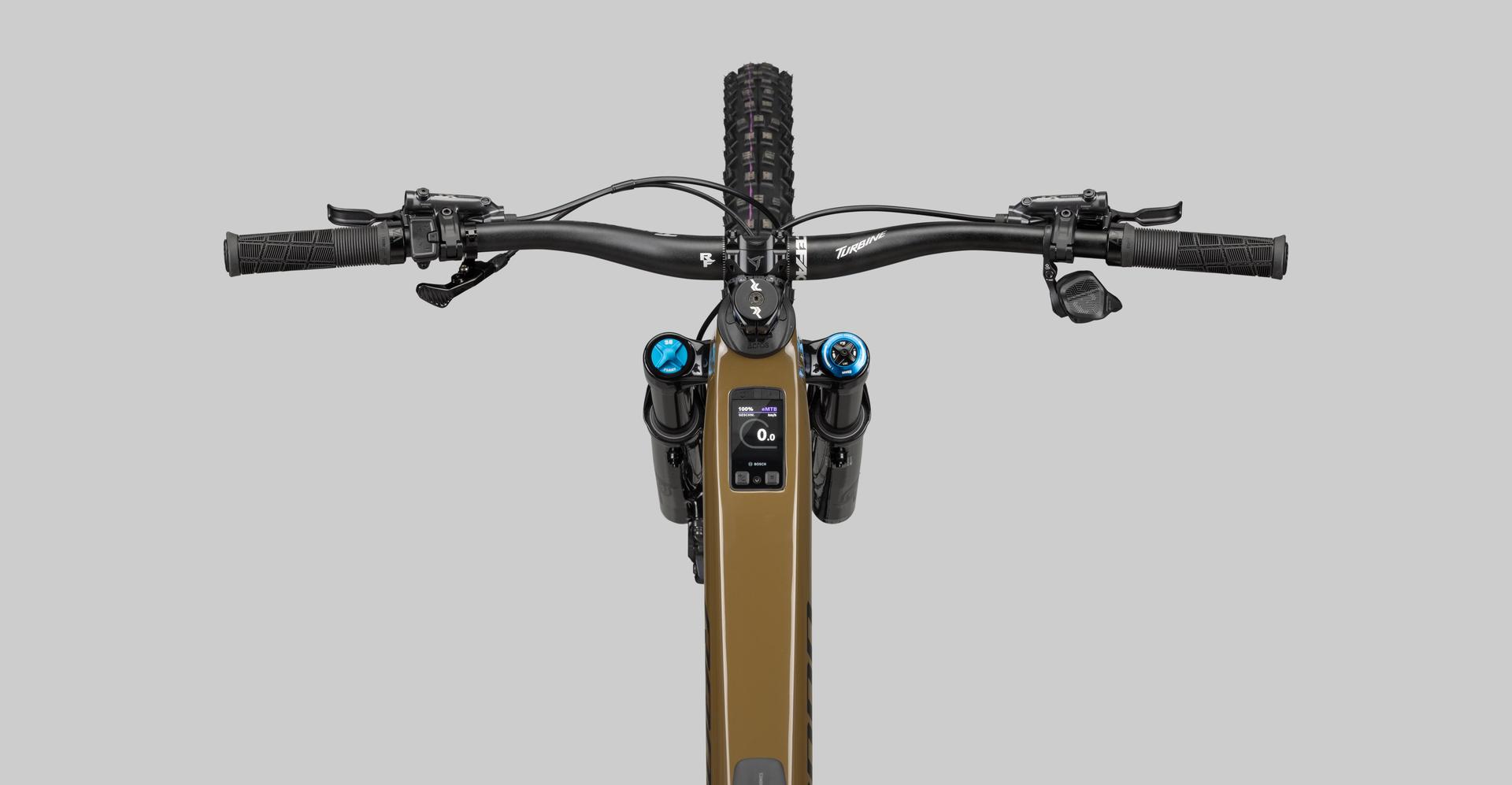

- Handlebar
- Race Face Turbine, 35 x 800mm, 40mm rise
- Stem
- Race Face Turbine R, Ø35mm
- Grips
- Acid Disrupt
- Seatpost
- RADON Competition V2, Ø31.6mm
- Saddle
- ACID Venec EMTB Trail
- Pedals
- ACID FLAT C3-ZP
Other
- Max system weight
- 150 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Recap: builds compared
Recap range →| Recap 8.0 | Recap 9.0 | Recap 10.0 | |
|---|---|---|---|
| Price | €4,999 | €5,999 | €6,999 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox 36 Performance, FIT GRIP | Fox 36 Performance Elite, FIT GRIP X2 | Fox 36 Factory, FIT GRIP X2 |
| Shock | Fox Float X Performance | Fox Float X Performance Elite | Fox Float X2 Factory |
| Derailleur | SRAM Eagle 90 Transmission | SRAM GX Eagle Transmission | Shimano XT Di2 RD-M8260-SGS |
| Brakes | Magura Louise | Shimano XT BR-M8220 | Shimano XT BR-M8220 |
| Display | Kiox 400C / Mini Remote | Kiox 400C / Mini Remote | Kiox 400C / Mini Remote |
| Weight | 21.3 kg | 21.7 kg | 21.4 kg |
Recap 9.0: FAQ
How much does the Radon Recap 9.0 cost?
€5,999 (RRP Germany, VAT incl. (radon-bikes.de list price; currently offered at 4999 €)). The Recap range runs from €4,999 (Recap 8.0) to €6,999 (Recap 10.0). Prices vary by country and dealer.
How much does the Radon Recap 9.0 weigh?
Radon quotes 21.7 kg. The lightest Recap build is the Recap 8.0 at 21.3 kg.
What motor and battery does the Radon Recap 9.0 have?
Bosch Performance Line CX Gen5 (100 Nm). 600 Wh battery — bosch Powertube; PowerMore 250 range extender compatible.
How much suspension travel does the Radon Recap 9.0 have?
150 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Radon Recap 9.0 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Recap 9.0 and the Recap 10.0?
They share the Recap frame platform and motor; the differences are in the parts — fork: Fox 36 Performance Elite vs Fox 36 Factory; shock: Fox Float X Performance Elite vs Fox Float X2 Factory; derailleur: SRAM GX Eagle Transmission vs Shimano XT Di2 RD-M8260-SGS; claimed weight: 21.7 kg vs 21.4 kg; price: €5,999 vs €6,999.
