ÖhlinsDH38 m.2
No EUR/GBP RRP published; official US store lists from USD 1842.50
- Travel
- 200 mm
- Wheel size
- 27.5" / 29"
- Stanchions
- 38 mm
- Damper
- TTX18
- Spring
- Air or coil
- E-bike rated
- Yes (e-MTB approved)
- Weight
- 2,820 gwith bolts + axle, claimed
Overview
Öhlins DH38 m.2: e-MTB-approved dual-crown downhill fork with TTX18 damper, 200 mm travel, 27.5"/29", air or coil, 2820 g.
The DH38 m.2 is Öhlins' dual-crown downhill fork with reworked internals and updated settings around the TTX18 cartridge. It offers 200 mm of travel for 27.5" and 29" wheels, in air or coil configurations.
A spring booster increases bottom-out progressiveness, the system is optimised for volume spacers, and a new stanchion surface treatment improves sensitivity and reduces wear. Four separately sold DH crowns give 46, 50, 54 or 58 mm offsets.
- Dual-crown, 200 mm travel
- TTX18 damper: 16 LSC, 3 HSC, 16 rebound clicks
- e-MTB approved
- Air or coil; offsets 46/50/54/58 mm via separate crowns
- 2820 g with bolts and axle

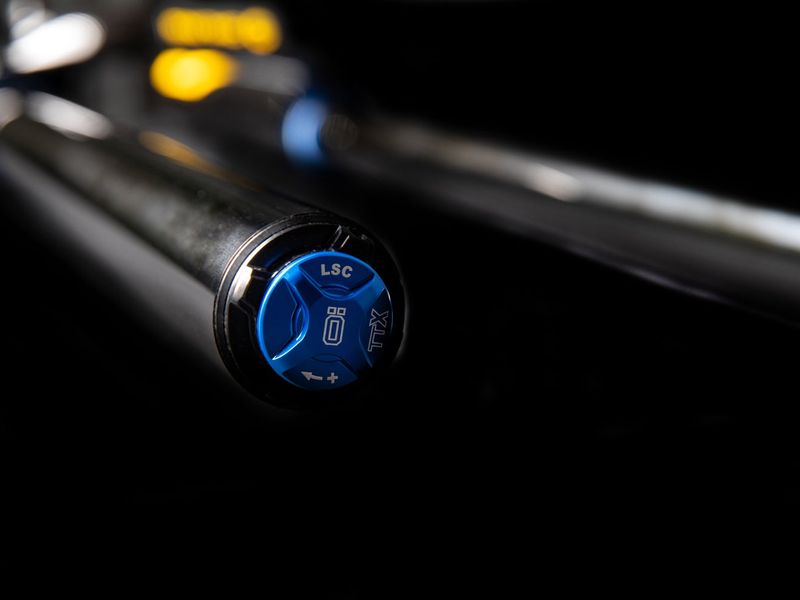

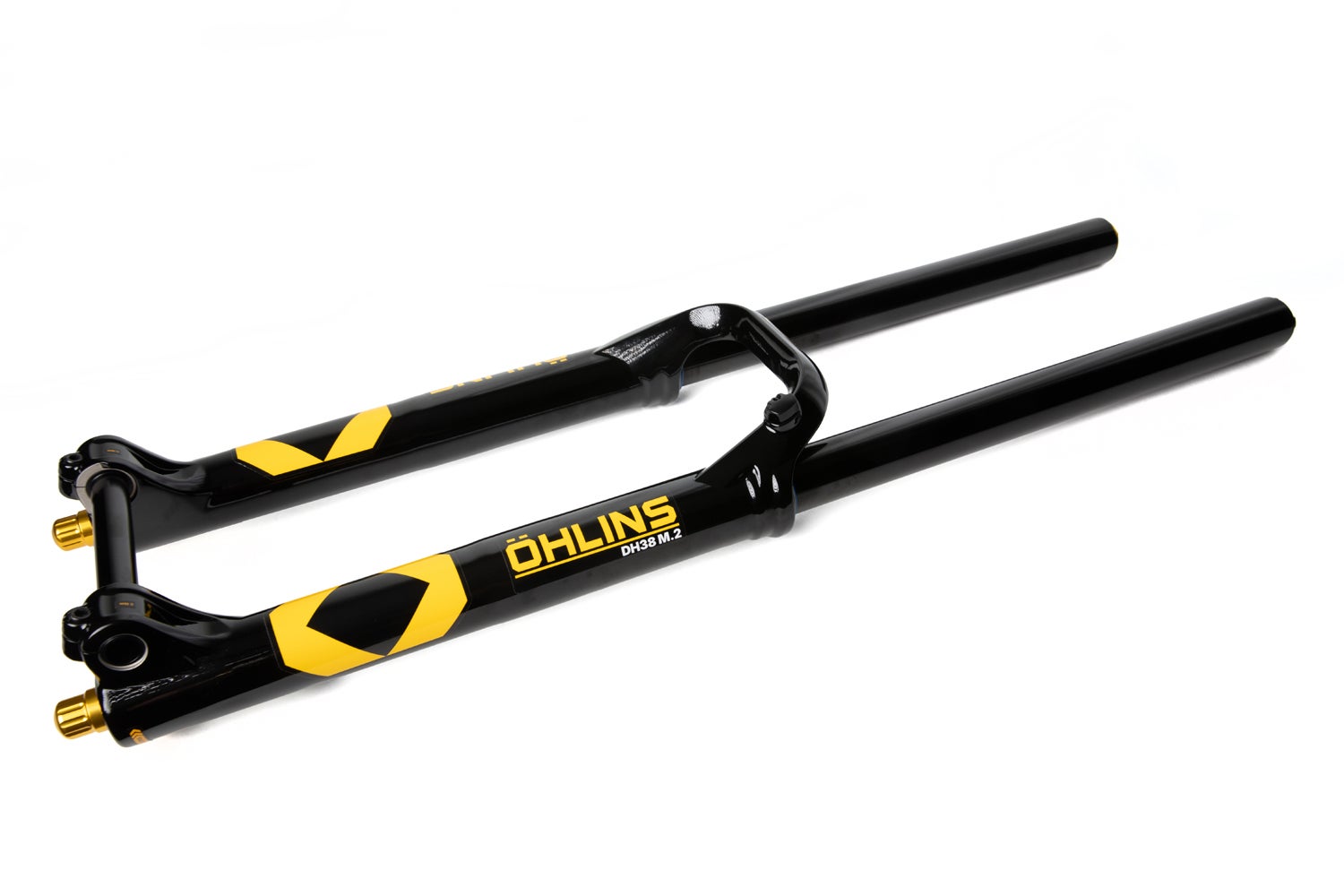

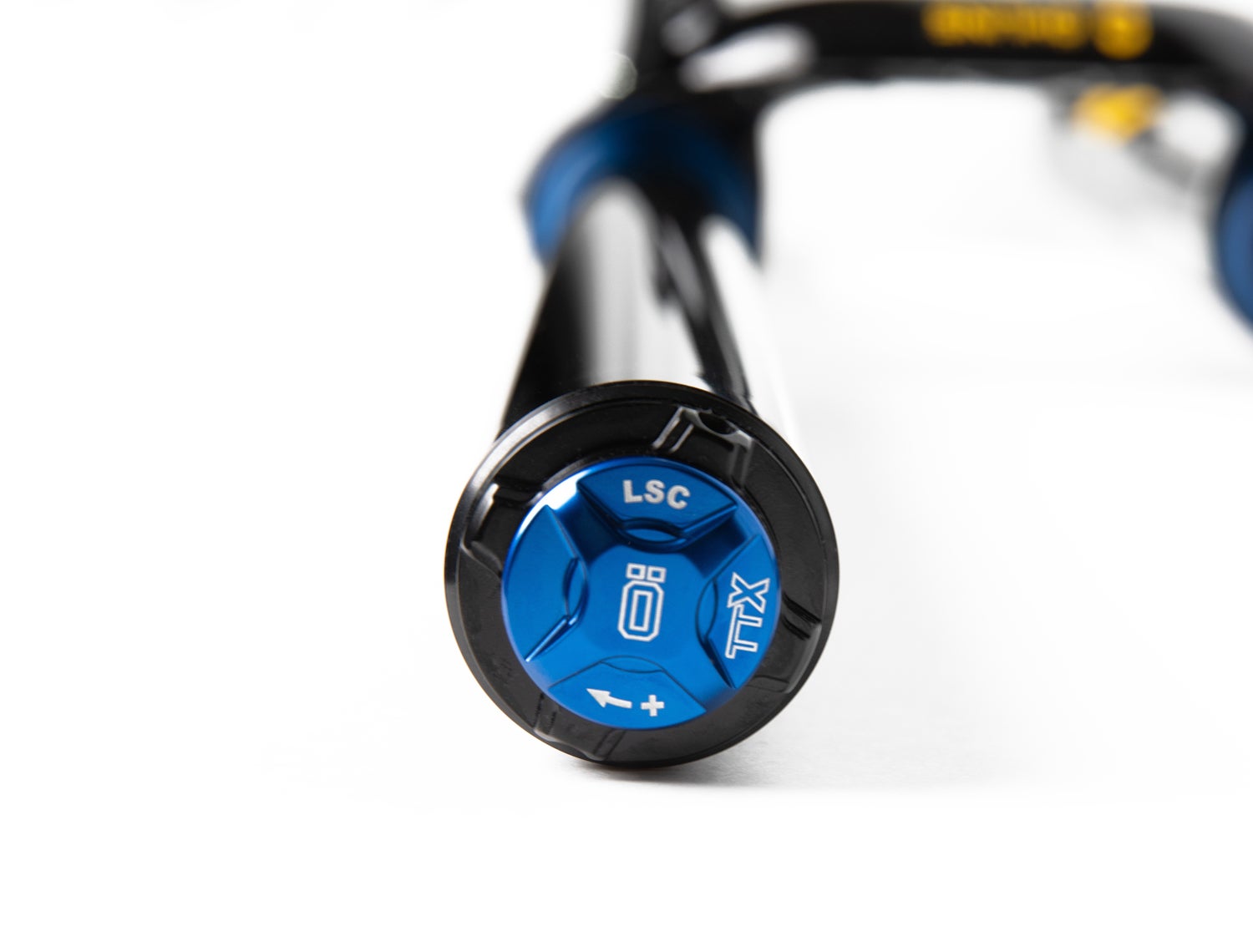

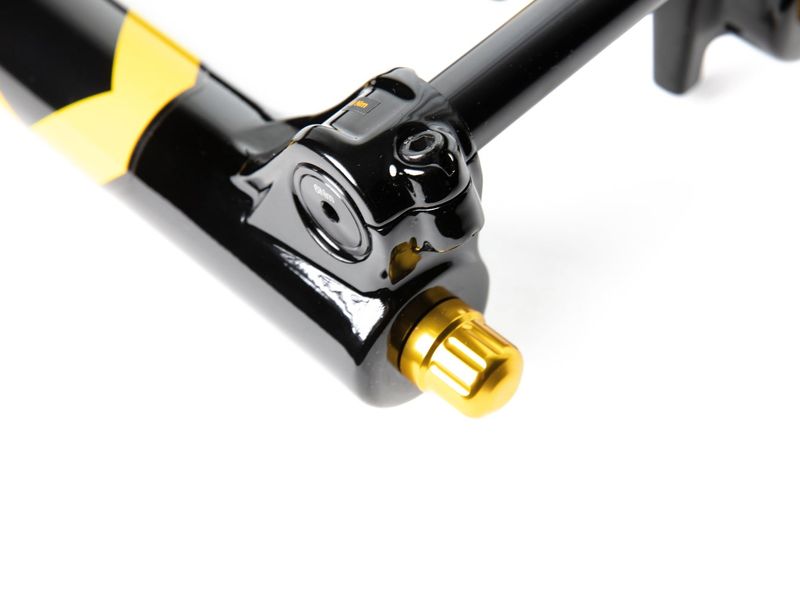

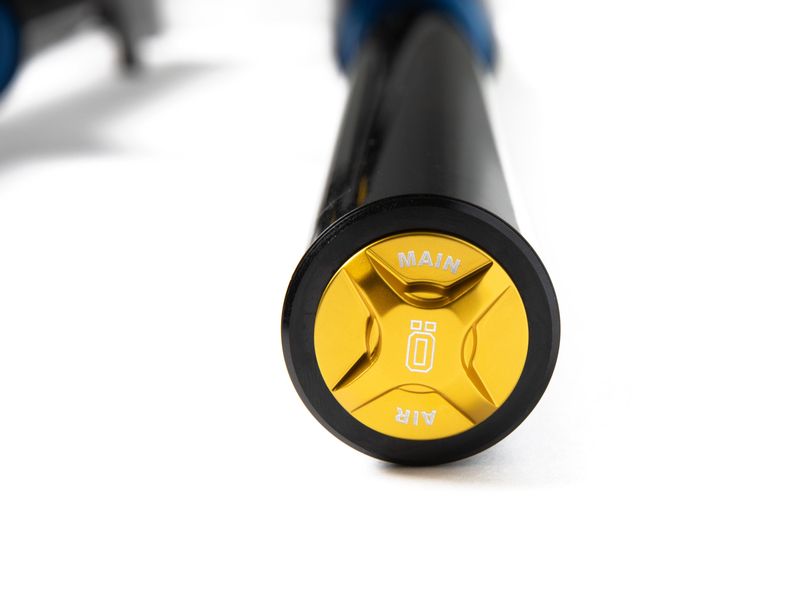

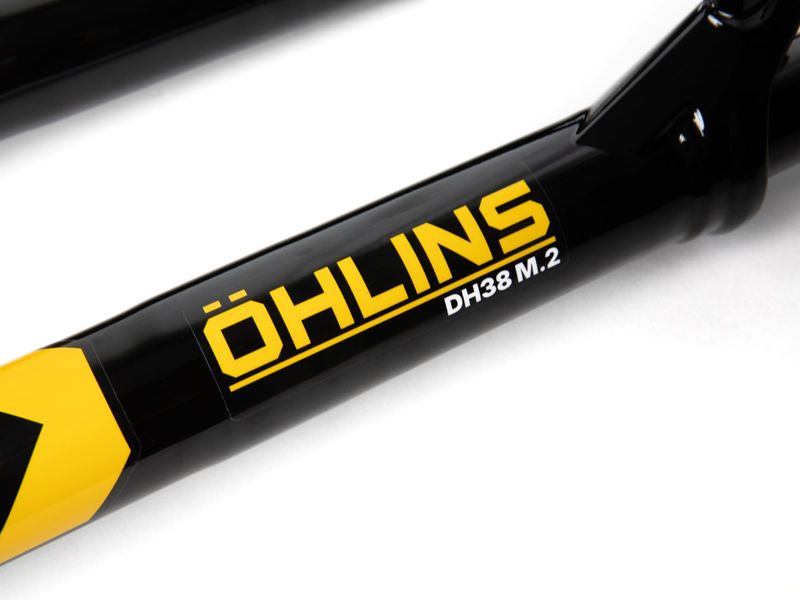

Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Independent cartridge spring and damper systems
- Feature
- Designed for use with a 200/203 mm disc
- Feature
- Uses the 20 × 110 mm Boost DH hub standard
- Feature
- 38 mm stanchion tube
- Feature
- Various offsets available: 46/50/54/58 mm
- Feature
- Wheel size: 27.5/29 in
- Feature
- Floating axel for minimum friction
- Feature
- Stroke: 200 mm
- Feature
- e-MTB approved
- Feature
- Race-proven setting bank
- Feature
- New surface treatment
- Feature
- Enhanced sensitivity and comfort
- Feature
- Reworked internals and design
- Feature
- Weight: 2820 g (with bolts + axle)
- Available versions
- Front fork DH38 m.2 Air TTX18 29''/27.5''/200; Front fork DH38 m.2 Coil TTX18 29''/27.5''/200
Chassis
- Axle-to-crown
- 29 in min 608 mm / 27.5 in min 590 mm
- Offset
- 46 mm / 50 mm / 54 mm / 58 mm
- Travel (listed variant)
- 200 mm
Compatibility
- Wheel size
- 27.5 in / 29 in
- Brake rotor
- 200 mm / 203 mm
- Max tyre
- 29 × 2.6 in / 27.5 × 3.2 in
- Axle
- 20 × 110 mm
Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 16
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins DH38 versions compared
| DH38 m.2 | DH38 m.1 | |
|---|---|---|
| Price | — | — |
| Travel | 200 mm | 180–200 mm |
| Wheel size | 27.5" / 29" | 27.5" / 29" |
| Stanchions | 38 mm | 38 mm |
| Damper | TTX18 | TTX18 |
| Spring | Air or coil | Air or coil |
| E-bike rated | Yes (e-MTB approved) | Yes (e-MTB approved) |
| Weight | 2,820 g | 2,820 g |
Öhlins DH38 m.2: FAQ
How much does the Öhlins DH38 m.2 weigh?
Öhlins quotes 2,820 g (with bolts + axle, claimed).
Is the Öhlins DH38 m.2 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins DH38 m.2?
Travel: 200 mm; Wheel size: 27.5" / 29"; Stanchions: 38 mm; Damper: TTX18; Spring: Air or coil; E-bike rated: Yes (e-MTB approved).
What other versions of the Öhlins DH38 are there?
DH38 m.1.
