ÖhlinsRXF36 m.3
No EUR/GBP RRP published; official US store lists from USD 1369.50
- Travel
- 140–160 mm (29"), 170 mm (27.5")
- Wheel size
- 29" / 27.5"
- Stanchions
- 36 mm
- Damper
- TTX18
- Spring
- Three-chamber air (coil option)
- E-bike rated
- Yes (eMTB-approved)
- Weight
- 2,050 gfrom, with bolts + axle, claimed
Overview

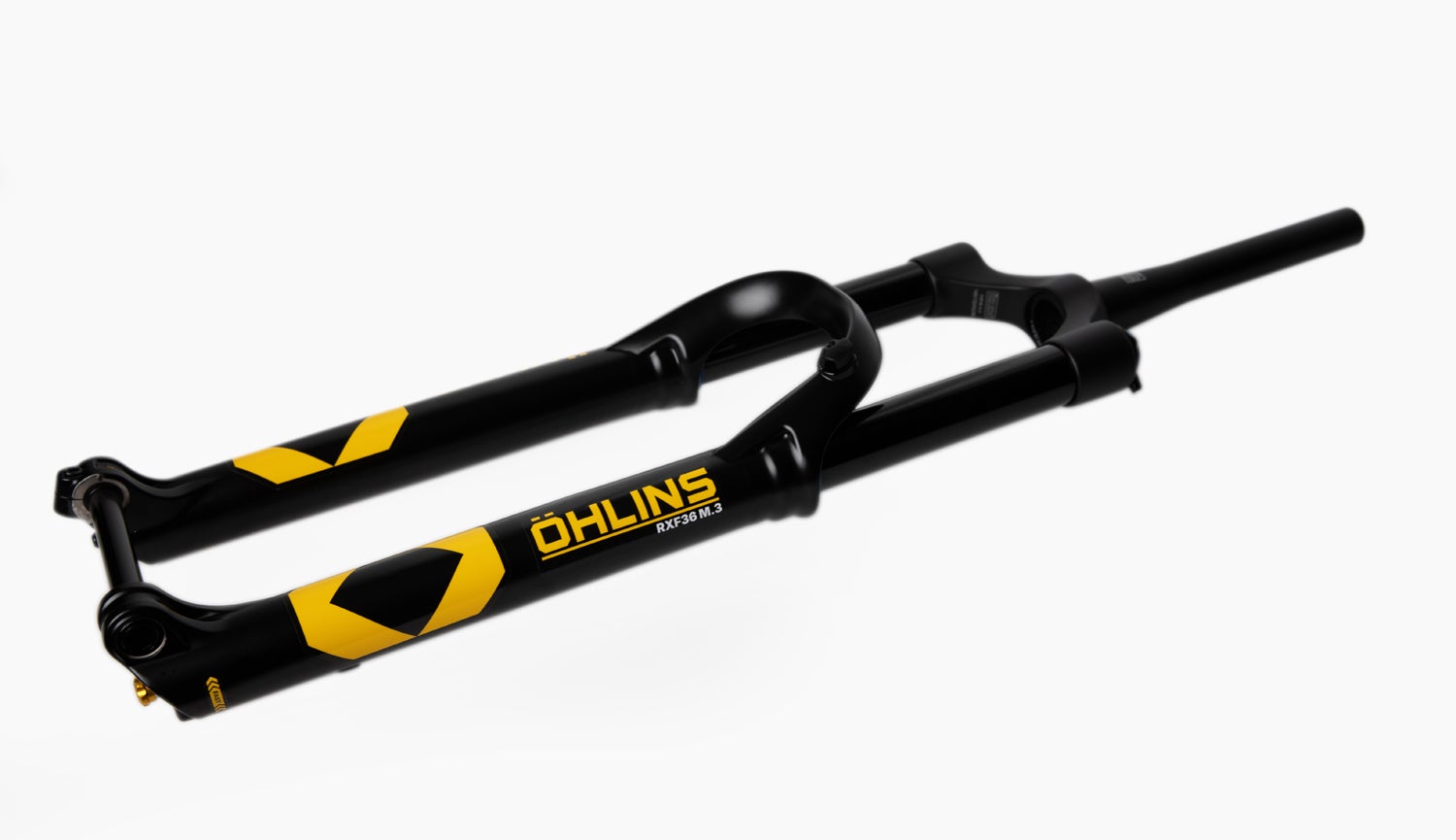

Öhlins RXF36 m.3: 36 mm eMTB-approved trail fork with TTX18 damper, 140–160 mm on 29" (170 mm on 27.5"), air or coil, from 2050 g.
The RXF36 m.3 features an all-new chassis built around the TTX18 cartridge adapted from the DH38 race fork, aimed at demanding trail riding. It offers increased internal bushing overlap and is optimised for 140–160 mm travel on 29" wheels (up to 170 mm on 27.5"), with 38, 44 and 51 mm crown offsets.

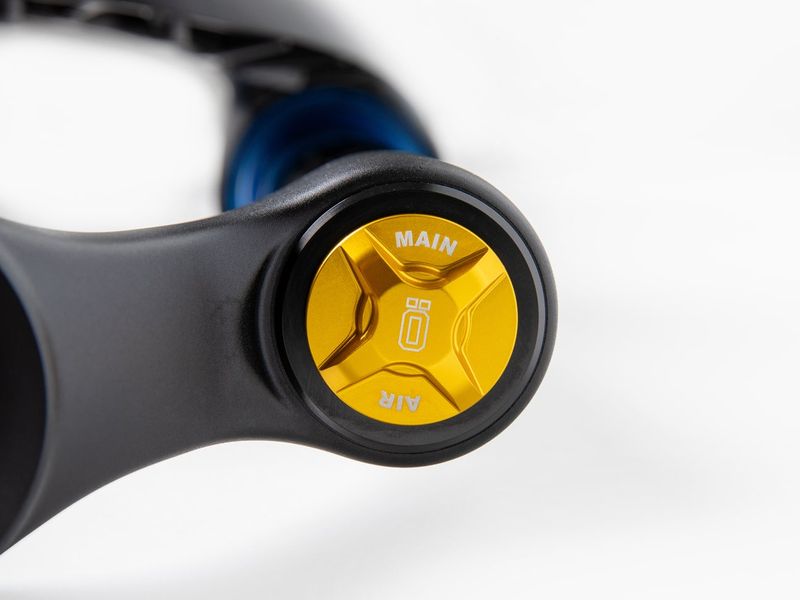

Reduced chassis friction and a new stanchion surface treatment improve small-bump sensitivity and long-term wear. The retuned twin-piston, three-chamber air spring is cartridge-based, so it can be swapped for coil.

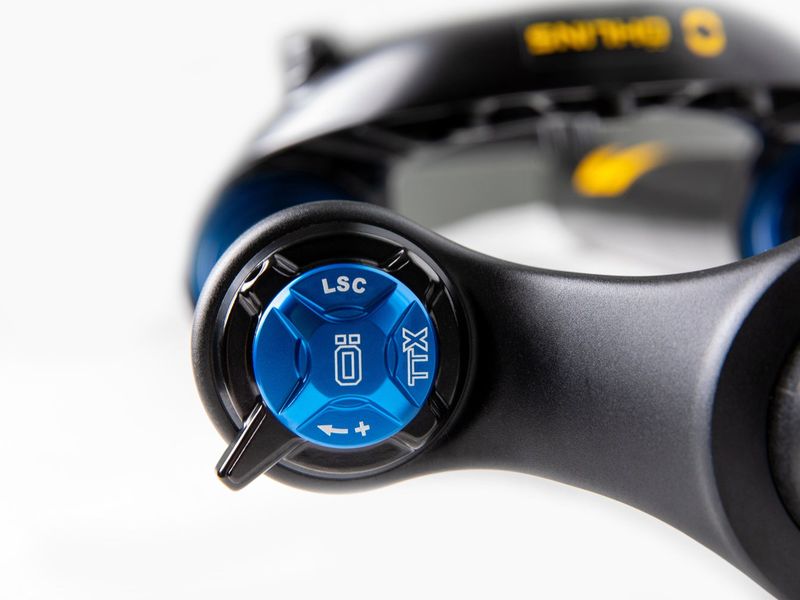

- TTX18 damper: 16 LSC, 3 HSC, 16 rebound clicks
- 140–160 mm (29") / 170 mm (27.5")
- eMTB-approved
- Air or coil, offsets 38/44/51 mm
- From 2050 g with bolts and axle
Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Fork travel: 140–160 mm (170 for 27.5 in)
- Feature
- Independent spring system
- Feature
- Independent damper system
- Feature
- Retuned air spring system
- Feature
- 36 mm stanchion tube
- Feature
- Various offsets available: 38/44/51 mm
- Feature
- Wheel size: 27.5/29 in
- Feature
- eMTB-approved
- Feature
- Race-proven setting bank
- Feature
- Prepared for coil spring
- Feature
- Reduced chassis friction
- Feature

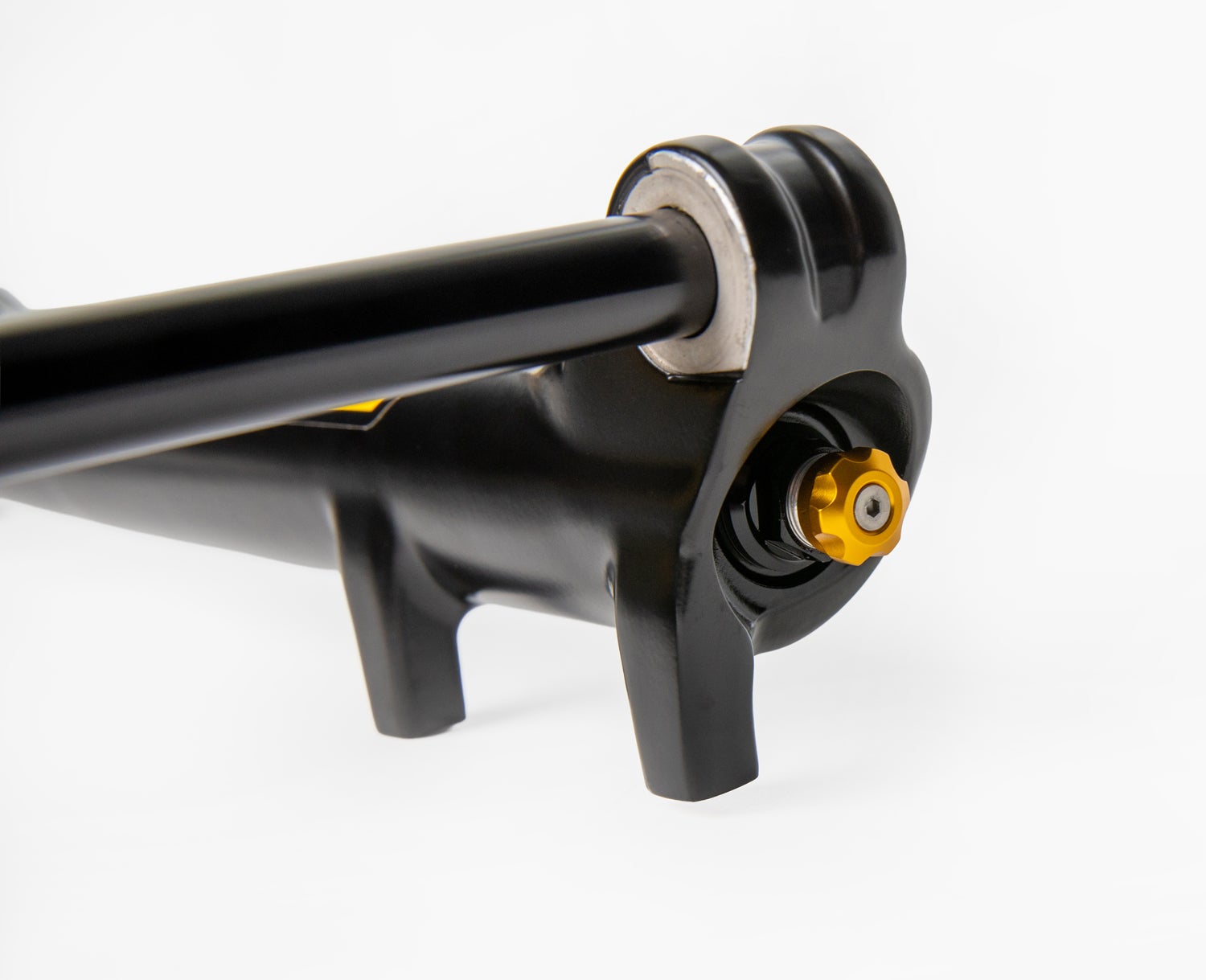

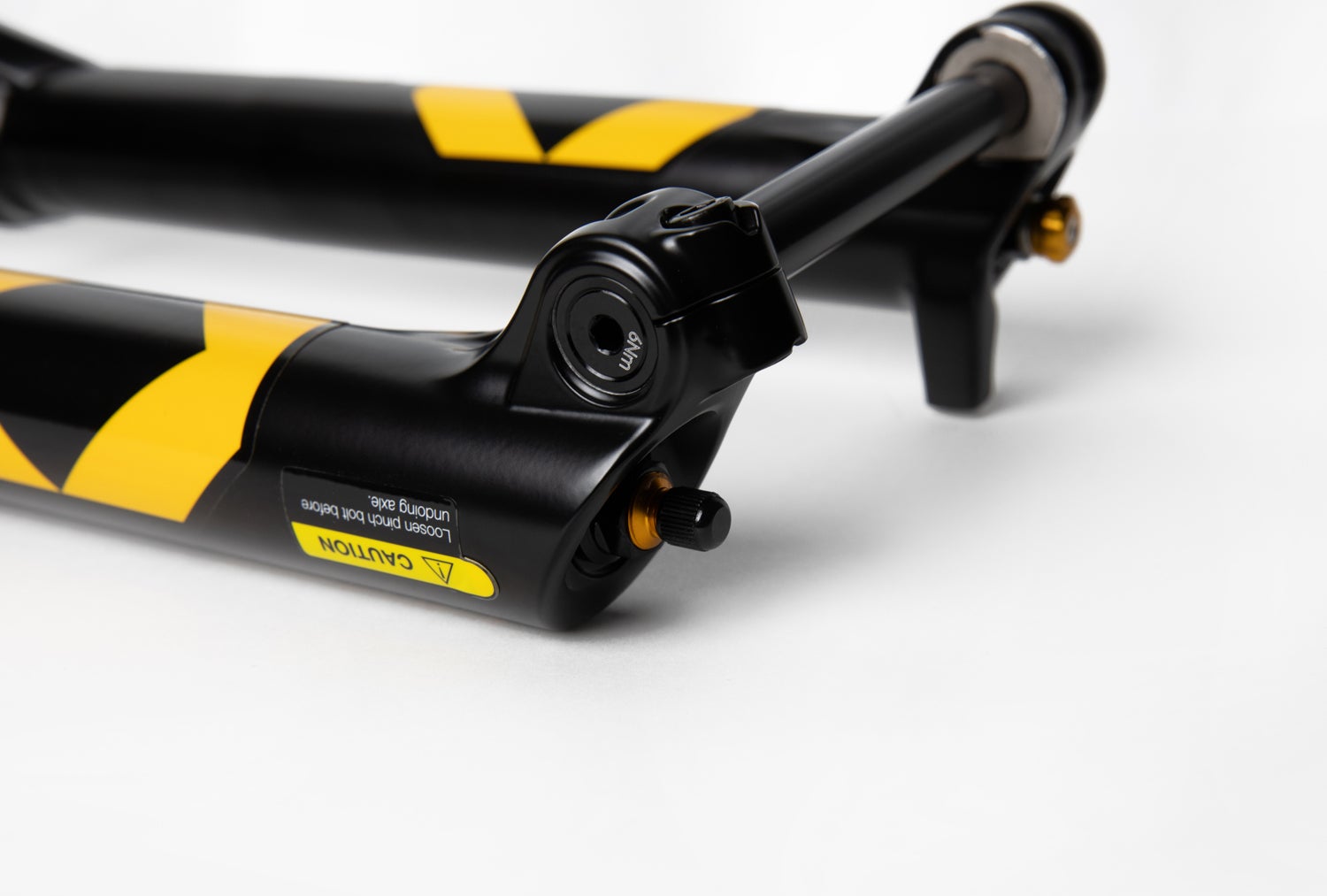

- Floating 15 × 110 mm axle for minimum friction
- Feature
- New surface treatment
- Feature
- Enhanced sensitivity and comfort
- Feature
- Reworked internals and design
- Feature
- Weight: from 2050 g (with bolts + axle)
- Available versions
- RXF36 m.3 Air TTX18 29''/44/140; RXF36 m.3 Air TTX18 29''/44/150; RXF36 m.3 Air TTX18 29''/44/160; RXF36 m.3 Coil TTX18 29''/44/160; RXF36 m.3 Air TTX18 29''/51/160; RXF36 m.3 Air TTX18 27.5''/38/170
Chassis
- Axle-to-crown
- 553 mm
- Offset
- 44 mm
- Travel (listed variant)
- 140 mm
Compatibility
- Wheel size
- 29 in
- Brake rotor
- 180–203 mm
- Max tyre
- 29 × 2.6 in
- Axle
- 15 × 110 mm
Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 16
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins RXF36 versions compared
| RXF36 m.3 | RXF36 m.2 | |
|---|---|---|
| Price | — | — |
| Travel | 140–160 mm (29"), 170 mm (27.5") | 140–180 mm |
| Wheel size | 29" / 27.5" | 27.5" / 29" |
| Stanchions | 36 mm | 36 mm |
| Damper | TTX18 | TTX18 |
| Spring | Three-chamber air (coil option) | Three-chamber air |
| E-bike rated | Yes (eMTB-approved) | Yes (eMTB-approved) |
| Weight | 2,050 g | 2,150 g |
eMTBs that come with the Öhlins RXF36
Öhlins RXF36 m.3: FAQ
How much does the Öhlins RXF36 m.3 weigh?
Öhlins quotes 2,050 g (from, with bolts + axle, claimed).
Is the Öhlins RXF36 m.3 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins RXF36 m.3?
Travel: 140–160 mm (29"), 170 mm (27.5"); Wheel size: 29" / 27.5"; Stanchions: 36 mm; Damper: TTX18; Spring: Three-chamber air (coil option); E-bike rated: Yes (eMTB-approved).
What other versions of the Öhlins RXF36 are there?
RXF36 m.2.
