ÖhlinsDH38 m.1
No EUR/GBP RRP published; official US store lists from USD 1675.00
- Travel
- 180–200 mm
- Wheel size
- 27.5" / 29"
- Stanchions
- 38 mm
- Damper
- TTX18
- Spring
- Air or coil
- E-bike rated
- Yes (e-MTB approved)
- Weight
- 2,820 g200 mm, with crown, claimed
Overview
Öhlins DH38 m.1: e-MTB-approved dual-crown downhill fork with TTX18 damper, 180–200 mm travel, 27.5"/29", air or coil.
The DH38 m.1 is Öhlins' dual-crown downhill fork based on the DH38 platform, offered with 180 or 200 mm travel for 27.5" and 29" wheels. Öhlins notes it suits both e-MTB gravity rigs and pedal-powered bikes.
It uses the TTX twin-tube damper with independent cartridge spring and damper systems, redesigned seals and a 50-hour lower-leg service. A 20 x 110 mm Boost DH axle, 200/203 mm rotor mounts and 46–58 mm offsets are supported.
- Dual-crown, 180 or 200 mm travel
- TTX18 damper with race-proven settings bank
- e-MTB approved
- 20 x 110 mm Boost DH axle
- 2820 g (200 mm with crown)

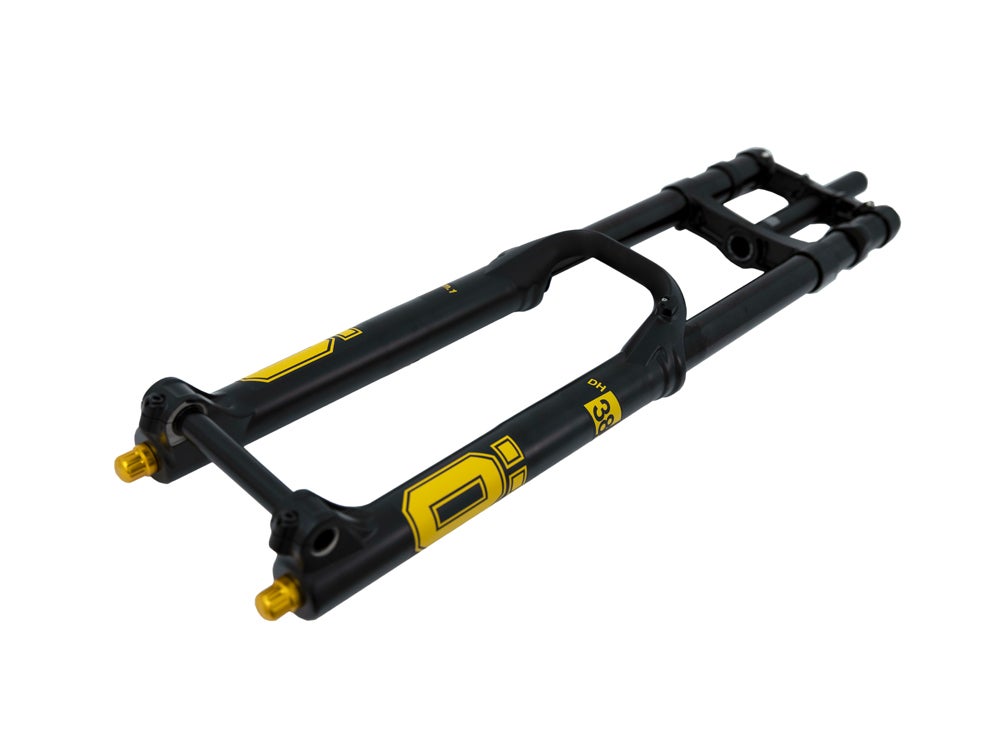

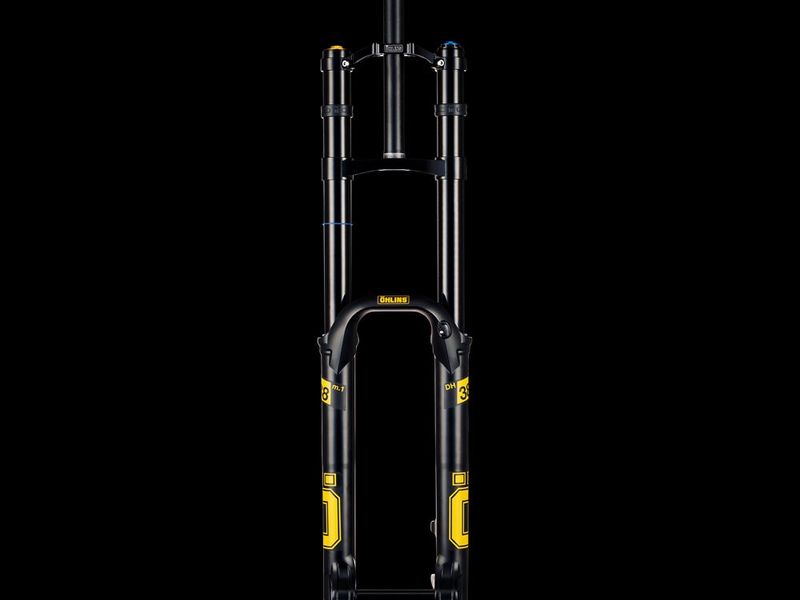

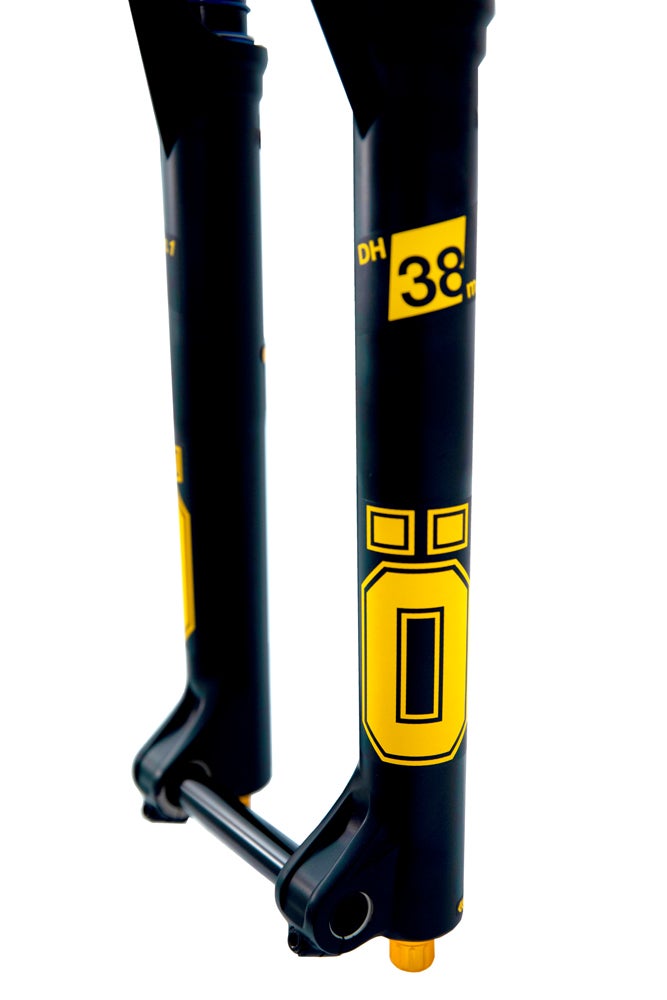

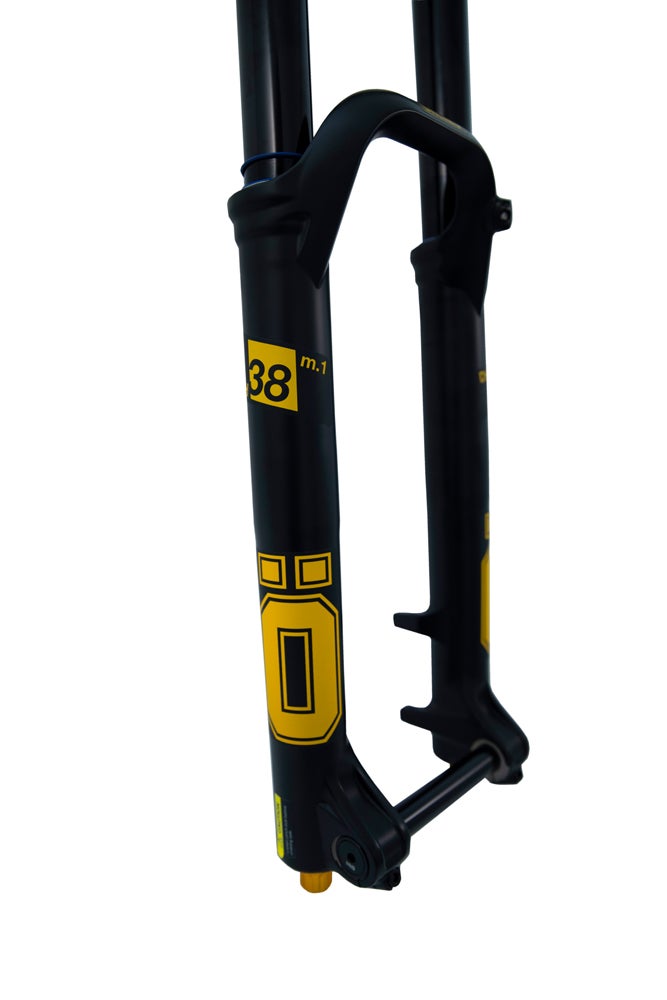

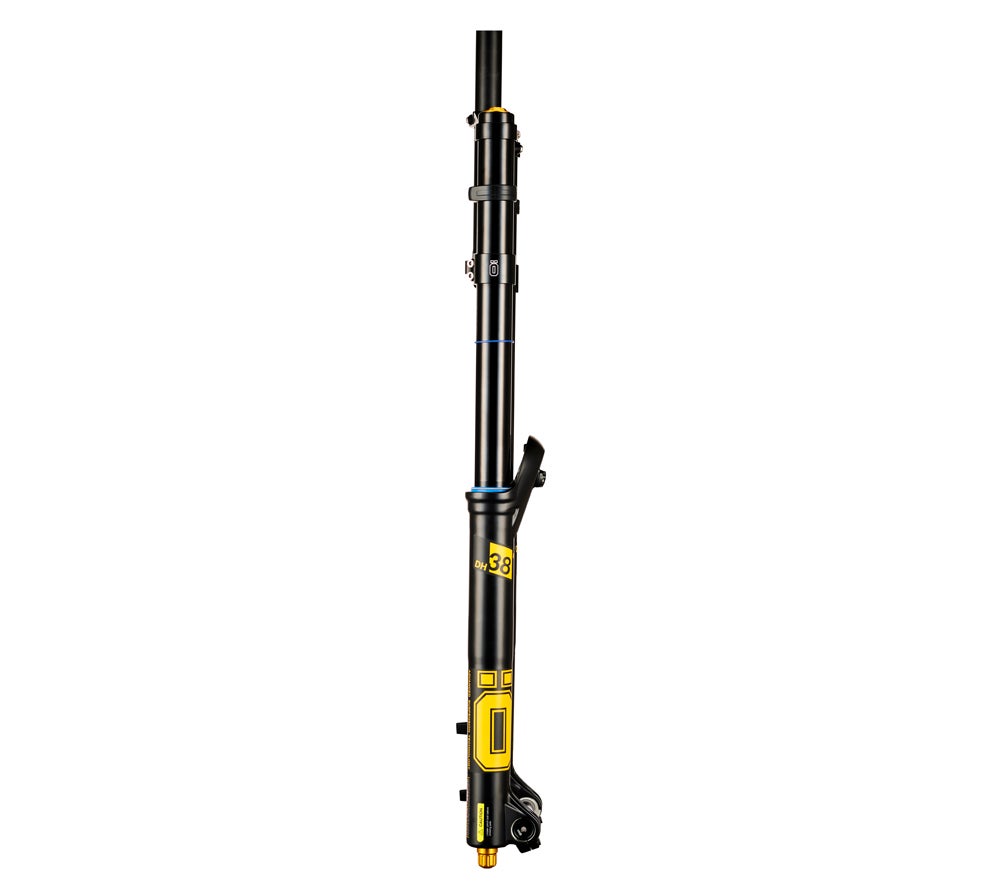

Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Independent cartridge spring and damper systems
- Feature
- Designed for use with a 200/203 mm disc
- Feature
- Uses the 20 x 110 mm Boost DH hub standard
- Feature
- 38 mm upper tube diameter for added strength
- Feature
- Various offsets available: 46/50/54/58 mm
- Feature
- Compatible maximum tire sizes: 29 x 2.8 and 27.5 x 3.0 in
- Feature
- Dual-clamp floating axle for minimum friction
- Feature
- Stroke: 180 mm
- Feature
- e-MTB approved
- Feature
- Race-proven settings bank for easy and safe tuning
- Feature
- Weight: 2820 g (200 mm with crown)
- Available versions
- Front fork DH38 M.1 /TTX 18 / 29/27.5 in. / 180 mm; Front fork DH38 m.1 Air TTX18 29'/27.5'/200; Front fork DH38 m.1 Coil TTX18 29'/27.5'/200
Chassis
- Axle-to-crown
- 29 in min 588 mm / 27.5 in min 570 mm
- Offset
- 46 mm / 50 mm / 54 mm / 58 mm
- Travel (listed variant)
- 180 mm
Compatibility
- Wheel size
- 29 in / 27.5 in
- Brake rotor
- 200 mm / 203 mm
- Max tyre
- 29 × 2.8 in / 27.5 × 3.0 in
- Axle
- 20 × 110 mm

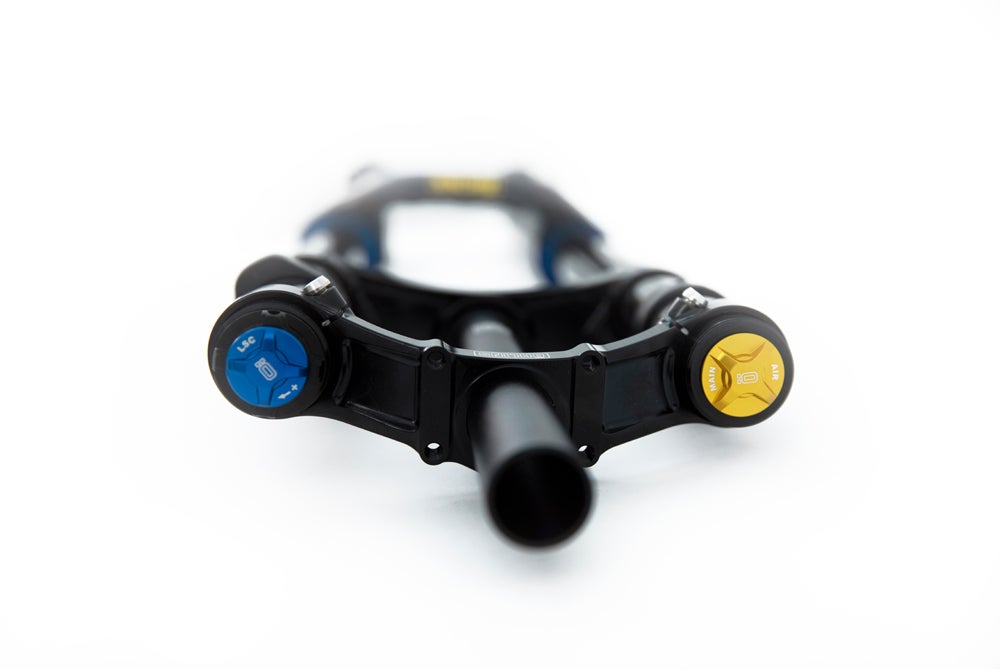

Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 16
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins DH38 versions compared
| DH38 m.2 | DH38 m.1 | |
|---|---|---|
| Price | — | — |
| Travel | 200 mm | 180–200 mm |
| Wheel size | 27.5" / 29" | 27.5" / 29" |
| Stanchions | 38 mm | 38 mm |
| Damper | TTX18 | TTX18 |
| Spring | Air or coil | Air or coil |
| E-bike rated | Yes (e-MTB approved) | Yes (e-MTB approved) |
| Weight | 2,820 g | 2,820 g |
Öhlins DH38 m.1: FAQ
How much does the Öhlins DH38 m.1 weigh?
Öhlins quotes 2,820 g (200 mm, with crown, claimed).
Is the Öhlins DH38 m.1 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins DH38 m.1?
Travel: 180–200 mm; Wheel size: 27.5" / 29"; Stanchions: 38 mm; Damper: TTX18; Spring: Air or coil; E-bike rated: Yes (e-MTB approved).
What other versions of the Öhlins DH38 are there?
DH38 m.2.
