ÖhlinsRXF38 m.3
No EUR/GBP RRP published; official US store lists from USD 1534.50
- Travel
- 160–180 mm
- Wheel size
- 29"
- Stanchions
- 38 mm
- Damper
- TTX18
- Spring
- Air (coil option)
- E-bike rated
- Yes (eMTB-approved)
- Weight
- 2,320 g29", with bolts + axle, claimed
Overview
Öhlins RXF38 m.3: 38 mm single-crown eMTB-approved enduro fork with TTX18 damper, 160–180 mm travel on 29" wheels, air or coil, 2320 g.
The RXF38 m.3 is Öhlins' 38 mm single-crown fork for e-MTBs, aggressive trail riding and enduro racing, built around the race-proven TTX18 cartridge with reworked internals and updated settings. Öhlins describes it as dual-crown downhill performance in a single-crown design, and its most advanced trail fork to date.
A spring booster increases bottom-out progressiveness, the air spring is optimised for volume spacers, and the cartridge-based spring allows swaps between air and coil. A new stanchion surface treatment reduces friction and wear, and the floating axle minimises friction.

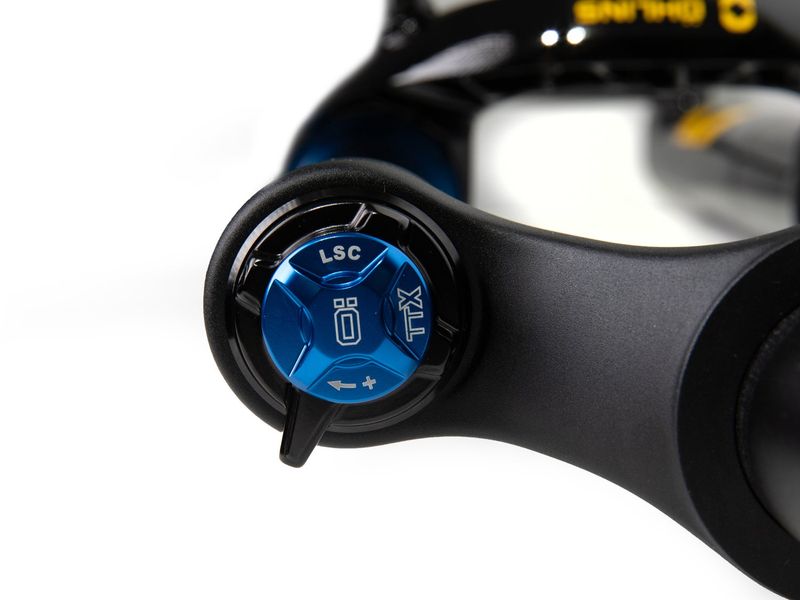

- TTX18 damper: 16 LSC, 3 HSC and 16 rebound clicks
- 38 mm stanchions, 29" with 44 mm offset
- eMTB-approved
- Spring booster for added bottom-out progression; air or coil
- Weight 2320 g with bolts and axle
Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Independent spring and damper system
- Feature
- Retuned air spring system
- Feature
- 38 mm stanchion tube
- Feature
- Wheel size: 29 in with 44 mm offset
- Feature
- eMTB-approved
- Feature
- Race-proven setting bank
- Feature
- Prepared for coil spring
- Feature
- Reduced chassis friction
- Feature
- Floating axle for minimum friction
- Feature
- New surface treatment
- Feature
- Enhanced sensitivity and comfort
- Feature
- Reworked internals and design
- Feature
- Weight: 2320 g (with bolts + axle)
- Available versions
- RXF38 m.3 Air TTX18 29''/44/160; RXF38 m.3 Air TTX18 29''/44/170; RXF38 m.3 Coil TTX18 29''/44/170; RXF38 m.3 Air TTX18 29''/44/180
Chassis
- Axle-to-crown
- 573 mm
- Offset
- 44 mm
- Travel (listed variant)
- 160 mm
Compatibility
- Wheel size
- 29 in
- Brake rotor
- 200 mm
- Max tyre
- 29 × 2.6 in
- Axle
- 15 × 110 mm
Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 16
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins RXF38 versions compared
| RXF38 m.3 | RXF38 m.2 | |
|---|---|---|
| Price | — | — |
| Travel | 160–180 mm | 160–180 mm |
| Wheel size | 29" | 29" |
| Stanchions | 38 mm | 38 mm |
| Damper | TTX18 | TTX18 |
| Spring | Air (coil option) | Three-chamber air (coil option) |
| E-bike rated | Yes (eMTB-approved) | Yes (approved for eMTB use) |
| Weight | 2,320 g | 2,320 g |
eMTBs that come with the Öhlins RXF38
Öhlins RXF38 m.3: FAQ
How much does the Öhlins RXF38 m.3 weigh?
Öhlins quotes 2,320 g (29", with bolts + axle, claimed).
Is the Öhlins RXF38 m.3 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins RXF38 m.3?
Travel: 160–180 mm; Wheel size: 29"; Stanchions: 38 mm; Damper: TTX18; Spring: Air (coil option); E-bike rated: Yes (eMTB-approved).
What other versions of the Öhlins RXF38 are there?
RXF38 m.2.
