ÖhlinsRXF36 m.2
No EUR/GBP RRP published; official US store lists from USD 1045.00
- Travel
- 140–180 mm
- Wheel size
- 27.5" / 29"
- Stanchions
- 36 mm
- Damper
- TTX18
- Spring
- Three-chamber air
- E-bike rated
- Yes (eMTB-approved)
- Weight
- 2,150 gfrom, with bolts + axle, claimed
Overview
Öhlins RXF36 m.2: 36 mm eMTB-approved trail/enduro fork with TTX18 damper, 140–180 mm travel in 27.5" and 29" versions, from 2150 g.
The RXF36 m.2 is a light trail and enduro fork built around Öhlins' TTX18 cartridge with an 18 mm piston, designed to bring downhill-level control and small-bump sensitivity to trail riding. It is offered in 27.5" and 29" versions with 140–180 mm travel and several crown offsets.
The damper offers 15 clicks of low-speed compression and rebound plus three high-speed compression positions and a climb mode, with tool-free dials. The retuned twin-piston, three-chamber air spring is cartridge-based and can be swapped for coil.
- TTX18 damper with climb mode
- 15 LSC / 15 rebound / 3 HSC clicks
- 27.5" and 29" versions, 140–180 mm
- eMTB-approved
- From 2150 g

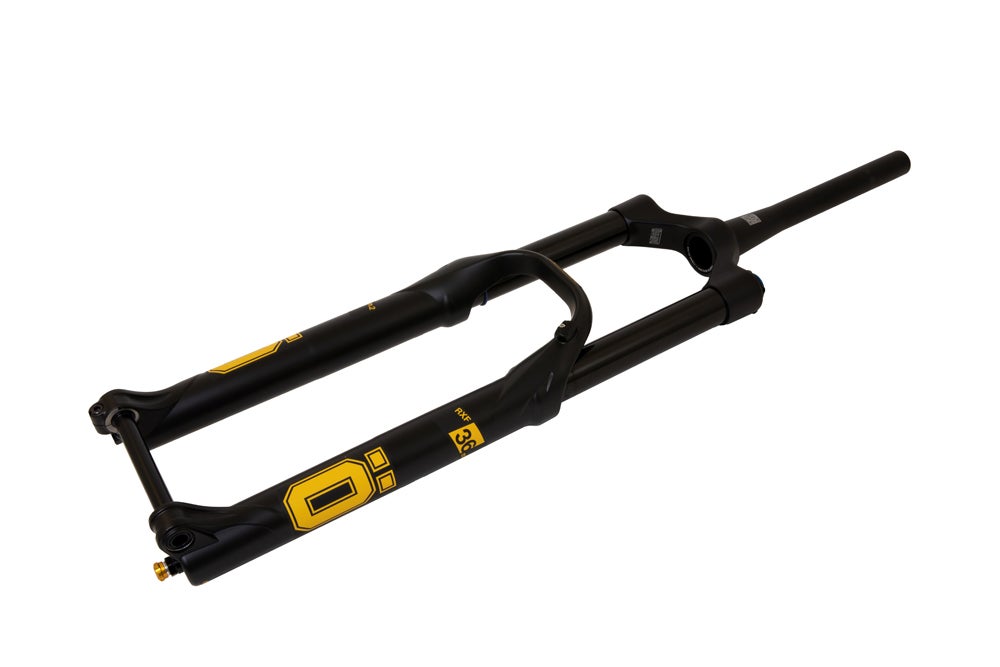

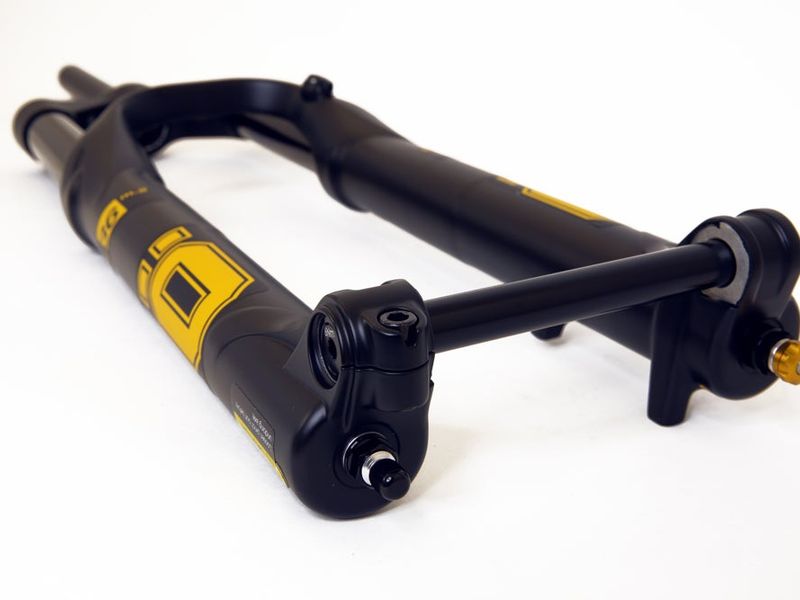

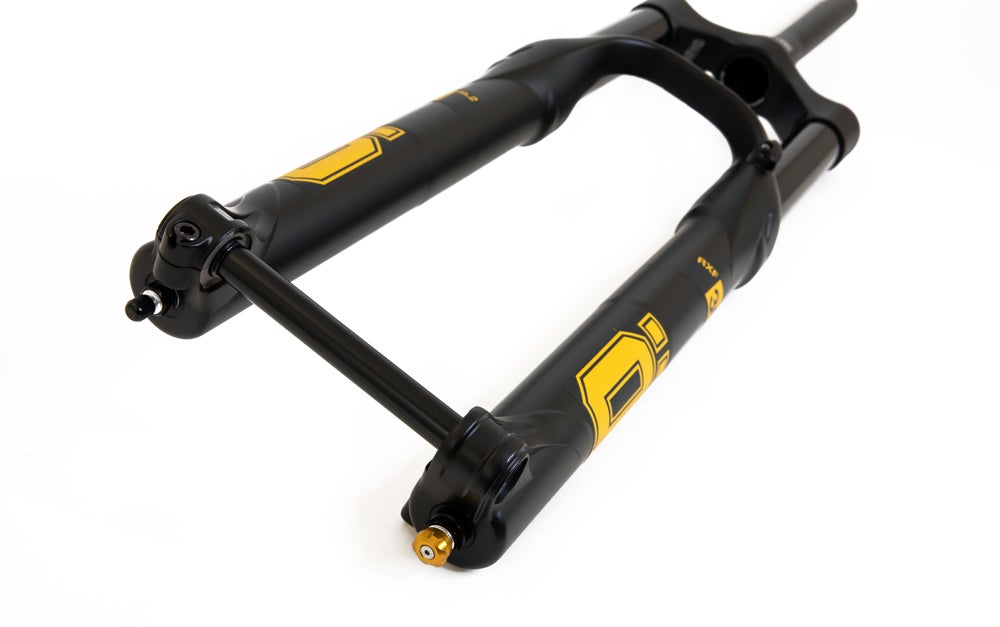

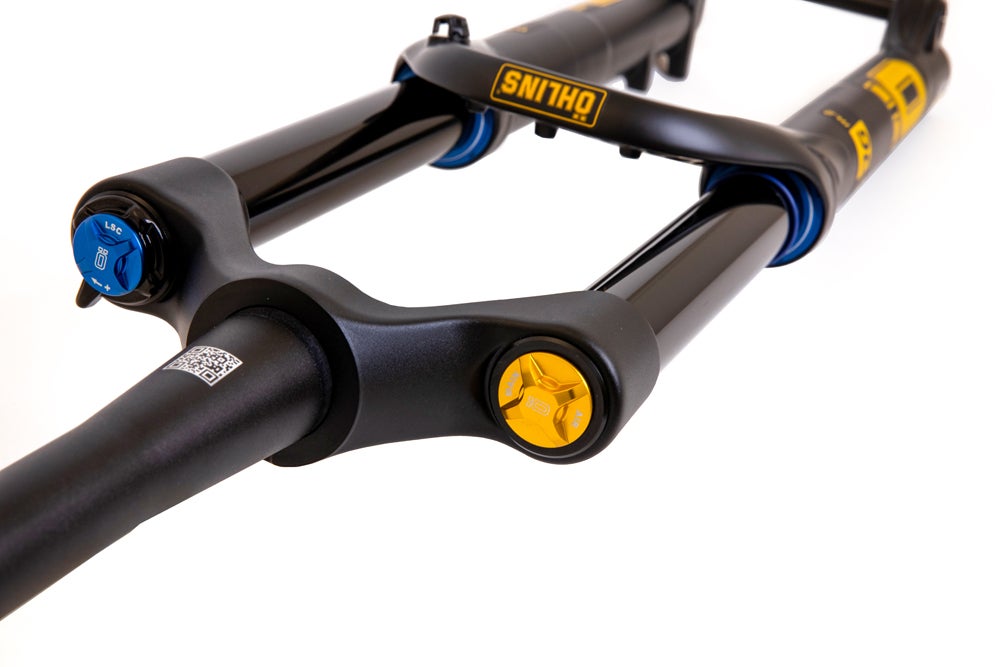

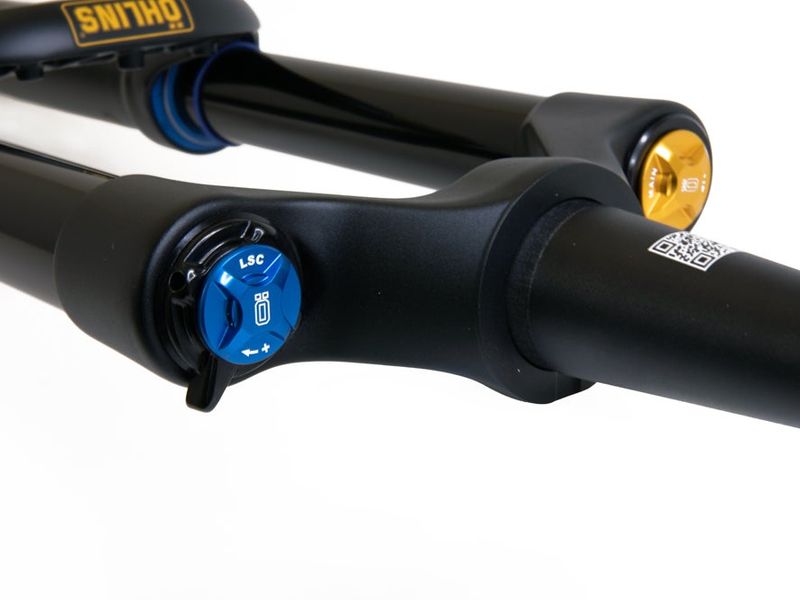

Gallery
Full specifications
General
- Feature
- TTX technology
- Feature
- Fork travel: 150 mm
- Feature
- Independent spring system
- Feature
- Independent damper system
- Feature
- Retuned air spring system
- Feature
- 36 mm upper tube diameter
- Feature
- 38 mm offset
- Feature
- Compatible maximum tire size: 27.5+ × 3.2 in
- Feature
- eMTB-approved
- Feature
- Race-proven setting bank
- Feature
- Overall improvements for reducing friction
- Feature
- Weight from: 2150 g (with bolts + axle)
- Available versions
- RXF36 m.2 Air TTX18 27.5'/38/150; RXF36 m.2 Air TTX18 27.5'/38/160; RXF36 m.2 Air TTX18 27.5'/38/170; RXF36 m.2 Air TTX18 27.5'/38/180; RXF36 m.2 Air TTX18 29'/44/140; RXF36 m.2 Air TTX18 29'/44/150; RXF36 m.2 Air TTX18 29'/44/160; RXF36 m.2 Air TTX18 29'/44/170; RXF36 m.2 Air TTX18 27.5'/46/150; RXF36 m.2 Air TTX18 27.5'/46/160; RXF36 m.2 Air TTX18 27.5'/46/170; RXF36 m.2 Air TTX18 27.5'/46/180; RXF36 m.2 Air TTX18 29'/51/140; RXF36 m.2 Air TTX18 29'/51/150; RXF36 m.2 Air TTX18 29'/51/160; RXF36 m.2 Air TTX18 29'/51/170
Chassis
- Axle-to-crown
- 550 mm
- Offset
- 38 mm
- Travel (listed variant)
- 150 mm
Compatibility
- Wheel size
- 27.5 in
- Brake rotor
- 180–205 mm
- Max tyre
- 27.5 × 2.8 in
- Axle
- 15 × 110 mm
Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 15
- Rebound clicks
- 15
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins RXF36 versions compared
| RXF36 m.3 | RXF36 m.2 | |
|---|---|---|
| Price | — | — |
| Travel | 140–160 mm (29"), 170 mm (27.5") | 140–180 mm |
| Wheel size | 29" / 27.5" | 27.5" / 29" |
| Stanchions | 36 mm | 36 mm |
| Damper | TTX18 | TTX18 |
| Spring | Three-chamber air (coil option) | Three-chamber air |
| E-bike rated | Yes (eMTB-approved) | Yes (eMTB-approved) |
| Weight | 2,050 g | 2,150 g |
eMTBs that come with the Öhlins RXF36
Öhlins RXF36 m.2: FAQ
How much does the Öhlins RXF36 m.2 weigh?
Öhlins quotes 2,150 g (from, with bolts + axle, claimed).
Is the Öhlins RXF36 m.2 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins RXF36 m.2?
Travel: 140–180 mm; Wheel size: 27.5" / 29"; Stanchions: 36 mm; Damper: TTX18; Spring: Three-chamber air; E-bike rated: Yes (eMTB-approved).
What other versions of the Öhlins RXF36 are there?
RXF36 m.3.
