ÖhlinsRXF34 m.2
No EUR/GBP RRP published; official US store lists from USD 1309.00
- Travel
- 120–140 mm
- Wheel size
- 29"
- Stanchions
- 34 mm
- Damper
- OTX18
- Spring
- Air
- E-bike rated
- Yes (eMTB-approved)
- Weight
- 1,698 g29", 120 mm, claimed
Overview
Öhlins RXF34 m.2: 34 mm eMTB-approved short-travel trail fork with OTX18 damper, 120–140 mm on 29", 1698 g.
The RXF34 m.2 is Öhlins' short-travel trail fork for lightweight 29ers, with 120–140 mm travel. It uses the OTX18 damper, derived from the TTX18 but 27% lighter, and an updated air spring with a self-adjusting negative chamber.
A closed-end outer tube design boosts stiffness and lower-leg air volume, and the floating axle from the RXF36 m.2 and RXF38 m.2 reduces friction. It is eMTB-approved and optimised for 180 mm rotors (203 mm max).
- OTX18 damper, 27% lighter than TTX18
- 120–140 mm travel, 29", 44 mm offset
- eMTB-approved
- Closed-end outer tubes, floating axle
- 1698 g

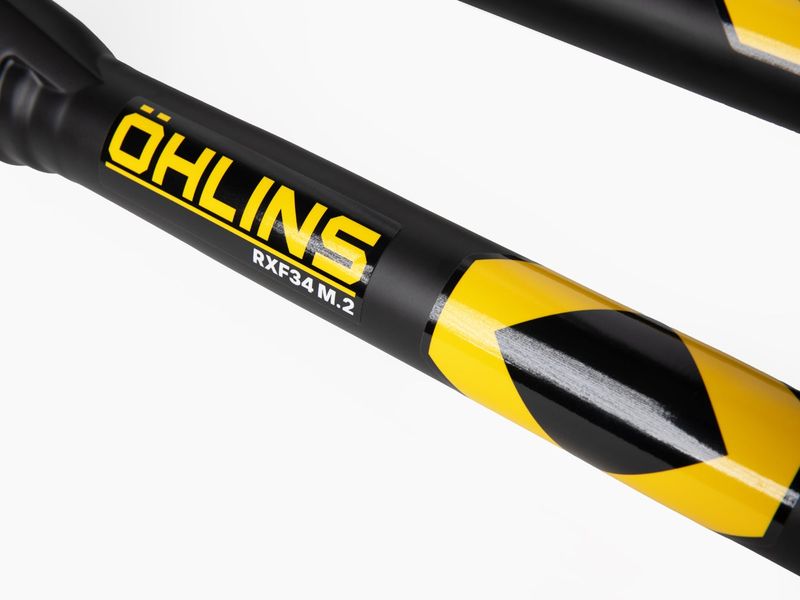

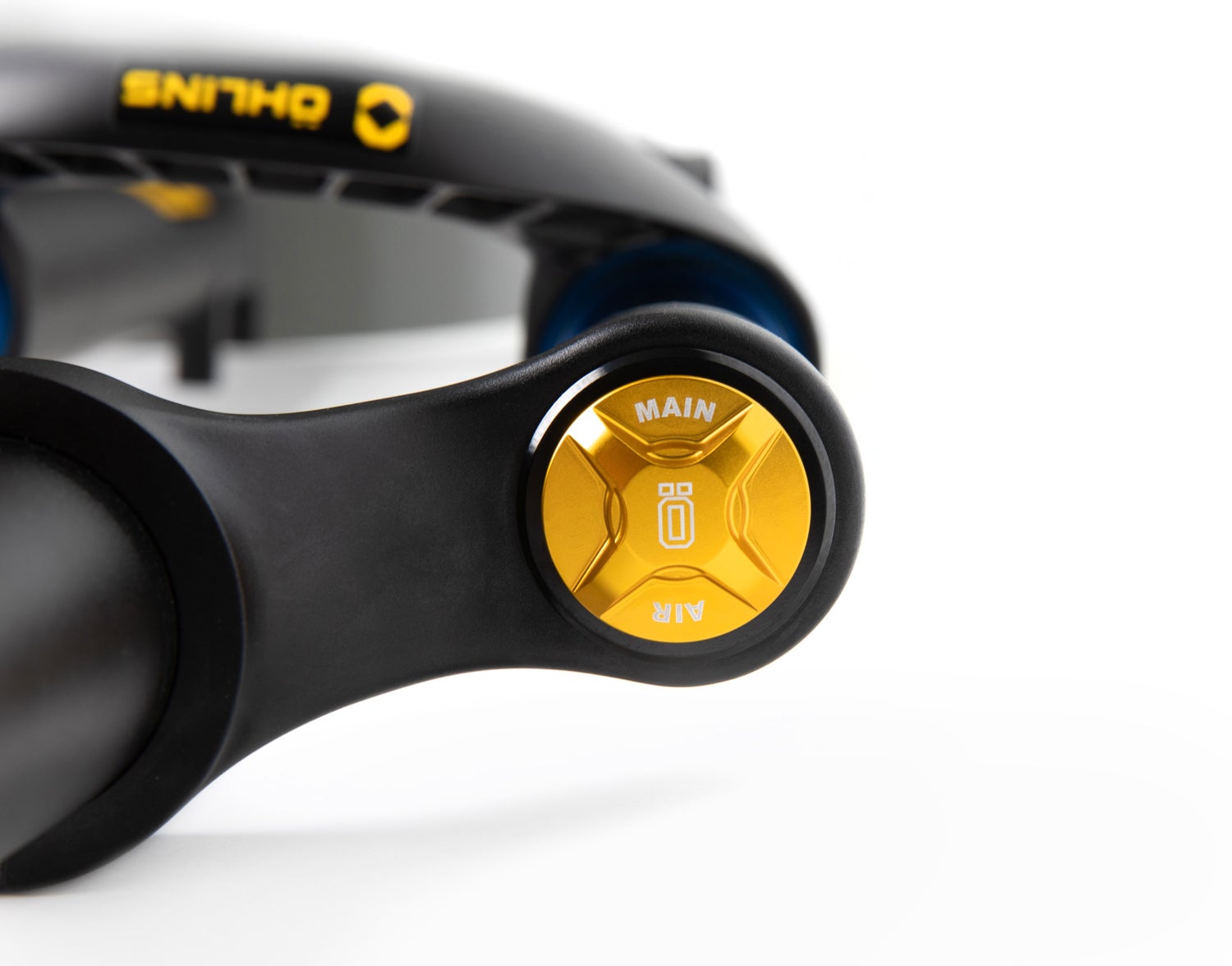

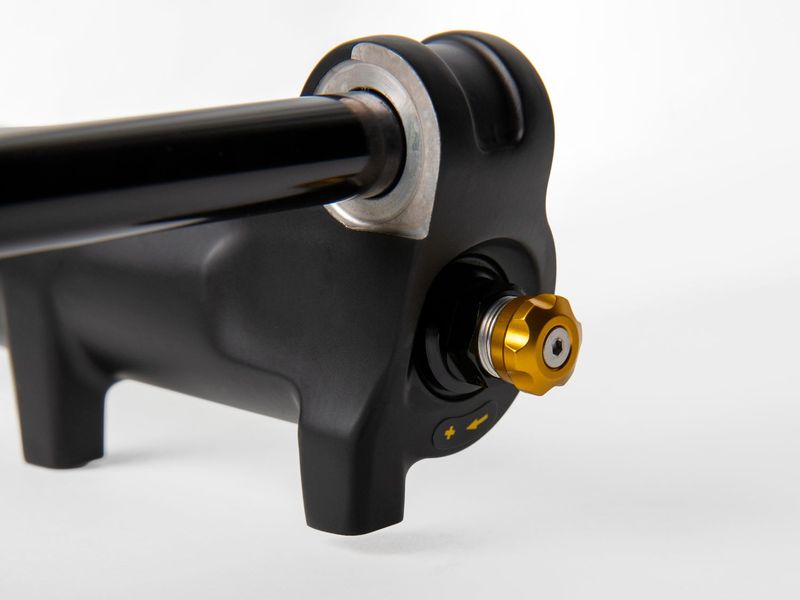

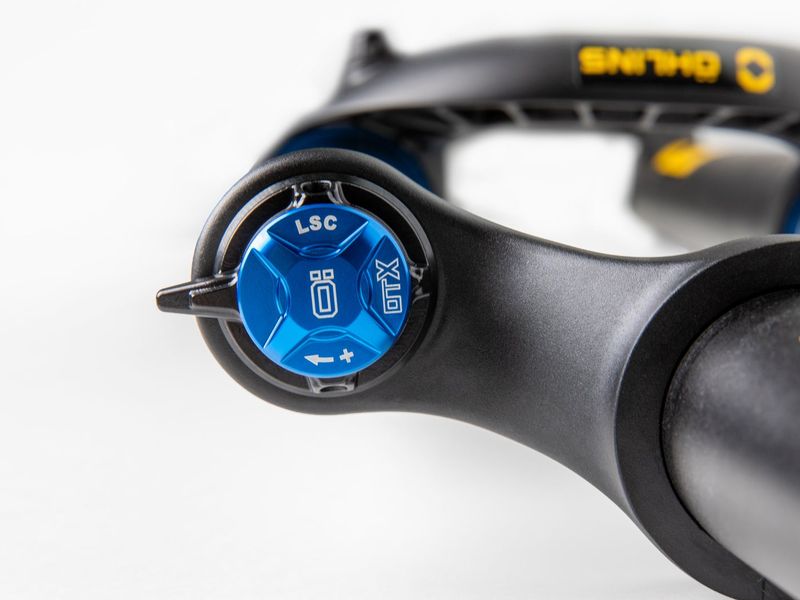

Gallery
Full specifications
General
- Feature
- Trail-optimized OTX18 damper
- Feature
- Lightweight air spring
- Feature
- 34 mm stanchion diameter
- Feature
- Wheel size: 29 in
- Feature
- 44 mm offset
- Feature
- Fork travel: 120 mm
- Feature
- Floating axle to minimize friction
- Feature
- eMTB-approved
- Feature
- Optimized for 180 mm discs (203 mm max)
- Feature
- Maximum tire size: 29 x 2.6 in
- Feature
- Axel to crown: 531 mm @ 120 mm stroke
- Feature
- Weight: 1698 g
- Available versions
- RXF34 m.2 Air OTX18 29'/44/120; RXF34 m.2 Air OTX18 29'/44/130; RXF34 m.2 Air OTX18 29'/44/140
Chassis
- Axle-to-crown
- 531 mm
- Offset
- 44 mm
Compatibility
- Wheel size
- 29 in
- Brake rotor
- 180–203 mm
- Max tyre
- 29 × 2.6 in
- Axle
- 15 × 110 mm
Damper
- Damper
- OTX18
- HSC clicks
- 3
- LSC clicks
- 15
- Rebound clicks
- 15
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins RXF34 m.2: FAQ
How much does the Öhlins RXF34 m.2 weigh?
Öhlins quotes 1,698 g (29", 120 mm, claimed).
Is the Öhlins RXF34 m.2 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins RXF34 m.2?
Travel: 120–140 mm; Wheel size: 29"; Stanchions: 34 mm; Damper: OTX18; Spring: Air; E-bike rated: Yes (eMTB-approved).
