ÖhlinsRXF38 m.2
No EUR/GBP RRP published; official US store lists from USD 1395.00
- Travel
- 160–180 mm
- Wheel size
- 29"
- Stanchions
- 38 mm
- Damper
- TTX18
- Spring
- Three-chamber air (coil option)
- E-bike rated
- Yes (approved for eMTB use)
- Weight
- 2,320 g29", from, claimed
Overview
Öhlins RXF38 m.2: 38 mm single-crown fork for enduro and e-MTB, TTX18 damper, 160–180 mm travel on 29", from 2320 g.
The RXF38 m.2 brings dual-crown downhill performance to a single-crown fork. Developed for aggressive trail, enduro and e-MTB use, it shares key technology with the DH38, including the TTX18 damper and a three-chamber air spring, and was developed with the Specialized Gravity team.
It is designed for 29" bikes with 160–180 mm travel and 44 or 51 mm crown offsets. The chassis is adapted from the DH38 with equally thick 38 mm stanchions and a floating axle; it is approved for eMTB use and available with eMTB-compatible crowns.
- TTX18 damper with independent cartridge air spring
- 160–180 mm travel, 29", 44/51 mm offsets
- Approved for eMTB use, eMTB-compatible crowns available
- Rotors up to 220 mm (optimised for 200 mm)
- From 2320 g

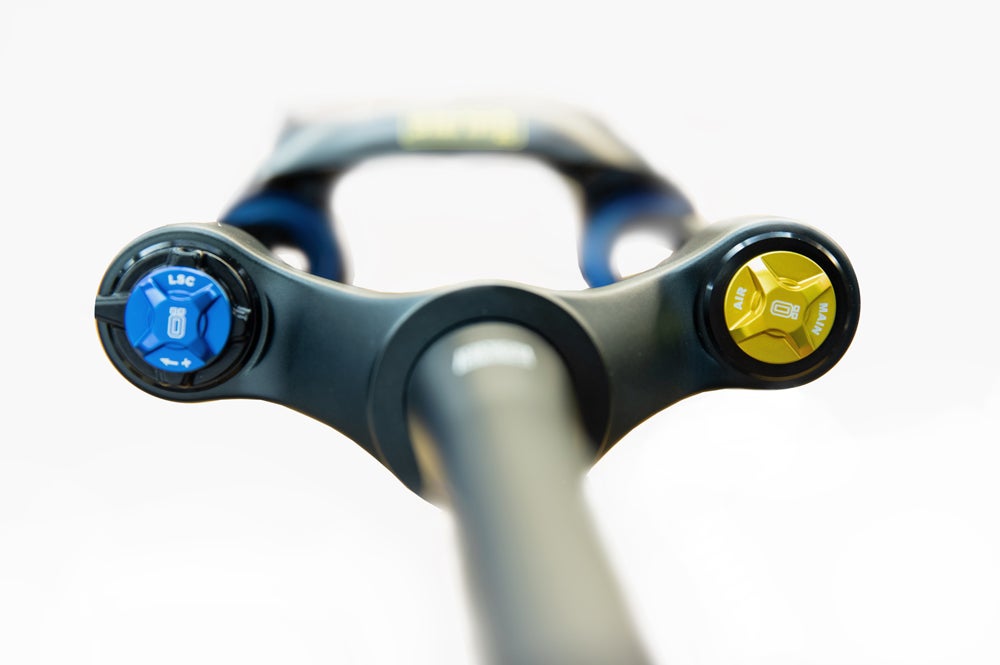

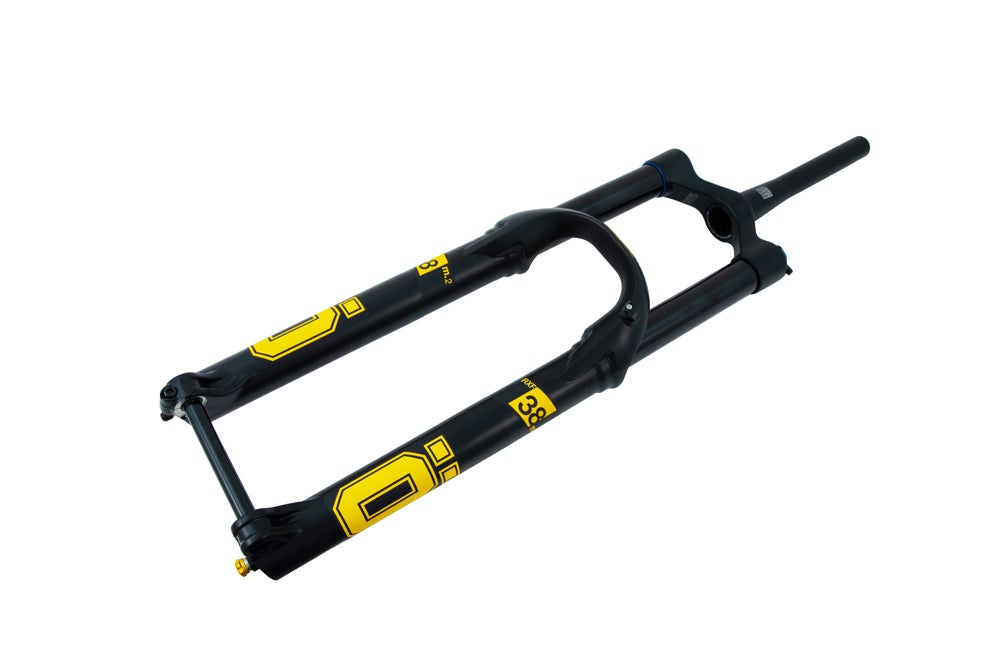

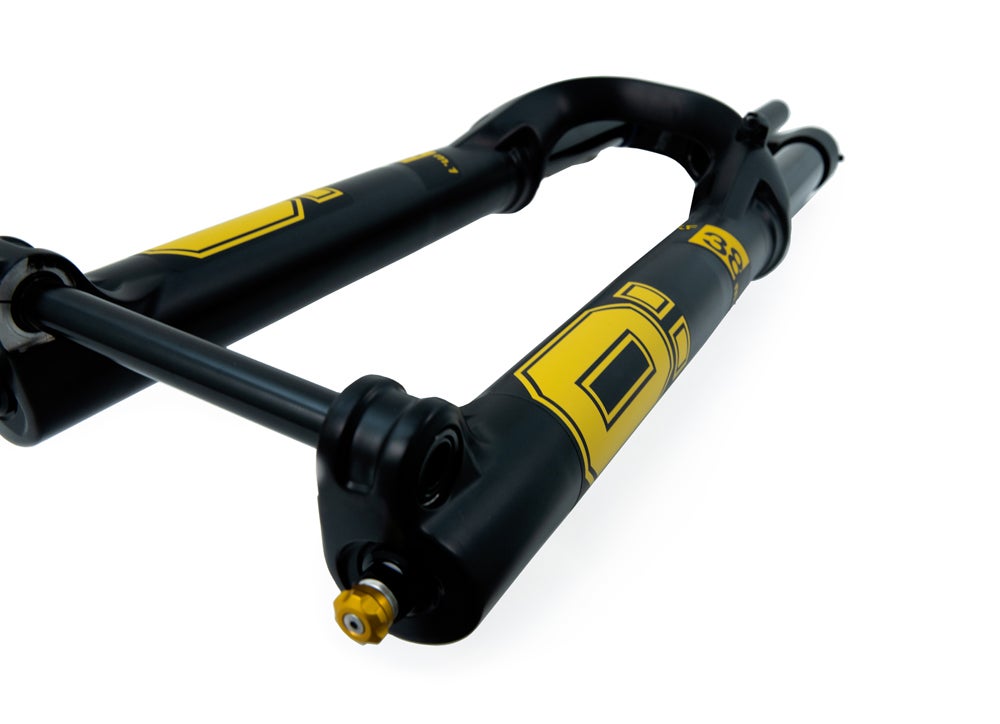

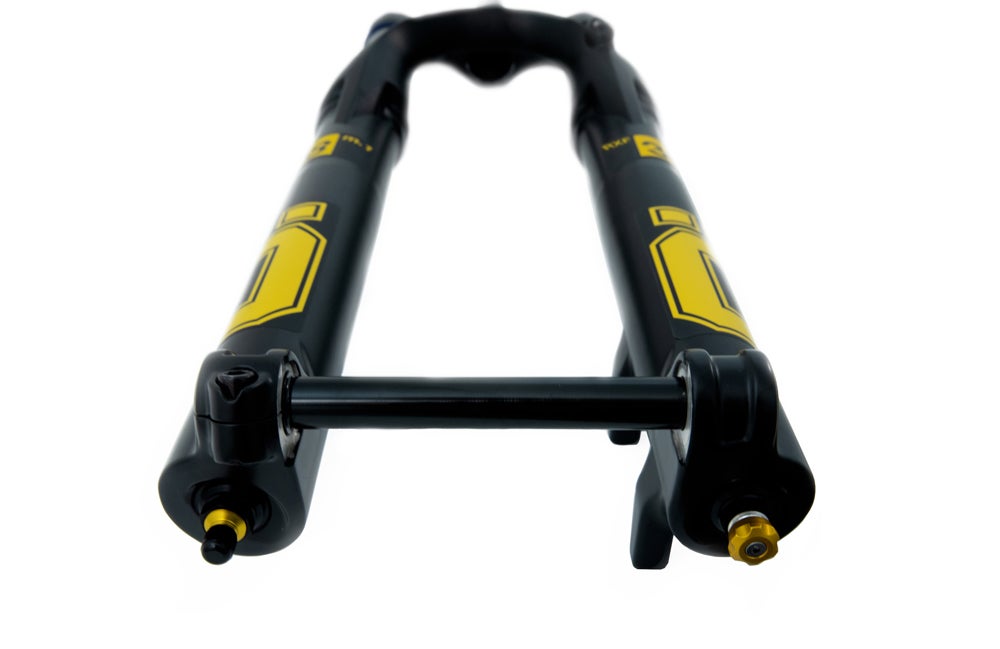

Gallery
Full specifications
General
- Feature
- TTX18 damping system
- Feature
- Independent cartridge air spring and damper systems
- Feature
- Fork travel: 160–180 mm
- Feature
- Easy to tune three-chamber air spring system
- Feature
- 38 mm stanchion diameter with 44 mm crown offset
- Feature
- Floating axle design to minimize friction
- Feature
- Approved for eMTB use and available with eMTB-compatible crowns
- Feature
- Compatible with maximum tire sizes up to 29 x 2.6 in
- Feature
- Compatible with maximum rotor sizes up to 220 mm, optimized for 200 mm
- Feature
- Axle-to-crown measurement: 573 mm @ 160 mm stroke
- Feature
- Weight: from 2320 g
- Available versions
- RXF38 m.2 Air TTX18 29'/44/160; RXF38 m.2 Air TTX18 29'/44/170; RXF38 m.2 Coil TTX18 29'/44/170; RXF38 m.2 Air TTX18 29'/44/180; RXF38 m.2 Air TTX18 29'/44L/180; RXF38 m.2 Air TTX18 29'/51/170
Chassis
- Axle-to-crown
- 573 mm
- Offset
- 44 mm
- Travel (listed variant)
- 160 mm
Compatibility
- Wheel size
- 29 in
- Brake rotor
- 200 mm
- Max tyre
- 29 × 2.6 in
- Axle
- 15 × 110 mm
Damper
- Damper
- TTX18
- HSC clicks
- 3
- LSC clicks
- 16
- Rebound clicks
- 16
Spring
- Spring type
- Air
Manufacturer specification — Öhlins. Specs and prices can change; check with the brand or your dealer.
Öhlins RXF38 versions compared
| RXF38 m.3 | RXF38 m.2 | |
|---|---|---|
| Price | — | — |
| Travel | 160–180 mm | 160–180 mm |
| Wheel size | 29" | 29" |
| Stanchions | 38 mm | 38 mm |
| Damper | TTX18 | TTX18 |
| Spring | Air (coil option) | Three-chamber air (coil option) |
| E-bike rated | Yes (eMTB-approved) | Yes (approved for eMTB use) |
| Weight | 2,320 g | 2,320 g |
eMTBs that come with the Öhlins RXF38
Öhlins RXF38 m.2: FAQ
How much does the Öhlins RXF38 m.2 weigh?
Öhlins quotes 2,320 g (29", from, claimed).
Is the Öhlins RXF38 m.2 suitable for e-bikes?
Yes — Öhlins lists it as e-bike rated or e-bike specific.
What are the key specs of the Öhlins RXF38 m.2?
Travel: 160–180 mm; Wheel size: 29"; Stanchions: 38 mm; Damper: TTX18; Spring: Three-chamber air (coil option); E-bike rated: Yes (approved for eMTB use).
What other versions of the Öhlins RXF38 are there?
RXF38 m.3.
