TrekFuel+ LX
- Price
- £7,800 – £10,475
- Motor
- TQ HPR6060 Nm, 350 W peak
- Battery
- 580 WhRemovable
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
Overview
The Fuel+ Gen 2 is Trek's mid-power trail e-MTB: TQ's HPR60 motor (60 Nm, 350 W peak) with a removable 580 Wh battery, in three configurations — EX (145 mm rear / 150 mm fork, mixed wheels), MX (150 mm rear, mixed wheels) and LX (160 mm rear / 170 mm fork, 29-inch wheels).
Most builds use an OCLV Mountain Carbon frame (the EX 8 is aluminium) with an angle-adjust headset, adjustable leverage rate and interchangeable rocker links and lower shock mount.
- TQ HPR60: 60 Nm, 350 W peak
- Removable 580 Wh battery
- EX, MX and LX travel/wheel configurations
- Angle-adjust headset, adjustable leverage rate
Trek Fuel+ LX builds
Fuel+ LX builds compared

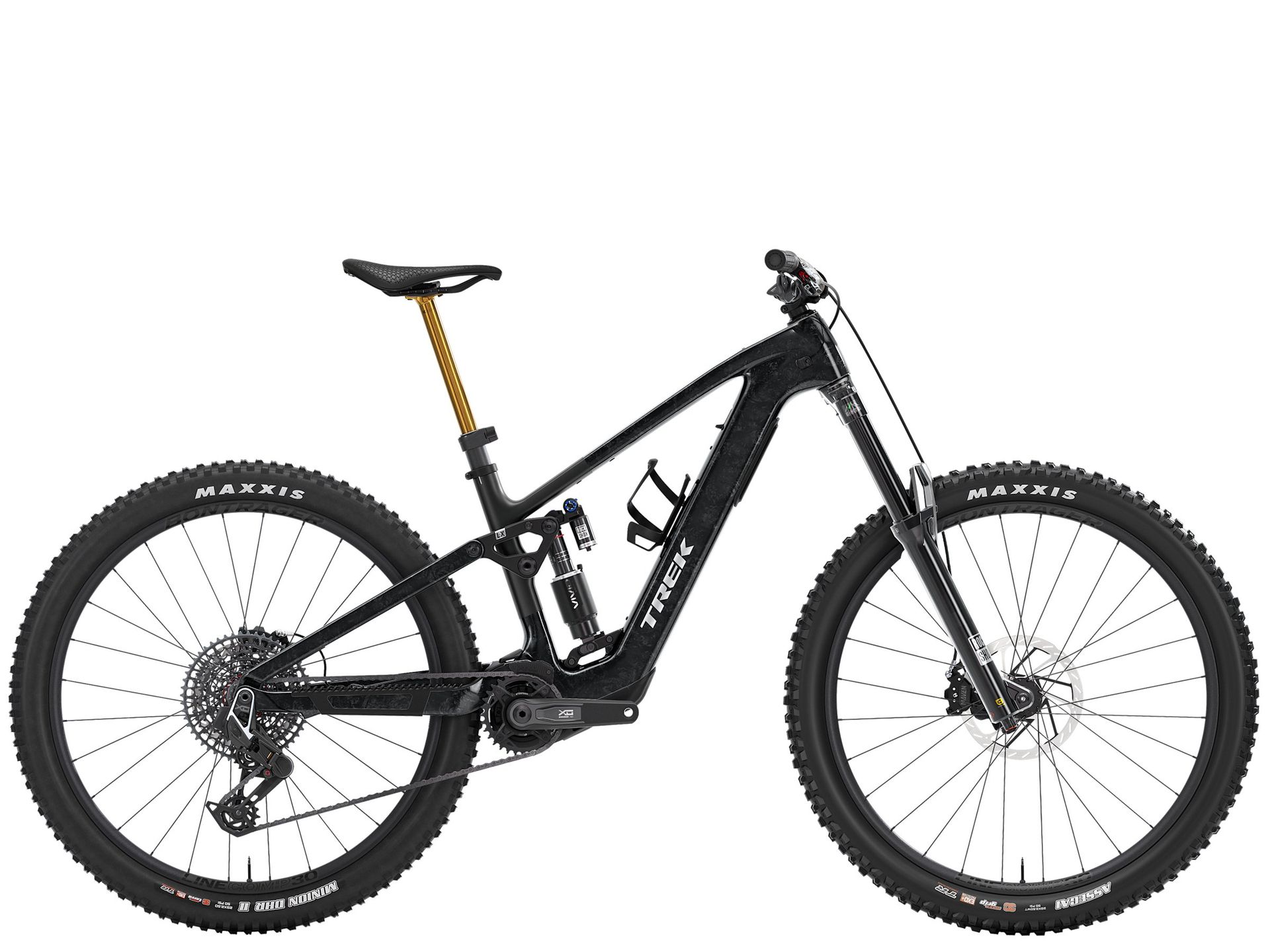

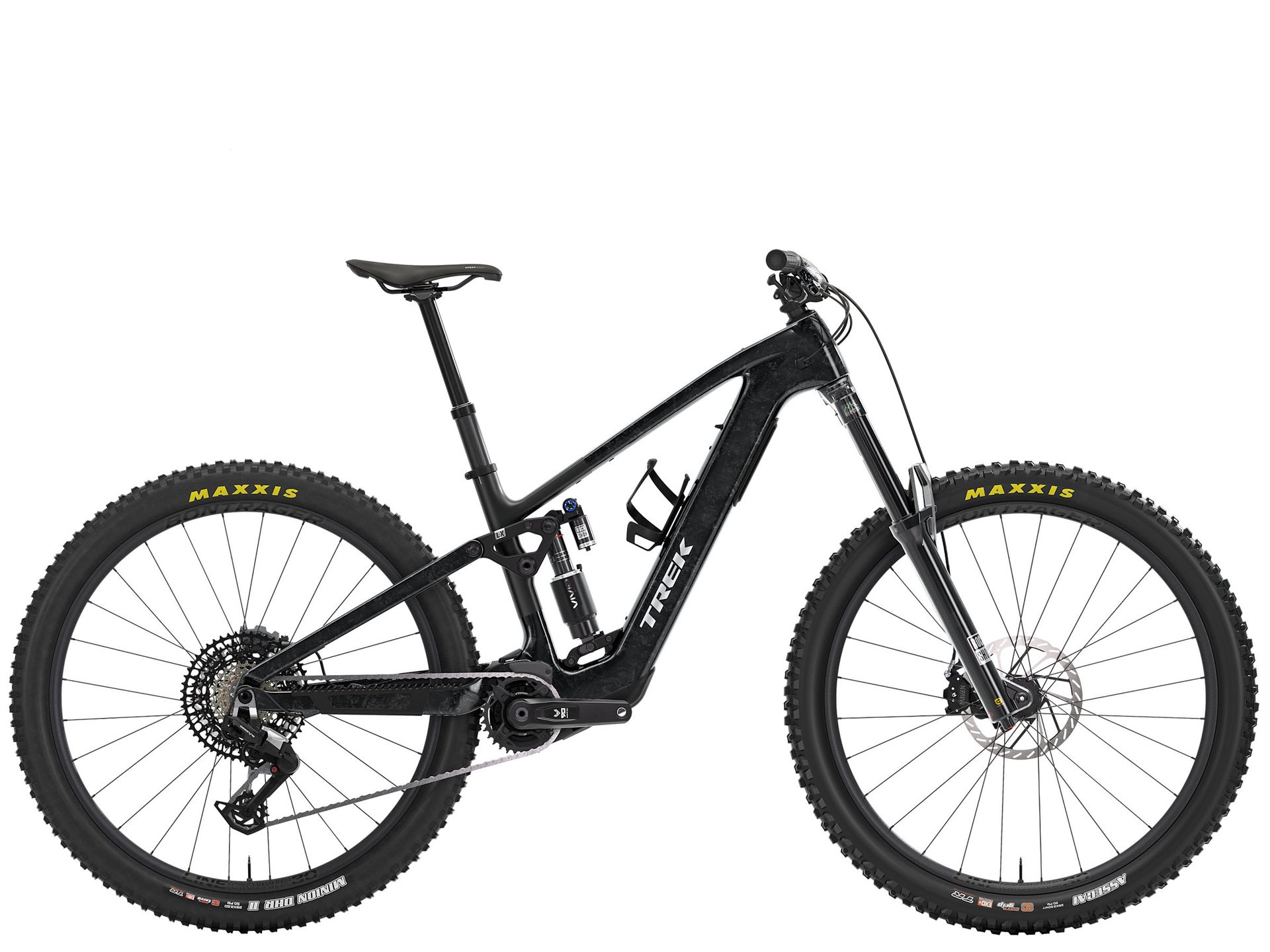

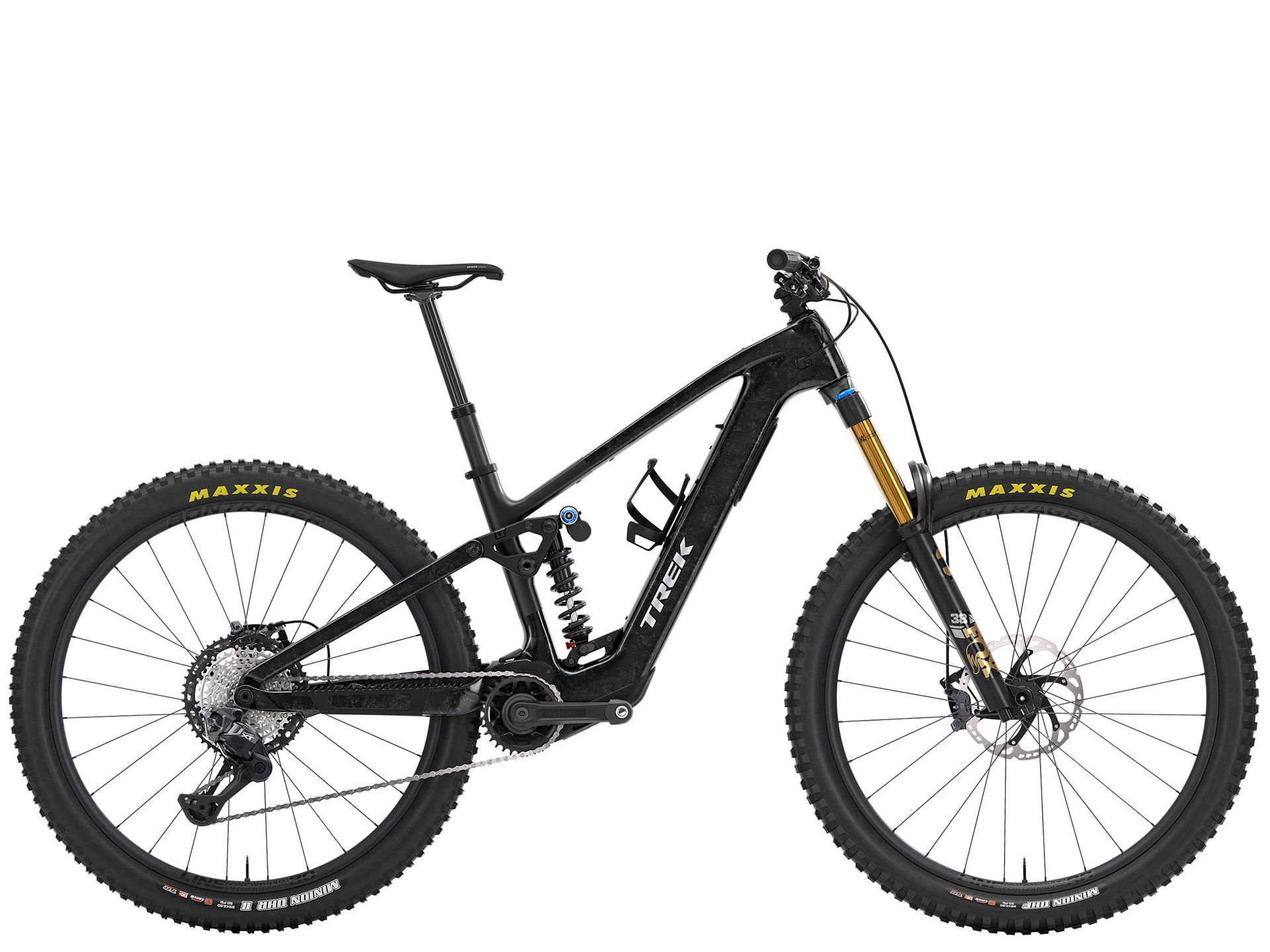

| Fuel+ LX 9.8 XT Gen 2 | Fuel+ LX 9.8 Eagle 90 Gen 2 | Fuel+ LX 9.8 XT Di2 Gen 2 | Fuel+ LX 9.9 X0 AXS Gen 2 | |
|---|---|---|---|---|
| Price | £7,800 | £7,800 | £8,250 | £10,475 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox Factory 38, Float EVOL air spring | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups | Fox Factory 38, Float EVOL air spring | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups |
| Shock | Fox DHX2 | RockShox Vivid Ultimate D1 | Fox DHX2 | RockShox Vivid Ultimate D1 |
| Derailleur | Shimano Deore M8200 | SRAM Eagle 90 | Shimano XT Di2 M8260 | SRAM X0 Eagle AXS |
| Brakes | Shimano XT M8220 4-piston hydraulic disc | SRAM Maven Bronze 4-piston hydraulic disc | Shimano XT M8220 4-piston hydraulic disc | SRAM Maven Silver 4-piston hydraulic disc |
| Wheels | Bontrager Line Comp 30 | Bontrager Line Comp 30 | Bontrager Line Comp 30 | Bontrager Line Pro 30 |
Fuel+ LX geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" | 29" |
| Seat tube length | 370 mm | 400 mm | 420 mm | 455 mm | 475 mm |
| Seat tube angle | 71.5° | 71.5° | 71.5° | 71.6° | 71.6° |
| Effective seat tube angle | 77.0° | 76.7° | 76.3° | 75.9° | 75.4° |
| Head tube length | 110 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Head angle | 63.4° | 63.4° | 63.4° | 63.5° | 63.5° |
| Effective top tube | 563 mm | 593 mm | 622 mm | 655 mm | 684 mm |
| BB height | 347 mm | 347 mm | 347 mm | 346 mm | 346 mm |
| BB drop | 26 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Chainstay length | 444 mm | 444 mm | 444 mm | 447 mm | 452 mm |
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 137 mm | 137 mm | 137 mm |
| Wheelbase | 1213 mm | 1243 mm | 1275 mm | 1310 mm | 1341 mm |
| Standover | 763 mm | 757 mm | 760 mm | 764 mm | 773 mm |
| Reach | 418 mm | 448 mm | 473 mm | 498 mm | 518 mm |
| Stack | 633 mm | 633 mm | 647 mm | 661 mm | 674 mm |
| Front centre | 771 mm | 801 mm | 833 mm | 864 mm | 891 mm |
Source: Trek.
Trek Fuel+ LX: FAQ
How much does the Trek Fuel+ LX cost?
£7,800 – £10,475 depending on the build (Fuel+ LX 9.8 XT Gen 2 £7,800, Fuel+ LX 9.8 Eagle 90 Gen 2 £7,800, Fuel+ LX 9.8 XT Di2 Gen 2 £8,250, Fuel+ LX 9.9 X0 AXS Gen 2 £10,475); RRP UK, VAT incl..
How many Trek Fuel+ LX builds are there?
4: Fuel+ LX 9.8 XT Gen 2, Fuel+ LX 9.8 Eagle 90 Gen 2, Fuel+ LX 9.8 XT Di2 Gen 2, Fuel+ LX 9.9 X0 AXS Gen 2. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Trek Fuel+ LX use?
TQ HPR60 (60 Nm, 350 W peak) with a 580 Wh battery (removable).
How much travel does the Trek Fuel+ LX have?
170 mm fork and 160 mm rear travel on 29" wheels.
