SpecializedTurbo Levo R Pro
- Motor
- Specialized 3.1105 Nm, 810 W
- Battery
- 840 WhSide-entry, integrated
- Travel F / R
- 140 / 130 mm
- Wheels
- 29"
- Frame
- FACT 11m carbon
- Weight
- 22.6 kgSize S3, manufacturer figure
Overview
The Turbo Levo R Pro ($9,999.99) switches to RockShox Lyrik Ultimate and Super Deluxe Ultimate GENIE suspension with SRAM X0 Transmission and Maven Silver brakes. Claimed weight is 22.58 kg (S3).
The Turbo Levo R is Specialized's shorter-travel full-power eMTB: a FACT 11m carbon frame with 130 mm of rear travel, a 140 mm fork and 29-inch wheels (S1 uses a 27.5-inch rear wheel), with adjustable geometry and SWAT down-tube storage.
Comp, Expert and Pro use the 105 Nm Specialized 3.1 motor and an 840 Wh battery; the S-Works gets the 111 Nm S-Works motor with 900 Wh, and the S-Works Ultralight pairs it with a 600 Wh battery for a claimed 18.84 kg.
- 130 mm rear / 140 mm fork travel, 29" wheels
- Full-power 3.1 motor, 105–111 Nm
- 600–900 Wh batteries depending on build
- FACT 11m carbon frame, SWAT storage

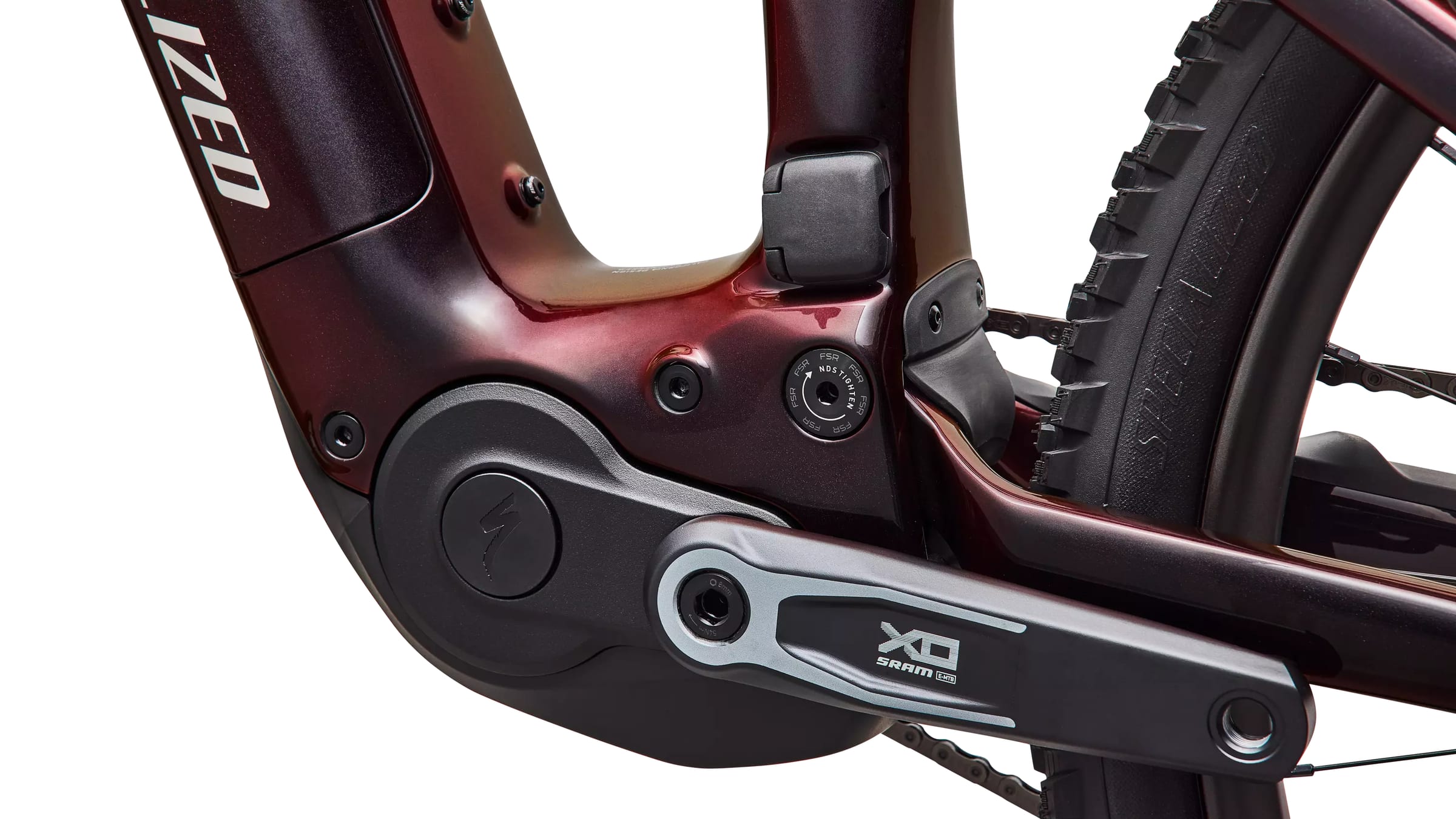

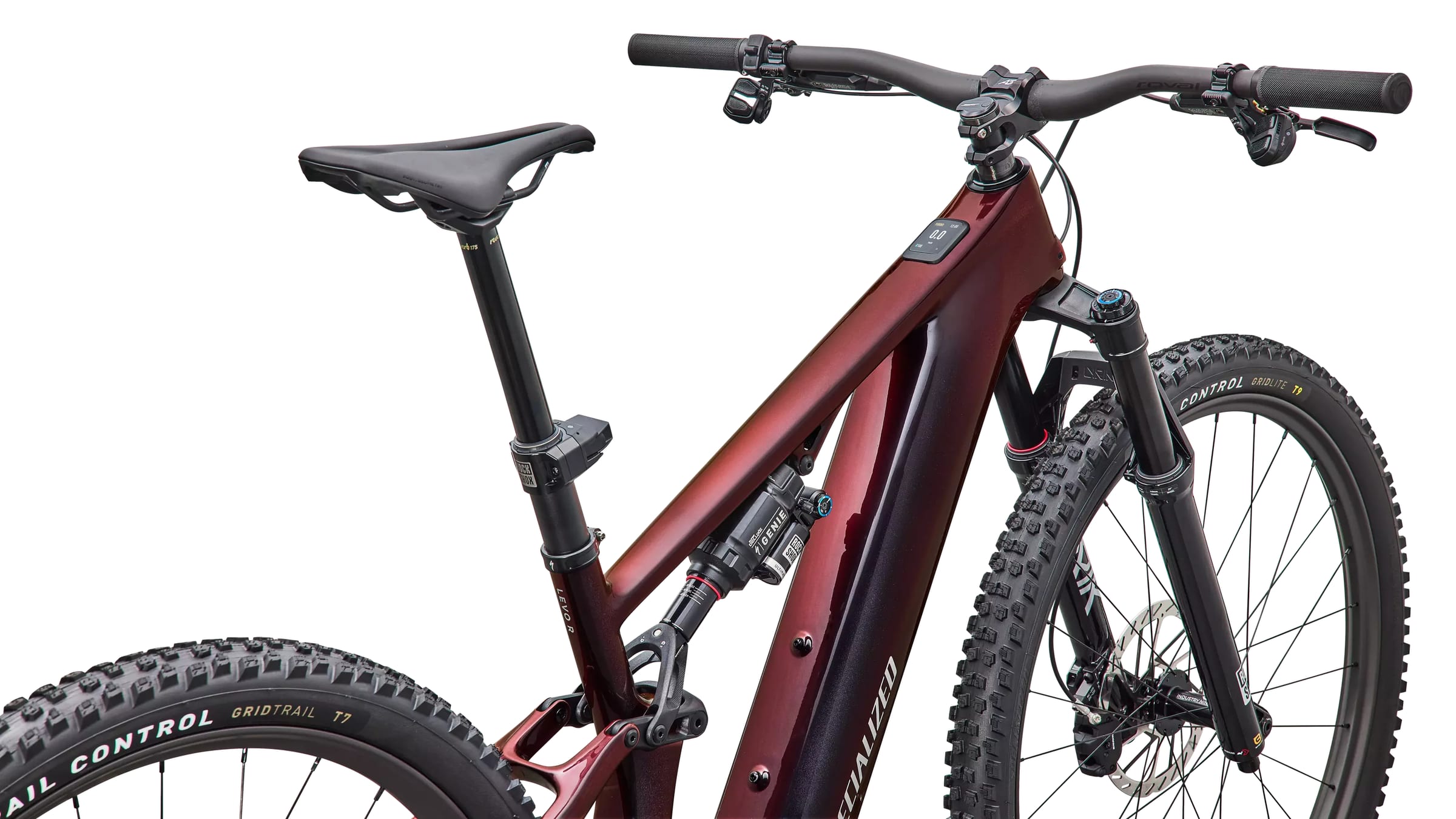

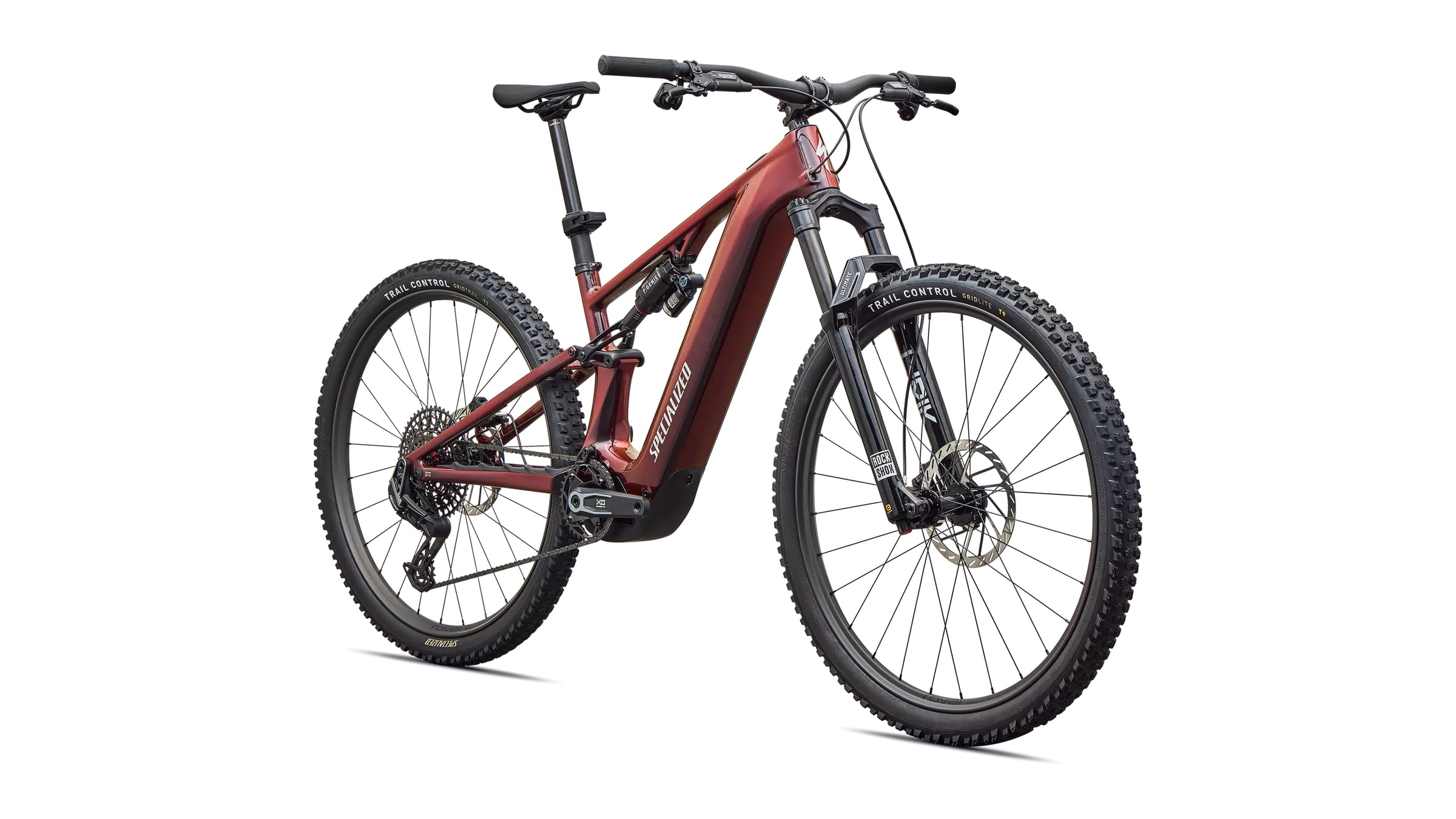

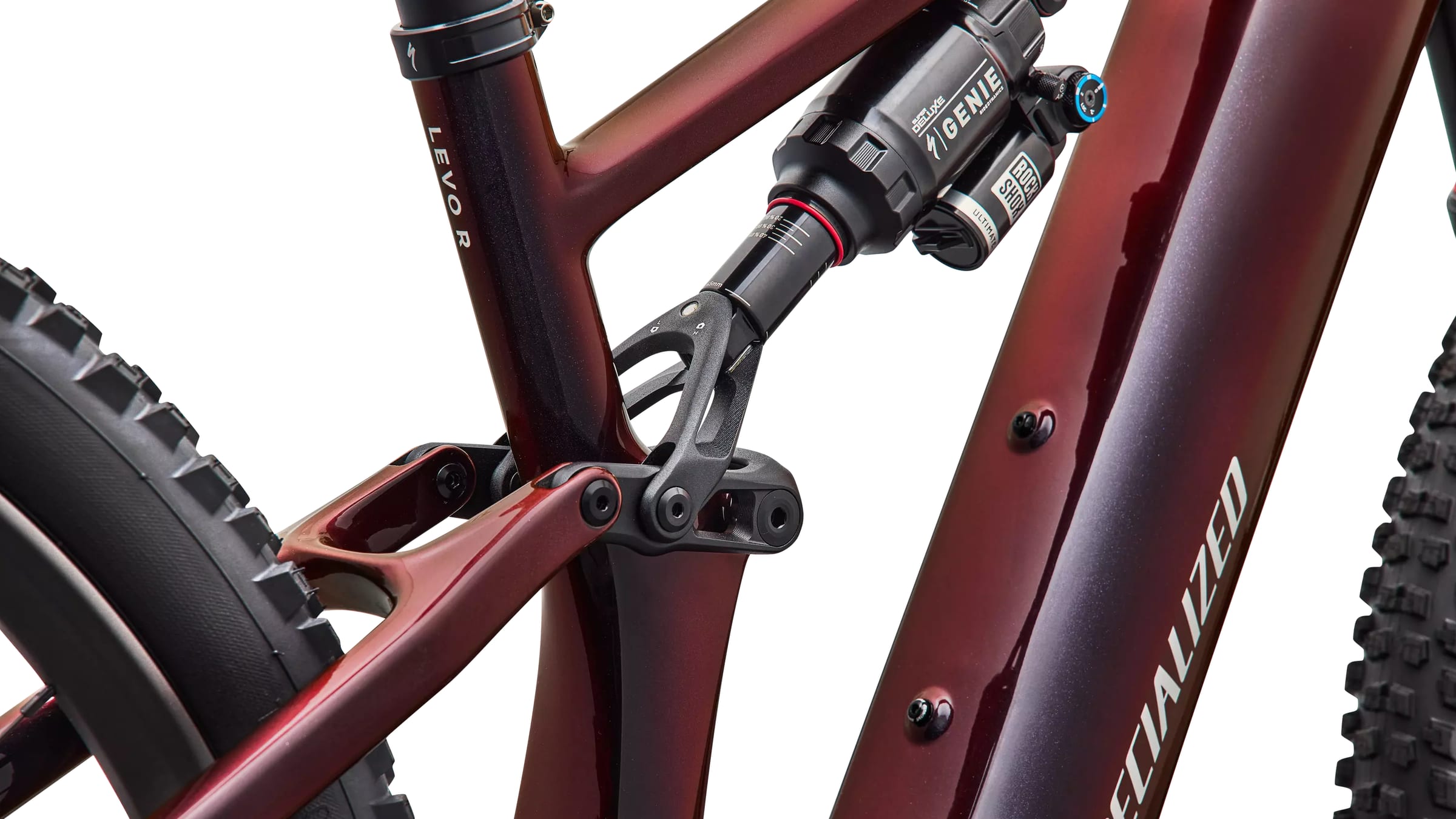

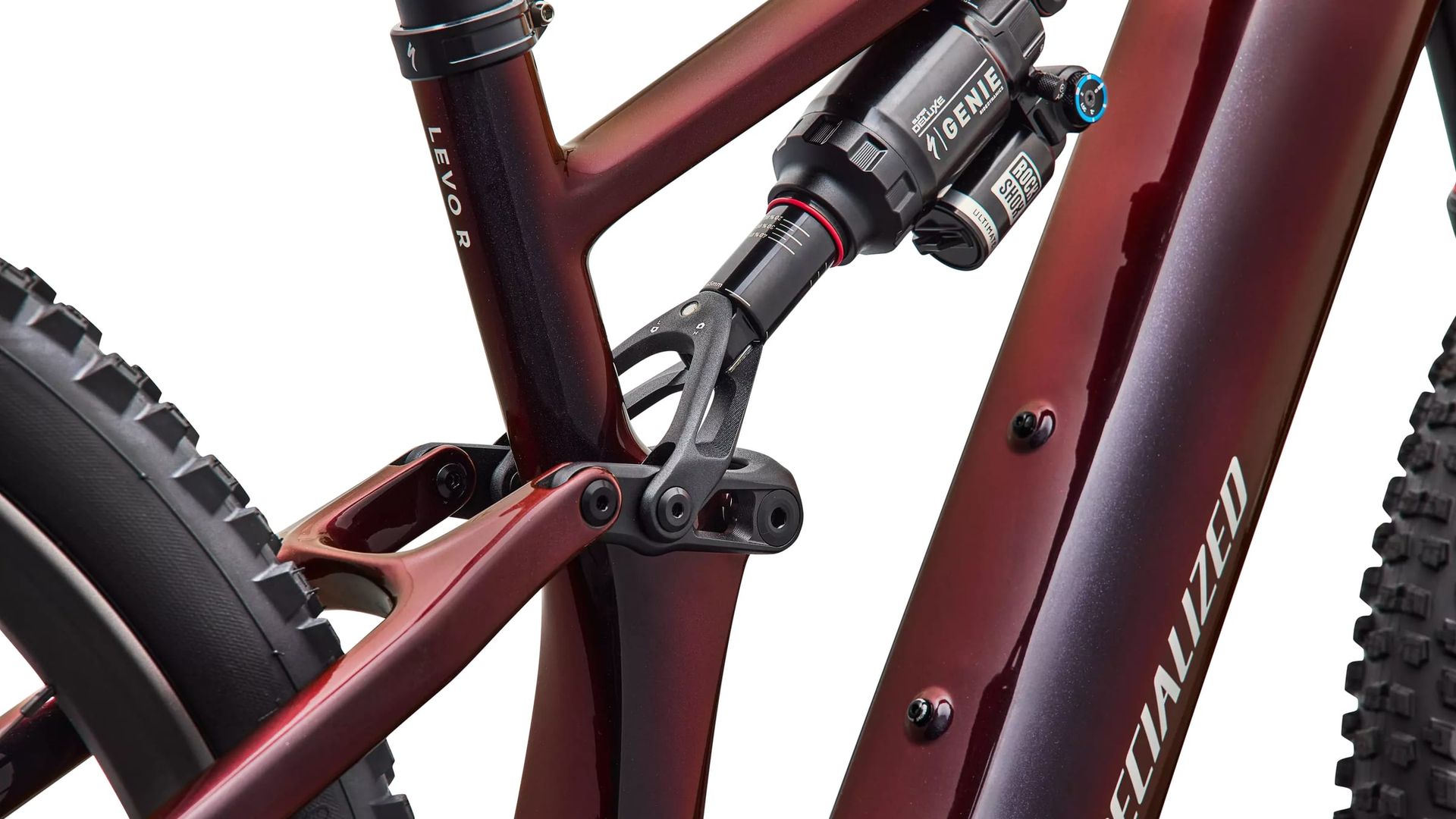

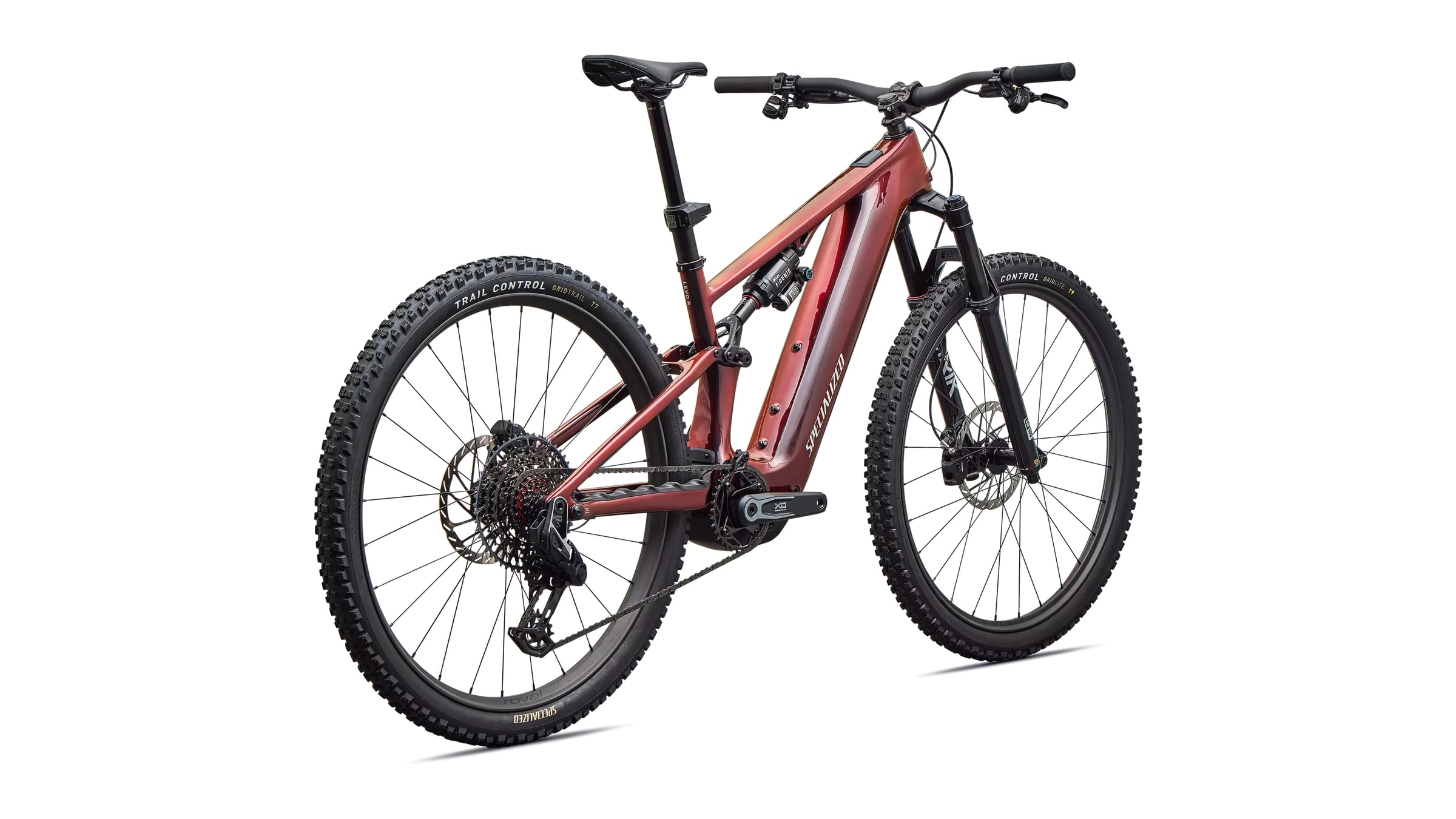

Gallery
Photos: Specialized
Full specifications
Frame & suspension
- Frame
- FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
- Seat Binder
- Alloy, 38.6mm
- Rear Shock
- All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 190x45mm
- Fork
- All New SRAM Rockshox Lyrik Ultimate, 29" 140mm, LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
E-system
- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Battery
- 840Wh battery
- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Drivetrain
- Shift Levers
- SRAM AXS POD Controller
- Rear Derailleur
- SRAM X0 Eagle Transmission
- Cassette
- SRAM XS 1295, 12 speed, 10-52
- Chain
- SRAM X0 Eagle Transmission 12-Speed Flattop Chain
- Crankset
- SRAM X0 Alloy Crank, ISIS interface, 55mm chainline, 160mm
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
Brakes
- Front Brake
- Sram Maven Silver, 4 piston, SRAM HS2 200mm rotor
- Rear Brake
- Sram Maven Silver, 4 piston, SRAM HS2 200mm rotor
Wheels & tyres
- Front Tyre
- Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4
- Front Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28H, Sapim D-Light Spokes
- Rear Tyre
- Specialized Trail Control, GRID Casing, T7 Compound, TLR, 29x2.4
- Rear Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 12x148mm, 32H, Sapim D-Light Spokes
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Industry Nine A35, 50mm, 35mm clamp
- Handlebars
- Traverse SL Carbon, 6-degree upsweep, 8-degree backsweep, 30mm rise, 35mm, 780mm wide
- Grips
- Specialized Trail Grips
- Saddle
- Specialized Power Expert, Ti Rails, 143mm/155mm
- Seatpost
- RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm
Other
- SWAT
- SWAT internal downtube storage
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Turbo Levo R geometry
| Size | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 |
|---|---|---|---|---|---|
| Crank Length | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Handlebar Width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Stem Length | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 125 mm | 175 mm | 200 mm | 200 mm | 225 mm |
| Stack | 607 mm | 616 mm | 630 mm | 644 mm | 657 mm |
| Reach | 420 mm | 450 mm | 475 mm | 500 mm | 525 mm |
| Head tube Length | 100 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Head tube Angle | 65° | 65° | 65° | 65° | 65° |
| BB Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| B-B Drop | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Fork Length (full) | 550 mm | 550 mm | 550 mm | 550 mm | 550 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 736 mm | 770 mm | 801 mm | 833 mm | 863 mm |
| Chain-Stay Length | 447 mm | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1181 mm | 1215 mm | 1246 mm | 1277 mm | 1309 mm |
| Top-Tube Length (horizontal) | 560 mm | 592 mm | 620 mm | 649 mm | 677 mm |
| Bike Stand-Over Height | 763 mm | 773 mm | 783 mm | 793 mm | 803 mm |
| Seat-Tube Length | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° |
| Seat Post Max Insertion | 227 mm | 249 mm | 271 mm | 292 mm | 312 mm |
| Seat Post Min Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
Source: Specialized.
Turbo Levo R: builds compared
Turbo Levo R range →| Turbo Levo R Comp | Turbo Levo R Expert | Turbo Levo R Pro | S-Works Turbo Levo R | S-Works Turbo Levo R Ultralight | |
|---|---|---|---|---|---|
| Price | $6,399.99 | $7,199.99 | $9,999.99 | $11,999.99 | $12,999.99 |
| Frame | FACT 11m carbon | FACT 11m carbon | FACT 11m carbon | FACT 11m carbon | FACT 11m carbon |
| Fork | FOX 36 SL Performance, GRIP Damper | FOX 36 SL Performance Elite, GRIP X Damper | All New SRAM Rockshox Lyrik Ultimate, 29" 140mm | All New SRAM Rockshox Lyrik Ultimate, 29" 140mm | FOX 36 SL Factory, GRIP X Damper |
| Shock | FOX FLOAT Performance GENIE | FOX FLOAT Performance Elite GENIE | All New Rockshox Super Deluxe Ultimate GENIE | All New Rockshox Super Deluxe Ultimate GENIE | FOX FLOAT Factory GENIE |
| Derailleur | SRAM S1000 Eagle AXS | SRAM GX Eagle AXS Transmission | SRAM X0 Eagle Transmission | SRAM XX SL Eagle AXS | SRAM XX SL Eagle AXS |
| Brakes | SRAM Motive Bronze | SRAM Motive Bronze | Sram Maven Silver | SRAM Motive Ultimate | TRICKSTUFF Direttissima |
| Wheels | Specialized, hookless alloy | Roval Traverse SL II Rim | Roval Traverse SL II Rim | Roval Traverse SL II Rim | Roval Control SL VI |
| Weight | 22.3 kg | 21.8 kg | 22.6 kg | 21.8 kg | 18.8 kg |
Turbo Levo R Pro: FAQ
How much does the Specialized Turbo Levo R Pro cost?
$9,999.99 (US MSRP). The Turbo Levo R range runs from $6,399.99 (Turbo Levo R Comp) to $12,999.99 (S-Works Turbo Levo R Ultralight). Prices vary by country and dealer.
How much does the Specialized Turbo Levo R Pro weigh?
Specialized quotes 22.6 kg. The lightest Turbo Levo R build is the S-Works Turbo Levo R Ultralight at 18.8 kg.
What motor and battery does the Specialized Turbo Levo R Pro have?
Specialized 3.1 (105 Nm, 810 W). 840 Wh battery — side-entry, integrated.
How much suspension travel does the Specialized Turbo Levo R Pro have?
140 mm at the fork and 130 mm at the rear, on 29" wheels.
What sizes does the Specialized Turbo Levo R Pro come in?
S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Turbo Levo R Pro and the S-Works Turbo Levo R?
They share the Turbo Levo R frame platform; the differences are in the parts — derailleur: SRAM X0 Eagle Transmission vs SRAM XX SL Eagle AXS; brakes: Sram Maven Silver vs SRAM Motive Ultimate; claimed weight: 22.6 kg vs 21.8 kg; price: $9,999.99 vs $11,999.99.
