SpecializedS-Works Turbo Levo SL 2 Di2
- Motor
- Specialized SL 1.250 Nm, 320 W
- Battery
- 320 WhFully integrated
- Travel F / R
- – / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- FACT 11m carbon
- Weight
- 18 kgSize S4, manufacturer figure
Overview
The S-Works Turbo Levo SL 2 Di2 ($11,499.99) is the lightest Levo SL 2 at a claimed 18.0 kg (S4), with Shimano XTR Di2 and XTR brakes, Fox Factory 36 GRIP X2 and Float X Factory GENIE suspension and Roval Traverse HD carbon wheels.

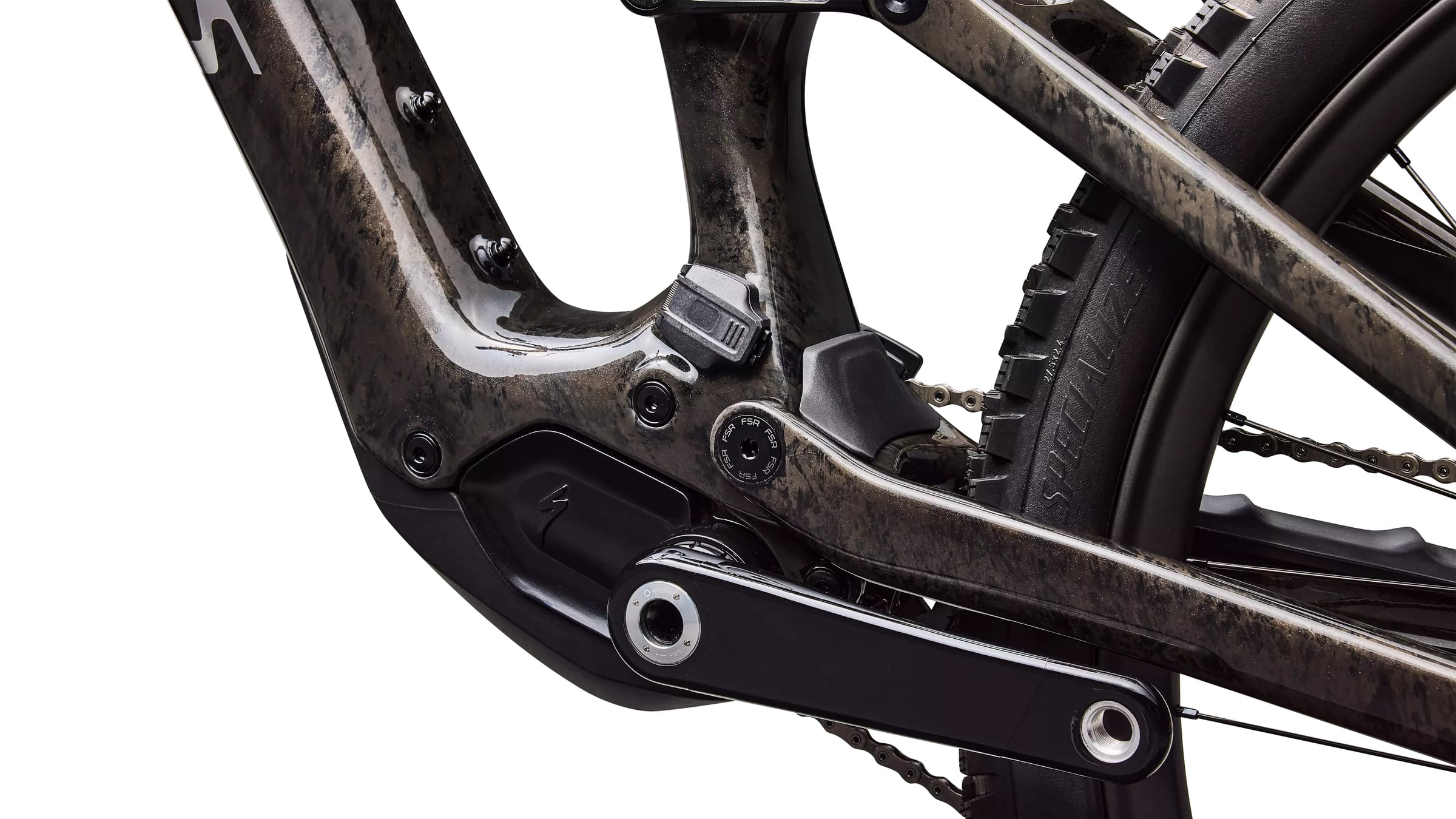

The Turbo Levo SL 2 is Specialized's lightweight trail eMTB: a FACT 11m carbon frame with 150 mm of rear travel and adjustable geometry, driven by the SL 1.2 motor (50 Nm, 320 W) and a fully integrated 320 Wh battery.
Claimed weights run from 18.0 kg for the S-Works to 19.37 kg for the Comp (size S4).
- SL 1.2 motor, 50 Nm, 320 W
- 320 Wh integrated battery
- 150 mm rear travel, adjustable geometry
- From 18.0 kg claimed
Gallery
Photos: Specialized
Full specifications
Frame & suspension
- Frame
- Levo SL Carbon Frame, Fact 11m Carbon, Carbon shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
- Seat Binder
- Alloy, 38.6mm
- Rear Shock
- FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S2-S6:210x55mm, S1: FOX FLOAT Factory 210x52.5mm
- Fork
- FOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset
E-system
- Motor
- Specialized SL 1.2 Custom Rx Trail Tuned Motor
- Battery
- Specialized SL1-320, fully integrated, 320Wh
- UI/Remote
- Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
- Charger
- Custom charger, 48V System w/ SL system charger plug
Drivetrain
- Shift Levers
- Shimano XTR Di2
- Rear Derailleur
- Shimano XTR Di2, 12-speed
- Cassette
- Shimano XTR, 12 Speed, 10-51T
- Chain
- Shimano XTR M9100, 12-speed w/ quick link
- Crankset
- SRAM Carbon crankset, 165mm, Dub interface
- Chainrings
- Race Face alloy chainring, 104 BCD, 32T
Brakes
- Front Brake
- Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor
- Rear Brake
- Shimano XTR 9220, 4-piston caliper, hydraulic disc, 203mm rotor
Wheels & tyres
- Front Tyre
- Butcher, GRID TRAIL casing, GRIPTON® T9 compound, TLR, 29X2.4
- Front Wheel
- Roval Traverse HD carbon, 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15x110mm, 28h, 6 bolt
- Rear Tyre
- Eliminator, GRID GRAVITY casing, GRIPTON® T7/T9 compound, TLR, 27.5X2.4
- Rear Wheel
- Roval Traverse HD carbon, 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h, 6 bolt
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Race Face Turbine R,35mm clamp,40mm length
- Handlebars
- Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
- Grips
- Deity Lockjaw Grips
- Saddle
- Specialized Power Pro Mirror, Ti Rails, 143/155mm
- Seatpost
- FOX Transfer Neo wireless, 34.9mm, S1: 100mm, S2: 125mm, S3: 175mm, S4-S6: 200mm
Other
- SWAT
- SWAT CC steerer tube integrated tool with chain tool and link
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Turbo Levo SL 2 geometry
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Crank Length | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm | 165 mm |
| Handlebar Width | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Saddle Width | 155 mm | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 100 mm | 125 mm | 150 mm | 175 mm | 200 mm | 200 mm |
| Stack | 609 mm | 617 mm | 626 mm | 635 mm | 645 mm | 654 mm |
| Reach | 405 mm | 425 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Head tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Head tube Angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
| B-B Height | 343 mm | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| B-B Drop | -34 mm | -29 mm | -29 mm | -29 mm | -29 mm | -29 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Fork Length, Full | 560 mm | 570 mm | 570 mm | 570 mm | 570 mm | 570 mm |
| Fork Rake/Offset | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Front-Center | 726 mm | 752 mm | 776 mm | 806 mm | 835 mm | 869 mm |
| Chain-Stay Length | 433 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1158 mm | 1184 mm | 1208 mm | 1238 mm | 1267 mm | 1301 mm |
| Top Tube Length, Horizontal | 560 mm | 582 mm | 604 mm | 631 mm | 659 mm | 691 mm |
| Bike Stand-Over Height | 727 mm | 763 mm | 766 mm | 767 mm | 773 mm | 778 mm |
| Seat-Tube Length | 385 mm | 385 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat-Tube Angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
Source: Specialized.
Turbo Levo SL 2: builds compared
Turbo Levo SL 2 range →| Turbo Levo SL 2 Comp | Turbo Levo SL 2 Expert Di2 | S-Works Turbo Levo SL 2 Di2 | |
|---|---|---|---|
| Price | $6,599.99 | $7,999.99 | $11,499.99 |
| Frame | FACT 11m carbon | FACT 11m carbon | FACT 11m carbon |
| Fork | FOX FLOAT 36 Rhythm, GRIP damper | FOX FLOAT 36 Performance Elite, GRIP X2 damper | FOX FLOAT 36 Factory, GRIP X2 damper |
| Shock | FOX FLOAT X Performance with Specialized GENIE Shock Tech | FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech | FOX FLOAT X Factory with Specialized GENIE Shock Tech |
| Derailleur | SRAM S-1000 Eagle AXS Transmission | Shimano XT Di2 | Shimano XTR Di2 |
| Brakes | SRAM Maven Bronze | Shimano Deore XT brake | Shimano XTR 9220 |
| Wheels | Specialized, hookless alloy | Traverse Alloy 370 | Roval Traverse HD carbon |
| Weight | 19.4 kg | 18.9 kg | 18 kg |
S-Works Turbo Levo SL 2 Di2: FAQ
How much does the Specialized S-Works Turbo Levo SL 2 Di2 cost?
$11,499.99 (US MSRP). The Turbo Levo SL 2 range runs from $6,599.99 (Turbo Levo SL 2 Comp) to $11,499.99 (S-Works Turbo Levo SL 2 Di2). Prices vary by country and dealer.
How much does the Specialized S-Works Turbo Levo SL 2 Di2 weigh?
Specialized quotes 18 kg. It is the lightest build of the Turbo Levo SL 2.
What motor and battery does the Specialized S-Works Turbo Levo SL 2 Di2 have?
Specialized SL 1.2 (50 Nm, 320 W). 320 Wh battery — fully integrated.
How much suspension travel does the Specialized S-Works Turbo Levo SL 2 Di2 have?
150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Specialized S-Works Turbo Levo SL 2 Di2 come in?
S1, S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.
What is the difference between the S-Works Turbo Levo SL 2 Di2 and the Turbo Levo SL 2 Expert Di2?
They share the Turbo Levo SL 2 frame platform and motor; the differences are in the parts — fork: FOX FLOAT 36 Factory vs FOX FLOAT 36 Performance Elite; shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech vs FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech; derailleur: Shimano XTR Di2 vs Shimano XT Di2; brakes: Shimano XTR 9220 vs Shimano Deore XT brake; claimed weight: 18 kg vs 18.9 kg; price: $11,499.99 vs $7,999.99.
