Full-power eMTBTrail / All mountain2027

SpecializedS-Works Turbo Levo 4 X

$11,999.99US MSRP

Motor: Specialized 3.1 S-Works111 Nm, 850 W
Battery: 840 WhSide-entry, integrated
Travel F / R: 160 / 150 mm
Wheels: Mullet 29" / 27.5"
Frame: Carbon
Weight: 27.3 kgSize S4, manufacturer figure

Overview

The S-Works Turbo Levo 4 X ($11,999.99) combines the Levo 4 carbon frame with the 111 Nm / 850 W S-Works motor and an 840 Wh battery, a 160 mm Fox Factory 38 fork, Float X Factory GENIE shock, SRAM XX Transmission and a 12 A smart charger. Claimed weight is 27.25 kg (S4).

The S-Works Turbo Levo 4 X is built on the Levo 4 carbon frame with 150 mm of rear travel and a 160 mm Fox Factory 38 fork, powered by the S-Works version of the Specialized 3.1 motor (111 Nm, 850 W) and an 840 Wh battery, with a 12 A smart charger.

S-Works 3.1 motor, 111 Nm, 850 W
840 Wh battery, 12 A smart charger
150 mm rear / 160 mm fork travel
SRAM XX Transmission

Gallery

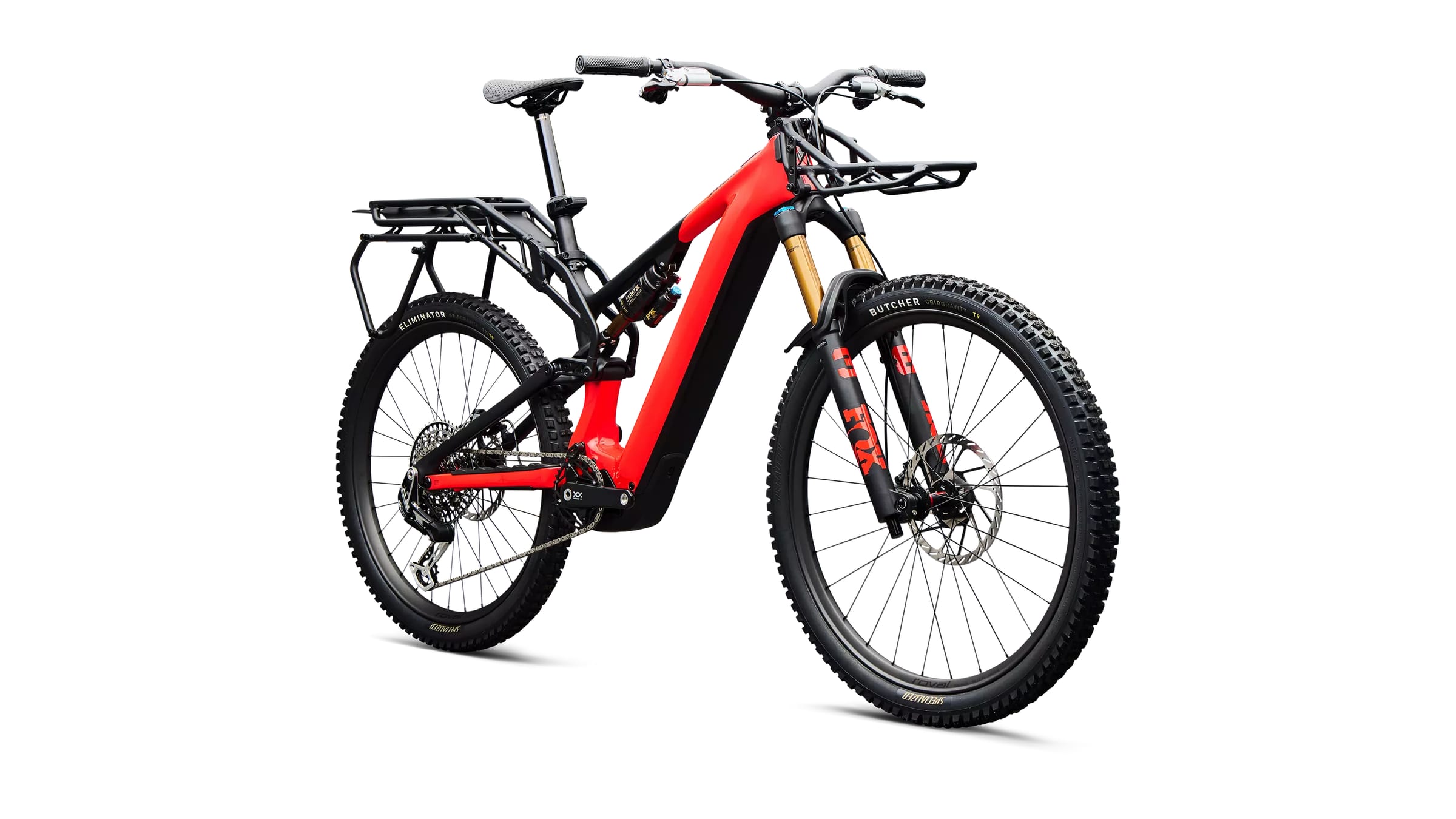

Specialized S-Works Turbo Levo 4 X e-MTB, front three-quarter view

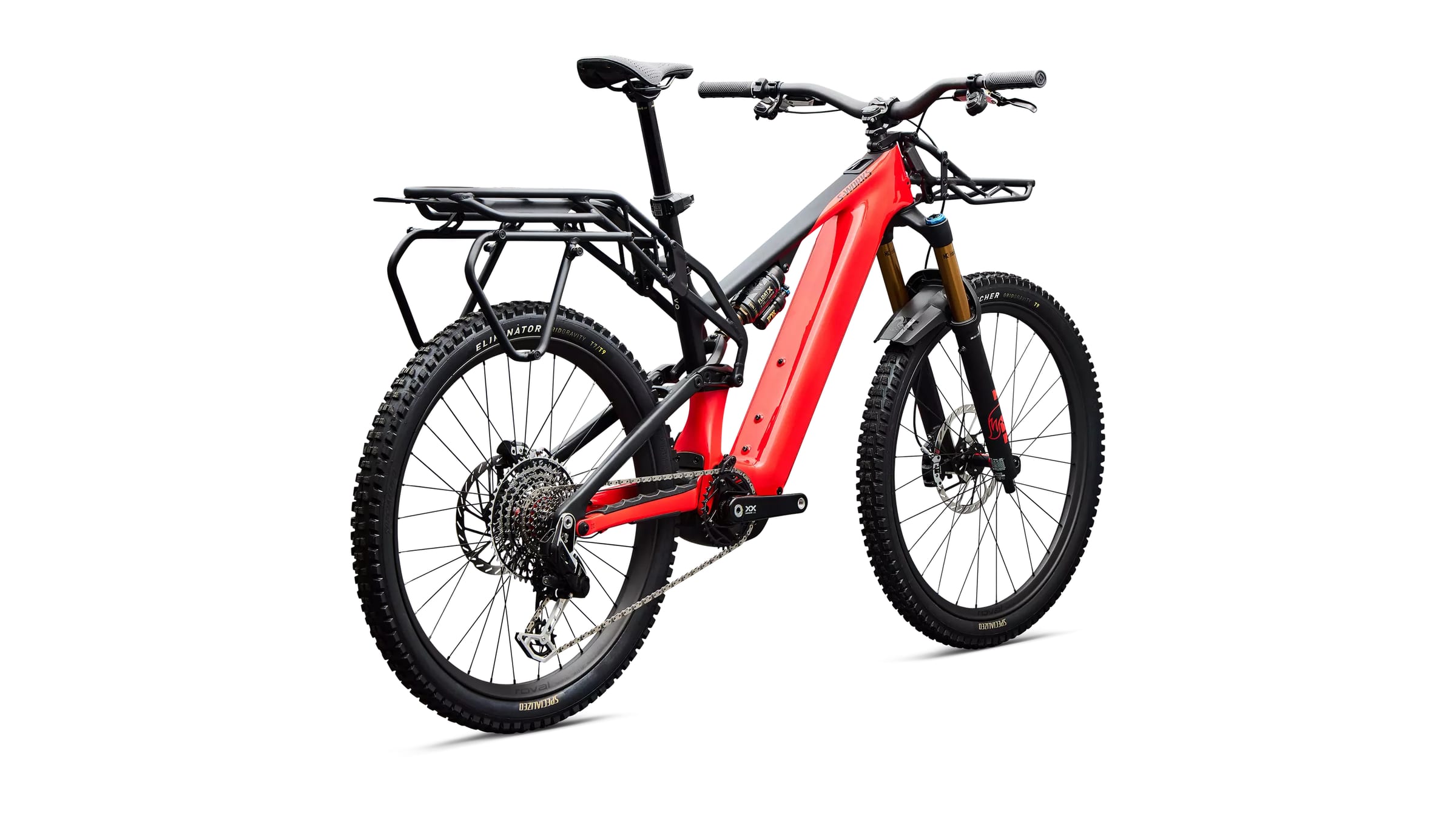

Specialized S-Works Turbo Levo 4 X e-MTB, rear three-quarter view

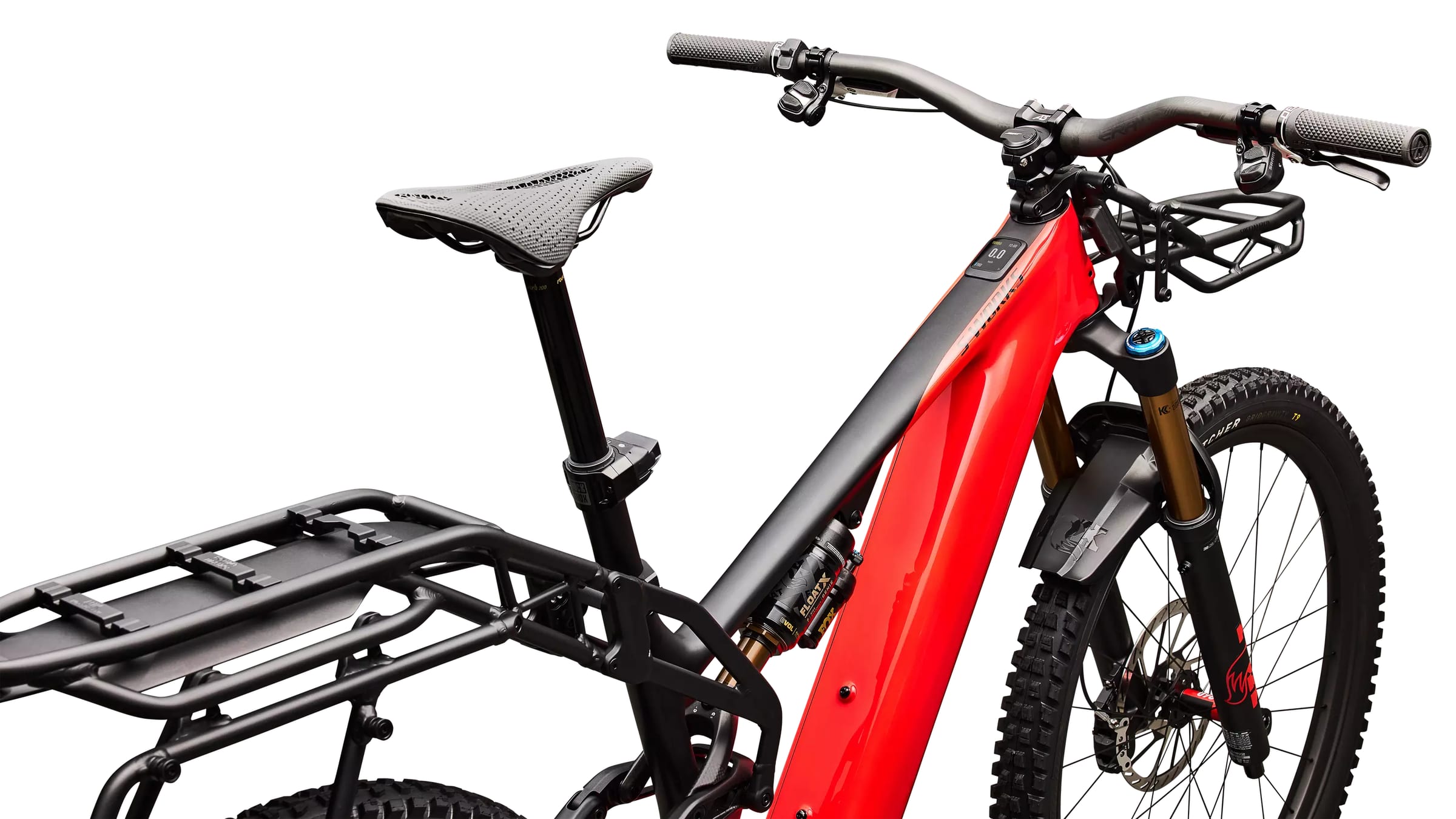

Specialized S-Works Turbo Levo 4 X e-MTB, rider view of cockpit

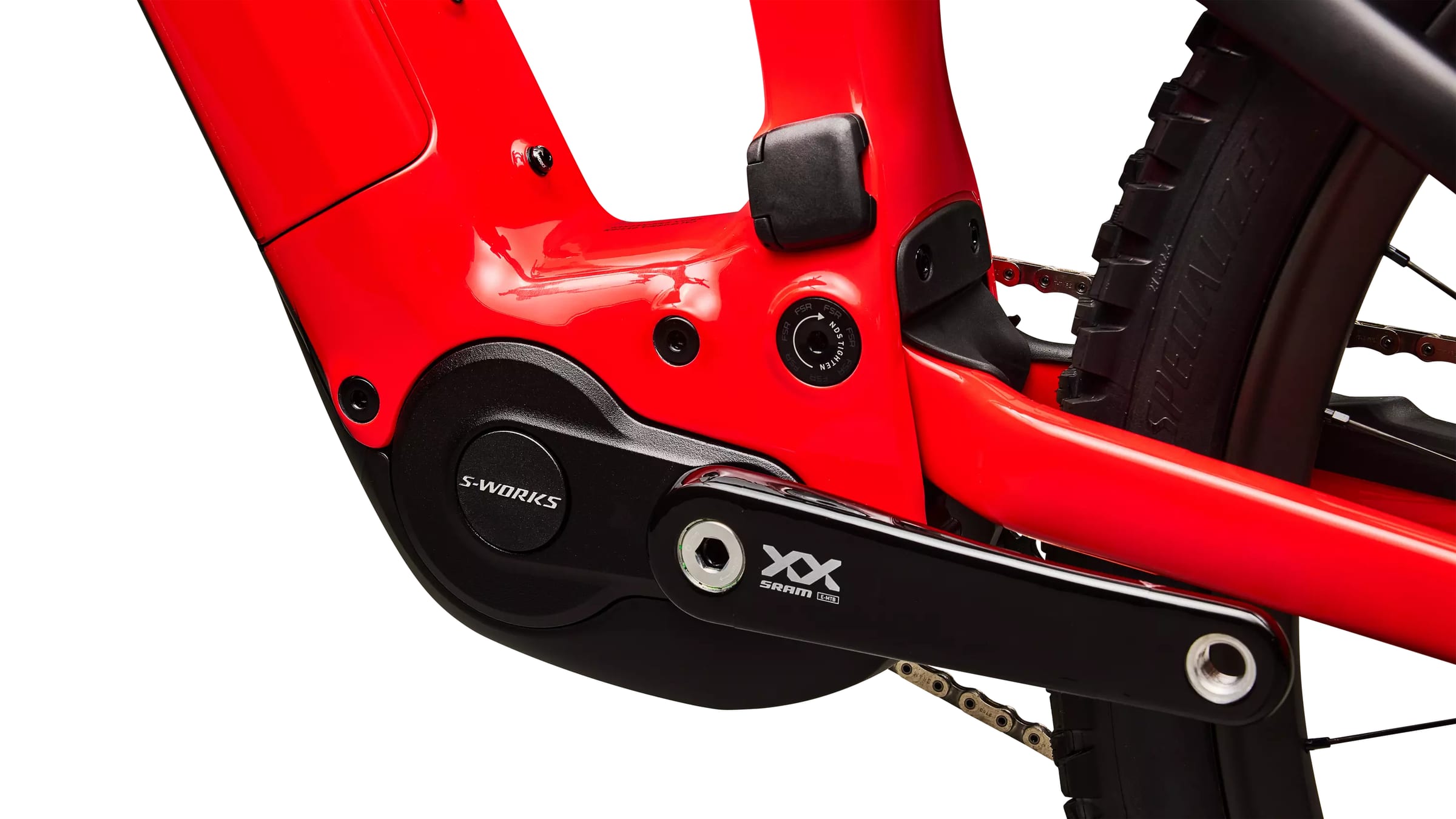

Specialized S-Works Turbo Levo 4 X e-MTB, motor and crank detail

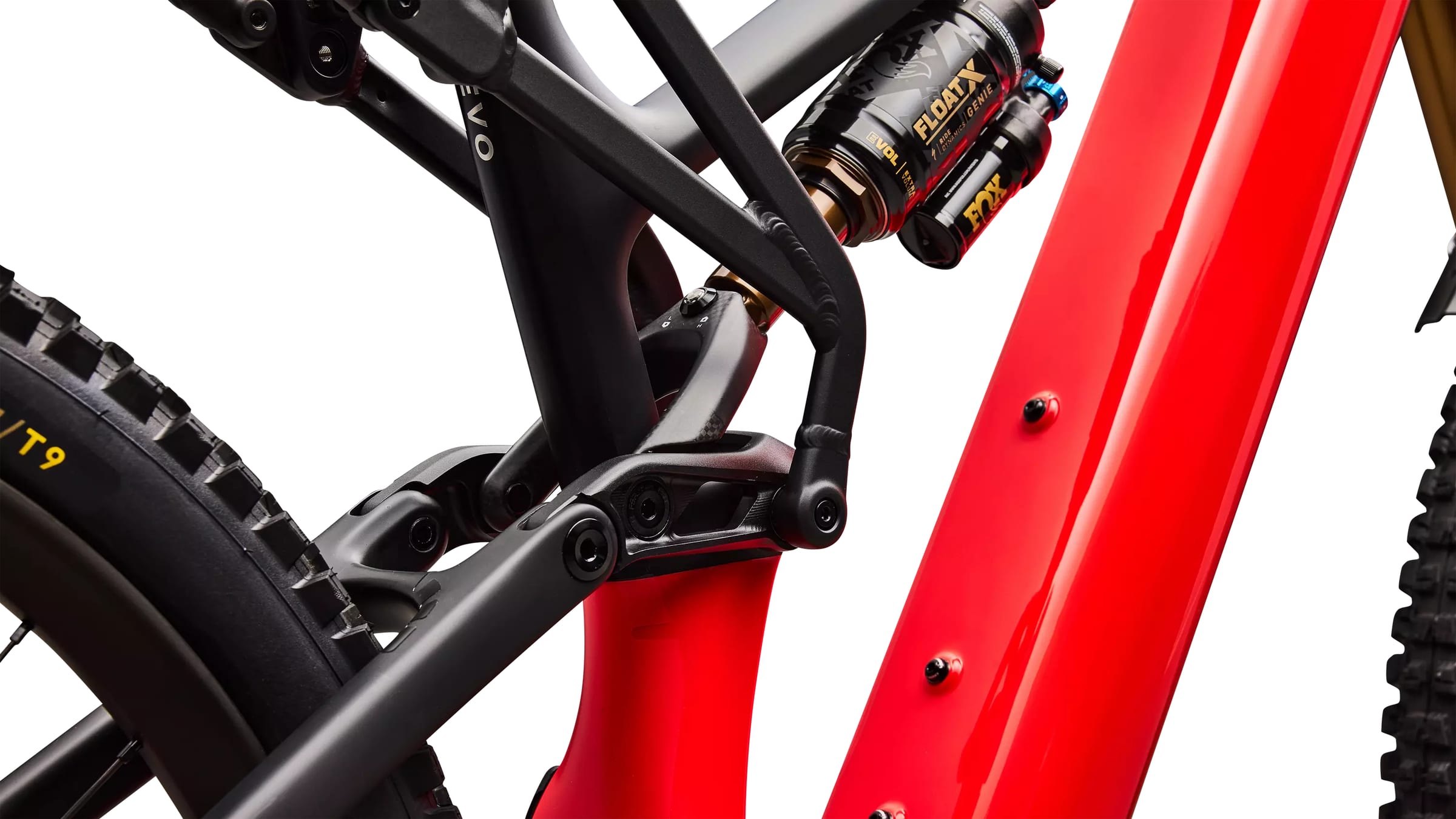

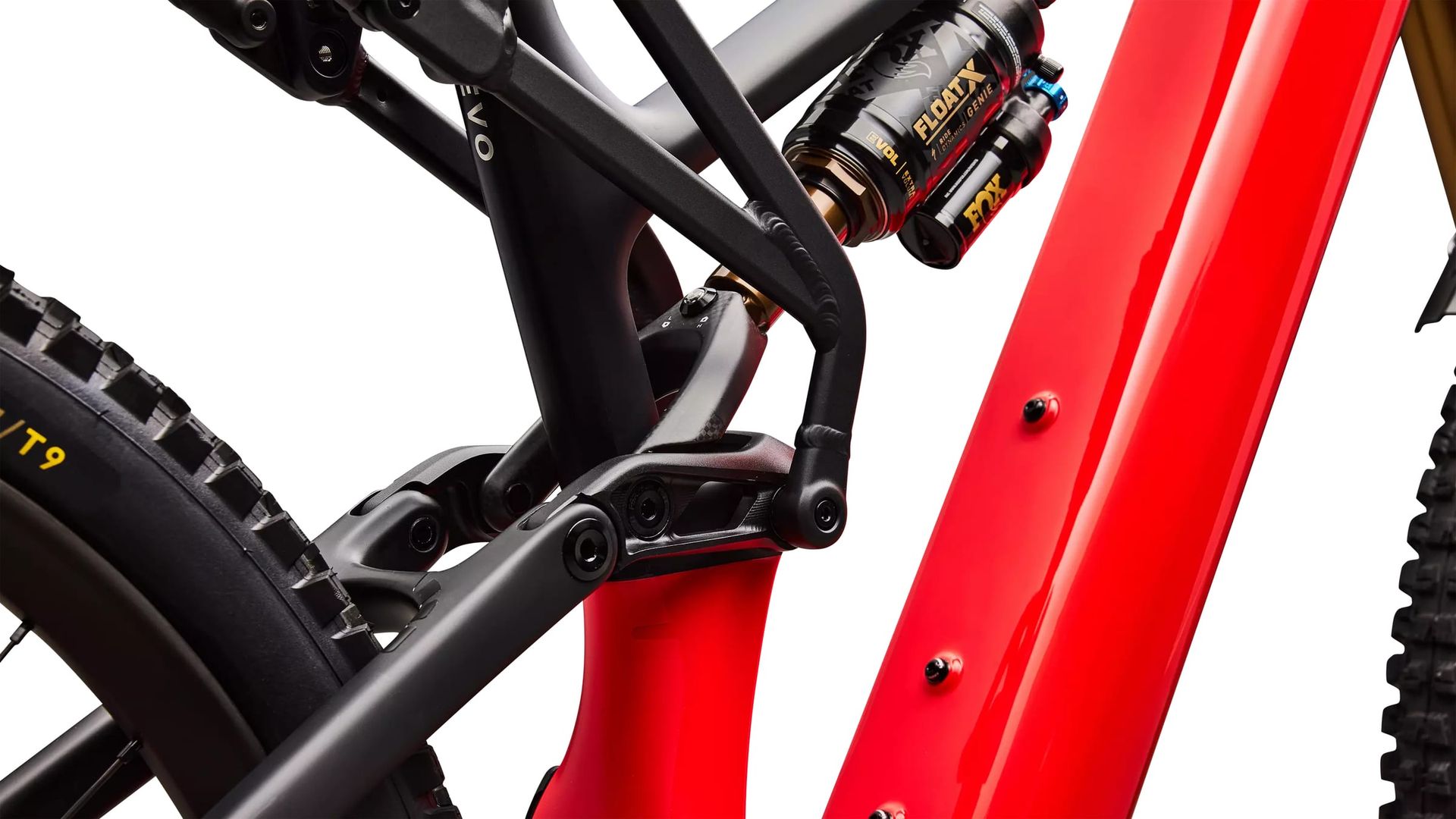

Specialized S-Works Turbo Levo 4 X e-MTB, suspension linkage detail

Photos: Specialized

Full specifications

Frame & suspension

Frame: Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Seat Binder: Alloy, 38.6mm
Rear Shock: Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork: FOX Factory 38, GRIP X2 damper, high/low speed compression adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

E-system

Motor: Specialized 3.1 S-Works motor, 111Nm power, 850W power
Battery: 840Wh battery
UI/Remote: Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Drivetrain

Shift Levers: SRAM AXS Pod Ultimate with Discrete Clamp
Rear Derailleur: SRAM XX Eagle Transmission Derailleur
Cassette: SRAM XX Transmission, XS 1297, 10-52t
Chain: SRAM XX, T-Type
Crankset: SRAM XX Carbon crank, 160mm, ISIS interface
Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Brakes

Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Wheels & tyres

Front Tyre: Butcher, GRID Gravity, T9, TLR, 29x2.4"
Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h
Rear Tyre: Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5X2.4
Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h
Inner Tubes: Standard, Presta Valve

Cockpit

Stem: Industry 9 A35 Mountain stem, 35mm clamp, 40mm length
Handlebars: RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Saddle: Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm
Seatpost: RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm

Other

SWAT: SWAT Internal downtube storage

Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

Turbo Levo 4 X geometry

Size	S2	S3	S4	S5	S6
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Head tube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Head tube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
