HaibikeALLTRAIL 10
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 140 / 140 mm
- Wheels
- 29" / 27.5" by size
- Frame
- Alloy
Overview

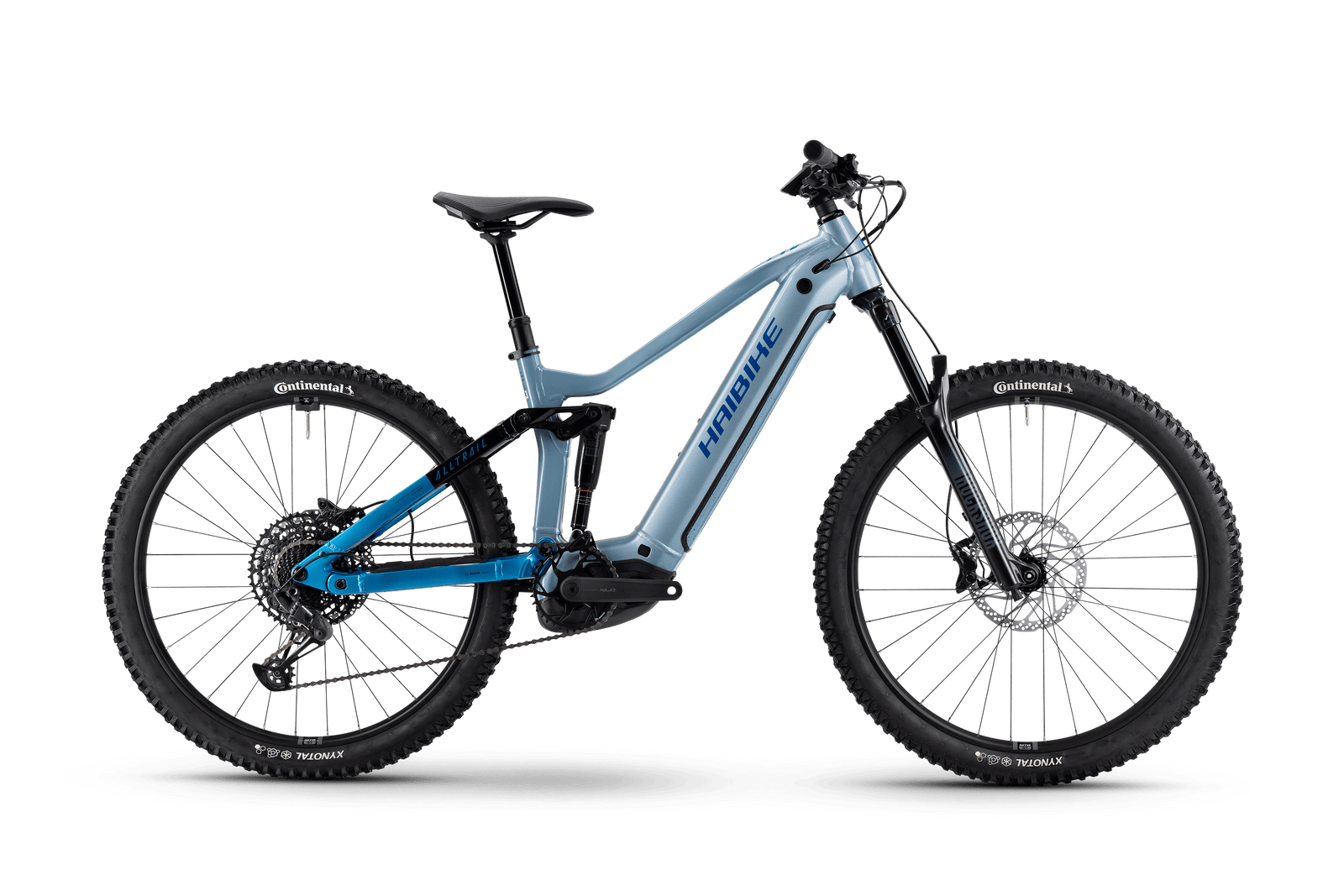

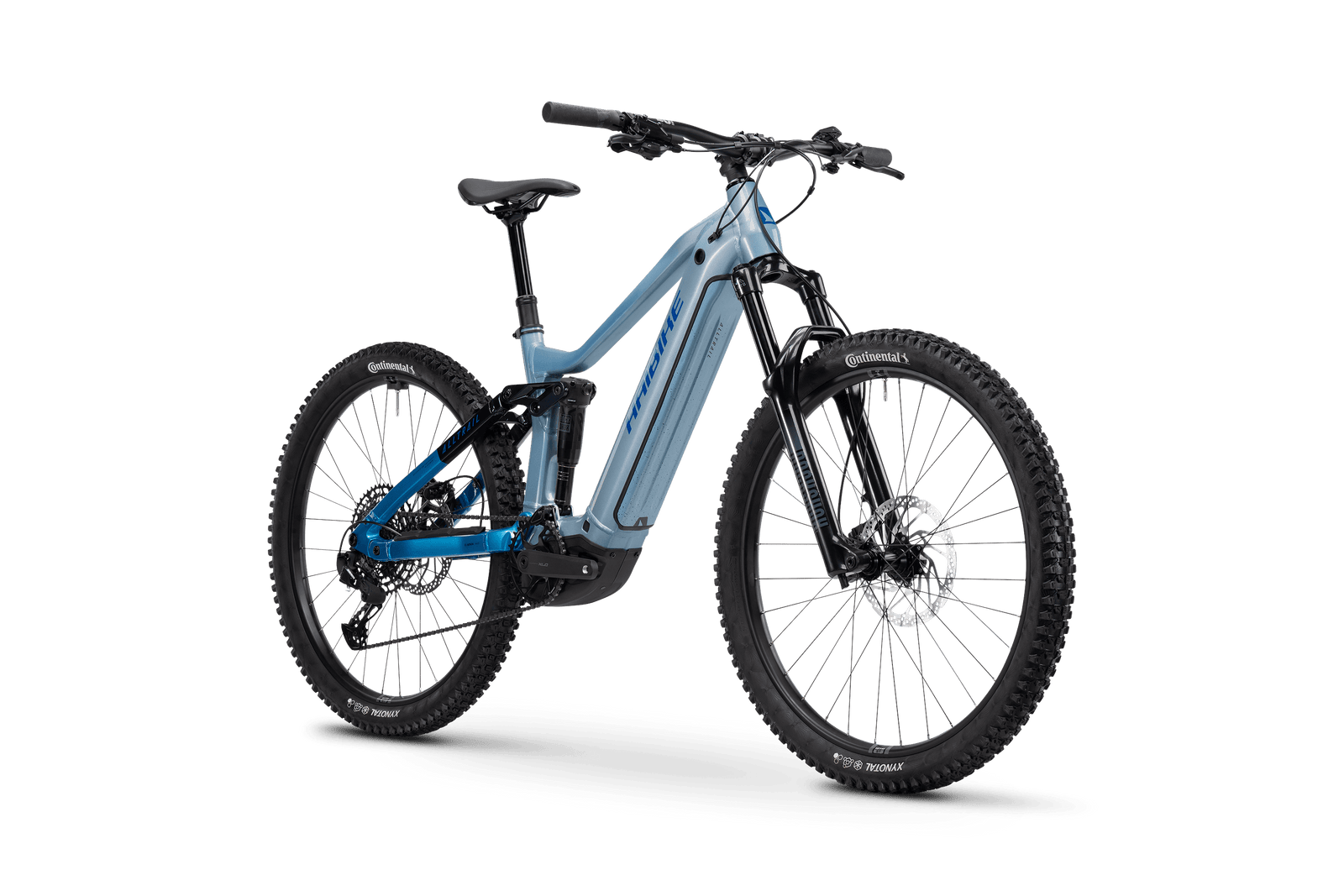

The Haibike ALLTRAIL 10 (€5,499) is the top build of the ALLTRAIL range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Psylo Gold RC fork, RockShox Deluxe Select 205x65mm shock, Sram Eagle 70 T-Type 12s and Sram DB4 Stealth A-MAJIG brakes.
The ALLTRAIL is Haibike's aluminium trail eFully: 130 mm of travel on the ALLTRAIL 4 and 6, 140 mm on the ALLTRAIL 8 and 10, and the Bosch Performance Line CX motor with 600 or 800 Wh batteries. Wheel setups vary by build, from mullet to 27.5 and 29 inches depending on frame size.
- 130–140 mm travel
- Bosch CX
- 600 or 800 Wh
- Aluminium frame
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- aluminium, disc brake Post Mount
- Fork

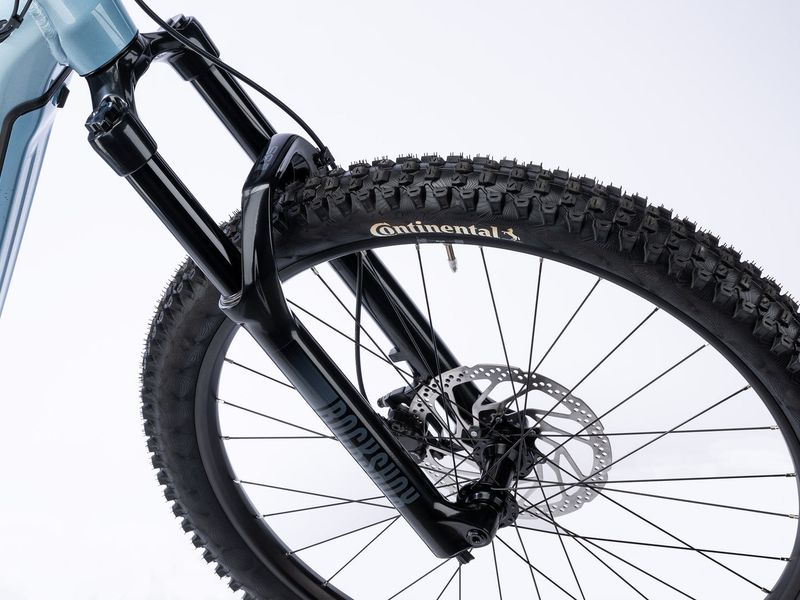

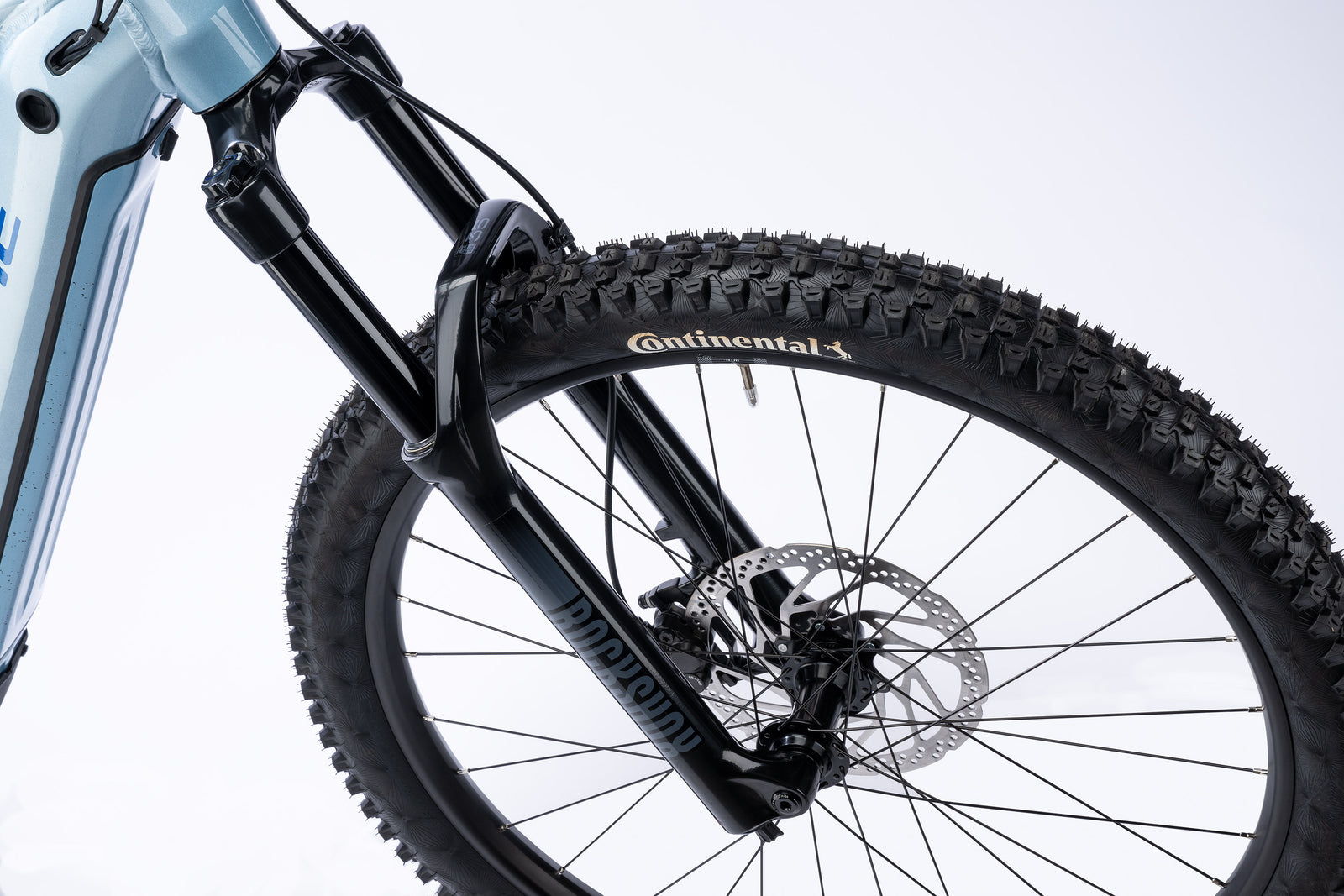

- RockShox Psylo Gold RC, Crown Adjust., DebonAir, Offset: 44 mm, Travel: 140mm
- Rear shock

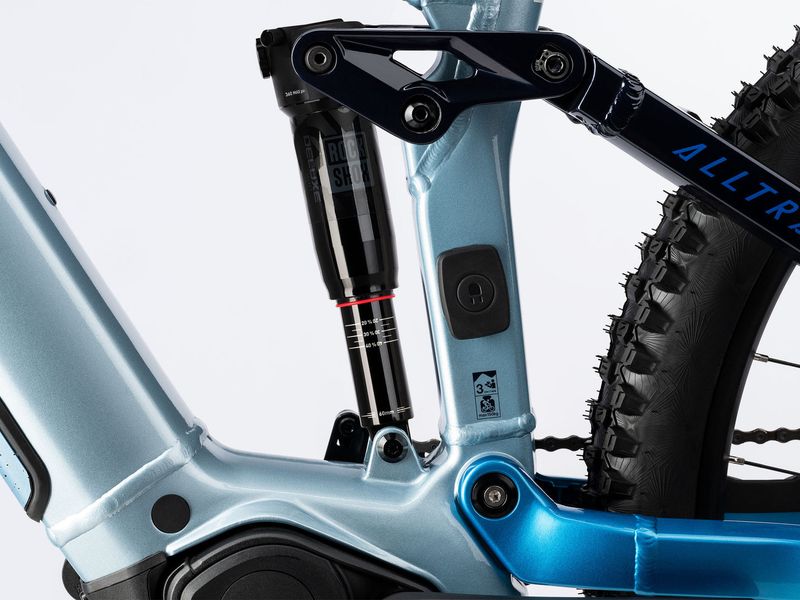

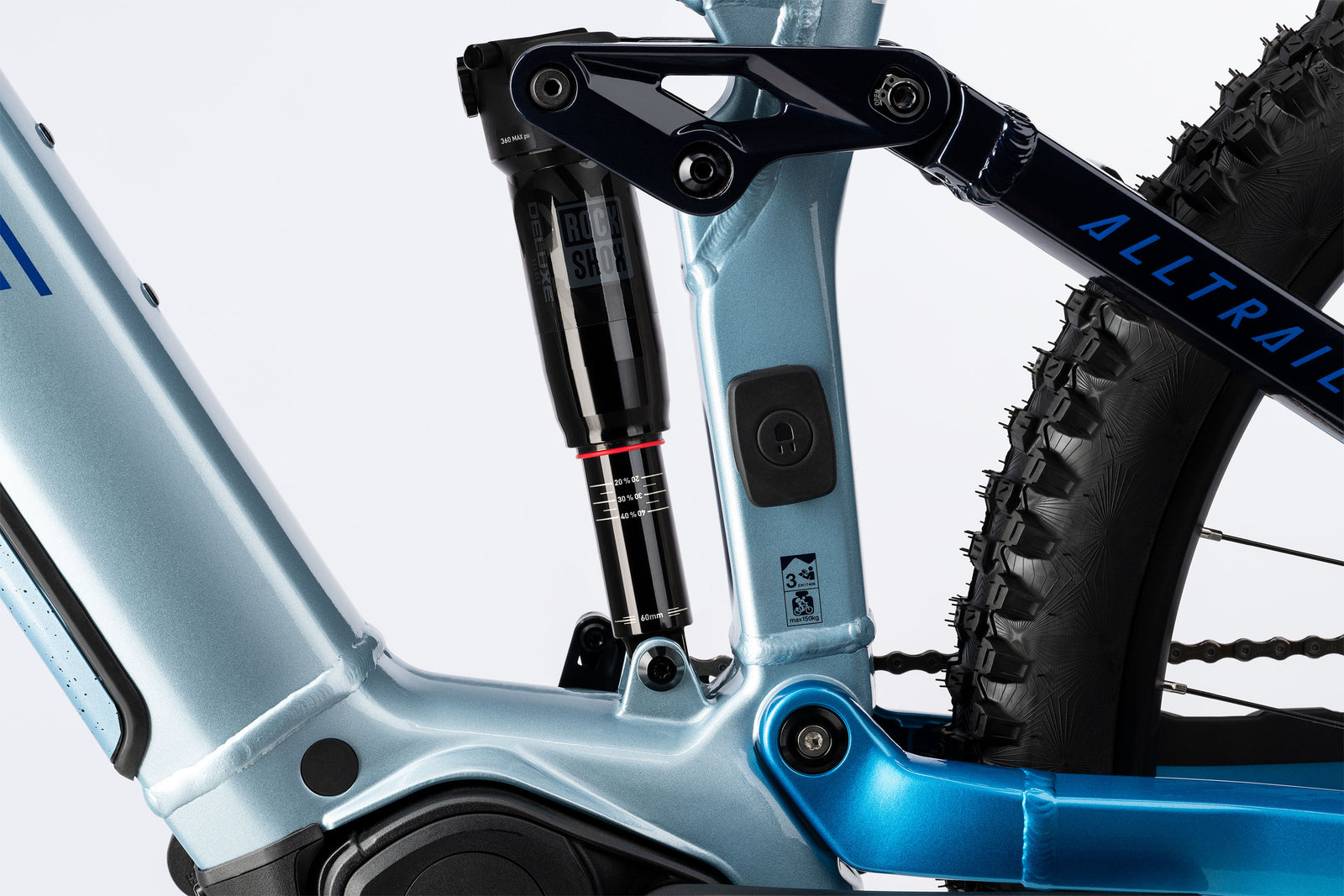

- RockShox Deluxe Select 205x65mm, Trunnion, DebonAir+
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display

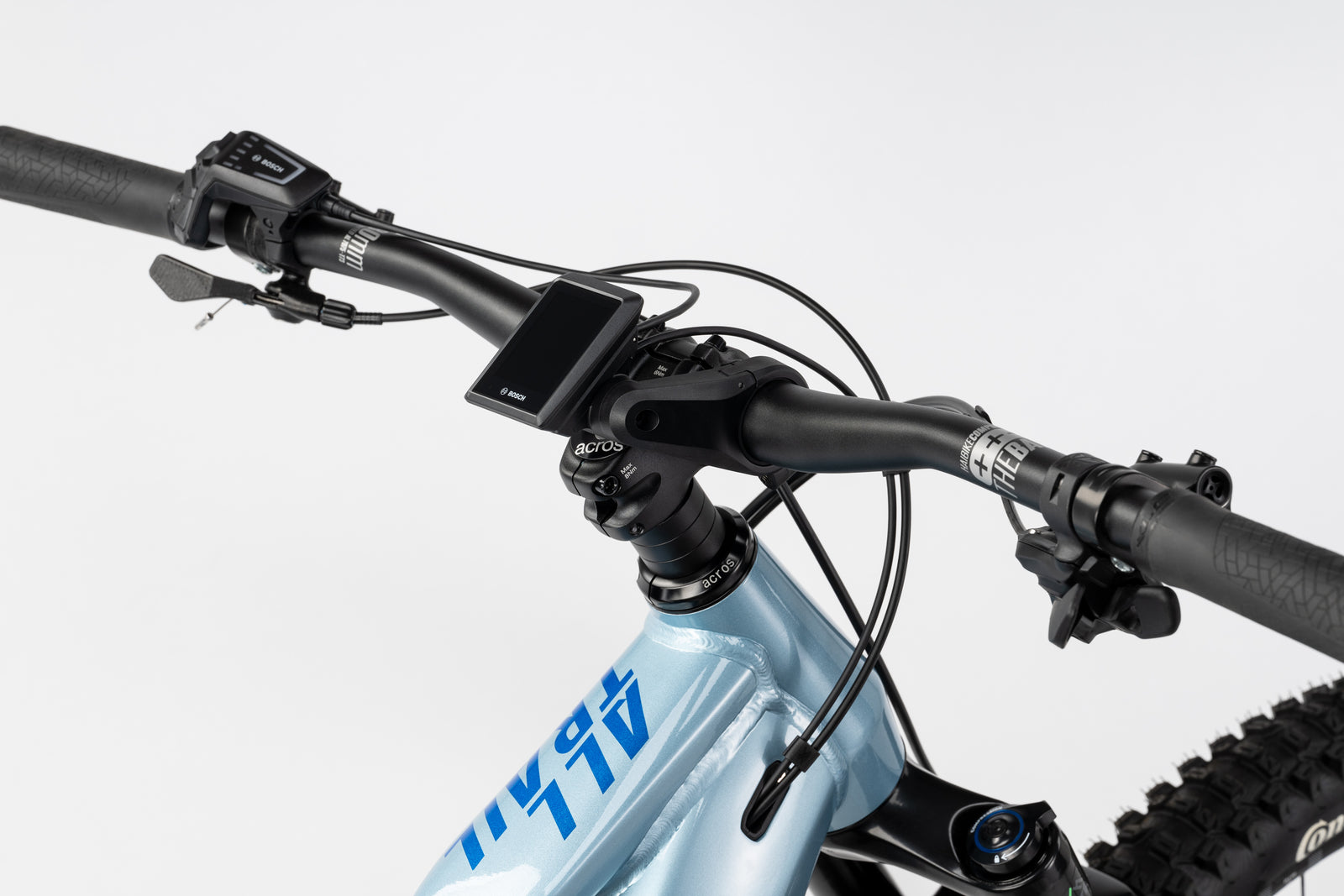

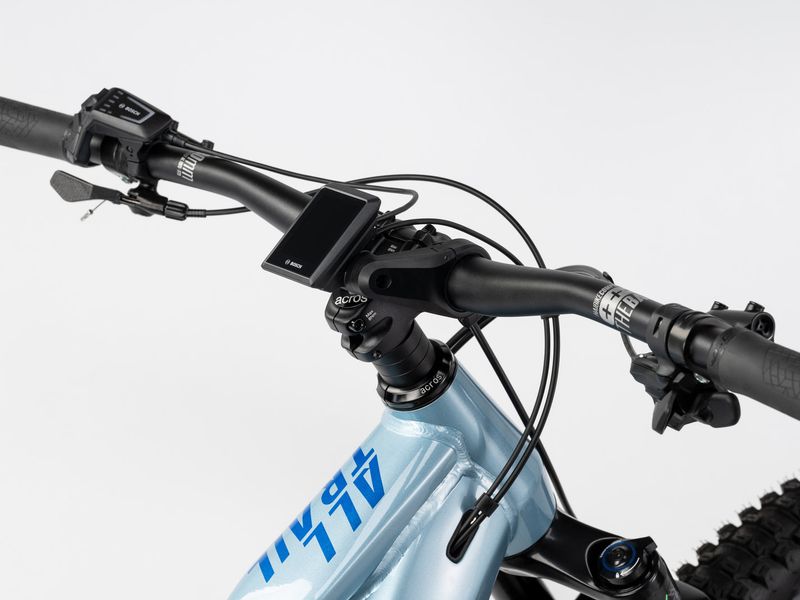

- Bosch Kiox 300 + LED Remote
- Motor

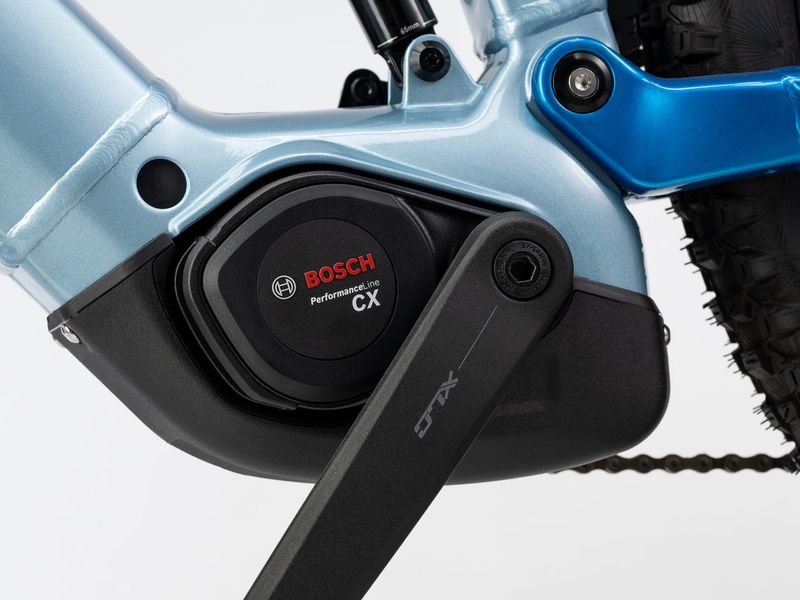

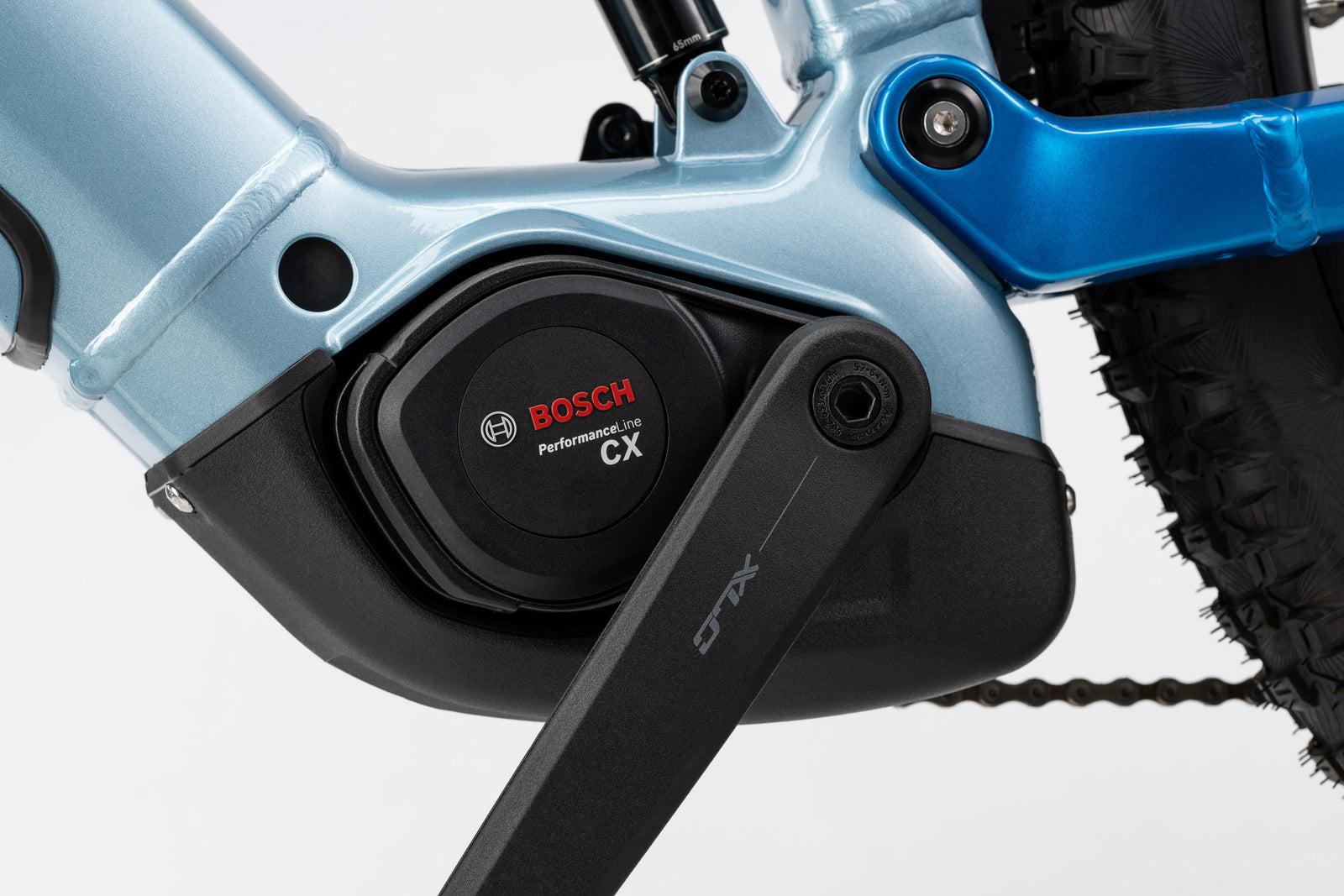

- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain

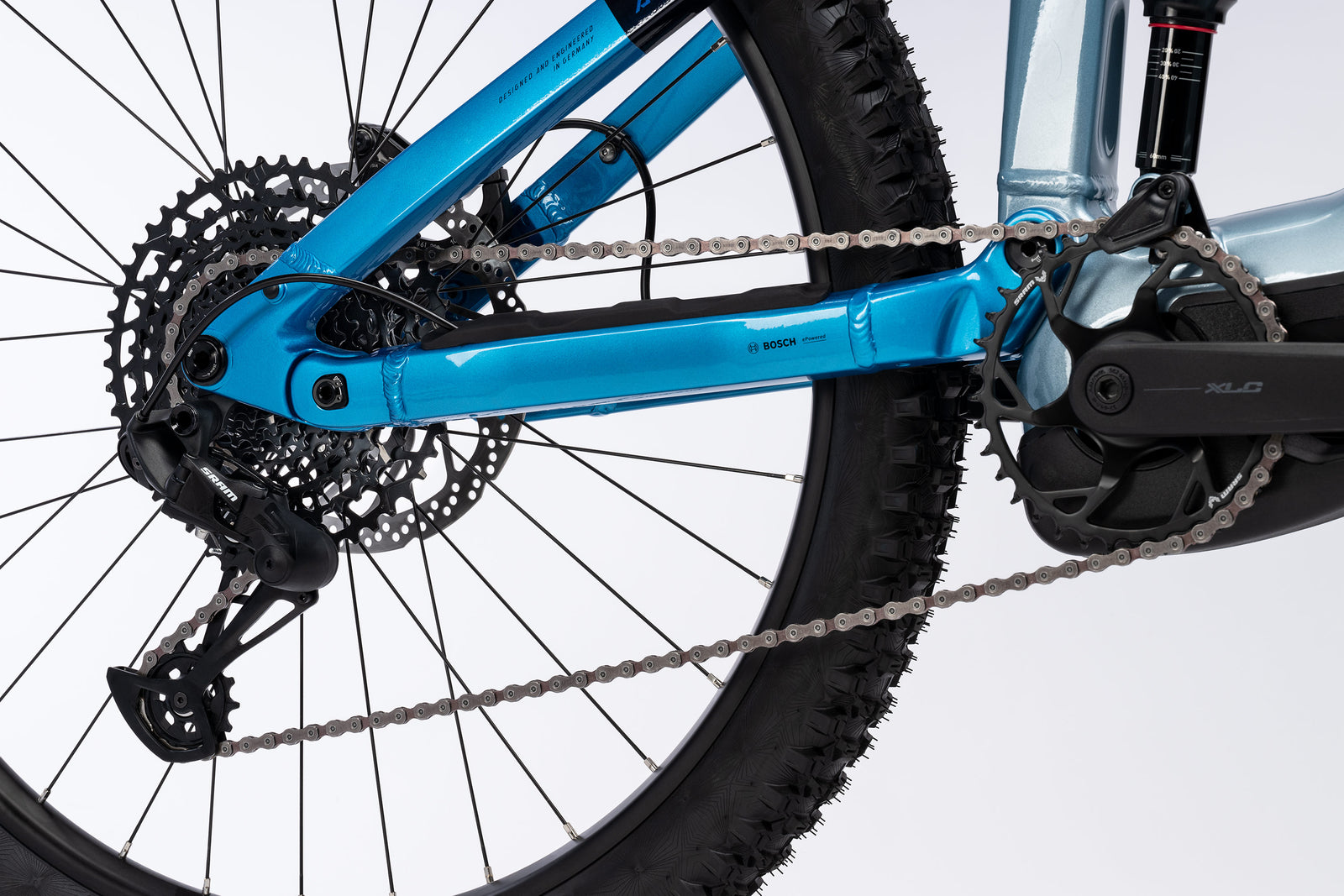

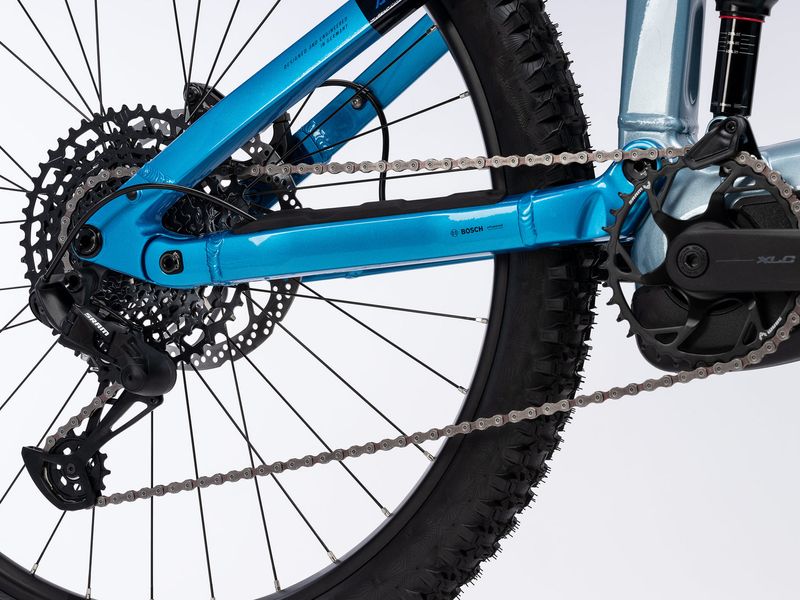

- Sram Eagle 70 T-Type 12s
- Rear derailleur
- Sram Eagle 70 T-Type 12s, 12-speed
- Gears
- 12-speed
- Shifter
- Sram Eagle 70 T-Type Single Click Trigger, Trigger shifter
Brakes
- Front brake
- Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 200 mm
- Rear brake
- Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 203 mm
Wheels & tyres
- Rims
- XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Xynotal Trail Endurance, foldable skin SL, 60-622
Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar
- XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- XLC SA-S10 143 mm Sport
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 150 mm, L: 456 mm
Other
- Max system weight
- 150kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLTRAIL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 575 mm | 599 mm | 625 mm | 652 mm |
| CHead tube length | 140 mm | 130 mm | 135 mm | 140 mm |
| DHead Tube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| ESeat Tube Angle | 75° | 75° | 75° | 75° |
| FChain stay length | 455 mm | 465 mm | 465 mm | 465 mm |
| GWheelbase | 1201 mm | 1231 mm | 1258 mm | 1286 mm |
| HStack | 621 mm | 640 mm | 644 mm | 649 mm |
| IReach | 424 mm | 443 mm | 468 mm | 494 mm |
| JStand over height | 760 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 20 mm | 30 mm | 30 mm | 30 mm |
Source: Haibike.
ALLTRAIL: builds compared
ALLTRAIL range →| ALLTRAIL 4 | ALLTRAIL 6 | ALLTRAIL 8 | ALLTRAIL 10 | |
|---|---|---|---|---|
| Price | €3,999 | €4,499 | €4,999 | €5,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour SF26-ZERON36X-Boost-Air-R-DS, Offset: 44 mm | RockShox Reba RL Motion Control, DebonAir | RockShox Psylo Silver RC, Crown Adjust | RockShox Psylo Gold RC, Crown Adjust. |
| Shock | SR Suntour Edge X R 185x55mm - Trunnion M8x40 - SV | RockShox Deluxe Select 185x55mm | RockShox Deluxe Select R 185x55mm | RockShox Deluxe Select 205x65mm |
| Derailleur | Sram NX Eagle 12s | Sram NX Eagle 12s | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s |
| Brakes | Tektro HD-M535 | Tektro HD-M535 | Tektro HD-M535 | Sram DB4 Stealth A-MAJIG |
| Wheels | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M37 Disc 30/584 32H 6,5 mm Valve | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 300 + LED Remote |
ALLTRAIL 10: FAQ
How much does the Haibike ALLTRAIL 10 cost?
€5,499 (RRP Germany, VAT incl.). The ALLTRAIL range runs from €3,999 (ALLTRAIL 4) to €5,499 (ALLTRAIL 10). Prices vary by country and dealer.
What motor and battery does the Haibike ALLTRAIL 10 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLTRAIL 10 have?
140 mm at the fork and 140 mm at the rear, on 29" / 27.5" by size wheels.
What sizes does the Haibike ALLTRAIL 10 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLTRAIL 10 and the ALLTRAIL 8?
They share the ALLTRAIL frame platform and motor; the differences are in the parts — fork: RockShox Psylo Gold RC vs RockShox Psylo Silver RC; shock: RockShox Deluxe Select 205x65mm vs RockShox Deluxe Select R 185x55mm; derailleur: Sram Eagle 70 T-Type 12s vs Shimano CUES RD-U6000 10/11s; brakes: Sram DB4 Stealth A-MAJIG vs Tektro HD-M535; price: €5,499 vs €4,999.
