HaibikeALLTRAIL 8
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 140 / – mm
- Wheels
- 29" (Low frame: 27.5")
- Frame
- Alloy
Overview

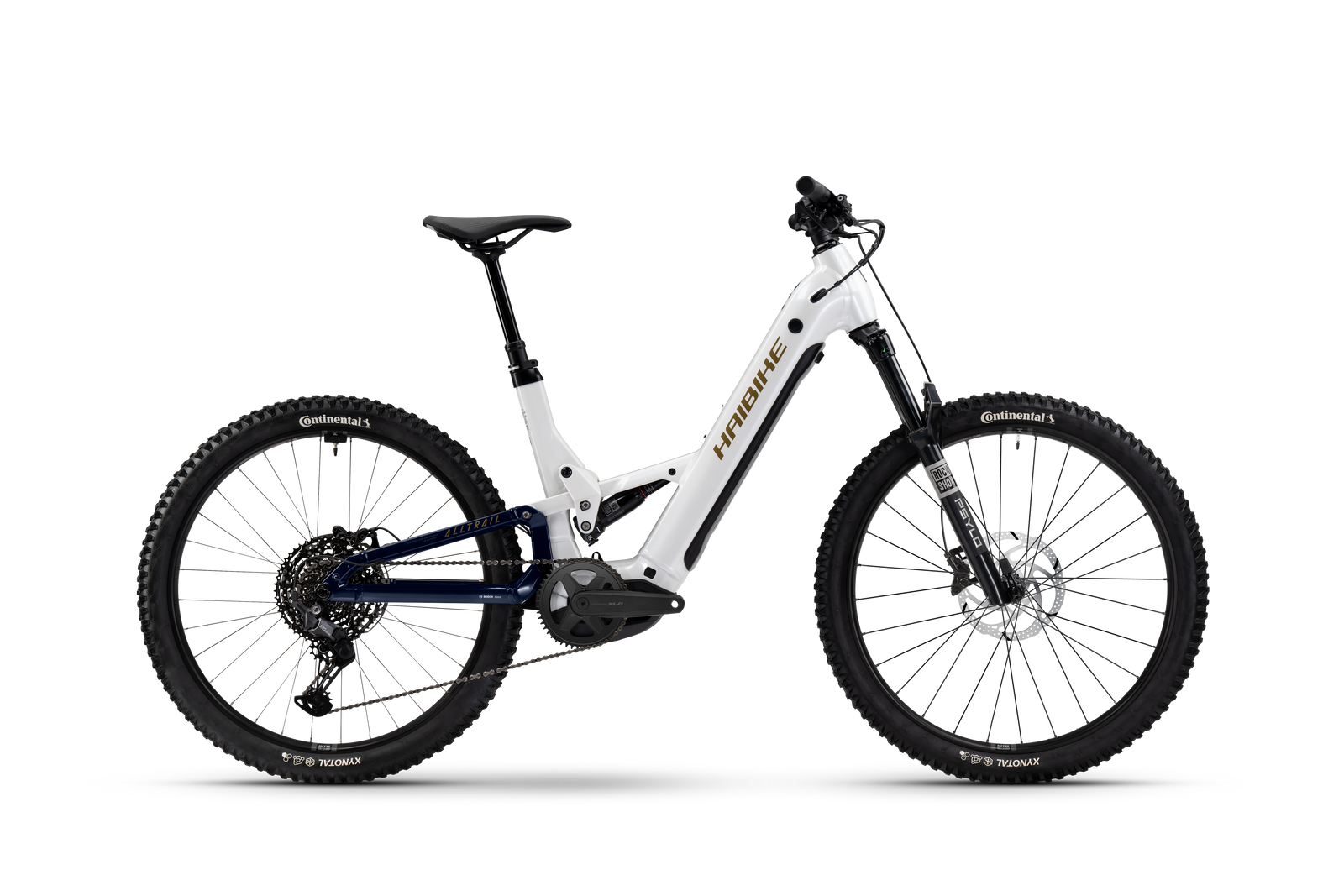

The Haibike ALLTRAIL 8 (€4,999) is a mid-range build of the ALLTRAIL range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Psylo Silver RC fork, RockShox Deluxe Select R 185x55mm shock, Shimano CUES RD-U6000 10/11s and Tektro HD-M535 brakes.
The ALLTRAIL is Haibike's aluminium trail eFully: 130 mm of travel on the ALLTRAIL 4 and 6, 140 mm on the ALLTRAIL 8 and 10, and the Bosch Performance Line CX motor with 600 or 800 Wh batteries. Wheel setups vary by build, from mullet to 27.5 and 29 inches depending on frame size.
- 130–140 mm travel
- Bosch CX
- 600 or 800 Wh
- Aluminium frame
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- aluminium, disc brake Post Mount

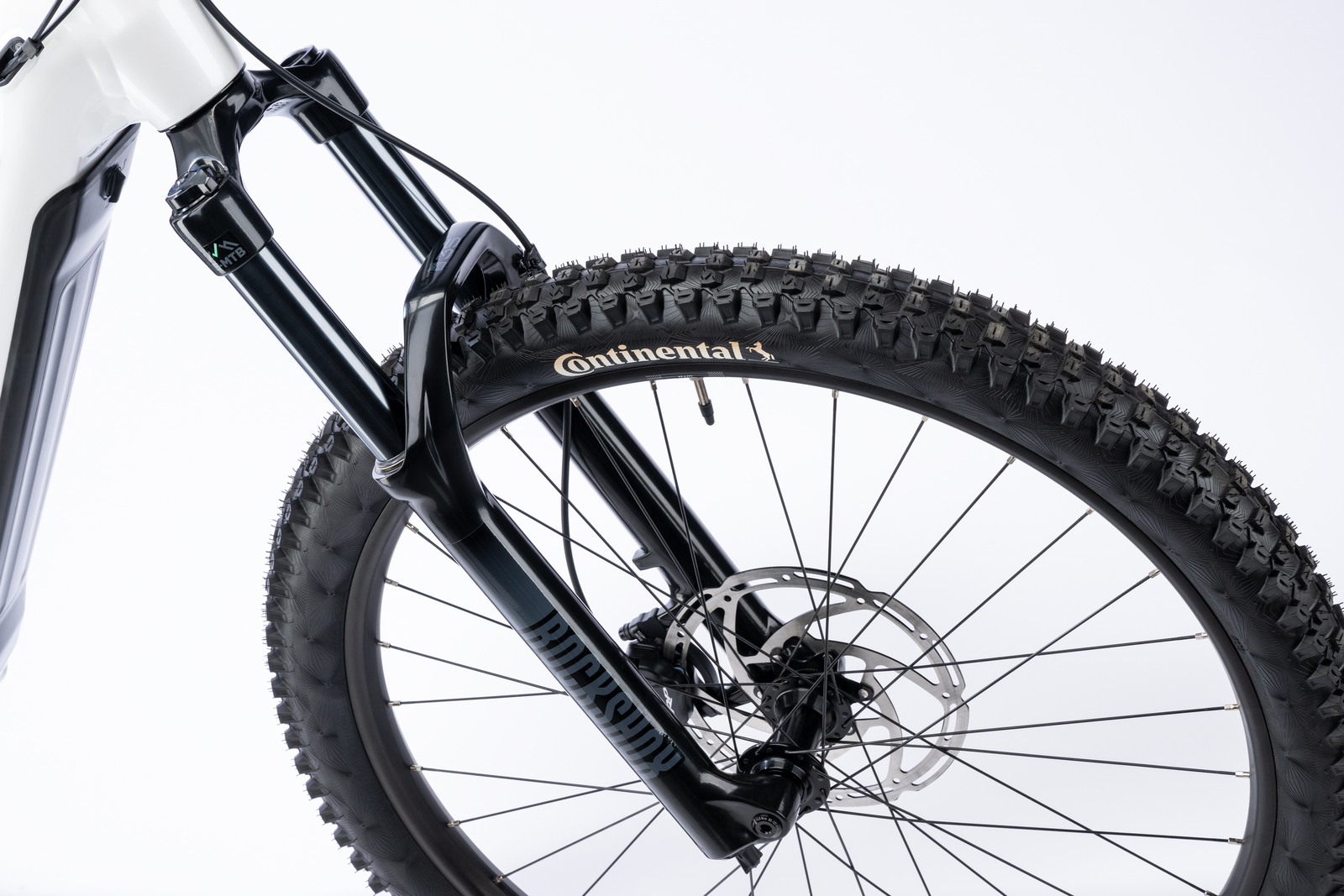

- Fork

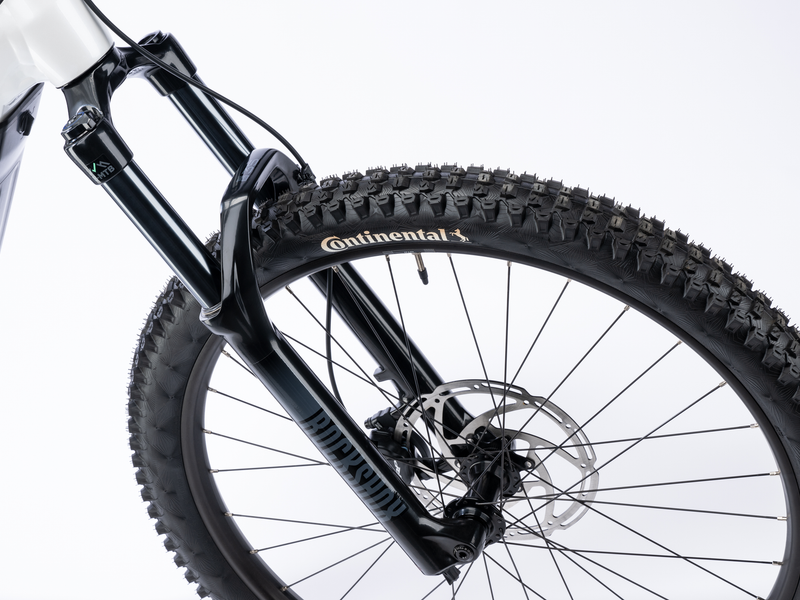

- RockShox Psylo Silver RC, Crown Adjust, Solo Air, Offset: 44 mm, Travel: 140mm

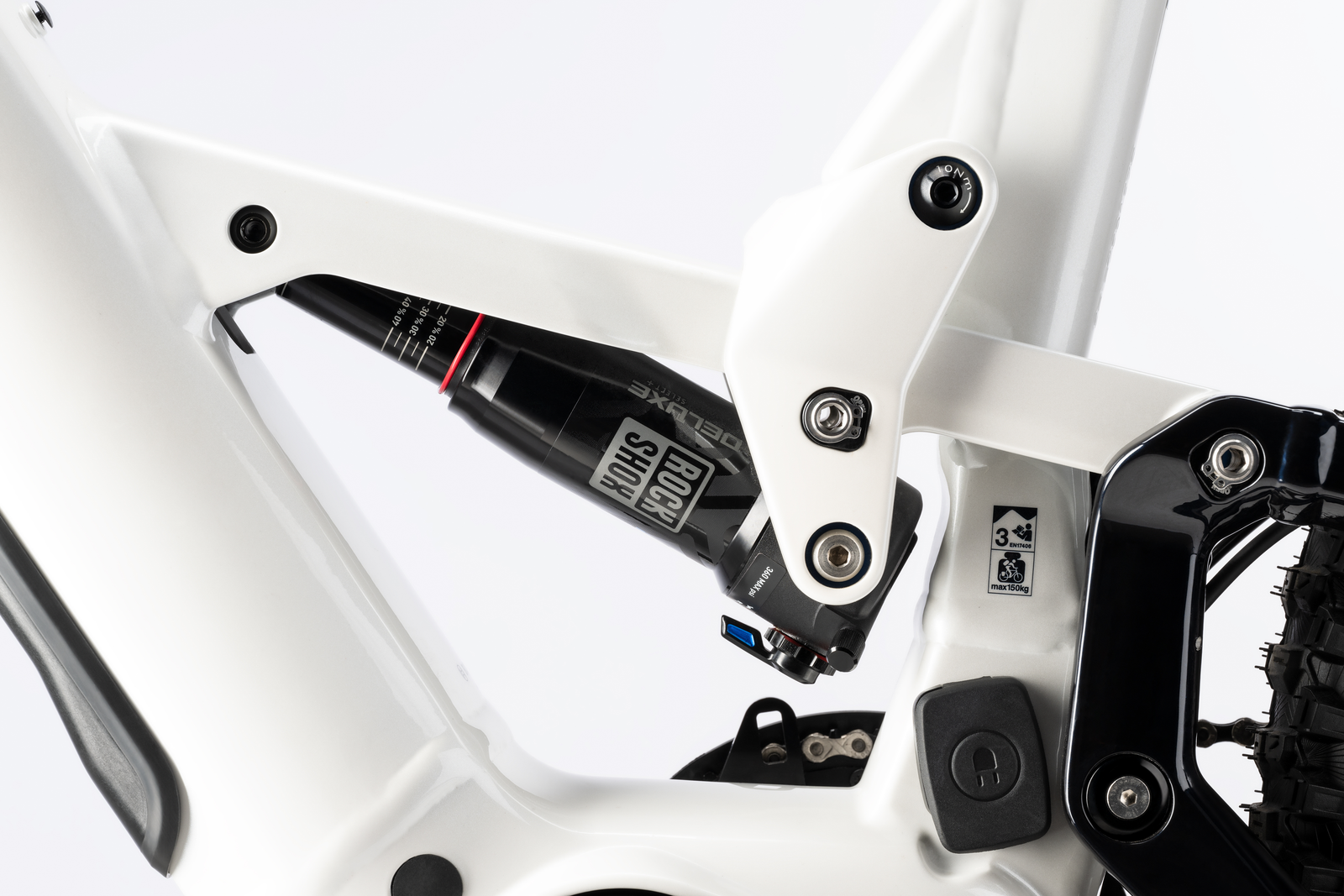

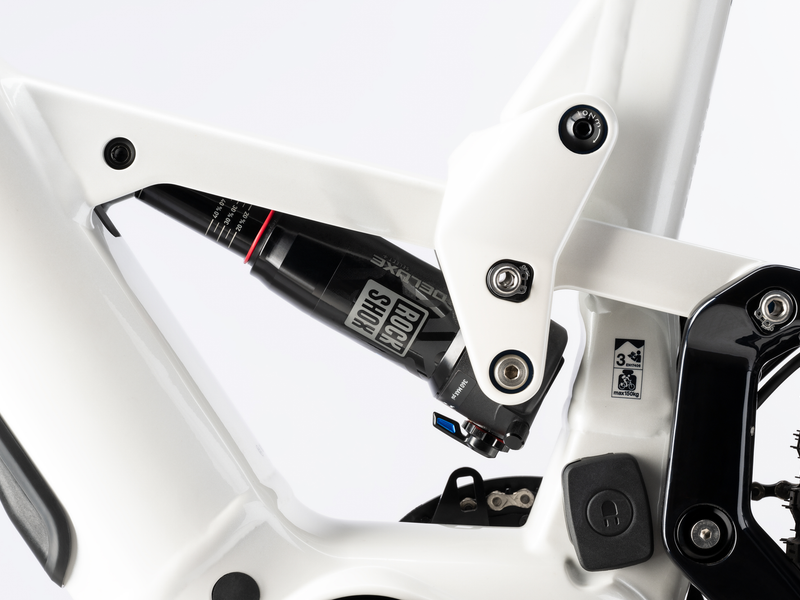

- Rear shock
- RockShox Deluxe Select R 185x55mm, Trunnion
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Purion 200

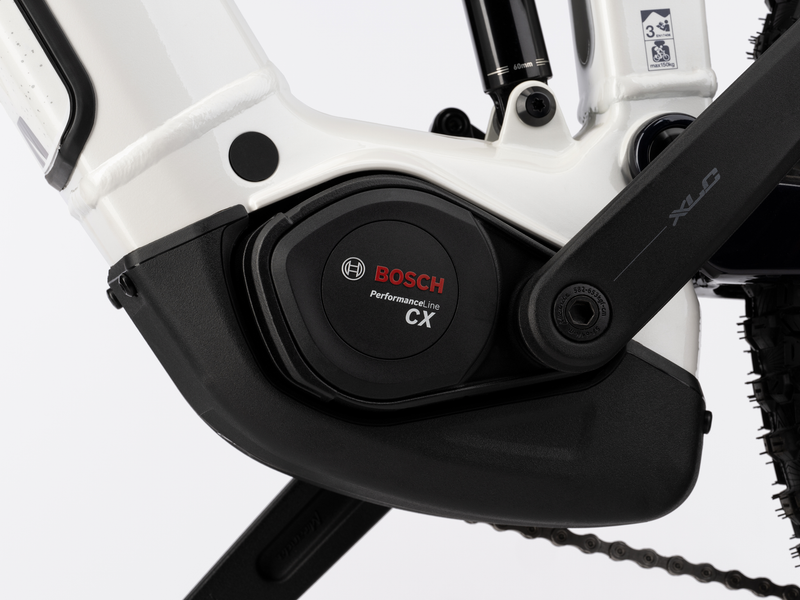

- Motor

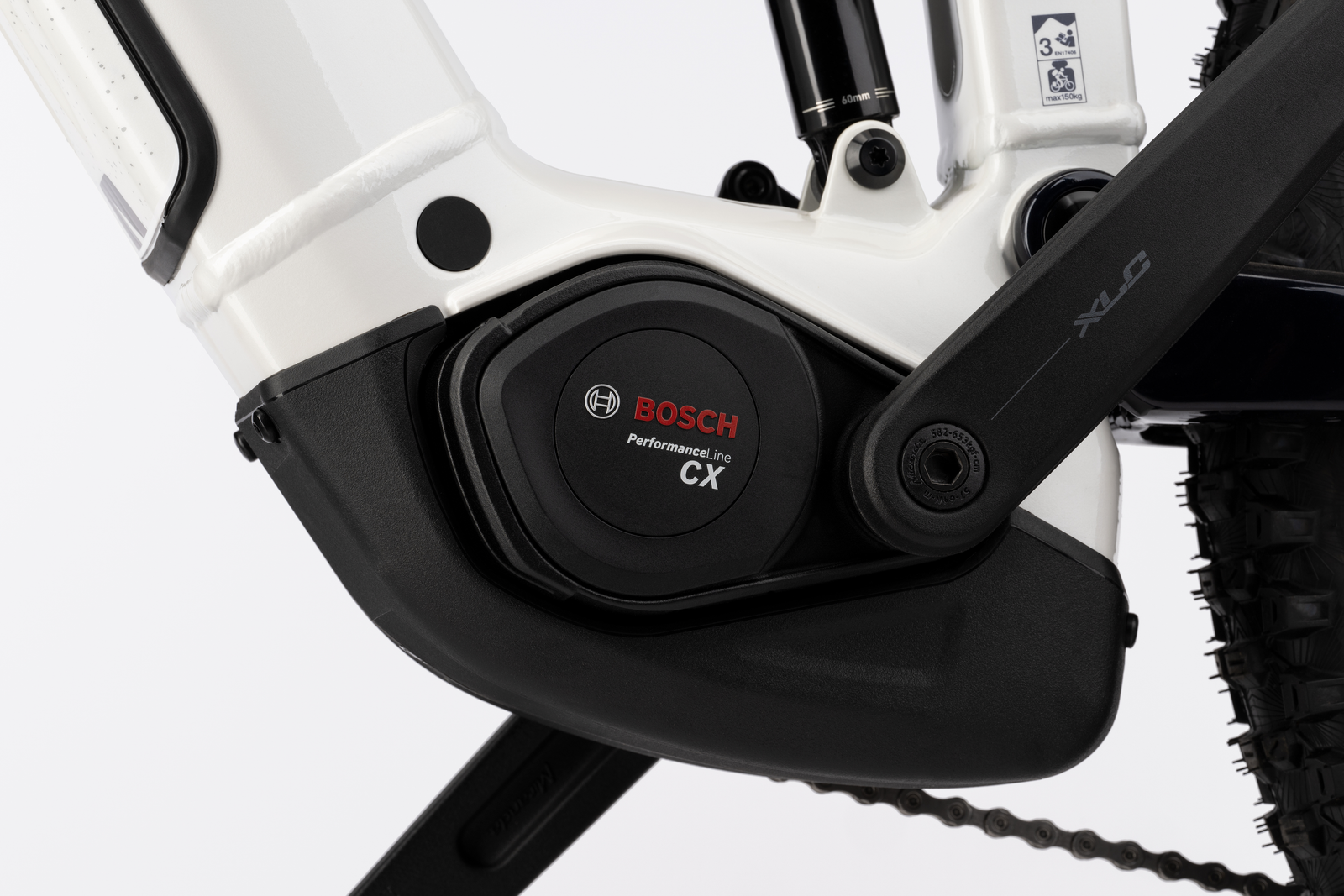

- Bosch Performance Line CX, 600W, 85Nm, 25km/h

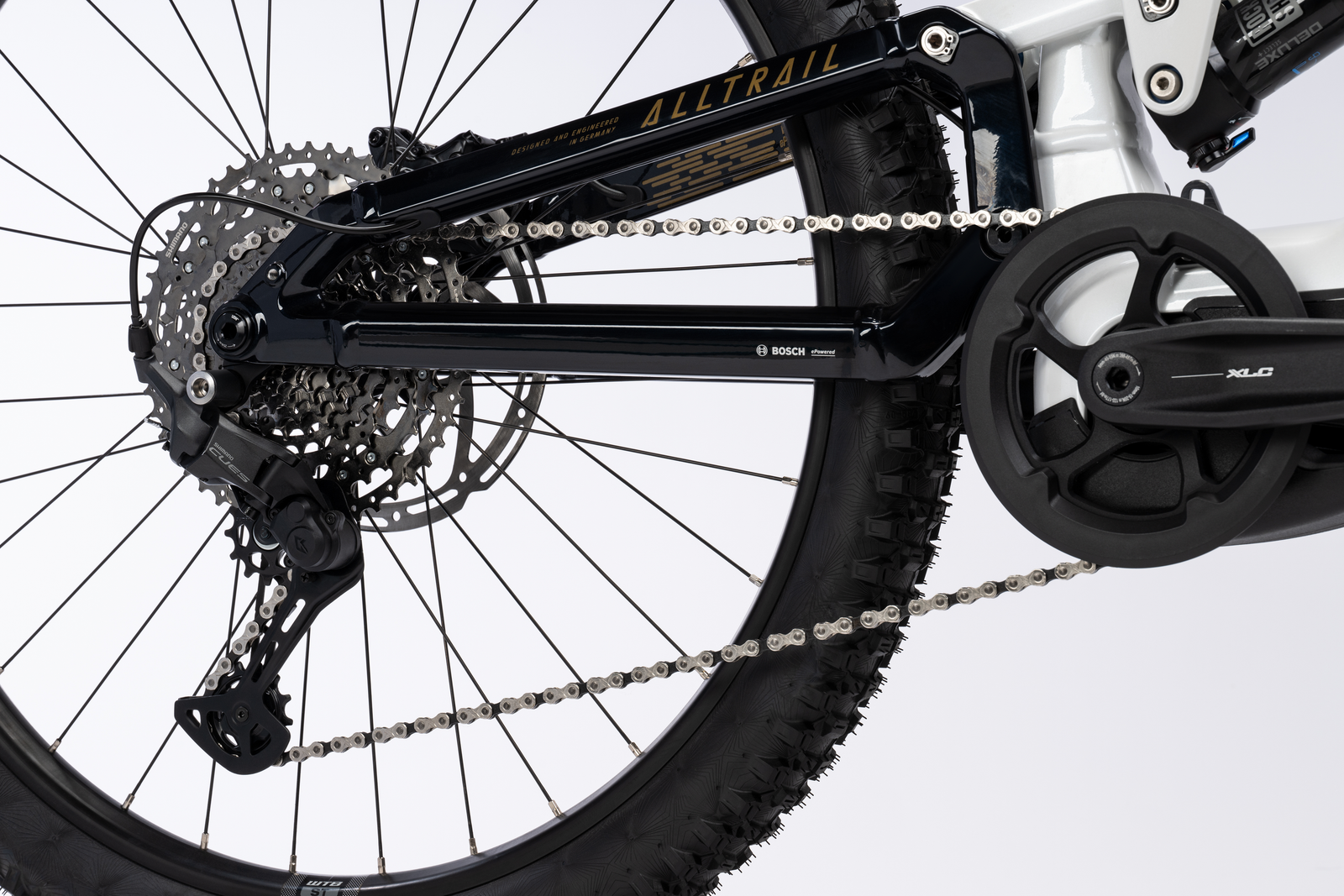

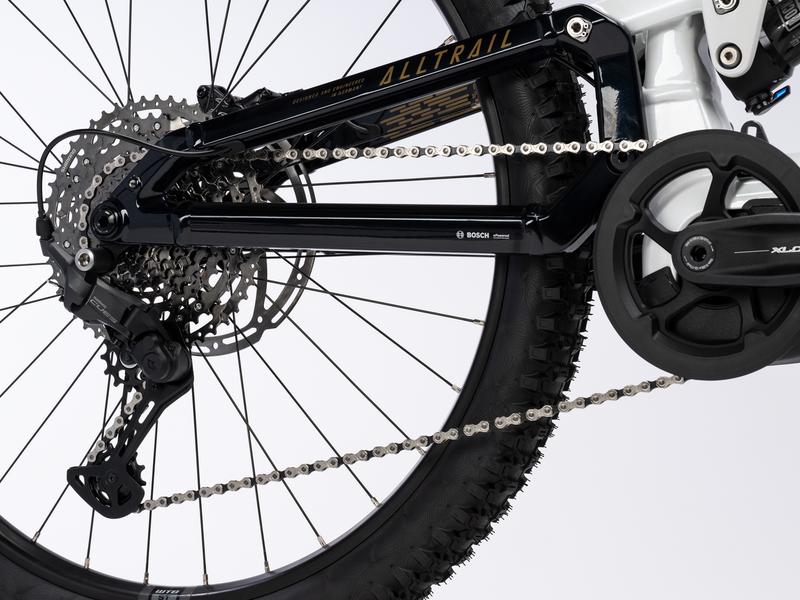

Drivetrain
- Chain
- KMC eGlide with EPT Coating 9-11s
- Rear derailleur
- Shimano CUES RD-U6000 10/11s, Shadow+, 11-speed
- Gears
- 11-speed
- Shifter
- Shimano CUES SL-U6000-11R, Rapidfire+, Trigger shifter
Brakes
- Front brake
- Tektro HD-M535, 4 pistons, resin pad, 203 mm
- Rear brake
- Tektro HD-M535, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Rims
- XLC WR-M37 Disc 30/584 32H 6,5 mm Valve
- Tyres
- Continental Xynotal Trail Endurance, foldable skin SL, 60-584

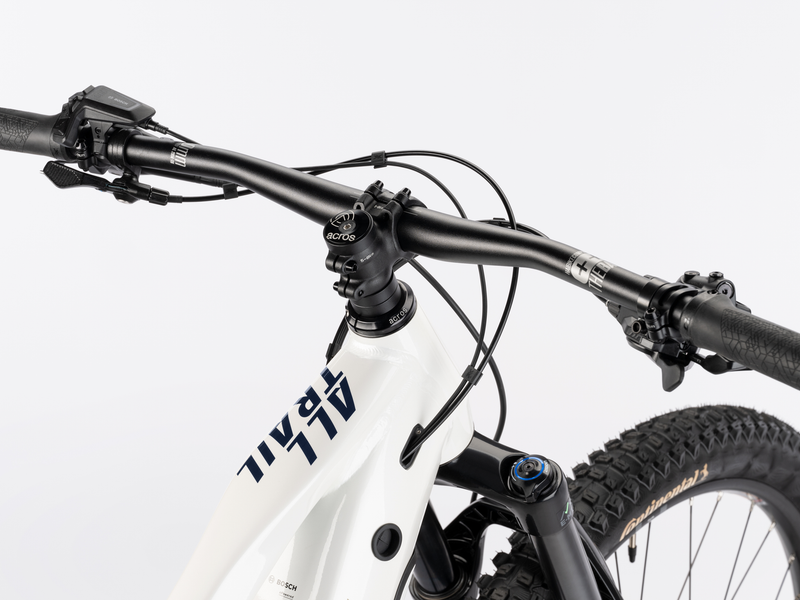

Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar

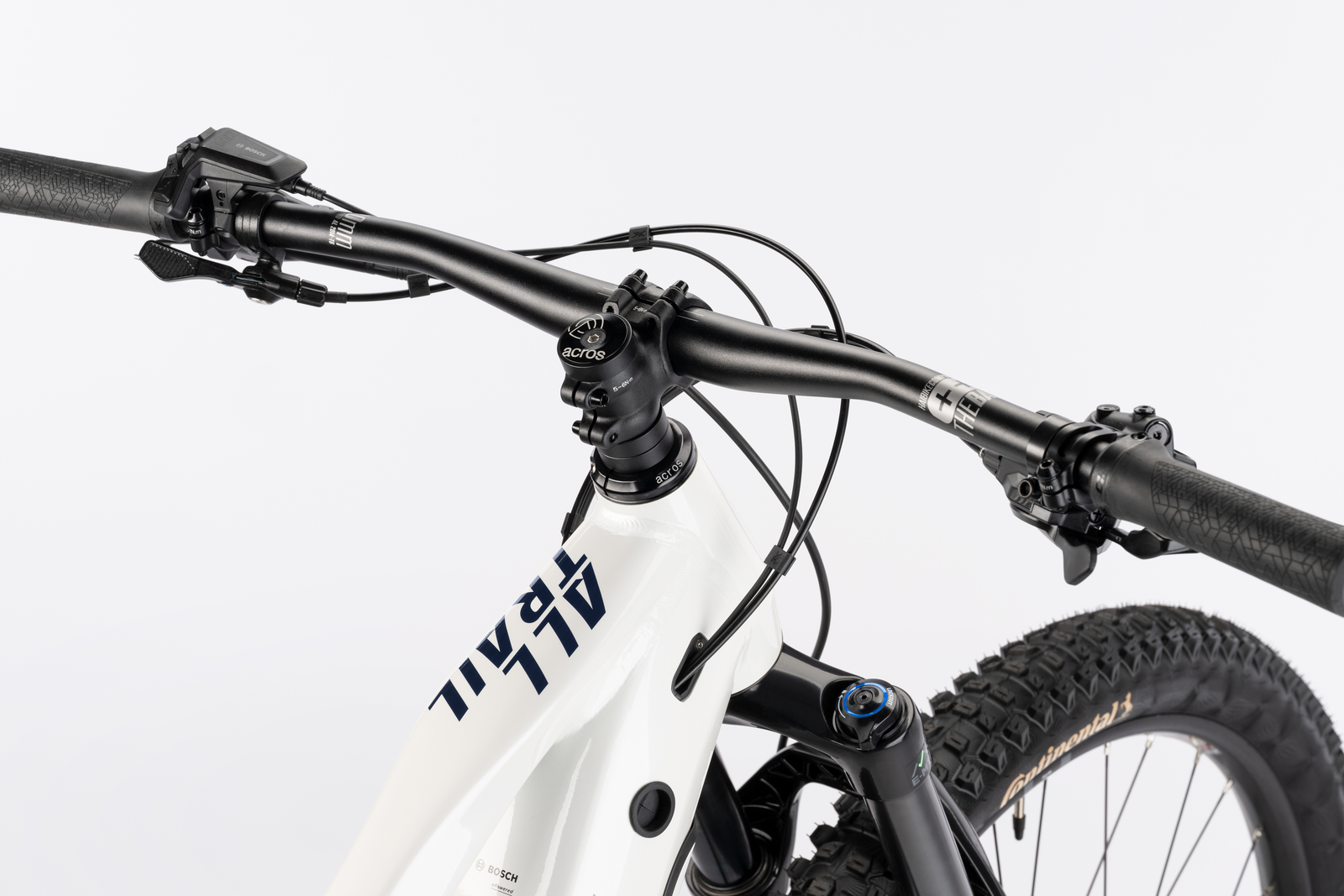

- XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- XLC SA-S10 143 mm Sport
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 150 mm, L: 456 mm
Other
- Max system weight
- 150kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLTRAIL: builds compared
ALLTRAIL range →| ALLTRAIL 4 | ALLTRAIL 6 | ALLTRAIL 8 | ALLTRAIL 10 | |
|---|---|---|---|---|
| Price | €3,999 | €4,499 | €4,999 | €5,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour SF26-ZERON36X-Boost-Air-R-DS, Offset: 44 mm | RockShox Reba RL Motion Control, DebonAir | RockShox Psylo Silver RC, Crown Adjust | RockShox Psylo Gold RC, Crown Adjust. |
| Shock | SR Suntour Edge X R 185x55mm - Trunnion M8x40 - SV | RockShox Deluxe Select 185x55mm | RockShox Deluxe Select R 185x55mm | RockShox Deluxe Select 205x65mm |
| Derailleur | Sram NX Eagle 12s | Sram NX Eagle 12s | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s |
| Brakes | Tektro HD-M535 | Tektro HD-M535 | Tektro HD-M535 | Sram DB4 Stealth A-MAJIG |
| Wheels | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | XLC WR-M37 Disc 30/584 32H 6,5 mm Valve | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 300 + LED Remote |
ALLTRAIL 8: FAQ
How much does the Haibike ALLTRAIL 8 cost?
€4,999 (RRP Germany, VAT incl.). The ALLTRAIL range runs from €3,999 (ALLTRAIL 4) to €5,499 (ALLTRAIL 10). Prices vary by country and dealer.
What motor and battery does the Haibike ALLTRAIL 8 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLTRAIL 8 have?
140 mm at the fork, on 29" (Low frame: 27.5") wheels.
What sizes does the Haibike ALLTRAIL 8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLTRAIL 8 and the ALLTRAIL 10?
They share the ALLTRAIL frame platform and motor; the differences are in the parts — fork: RockShox Psylo Silver RC vs RockShox Psylo Gold RC; shock: RockShox Deluxe Select R 185x55mm vs RockShox Deluxe Select 205x65mm; derailleur: Shimano CUES RD-U6000 10/11s vs Sram Eagle 70 T-Type 12s; brakes: Tektro HD-M535 vs Sram DB4 Stealth A-MAJIG; price: €4,999 vs €5,499.
