CommencalMeta Power SX 400 Signature Eagle 90
- Motor
- Bosch Performance Line SX60 Nm
- Battery
- 400 WhBosch CompactTube 400; 250 Wh range extender compatible
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 21.9 kgManufacturer figure (minimum weight, size S, without pedals)
All Bosch Performance Line SX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
€7,900 upgrades the SX 400 to FOX Factory 38 and Float X, keeping Eagle 90 and TRP brakes. Claimed 21.9 kg.
The Meta Power SX 400 Signature Eagle 90 is one of 3 builds of the Commencal Meta Power SX 400. About the Meta Power SX 400 range and all its builds →

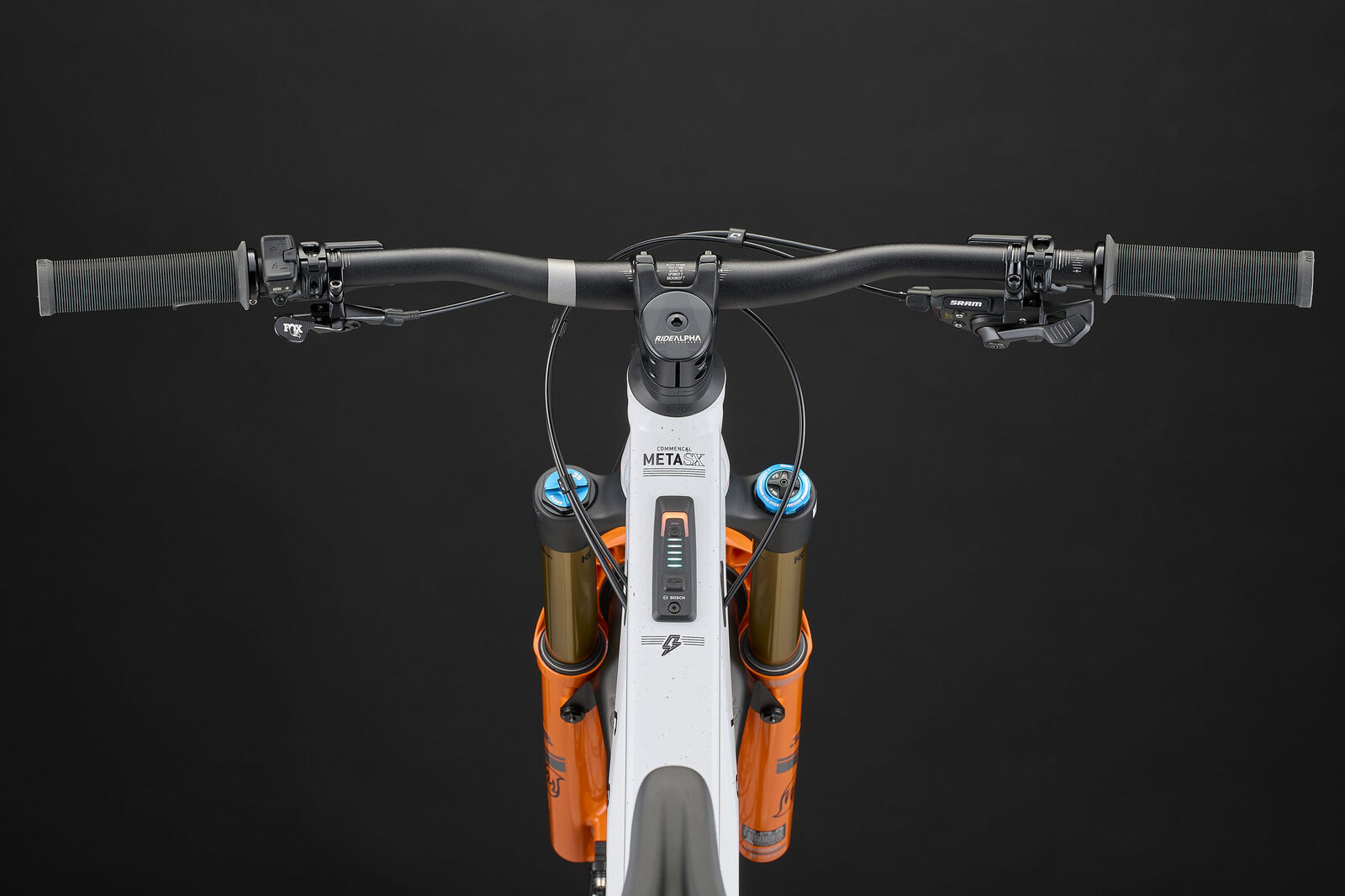

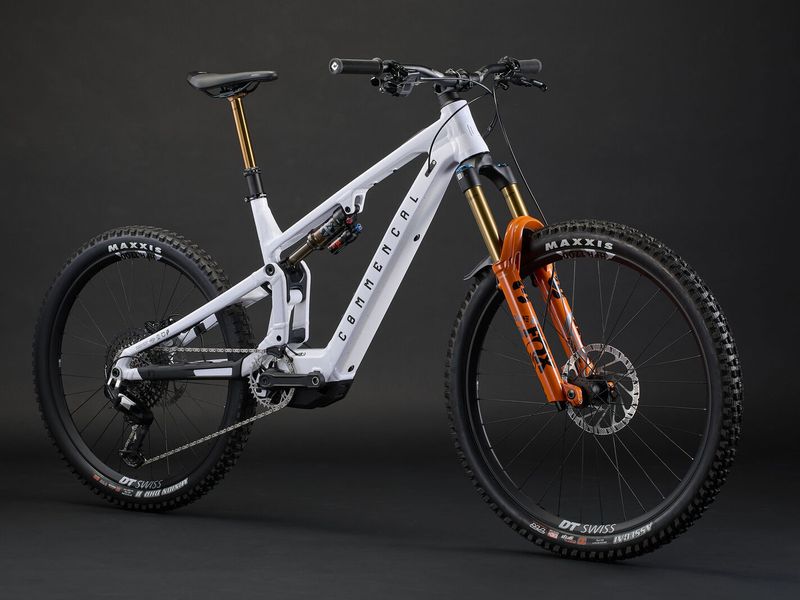

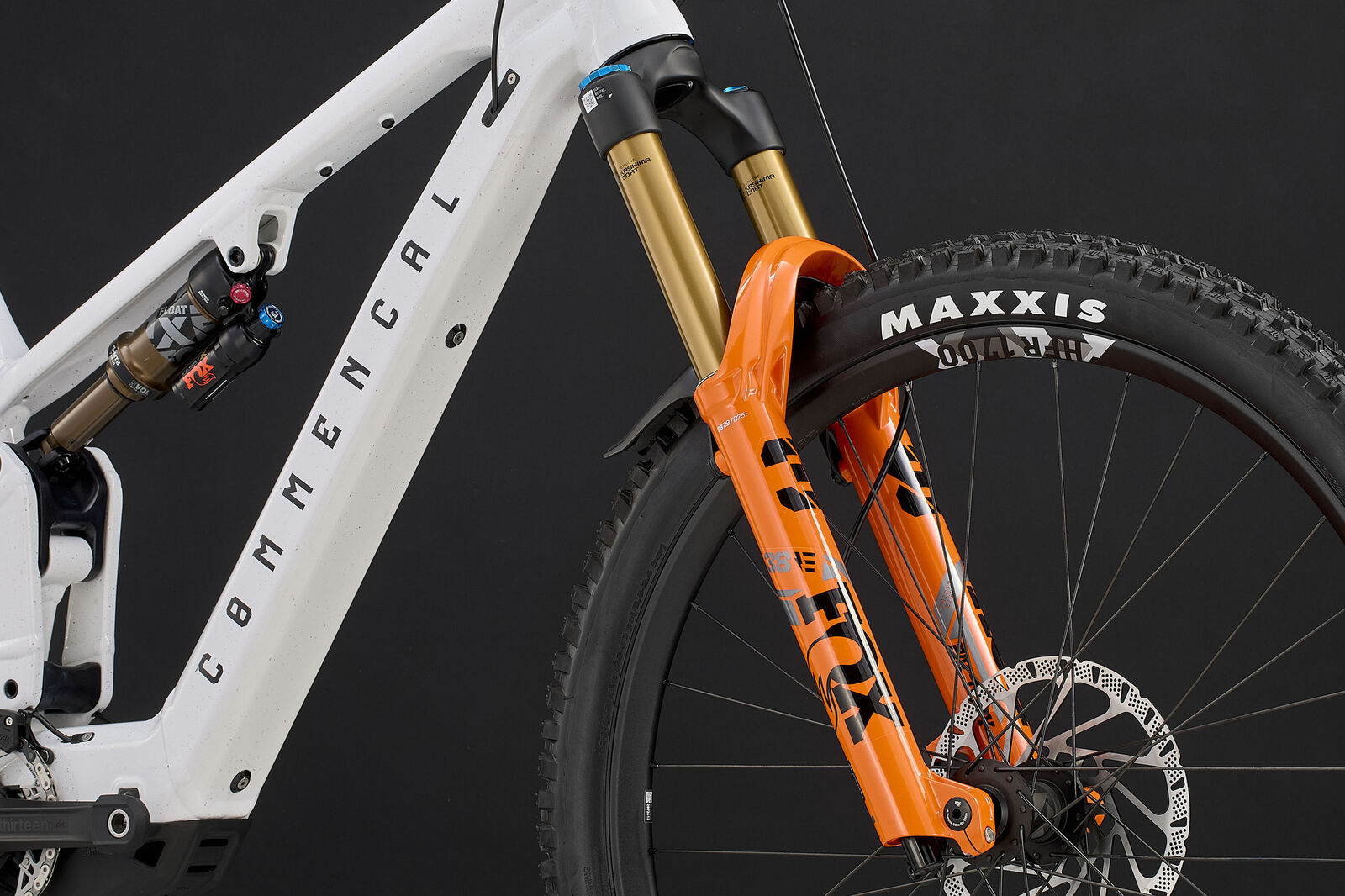

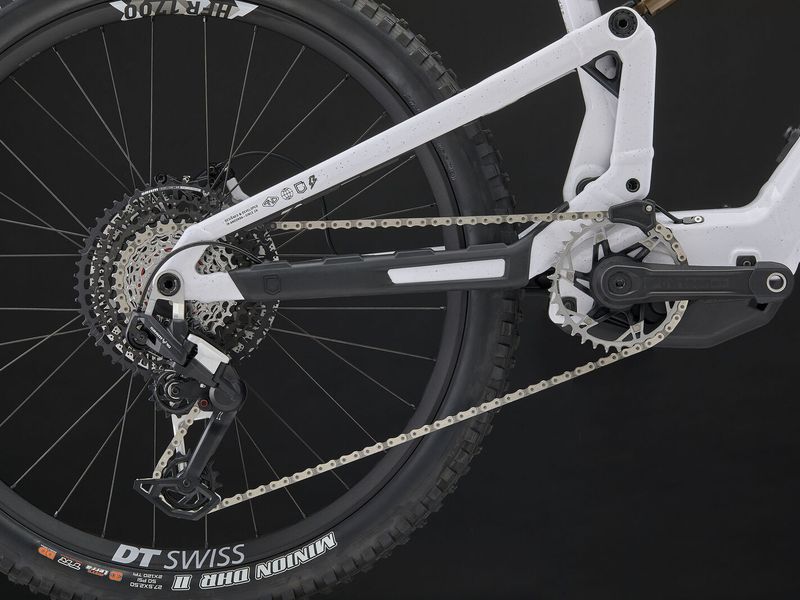

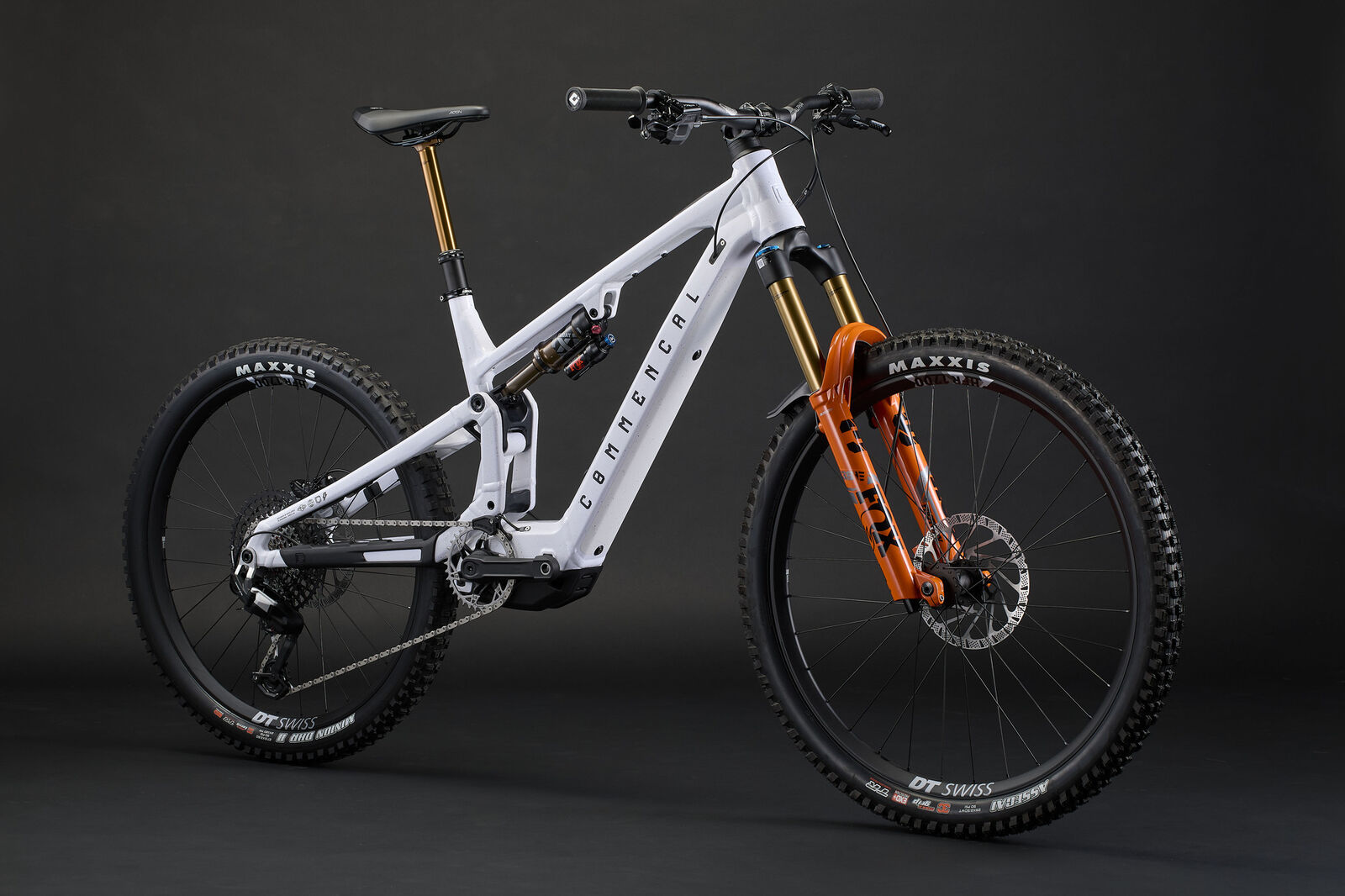

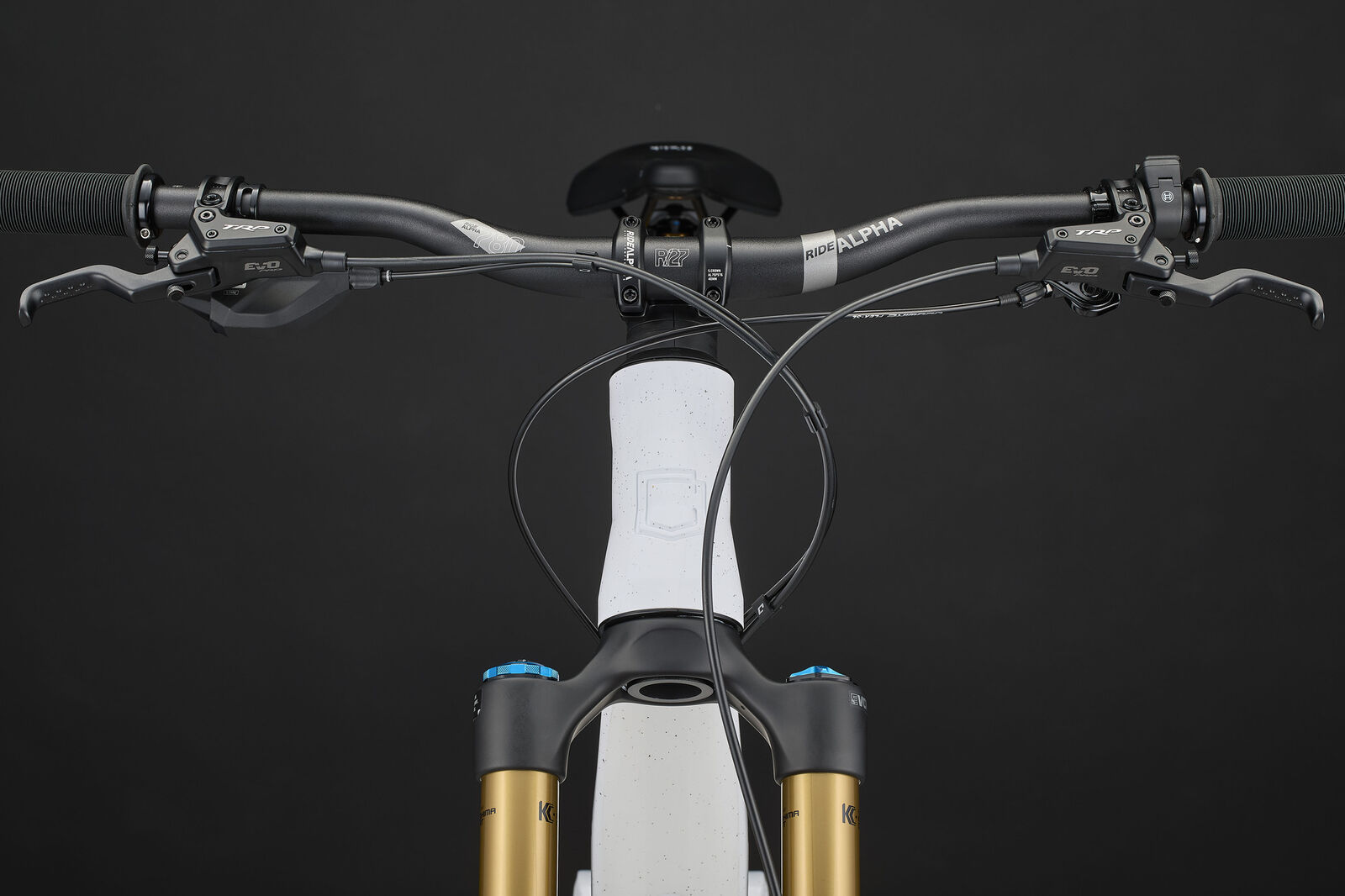

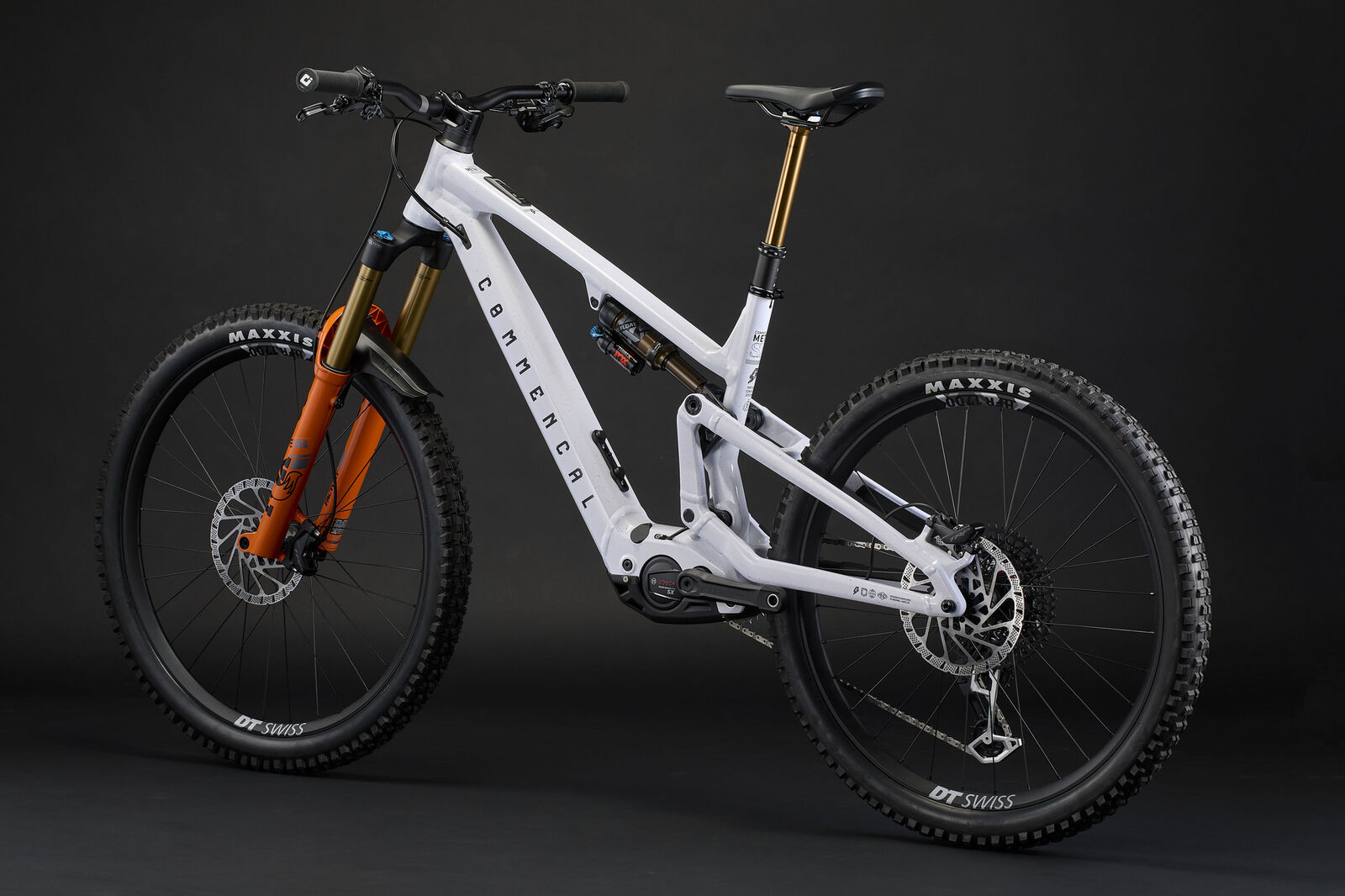

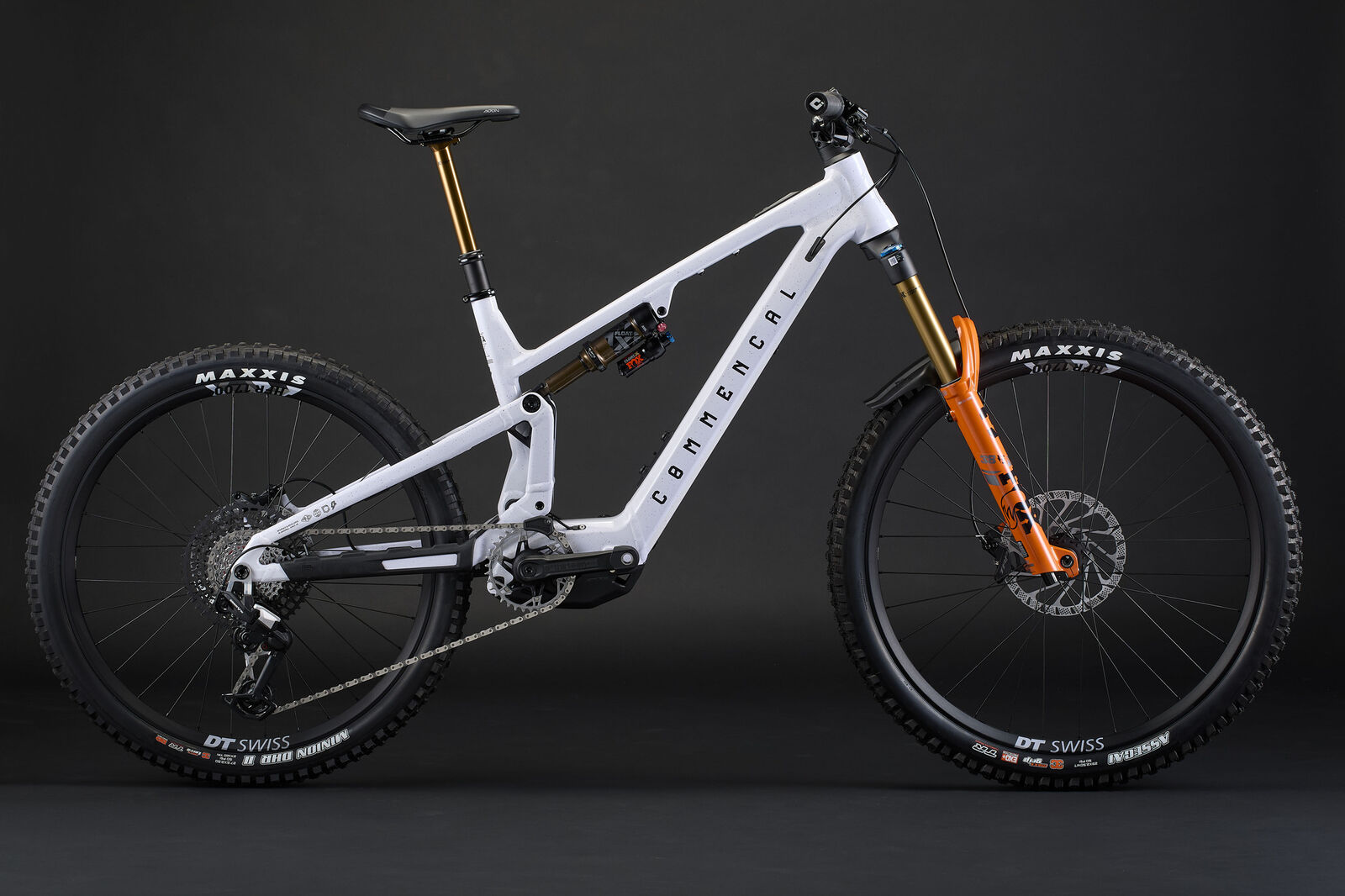

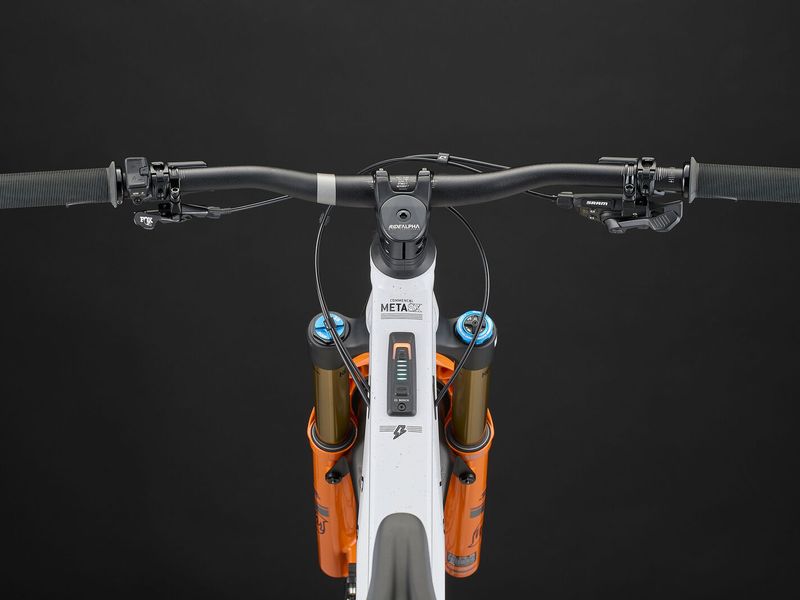

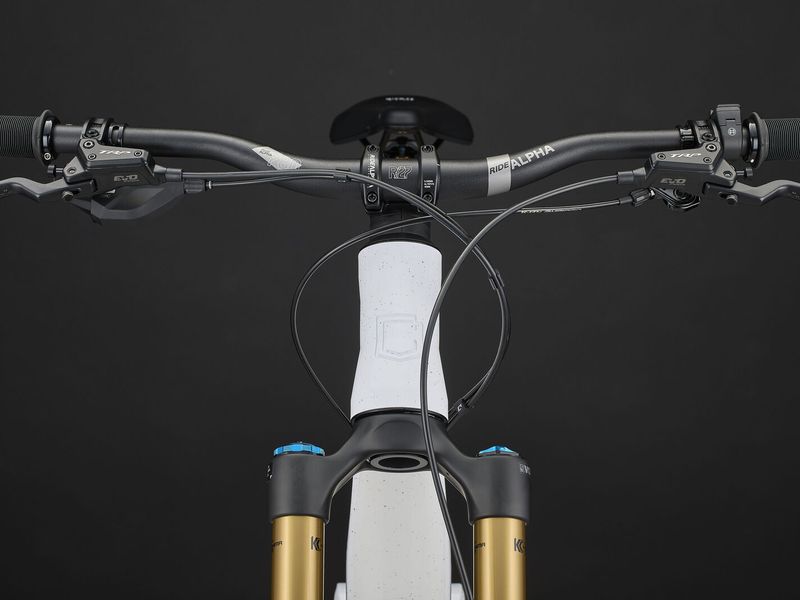

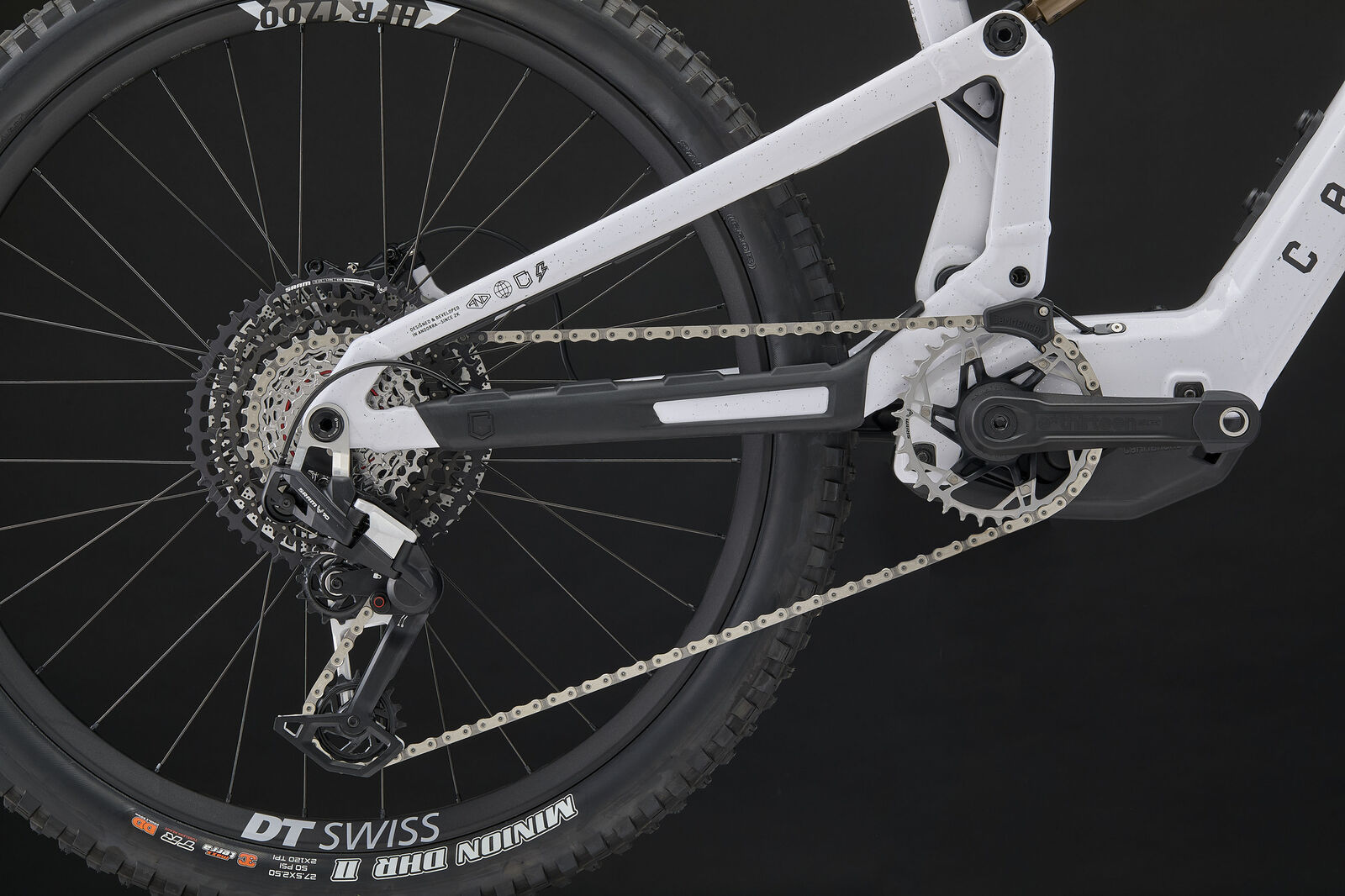

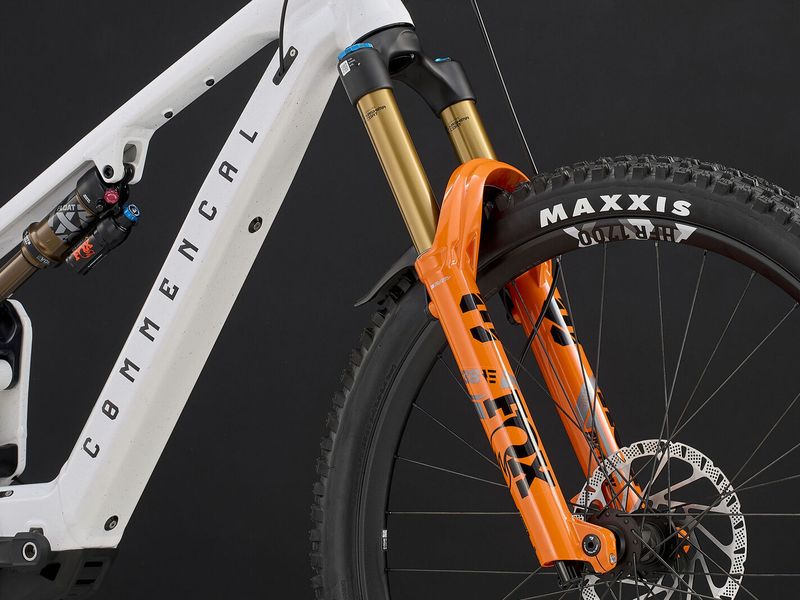

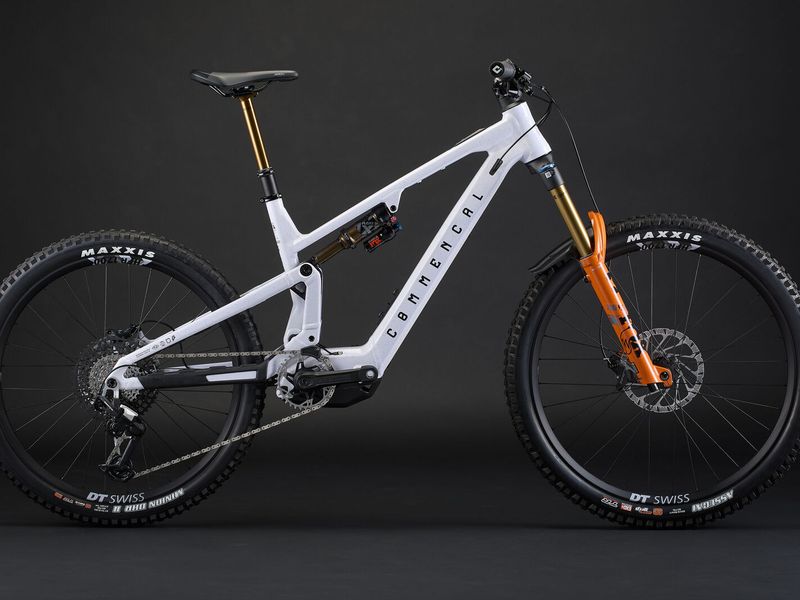

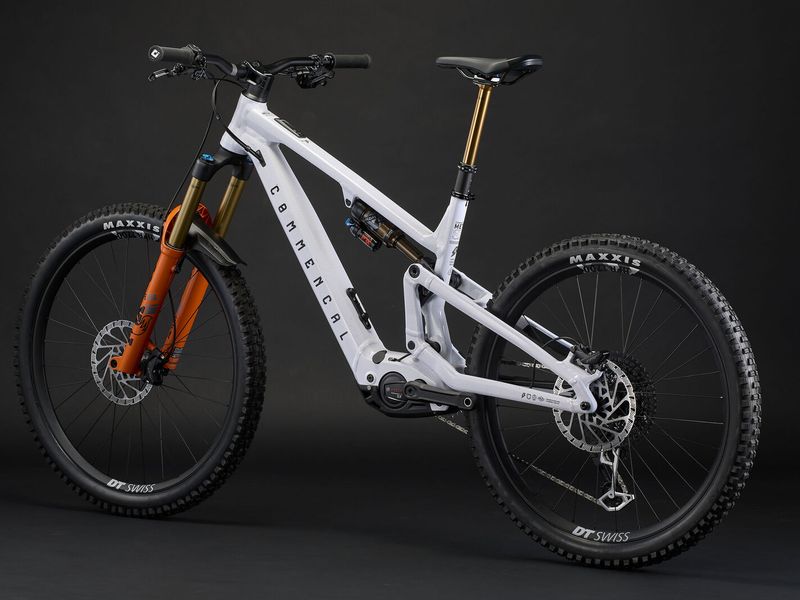

Gallery
Photos: Commencal
Full specifications
Frame & suspension
- Frame
- Meta Power SX 400, 170 mm travel, 29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu Bearings
- Rear shock
- Fox Float X Factory, 230 x 65 mm, 2-position (open/firm) lever, LSC, LSR, 0.4 spacers
- Fork
- Fox 38 Factory E-Bike, 170 mm, 29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers
- Headset
- Acros ZS56/ZS66, Alloy cups, stainless steel & sealed bearings
- Frame weight
- 4,76 kg / 10,49 lb
E-system
- Motor
- Bosch Performance Line SX, Max. torque: 60 N.m, 250 W
- Battery
- Bosch Compact Powertube 400, Fully integrated main battery, 400 Wh, Bosch 4A Battery Charger. Compact size & lightweight
- Display
- Bosch System Controller, ON/OFF switch, assist mode level, battery charge level
Drivetrain
- Shifters
- SRAM Eagle 90, 12s
- Chain guide
- Ride Alpha, 32-34t
- Rear derailleur
- SRAM Eagle 90, 12s
- Crankset
- E13 Helix Core E*Spec, 155 mm crank arms, Bosch Gen4, Chainring: SRAM XX T-Type, 34t, direct mount, Bosch Gen4
- Chain
- SRAM GX T-Type, 12s, Flattop
- Cassette
- SRAM GX T-Type, 12s, 10-52t
Brakes
- Brakes
- TRP DH-R EVO PRO, 4 pistons, resin pads, Rotors: TRP RS05E 203 mm, 6-bolt, 2.3 mm width
Wheels & tyres
- Rims
- DT Swiss HFR1700, Rear. 27.5", 32h, 30 mm inner width - Front: 29", 32h, 30 mm inner width
- Hubs
- DT Swiss 350, Rear: 32h, sealed bearings, 12 x 148 mm, 24t, Sram XD - Front: 32h, sealed bearings, 15 x 11 0mm
- Spokes
- Included with wheelset
- Tyres
- Rear: Maxxis Minion DHRII 27.5" - Front: Maxxis Assegai 29", Rear: 27.5 x 2.50 WT, Tubeless Ready, 3C MaxxTerra, Double Down - Front: 29 x 2.50 WT, Tubeless Ready, 3C MaxxGrip, New EXO+
Cockpit
- Stem
- Ride Alpha 40, 40 mm extension, 31.8 mm
- Handlebar
- Ride Alpha R20 760 on S - Ride Alpha R27 780 on M / L - Ride Alpha R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
- Grips
- ODI Longneck 2.1, Soft compound, single clamp, black
- Seatpost
- Fox Transfer Factory, 34.9 mm, 150 mm on S, 180mm on M and 210 mm on L/XL
- Saddle
- Fizik Terra Aidon X5, 145 mm width, Kium Mobius rails
- Pedals
- Crankbrothers Stamp 1
Other
- Colour
- Glittery White, Shiny Finish
- Accessories
- Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender, Fidlock base
- Weight
- 21,9 kg / 48.28 lbs, Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Meta Power SX 400 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| 2Seat Tube Angle | 74.2° | 74.2° | 74.2° | 74.2° |
| 3Head Tube Angle | 64° | 64° | 64° | 64° |
| 4Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| 5Wheelbase | 1236.9 mm | 1259.1 mm | 1291.3 mm | 1316.3 mm |
| 6Top Tube Length | 580.7 mm | 602 mm | 628.3 mm | 653.3 mm |
| 7Chainstay Length | 445 mm | 445 mm | 450 mm | 450 mm |
| 8BB drop | 4 mm | 4 mm | 4 mm | 4 mm |
| 9Fork Length | 588 mm | 588 mm | 588 mm | 588 mm |
| 10Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| 11Reach | 440 mm | 460 mm | 485 mm | 510 mm |
| 12Stack | 636.1 mm | 640.6 mm | 645.1 mm | 645.1 mm |
Source: Commencal.
Meta Power SX 400: builds compared
Meta Power SX 400 range →| Meta Power SX 400 Essential Eagle 90 | Meta Power SX 400 Signature Eagle 90 | Meta Power SX 400 AXS Limited | |
|---|---|---|---|
| Price | €6,200 | €7,900 | €8,000 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Fox 38 Performance E-Bike, 170 mm | Fox 38 Factory E-Bike, 170 mm | Fox 38 Factory, 170 mm travel |
| Shock | Fox Float X Performance | Fox Float X Factory | Fox Float X2 Factory |
| Derailleur | SRAM Eagle 90 | SRAM Eagle 90 | SRAM GX Eagle Transmission |
| Brakes | TRP DH-R EVO PRO | TRP DH-R EVO PRO | Shimano XT M8120 |
| Wheels | DT Swiss HF1900, Rear: 27.5" | DT Swiss HFR1700, Rear | DT Swiss FR541, Rear : 27.5" |
| Display | Bosch System Controller | Bosch System Controller | Bosch System Controller |
| Weight | 22 kg | 21.9 kg | 22 kg |
Meta Power SX 400 Signature Eagle 90: FAQ
What is the difference between the Meta Power SX 400 Signature Eagle 90 and the Meta Power SX 400 AXS Limited?
They share the Meta Power SX 400 frame platform and motor; the differences are in the parts: fork: Fox 38 Factory E-Bike vs Fox 38 Factory; shock: Fox Float X Factory vs Fox Float X2 Factory; derailleur: SRAM Eagle 90 vs SRAM GX Eagle Transmission; claimed weight: 21.9 kg vs 22 kg; price: €7,900 vs €8,000.
