CommencalMeta Power SX 400 AXS Limited
- Motor
- Bosch Performance Line SX60 Nm
- Battery
- 400 WhBosch CompactTube 400; 250 Wh range extender compatible
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 22 kgManufacturer figure (minimum weight, size S, without pedals)
All Bosch Performance Line SX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
The AXS Limited (€8,000) brings SRAM GX Eagle Transmission, a Float X2 Factory shock and Shimano XT brakes. Only €100 more than the Signature, so it's the one to pick if you want wireless shifting.
The Meta Power SX 400 AXS Limited is one of 3 builds of the Commencal Meta Power SX 400. About the Meta Power SX 400 range and all its builds →

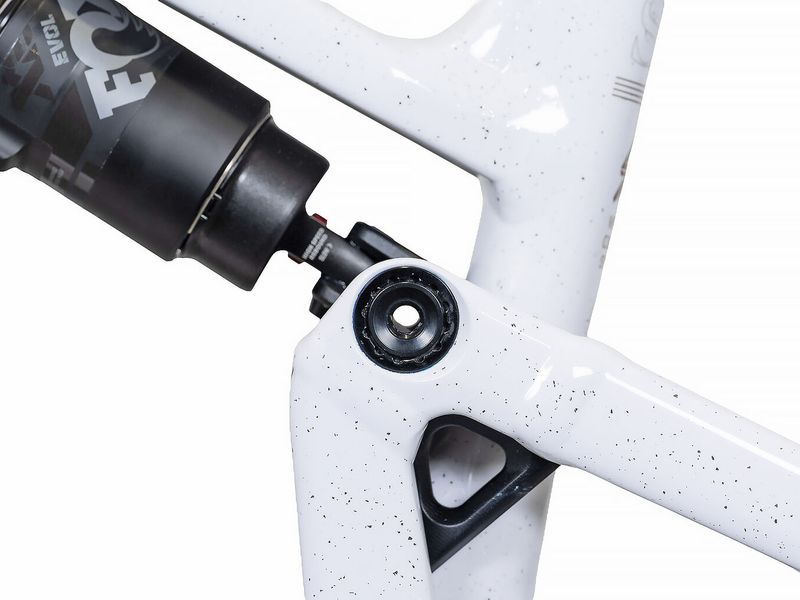

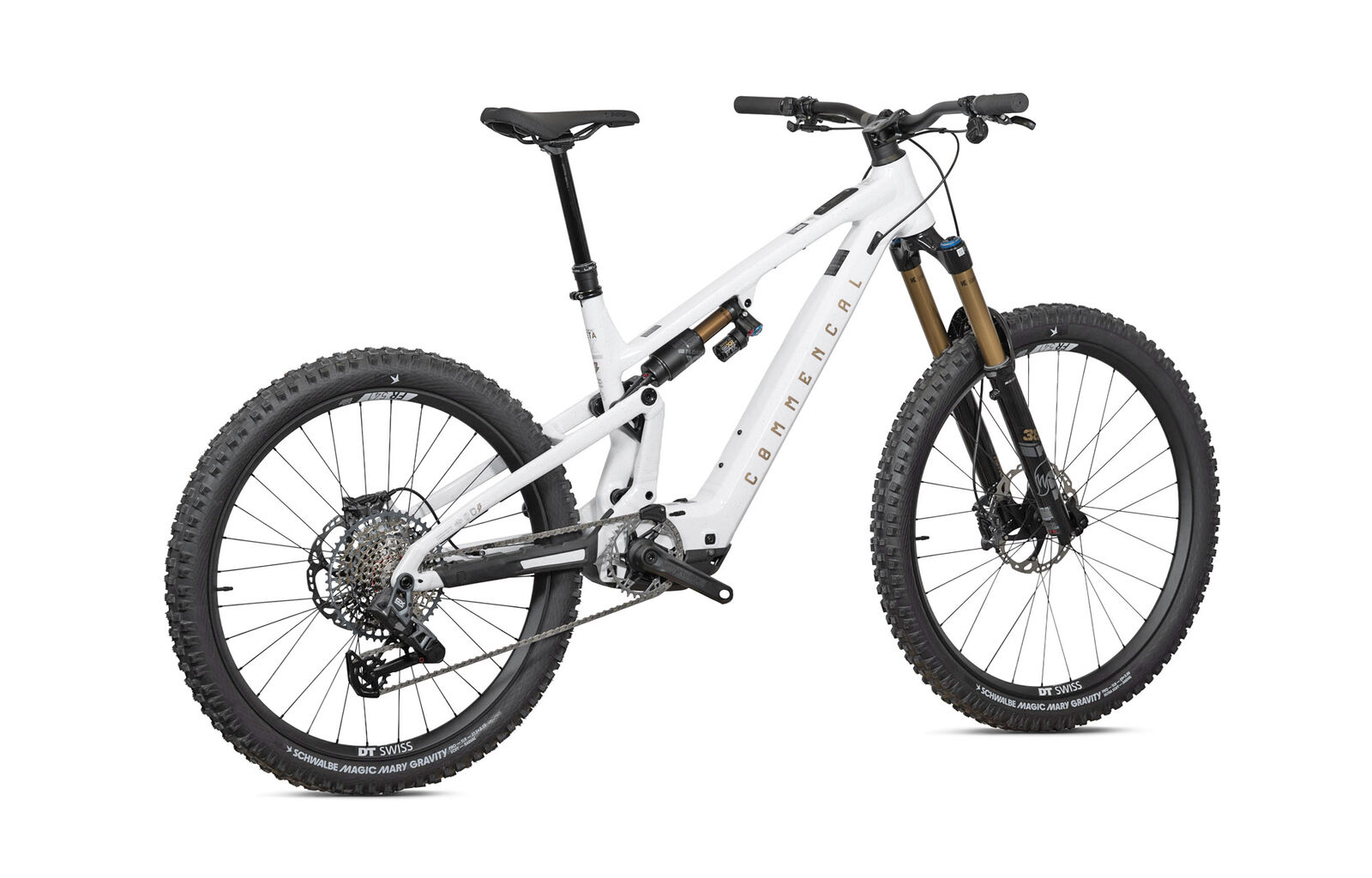

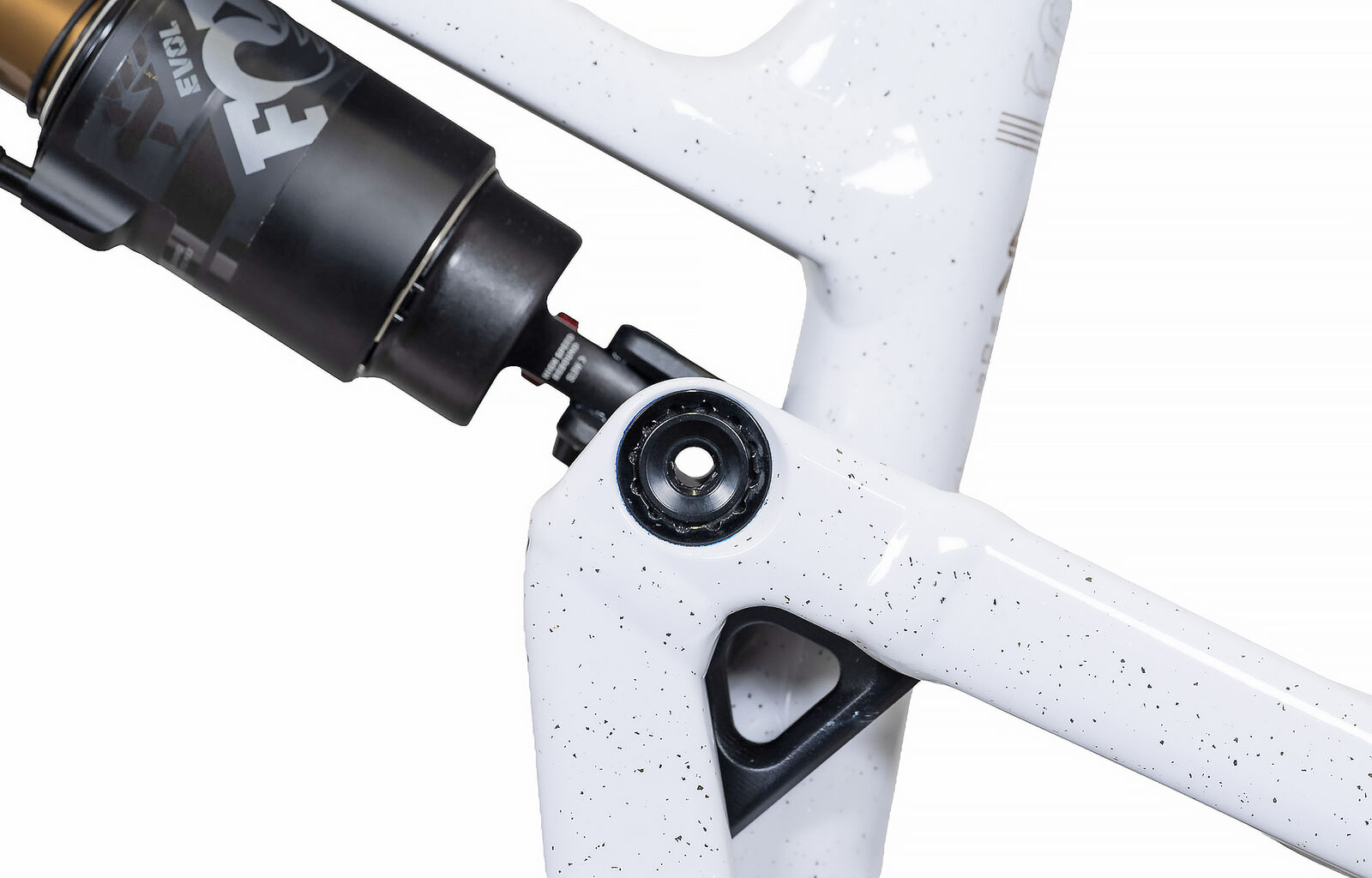

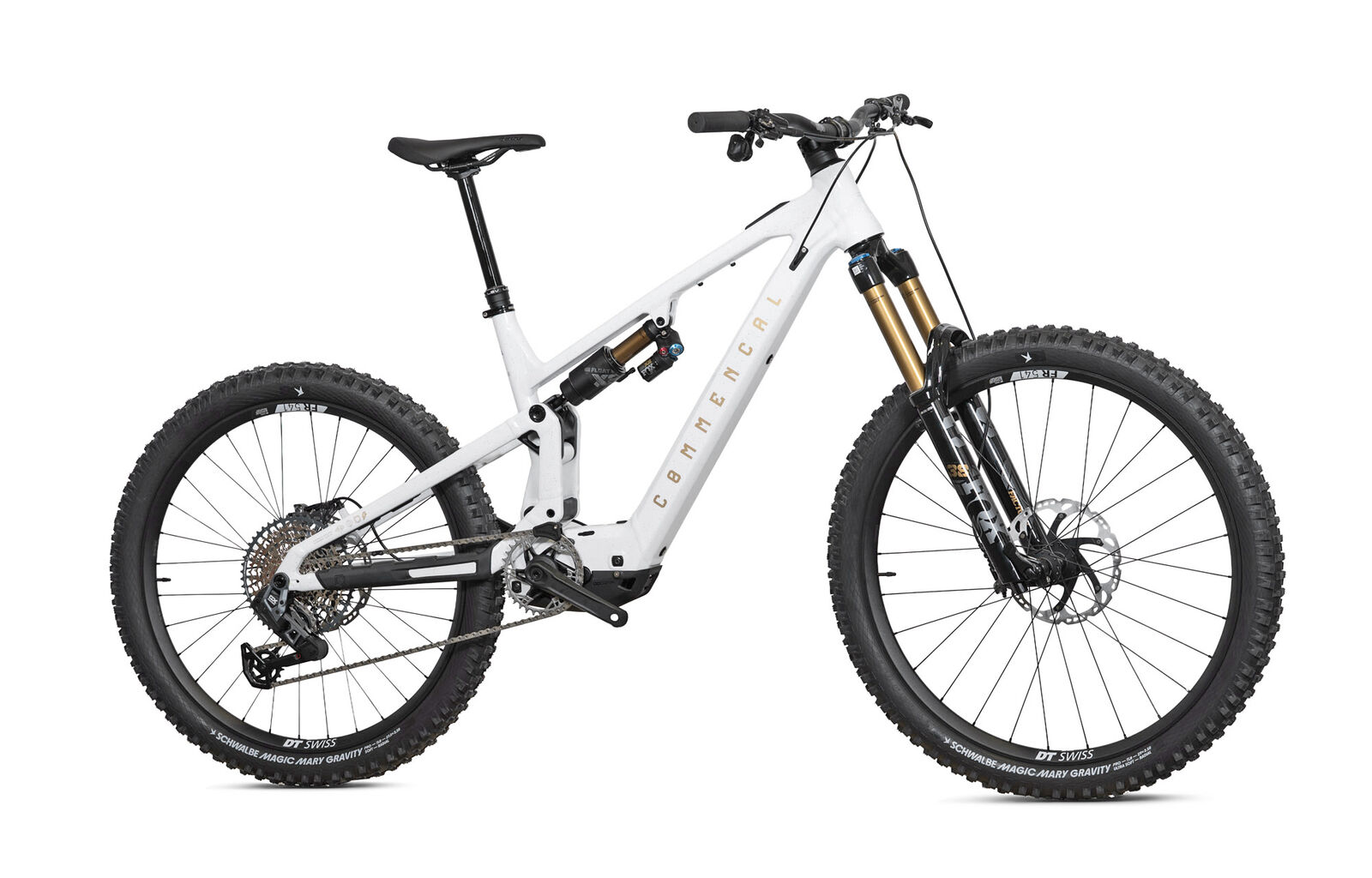

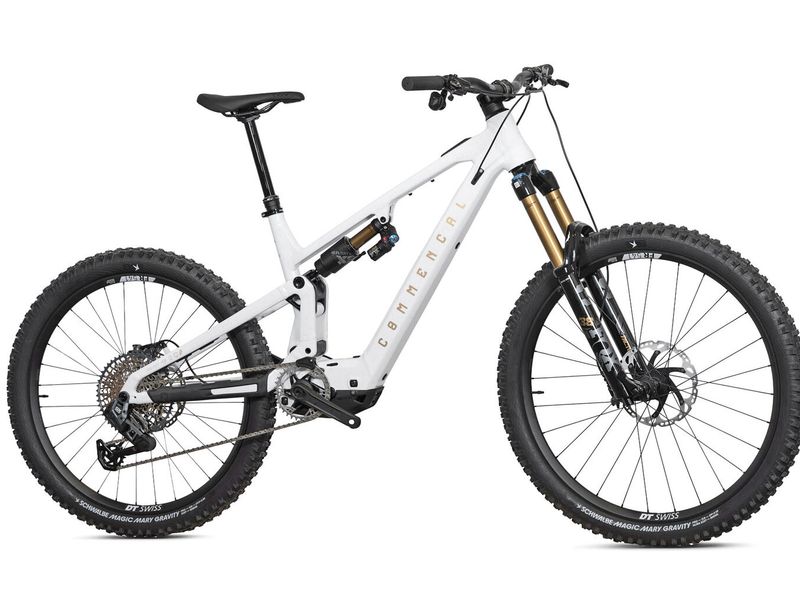

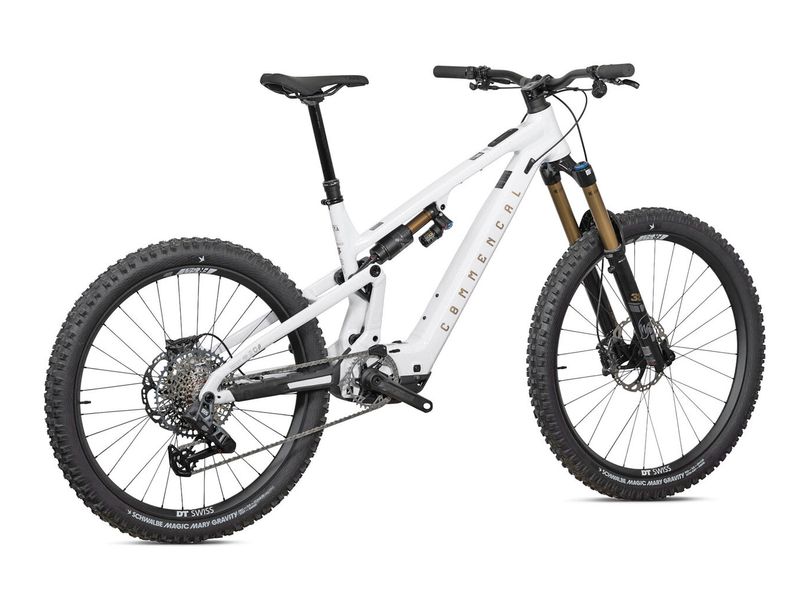

Gallery
Photos: Commencal
Full specifications
Frame & suspension
- Frame
- Meta Power SX 400, 170 mm travel, 29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu Bearings

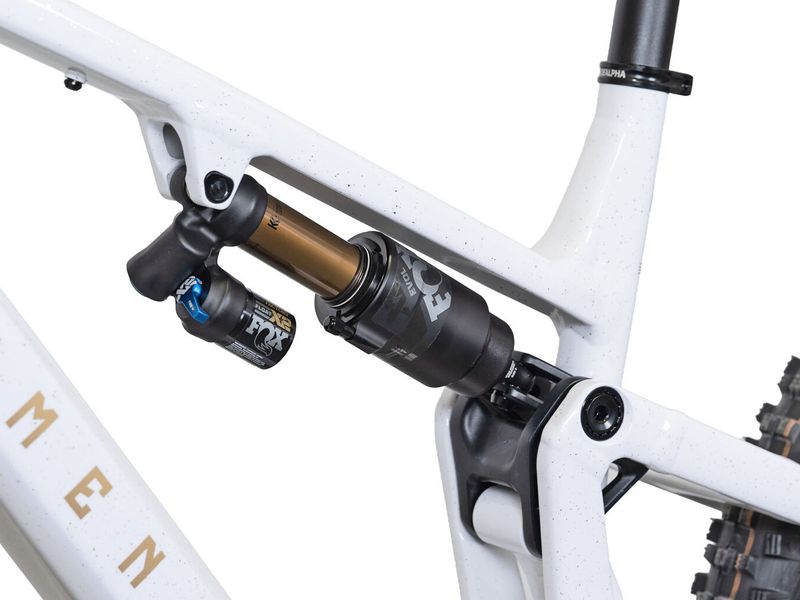

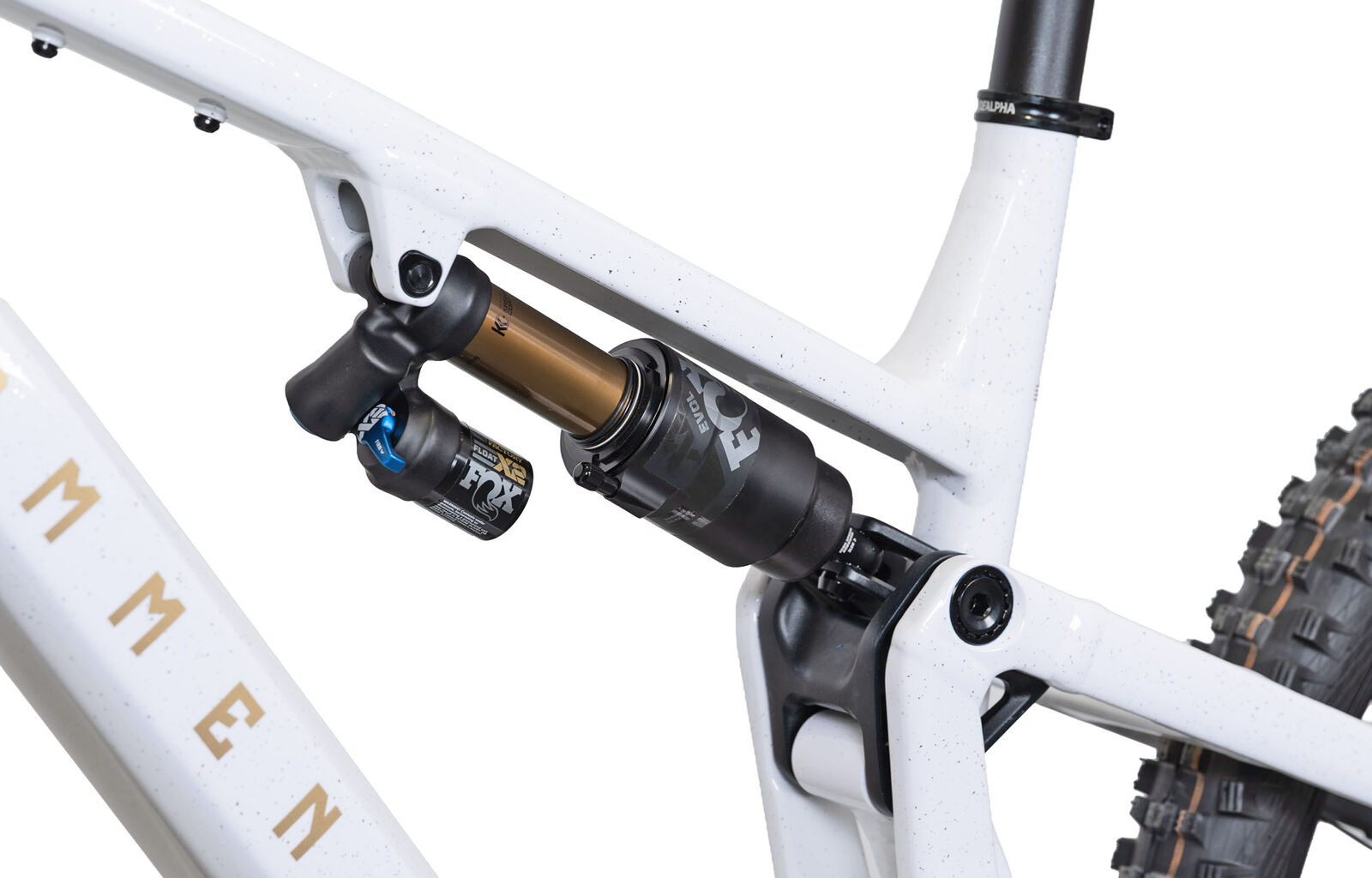

- Rear shock
- Fox Float X2 Factory, 230 x 65 mm, HSC, LSC, HSR, LSR, 2-position adjustment
- Fork
- Fox 38 Factory, 170 mm travel, 29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 Tokens
- Headset
- Acros ZS56 / ZS66, Alloy cups, stainless steel & sealed bearings
- Frame weight
- 4,76 kg / 10,49 lb
E-system
- Motor
- Bosch Performance Line SX, Max. torque: 60 N.m, 250 W
- Battery
- Bosch Compact Powertube 400, Fully integrated main battery, 400 Wh, Bosch 4A Battery Charger. Compact size & lightweight
- Display
- Bosch System Controller, ON/OFF switch, assist mode level, battery charge level

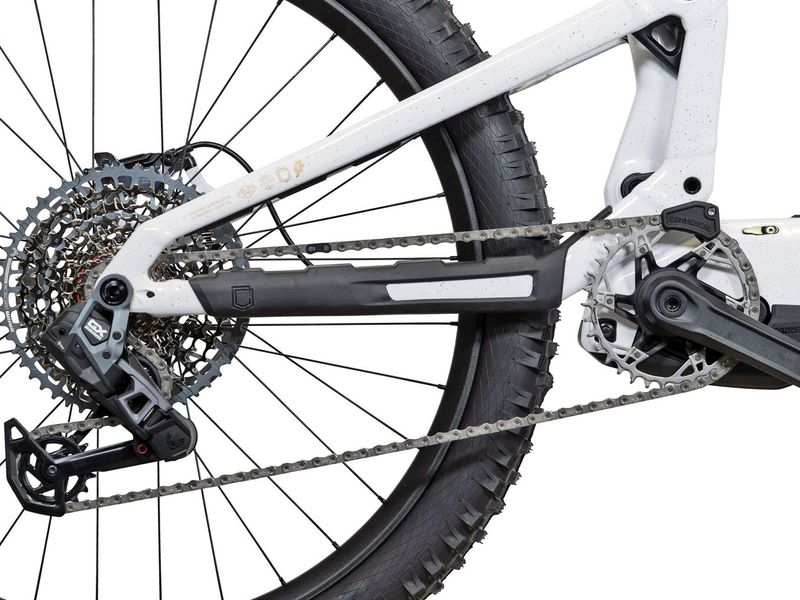

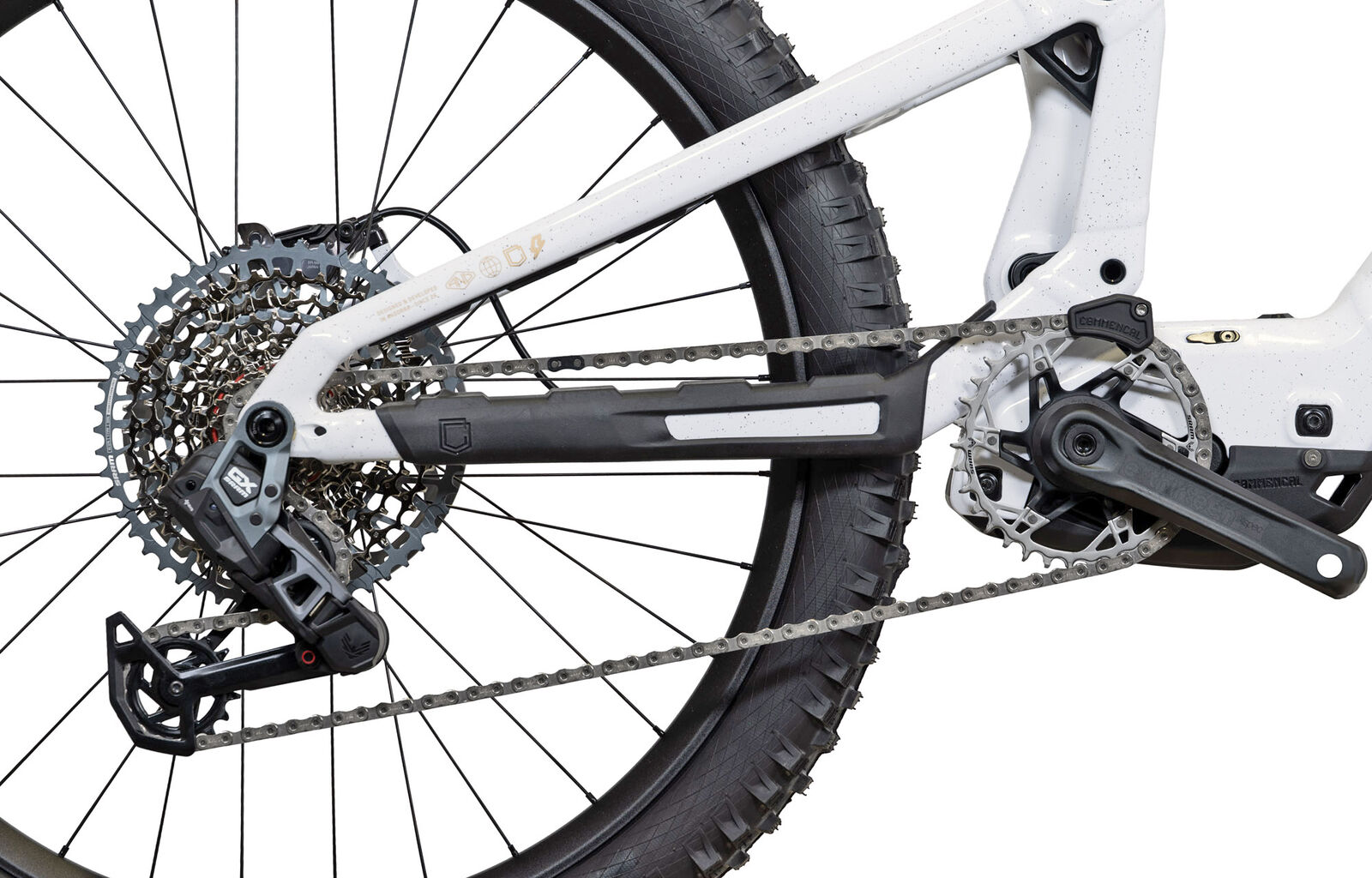

Drivetrain
- Shifters
- SRAM AXS POD Controller, 12s
- Chain guide
- Ride Alpha, 32-34t
- Rear derailleur
- SRAM GX Eagle Transmission, 12s, AXS, T-Type
- Crankset
- E13 Helix Core E*Spec, 155 mm crank arms, Bosch, Chainring : SRAM XX T-Type, E-MTB, 34t for Bosch system, direct mount
- Chain
- SRAM GX Eagle Transmission, 12s, Flattop, T-Type
- Cassette
- SRAM GX Eagle Transmission, 12s, 10-52t, T-Type
Brakes
- Brakes
- Shimano XT M8120, 4 pistons, I-Spec EV compatible, Rotors : Shimano SM-RT86, 203 mm, 6 holes
Wheels & tyres
- Rims
- DT Swiss FR541, Rear : 27.5", 32h, 30 mm inner width - Front : 29", 28h, 30 mm inner width
- Hubs
- Rear : DT Swiss 370 Hybrid - Front : DT Swiss 370, Rear : 32h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front : 28h, sealed bearings, 15 x 110 mm
- Spokes
- Included with wheelset
- Tyres
- Schwalbe Magic Mary, Rear : 27.5x2.50 Gravity Pro Radial Addix Soft - Front : 29x2.50 Gravity Pro Radial Addix Ultra Soft
Cockpit
- Stem
- Ride Alpha 40, 40 mm extension, 31.8 mm
- Handlebar
- Ride Alpha R27 800, 800 mm width, 27 mm rise, Alloy
- Grips
- Ride Alpha Mushroom, Soft compound, single clamp, black
- Seatpost
- KS Lev Integra, 34.9 mm, 150 mm on S, 175 mm on M/L
- Saddle
- SDG Bel Air, Bel air V3 Lux Alloy
- Pedals
- No
Other
- Colour
- Glittery White, Shiny Finish
- Accessories
- Down tube protector, chainstay protector, seatstay protector, Fox 38 specific fender
- Weight
- 22.0 kg / 48.50 lbs, Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Meta Power SX 400 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| 2Seat Tube Angle | 74.2° | 74.2° | 74.2° | 74.2° |
| 3Head Tube Angle | 64° | 64° | 64° | 64° |
| 4Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| 5Wheelbase | 1236.9 mm | 1259.1 mm | 1291.3 mm | 1316.3 mm |
| 6Top Tube Length | 580.7 mm | 602 mm | 628.3 mm | 653.3 mm |
| 7Chainstay Length | 445 mm | 445 mm | 450 mm | 450 mm |
| 8BB drop | 4 mm | 4 mm | 4 mm | 4 mm |
| 9Fork Length | 588 mm | 588 mm | 588 mm | 588 mm |
| 10Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| 11Reach | 440 mm | 460 mm | 485 mm | 510 mm |
| 12Stack | 636.1 mm | 640.6 mm | 645.1 mm | 645.1 mm |
Source: Commencal.
Meta Power SX 400: builds compared
Meta Power SX 400 range →| Meta Power SX 400 Essential Eagle 90 | Meta Power SX 400 Signature Eagle 90 | Meta Power SX 400 AXS Limited | |
|---|---|---|---|
| Price | €6,200 | €7,900 | €8,000 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Fox 38 Performance E-Bike, 170 mm | Fox 38 Factory E-Bike, 170 mm | Fox 38 Factory, 170 mm travel |
| Shock | Fox Float X Performance | Fox Float X Factory | Fox Float X2 Factory |
| Derailleur | SRAM Eagle 90 | SRAM Eagle 90 | SRAM GX Eagle Transmission |
| Brakes | TRP DH-R EVO PRO | TRP DH-R EVO PRO | Shimano XT M8120 |
| Wheels | DT Swiss HF1900, Rear: 27.5" | DT Swiss HFR1700, Rear | DT Swiss FR541, Rear : 27.5" |
| Display | Bosch System Controller | Bosch System Controller | Bosch System Controller |
| Weight | 22 kg | 21.9 kg | 22 kg |
Meta Power SX 400 AXS Limited: FAQ
What is the difference between the Meta Power SX 400 AXS Limited and the Meta Power SX 400 Signature Eagle 90?
They share the Meta Power SX 400 frame platform and motor; the differences are in the parts: fork: Fox 38 Factory vs Fox 38 Factory E-Bike; shock: Fox Float X2 Factory vs Fox Float X Factory; derailleur: SRAM GX Eagle Transmission vs SRAM Eagle 90; claimed weight: 22 kg vs 21.9 kg; price: €8,000 vs €7,900.
