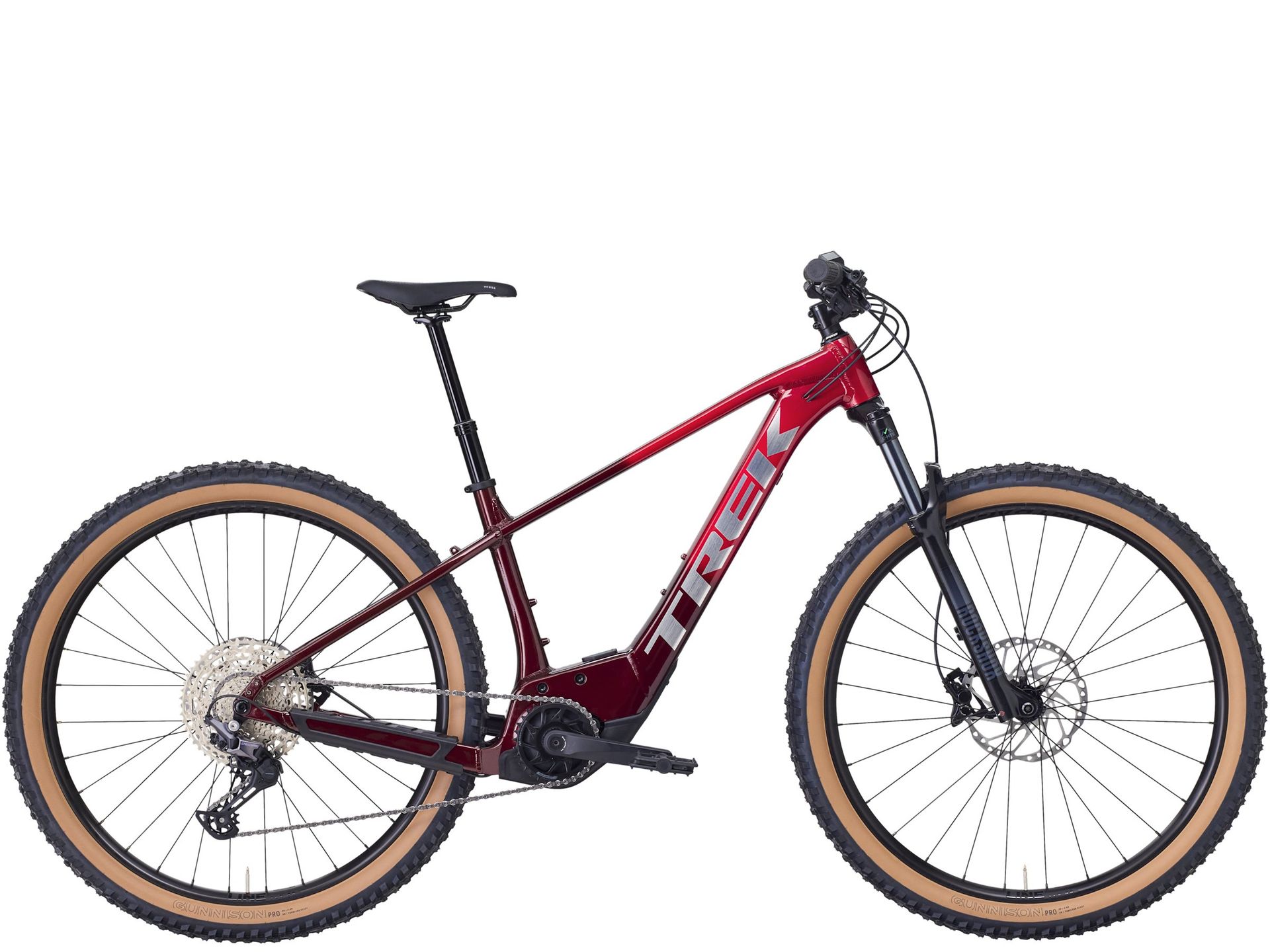

TrekMarlin+

Price: £2,650
Motor: Bosch Active Line Plus50 Nm
Battery: 400 WhBosch CompactTube
Travel F / R: 120 / null mm
Wheels: 29" (XS–S: 27.5")

Overview

The Marlin+ is Trek's entry e-MTB hardtail: an Alpha Gold aluminium frame with a 120 mm fork, 29-inch wheels (27.5-inch on XS and S), rack, mudguard and kickstand mounts, and the Bosch Active Line Plus motor (50 Nm) with a 400 Wh CompactTube battery.

Bosch Active Line Plus, 50 Nm
400 Wh CompactTube battery
120 mm fork
Rack, mudguard and kickstand mounts

Trek Marlin+ builds

Hardtail / TrailMarlin+ 8Bosch Active Line Plus · 400 Wh · 120 / – mm£2,650

Marlin+ geometry

Size	S	M	L	XL
Wheel size	27.5"	29"	29"	29"
Seat tube length	370 mm	420 mm	450 mm	500 mm
Seat tube angle	73.8°	73.8°	73.8°	73.8°
Effective seat tube angle	74.0°	74.0°	74.0°	74.0°
Head tube length	100 mm	105 mm	115 mm	135 mm
Head angle	66.5°	66.5°	66.5°	66.5°
Effective top tube	584 mm	620 mm	652 mm	682 mm
BB height	313 mm	318 mm	318 mm	318 mm
BB drop	45 mm	60 mm	60 mm	60 mm
Chainstay length	470 mm	485 mm	485 mm	485 mm
Fork offset	46 mm	42 mm	42 mm	42 mm
Trail	110 mm	114 mm	114 mm	114 mm
Wheelbase	1166 mm	1218 mm	1251 mm	1284 mm
Standover	710 mm	760 mm	771 mm	775 mm
Reach	415 mm	440 mm	470 mm	495 mm
Stack	590 mm	626 mm	635 mm	653 mm
