SpecializedTurbo Levo 4 EVO Pro
- Motor
- Specialized 3.1105 Nm, 810 W
- Battery
- 840 WhSide-entry, integrated
- Travel F / R
- 180 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- FACT 11m carbon
- Weight
- 24.4 kgSize S4, manufacturer figure
Overview
The Turbo Levo 4 EVO Pro ($10,499.99) upgrades to RockShox ZEB Ultimate and Vivid Ultimate suspension, SRAM X0 Transmission, Maven Silver brakes and Traverse HD carbon rims, cutting the claimed weight to 24.4 kg (S4).
The Turbo Levo 4 EVO is the long-travel version of the Levo 4: a FACT 11m carbon frame with 170 mm of rear travel, a 180 mm RockShox ZEB fork and a Vivid air shock, with a 29-inch front wheel and a 27.5-inch downhill tyre at the rear.
Power comes from the same Specialized 3.1 motor (105 Nm, 810 W) and 840 Wh battery as the standard Levo 4.
- 170 mm rear / 180 mm fork travel
- Specialized 3.1 motor, 105 Nm, 810 W
- 840 Wh battery
- FACT 11m carbon frame, UDH compatible

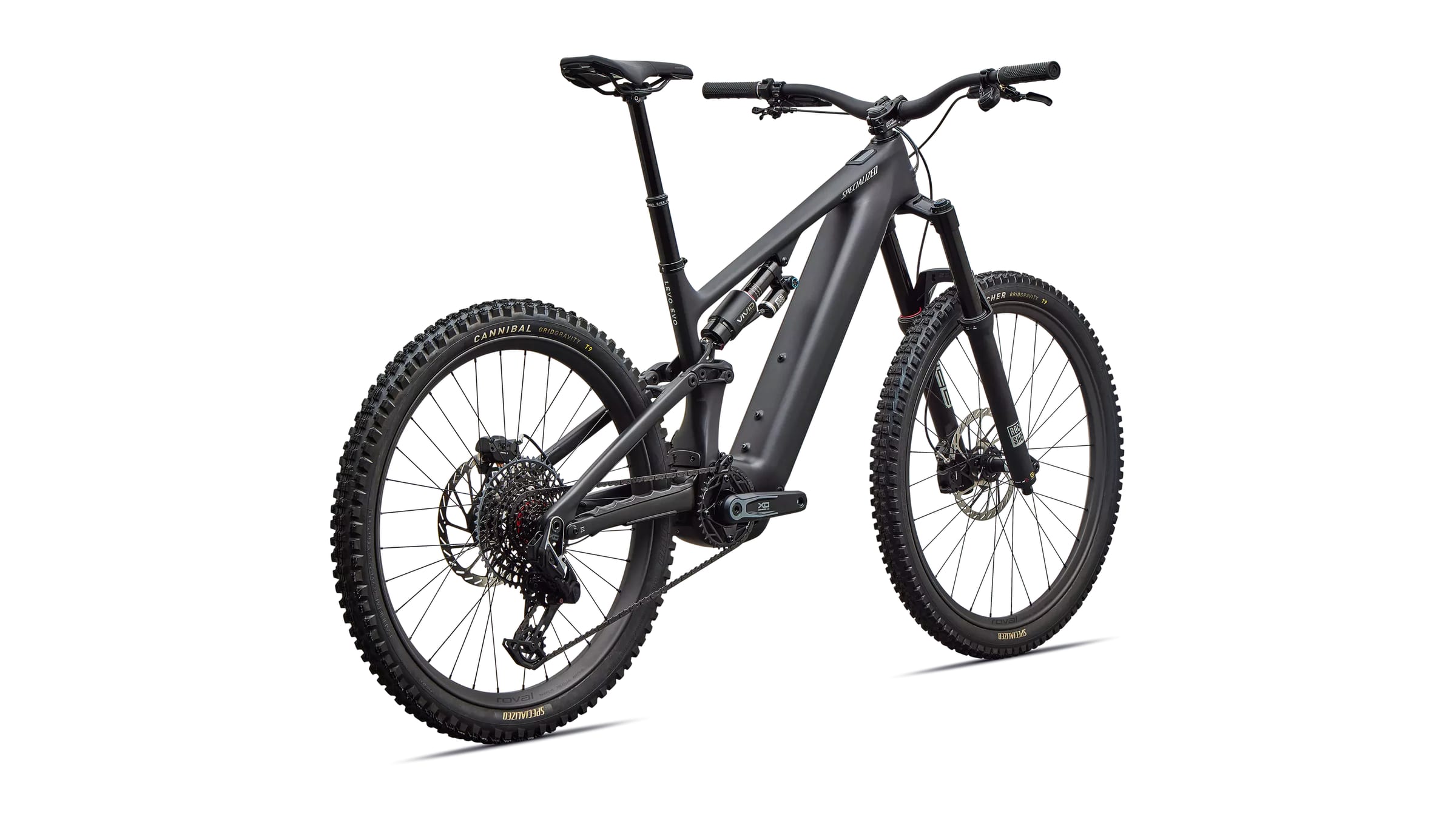

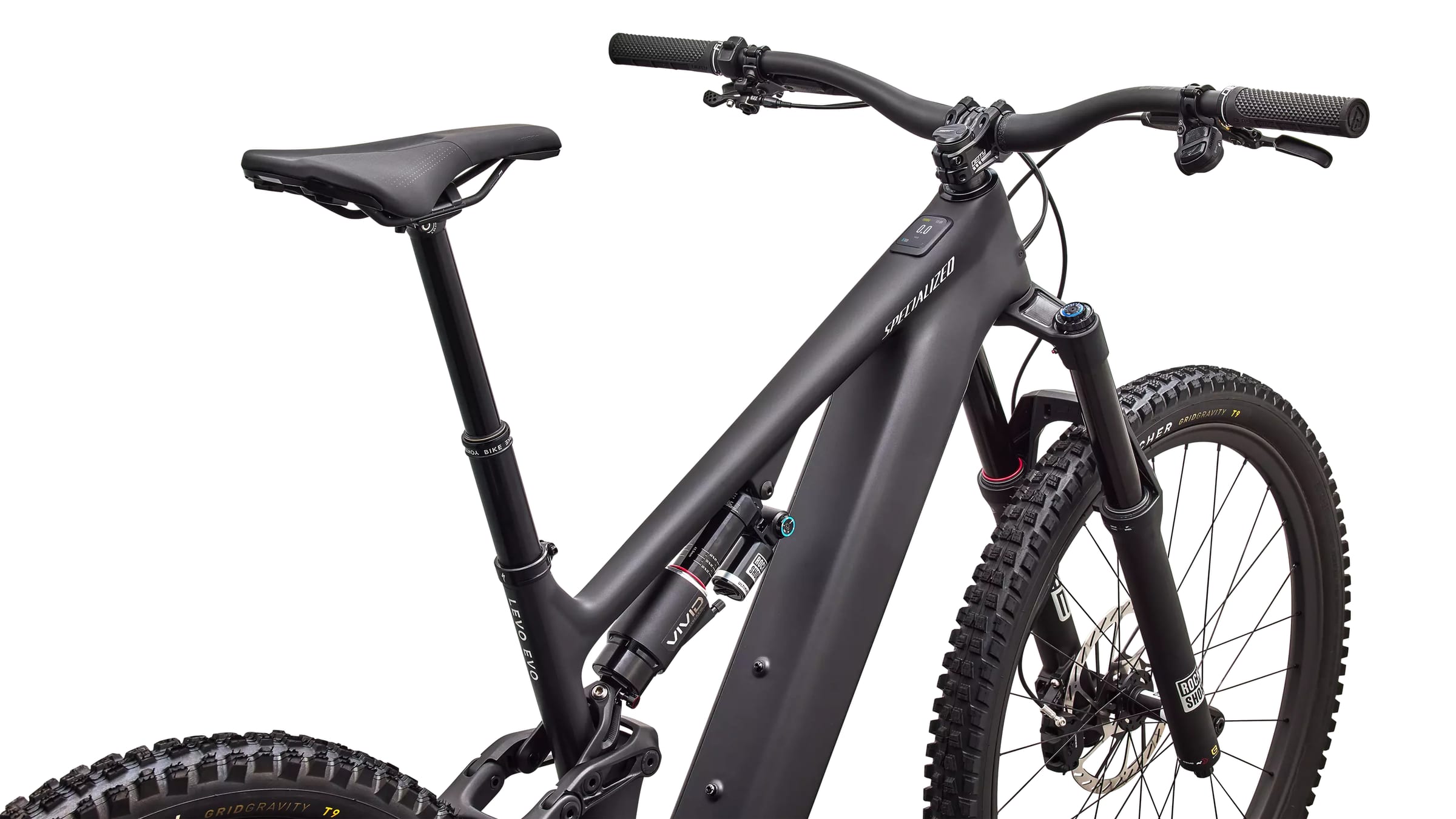

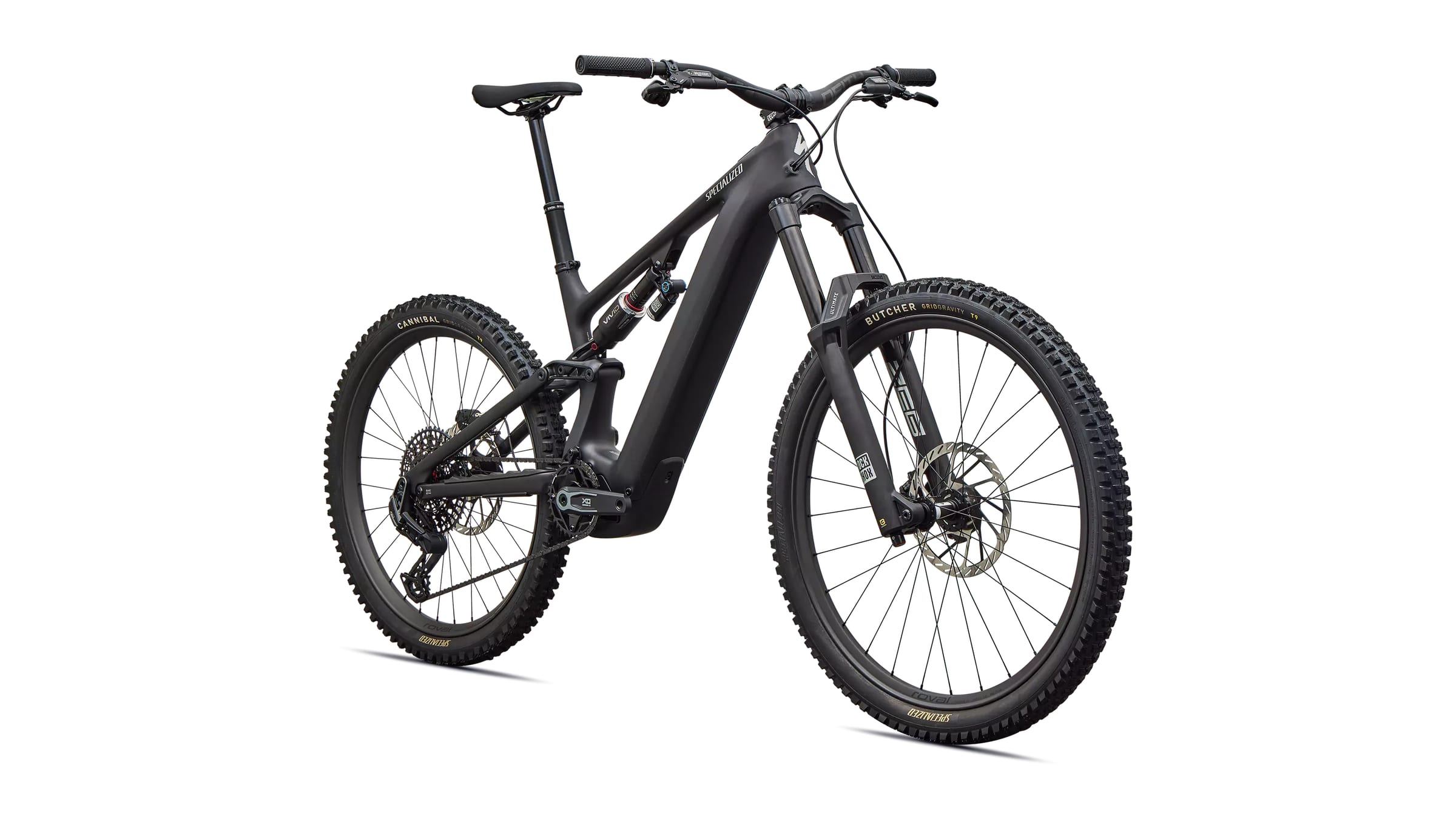

Gallery
Photos: Specialized
Full specifications
Frame & suspension
- Frame
- Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
- Seat Binder
- Alloy, 38.6mm

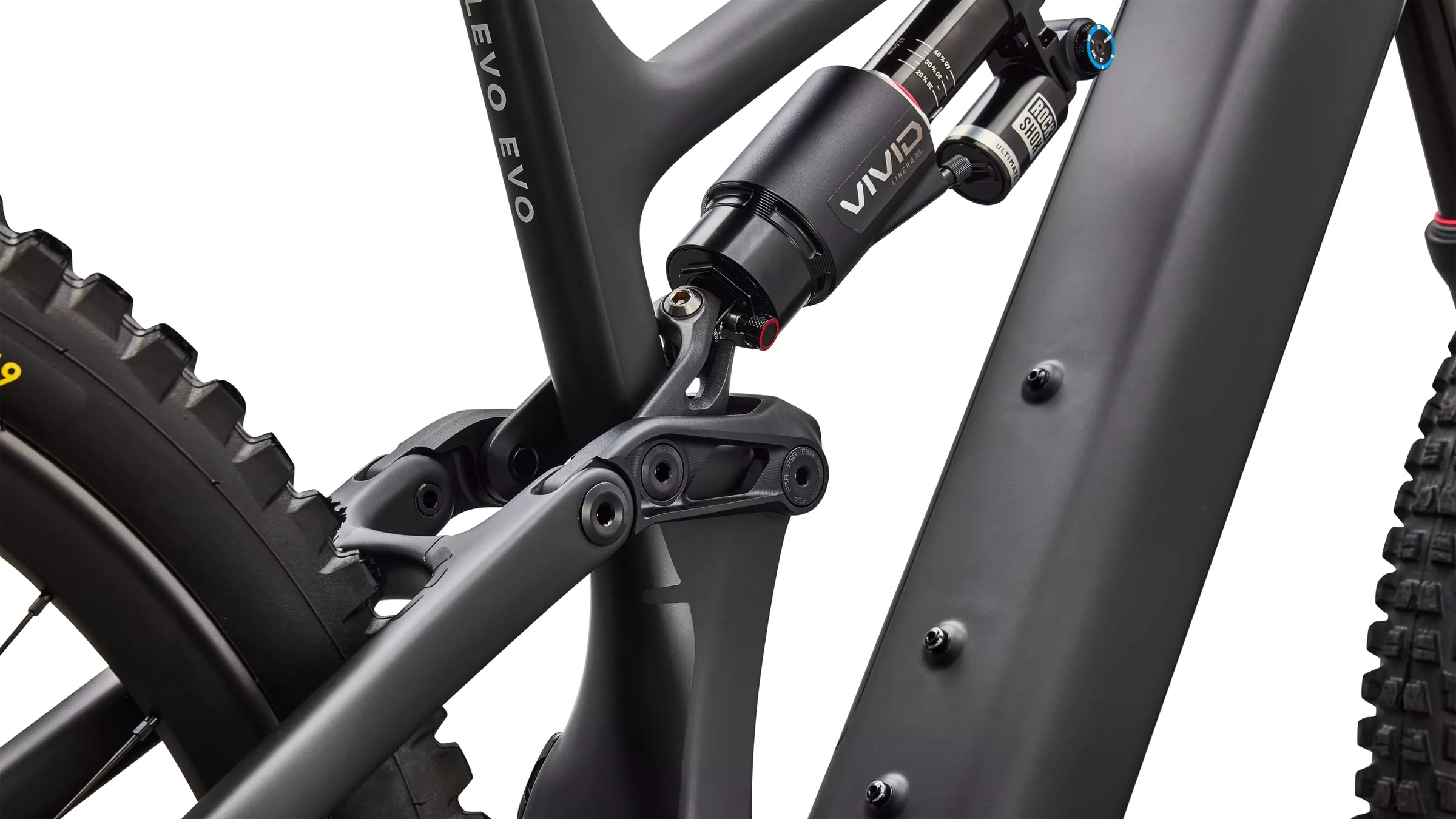

- Rear Shock
- All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
- Fork
- All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
E-system

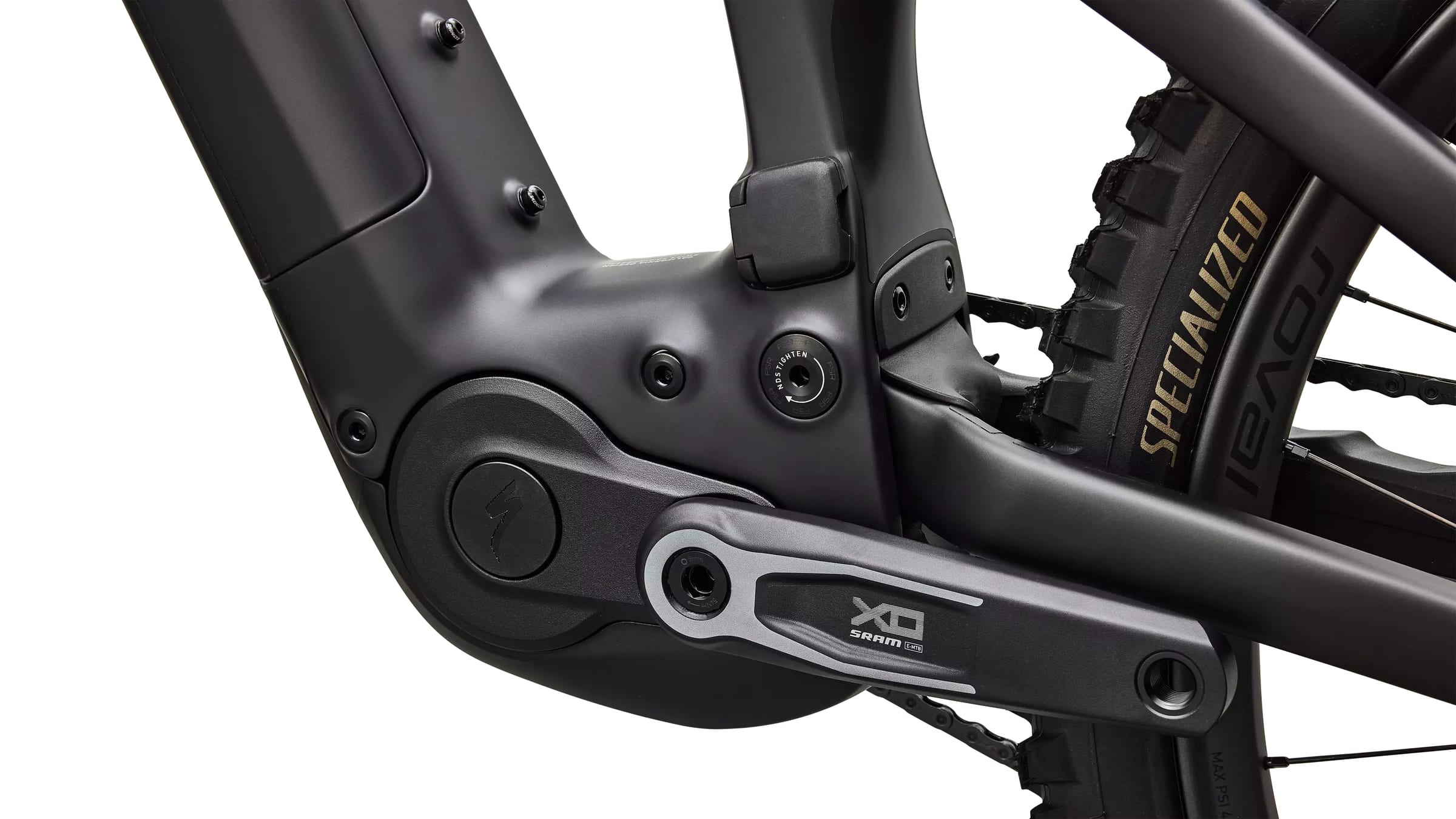

- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Battery
- 840Wh battery
- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 4amp charger
Drivetrain
- Shift Levers
- SRAM AXS Pod Controller w/discrete clamp
- Rear Derailleur
- SRAM X0 Eagle Transmission
- Cassette
- SRAM XS 1295, 12 speed, 10-52
- Chain
- SRAM X0 Eagle Transmission 12-Speed Flattop Chain
- Crankset
- SRAM XO Alloy crank, 155mm, ISIS interface
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
Brakes
- Front Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
- Rear Brake
- SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Wheels & tyres
- Front Tyre
- Butcher, GRID Gravity, T9, TLR, 29x2.4"
- Front Wheel
- Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
- Rear Tyre
- Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
- Rear Wheel
- Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Deity, 35mm clamp, 42mm length
- Handlebars
- Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
- Grips
- Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
- Saddle
- Bridge Expert with MIMIC, Hollow Ti rails
- Seatpost
- Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Other
- SWAT
- SWAT Internal downtube storage
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Turbo Levo 4 EVO geometry
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Crank Length | 155 mm | 155 mm | 155 mm | 155 mm | 155 mm |
| Handlebar Width | 810 mm | 810 mm | 810 mm | 810 mm | 810 mm |
| Stem Length | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Saddle Width | 155 mm | 143 mm | 143 mm | 143 mm | 143 mm |
| Seatpost Length | 125 mm | 160 mm | 185 mm | 213 mm | 213 mm |
| Stack | 625 mm | 633 mm | 646 mm | 659 mm | 675 mm |
| Reach | 425 mm | 445 mm | 470 mm | 495 mm | 525 mm |
| Head tube Length | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| Head tube Angle | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| BB Height | 356 mm | 356 mm | 356 mm | 356 mm | 356 mm |
| BB Drop | 24 mm | 24 mm | 24 mm | 24 mm | 24 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm | 139 mm |
| Fork Length (full) | 597 mm | 597 mm | 597 mm | 597 mm | 597 mm |
| Fork Rake/Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 773 mm | 797 mm | 828 mm | 859 mm | 897 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1208 mm | 1232 mm | 1263 mm | 1294 mm | 1331 mm |
| Top-tube Length (horizontal) | 580 mm | 602 mm | 630 mm | 658 mm | 691 mm |
| Bike Standover Height | 764 mm | 765 mm | 763 mm | 768 mm | 771 mm |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Seat Tube Angle | 76° | 76° | 76° | 76° | 76° |
| Saddle Height for Effective ST Angle | 690 mm | 735 mm | 780 mm | 825 mm | 870 mm |
| Max Seatpost Insertion | 274 mm | 289 mm | 313 mm | 337 mm | 357 mm |
| Min Seatpost Insertion | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
Source: Specialized.
Turbo Levo 4 EVO: builds compared
Turbo Levo 4 EVO range →| Turbo Levo 4 EVO Comp | Turbo Levo 4 EVO Pro | |
|---|---|---|
| Price | $8,199.99 | $10,499.99 |
| Frame | FACT 11m carbon | FACT 11m carbon |
| Fork | All New SRAM FS ZEB Select, 29" 180mm | All New SRAM FS ZEB Ultimate, 29" 180mm |
| Shock | All New Vivid Select air | All New Vivid Ultimate air |
| Derailleur | SRAM S1000 Eagle AXS | SRAM X0 Eagle Transmission |
| Brakes | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | Specialized Alloy Rims | Traverse HD Carbon 29" rim |
| Weight | 25.2 kg | 24.4 kg |
Turbo Levo 4 EVO Pro: FAQ
How much does the Specialized Turbo Levo 4 EVO Pro cost?
$10,499.99 (US MSRP). The Turbo Levo 4 EVO range runs from $8,199.99 (Turbo Levo 4 EVO Comp) to $10,499.99 (Turbo Levo 4 EVO Pro). Prices vary by country and dealer.
How much does the Specialized Turbo Levo 4 EVO Pro weigh?
Specialized quotes 24.4 kg. It is the lightest build of the Turbo Levo 4 EVO.
What motor and battery does the Specialized Turbo Levo 4 EVO Pro have?
Specialized 3.1 (105 Nm, 810 W). 840 Wh battery — side-entry, integrated.
How much suspension travel does the Specialized Turbo Levo 4 EVO Pro have?
180 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Specialized Turbo Levo 4 EVO Pro come in?
S2, S3, S4, S5, S6. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Turbo Levo 4 EVO Pro and the Turbo Levo 4 EVO Comp?
They share the Turbo Levo 4 EVO frame platform and motor; the differences are in the parts — fork: All New SRAM FS ZEB Ultimate vs All New SRAM FS ZEB Select; shock: All New Vivid Ultimate air vs All New Vivid Select air; derailleur: SRAM X0 Eagle Transmission vs SRAM S1000 Eagle AXS; brakes: SRAM Maven Silver vs SRAM Maven Bronze; claimed weight: 24.4 kg vs 25.2 kg; price: $10,499.99 vs $8,199.99.
