ScottStrike eRIDE 10
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 25.3 kgManufacturer figure
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
£5,399 tops the Strike range with a Fox 36 Rhythm fork, Shimano XT 12-speed and XT four-piston brakes on Bosch CX with 800 Wh. Claimed 25.3 kg.
The Strike eRIDE 10 is one of 4 builds of the Scott Strike eRIDE. About the Strike eRIDE range and all its builds →

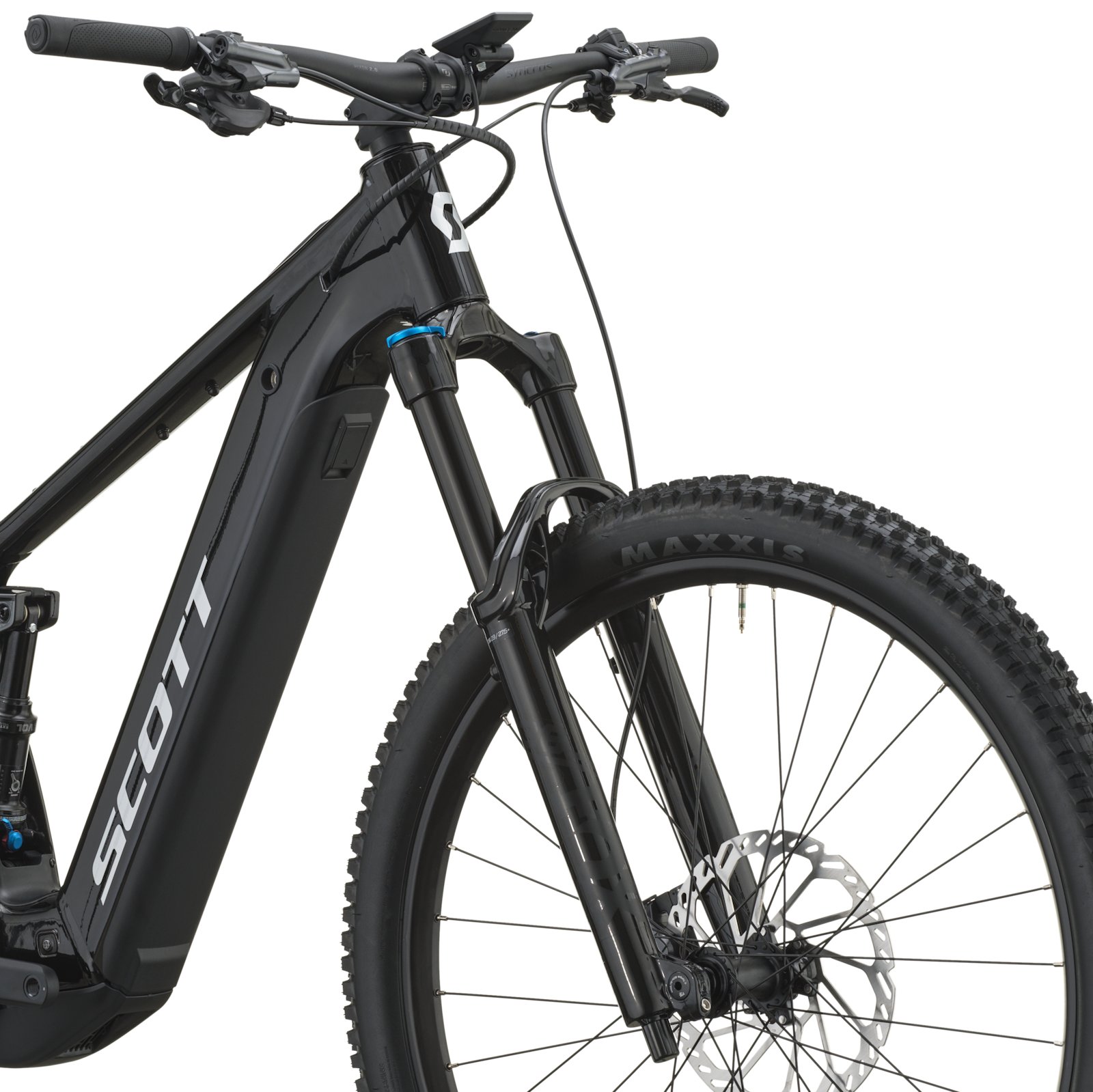

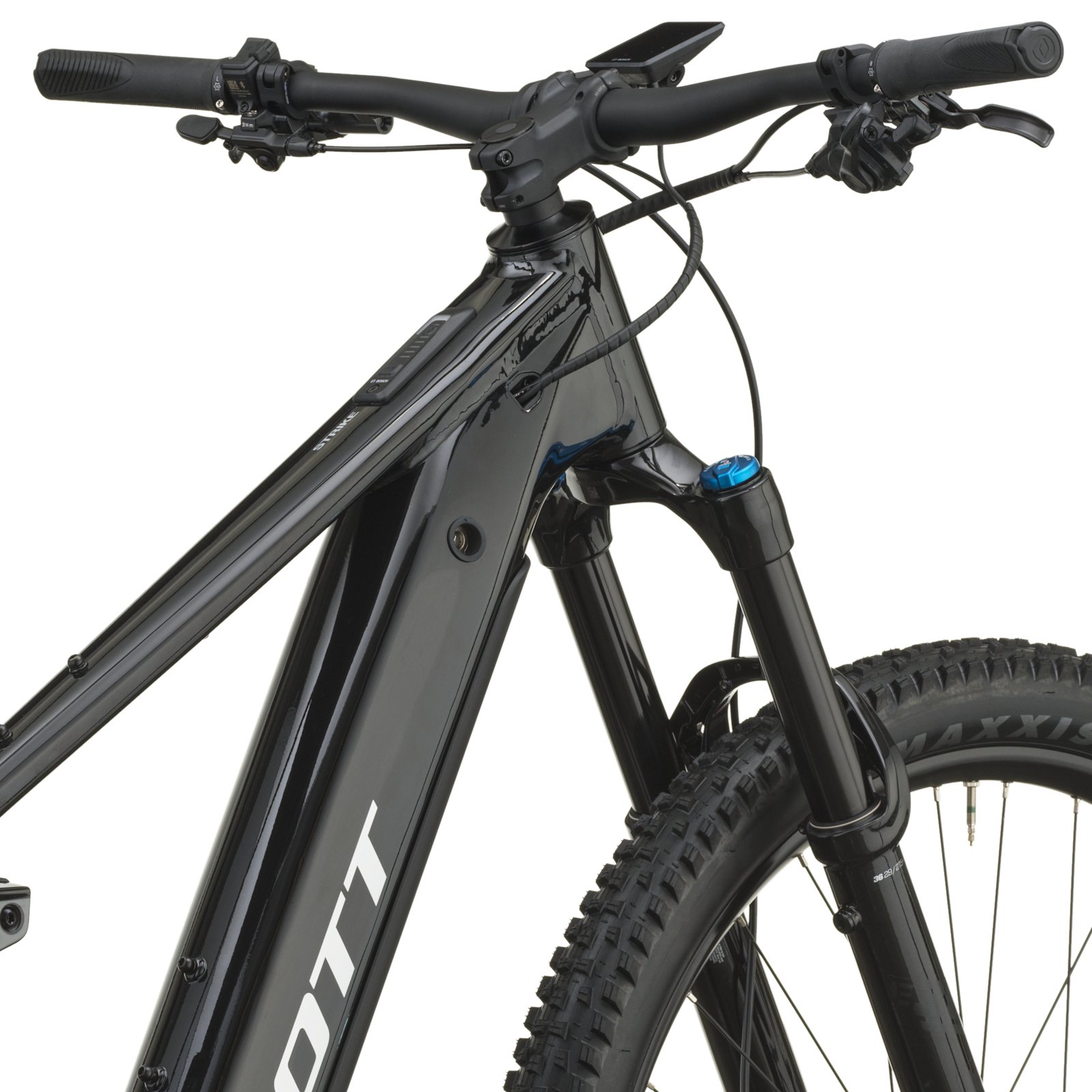

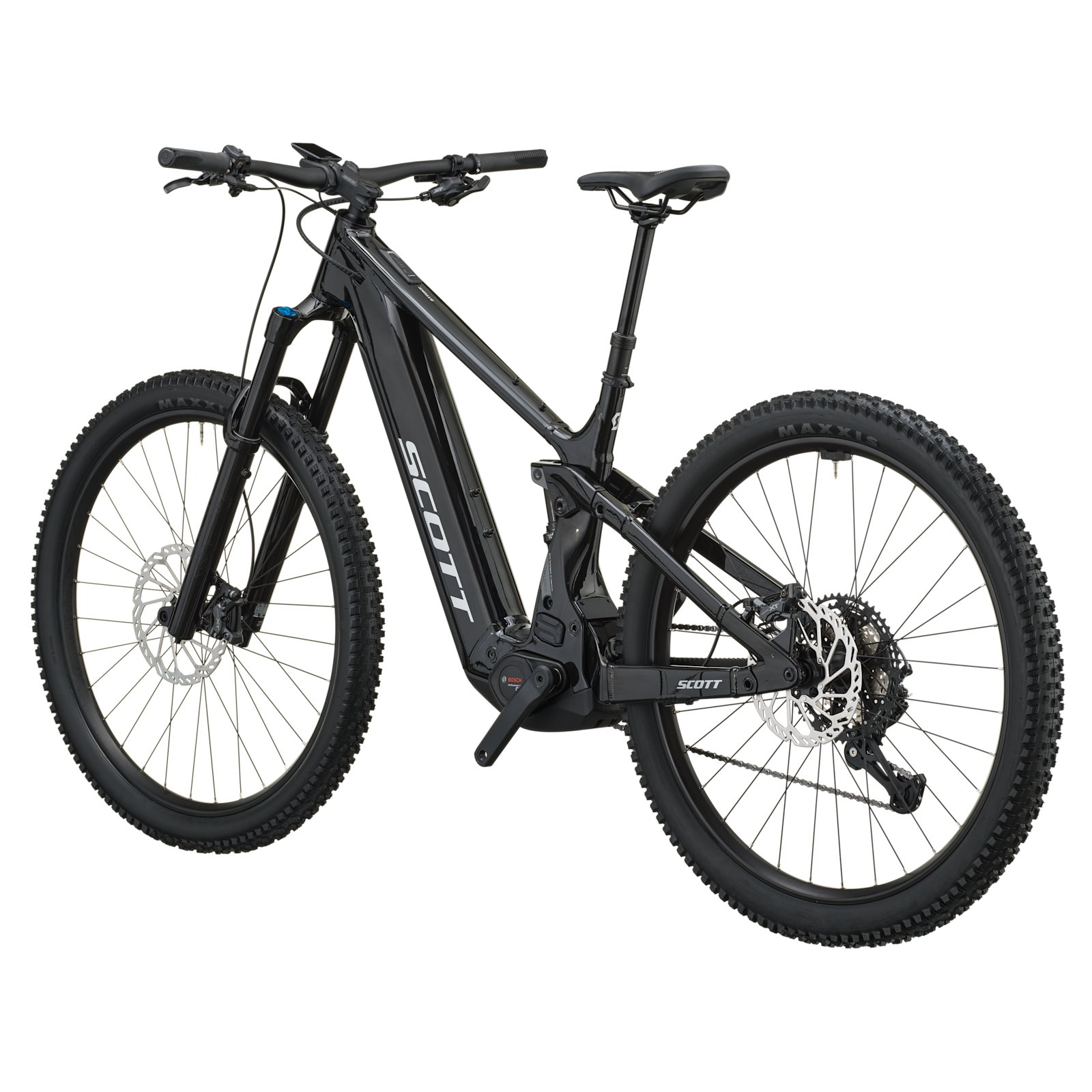

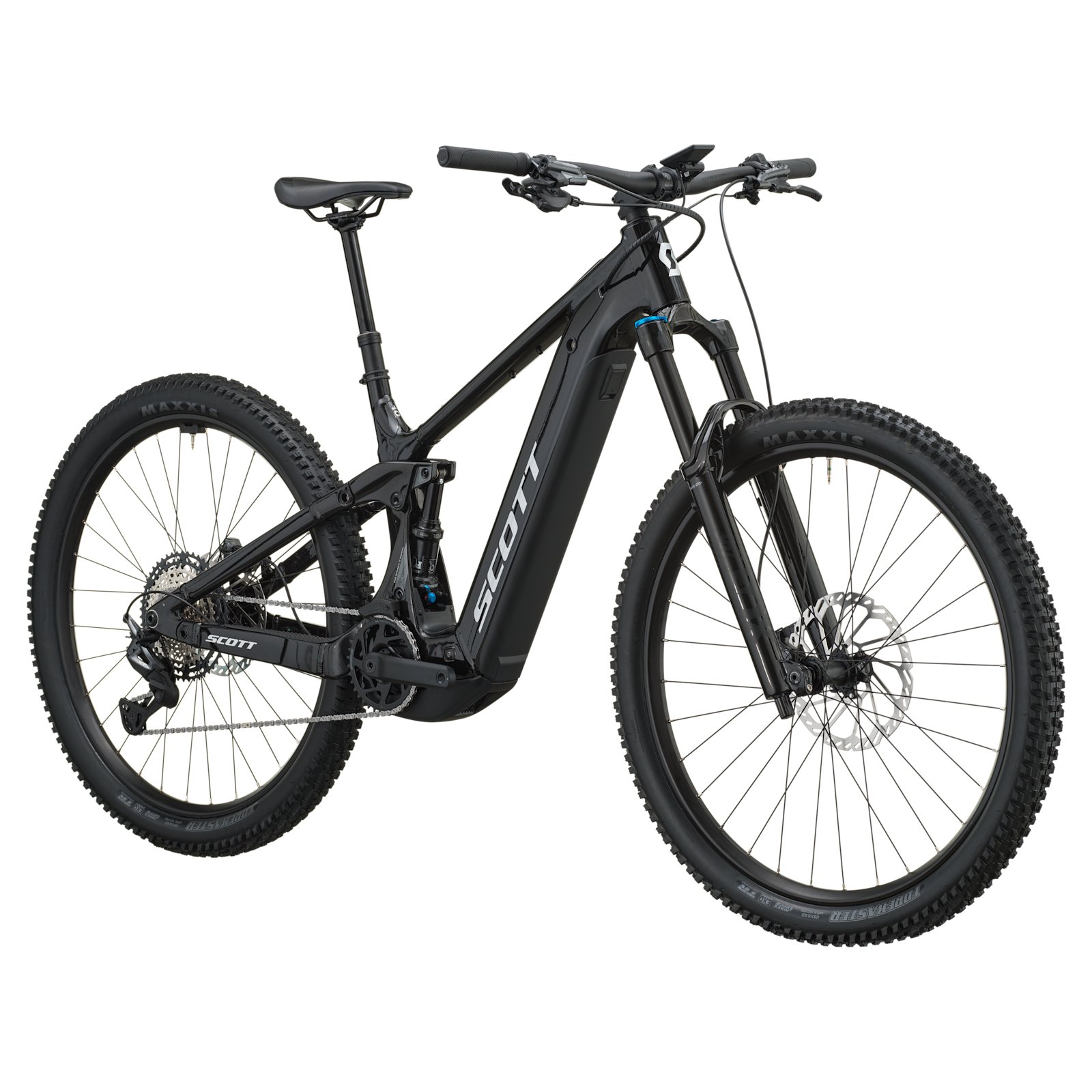

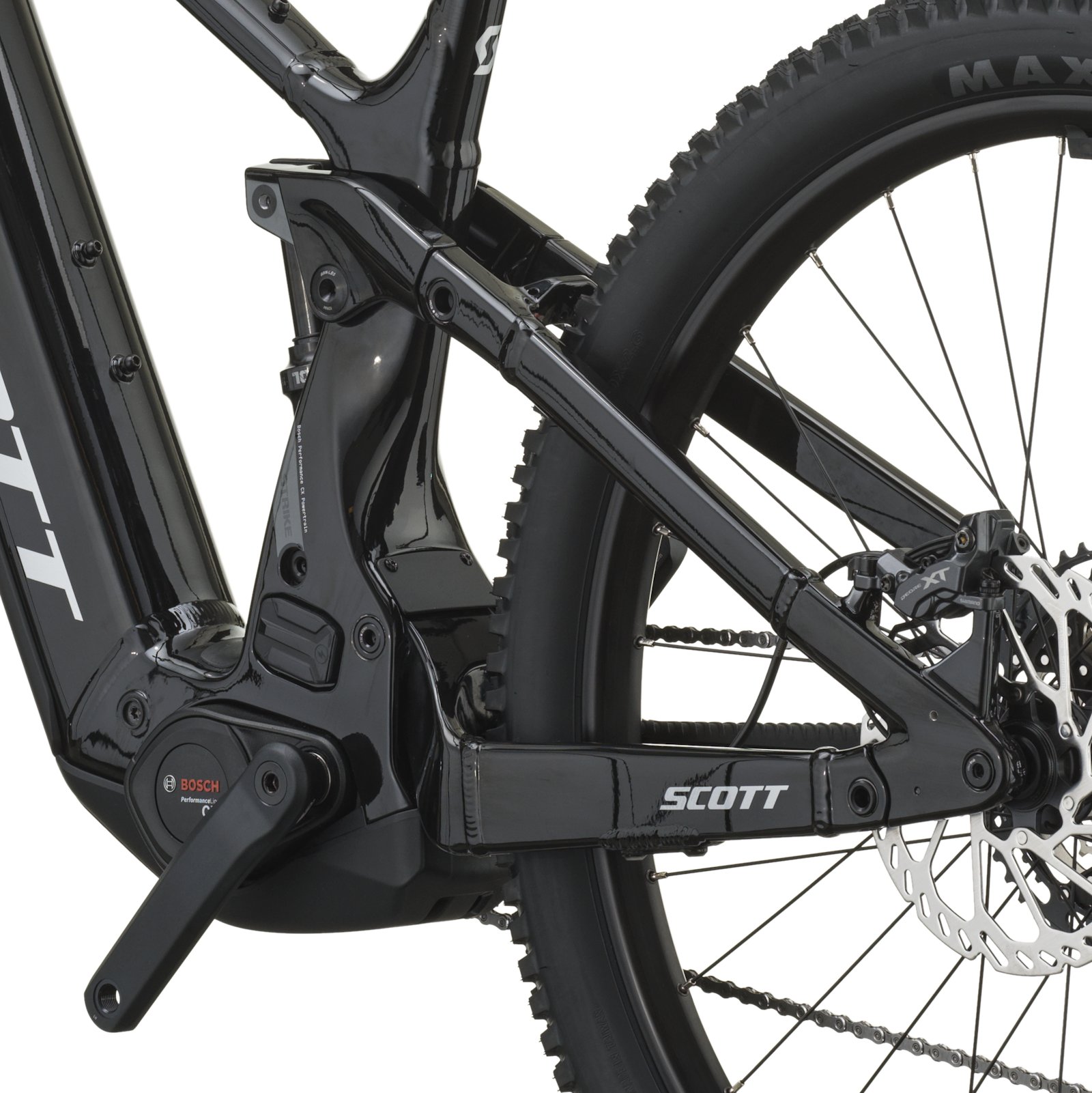

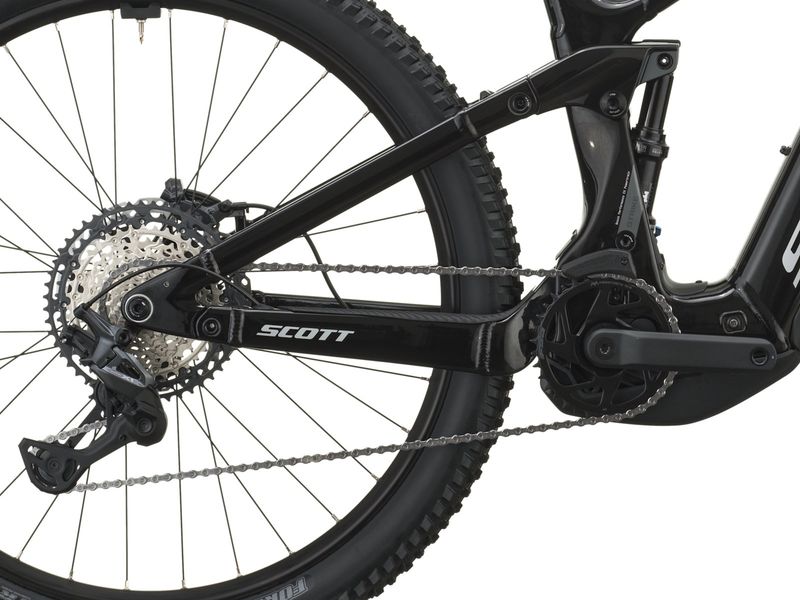

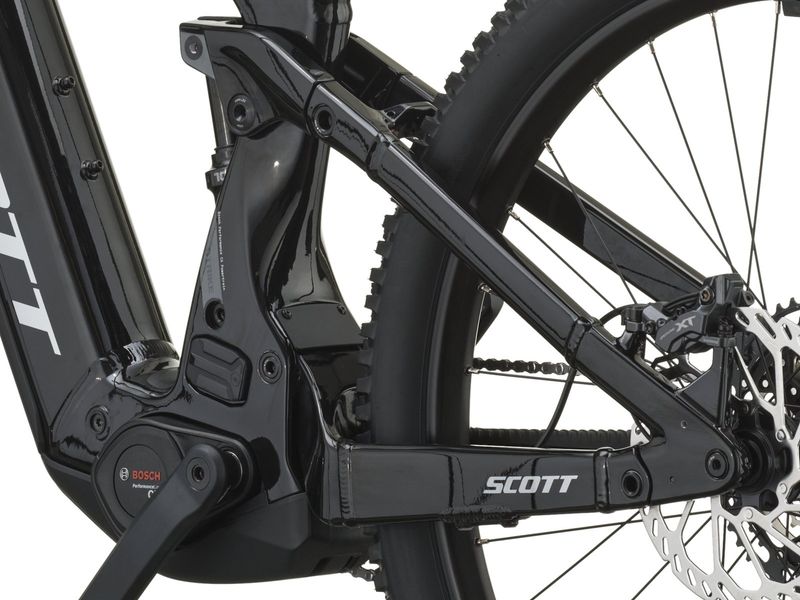

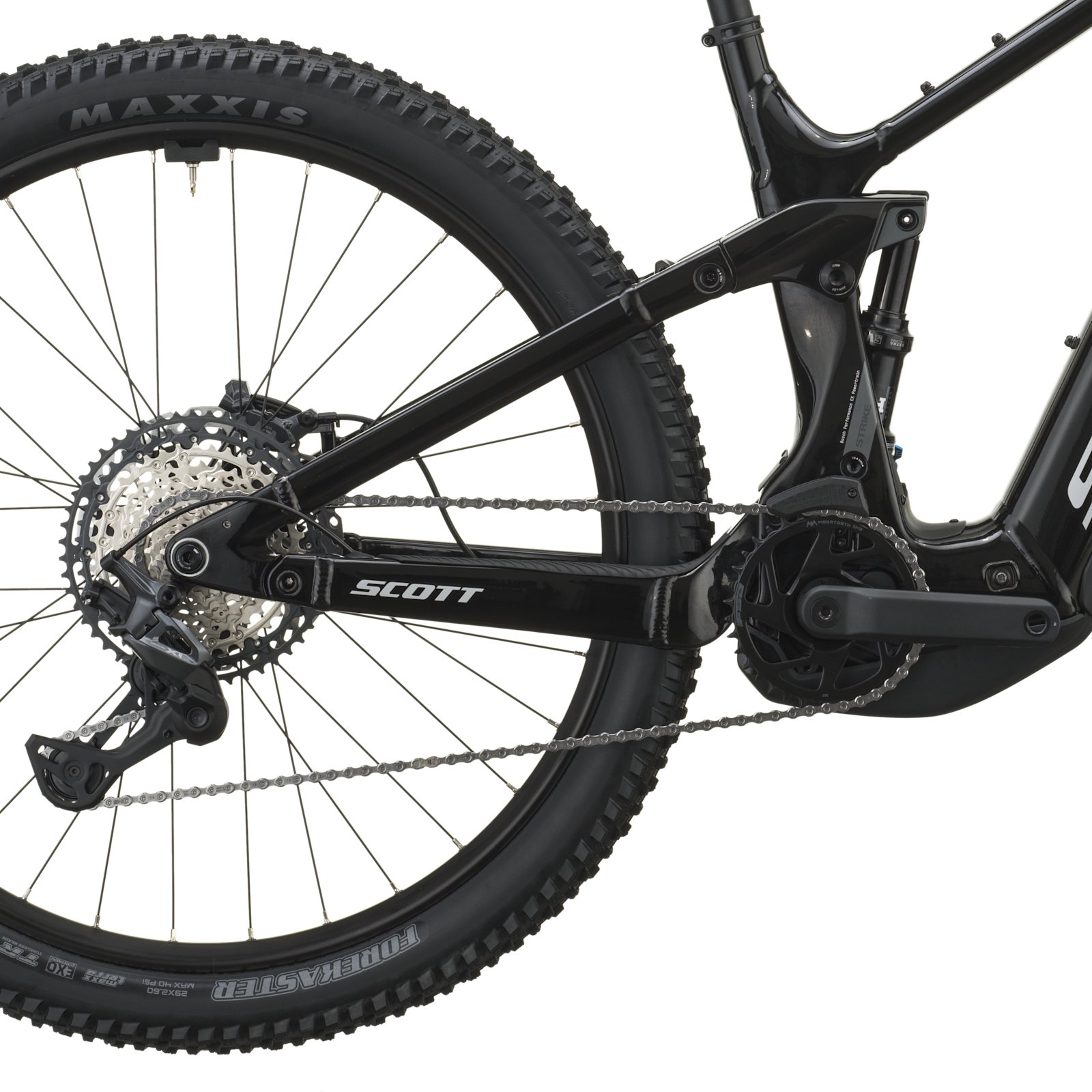

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Alloy Frame, 4 Link kinematic, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 150 mm / Rear travel: 150 mm

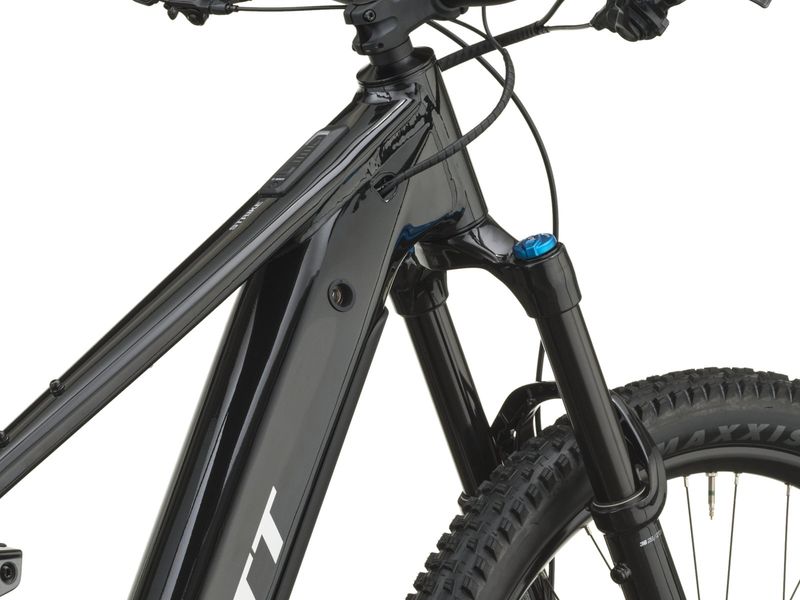

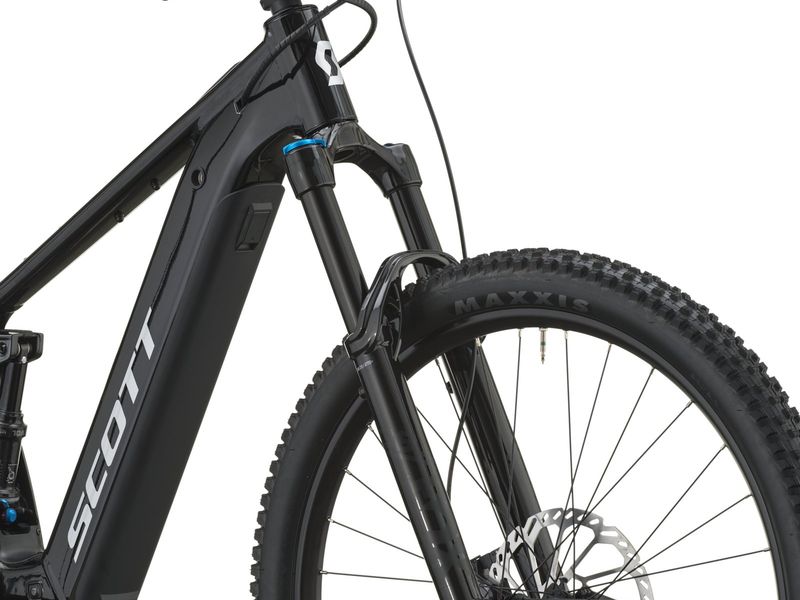

- Fork
- Fox 36 Rhythm, eOptimized, Grip, Comp & Reb Adj, QR Axle 15x110mm axle, tapered steerer
- Rear shock
- Fox Float Rhythm LV EVOL, LSR, 2 Pos Lever
E-system

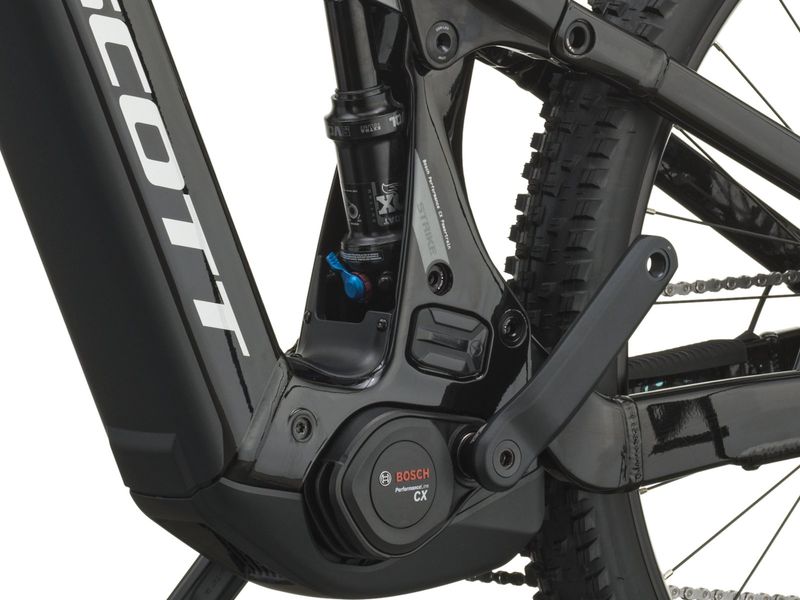

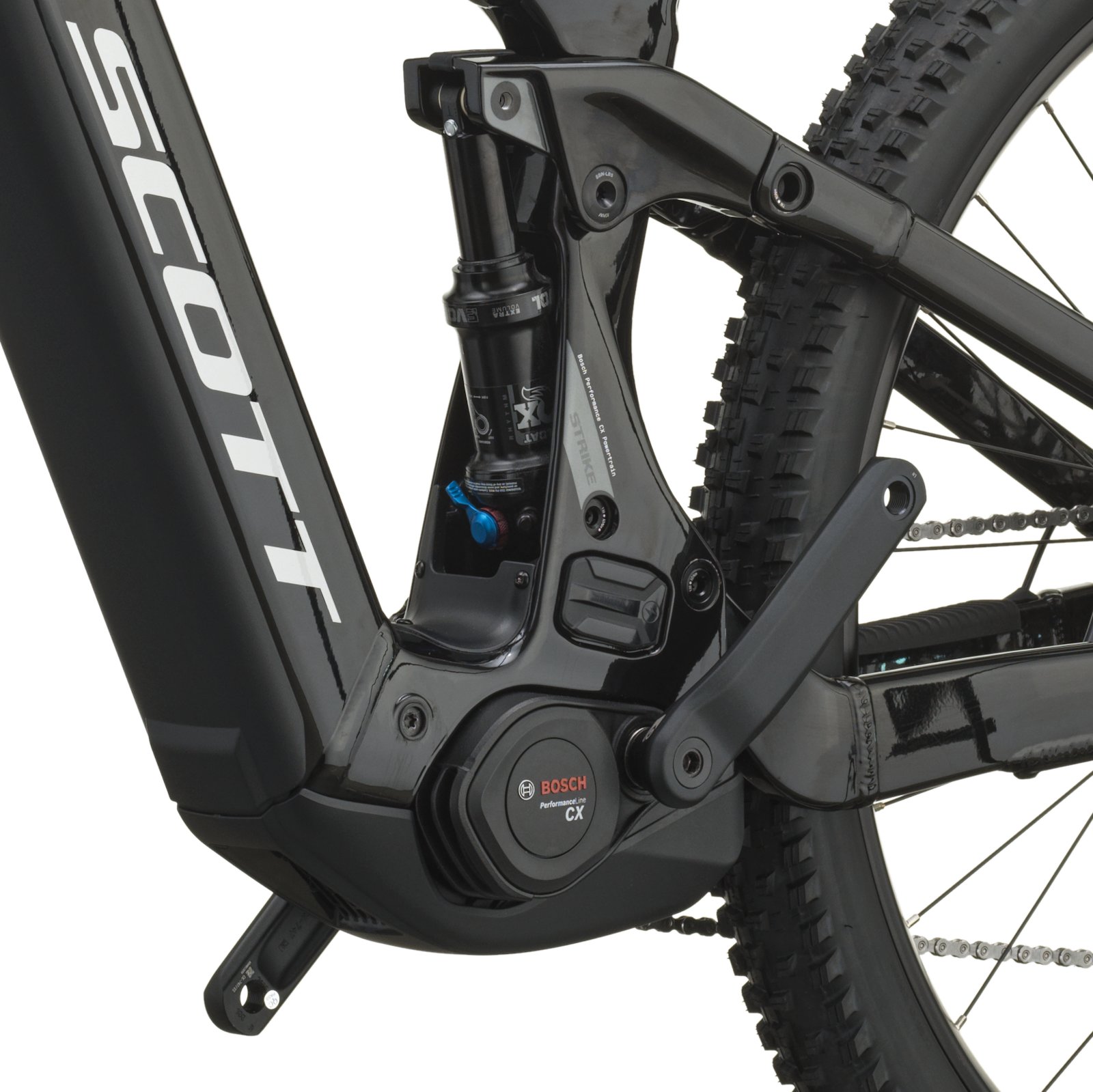

- Motor
- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch Intuvia 200
- Charger
- Bosch 4A Charger 230V
Drivetrain
- Rear derailleur
- Shimano XT RD-M8200 12-speed
- Shifters
- Shimano Deore XT SL-M8210
- Crankset
- FSA alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- FSA 12 Speed 36T DM chainring
- Chain
- Shimano CN-M6100
- Cassette
- Shimano XT CS-M8200, 10-51T
Brakes
- Brakes
- Shimano XT BR-M8220 4-Piston
- Front rotor
- Shimano RT-CL750, 220mm
- Rear rotor
- Shimano RT-CL750, 200mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula ECT-148M, Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
Cockpit
- Grips
- Syncros Comfort Lock On grips
- Handlebar
- Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- Stem
- Syncros DC ST-M200-AL2, 0°, 31.6mm
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- DDK Vacuum Saddle
- Headset
- Press Fit, 1.5", OD 62mm, ID 56mm, sealed bearings
Other
- Max system weight
- 130kg
- Weight
- 25.3 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Strike eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 64.8° | 64.8° | 64.8° | 64.8° |
| BHead tube length | 123 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 577 mm | 600 mm | 630 mm | 665 mm |
| DStandover height | 759 mm | 757 mm | 756 mm | 754 mm |
| EBB offset | -30 mm | -30 mm | -30 mm | -30 mm |
| FBB height | 350 mm | 350 mm | 350 mm | 350 mm |
| GWheel base | 1236 mm | 1257 mm | 1286 mm | 1320 mm |
| IBB center to top of seattube | 415 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.0° | 77.0° | 77.0° | 77.0° |
| KChainstay | 465 mm | 465 mm | 465 mm | 465 mm |
| LReach | 430 mm | 450 mm | 475 mm | 505 mm |
| MStack | 653 mm | 655 mm | 664 mm | 673 mm |
| OTrail | 130 mm | 130 mm | 130 mm | 130 mm |
| PFork length | 583 mm | 583 mm | 583 mm | 583 mm |
| QMaximum Seatpost Insertion | 193 mm | 213 mm | 248 mm | 278 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| SHandlebar Rise | 12 mm | 12 mm | 20 mm | 20 mm |
| THandlebar Diameter | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm |
| UCrankarm Length | 155 mm | 155 mm | 155 mm | 155 mm |
| WSeat post drop | 125 mm | 150 mm | 170 mm | 200 mm |
Source: Scott.
Strike eRIDE: builds compared
Strike eRIDE range →| Strike eRIDE 40 | Strike eRIDE 30 | Strike eRIDE 20 | Strike eRIDE 10 | |
|---|---|---|---|---|
| Price | £3,899 | £4,799 | £4,799 | £5,399 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour SF26-XCR 36X, 29'' | RockShox Psylo Silver RC Air, E-Bike | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized |
| Shock | SR Suntour Edge X | X-Fusion O2 Trunnion PRO RL | Fox Float Rhythm LV EVOL | Fox Float Rhythm LV EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | Shimano Deore RD-M6200 12-speed | Shimano Deore RD-M6200 12-speed | Shimano XT RD-M8200 12-speed |
| Brakes | Shimano BR-MT420 4-Piston | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Intuvia 200 | Bosch Intuvia 200 |
| Weight | 25.4 kg | 25.7 kg | 24.8 kg | 25.3 kg |
Strike eRIDE 10: FAQ
What is the difference between the Strike eRIDE 10 and the Strike eRIDE 20?
They share the Strike eRIDE frame platform and motor; the differences are in the parts: fork: Fox 36 Rhythm vs Fox AWL HD Sport; derailleur: Shimano XT RD-M8200 12-speed vs Shimano Deore RD-M6200 12-speed; claimed weight: 25.3 kg vs 24.8 kg; price: £5,399 vs £4,799.
