ScottStrike eRIDE 20
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 24.8 kgManufacturer figure
Overview
The Scott Strike eRIDE 20 (£4,799) is a mid-range build of the Strike eRIDE: Bosch Performance Line CX with 800 Wh, Fox AWL HD Sport fork, Fox Float Rhythm LV EVOL shock, Shimano Deore RD-M6200 12-speed and Shimano Deore BR-M6220 4-Piston brakes. Claimed weight is 24.8 kg, the lightest Strike eRIDE.
The Strike eRIDE is Scott's aluminium full-power trail bike for MY27: 150 mm of travel front and rear, 29-inch wheels and the Bosch Performance Line CX, with an 800 Wh PowerTube on most builds (720 Wh on the Strike 40).
It shares Bosch's Smart System and a UDH interface with the Patron at a lower price.
- Aluminium frame
- 150 mm travel front and rear
- Bosch CX
- 800 Wh (720 Wh on Strike 40)

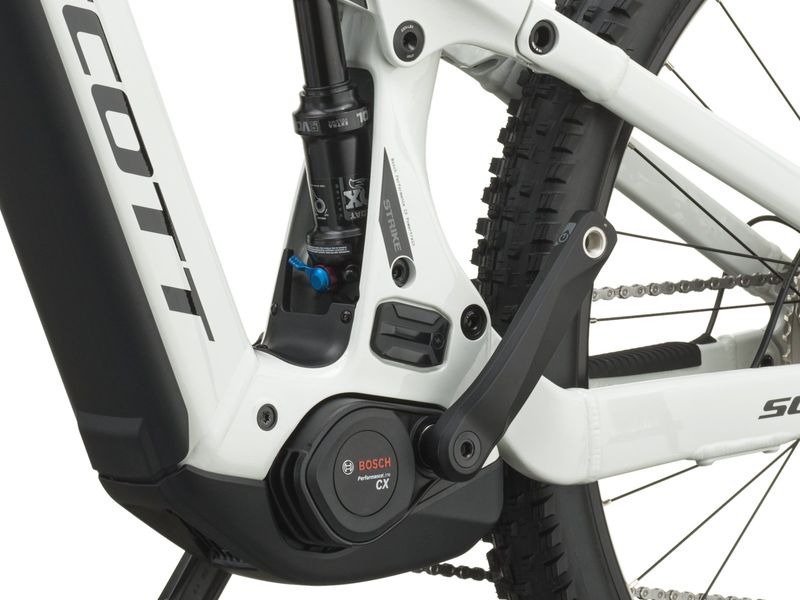

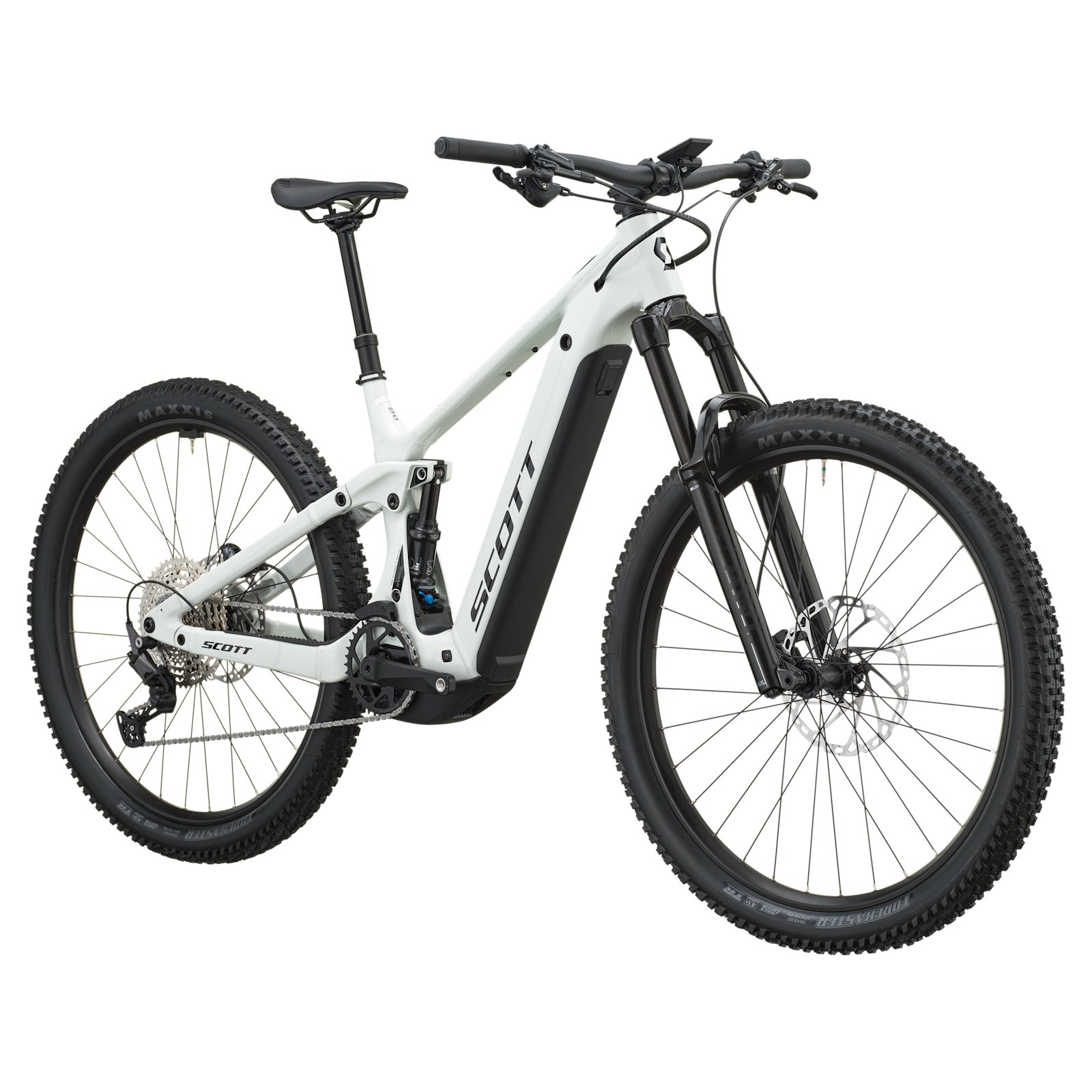

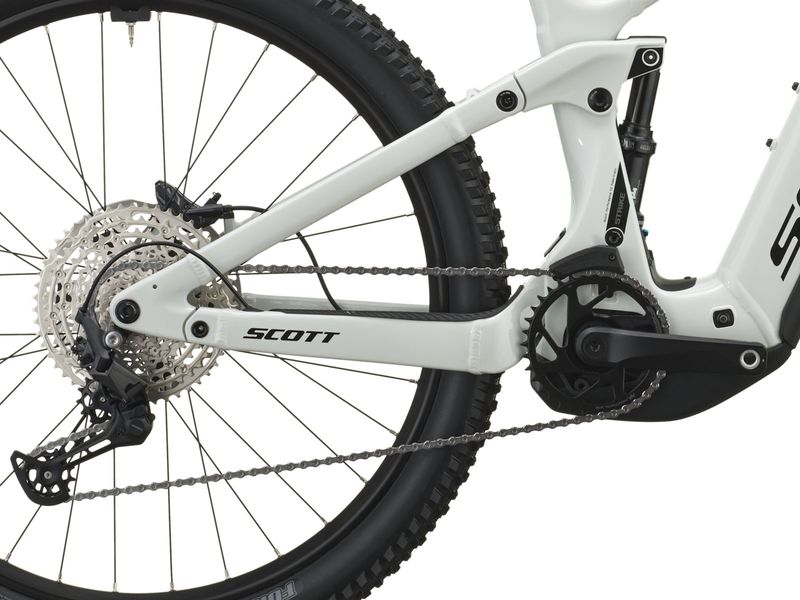

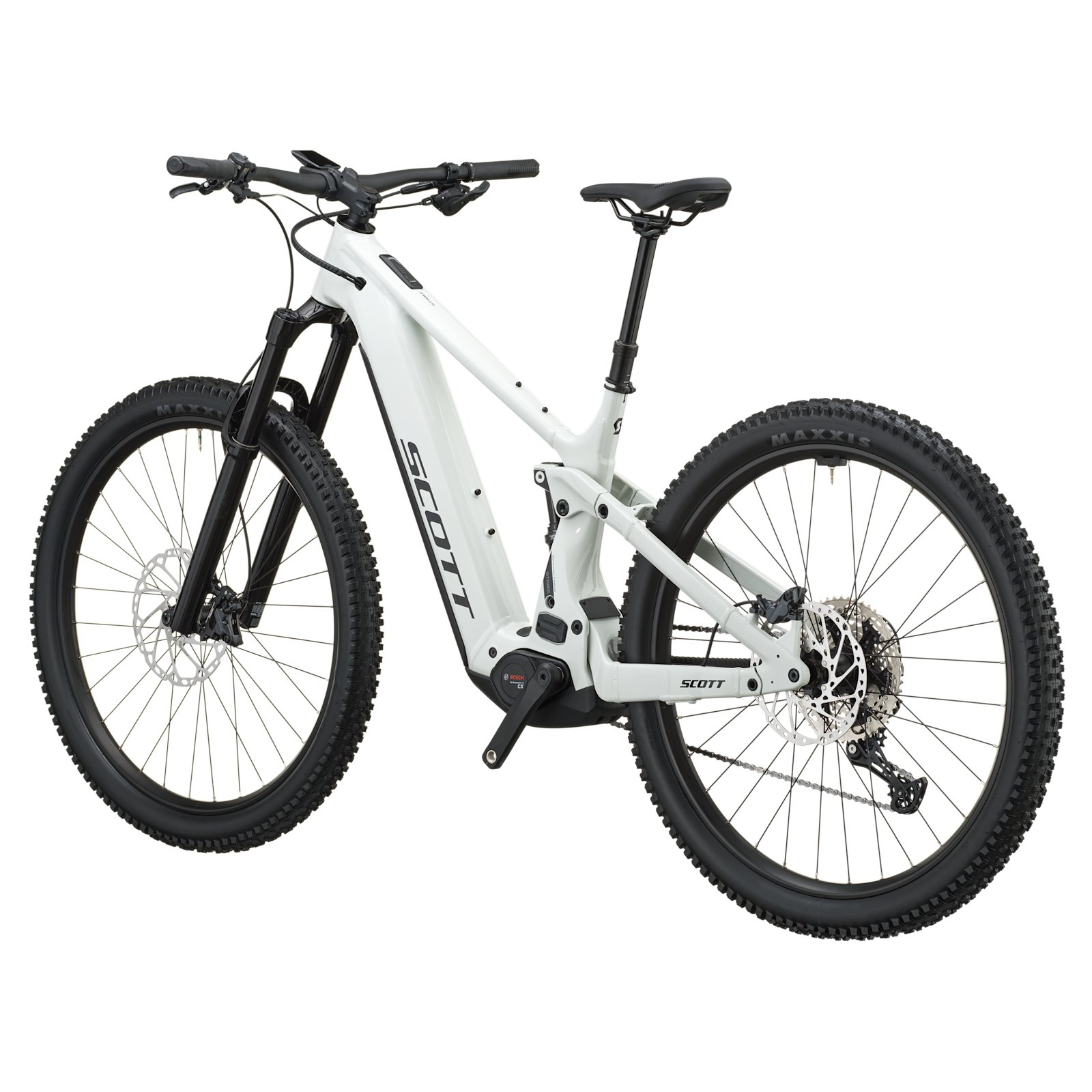

Gallery
Photos: Scott
Full specifications
Frame & suspension

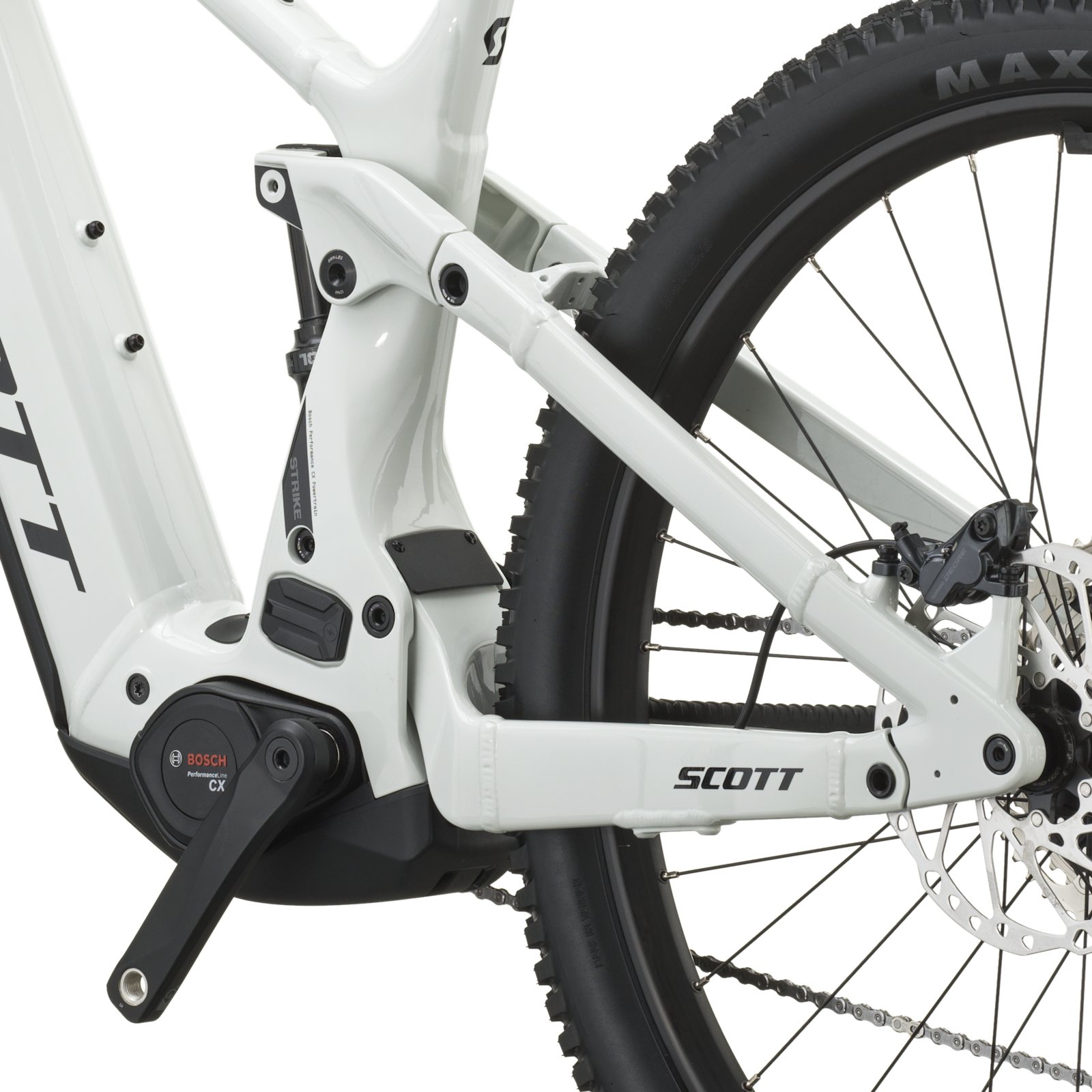

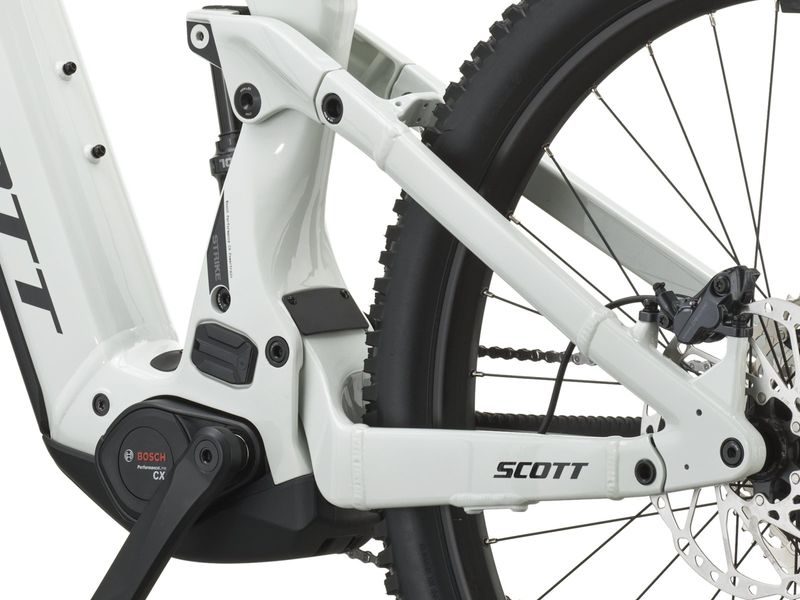

- Frame
- Alloy Frame, 4 Link kinematic, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 150 mm / Rear travel: 150 mm

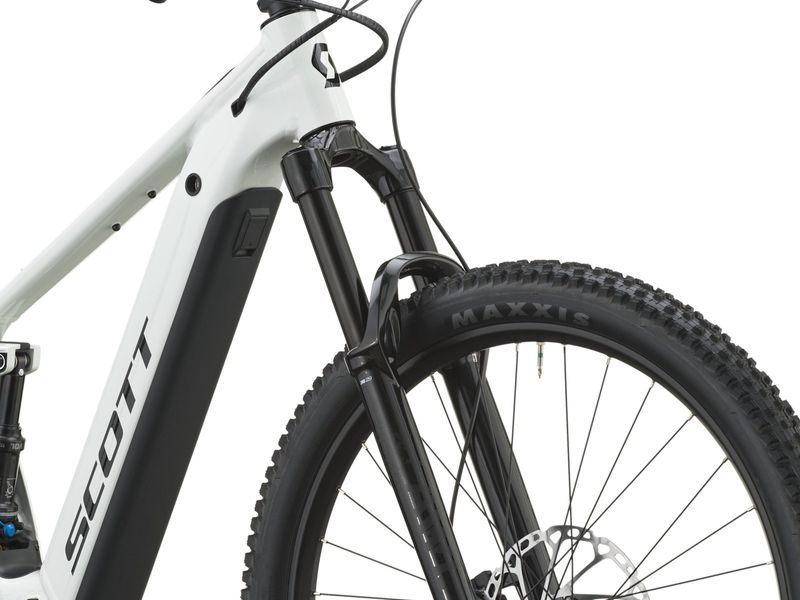

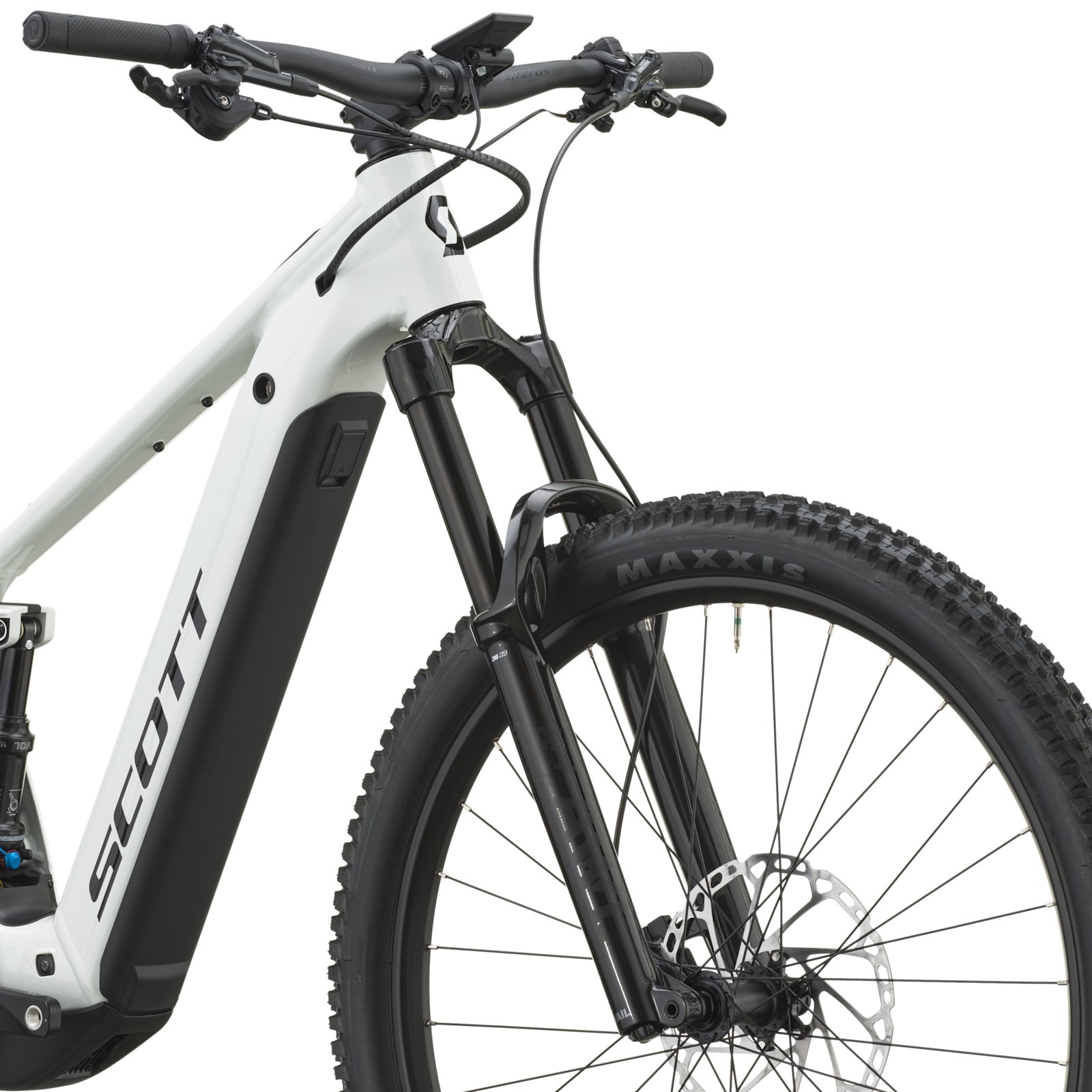

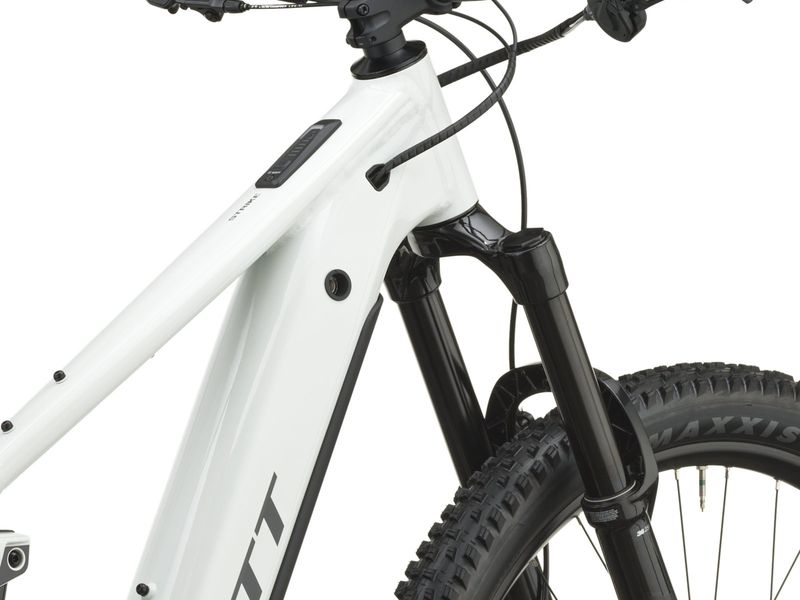

- Fork
- Fox AWL HD Sport, Rail 2.0, LSR

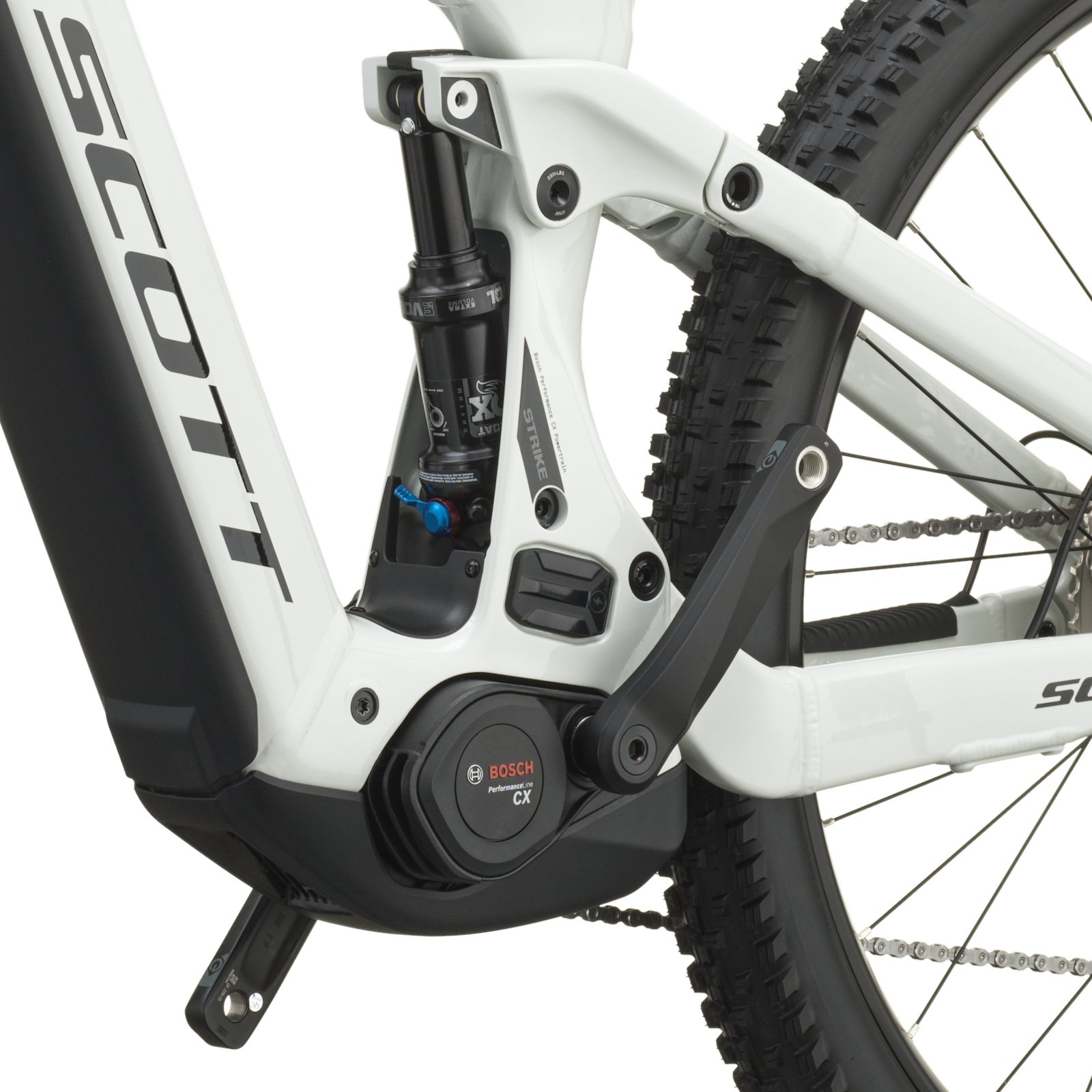

- Rear shock
- Fox Float Rhythm LV EVOL, LSR, 2 Pos Lever
E-system
- Motor
- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch Intuvia 200
- Charger
- Bosch 4A Charger 230V

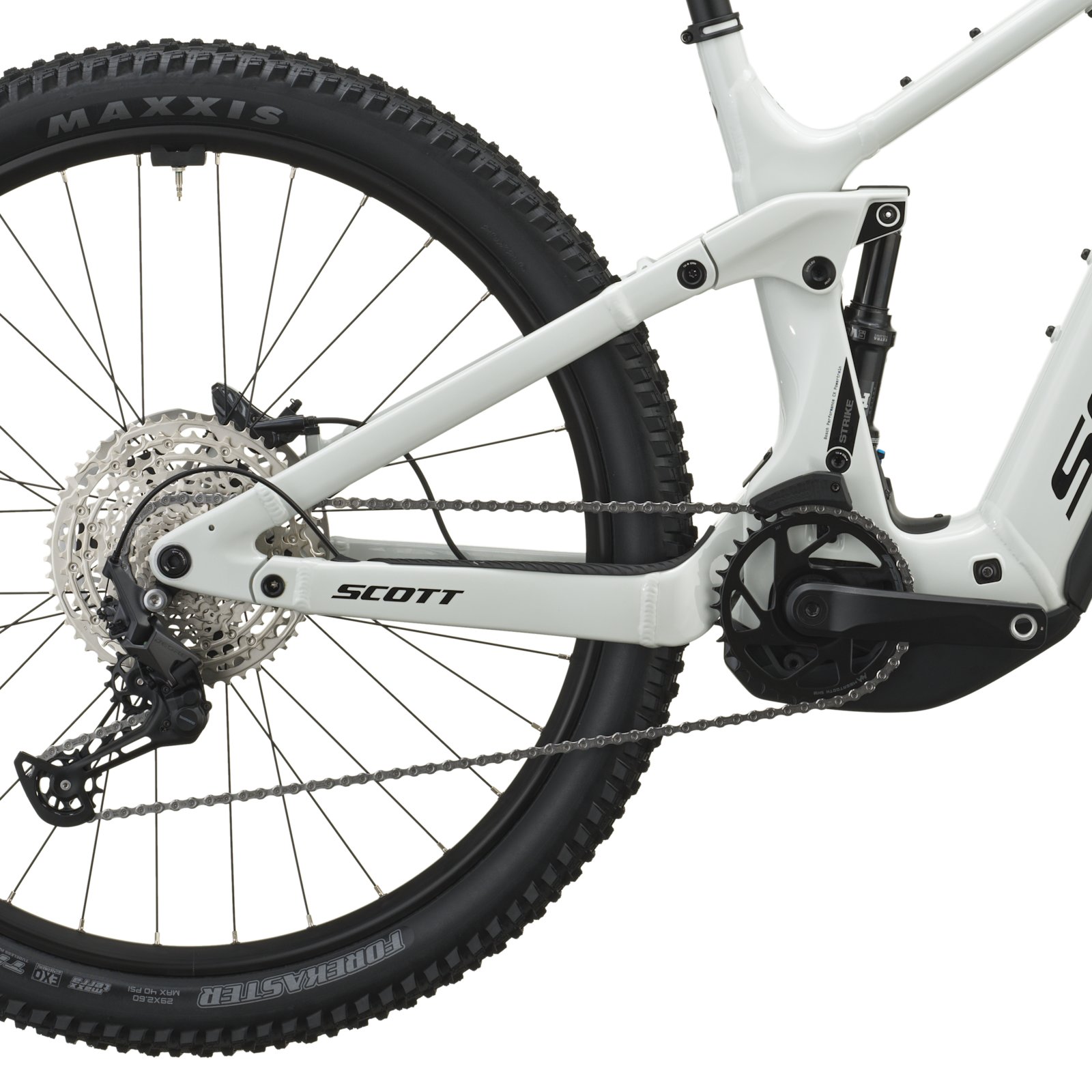

Drivetrain
- Rear derailleur
- Shimano Deore RD-M6200 12-speed
- Shifters
- Shimano Deore SL-M6210
- Crankset
- FSA alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- FSA 12 Speed 36T DM chainring
- Chain
- Shimano CN-M6100
- Cassette
- Shimano Deore CS-M6200, 10-51T
Brakes
- Brakes
- Shimano Deore BR-M6220 4-Piston
- Front rotor
- Shimano SM-RT64 rotor 220mm
- Rear rotor
- Shimano SM-RT64 rotor 203mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula ECT-148M, Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra

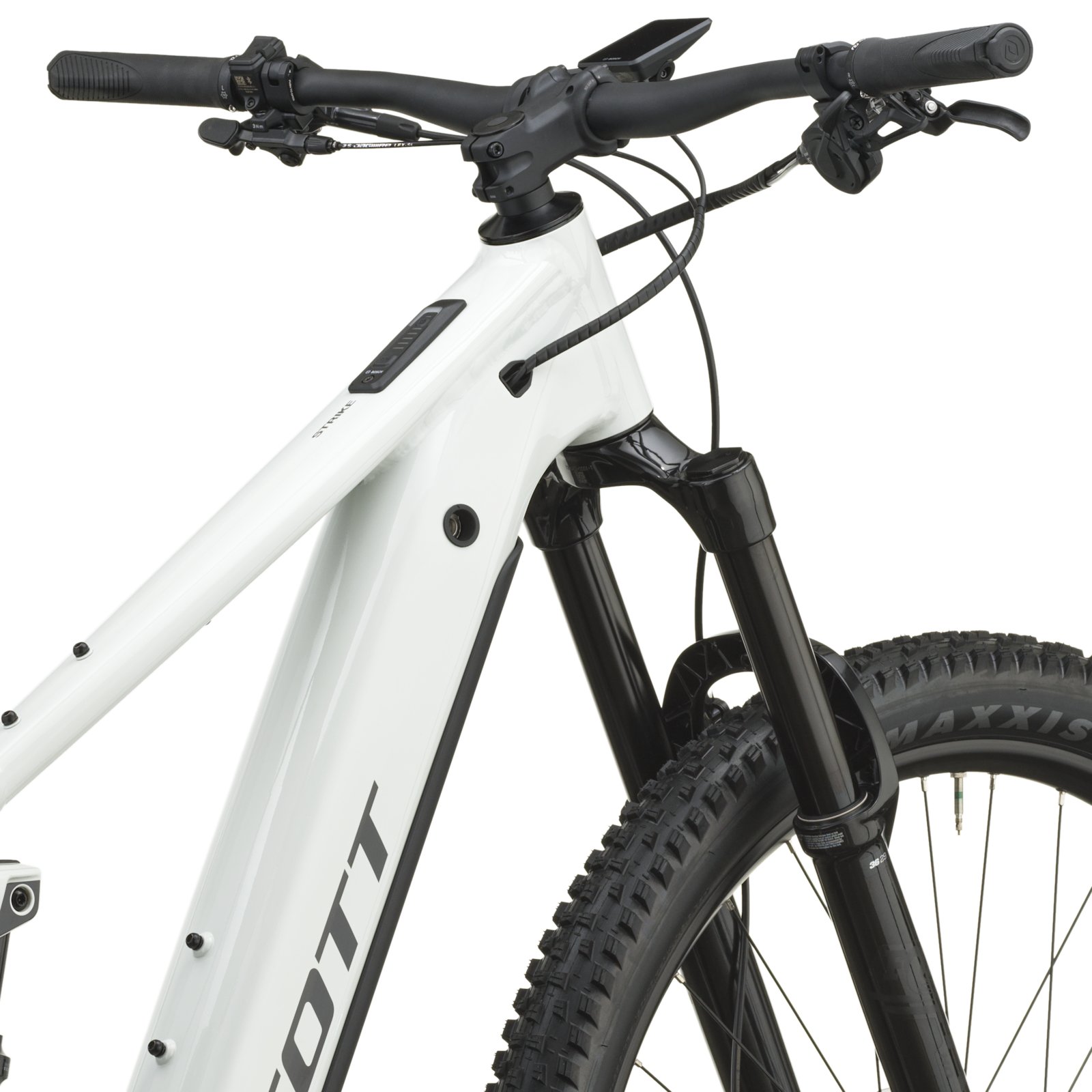

Cockpit
- Grips
- Syncros Comfort Lock On grips
- Handlebar
- Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- Stem
- Syncros DC ST-M200-AL2, 0°, 31.6mm
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- DDK Vacuum Saddle
- Headset
- Press Fit, 1.5", OD 62mm, ID 56mm, sealed bearings
Other
- Max system weight
- 130kg
- Weight
- 24.8 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Strike eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 64.8° | 64.8° | 64.8° | 64.8° |
| BHead tube length | 123 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 577 mm | 600 mm | 630 mm | 665 mm |
| DStandover height | 759 mm | 757 mm | 756 mm | 754 mm |
| EBB offset | -30 mm | -30 mm | -30 mm | -30 mm |
| FBB height | 350 mm | 350 mm | 350 mm | 350 mm |
| GWheel base | 1236 mm | 1257 mm | 1286 mm | 1320 mm |
| IBB center to top of seattube | 415 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.0° | 77.0° | 77.0° | 77.0° |
| KChainstay | 465 mm | 465 mm | 465 mm | 465 mm |
| LReach | 430 mm | 450 mm | 475 mm | 505 mm |
| MStack | 653 mm | 655 mm | 664 mm | 673 mm |
| OTrail | 130 mm | 130 mm | 130 mm | 130 mm |
| PFork length | 583 mm | 583 mm | 583 mm | 583 mm |
| QMaximum Seatpost Insertion | 193 mm | 213 mm | 248 mm | 278 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| SHandlebar Rise | 12 mm | 12 mm | 20 mm | 20 mm |
| THandlebar Diameter | 31.8 mm | 31.8 mm | 31.8 mm | 31.8 mm |
| UCrankarm Length | 155 mm | 155 mm | 155 mm | 155 mm |
| WSeat post drop | 125 mm | 150 mm | 170 mm | 200 mm |
Source: Scott.
Strike eRIDE: builds compared
Strike eRIDE range →| Strike eRIDE 40 | Strike eRIDE 30 | Strike eRIDE 20 | Strike eRIDE 10 | |
|---|---|---|---|---|
| Price | £3,899 | £4,799 | £4,799 | £5,399 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour SF26-XCR 36X, 29'' | RockShox Psylo Silver RC Air, E-Bike | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized |
| Shock | SR Suntour Edge X | X-Fusion O2 Trunnion PRO RL | Fox Float Rhythm LV EVOL | Fox Float Rhythm LV EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | Shimano Deore RD-M6200 12-speed | Shimano Deore RD-M6200 12-speed | Shimano XT RD-M8200 12-speed |
| Brakes | Shimano BR-MT420 4-Piston | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Intuvia 200 | Bosch Intuvia 200 |
| Weight | 25.4 kg | 25.7 kg | 24.8 kg | 25.3 kg |
Strike eRIDE 20: FAQ
How much does the Scott Strike eRIDE 20 cost?
£4,799 (UK RRP, VAT incl.). The Strike eRIDE range runs from £3,899 (Strike eRIDE 40) to £5,399 (Strike eRIDE 10). Prices vary by country and dealer.
How much does the Scott Strike eRIDE 20 weigh?
Scott quotes 24.8 kg. It is the lightest build of the Strike eRIDE.
What motor and battery does the Scott Strike eRIDE 20 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Scott Strike eRIDE 20 have?
150 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Scott Strike eRIDE 20 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Strike eRIDE 20 and the Strike eRIDE 10?
They share the Strike eRIDE frame platform and motor; the differences are in the parts — fork: Fox AWL HD Sport vs Fox 36 Rhythm; derailleur: Shimano Deore RD-M6200 12-speed vs Shimano XT RD-M8200 12-speed; claimed weight: 24.8 kg vs 25.3 kg; price: £4,799 vs £5,399.
