MegamoFlame CRB 00
- Motor
- Bosch Performance Line CX-R100 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, integrated; PowerMore 250 Wh range extender optional
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
All Bosch Performance Line CX-R eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
Shimano XTR Di2 shifting and XTR brakes set the €12,499 Flame CRB 00 apart, along with the Bosch CX-R, a Fox 38 Kashima fork and Float X2 Factory shock.
The Flame CRB 00 is one of 6 builds of the Megamo Flame CRB. About the Flame CRB range and all its builds →

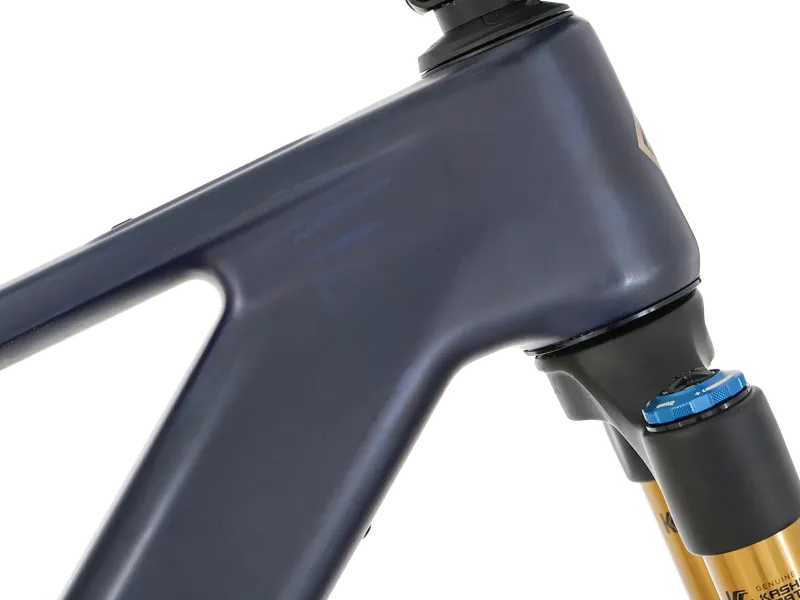

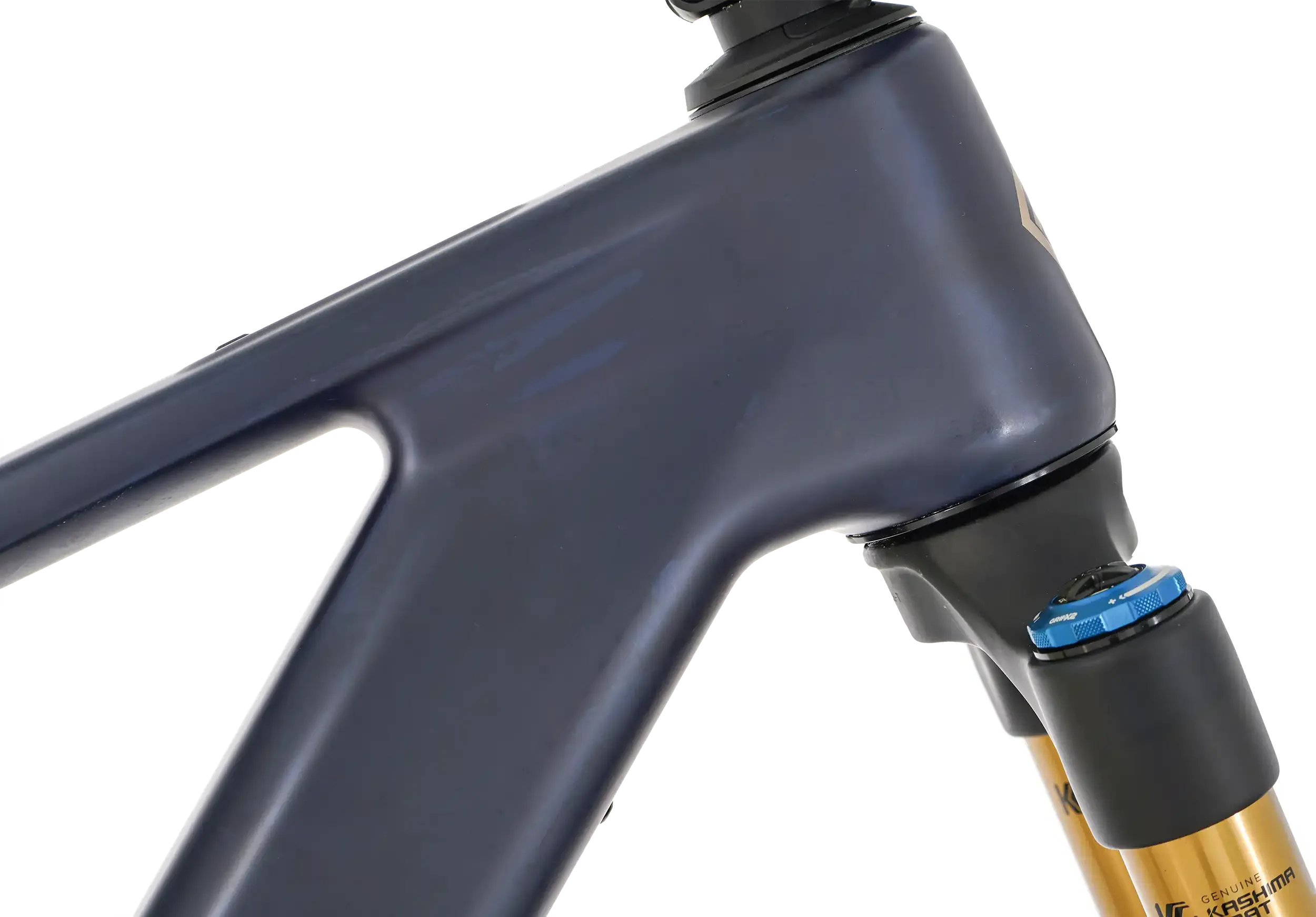

Gallery
Photos: Megamo
Full specifications
Frame & suspension
- Frame
- Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 170/160 mm
- Fork
- Fox 38 Kashima, Float, 29in, 170mm, Grip X2, HSC, LSC, HSR, LSR, 15QRx110, 1.5 T, 68HT, 44mm Rake
- Rear shock
- Fox Float X2 Factory, 230x60mm, Evol Transverse Reservoir + 2 Position
- Headset
- Acros AZX-286R1 ZS56 blocklock 150º
E-system
- Motor
- Bosch Performance Line CX-R / 120Nm 750W
- Battery
- Bosch PowerTube 800
- Display
- Bosch Display Kiox 400C (BRC3200)
Drivetrain
- Rear derailleur
- Shimano XTR Di2 M9260, 12-Speed
- Shifters
- Shimano XTR Di2 M9250, I-SPEC EV
- Cassette
- Shimano XTR M9200, 10-51T
Brakes
- Brakes
- Shimano XTR M9220 Hydraulic Disc 4-Piston, RT-CL900 203/203mm
Wheels & tyres
- Tyres
- Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
- Hubs
- DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30
- Wheelset
- DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30
Cockpit
- Handlebar
- Carbon Race Face ERA 35x800, Rise 20mm
- Stem
- Satori New Ursa 35mm
- Seatpost
- Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 120 mm Drop / M size 150 mm Drop / L size 180 mm Drop
- Saddle
- Selle San Marco GrouND Short Open-fit Titanium
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Flame CRB geometry
| Size | S | M | L |
|---|---|---|---|
| ATop tube | 582 / 574 mm | 609 / 601 mm | 644 / 636 mm |
| BChainstay | 450 mm | 450 mm | 450 mm |
| CSeat tube | 400 mm | 420 mm | 460 mm |
| DHead tube | 100 mm | 110 mm | 130 mm |
| EReach | 435 / 425 mm | 460 / 450 mm | 490 / 480 mm |
| FStack | 613 / 620 mm | 621 / 629 mm | 640 / 647 mm |
| GBB drop | 30 / 33 mm | 30 / 33 mm | 30 / 33 mm |
| HHead angle | 65° / 64.6° | 65° / 64.6° | 65° / 64.6° |
| ISeat angle | 76.5° | 76.5° | 76.5° |
| JWheelbase | 1205 / 1209 mm | 1234 / 1238 mm | 1273 / 1278 mm |
Where two values are given: upper ("trail") / lower ("enduro") geometry position. Source: Megamo.
Flame CRB: builds compared
Flame CRB range →| Flame CRB 10 | Flame CRB 07 | Flame CRB 05 | Flame CRB 03 | Flame CRB 01 | Flame CRB 00 | |
|---|---|---|---|---|---|---|
| Price | €5,699 | €6,499 | €6,999 | €7,999 | €11,999 | €12,499 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox 35 Psylo Silver RC, 150mm Travel | FOX 36 Float AWL HD Sport, 160 mm Travel | Fox 36 Performance 160mm, Grip | Fox 38 Kashima, Float | Fox 38 Kashima, Float | Fox 38 Kashima, Float |
| Shock | Rock Shox Deluxe Select R | Fox Float Rhythm | Fox Float Performance Elite | Fox Float X | Fox Float X2 Factory | Fox Float X2 Factory |
| Derailleur | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 | Sram XX Eagle AXS T-Type 12s | Shimano XTR Di2 M9260 |
| Brakes | Shimano MT520 hydraulic disc 4-Piston | Shimano XT BR-M8120 | Shimano XT BR-M8120 | Shimano XT Hydraulic Disc Brakes with 4 pistons 203/203 (from key features) | Shimano XT BR-M8120 | Shimano XTR M9220 Hydraulic Disc 4-Piston |
| Display | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) |
Flame CRB 00: FAQ
What is the difference between the Flame CRB 00 and the Flame CRB 01?
They share the Flame CRB frame platform and motor; the differences are in the parts: derailleur: Shimano XTR Di2 M9260 vs Sram XX Eagle AXS T-Type 12s; price: €12,499 vs €11,999.
