MegamoFlame CRB 01
- Motor
- Bosch Performance Line CX-R100 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube, integrated; PowerMore 250 Wh range extender optional
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Megamo Flame CRB 01 (€11,999) is a mid-range build of the Flame CRB: Bosch Performance Line CX-R (100 Nm) with 800 Wh, Fox 38 Kashima fork, Fox Float X2 Factory shock, Sram XX Eagle AXS T-Type 12s and Shimano XT BR-M8120 brakes.
The Flame CRB is Megamo's carbon e-enduro bike with 160 mm of rear travel (Megamo lists 170/160 mm), 150-170 mm forks depending on build, 29-inch wheels and a Bosch Smart System drive: Performance Line CX on most builds and the CX-R on the 00 and 01, with an integrated 800 Wh PowerTube battery that can be extended with a 250 Wh PowerMore range extender.
The frame has a two-position geometry setting (upper 'trail' and lower 'enduro'); the head angle is 65° or 64.6°. Sizes are S, M and L.
- Carbon frame, 160 mm rear travel
- Bosch Performance Line CX or CX-R
- 800 Wh PowerTube, PowerMore-ready
- Two geometry positions
Gallery

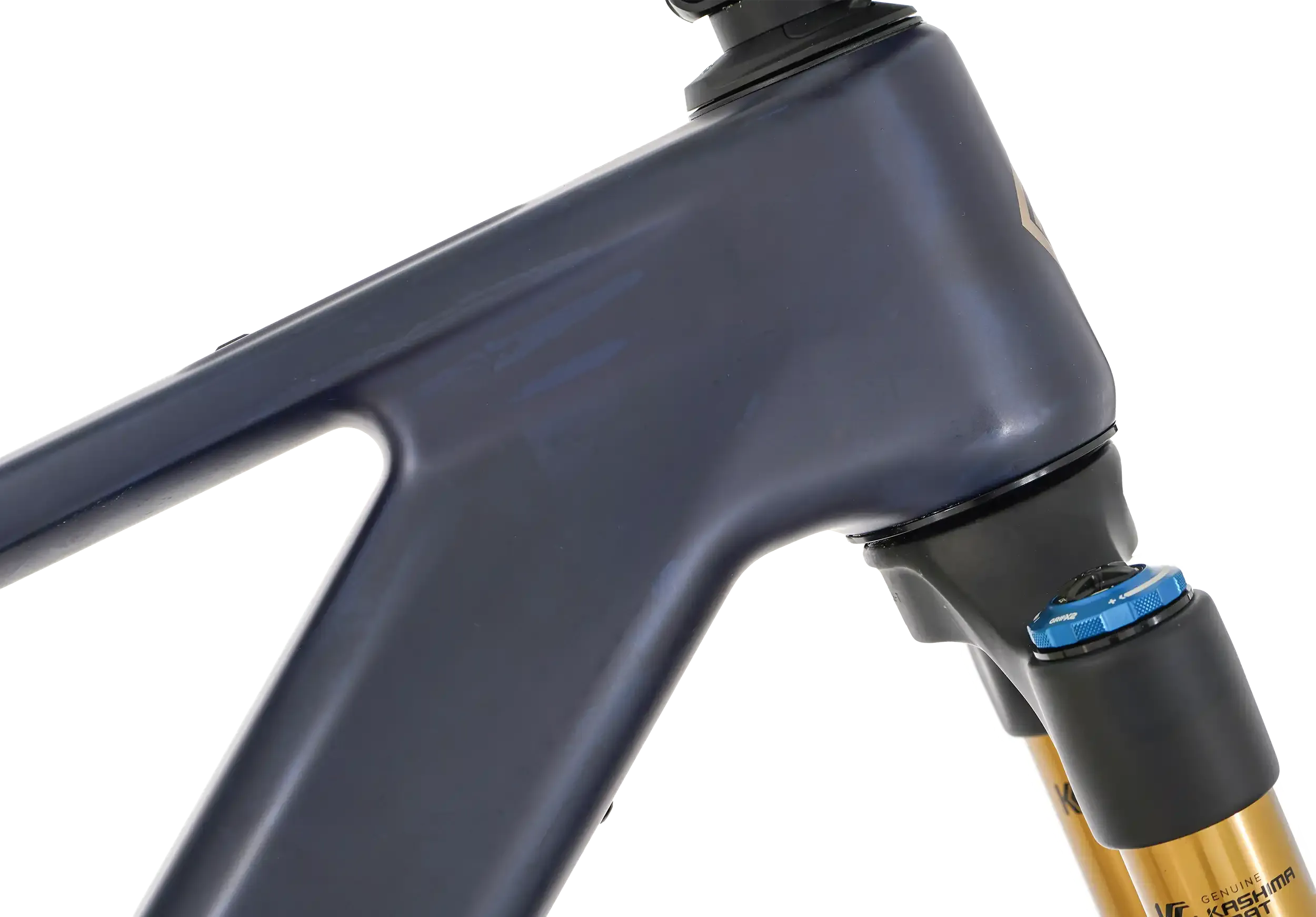

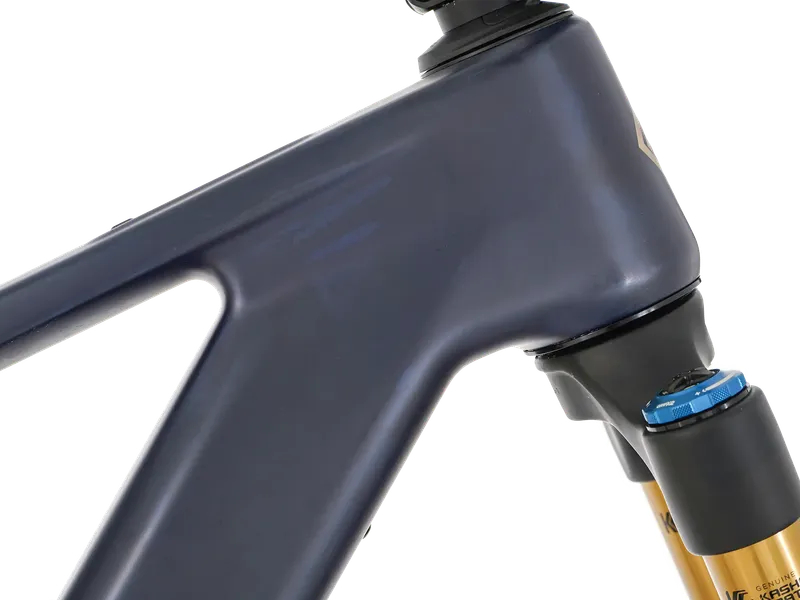

Photos: Megamo
Full specifications
Frame & suspension
- Frame
- Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 170/160 mm
- Fork
- Fox 38 Kashima, Float, 29in, 170mm, Grip X2, HSC, LSC, HSR, LSR, 15QRx110, 1.5 T, 68HT, 44mm Rake
- Rear shock
- Fox Float X2 Factory, 230x60mm, Evol Transverse Reservoir + 2 Position
- Headset
- Acros AZX-286R1 ZS56 blocklock 150º
E-system
- Motor
- Bosch Performance Line CX-R / 120Nm 750W
- Battery
- Bosch PowerTube 800
- Display
- Bosch Display Kiox 400C (BRC3200)
Drivetrain
- Rear derailleur
- Sram XX Eagle AXS T-Type 12s
- Shifters
- Sram AXS POD Ultimate
- Crankset
- Sram XX EAGLE Crankset 165mm
- Cassette
- Sram XX Eagle T-TYPE 10-52T
Brakes
- Brakes
- Shimano XT BR-M8120, hydraulic disc 4-Piston, 203/203mm
Wheels & tyres
- Tyres
- Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
- Wheelset
- DT Swiss 1501 HXC 30 - XD Carbon, Tubeless ready
Cockpit
- Handlebar
- Carbon Race Face ERA 35x800, Rise 20mm
- Stem
- Satori New Ursa 35mm
- Seatpost
- Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 120 mm Drop / M size 150 mm Drop / L size 180 mm Drop
- Saddle
- Selle San Marco GrouND Short Open-fit Titanium
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Flame CRB geometry
| Size | S | M | L |
|---|---|---|---|
| ATop tube | 582 / 574 mm | 609 / 601 mm | 644 / 636 mm |
| BChainstay | 450 mm | 450 mm | 450 mm |
| CSeat tube | 400 mm | 420 mm | 460 mm |
| DHead tube | 100 mm | 110 mm | 130 mm |
| EReach | 435 / 425 mm | 460 / 450 mm | 490 / 480 mm |
| FStack | 613 / 620 mm | 621 / 629 mm | 640 / 647 mm |
| GBB drop | 30 / 33 mm | 30 / 33 mm | 30 / 33 mm |
| HHead angle | 65° / 64.6° | 65° / 64.6° | 65° / 64.6° |
| ISeat angle | 76.5° | 76.5° | 76.5° |
| JWheelbase | 1205 / 1209 mm | 1234 / 1238 mm | 1273 / 1278 mm |
Where two values are given: upper ("trail") / lower ("enduro") geometry position. Source: Megamo.
Flame CRB: builds compared
Flame CRB range →| Flame CRB 10 | Flame CRB 07 | Flame CRB 05 | Flame CRB 03 | Flame CRB 01 | Flame CRB 00 | |
|---|---|---|---|---|---|---|
| Price | €5,699 | €6,499 | €6,999 | €7,999 | €11,999 | €12,499 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | Rock Shox 35 Psylo Silver RC, 150mm Travel | FOX 36 Float AWL HD Sport, 160 mm Travel | Fox 36 Performance 160mm, Grip | Fox 38 Kashima, Float | Fox 38 Kashima, Float | Fox 38 Kashima, Float |
| Shock | Rock Shox Deluxe Select R | Fox Float Rhythm | Fox Float Performance Elite | Fox Float X | Fox Float X2 Factory | Fox Float X2 Factory |
| Derailleur | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 | Shimano XT M8100 | Sram XX Eagle AXS T-Type 12s | Shimano XTR Di2 M9260 |
| Brakes | Shimano MT520 hydraulic disc 4-Piston | Shimano XT BR-M8120 | Shimano XT BR-M8120 | Shimano XT Hydraulic Disc Brakes with 4 pistons 203/203 (from key features) | Shimano XT BR-M8120 | Shimano XTR M9220 Hydraulic Disc 4-Piston |
| Display | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) | Bosch Display Kiox 400C (BRC3200) |
Flame CRB 01: FAQ
How much does the Megamo Flame CRB 01 cost?
€11,999 (RRP Spain (megamo.com, EN), VAT incl.). The Flame CRB range runs from €5,699 (Flame CRB 10) to €12,499 (Flame CRB 00). Prices vary by country and dealer.
What motor and battery does the Megamo Flame CRB 01 have?
Bosch Performance Line CX-R (100 Nm; 750 W peak). 800 Wh battery — bosch PowerTube, integrated; PowerMore 250 Wh range extender optional.
How much suspension travel does the Megamo Flame CRB 01 have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Megamo Flame CRB 01 come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Flame CRB 01 and the Flame CRB 00?
They share the Flame CRB frame platform and motor; the differences are in the parts — derailleur: Sram XX Eagle AXS T-Type 12s vs Shimano XTR Di2 M9260; price: €11,999 vs €12,499.
