Lightweight eMTBTrail2025
Model range · 3 buildsHaibikeLYKE CF
- Price
- €6,999 – €13,000
- Motor
- Fazua Ride 6060 Nm
- Battery
- 480 WhFazua Energy
- Travel F / R
- 140 / 140 mm
- Wheels
- 29"
Overview

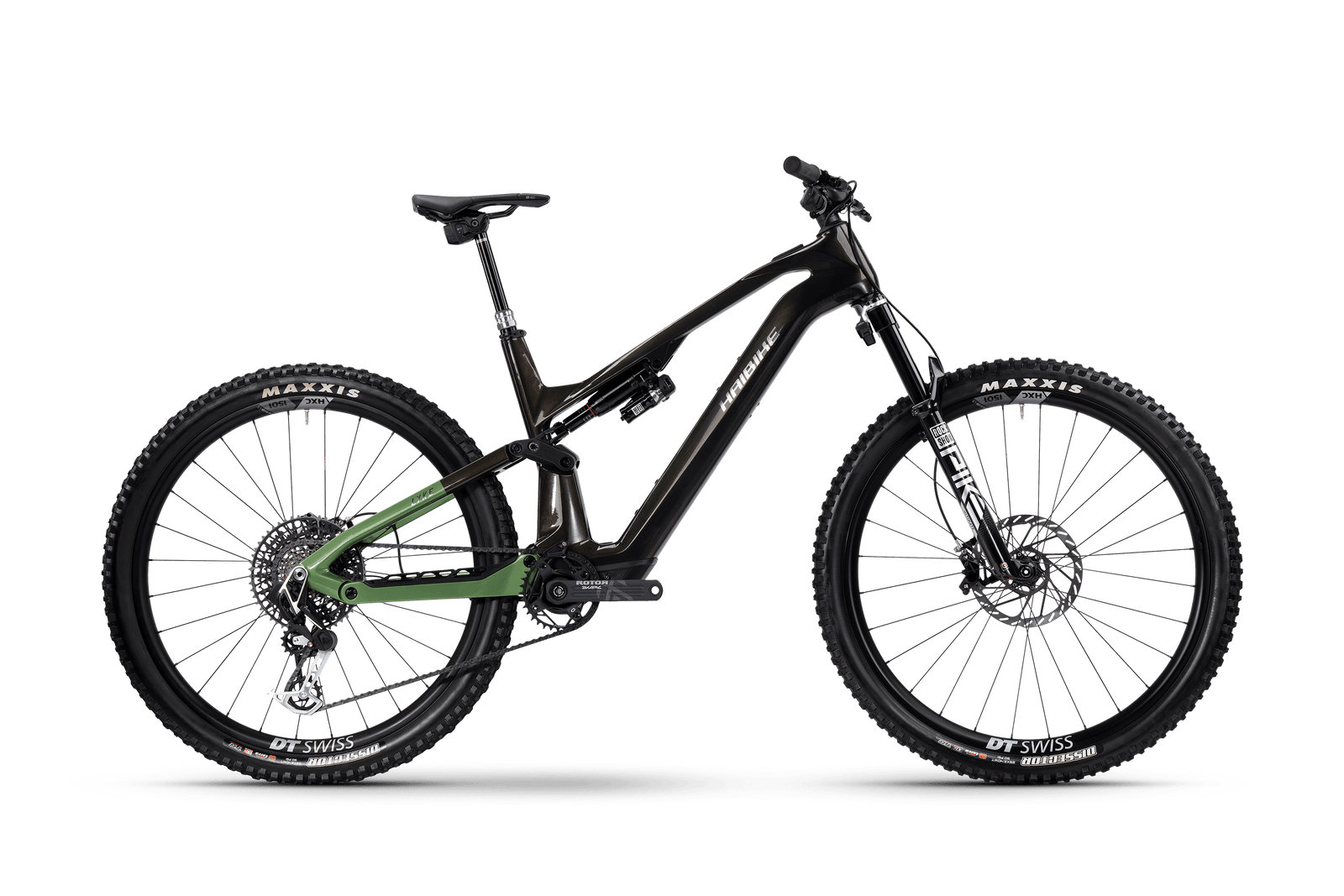

The LYKE CF is Haibike's light eMTB: a carbon frame with a closed down tube, 140 mm of travel and 29-inch wheels, with the compact Fazua Ride 60 motor (60 Nm) placed in the seat tube area and a removable 480 Wh battery.
- Fazua Ride 60, 60 Nm
- 480 Wh removable battery
- 140 mm travel
- Carbon frame
Haibike LYKE CF builds
LYKE CF builds compared

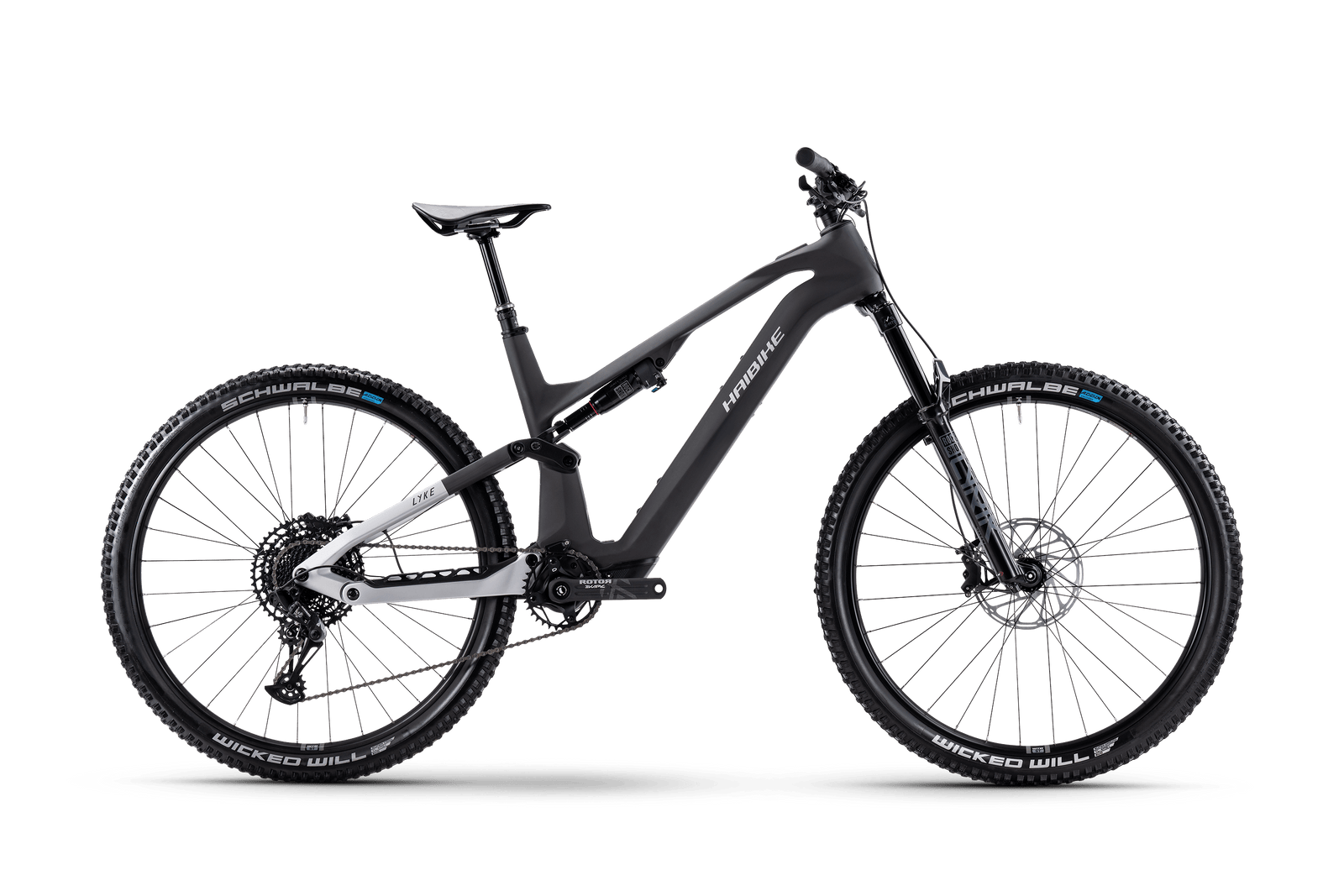

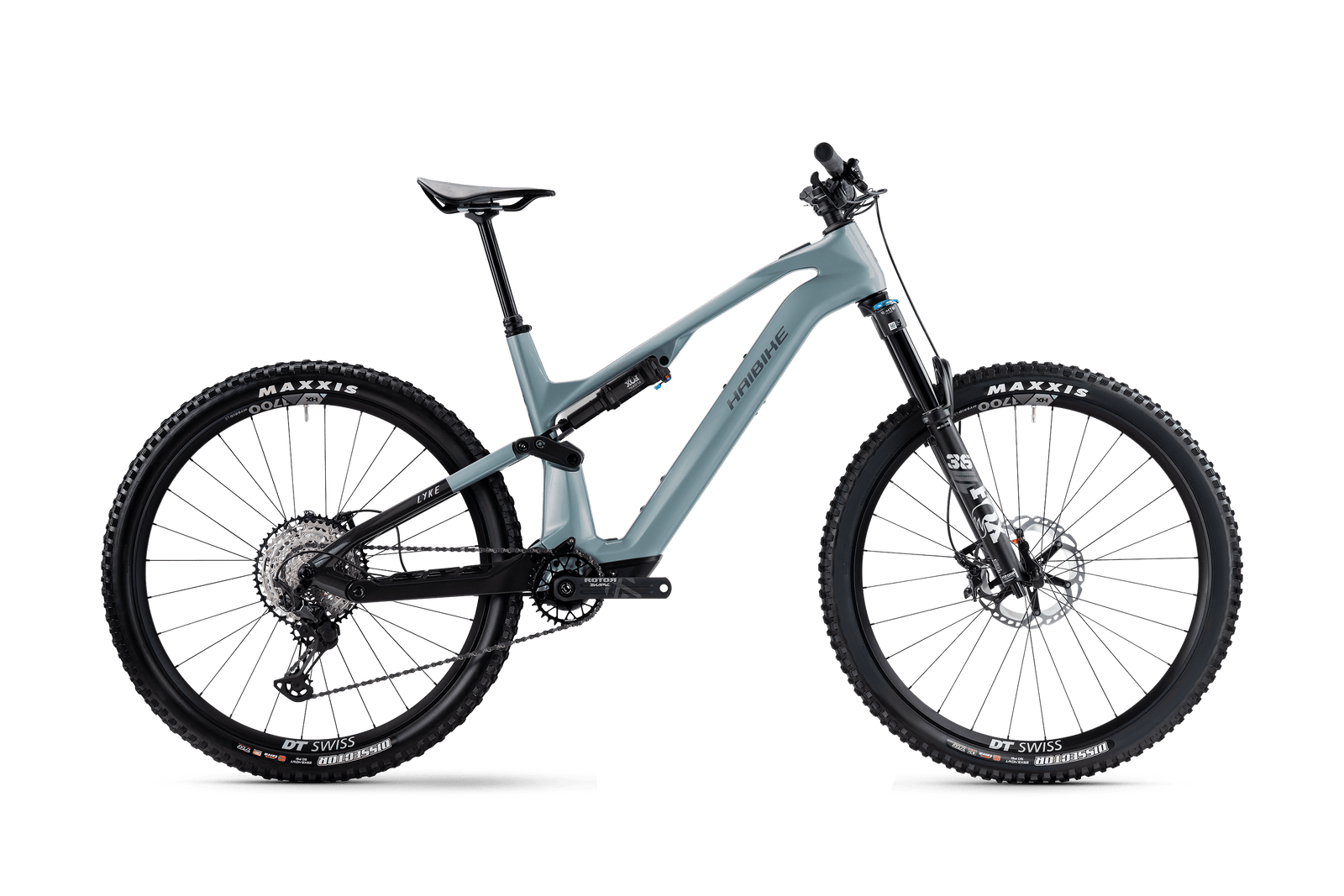

| LYKE CF 10 | LYKE CF 11 | LYKE CF SE | |
|---|---|---|---|
| Price | €6,999 | €8,000 | €13,000 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Select Charger RC, Boost | FOX 36 FLOAT Performance, GRIP | RockShox Pike Ultimate Flight Attendant, DebonAir+ |
| Shock | RockShox Deluxe Select+ RT 210x52,5mm | FOX FLOAT SL Performance | RockShox Super Deluxe Ultimate Flight Attendant 210x52,5mm |
| Derailleur | Sram NX Eagle 12s | Shimano Deore XT RD-M8100-SGS 12s | Sram XX Eagle AXS T-Type 12s |
| Brakes | Sram DB8 Stealth | Shimano Deore XT BR-M8120 | Sram Code Silver Stealth |
| Wheels | WTB ST i30 TCS 2.0 29" 32H | DT Swiss HX 1700 Spline LS | DT Swiss HXC 1501 Spline One LS |
| Display | Fazua Ride 60 LED Hub + Mode Control | Fazua Ride 60 LED Hub + Mode Control | Fazua Ride 60 LED Hub + Mode Control |
LYKE CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 562 mm | 592 mm | 622 mm | 652 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 74° | 74° | 74° | 74° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1195 mm | 1227 mm | 1259 mm | 1290 mm |
| HStack | 611 mm | 620 mm | 629 mm | 638 mm |
| IReach | 424 mm | 452 mm | 479 mm | 506 mm |
| JStand over height | 760 mm | 760 mm | 760 mm | 760 mm |
| KBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
Source: Haibike.
Haibike LYKE CF: FAQ
How much does the Haibike LYKE CF cost?
€6,999 – €13,000 depending on the build (LYKE CF 10 €6,999, LYKE CF 11 €8,000, LYKE CF SE €13,000); RRP Germany, VAT incl..
How many Haibike LYKE CF builds are there?
3: LYKE CF 10, LYKE CF 11, LYKE CF SE. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Haibike LYKE CF use?
Fazua Ride 60 (60 Nm) with a 480 Wh battery (fazua energy).
How much travel does the Haibike LYKE CF have?
140 mm fork and 140 mm rear travel on 29" wheels.
