HaibikeLYKE CF 11
- Motor
- Fazua Ride 6060 Nm
- Battery
- 480 WhFazua Energy
- Travel F / R
- 140 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Haibike LYKE CF 11 (€8,000) is a mid-range build of the LYKE CF range: Fazua Ride 60 (60 Nm) with 480 Wh, FOX 36 FLOAT Performance fork, FOX FLOAT SL Performance shock, Shimano Deore XT RD-M8100-SGS 12s and Shimano Deore XT BR-M8120 brakes.
The LYKE CF is Haibike's light eMTB: a carbon frame with a closed down tube, 140 mm of travel and 29-inch wheels, with the compact Fazua Ride 60 motor (60 Nm) placed in the seat tube area and a removable 480 Wh battery.
- Fazua Ride 60, 60 Nm
- 480 Wh removable battery
- 140 mm travel
- Carbon frame

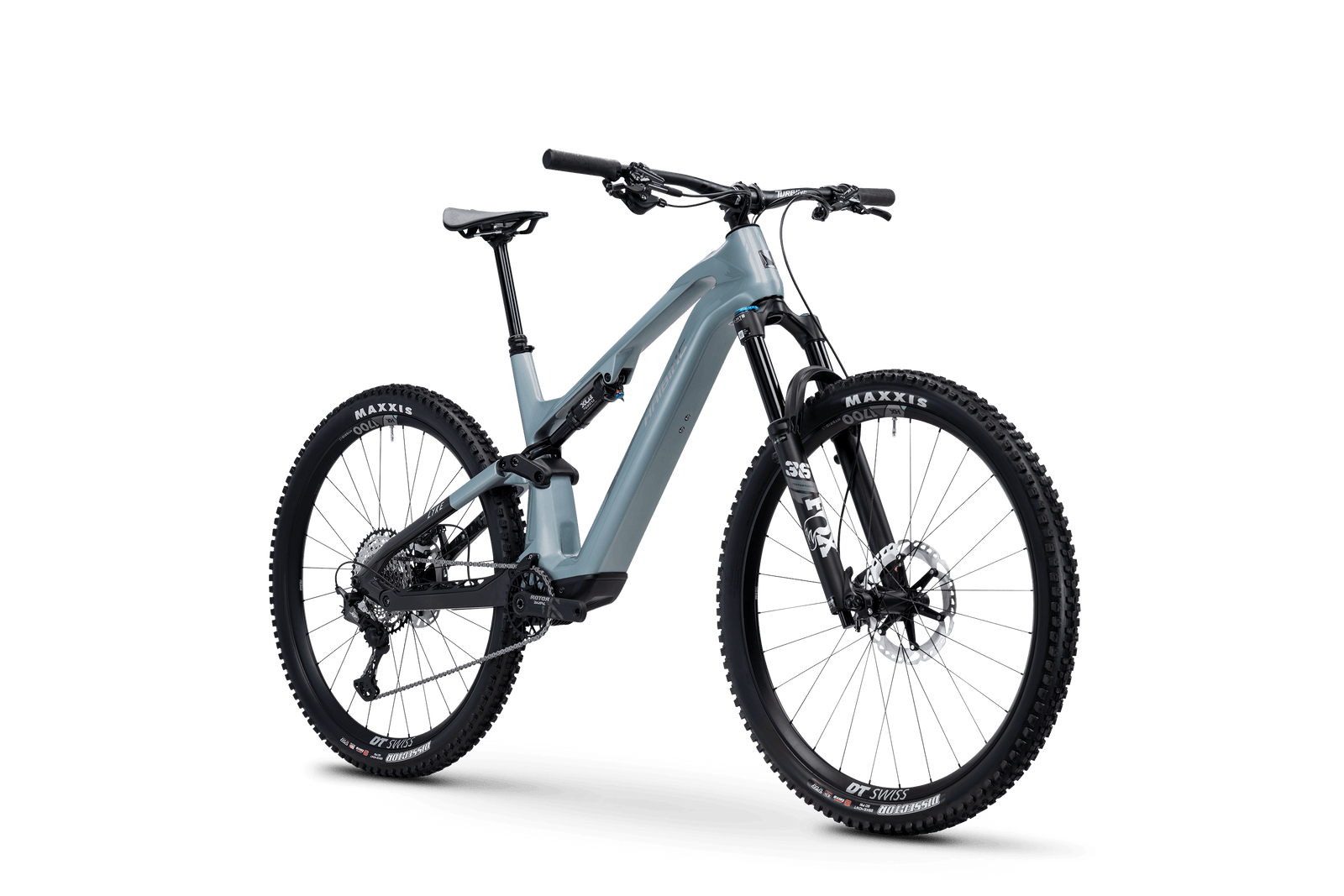

Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount

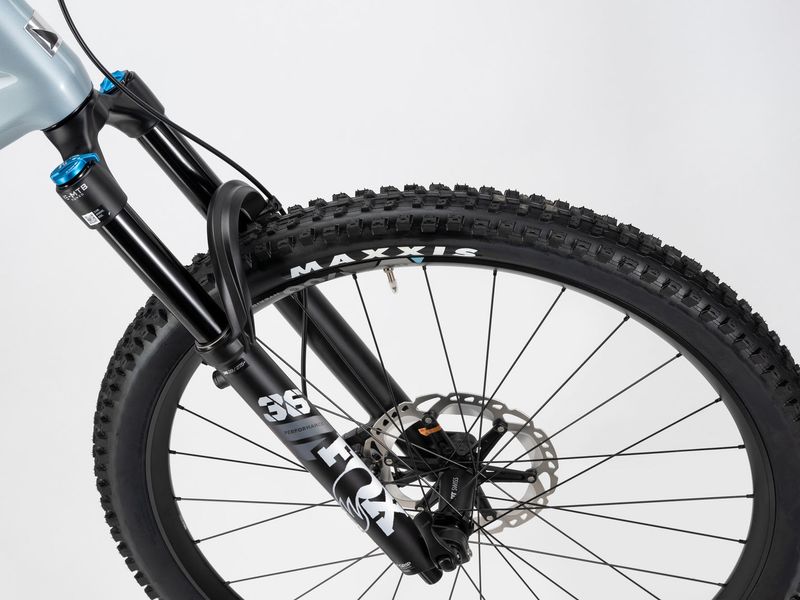

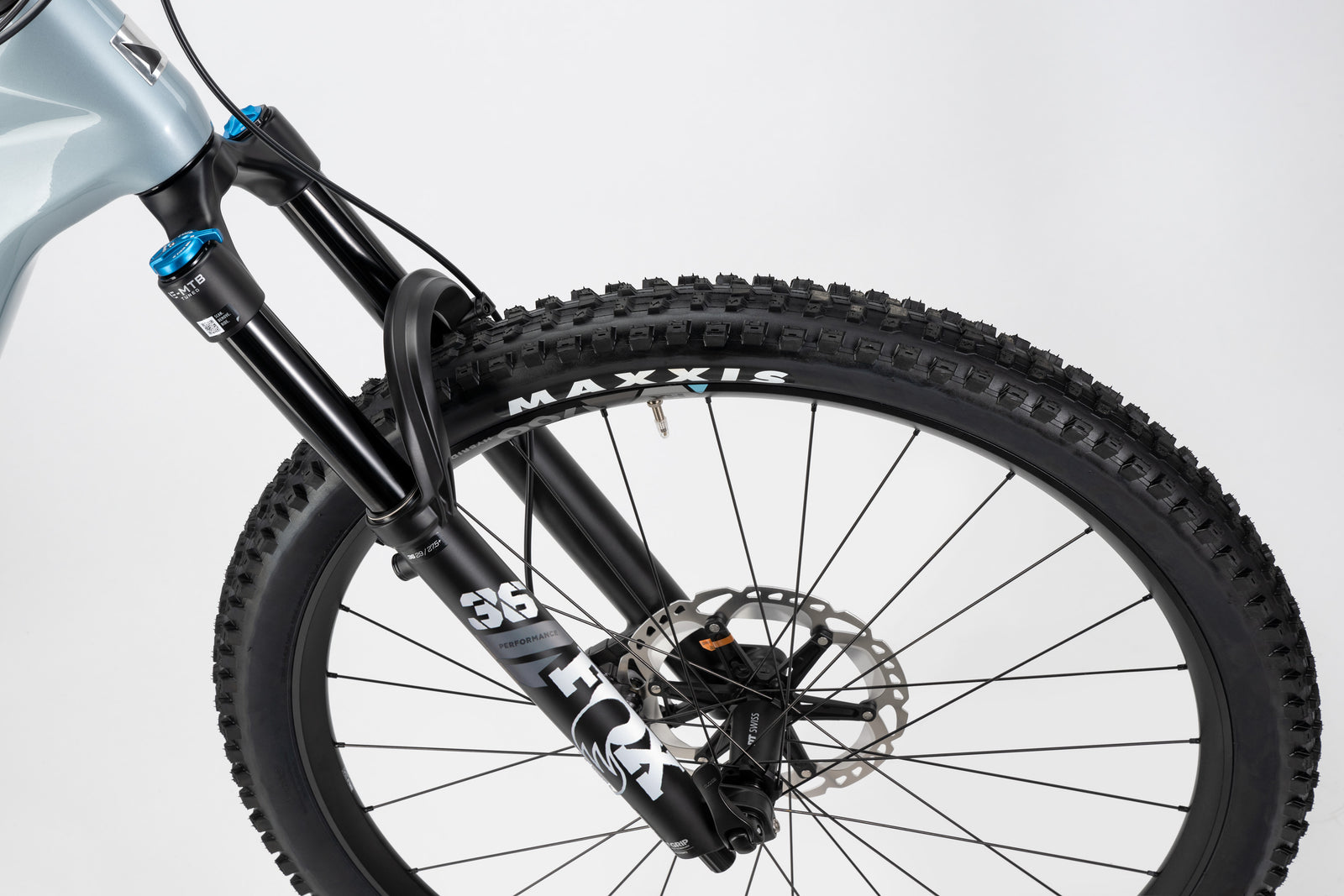

- Fork
- FOX 36 FLOAT Performance, GRIP, 3Pos, QR, Offset: 44 mm, Travel: 140mm

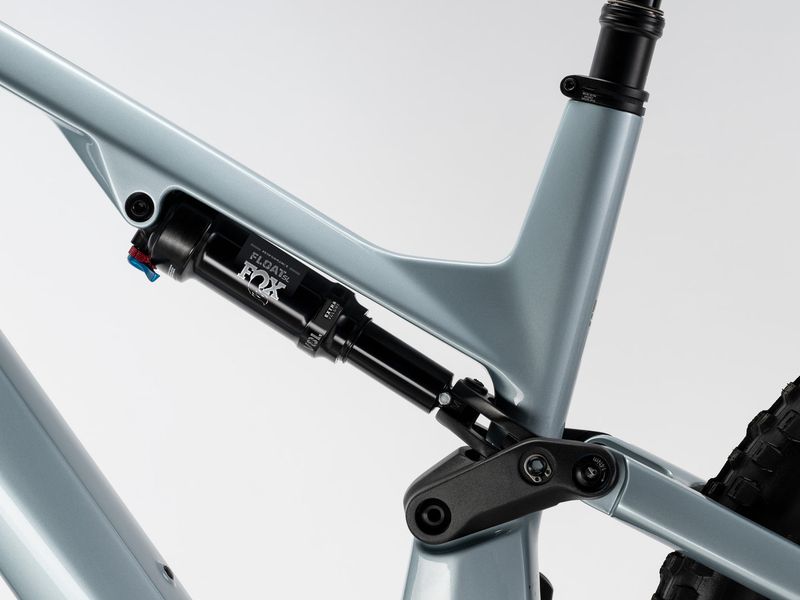

- Rear shock

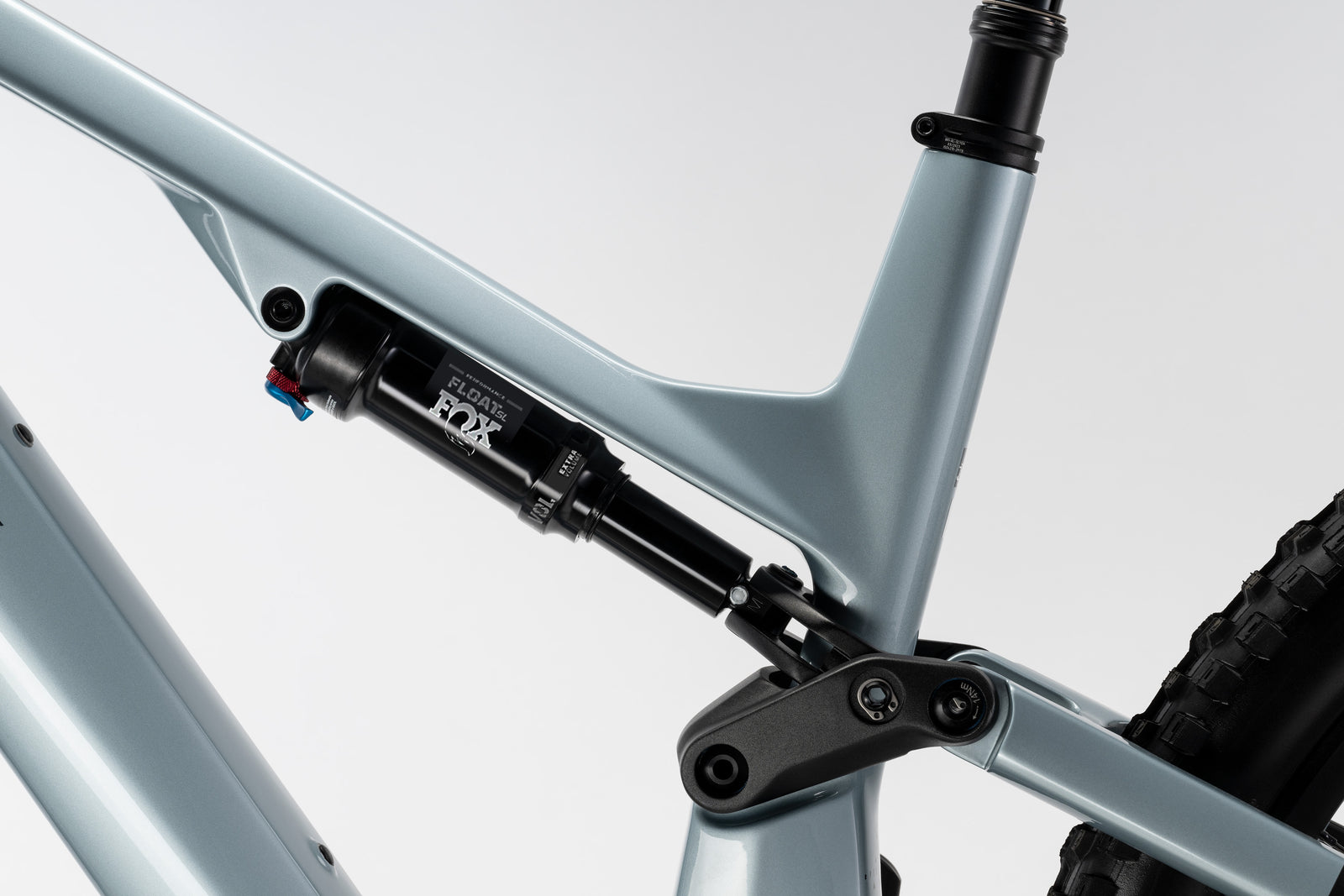

- FOX FLOAT SL Performance, 3Pos, Evol LV, 210x52,5mm
E-system
- Battery
- Fazua Energy 480Wh
- Charger
- Fazua Charger 3A, 230V
- Display
- Fazua Ride 60 LED Hub + Mode Control

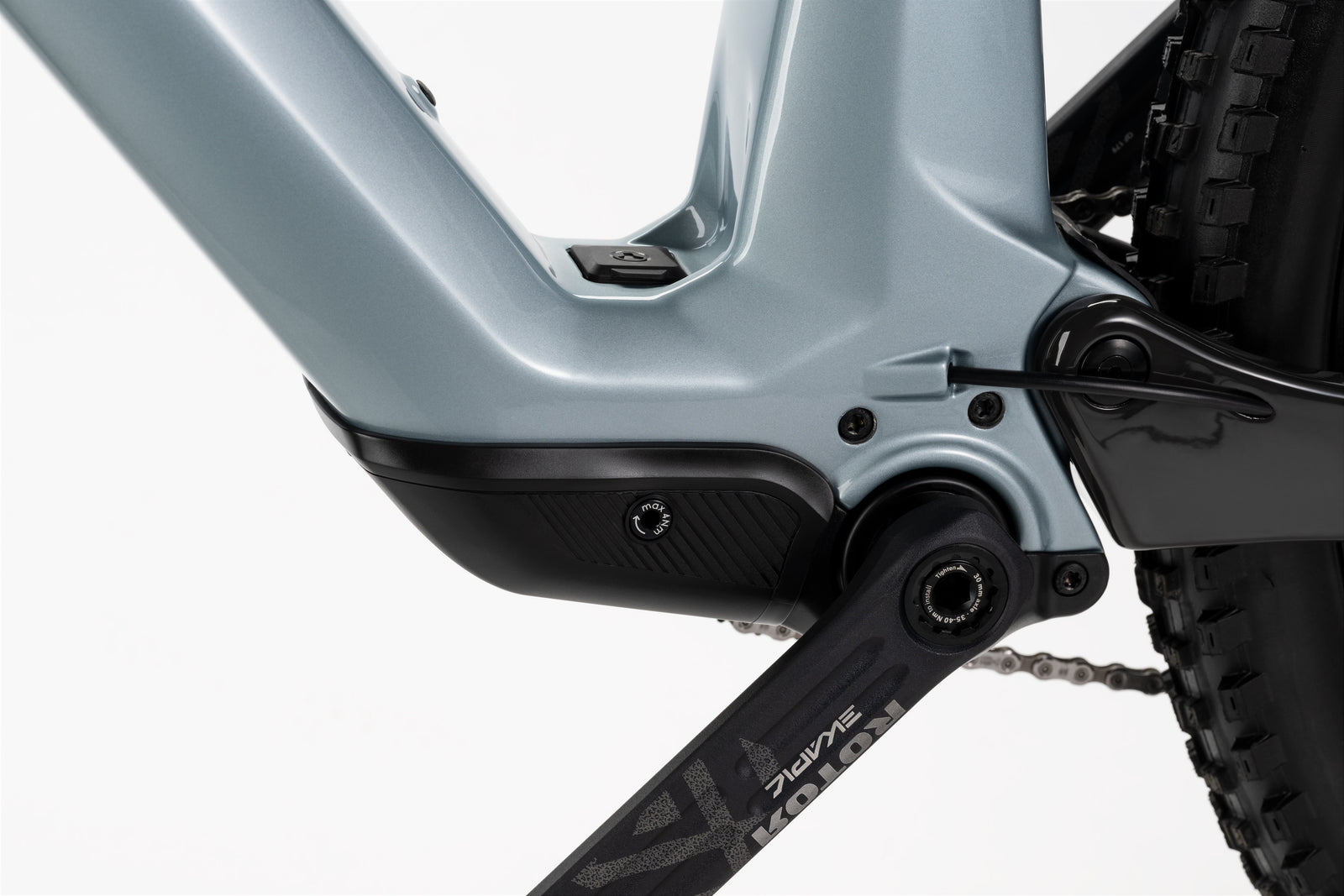

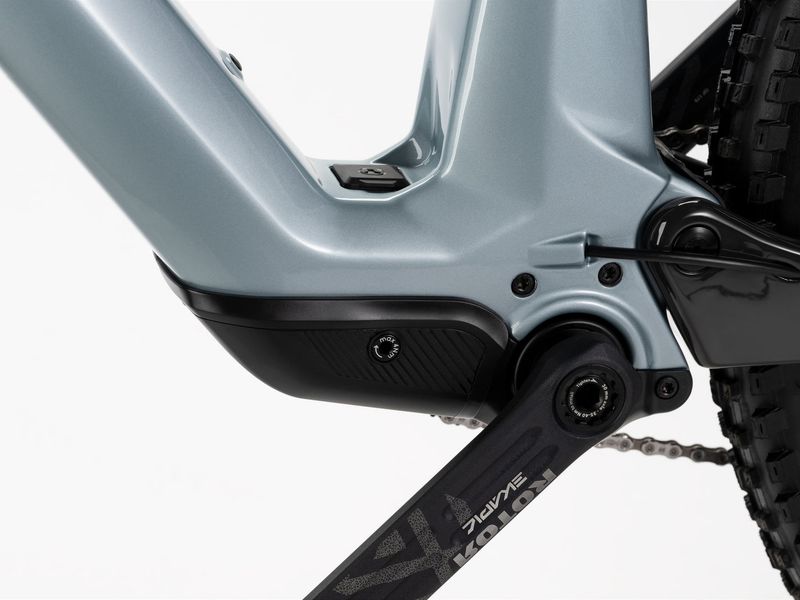

- Motor
- Fazua Ride60, 430W, 60Nm, 25km/h

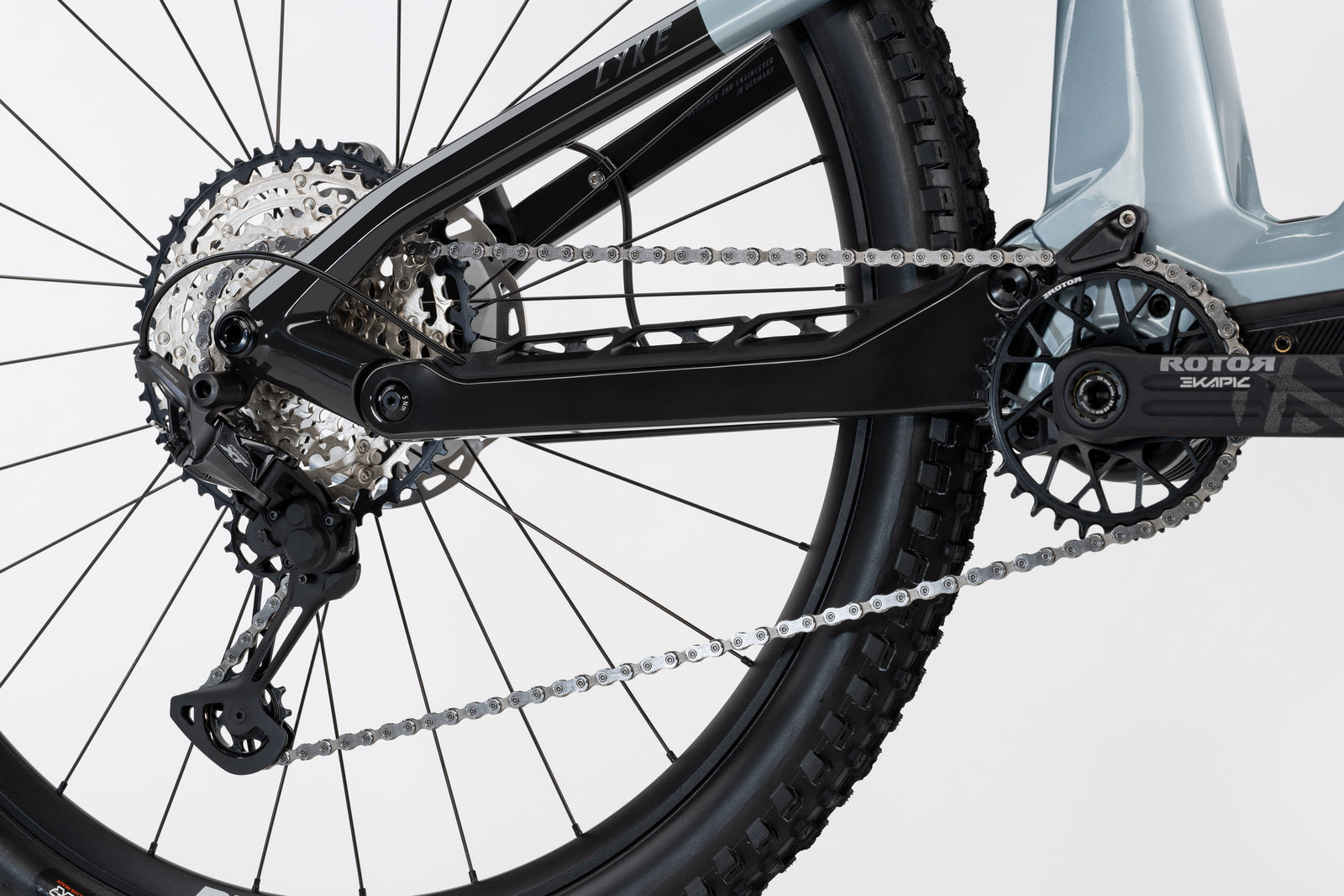

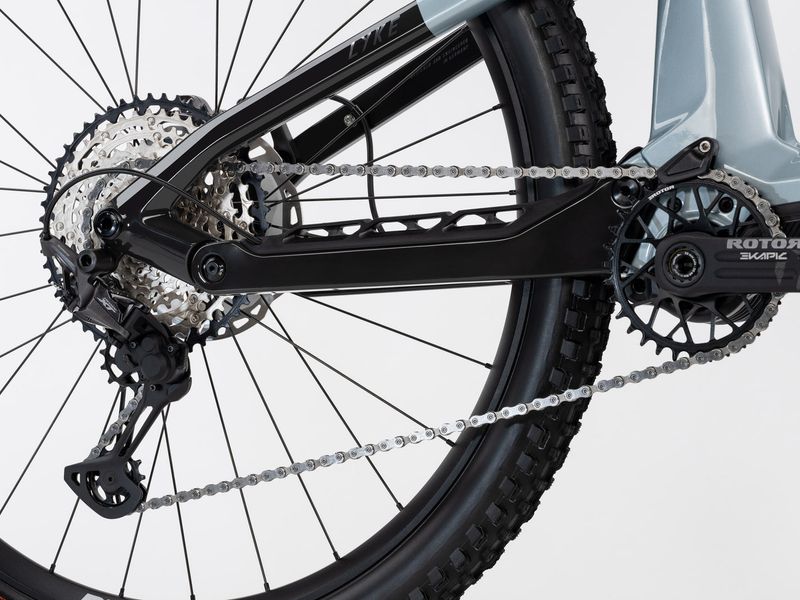

Drivetrain
- Chain
- Shimano SLX CN-M7100 12s, SIL-TECH
- Rear derailleur
- Shimano Deore XT RD-M8100-SGS 12s, Shadow+, 12-speed
- Gears
- 12-speed
- Shifter
- Shimano SLX SL-M7100-IR, Rapidfire+, Trigger shifter
Brakes
- Front brake
- Shimano Deore XT BR-M8120, 4 pistons, resin pad, 203 mm
- Rear brake
- Shimano Deore XT BR-M8120, 4 pistons, resin pad, 180 mm
Wheels & tyres
- Front Wheel
- DT Swiss HX 1700 Spline LS, 15x110 mm, Centerlock
- Rear wheel
- DT Swiss HX 1700 Spline LS, 12x148 mm, Centerlock, MS
- Tyres
- Maxxis Disscector 3C MaxxTerra/EXO/TR, 61-622

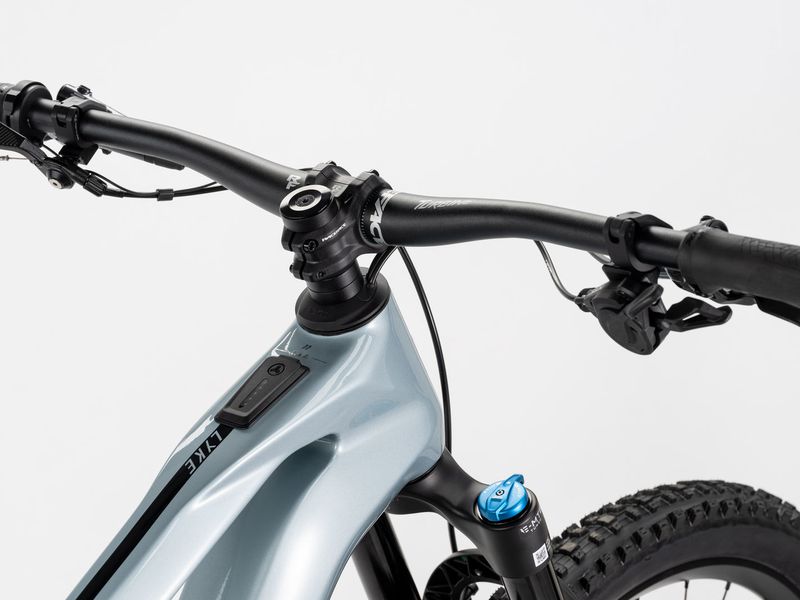

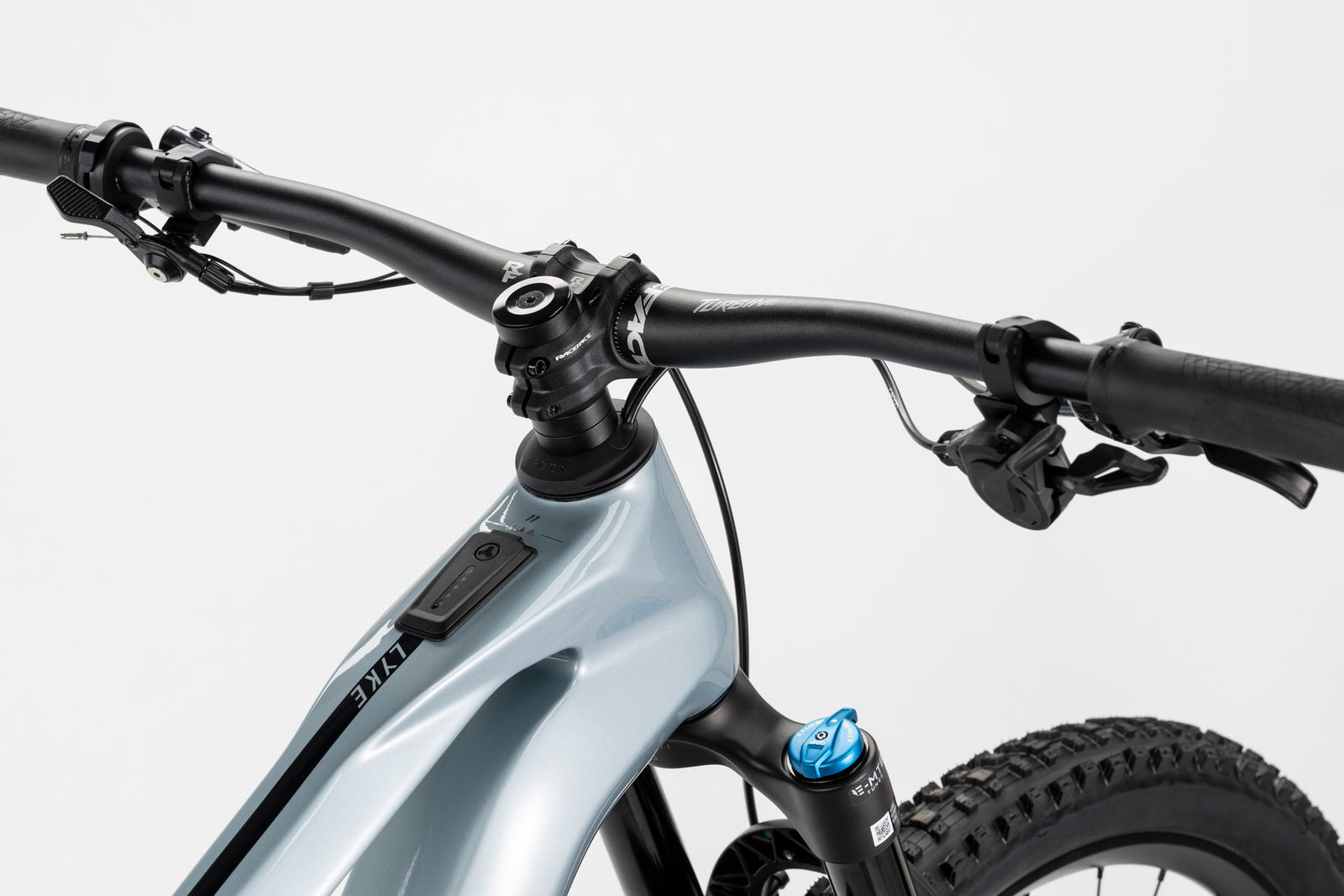

Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar
- Raceface Turbine R Dia. 35 mm, Rise: 20 mm 780 mm
- Pedals
- VP Components VPE-527 Alloy w/ Reflector
- Saddle
- Selle Italia Model X Black
- Seatpost
- Limotec A1H Dropper, Dia. 31.6 mm, Travel: 170 mm
Other
- Max system weight
- 120kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
LYKE CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 562 mm | 592 mm | 622 mm | 652 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 74° | 74° | 74° | 74° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1195 mm | 1227 mm | 1259 mm | 1290 mm |
| HStack | 611 mm | 620 mm | 629 mm | 638 mm |
| IReach | 424 mm | 452 mm | 479 mm | 506 mm |
| JStand over height | 760 mm | 760 mm | 760 mm | 760 mm |
| KBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
Source: Haibike.
LYKE CF: builds compared
LYKE CF range →| LYKE CF 10 | LYKE CF 11 | LYKE CF SE | |
|---|---|---|---|
| Price | €6,999 | €8,000 | €13,000 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Select Charger RC, Boost | FOX 36 FLOAT Performance, GRIP | RockShox Pike Ultimate Flight Attendant, DebonAir+ |
| Shock | RockShox Deluxe Select+ RT 210x52,5mm | FOX FLOAT SL Performance | RockShox Super Deluxe Ultimate Flight Attendant 210x52,5mm |
| Derailleur | Sram NX Eagle 12s | Shimano Deore XT RD-M8100-SGS 12s | Sram XX Eagle AXS T-Type 12s |
| Brakes | Sram DB8 Stealth | Shimano Deore XT BR-M8120 | Sram Code Silver Stealth |
| Wheels | WTB ST i30 TCS 2.0 29" 32H | DT Swiss HX 1700 Spline LS | DT Swiss HXC 1501 Spline One LS |
| Display | Fazua Ride 60 LED Hub + Mode Control | Fazua Ride 60 LED Hub + Mode Control | Fazua Ride 60 LED Hub + Mode Control |
LYKE CF 11: FAQ
How much does the Haibike LYKE CF 11 cost?
€8,000 (RRP Germany, VAT incl.). The LYKE CF range runs from €6,999 (LYKE CF 10) to €13,000 (LYKE CF SE). Prices vary by country and dealer.
What motor and battery does the Haibike LYKE CF 11 have?
Fazua Ride 60 (60 Nm). 480 Wh battery — fazua Energy.
How much suspension travel does the Haibike LYKE CF 11 have?
140 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Haibike LYKE CF 11 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the LYKE CF 11 and the LYKE CF SE?
They share the LYKE CF frame platform and motor; the differences are in the parts — fork: FOX 36 FLOAT Performance vs RockShox Pike Ultimate Flight Attendant; shock: FOX FLOAT SL Performance vs RockShox Super Deluxe Ultimate Flight Attendant 210x52,5mm; derailleur: Shimano Deore XT RD-M8100-SGS 12s vs Sram XX Eagle AXS T-Type 12s; brakes: Shimano Deore XT BR-M8120 vs Sram Code Silver Stealth; price: €8,000 vs €13,000.
