FanticSierra

Price: €5,790 – €8,990
Motor: Bosch Performance Line CX Gen 5120 Nm
Battery: 800 WhBosch PowerTube
Travel F / R: 160 / null mm
Wheels: 29"

Overview

The Sierra is Fantic's MY26 full-carbon trail e-MTB. It uses the Bosch Performance Line CX Gen 5 motor (120 Nm) with an 800 Wh Bosch PowerTube battery, 29-inch wheels and a 160 mm RockShox fork on all builds.

The rear end is a coaxial Horst-link design with a play-compensation insert in the rear triangle, and a flip chip offers two geometry settings, including the option of a mullet setup. Fantic lists sizes S to XL.

Full-carbon frame, coaxial Horst link
Bosch CX Gen 5, 120 Nm, 800 Wh
160 mm RockShox fork, 29" wheels
Flip chip, mullet option

Fantic Sierra builds

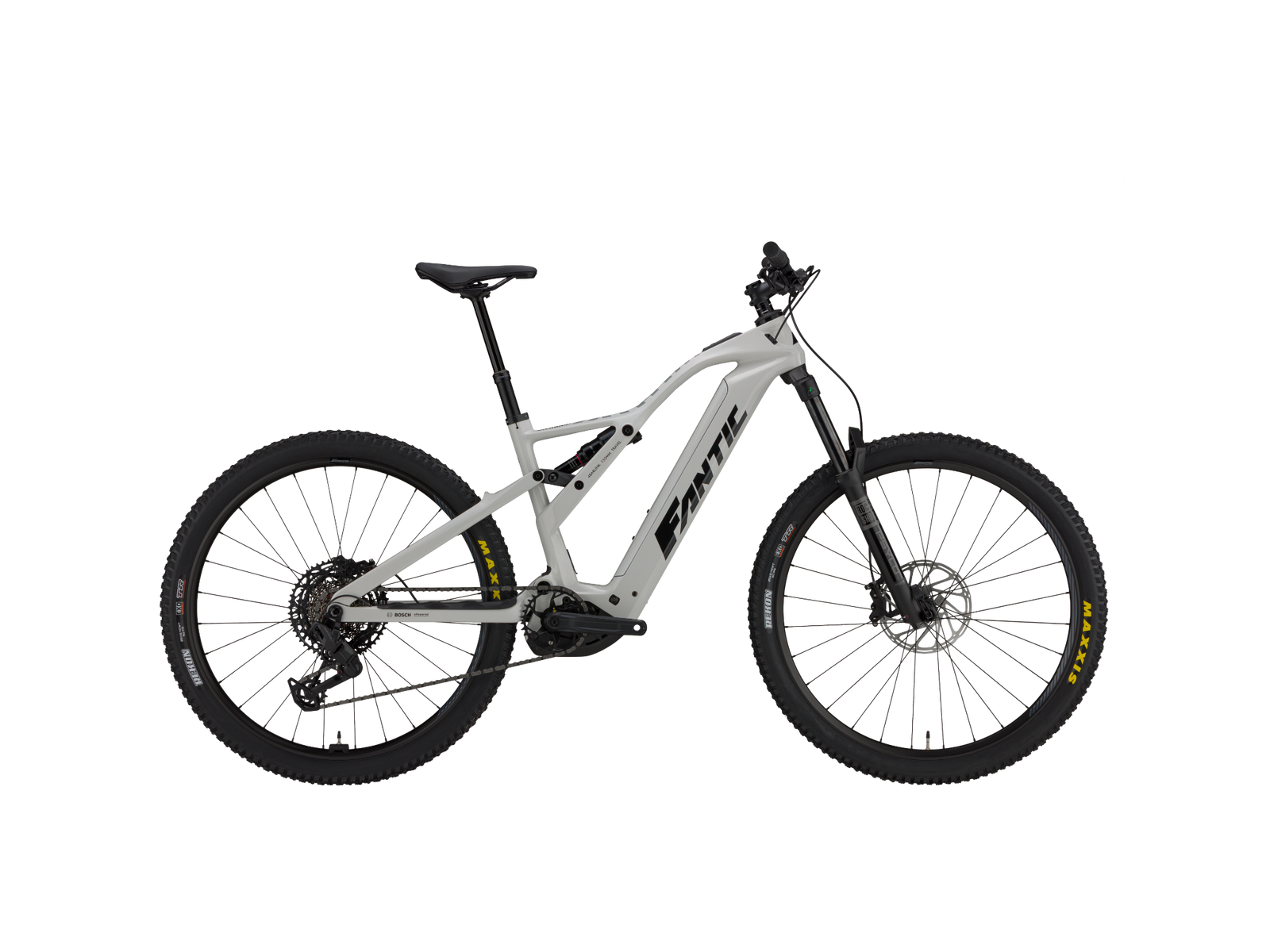

TrailSierra SportBosch CX Gen 5 · 800 Wh · 160 / – mm€5,790

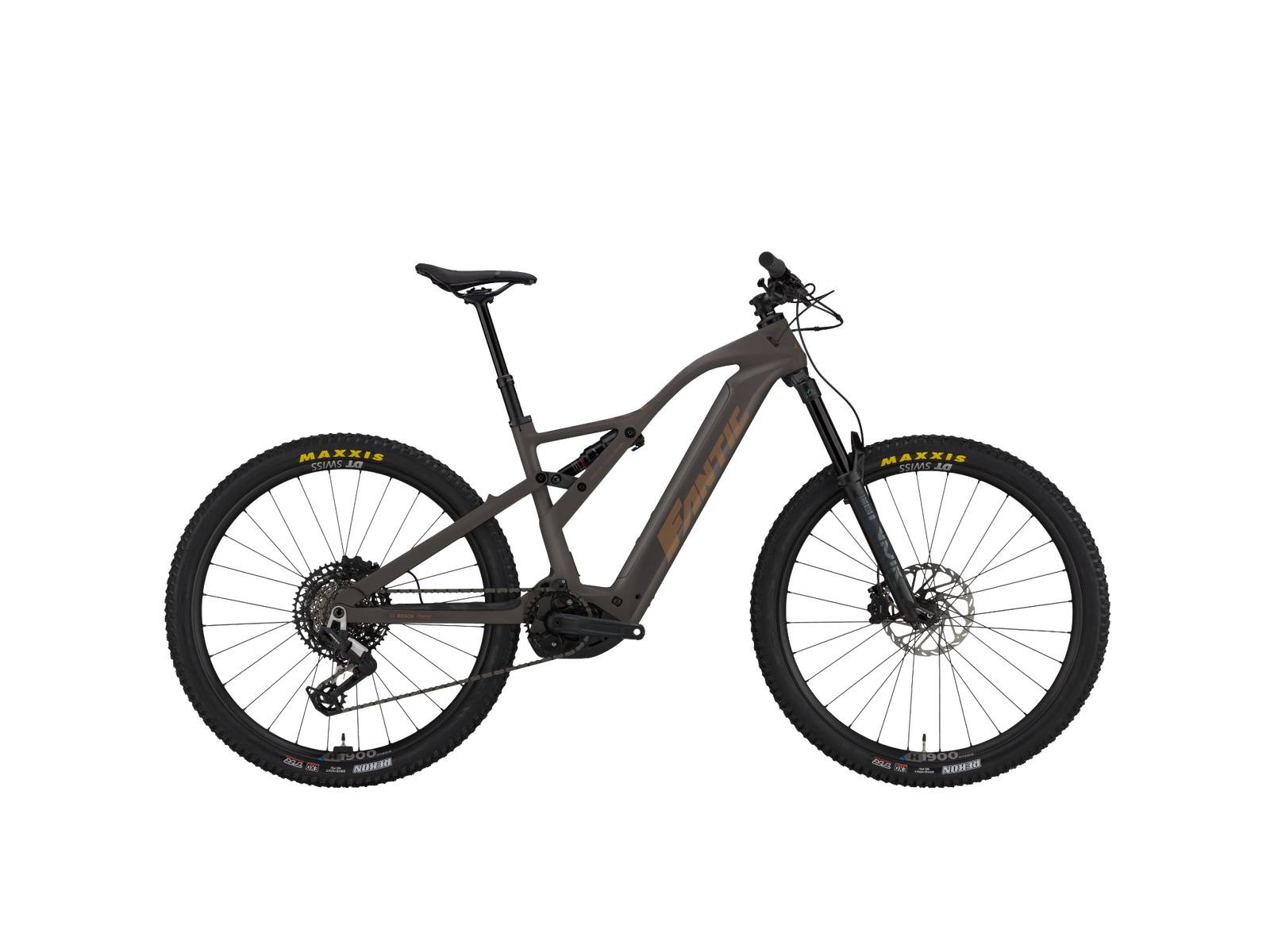

TrailSierra RaceBosch CX Gen 5 · 800 Wh · 160 / – mm€7,490

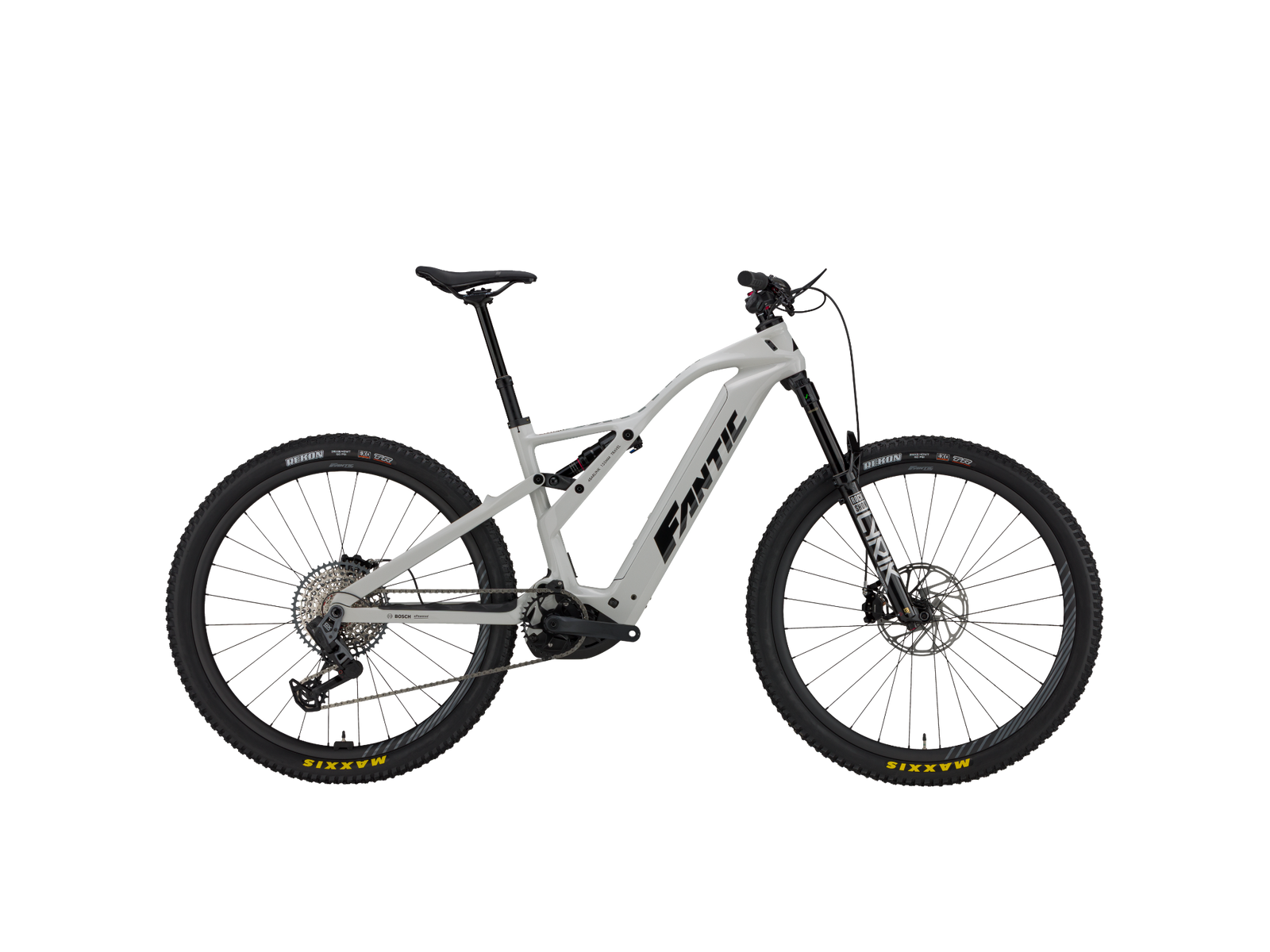

TrailSierra FactoryBosch CX Gen 5 · 800 Wh · 160 / – mm€8,990

Sierra builds compared

	Sierra Sport	Sierra Race	Sierra Factory
Price	€5,790	€7,490	€8,990
Frame	Carbon	Carbon	Carbon
Fork	RockShox Psylo Silver RC 160mm	RockShox Lyrik Select 160mm	RockShox Lyrik Ultimate 160mm
Shock	RockShox Deluxe Select 185x55mm	RockShox Deluxe Select+ 185x55mm	RockShox Deluxe Select+ 185x55mm
Derailleur	Sram Eagle 70 T-Type 12v	Sram Eagle 90 T-Type 12v	GX AXS 12 V T-Type
Brakes	Sram DB6	Sram Maven	Sram Maven Silver
Display	System controller	Kiox 400	Kiox 400

Sierra geometry

Size	S	M	L	XL
1Seat Tube Length	390 mm	430 mm	469 mm	510 mm
2Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
3Reach	429 mm	449 mm	477 mm	501 mm
4Stack	617 mm	623 mm	636 mm	650 mm
5Top Tube Length	576 mm	597 mm	629 mm	656 mm
6Head Tube Angle	65°	65°	65°	65°
7Head Tube Length	105 mm	110 mm	125 mm	140 mm
8Fork Length	571 mm	571 mm	571 mm	571 mm
9Bottom Bracket Drop	22 mm	22 mm	22 mm	22 mm
10Bottom Bracket Height	355 mm	355 mm	355 mm	355 mm
11Standover Height	754 mm	768 mm	776 mm	785 mm
12Wheelbase	1203 mm	1225 mm	1260 mm	1290 mm
13Chainstay Length	448.5 mm	448.5 mm	448.5 mm	448.5 mm
