FanticSierra Race
- Motor
- Bosch Performance Line CX Gen 5120 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 160 / – mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Fantic Sierra Race (€7,490) is a mid-range build of the Sierra: Bosch Performance Line CX Gen 5 with 800 Wh, RockShox Lyrik Select 160mm fork, RockShox Deluxe Select+ 185x55mm shock, Sram Eagle 90 T-Type 12v and Sram Maven brakes.
The Sierra is Fantic's MY26 full-carbon trail e-MTB. It uses the Bosch Performance Line CX Gen 5 motor (120 Nm) with an 800 Wh Bosch PowerTube battery, 29-inch wheels and a 160 mm RockShox fork on all builds.
The rear end is a coaxial Horst-link design with a play-compensation insert in the rear triangle, and a flip chip offers two geometry settings, including the option of a mullet setup. Fantic lists sizes S to XL.
- Full-carbon frame, coaxial Horst link
- Bosch CX Gen 5, 120 Nm, 800 Wh
- 160 mm RockShox fork, 29" wheels
- Flip chip, mullet option

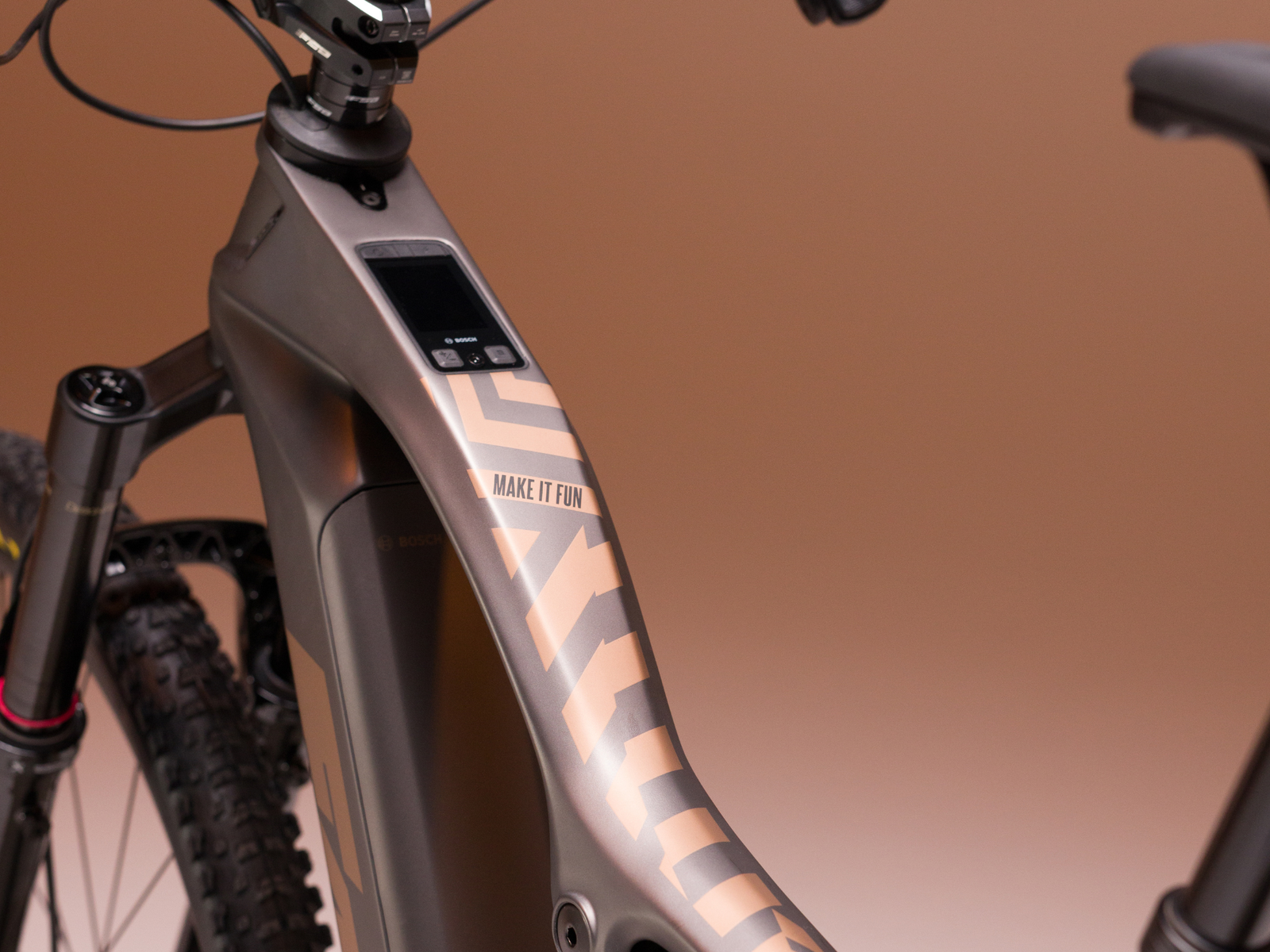

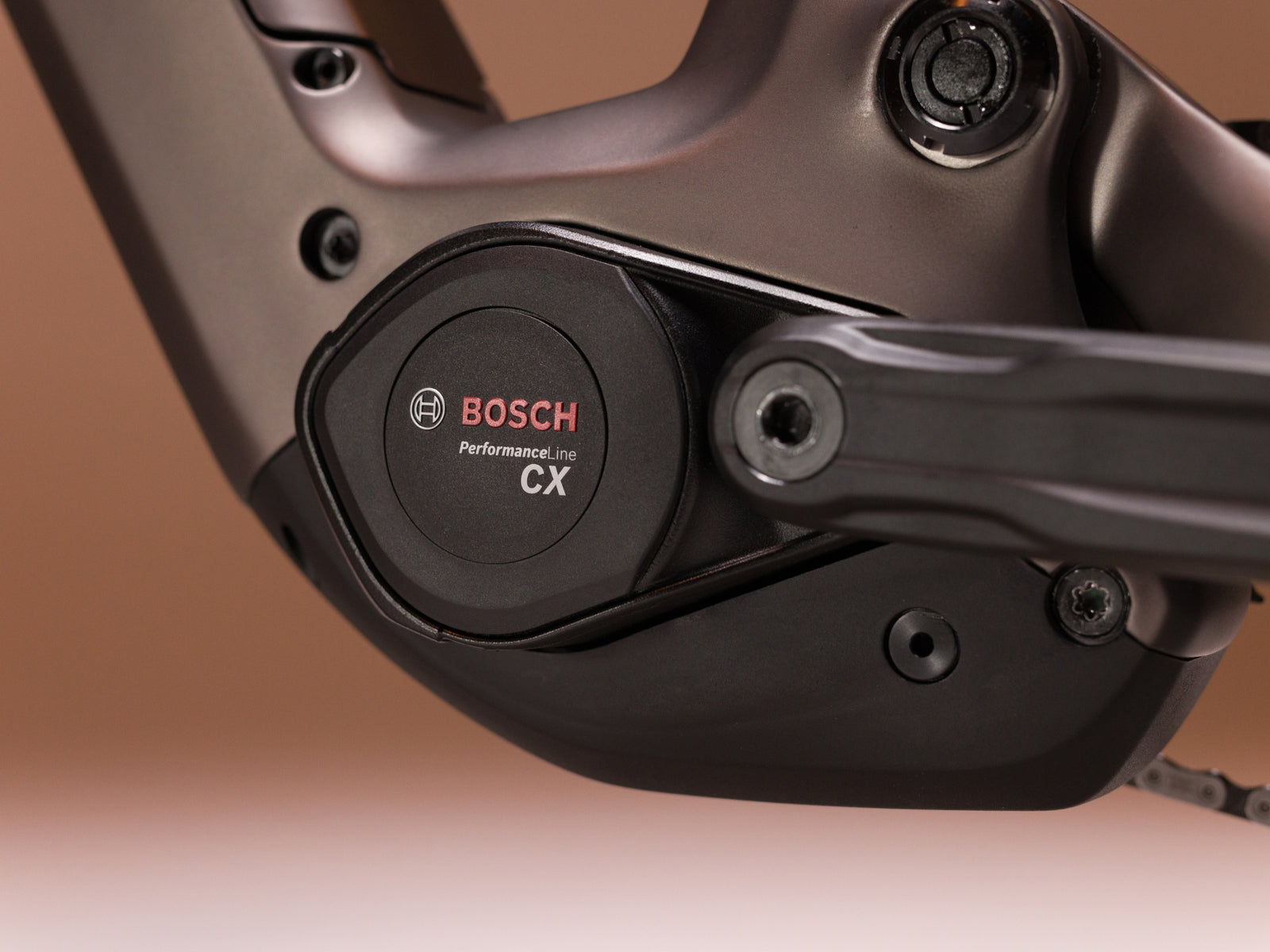

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Premium carbon fibre throughout the frame (optimised stiffness and weight)
- Rear shock
- RockShox Deluxe Select+ 185x55mm
- Fork
- RockShox Lyrik Select 160mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- Bosch PowerTube 800Wh
- Motor
- Bosch Performance Line CX Gen 5
- Display
- Kiox 400
- Remote
- Wireless remote mini
Drivetrain
- Crankset
- Sram 34T T-type
- Crank arm
- FSA CK758/IS 165mm
- Shifter
- Sram Eagle 90 12V SINGLE CLICK MMX
- Rear derailleur
- Sram Eagle 90 T-Type 12v
- Chain
- Sram Eagle 90 T-Type 12V
- Cassette
- Sram Eagle 70/90 T-Type 12V 10-52T
Brakes
- Brakes
- Sram Maven
- Brake rotors
- Sram CLEANSWEEP 180/200mm
Wheels & tyres
- Wheelset
- DT Swiss H1900
- Tyres
- Maxxis Rekon 29x2,4
Cockpit
- Handlebar
- Fantic Racing Aluminum 780mm-ø31,8 RISE15
- Stem
- Fantic Racing Aluminum 60mm-31,8 RISE6°
Other
- Seatpost
- Telescopic Fantic Racing ø31,6
- Saddle
- San Marco Ground Short
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Sierra geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 390 mm | 430 mm | 469 mm | 510 mm |
| 2Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| 3Reach | 429 mm | 449 mm | 477 mm | 501 mm |
| 4Stack | 617 mm | 623 mm | 636 mm | 650 mm |
| 5Top Tube Length | 576 mm | 597 mm | 629 mm | 656 mm |
| 6Head Tube Angle | 65° | 65° | 65° | 65° |
| 7Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm |
| 8Fork Length | 571 mm | 571 mm | 571 mm | 571 mm |
| 9Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| 10Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| 11Standover Height | 754 mm | 768 mm | 776 mm | 785 mm |
| 12Wheelbase | 1203 mm | 1225 mm | 1260 mm | 1290 mm |
| 13Chainstay Length | 448.5 mm | 448.5 mm | 448.5 mm | 448.5 mm |
Source: Fantic.
Sierra: builds compared
Sierra range →| Sierra Sport | Sierra Race | Sierra Factory | |
|---|---|---|---|
| Price | €5,790 | €7,490 | €8,990 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox Psylo Silver RC 160mm | RockShox Lyrik Select 160mm | RockShox Lyrik Ultimate 160mm |
| Shock | RockShox Deluxe Select 185x55mm | RockShox Deluxe Select+ 185x55mm | RockShox Deluxe Select+ 185x55mm |
| Derailleur | Sram Eagle 70 T-Type 12v | Sram Eagle 90 T-Type 12v | GX AXS 12 V T-Type |
| Brakes | Sram DB6 | Sram Maven | Sram Maven Silver |
| Display | System controller | Kiox 400 | Kiox 400 |
Sierra Race: FAQ
How much does the Fantic Sierra Race cost?
€7,490 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Sierra range runs from €5,790 (Sierra Sport) to €8,990 (Sierra Factory). Prices vary by country and dealer.
What motor and battery does the Fantic Sierra Race have?
Bosch Performance Line CX Gen 5 (120 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Fantic Sierra Race have?
160 mm at the fork, on 29" wheels.
What sizes does the Fantic Sierra Race come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Sierra Race and the Sierra Factory?
They share the Sierra frame platform and motor; the differences are in the parts — fork: RockShox Lyrik Select 160mm vs RockShox Lyrik Ultimate 160mm; derailleur: Sram Eagle 90 T-Type 12v vs GX AXS 12 V T-Type; price: €7,490 vs €8,990.
