EXTVecta

€749 EU RRP, spring sold separately (USD 775)

Type: Coil, piggyback
Adjustments: HSC, LSC, rebound + LOK 2.0
Bottom-out: Factory-tuned HBC
Mounts: Metric standard / trunnion
Weight: 477 g (no spring)
Weight: 477 g210×55 mm, without spring, claimed

Overview

EXT Vecta: 3-way adjustable coil enduro/trail shock with factory-tuned HBC and LOK 2.0, 477 g without spring, priced at EUR 749.

Vecta is EXT's more accessible coil shock for enduro and trail riders, bringing the brand's performance, durability, 5-year warranty and styling into a more streamlined package. It uses the same compression valve as the V4 series, adjustable with common 5 mm and 4 mm Allen keys.

It is 3-way adjustable (high- and low-speed compression plus rebound), with a factory-tuned HBC bottom-out control for riders who want performance without extensive tuning, and the LOK 2.0 pedalling circuit tunable by its own shim stack. EXT recommends Vecta, alongside E-Storia, for MTBs and e-MTBs with yoke linkages.

3-way adjustable: HSC, LSC and rebound
Factory-tuned HBC and LOK 2.0 circuit
Same compression valve as the V4 series
Recommended by EXT for MTB/e-MTB yoke linkages
477 g (210×55, no spring); EUR 749

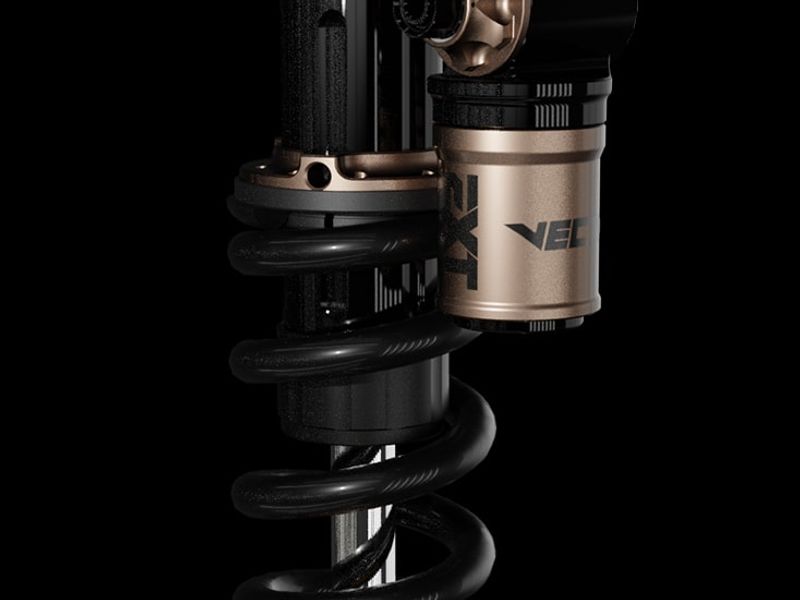

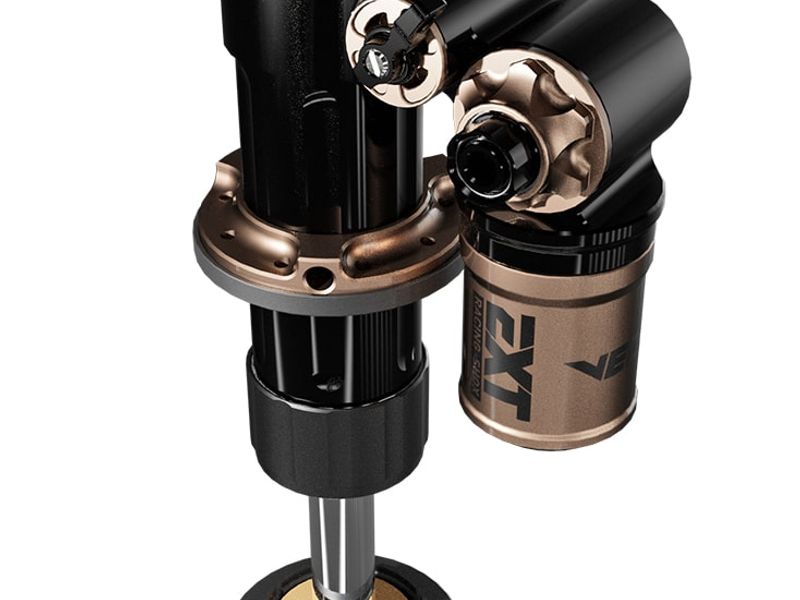

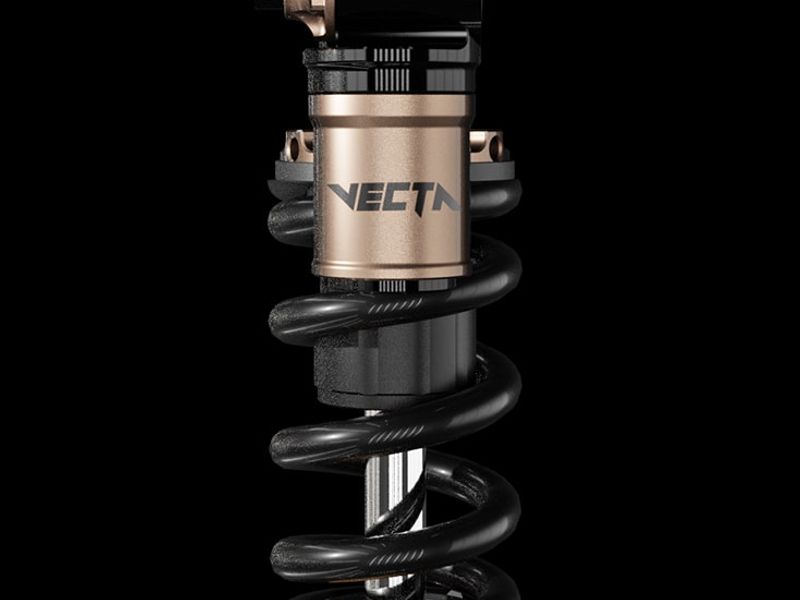

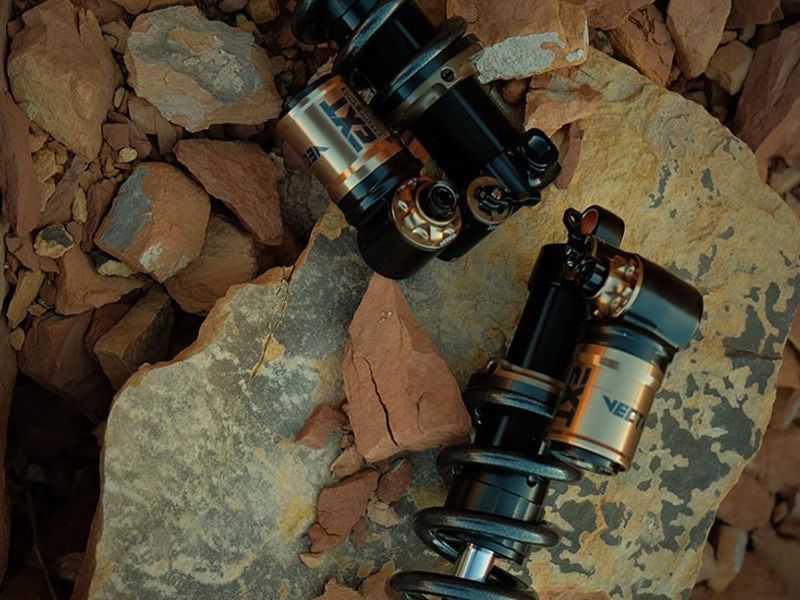

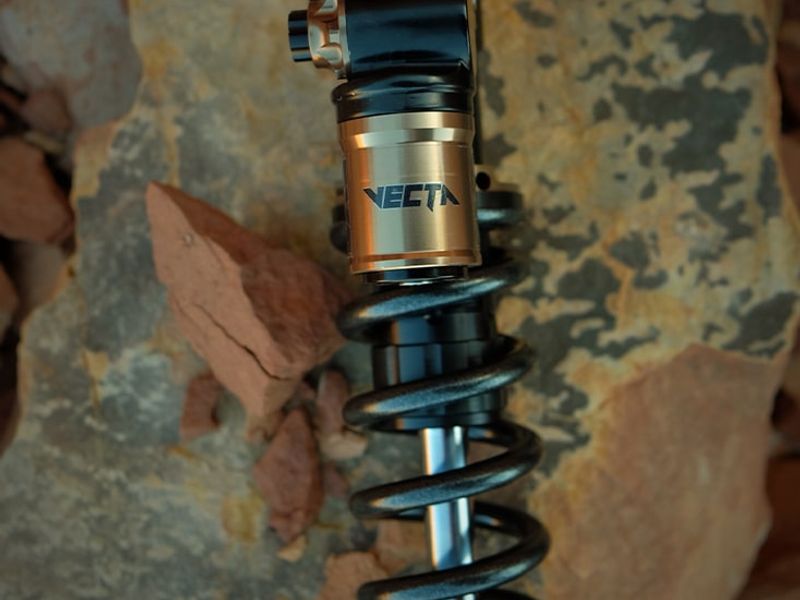

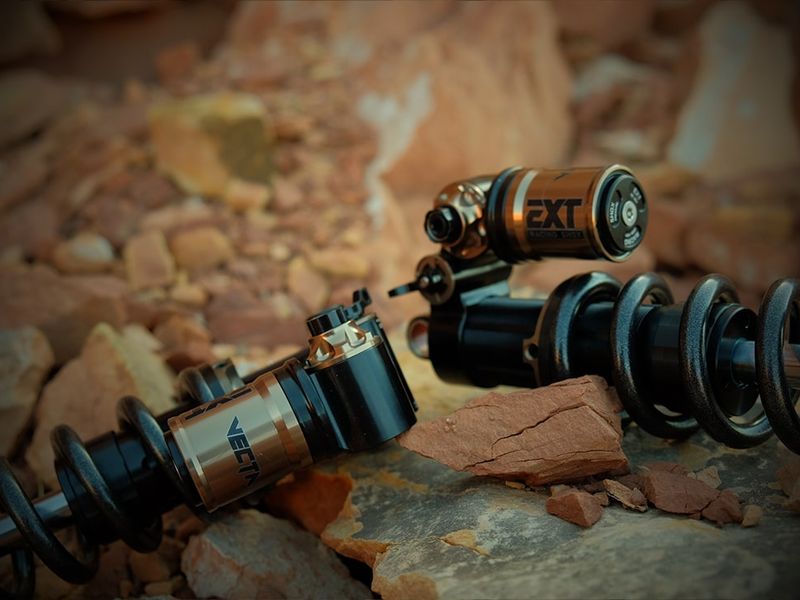

Gallery

Full specifications

Damper

Adjustments: 3-way: high- and low-speed compression, rebound (monotube)
Compression valve: Same as V4; 5 mm and 4 mm Allen keys
Bottom-out: Factory-set HBC
Lockout: LOK 2.0, separate circuit tunable by its own shim stack
Valving: High turbulent flow valves, no cavitation
Fluid: EV2S
Reservoir: Large-volume bladder, 55 psi

Chassis

Shaft: Ø14 mm hard chrome-moly
Body: New main tube coating for wear resistance

Spring

Spring: Coil, sold separately; harder negative spring against top-out knock; spring thrust bearings

Compatibility

Metric standard: 210/47.5–55, 230/57.5–65, 250/67.5–75 mm (2.5 mm steps)
Metric trunnion: 185/47.5–55, 205/57.5–65, 225/67.5–75 mm (2.5 mm steps)
Yoke linkages: Recommended by EXT for MTBs/e-MTBs with a yoke

General

Warranty: 5 years (2-year legal + 3-year Fiveplus extension)

Manufacturer specification — EXT. Specs and prices can change; check with the brand or your dealer.

EXT Vecta: FAQ

How much does the EXT Vecta cost?

€749 (EU RRP, spring sold separately (USD 775)). Prices vary by country and retailer.

How much does the EXT Vecta weigh?

EXT quotes 477 g (210×55 mm, without spring, claimed).

Is the EXT Vecta suitable for e-bikes?

EXT does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.

What are the key specs of the EXT Vecta?

Type: Coil, piggyback; Adjustments: HSC, LSC, rebound + LOK 2.0; Bottom-out: Factory-tuned HBC; Mounts: Metric standard / trunnion; Weight: 477 g (no spring).
