EXTE-Storia
€1,100 EU RRP, spring sold separately (listed as 1100,00 €/$)
- Type
- Coil, integrated reservoir
- Adjustments
- LSC, HSC, LSR, LOK + HBC
- Mounts
- Metric standard / trunnion
- E-bike rated
- Yes (e-bike dedicated)
- Weight
- 800 g incl. spring
- Weight
- 800 g230×65 mm, including C65 spring, claimed
Overview
EXT E-Storia: e-bike dedicated coil shock, 4-way adjustable with LOK and adjustable HBC, 800 g with spring (230×65), priced at EUR 1,100.

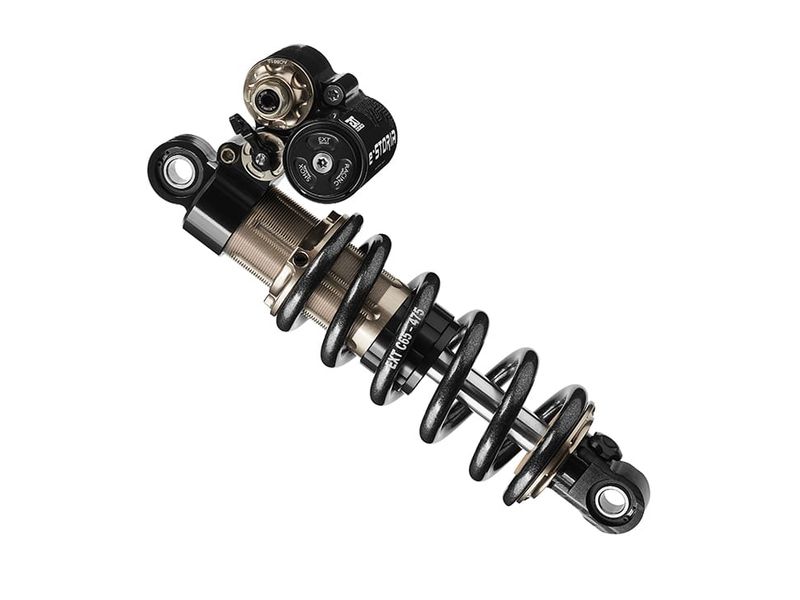

The E-Storia is EXT's e-bike dedicated coil shock. It carries much of the Storia V3's technology in a more robust package built for the stresses of heavier e-bikes, with an emphasis on toughness and reliability over shocks without dedicated e-bike construction. EXT says the stronger design can also help extend the life of frame components and widens the tuning range for different bikes and riders.
It is 4-way adjustable (LSC, HSC, LSR and the proprietary LOK system) and adds an externally adjustable HBC, an integrated reservoir head with a large-volume bladder, a dedicated spring platform for stiffer springs and a chrome-moly shaft with low-friction coating. EXT recommends it, alongside Vecta, for bikes with yoke linkages.
- E-bike dedicated coil shock with stronger body construction
- 4-way adjustable: LSC, HSC, LSR and LOK
- Externally adjustable HBC bottom-out control
- Dedicated spring platform for stiffer springs
- EUR 1,100 RRP (spring separate)
Gallery
Full specifications
Chassis
- Body

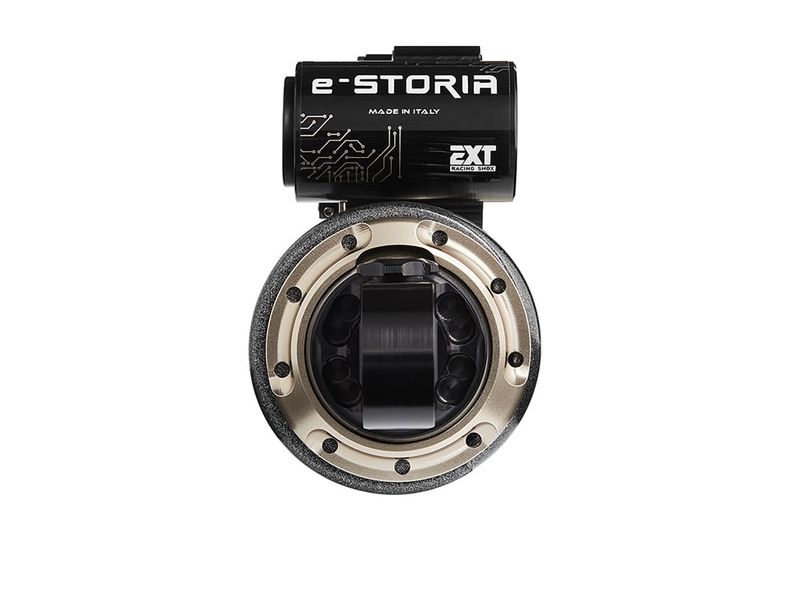

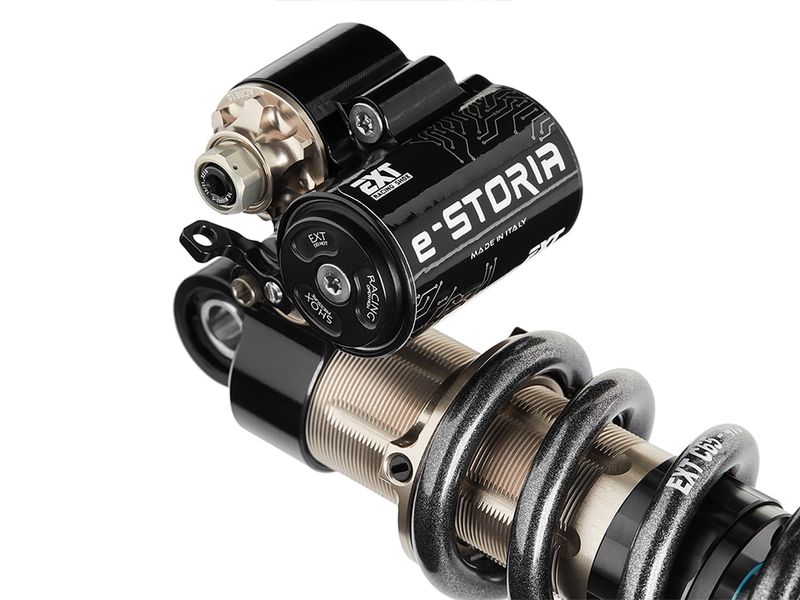

- Stronger body construction; integrated reservoir head design
- Shaft
- Chrome-moly with low-friction coating
Damper
- Adjustments

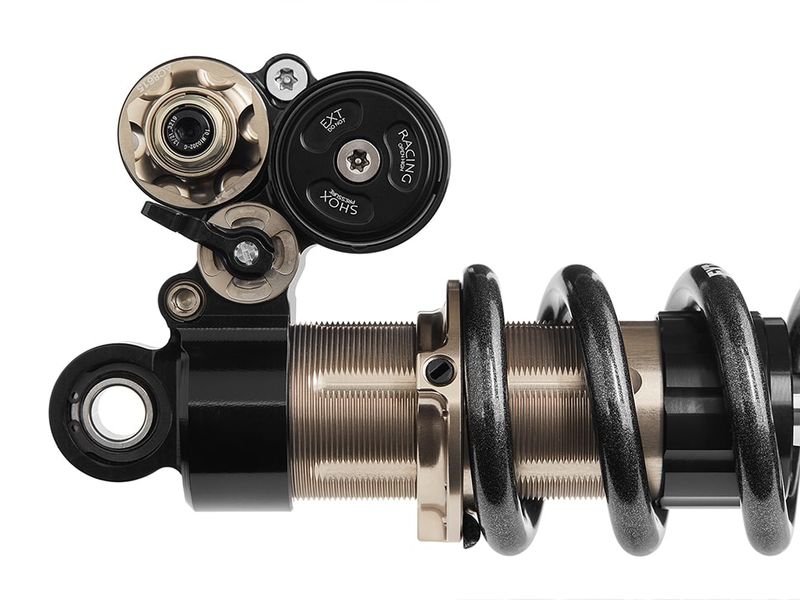

- 4-way (LSC, HSC, LSR, LOK proprietary system); completely independent bump/rebound
- Bottom-out
- New externally adjustable HBC
- Reservoir
- Large-volume bladder
- Valving
- Turbulent-flow valves, no cavitation, very low hysteresis; low-inertia check valve; high-flow main piston
- Fluid
- High viscosity index oil
Spring
- Spring

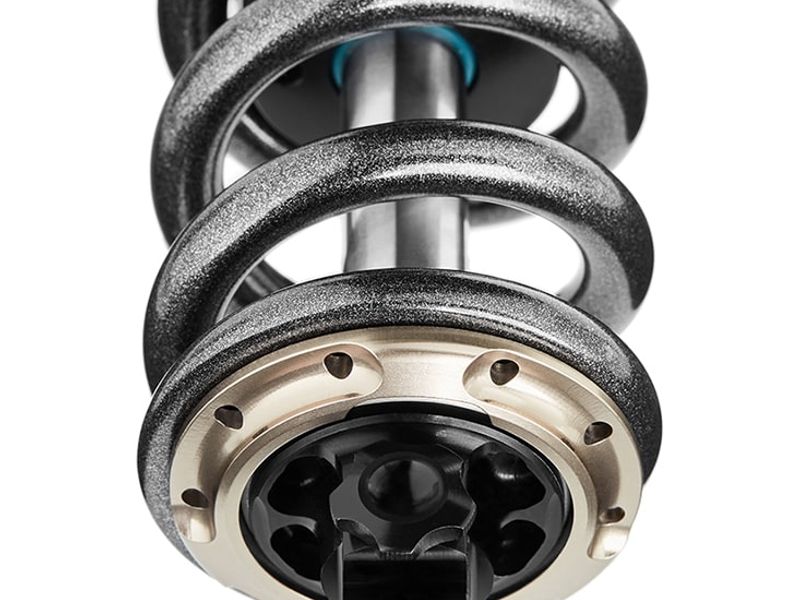

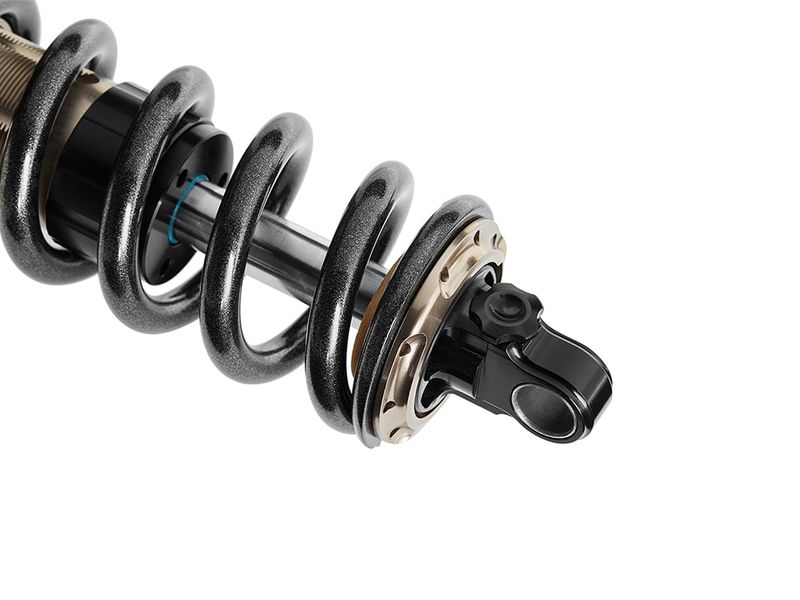

- Coil, sold separately; dedicated platform for stiffer springs; negative spring against top-out
Compatibility
- Metric standard
- 210/50–55, 230/57.5–65, 250/67.5–75 mm (2.5 mm steps)
- Metric trunnion
- 185/50–55, 205/57.5–65, 225/67.5–75 mm (2.5 mm steps)
General
- Intended use
- E-bikes; recommended for yoke linkages
- Warranty
- 5 years (2-year legal + 3-year Fiveplus extension)
Manufacturer specification — EXT. Specs and prices can change; check with the brand or your dealer.
EXT Storia versions compared
| Storia V4 | E-Storia | |
|---|---|---|
| Price | €1,100 | €1,100 |
| Type | Coil, piggyback | Coil, integrated reservoir |
| Adjustments | LSC, HSC, LSR, HBC + LOK 2.0 | LSC, HSC, LSR, LOK + HBC |
| Mounts | Metric standard / trunnion | Metric standard / trunnion |
| Shaft | Ø14 mm DLC-coated steel | — |
| Weight | 397 g (no spring) | 800 g incl. spring |
| E-bike rated | — | Yes (e-bike dedicated) |
| Weight | 397 g | 800 g |
EXT E-Storia: FAQ
How much does the EXT E-Storia cost?
€1,100 (EU RRP, spring sold separately (listed as 1100,00 €/$)). Prices vary by country and retailer.
How much does the EXT E-Storia weigh?
EXT quotes 800 g (230×65 mm, including C65 spring, claimed).
Is the EXT E-Storia suitable for e-bikes?
Yes — EXT lists it as e-bike rated or e-bike specific.
What are the key specs of the EXT E-Storia?
Type: Coil, integrated reservoir; Adjustments: LSC, HSC, LSR, LOK + HBC; Mounts: Metric standard / trunnion; E-bike rated: Yes (e-bike dedicated); Weight: 800 g incl. spring.
What other versions of the EXT Storia are there?
Storia V4 (€1,100).
